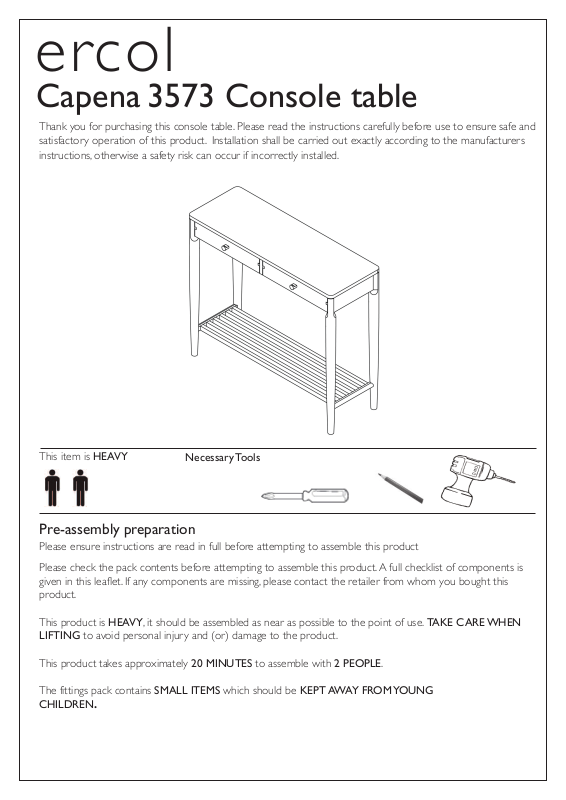

ercol
Capena 3573 Console table
Thank you for purchasing this console table . Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product.
instructions, otherwise a safety risk can occur if incorrectly installed.
Installation shall be carried out exactly according to the manufacturers
This item is HEAVY
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the retailer from whom you bought this
product.
This product is HEAVY, it should b
LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 20 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
Necessary Tools
e assembled as near as possible to the point of use. TAKE CARE WHEN
ercol
Wall fixing instructions
Thank you for purchasing this ercol product.
Please read the instructions carefully before use to ensure safe and satisfactory operation of this product.
Installation shall be carried out exactly according to the manufacturer’s instructions, otherwise a safety risk can
occur if incorrectly installed.
WARNING: In order to prevent overturning this product must be used with the wall attachment device provided.
Fittings and parts checklist
B
Wall f ixing - if in doubt seek professional advice
1. See Fig. 1. Screw one of the brackets on to the back of the chest in the middle, using the short screws
provided. Make sure the top of the bracket is below the top of the chest. Position the chest against the wall
where you want it to go, place the second bracket onto the wall below the one fixed to chest and mark where
the holes come on the wall. Move the chest away from the wall.
2.
Attach the wall bracket using screws suitable for your type of wall, see Wall fixings above.
3. Place the chest back against the wall so the two brackets match up and tie them together with the plastic strap
provided. The plates need not match exactly, but the plastic tie must go through each plate. Close the strap,
but do not over tighten it. See Fig. 3.
4. If the chest is not level on your floor use the wedges provided, and snap them off so that they
do no Protrude out from the cabinet’s legs , you can also snap them lengthways if desired.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com
