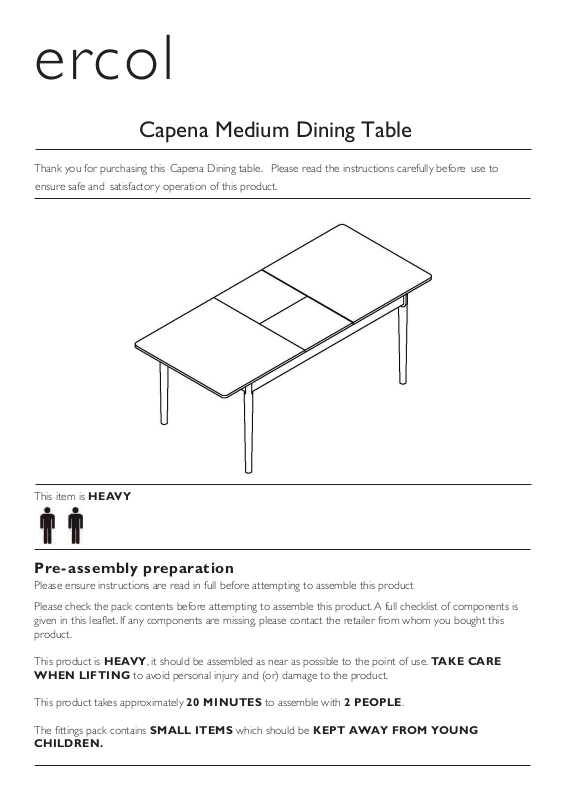

Capena Medium Dining Table
Thank you for purchasing this Capena Dining table. Please read the instructions carefully before use to
ensure safe and satisfactory operation of this product.
This item is HEAVY
Pre- assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the retailer from whom you bought this
product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAK E CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 20 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FR OM YOUNG
CHILDREN .
1
2
Table top
Table legs
x 1
x 4
B
C
Bolt x 8
Locking washer x 8
A
Allen Key
x 1
D
Flat washer x 8
Step by step assembly instructions
Two people maybe necessary to carefully turn the table top face down onto a smooth
1.
soft surface such as carpet
and washers ( locking washer first) into the legs through the holes on the end rail of the table top.
When ALL bolts and washers are in place, finger tight. Repeat with the three other legs.
. Put one leg to the table top and matching the holes, secure the bolts
lift the table and turn it over. taking care not to turn the table over on two legs as this may cause damage.
ylluferac nosrep rehtona fo dia eht htiW ,yvaeh yrev si elbat siht e take care saelP ,sgel eht ing lbmessa retfA .2
3. Grasp the corners of one side of the table top and pull out. Then take out the extension leaf on the table
frame making sure the holes on the leaf align with
secure using the two metal clips underneath the table
the pins on the table top.then push it back together and
top. Do the reverse to close the table.
Note the extension leaf can be stored FACE UPWARDS on the frame
underneath the tabl
e.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
