L’esprit Modem
User Guide
GenPro 53e
Reference
Revision : 003
: 05/07/2011
Date
S.A. ERCO & GENER – ZI de St. Lambert-des-Levées – BP 30163 – F-49412 SAUMUR Cedex
Tél. : +33 (0)2 41 83 13 00 – Fax : +33 (0)2 41 67 19 20 – www.ercogener.com – infos@ercogener.com
SA CAPITAL 200873 € – R.C. SAUMUR B 332 174 820 – SIRET 332 174 820 00032 – NAF 322A – TVA Intra : FR 16 332 174 820
: EG_GenPro53e_1040_UG_003_UK
EG_GenPro53e_1040_UG_003_UK Page 2 / 71
Document History
Révision Modifications Author Date
000 CREATION YST 27/10/10
001
002
003
Updated the location of the connector Micro Fit 16-pins
female (Page 19)
Change pin out of analogic input ANA1 and ANA2
Updating
- the limit of use of the digital input du § 8.2.3.1 Optocoupled Inputs
- the non-guarantee of the battery § 9.3 Care and
maintenance
Updating
- de la désignation EaseLoc_Vx
- § 5.1.3.3 The application ERCO & GENER EasePro_Vx
- § 5.3.1.3 The application ERCO & GENER EasePro_Vx
- § 7.2.2.2 Specifications of the internal battery
- § 9.1 General security
The GenPro 53e AOB becomes the GenPro 53e.
Page 23, the modem does not FAX.
Updating limits
- 8.2.2.3 Buzzer
- § 8.2.3.3 Analog input
Preparation of the modem for storage
- § 5.9 Turning off the modem
- § 7.2.2 Internal battery
- § 8.2.1 Power supply
YST 03/11/10
YST 04/03/11
YST 05/07/11
The main modifications of this document compared to the previous version are easily identifiable on the
screen by the blue color of the text.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 3 / 71
TABLE OF CONTENTS
PRESENTATION ............................................................................................................................................... 7
WARNING ......................................................................................................................................................... 8
COPYRIGHT ..................................................................................................................................................... 9
1 REFERENCES ............................................................................................................................................. 10
1.1 REFERRED DOCUMENTS ........................................................................................................................... 10
1.2 ABBREVIATIONS ....................................................................................................................................... 10
1.3 SYMBOLS ................................................................................................................................................ 12
2 PACKAGING ................................................................................................................................................ 13
2.1 CONTENT ................................................................................................................................................ 13
2.2 PACKING CASE ......................................................................................................................................... 14
2.3 MODEM LABEL ......................................................................................................................................... 14
3 GENERAL PRESENTATION ....................................................................................................................... 15
3.1 DESCRIPTION .......................................................................................................................................... 15
3.1.1 Front side ....................................................................................................................................... 15
3.1.2 Back side ....................................................................................................................................... 15
3.1.3 Fixing brackets ............................................................................................................................... 16
3.2 EXTERNAL CONNECTIONS ......................................................................................................................... 17
3.2.1 Connections ................................................................................................................................... 17
3.2.1.1 Antenna connectors ................................................................................................................ 17
3.2.1.2 Micro FIT connectors .............................................................................................................. 17
3.2.1.3 Audio connector ...................................................................................................................... 19
3.2.2 Cables ............................................................................................................................................ 20
3.2.2.1 4-wire micro FIT cable ............................................................................................................ 20
3.2.2.2 14-wire micro FIT cable .......................................................................................................... 21
3.2.2.3 16-wire micro FIT cable .......................................................................................................... 22
4 CHARACTERISTICS AND SERVICES ........................................................................................................ 23
5 USING THE MODEM ................................................................................................................................... 25
5.1 STARTING WITH THE MODEM ..................................................................................................................... 25
5.1.1 Mounting the modem ..................................................................................................................... 25
5.1.2 Installation of the modem ............................................................................................................... 25
5.1.3 Checking the communication with the modem .............................................................................. 26
5.1.3.1 Without Application ................................................................................................................. 26
5.1.3.2 Standard library ...................................................................................................................... 27
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 4 / 71
5.1.3.3 The application ERCO & GENER EasePro_Vx ..................................................................... 27
5.1.3.4 The owner application ............................................................................................................ 28
5.1.4 SIM card extraction ........................................................................................................................ 28
5.1.6 Hardware reset of the modem ....................................................................................................... 28
5.2 SPECIFIC RECOMMENDATIONS FOR THE USE OF THE MODEM IN VEHICLES .................................................... 28
5.2.1 Recommended connection on the battery of a truck ..................................................................... 29
5.2.2 Technical constraints in trucks ....................................................................................................... 30
5.3 MODEM LEDS ........................................................................................................................................... 31
5.3.1 GSM led ......................................................................................................................................... 31
5.3.1.1 Without application ................................................................................................................. 31
5.3.1.2 With standard library ............................................................................................................... 31
5.3.1.3 The application ERCO & GENER EasePro_Vx ..................................................................... 31
5.3.1.4 The owner application ............................................................................................................ 31
5.3.2 Led 3 .............................................................................................................................................. 31
5.3.3 Led 4 .............................................................................................................................................. 31
5.3.4 Led 5 .............................................................................................................................................. 32
5.3.5 LED 6 ............................................................................................................................................. 32
5.4 ECHO FUNCTION OF THE DEACTIVATED AT COMMANDS .............................................................................. 32
5.5 CHECKING THE QUALITY OF THE GSM RECEPTION SIGNAL .......................................................................... 32
5.6 VERIFICATION OF THE PIN CODE ............................................................................................................... 33
5.7 VERIFICATION OF THE MODEM REGISTRATION ON THE GSM NETWORK ........................................................ 34
5.8 MAIN AT COMMANDS (HAYES) ................................................................................................................ 35
5.9 TURNING OFF THE MODEM ........................................................................................................................ 36
5.10 MODEM UPDATING PROCEDURE .............................................................................................................. 36
6 TROUBLE SHOOTING................................................................................................................................. 37
6.1 PROBLEM OF COMMUNICATION BETWEEN THE MODEM AND THE RS232 LINK (V24) ..................................... 37
6.2 "ERROR" MESSAGE ................................................................................................................................ 38
6.3 "NO CARRIER" MESSAGE ....................................................................................................................... 38
7 FUNCTIONAL DESCRIPTION ..................................................................................................................... 40

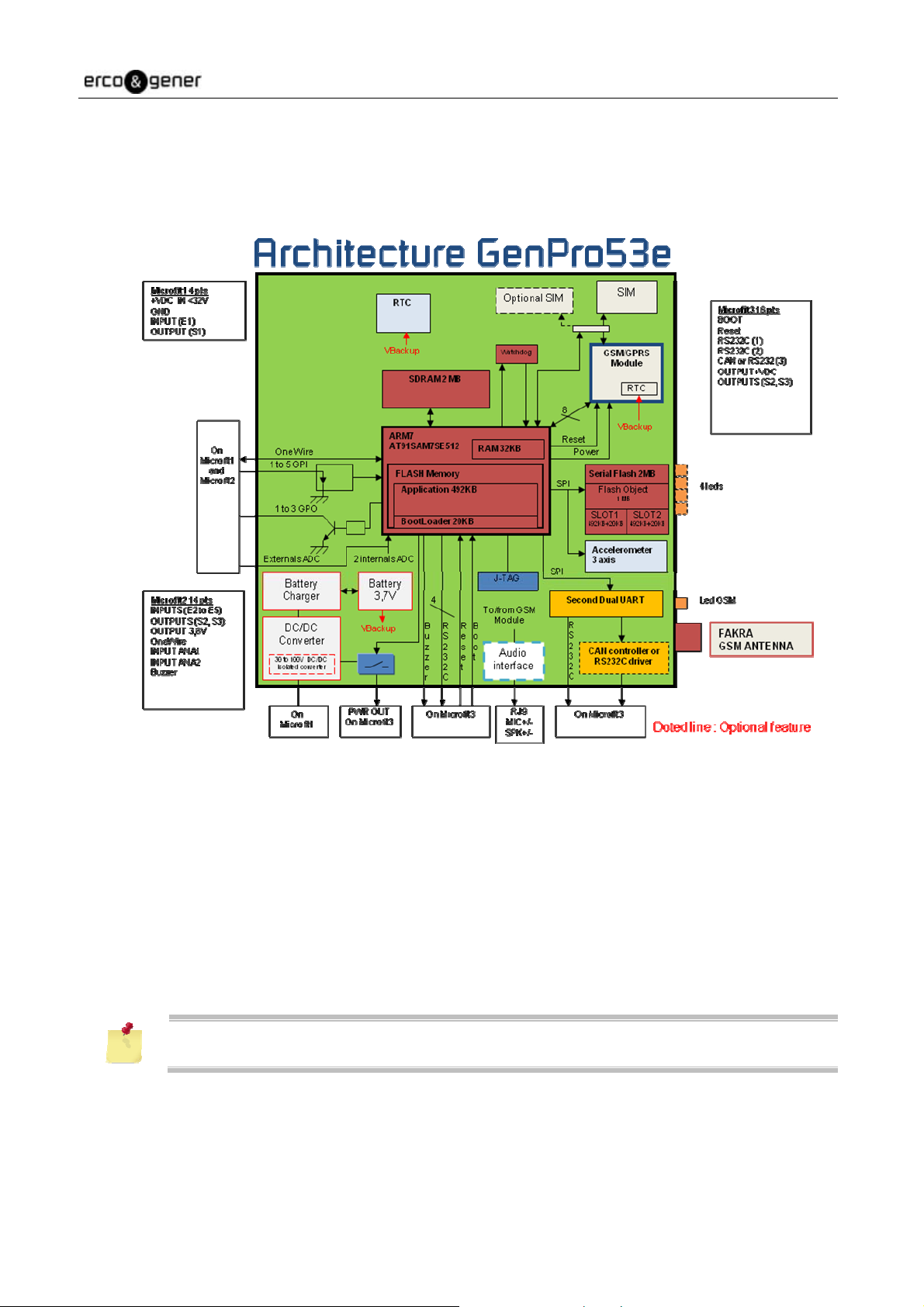

7.1 ARCHITECTURE ........................................................................................................................................ 40
7.2 POWER SUPPLY ....................................................................................................................................... 40
7.2.1 General presentation ..................................................................................................................... 40
7.2.2 Internal battery ............................................................................................................................... 41
7.2.2.1 Presentation of the internal battery ........................................................................................ 41
7.2.2.2 Specifications of the internal battery ...................................................................................... 41
7.2.2.3 Charge voltage and supply voltage ........................................................................................ 41
7.2.2.4 Indication of presence/absence of the external power supply ............................................... 42
7.2.2.5 Instructions and restrictions of use ......................................................................................... 42
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 5 / 71
7.2.3 Protections of the power supply ..................................................................................................... 43
7.3 RS232 SERIAL LINK ................................................................................................................................. 43
7.3.1 General Presentation ..................................................................................................................... 43
7.3.2 Serial link RS232_0 ....................................................................................................................... 43
7.3.3 Serial link RS232_1 ....................................................................................................................... 44
7.3.4 Serial link RS232_2 / Bus CAN ..................................................................................................... 45
7.3.4.1 RS232_2 ................................................................................................................................. 45
7.3.4.2 Bus CAN ................................................................................................................................. 46
7.4 INPUTS/OUTPUT FUNCTIONING .................................................................................................................. 46
7.4.1 Management of logical outputs ...................................................................................................... 47
7.4.2 Management of logical inputs ........................................................................................................ 47
7.4.3 Management of analog inputs ....................................................................................................... 48
7.5 OPTION 2 SIM CARD READER ................................................................................................................. 48
ND
7.6 BOOT ..................................................................................................................................................... 48
7.7 RESET ................................................................................................................................................... 48
7.7.1 General presentation ..................................................................................................................... 48

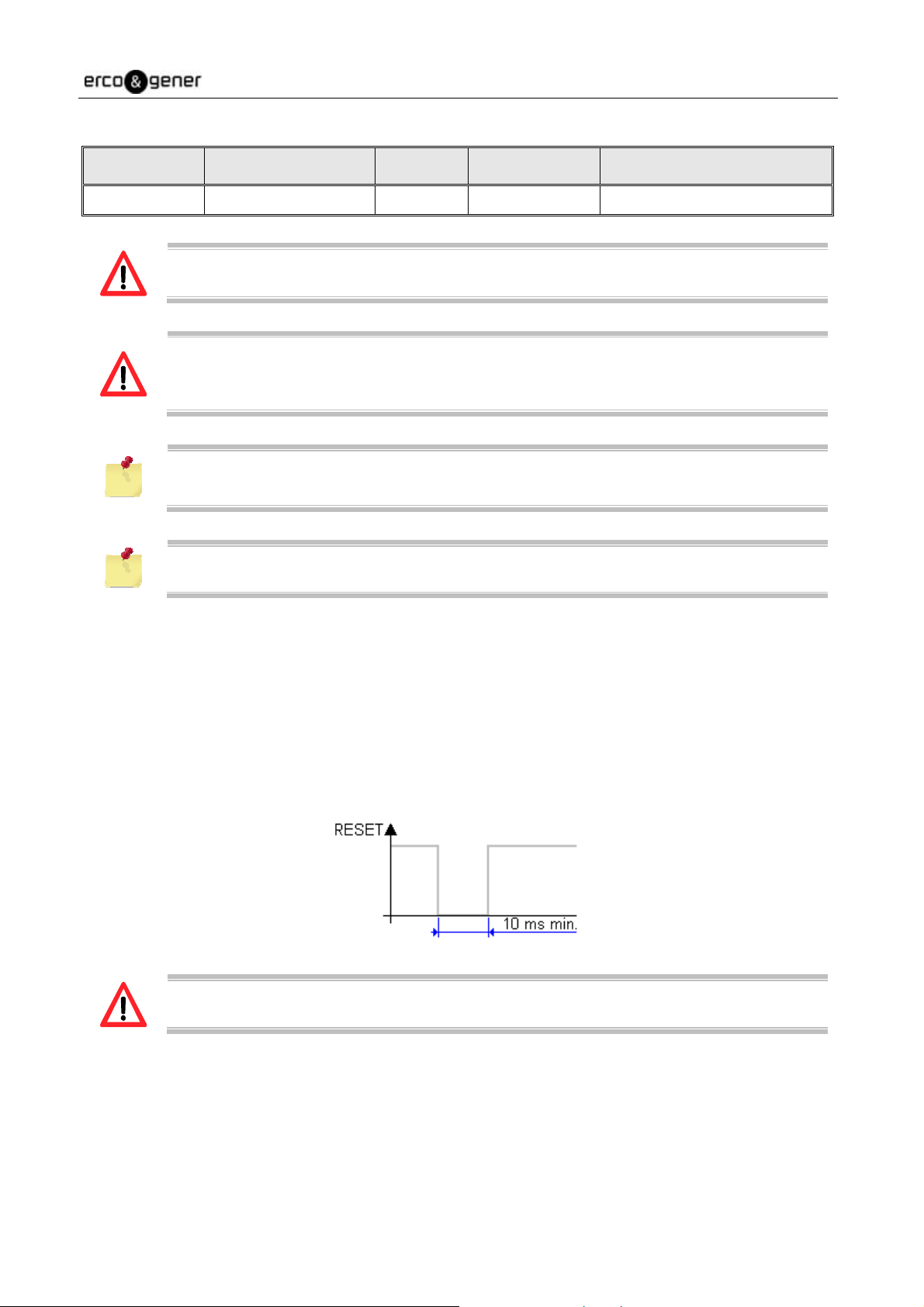

7.7.2 RESET Sequence .......................................................................................................................... 49
7.8 WATCHDOG ............................................................................................................................................ 50
7.9 AUDIO ..................................................................................................................................................... 50
7.9.1 Microphone inputs .......................................................................................................................... 50
7.9.2 Loud-speaker outputs (Speaker) ................................................................................................... 51
7.9.3 Buzzer outputs ............................................................................................................................... 51
7.10 ACCELEROMETER .................................................................................................................................. 52
7.11 INTERNAL PROCESSOR ........................................................................................................................... 52
7.11.1 EGM presentation ........................................................................................................................ 52
7.12.2 EGM architecture ......................................................................................................................... 53
8 TECHNICAL CHARACTERISTICS .............................................................................................................. 54
8.2 ELECTRICAL CHARACTERISTICS ................................................................................................................ 55
8.2.1 Power supply ................................................................................................................................. 55
8.2.1.1 Consumption of the board with battery charged ..................................................................... 56
8.2.1.2 Consumption of the board with battery charging .................................................................... 56
8.2.1.3 Consumption of the RS 232 ................................................................................................... 57
8.2.1.4 Consumption of the GSM module .......................................................................................... 57
8.2.2 Audio interface ............................................................................................................................... 58
8.2.2.1 Microphone ............................................................................................................................. 58
8.2.2.2 Loudspeaker ........................................................................................................................... 59
8.2.2.3 Buzzer ..................................................................................................................................... 60
8.2.3 Inputs/Output ................................................................................................................................. 61
8.2.3.1 Opto-coupled inputs ............................................................................................................... 61
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 6 / 71
8.2.3.2 Output ..................................................................................................................................... 62
8.2.3.3 Analog input ............................................................................................................................ 63
8.2.4 SIM interface .................................................................................................................................. 63
8.2.5 Option 2 SIM interface ................................................................................................................ 63
nd
8.2.6 RESET signal ................................................................................................................................. 64
8.2.7 Characteristics of the RS232 serial links ....................................................................................... 64
8.2.8 RF GSM/DCS characteristics ........................................................................................................ 65
8.2.8.1 RF functioning ........................................................................................................................ 65
8.2.8.2 GSM external antenna ............................................................................................................ 65
8.2.9 Power supply 3.8 V ........................................................................................................................ 66
8.2.10 Power_Out power supply ............................................................................................................. 66
8.2.11 Option 100V power supply ........................................................................................................... 66
8.3 ENVIRONMENTAL CHARACTERISTICS ......................................................................................................... 66
8.4 STANDARDS/CONFORMITIES ..................................................................................................................... 67
9 SECURITY RECOMMENDATIONS ............................................................................................................. 68
9.1 GENERAL SECURITY ................................................................................................................................. 68
9.2 SECURITY IN A VEHICLE ............................................................................................................................ 69
9.3 CARE AND MAINTENANCE ......................................................................................................................... 69
9.4 YOUR RESPONSIBILITY ............................................................................................................................. 69
10 RECOMMENDED ACCESSORIES ............................................................................................................ 70
11 CLIENT SUPPORT ..................................................................................................................................... 70
DECLARATION OF CONFORMITY ................................................................................................................ 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 7 / 71
Presentation
Entirely dedicated to the wireless markets throughout the world, the GenPro 53e (Application On Board)
allows a simple and rapid integration of GSM / GPRS Quad-Band (850/900/1800/1900 MHz) connectivity into
M2M applications.
The GenPro 53e is a robust, reliable and long life product. Its very compact metal case makes it ideally
adapted to onboard standards.
The modem is Quad-Bands (850/900/1800/1900 MHz) GSM/GPRS Class 10 or EDGE*.
The GenPro 53e has 3 operating modes:
External mode (standard): The driving is made by an external application. The modem is used with
the AT commands set (see Commands List EG_EasePro_Vx_CL_yyy_UK of ERCO & GENER).
Autonomous mode (optional): Once configured, the modem is autonomous, it cyclically registers the
positions and tranmits them automatically to the client’s application via different services: SMS, GSM
Data, TCP socket GPRS (see EG_EasePro_Vx_CL_yyy_UK of ERCO & GENER).
Specific development mode: the EGM development tool allows to develop personalized embedded
application. For more information concerning the tools and the training, please contact our sales
department.
By default, the GenPro 53e provides:
2 RS232ports,
a 1-Wire interface
TOR inputs/outputs, 5 inputs, 3 outputs
2 analogs inputs
a back-up battery

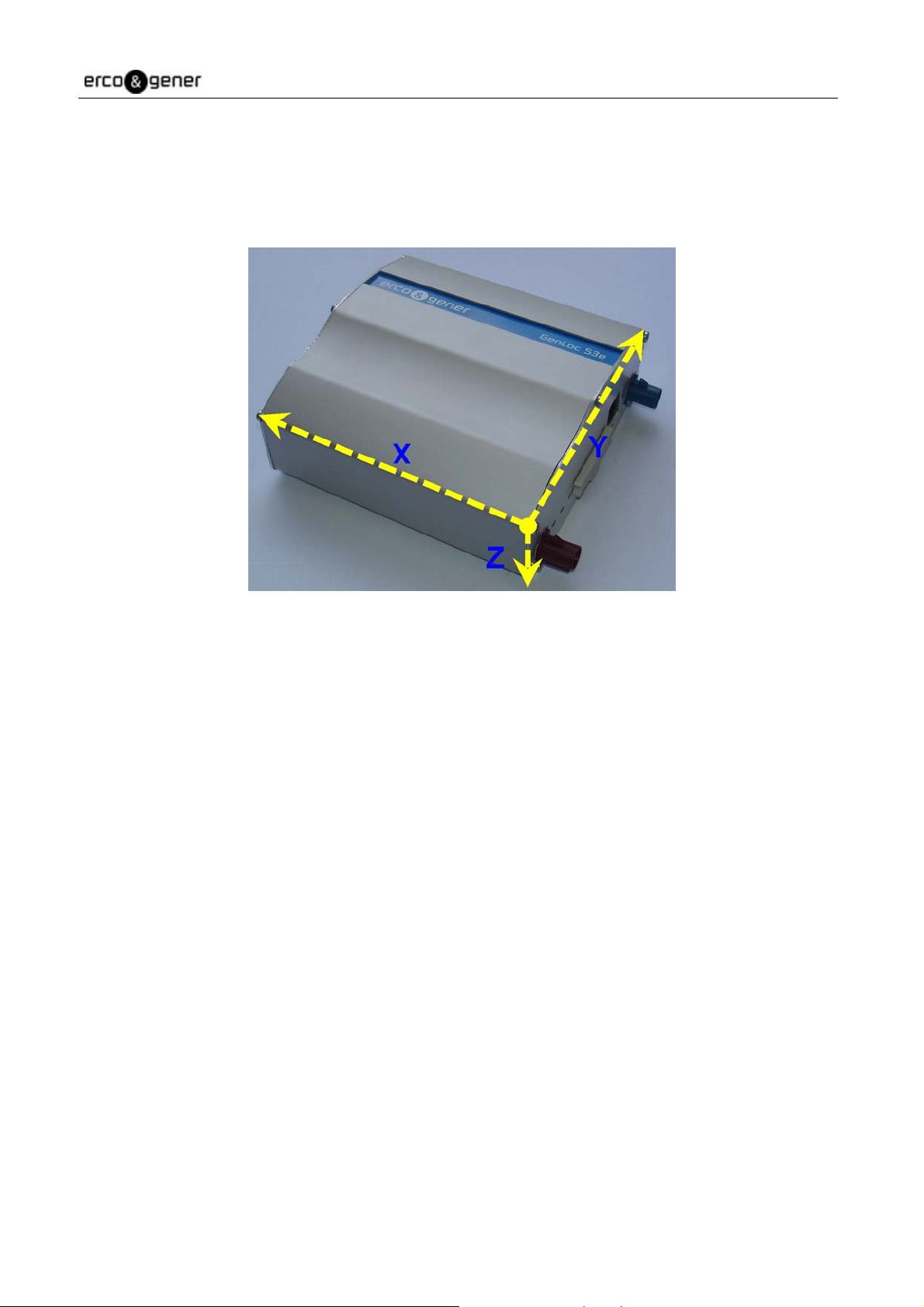

a 3-axis accelerometer
The GenPro 53e can be equiped with the options Bus CAN and DUAL SIM.
Its protocols of IP connectivity integrated in the embedded application EasePro, are also available under
EGM libraries for a specific development, allowing a quick installation of embedded telematic solutions with
high added-value.
This document describes the modem and provides the following information:
- General presentation,
- Functional description,
- Available basic services,
- Installation and use of the modem (first level),
- Trouble shooting,
- Recommended accessories for the use of the modem.
For more information concerning this document, ERCO & GENER puts at your disposal the following
elements:
- Commands List
External Mode EG_EGM_CL_xxx_yy
Autonomous Mode EG_EasePro_Vx_CL_yyy_UK
- Application Note EG_GenPro53e_1040_AN_xxx_yy
- Release Note EG_GenPro53e_1040_RL_xxx_yy
- Client support (Hot-Line)
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 8 / 71
Warning
• ERCO & GENER advises to read carefully all the documents concerning the GenPro 53e (User
Guide, Application Notes, Command List).
• ERCO & GENER cannot be held responsible for:
- The problems due to an inappropriate use of the GenPro 53e.
- The problems due to a wrong configuration
- The problems due to a wrong use of an embedded software application developed or
supplied by a third party.
- The dysfunctions due to the absence or a bad coverage of the GSM, GPRS networks.
- The dysfunctions if the product is used for the watching of physical persons where human
life is engaged.
• ERCO & GENER reserves the right to modify the functions of its products "GenPro 53e" and
"EasePro" without previous notice.
- In order to avoid any risk of electrocution, do not open the casing.
- For any functioning, the casing must be closed.
- No internal part can be repaired by the user. The GenPro 53e must be returned to the factory for any
repair.
- The GenPro 53e must be placed in a normally ventilated area, out of sources of heat.
- In order to guarantee the electromagnetic compatibility, the length of the serial cable, the supply cable and
the inputs/outputs cable must not exceed 3 meters.
- The GenPro 53e must not be connected directly to the mains supply; a voltage adapter must be used.
SCRAP THE WORN BATTERIES ACCORDING TO INSTRUCTIONS.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 9 / 71
Copyright
The reproduction, transfer, distribution or storage of part or the totality of the contents of this document, in
any form, without the prior written authorization of ERCO & GENER is strictly prohibited.
GenPro 53e is a trademark of ERCO & GENER.
Hayes is a registered trademark of Hayes Microcomputer Product Inc. The names of products and
companies mentioned in this document may be names or trademarks of their respective holders.
The use of some products or services described in this document may require a paying subscription. The
availability of some products or services described in this document may change, depending on the
configurations and the materials.
In some countries, restrictions of use of the devices may be applied. For more information, thank you to
contact your nearest legally qualified local government representative.
ERCO & GENER follows a method of continuous development. Consequently, ERCO & GENER reserves
the right to change and improve any of its products described in this document, without notice.
The contents of this document are provided “as it is”. Except for the applicable obligatory laws, no guarantee
in any form, explicit or implicit, including but without being limited to it the implicit guarantees of aptitude to
marketing and of appropriateness to a particular use, is granted concerning the precision, the liability or the
contents of this document. ERCO & GENER reserves the right to revise or withdraw this document at any
time and without notice.
ERCO & GENER cannot be held responsible for any loss of data or income, as well as particular damage,
incidental, consecutive or indirect.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
1 References
1.1 Referred documents
Commands List of
Standard library of ERCO & GENER ......................................... : EG_EGM_CL_xxx_yy
The embedded application EasePro of ERCO & GENER ......... : EG_EasePro_Vx_CL_yyy_UK
Application Notes of GenPro 53e of ERCO & GENER .............. : EG_GenPro53e_1040_AN_xxx_yy
GSM reference documents:
GSM 07.05.
GSM 07.07.
1.2 Abbreviations
Abbreviations Definition
AC Alternative Current
ACM Accumulated Call Meter
AMR Adaptive Multi-Rate
AT Attention (prefix for modem commands)
BTS Base Transceiver Station
CLK ClocK
CMOS Complementary Metal Oxide Semiconductor
CS Coding Scheme
CTS Clear To Send
dB Decibel
dBc Decibel relative to the Carrier power
dBi Decibel relative to an Isotropic radiator
dBm Decibel relative to one milliwatt
DC Direct Current
DCD Data Carrier Detect
DCE Data Communication Equipment
DCS Digital Cellular System
DSR Data Set Ready
DTE Data Terminal Equipment
DTMF Dual Tone Multi-Frequency
DTR Data Terminal Ready
EEPROM Electrically Erasable Programmable Read-Only Memory
EFR Enhanced Full Rate
EGM Erco Gener Middleware
E-GSM Extended GSM
EMC ElectroMagnetic Compatibility
EMI ElectroMagnetic Interference
ESD ElectroStatic Discharges
ETSI European Telecommunications Standards Institute
FIT Series of connectors (micro-FIT)
FR Full Rate
FTA Full Type Approval
FTP File Transfert Protocol
GCF Global Certification Forum
GND GrouND
GPIO General Purpose Input Output
EG_GenPro53e_1040_UG_003_UK Page 10 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
GPRS General Packet Radio Service
GPS Global Positioning System
GSM Global System for Mobile communications
HR Half Rate
I Input
IEC International Electrotechnical Commission
IMEI International Mobile Equipment Identification
I/O Input / Output
LED Light Emitting Diode
LLC Low Level Command
MAX MAXimum
ME Mobile Equipment
MIC MICrophone
Micro FIT Family of connectors from Molex
MIN MINimum
MNP Microcom Networking Protocol
MO Mobile Originated
MS Mobile Station
MT Mobile Terminated
NOM NOMinal
O Output
Pa Pascal (for speaker sound pressure measurements)
PBCCH Packet Broadcast Control Channel
PC Personal Computer
PCL Power Control Level
PDP Packet Data Protocol
PIN Personal Identity Number
PLMN Public Land Mobile Network
PUK Personal Unblocking Key
RF Radio Frequency
RFI Radio Frequency Interference
RI Ring Indicator
RMS Root Mean Square
RTS Request To Send
RX Receive
SIM Subscriber Identification Module
SMA SubMiniature version A RF connector
SMB SubMiniature version B RF connector
SMS Short Message Service
SNR Signal-to-Noise Ratio
SNTP Simple Network Time Protocol
SPI Serial Peripheral Interface
SPL Sound Pressure Level
SPK SpeaKer
SRAM Static RAM
TCP/IP Transmission Control Protocol / Internet Protocol
TDMA Time Division Multiple Access
TU Typical Urban fading profile
TUHigh Typical Urban, High speed fading profile
TX Transmit
TYP TYPical
UTC Universal Time Clock
VSWR Voltage Stationary Wave Ratio
EG_GenPro53e_1040_UG_003_UK Page 11 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 12 / 71
1.3 Symbols
The following symbols are used to highlight the important information of this userguide.
A symbol for the essential information concerning the module integration and performance.
A warning symbol indicates the actions that could harm or damage the module
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
2 Packaging
2.1 Content
The GenPro 53e is supplied:
- a GenPro 53e cardboard packaging,
- a modem GenPro 53e,
- 2 fixing brackets,
- a 4-wire supply cable, input/output (Red/Black/Yellow/Brown) stripped with fuse.
- a 14-wire stripped cable Inputs/outputs with 14 pins connector.
- a 16-wire cable serial link equipped with a with 16 pins connector, a sub D 9 pins and stripped
wires.
- a technical sheet (Instructions Sheet).
EG_GenPro53e_1040_UG_003_UK Page 13 / 71
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 14 / 71
2.2 Packing case
The external dimensions of the packing case are:
- Width : 160 mm,
- Height: 280 mm,
- Length: 64 mm.
A packaging label is placed on the side of the case. It shows:
- The logo ERCO & GENER,
- The product reference: GenPro 53e,
- The CE mark,
- The IMEI bar code with 15 digits.
The dimensions of the label are:
- Height : 37 mm,
- Length : 70 mm.
Example of label placed on the packaging
2.3 Modem label
On the standard casing, there are 2 labels placed on the back part of the modem:
A production label indicating the following information: (see picture 3.1.3 Fixing brackets)
- The CE mark,
- The crossed wheelie-bin mark (DEEE standards),
- The direct current mark (VDC),
- The IMEI bar code with 15 digits.
If the internal battery option has been mounted during production, the modem has the
following label: Lithium-Polymer Battery Inside.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 15 / 71
3 General presentation
3.1 Description
Description of the modem GenPro 53e:
3.1.1 Front side
4pin/M Micro-Fit
connector
3.1.2 Back side
FAKRA-D
connector
GSM antenna
GSM LED
16pin/M
Micro-Fit connector
14pin/M
Micro-Fit connector
Audio
connector
RJ9 4/4
LED 3
LED 4
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
SIM card cover
LED 5
LED 6
EG_GenPro53e_1040_UG_003_UK Page 16 / 71

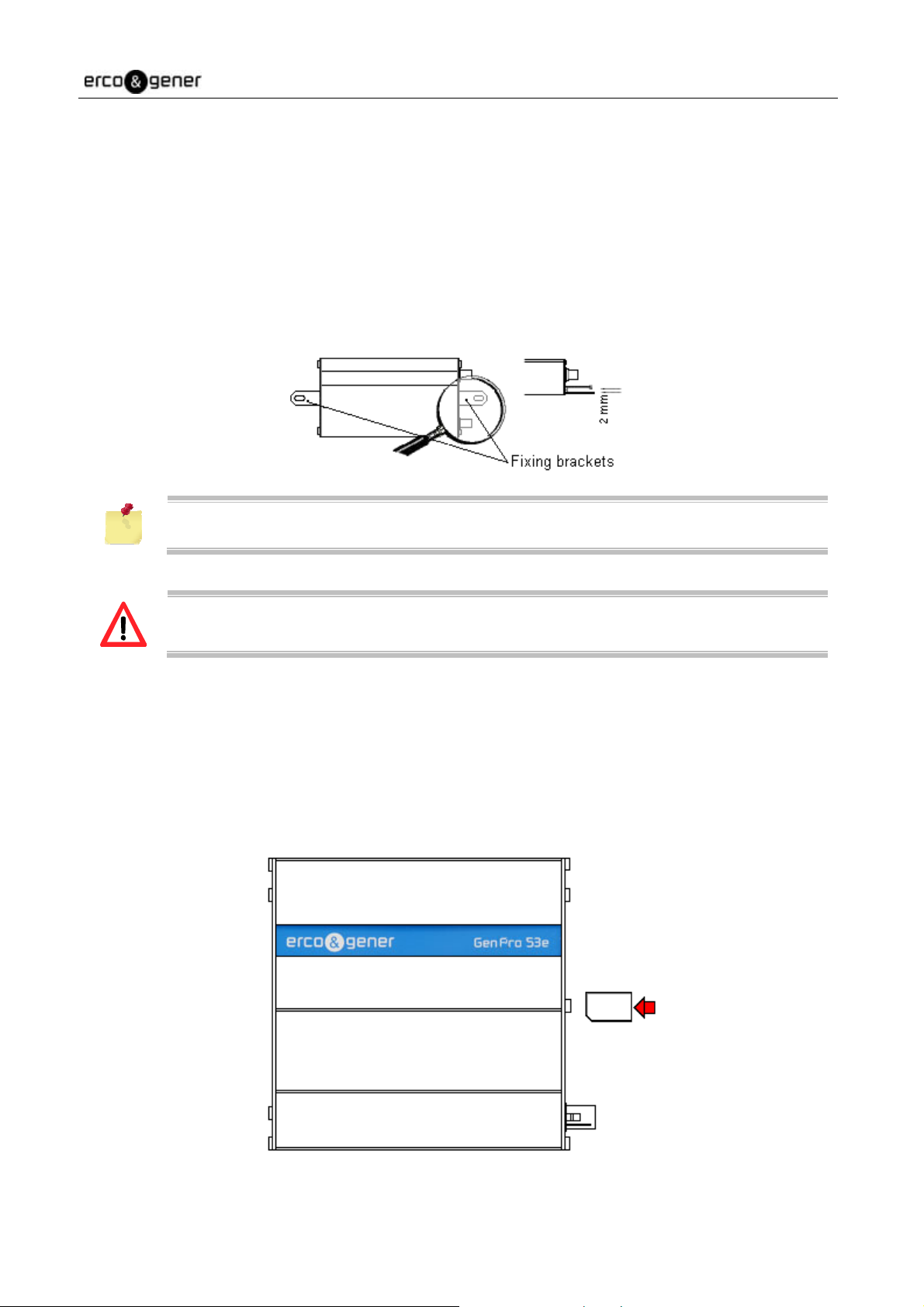

3.1.3 Fixing brackets
2 brackets to fix the modem on a support.
Fixing brackets
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 17 / 71
3.2 External connections
3.2.1 Connections
3.2.1.1 Antenna connectors
GSM antenna connector:
The GSM antenna connector is FAKRA D male with a 50 impedance.
3.2.1.2 Micro FIT connectors
Female Micro FIT connector with 4 male pins:
This connector of the GenPro 53e is a connector for the DC external supply and the GPIOs (the 2 signals
Input and Output).
Pin N° Signal
1 +VDC
2 GND
3 Logical INPUT 1 (E1)
4 Logical OUTPUT 1 (S1)
The pins 3 and 4 are used for the Input/Output functions. The modem can only be powered
by the pins 1 (+VDC) and 2 (GND).
You must use the supply cable provided with the modem. It ensures the protection of the
equipment.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 18 / 71
Female Micro FIT connector with 14 male pins:
This connector of the GenPro 53e is a connector for the inputs, logical and analog outputs.
14
8
7
1
Pin N° type Nature Signal Option*
1 I/O Logical ONE_WIRE
2 Input Analog ANA2
3 --- --- GND
4 Input Logical E5
Input E5
insulated
5 Input Logical E4
6 Output Logical S3
7 Output Analog + 3.8 V
8 --- --- GND
common GND
except for E3, E5
9 Input Analog ANA1
10 --- --- GND
11 Input Logical E3
Input E3
insulated
12 Input Logical E2
13 Output Logical S2
14 Output Analog BUZZER BUZZER
* Contact us
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 19 / 71
Female Micro FIT connector with 16 male pins:
This connector of the GenPro 53e is a connector for the serial links 0, 1,2 or bus CAN (option) and control
signal BOOT, RESET.
16
9
8
1
Pin N° type Nature Signal Option 1 Option 2
1 --- --- GND
2 Input Logical Not connected TX_2 CANH
3 Output Logical Not connected RX_2 CANL
4 --- --- GND
5 Output Logical CTS_1
6 Input Logical RTS_1
7 Input Logical TX_1
8 Output Logical RX_1
9 Output Analog POWER_OUT
10 Input Logical RESET
11 Input Logical BOOT
12 --- --- GND
13 Output Logical CTS_0
14 Input Logical RTS_0
15 Input Logical TX_0
16 Output Logical RX_0
* Contact us
3.2.1.3 Audio connector
RJ 9 4/4 connector:
This connector of the GenPro 53e is a connector for telephone handset.
1
4
Pin N° Signal
1 Microphone 2 Loudspeaker 3 Loudspeaker +
4 Microphone +
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
(
)
pp
EG_GenPro53e_1040_UG_003_UK Page 20 / 71
3.2.2 Cables
3.2.2.1 4-wire micro FIT cable
(ERCO & GENER reference: 4402304215)
Fuse 2A/32V
Mini BLADE
3mm tinned and
ed wire
stri
Component Characteristics
4-pin connector
Cable Length 1.5m
Wire Section : 0.75 mm²
Fuse F2A - 32V
Signal Color
+VDC Red
GND Black
INPUT 1 (E1) Yellow
OUTPUT 1 (S1) Brown
Fuse reference: Mini Blade pour car 2A - 32V (code couleur : grey)
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 21 / 71
3.2.2.2 14-wire micro FIT cable
( ERCO & GENER reference: 4402314215)
View from cable side
8
14
1
7
3mm tinned
stripped wire
(Mini BLADE)
Component Characteristics
14-pin connector
Cable Length 1.5m
Wire Section : 0.5 mm²
Pin N° Signal Color
1 ONE_WIRE White/Green
2 ANA2 Grey
3 GND Black
4 E5 Blue
5 E4 Green
6 S3 White/Yellow
7 + 3.8 V Orange
8 GND Black
9 ANA1 Violet
10 GND Black
11 E3 Yellow
12 E2 Brown
13 S2 White / Brown
14 BUZZER Red
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 22 / 71
3.2.2.3 16-wire micro FIT cable
( ERCO & GENER reference : 4404314215)
View from cable side
9
3mm tinned and
stripped wire
(Mini BLADE)
Component Characteristics
16-pin connector
Cable Length 1.5m
Wire Section : 0.5 mm²
Sub D 9-pin female
16
1 8
Pin N° Signal Color Sub D 9-pin
1 GND Black --2 TX_2 / CANH Violet --3 RX_2 / CANL White/Violet --4 GND Black --5 CTS_1 White /Brown --6 RTS_1 White /Yellow --7 TX_1 White /Green --8 RX_1 White /Blue ---
9 POWER_OUT White --10 RESET --- --11 BOOT --- --12 GND Black 5
13 CTS_0 Brown 8
14 RTS_0 Yellow 7
15 TX_0 Green 3
16 RX_0 Blue 2
--- --- 9
--- --- 6
--- --- 4
--- --- 1
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 23 / 71
4 Characteristics and Services
The GenPro 53e is:
A class10 GSM/GPRS modem dedicated to asynchronous binary data transmission, Group3 (Class 2)
, SMS
and voice.
The modem characteristics and the available services are summarized in the table below.
GSM functions
- Quad-Bands 850/900/1800/1900 MHz
- ETSI GSM Phase 2+ Class 4 (2W @ 850 / 900 MHz)
Class 1 (1W @ 1800 / 1900 MHz)
- SIM Toolkit Release 99
VOICE functions
- Voice (GSM mode)
- Telephony, Emergency call 112
- Full Rate, Enhanced Full Rate, Half Rate and AMR (FR/EFR/HF/AMR)
- Echo cancelation and noise reduction
- Full Duplex Free-hand
DATA functions
- GPRS Class 10 (Up to 4Rx / 2Tx)
- PBCCH/PCCCH supported, Coding scheme : CS1 to CS4
- TCP/IP library (PPP, TCP Socket, UDP Socket*, FTP, SMTP*)
- Asynchronous data circuit, transparent and non-transparent 9600 (Standard) at 14400bds ( depending on
network )
- SMS Text, PDU, point to point MT/MO and SMS Cell Broadcast
Interfaces
- GSM antenna: connector FAKRA-D
- Power supply : +5.5 to +32 VDC ( micro-FIT connector)
- 1 serial port RS232_0 (300 to 115200bds) Sub-D 9 pin female
- 1 serial port RS232_1 (300 to 115200bds)
- AT commands: GSM 07.05 et 07.07
- SIM reader (SIM 3V – 1,8V)
- 5 opto-coupled inputs
- 3 open-collector outputs
- 2 analog inputs (0 – 10 Volts)
- External Auto-supply controlable (connector 16 pins micro-FIT)
- Buzzer output (connector 14 pins micro-FIT)
- Back-up battery
- 1 port ONE_WIRE
- supply output 3.8 V
- 3-axis accelerometer
- Audio
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 24 / 71
Accessories supplied
- Fixing brackets (x2)
- 4-wire Micro FIT cables (Power supply, Input and Output )
- 14-wire Micro FIT cables (Input and Output)
- 16-wire Micro FIT cables (serial ports)
Options / Accessories *
- Power supply 100 Volts
- Direct logical inputs
- Powering on controllable by HTR
- Bus CAN (Cango) standards protocol FMS
- Bus CAN low layer : without protocol
- Input 3 and 5 insulated
- Inhibit charge of the battery
- Double SIM card
- ONE WIRE in bus I2C
- 3rd UART
- Reinforced protection of inputs / outputs
- Accessories: Antennas, cables, power supply... (consult our website)
* contact us
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 25 / 71
5 Using the modem
5.1 Starting with the modem
5.1.1 Mounting the modem
To mount the modem on a support, use the fixing brackets as described below.
- Must be fixed on a flat surface
- Max. height of the screw head: 2 mm
The aluminum casing of the modem is connected to the 0V (GND) of the power supply and to
the 0V of the RS232 serial link. To avoid any risk of conduction of the ground plane to other
equipments, the modem must be electrically insulated from its mechanical support.
5.1.2 Installation of the modem
To install the modem, it is recommended to do the following operations with the modem turned off:
- Remove the SIM card cover on the rear side.
- Carefully insert the SIM card into the reader.
- Push the SIM card until hearing a "clic" that ensures its correct positioning.
- Put the SIM cover back.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
Way of insertion
of the SIM card
EG_GenPro53e_1040_UG_003_UK Page 26 / 71
- Connect the GSM antenna to the FAKRA-D connector.
- For the connection to the DTE, connect the V24 link via the 9-pin Sub D cable.
- Connect the supply cable to the continuous and regulated power source (for an automobile
application, see the paragraph 5.2).
- Connect the supply cable to the modem and turn on the external power supply.
The modem is now ready.
There are 4 different displays depending on the application installed inside the equipment:
- Without application: corresponds to Boot_Loader.
- Standard library.
- The application ERCO & GENER EasePro_Vx.
- The owner application.
5.1.3 Checking the communication with the modem
5.1.3.1 Without Application
The GenPro 53e does not contain any application; it will return the menu of the Boot-Loader.
Connect the link RS232 between the DTE (the COM port) and the modem (DCE).
Set the RS232 port of the DTE as follows:
Bits per second: 115 200 bps,
Data bits: 8,
Parity: None,
Stop bits: 1,
Flow control: material.
Use a communication software like HyperTerminal ® of Windows.
Menu by default when there is no application inside the equipment (example of display)
Bootloader V2.39 GL53 UA GenLoc53e ENF (HW16 rev B/C)
GSM voltage = 4347 mV
1 - Update application
2 - Erase objects
M - GSM direct access
A - Advanced
P - Power off
E - Exit
In the case where no communication can be established with the modem:
Check the RS232 connection between the DTE and the modem (DCE),
Check the configuration of the COM port of the DTE.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 27 / 71
5.1.3.2 Standard library
The GenPro 53e contains the standard library.
Connect the RS232 link between the DTE (the COM port) and the modem (DCE).
Set the RS232 port of the DTE as follows:
Bits per second: 115 200 bps,
Data Bits: 8,
Parity: None,
Stop Bits: 1,
Flow control: material.
Use a communication software like HyperTerminal ® of Windows.
Example of display Menu b
y default when the standard library is present inside the equipment (example of
display)
*********************************************************
Starting egm_clientAppli: initType = 0x0003
Wait for "+EGEVT: 2" before starting IP tests"
+EGEVT: 0
+EGEVT: 7
+EGEVT: 22
Send the command AT+EGM3
The modem returns the version of the library
LIB: genapi_ipc V2.25b1, Date: Tue Mar 15 09:21:51 2011
In the case where no communication can be established with the modem:
Check the RS232 connection between the DTE and the modem (DCE),
Check the configuration of the COM port of the DTE
For more information about these AT commands and their associated parameters, see the documents
"Commands List EG_EGM_CL_xxx_yy" of ERCO & GENER.
5.1.3.3 The application ERCO & GENER EasePro_Vx
The GenPro 53e contains the application EasePro_Vx.
Send the commande ATI8. The modem returns the version (example of display)
EaseLoc V2.10b1 GenLoc53e-AOB eCos-Enabler IIIG_GSM0308-Thu Mar 17 10:29:40 2011
For more information about these AT commands and their associated parameters, see the documents
"Commands List EG_EaseLoc_Vx_CL_yyy_UK" of ERCO & GENER.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 28 / 71
5.1.3.4 The owner application
Le GenPro 53e contains your application.
Connect the RS232 link between the DTE (the COM port) and the modem (DCE).
Set the RS232 port of the DTE according to your parameters (speed, data bits, parity and stop bit).
Use a communication software like HyperTerminal ® of Windows.
Check the display and the dialogue with the GenPro 53e according to your own characteristics.
5.1.4 SIM card extraction
To remove the SIM card from the modem, it is recommended to do the following operations with the modem
turned off:
- Remove the SIM card cover on the rear side.
- Press the SIM card (simple pressure) until hearing a "clic" that ensures its ejection.
- Remove delicately the SIM card from the reader.
- Put the SIM cover back.
5.1.6 Hardware reset of the modem
To trigger a Hardware reset of the modem, a RESET signal (hardware) is available on the pin 10 of the 16-
pin Micro-FIT connector (RESET).
The modem Reset is made when the RESET signal (pin 10) is held at a low level during 10ms.
This signal must be considered as a way of reseting the modem in case of emergency only.
For more details concerning the modem RESET, see the paragraph 7.7.2 RESET sequence
See the table of the paragraph 8.2.6 RESET signal for the electrical characteristics.
5.2 Specific recommendations for the use of the modem in vehicles
The power supply connector of the modem GenPro 53e must NOT be connected directly to
the battery of the vehicle.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 29 / 71
5.2.1 Recommended connection on the battery of a truck
All lorries have a Circuit Breaker outside the cabin. The circuit breaker is used for security reasons: for
example, if a fire breaks out in the electric box of the lorry, the driver can cut off the power source and avoid
more damage (explosion).
The circuit breaker is connected to the ground of the lorry, usually connected to the fuse box.
Most of lorry circuit breakers do not cut off the PLUS of the battery, but cut off the ground.
The scheme above shows a recommended power connection where the connection of the modem ground is
not directly connected to the battery, but connected after the circuit breaker (to the ground of the lorry or in
the fuse box).
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 30 / 71
5.2.2 Technical constraints in trucks
It is highly recommended NOT to connect the modem supply directly to the battery but to the circuit breaker.
Otherwise the modem can be damaged when the lorry is starting up if the circuit breaker is closed (in this
case, the ground of the lorry and the ground of the battery will be connected via the modem as described in
the scheme below).
Example of forbidden electrical connection (risk of damage on the modem)
The scheme above shows an example of electrical connection that could damage the modem due to the fact
that the ground connection is directly connected to the battery ground.
In fact in this example, when the circuit breaker is open, the current escapes via the modem and the
electrical circuits of the lorry (the dashboard for example). And when the motor’s starter is used, it will
destroy the cables or the modem.
Moreover, the internal circuits of the modem are not designed to resist to a current of 60 A (when starting the
lorry), or they would be destroyed.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 31 / 71
5.3 Modem leds
5.3.1 GSM led
5.3.1.1 Without application
The GenPro 53e does not contain any application. The led is off.
5.3.1.2 With standard library
The GenPro 53e contains the standard library. The led is off.
5.3.1.3 The application ERCO & GENER EasePro_Vx
The GSM status module is indicated by the GSM LED located on the rear side of the modem. (see
paragraph 3.1.2 Back side).
GSM LED status LED activity GSM status
Off LED off The module is not activated or power off.
On LED on The module is being attached to the GSM network.
LED flashing 0.5s ON / 1.5s OFF The module is attached to the GSM network.
LED flashing 0.2s ON / 0.6s OFF The module is in communication data, voice or GPRS.
5.3.1.4 The owner application
The GenPro 53e contains your application. The led status depends on your parameters.
5.3.2 Led 3
This led is free. It is left at the user’s disposal. It is controlled via a command through the ARM. This
command is currently under development. Contact us.
5.3.3 Led 4
This led is free. It is left at the user’s disposal. It is controlled via a command through the ARM. This
command is currently under development. Contact us.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 32 / 71
5.3.4 Led 5
This led is free. It is left at the user’s disposal. It is controlled via a command through the ARM. This
command is currently under development. Contact us.
5.3.5 LED 6
This led is not used.
5.4 Echo function of the deactivated AT commands
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
GENER) in this case, if no echo is returned when entering an AT command, it means that:
- the "local echo" of your communication software (like Hyperterminal) is not activated,
- the echo function of the modem has been deactivated.
The echo function can be set with the command ATE, it requires a back-up with the command AT&W.
To activate the echo function of the modem, enter the command ATE1.
When sending AT commands to the modem using a communication software, it is recommended to:
- Deactivate the "local echo" parameter in your communication software (like Hyperterminal),
- Activate the echo function of the modem (the command ATE1).
For a communication Machine to Machine with the modem, it is recommended to deactivate the echo
function of the modem (the command ATE0) in order to avoid the CPU receiving redundant responses.
For more information about the ATE commands, see the document "EG_EGM_CL_xxx_yy" of ERCO &
GENER.
5.5 Checking the quality of the GSM reception signal
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
GENER) in this case, the modem will be able to make a call only if the received GSM signal is sufficient.
The command AT+CSQ allows to know the reception level (rssi) of the signal sent by the closest GSM Base
Transceiver Station (BTS), as well as the reception error code (g).
When the SIM card is inserted and the PIN code entered, the command AT+CSQ allows to measure the
signal from the BTS of the subscribed operator network..
This command can also be used without the SIM card, it indicates in this case the nearest BTS which can be
ORANGE, SFR or BOUYGUES for France (Without SIM card, the current subscription is not recognized).It is
therefore advisable to do the measure when the SIM card is present.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 33 / 71
To check the quality of the GSM signal, do the following operations:
Use a communication software like Hyperterminal, enter the command AT+CSQ.
The response is in the following format:
+CSQ : <rssi>, <ber> with:
<rssi> = indicates the reception level,
<ber> = receive bit error rate.
Check the returned value <rssi> with the help of the table below.
<rssi> value Gain in dbm Interpretation <ber> value Interpretation
0 -113 dbm Insufficient 0 to 7
See standards ETSI
GSM 05.08
1 to 10 -111 to -95 dbm Insufficient
11 to 30 -93 to -53 dbm Sufficient
31 (max) -51dbm Perfect
99 Unknown/not detectable 99 Unknown/not detectable
The GSM modem works normally with a minimum <rssi> between 11 and 15.
Bellow 10, the signal level is insufficient; the modem cannot work depending on the geographical situation or
the vehicle mobility. Above 15, the signal is sufficient.
For more information about AT commands, see the document "EG_EGM_CL_xxx_yy" of ERCO & GENER.
5.6 Verification of the PIN code
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
GENER) in this case, the PIN code is essential in order to make a call or to accept a response coming from
the GSM network. This code is held in the SIM card and can be modified by the user.
To check that the PIN code has been entered, use a communication software like Hyperterminal, and enter
the command AT+CPIN?
The table below shows the main responses given by the modem:
Command Response Interpretation
+CPIN : ERROR
+CPIN : READY
AT+CPIN?
+CPIN : SIM PIN
The SIM card is absent or not
recognized
The PIN code is correct
The PIN code is wrong or not entered
yet
+CPIN : SIM PUK
The PUK code is required
For more information about AT commands, see the document "EG_EGM_CL_xxx_yy" of ERCO & GENER.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 34 / 71
5.7 Verification of the modem registration on the GSM network
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
GENER) in this case:
1. Ensure that a valid SIM card has been inserted in the SIM card reader of the modem.
2. Using a communications application like HyperTerminal, enter the following AT commands:
a. AT+CPIN="xxxx" to enter the PIN code. The user has only 3 attempts to enter the PIN code. After
the third attempt, only a second code (code PUK) supplied by the operator, will allow you to chose
a new PIN code.
b. AT+CREG? to check the registration status on the network. The response will be of the following
format :+CREG : <mode>, <stat> with:
<Mode> = configuration of the registration message not solicited,
<Stat> = registration status.
3. Check the registration status according to the value returned in the table hereunder.
Command Response Interpretation
+CREG : 0,0
+CREG : 0,2 or 0,3
AT+CREG?
+CREG : 0,1
+CREG : 0,5
The modem is not recognized by the
network
The modem is searching for a network
operator.
The modem is attached in GSM to the local
operator.
The modem is attached in GSM to the
roaming operator.
If the modem is not registered: check the connection between the modem and the antenna or the
reception level of the signal (cf. paragraph 5.5 Checking the quality of the GSM reception signal).
For more information about AT commands, see the document "EG_EGM_CL_xxx_yy" of ERCO &
GENER.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 35 / 71
5.8 Main AT commands (HAYES)
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
GENER) in this case, the table below shows the main AT commands necessary for the control of the
modem.
Other AT commands are available, see the document "EG_EGM_CL_xxx_yy" of ERCO & GENER.
Table: Main AT commands used with the modem.
Description AT Command Response Interpretation
Enter the PIN code
AT+CPIN="xxxx"
OK
PIN code accepted
(xxxx = PIN code)
Verification of
registration on the
network
AT+CREG?
Reception of an
incoming call (2*)
Make a voice
outgoing call
ATA
ATD<telephone
number>;
( the ; at the end of the
sequence is important; it
allows to make a voice
call )
Make an emergency
call (112)
ATD112;
Communication lost
Hang-up ATH
+CME ERROR: 16
+CME ERROR: 3
+CREG : 0,1
+CREG : 0,5
+CREG : 0,2
+CREG : 0,0 or 0,3
OK
OK
+CME ERROR: 11
+CME ERROR: 3
OK
NO CARRIER
OK
PIN code incorrect (1*)
PIN code already entered (1*)
The modem is attached in GSM to
the local operator.
The modem is attached in GSM to
the roaming operator.
The modem is searching for a
network operator.
The modem is not recognized by the
network.
Reply to the call
Communication established
PIN code not entered
The credit has run out or a
communication has already been
established.
Communication established
(1*) with +CMEE=1. The command AT+CMEE=1 allows the display of extended error codes; it is possible to
save it with the command AT&W.
By default, some event codes +EGEVT allow the display of status change of the SIM card (card
present, card ready…) and allows to know some status of the modem (modem ready after a RESET
…), see the Command List of ERCO & GENER.
(2*) with +CRC=1. The command AT+CRC=1 allows in the case of an incoming call to display an extended
message that indicates the canal called. This message corresponds to the type of number called: voice,
data, it is possible to save it with the command AT&W.
Examples:
If the VOICE number is called, the modem replies: +CRING : VOICE
If the DATA number is called, the modem replies: +CRING : REL ASYNC
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 36 / 71
5.9 Turning off the modem
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
GENER) in this case, it is strongly advised to un-register from the network with the command AT+COPS=2
For the battery, a mechanism allows to stop completely the application if the external power
supply is unplugged, and also to prepare the modem for storage or transport, in order to limit
high discharges of the battery.
If the device is not used, it has to be deactivated by sending the following command:
• If the modem has an application developed with EGM, send the command
AT+GPIOSET=35,0
And cut the external power supply of the modem.
• If the modem does not contain any embedded application, via the Boot-Loader menu
Bootloader V2.39 GL53 UA GenPro 53e ENF (HW16 rev B/C)
GSM voltage = 4330 mV
1 - Update application
2 - Erase objects
M - GSM direct access
A - Advanced
P - Power off
E – Exit
Enter "P"
And cut the external power supply of the modem.
Important Note : The switching of the battery and its auto-maintain will be automatically
reactivated once the modem will be plugged to its external power supply.
5.10 Modem updating procedure
To be able to benefit from the latest functions of the GenPro 53e, an updating procedure can be used to
upgrade the software program in the modem.
This procedure consists in downloading the software into the internal Flash memory of the modem via the
RS232 link available on the 9-pin Sub 9 connector.
Contact us for the software updating.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 37 / 71
6 Trouble Shooting
This section of the document describes the problems that may be encountered when using the modem.
6.1 Problem of communication between the modem and the RS232 link (V24)
If the modem does not respond to the AT commands via the RS232 link, refer to the table below to see the
possible causes and the solutions.
Table: Solutions when there is no dialogue between the modem and the RS232 link
If the modem... Check: Action
Returns nothing Is the modem correctly powered? Ensure that the modem is connected to an
external regulated power source and supplies a
tension from 5.5V to 32V (see paragraph 8.2.1
Power supply).
Is the serial cable connected at
both ends (PC and Modem)?
Is the serial cable correctly cabled
according to the paragraph 3.2.2.3
16-wire micro FIT cable
Check the connection of the serial cable.
Connect the serial cable according to the table of
paragraph 3.2.1.2 Micro FIT connectors.
Returns nothing or
random characters
Is there another application used,
Is the modem without echo and
* only if the GenPro 53e has EasePro_Vx application
Is the communications terminal
correctly configured on the PC?
creating a conflict during the
access to the communication
port?
without message reporting?
Ensure that the configuration of the
communication terminal corresponds with the
one of the modem.
Factory configuration of the modem :
Without application (BootLoader), standard
library or EasePro_Vx application
speed = 115 200 bps
Data Bits = 8
Parity = none
Stop Bits = 1
Flow control = material
Application
Contact us.
Owner application
speed , data bits , parity and stop bits
according to your parameters
Close the conflicting application.
Send the command ATE1Q0 followed by AT&W
if a backup is required .
EasePro-01
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 38 / 71
6.2 "ERROR" message
This paragraph is valid only if the modem contains the EGM standard library or the
EasePro_Vx application.
The modem returns a message "ERROR" (in response to an AT command) in the following cases:
The COM port is not directed to the modem GenPro 53e but to another modem. Enter ATI1, and the
response must be Enabler_III.... Any other response indicates a dialog with another modem. In this
case, check the COM port used in the Hyperterminal.
The syntax of the AT command is incorrect: check it (see the document "EG_EGM_CL_xxx_yy" of
ERCO & GENER"
The syntax of the AT command is correct, but transmitted with wrong parameters:
- Enter the command AT+CMEE=1 to obtain an error message with its error code instead of a simple
“ERROR” message,
- Enter again the AT command which previously caused the "ERROR" message in order to obtain the
error code.
In case of an error code, the response of the modem may be:
+CME ERROR : < error code >
For more information about the error codes returned after having sent the command AT+CMEE, see the
document "EG_EGMCL_xxx_yy" of ERCO & GENER.
It is strongly recommended to systematically allow the modem to return the error codes (enter
the command AT+CMEE=1).
6.3 "NO CARRIER" message
This paragraph is valid only if the modem contains the EGM standard library or the
EasePro_Vx application.
If the modem returns the message "NO CARRIER" after an attempted call (voice or data), check the table
below to see the possible causes and the solutions.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 39 / 71
Table: Solutions when a message "NO CARRIER” is returned
If the modem...
"NO CARRIER" Is the received GSM signal strong
enough?
Is the modem registered on the
network?
Is the antenna correctly
connected?
Check : Action
See the paragraph 5.5 to check the quality of the
received signal .
See the paragraph 5.7 to check the registration
of the modem on the GSM network
See the paragraph 8.2.8.2 GSM external
antenna for the recommendations about the
GSM antenna installation .
"NO CARRIER"
(when attempting a
VOICE call)
"NO CARRIER"
(when attempting a
Has the semi-colon (;) been
entered immediately after the
telephone number in the AT
command?
Has the SIM card been configured
for data?
Ensure that the semi-colon (;) has been entered
immediately after the telephone number in the
AT command.
For example : ATD0123456789;
Ensure that the SIM card is allowed to make data
calls (check with your SIM card supplier).
DATA call)
Is the selected modulation type
supported by the called number?
Is the selected modulation type
supported by the network?
Ensure that the selected modulation type is
supported by the called number.
Ensure that the selected modulation type is
supported by the network. If not, select a
compatible modulation type with the command
AT+CBST=0,0,1 (1*)
(1*) For more information about this AT command, see the document "EG_EGM_CL_xxx_yy" of ERCO &
GENER.
If the modem returns the message "NO CARRIER", you can get the extended error code with the command
AT+CEER.
For more information about the error codes returned after having sent the command AT+CEER, see the
document "EG_EGM_CL_xxx_yy" of ERCO & GENER.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 40 / 71
7 Functional Description
7.1 Architecture
7.2 Power supply
7.2.1 General presentation
The modem must be powered by an external DC tension (V+BATTERY) between +5.5V and +32V.
The regulation of the modem power supply is made with a DC/DC internal converter in order to supply all the
necessary internal DC tensions.
A correct functioning of the modem in communication cannot be guaranteed if the input tension
(V+BATTERY) falls below 5.5 V and if the battery is not charged enough.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 41 / 71
7.2.2 Internal battery
7.2.2.1 Presentation of the internal battery
The battery is fixed inside the GenPro 53e. It is connected to an additional charging circuit cabled on the
mother board of the GenPro 53e.
This battery allows to maintain the GenPro 53e functioning in the absence of its external power supply
(power supply connected on the Micro-FIT 4-pin female connector).
The internal charging circuit allows to keep permanently the charge of the battery from the external power
supply.
When the battery is completely discharged, 3 hours are necessary to obtain a new complete charge. It is
normal that the box gently heated in this case.
The autonomy of the battery essentially depends on the mode of use of the GenPro 53e (attachment in
GSM/GPRS, Inputs/Outputs, RS232 connected...).
When the temperature exceeds 45 °C inside the box, the protection of the battery management
triggers. The battery will not be charged.
If the battery is present, prepare the modem for storage or transport conditions, in order to
limit high discharges of the battery. For that, see § 5.9 Turning off the modem
7.2.2.2 Specifications of the internal battery
The external power supply of the GenPro 53e remains unchanged (from +5,5V to 32V DC). The internal
regulator of charge supplies the 4.2V tension necessary for the battery charge.
Table: Characteristics of the polymer lithium battery
Tension (max.) 4.2V
Type Lithium Polymère (LiPolymère)
Capacity 1000 mA/h typical
Exp. Cycle time >300 cycles> 70% of initial capacity
Temperature range Charge : 0°C to +45°C Discharge : -20°C to +60°C
Protection
(Rearmable fuse)
Discharge voltage : 2.30V ±0.058V
Maximum discharge current : 2A to 4A (1.0±0.3s)
7.2.2.3 Charge voltage and supply voltage
See paragraph 8.2.1.2 Consumption of the board with battery
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 42 / 71
7.2.2.4 Indication of presence/absence of the external power supply
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
GENER) in this case, the command AT+GPIOGET=27 allows to know the status of the external power
supply for the internal battery.
AT+GPIOGET=27
<Index>
0 indication of absence of external power supply
1 indication of presence of external power supply
Table: Examples of responses with the internal battery option cabled
Command Response Interpretation
AT+GPIOGET=?
AT+GPIOGET=27
AT+GPIOGET=27
+GPIOGET: (0-27)
OK
+GPIOGET: 27=0
OK
+GPIOGET: 27=1
OK
Syntax
External supply present
External supply absent
For more information concerning this command, see the document EG_EGM_CL_xxx_yy of ERCO &
GENER.
7.2.2.5 Instructions and restrictions of use
When the battery is completely discharged, it takes around three hours to obtain a complete charge.
When the battery is connected and charged, it is not possible to do an On/Off of the device, only putting the
Reset input (pin 10 of the 16-pin micro-FIT connector) to the ground or sending the command AT+EGMRST
allows a reset of the modem.
The battery cannot be replaced or modified by the user; the device must not be opened for
any intervention on the battery: the device must be returned to the factory.
Do not throw the modem and the battery on the fire.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 43 / 71
7.2.3 Protections of the power supply
The modem is protected by a F2 A / 32 V fuse directly assembled on the power supply cable supplied with
the modem.
Fuse reference: Mini Blade car 2A - 32V (code couleur : grey)
The modem is also internally protected against tension peaks of more than 32 V.
Filter guarantees: EMI/RFI protection in input and output and signal smoothing.
It is necessary to use the supply cable delivered with the modem, otherwise the modem will
not be protected.
7.3 RS232 serial link
7.3.1 General Presentation
The RS232 interface provides an adaptation of the tension levels (V24/CMOS ⇔ V24/V28) between the
GSM/GPRS module (DCE) and the communication port of a PC (DTE).
The RS232 interface is internally protected (ESD protection) against electrostatic peaks coming from the
RS232.
Filter guarantees: EMI/RFI protection in input and output and signal smoothing.
The RS232 interface was designed to allow a certain flexibility in the use of the serial interface signals.
In fact, after the setting (see command AT+IFC) if the GenPro 53e contains the EGM standard library (see
the documents "EG_EGM_CL_xxx_yy" of ERCO & GENER) in this case, the modem can work in 3-wire
mode (using only the signals TX, RX, GND), but the use of the signals TX, RX, GND, CTS, RTS is required
for a GPRS application.
7.3.2 Serial link RS232_0
The signals of the RS232_0 are available on the 16-pin Micro FIT connector and on the 9-pin Sub D
connector. (see chapter 3.2.2.3 16-wire micro FIT cable)
TX data (CT103/TX_0) : Data emission,
RX data (CT104/RX_0) : Data reception,
Request To Send (CT105/RTS_0) : Request to send,
Clear To Send (CT106/CTS_0) : Ready to send.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 44 / 71
Normalized signals of a RS232_0 serial link
Pins description
Signal
16-pin micro FIT
connector
Pins number
I/O
RS232
standard
Description
Sub D 9-pin
connector
Pins number
CT103 / TX_0 15 I TX Transmit serial data 3
CT104 / RX_0 16 O RX Receive serial data 2
CT105 / RTS_0 14 I RTS Request To Send 7
CT106 / CTS_0 13 O CTS Clear To Send 8
GND 12 Ground 5
7.3.3 Serial link RS232_1
The signals of the RS232_1 are available on the Micro FIT 16-pin connector and on the cable. (see chapter
3.2.2.3 16-wire micro FIT cable )
TX data (CT103/TX_1) : Data emission,
RX data (CT104/RX_1) : Data reception,
Request To Send (CT105/RTS_1) : Request to send,
Clear To Send (CT106/CTS_1) : Ready to send.
Normalized signals of a RS232_1 serial link
Pins description
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 45 / 71
I/O
RS232
standard
Description Color of wire
Signal
Micro FIT 16-pin
connector
Pins number
CT103 / TX_1 7 I TX Transmit serial data White/Green
CT104 / RX_1 8 O RX Receive serial data White /Blue
CT105 / RTS_1 6 I RTS Request To Send White /Yellow
CT106 / CTS_1 5 O CTS Clear To Send White /Brown
GND 4 Ground Black
7.3.4 Serial link RS232_2 / Bus CAN
As an option, it is possible to have a third serial link (contact us).
It can be on the RS232 standard or CAN standard.
7.3.4.1 RS232_2
The signals of the RS232_2 are available on the 16-pin Micro FIT connector and on the cable. (see chapter
3.2.2.1 16-wire micro FIT cable)
TX data (CT103/TX_2) : Data emission,
RX data (CT104/RX_2) : Data reception.
Normalized signals of a RS232_2 serial link
Pins description
Signal
Micro FIT 16-pin
connector
Pins number
I/O
RS232
standard
Description Color of wire
CT103 / TX_2 2 I TX Transmit serial data Violet
CT104 / RX_2 3 O RX Receive serial data White/Violet
GND 1 Ground Black
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 46 / 71
7.3.4.2 Bus CAN
The signals of the bus CAN are available on the Micro FIT 16-pin connector and on the cable. (see chapter
3.2.2.3 16-wire micro FIT cable )
The data transmission is done on a differential wire pair. The line is then made with 2 wires,
CANH : Positive differential line,
CANL : Negative differential line.
Normalized signals of a serial link CAN
Pins description
Micro FIT 16-pin
Signal
connector
I/O
Pins number
CANH 2 I/O CAN High
CANL 3 I/O CAN Low
Standard
CAN
Description Color of wire
Positive differential
line
Negative differential
line
White/Violet
Violet
GND 1 Ground Black
7.4 Inputs/Output functioning
The GenPro 53e provides five Inputs (opto-coupled), three Outputs (open collector) and two analog Inputs
available for an external use.
As an option (contact us) the inputs E3 and E5 can be insulated.
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
GENER) in this case, these functions can also be controlled by AT commands:
AT+GPIOSET for a writing access to a GPIO used as an output,
AT+GPIOGET for a reading access to the GPIO used as an input.
AT+ xxxx for a reading access of the GPIO used as an analog input. Contact us.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 47 / 71
7.4.1 Management of logical outputs
The modem contains the EGM stand
ER) in this case, these function
GEN s are controlled by AT commands.
GPIOSET This command is used
AT+ to drive the output. By default, the output S1 to S3 are cabled as an
colle or assembly. To control it:
open ct
A IOSET=<n>,<x> with :
T+GP
<n> = 10 : writing of ou
18 : writing of o
<x> = FF
1 : Outp
19 : writing of output S3
0 : Output O
ut ON
tput S1
utput S2
ard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
Examples:
Command Response Interpretation
AT+GPIOSET=10
+GPIOSET: 10=1
Output 1 OFF, transistor closed
OK
AT+GP OSI ET=10,0
OK
Output 1 goes to ON (transistor open)
See table of the paragraph 8.2.3.2 Output for the characteristics of use of the Inputs/Output
7.4.2 Management of logical inputs
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
ER) and in this case, these
GEN functions are controlled by AT commands.
GPIOGET This command is used
AT+ to read the inputs. By default, the inputs 1 to 5 are opto-coupled. To
:
read
A IOGET=<n> with :
T+GP
< 7 : reading the input E1
n> =
8 : reading the input E2
9 : reading the input E3
the input E4
37 : re
36 : reading
ading the input E5
Examples:
Command Response Interpretation
AT+GPIOGET=7
IOGET: 7= 1
+GP
Input 1 read at 1, the input 1 is not commanded
OK
AT+GPIOG
ET=9
+GPIOGET: 9= 0
Input 3 read at 0, the input 3 is commanded
OK
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
See table of the paragraph 8.2.3.1 Opto-coupled inputs for the characteristics of use of the
Inputs/Output
EG_GenPro53e_1040_UG_003_UK Page 48 / 71
7.4.3 Manag g inputs
he commands for the management of analog inputs are currently under development. Contact us.
T
ement of analo
See table of the paragraph 8.2.3.3 Analog input for the characteristics of use of the
Inputs/Output
7.5 Option 2nd SIM card reader
C
ontact us.
7.6 BOOT
This signal must NOT be connected, NOT used. Its use is strictly reserved for the
manufacturer.
The use of the BOOT function is strictly reserved to the manufacturers and distributors
7.7 RESET
7.7.1 General presentation
T nal allows to make a Hardware RESET ohis sig f the modem. In fact, this pin is used to force a RESET of
th
e GenPro 53e, doing a low level during at least 10 ms.
This signal must
signal m e driven with an open c
This ust b ollecto mbly:
pin 10 (RESET set the GenPro 53e,
10 (RESET) at 1, for normal mod
pin e.
be used only in case of emergency RESET.
r asse
) at 0, to Re
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 49 / 71
I/O Type I/O Description Signal
in description
P
14-pin connector Pins
number
RES T E 10 I/O SCHMITT Reset Modem
The use of the RESET function is strictly reserved to the manufacturers and distributors.
This signal must be used only in case of emergency RESET. A software RESET is always
preferable to a Hardware RESET. It is strongly unadvised to execute this function whilst in
communication or dialog, without having previously detached it from the network.
Using the RESET does not restore the factory parameters.
For more inform
"EG_EGM_C
off and detach correctly the modem from the network operator.
L_xxx_yy" of ERCO & GENER and refer to paragraph 5.10 to turn the device
ation concerning the Software RESET, see the document
See the table of paragraph 8.2.6 RESET Signal for the characteristics of use of the RESET
7.7.2 RESET Sequence
To activate the emergency RESET sequence, the RESET signal must be put to a low level during at least 10
ms.
A soon as the modem has been RESET, if a SIM card is inserted inside he SIM reader, you must wait for
t
the end of the initialization before accessing it again.
Using the RESET does not restore the factory parameters.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 50 / 71
7.8 WatchDog
The Hardware WatchDog function allows the surveillance of the GenPro 53e software activity: the Software
management of the WatchDog is implanted in the embedded application by default. In the case of a
development (EGM) it must be implanted in the embedded application of the final customer.
If the software activity is interrupted, the WatchDog component starts a hardware Reset.
The WatchDog function is active only if the SIM card is present. That’s why, it is imperative to
remove the SIM card during a Firmware updating.
7.9 Audio
The audio interface is standard to connect an equipment like a telephone handset.
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO &
GENER) in this case, the echo cancelation (see command AT$MICAEC) and noise reduction features are
also available to improve the audio quality in the case of free-hand applications. The command
AT$VSELECT also allows the Handset selection.
(see paragraph 3.2.1.3 Audio connector ).
RJ9
Micro - 1
Speaker - 2
Speaker + 3
Micro + 4
7.9.1 Microphone inputs
The microphone inputs are assembled in differential to reduce the noise in common mode and the TDMA
noise.
They include the functionality for a microphone like Electret (0.5 mA and 2 Volts) and they are ESD
protected. This Electret microphone can be directly connected to these inputs allowing an easy connection to
a telephone handset.
The microphone impedance is around 36 k.
The gain of the microphone inputs is internally adjusted by a differential amplifier and can be adjusted, if the
modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCO & GENER)
using the command AT+PREAM. The amplifier has a gain of 25.6 dB and a Bias generator that supplies an
external tension of 2 or 2.5V for the microphone Bias.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 51 / 71
Pin description
Signal
RJ9 connector
Pins number
I/O I/O Type Description
MIC2P 4 I Analog Positive input of the Microphone
MIC2N 1 I Analog
Negative input of the
Microphone
7.9.2 Loud-speaker outputs (Speaker)
The outputs are assembled in differential to reduce the noise in common mode and the TDMA noise.
These outputs can be directly connected to a loudspeaker.
Pin description
Signal
RJ9 connector
Pins number
I/O I/O Type Description
SPK2P 3 O Analog Positive output of loudspeaker
SPK2N 2 O Analog Negative output of loudspeaker
Recommended characteristics for the loudspeaker
7.9.3 Buzzer outputs
By default, the GenPro 53e provides a Buzzer output on the output 14 of the 14-pin connector. This output
provides a frequency, it is dedicated to drive a Transducer.
Pin description
Signal
14 pins connector
Pins number
I/O I/O Type Description
BUZZER 14 O Analog Output Buzzer
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 52 / 71
7.10 Accelerometer
The GenPro 53e provides an accelerometer with 3 axis of sensitivity ±2G or ±8G controllable by software.
Positioning of the axis
7.11 Internal processor
7.11.1 EGM presentation
The GenPro 53e provides an ARM7 processor that allows to have an embedded application developed from
the EGM libraries and based on eCos.
The EGM libraries supplied by ERCO &GENER contain the following elements:
EGM software library,
eCos software library,
A set of header files (.h) defining the EGM API functions,
Source code samples.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 53 / 71
7.12.2 EGM architecture
The software architecture is described below.
For more information about EGM, see the documents ERCO & GENER for a description of the different
functionalities.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 54 / 71
8 Technical characteristics
8.1 Mechanical characteristics
Dimensions
Complete dimensions
95 x 92 x 40 mm ( excluding the connectors )
104 x 92 x 40 mm
206 grams (modem only)
Weight
Volume 382 cm³
Casing
Waterproof level
< 618 grams (modem + brackets + cables)
Aluminum profile
IP31

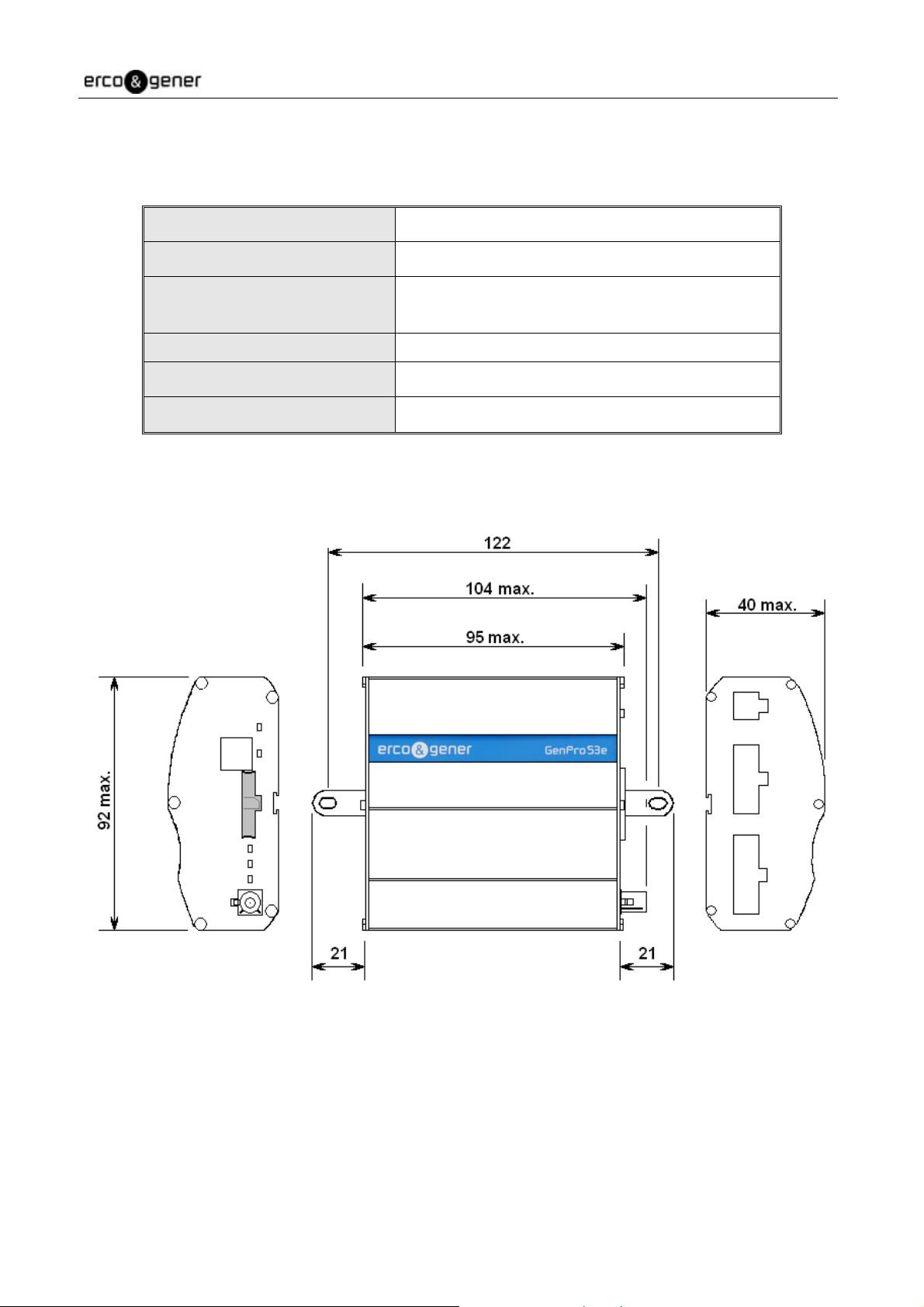

The illustration below shows the dimensions of the modem including the clearances necessary for the
installation of the modem.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 55 / 71
8.2 Electrical characteristics
8.2.1 Power supply
Table: Electrical characteristics
Power supply range
Average consumption
Conditions
Battery charged
GSM OFF
Battery in charge
GSM OFF
Battery charged
GSM ON
5.5V to 32V DC
28 mA @ 12V
151 mA @ 12V
- 900 MHz ....... : 145 mA @ 12V in communication
- 1800 MHz ..... : 131 mA @ 12V in communication
- Mode repos .. : 30 mA @ 12V
Once the power supply is connected, the modem is permanently consuming.
If the battery is present, prepare the modem for storage or transport conditions, in order to
limit high discharges of the battery. For that, see § 5.9 Turning off the modem
The following table describes the consequences of over-voltage or insufficient voltage on the modem.
Table: Effects of a power supply defect
Voltage falls below 5.5V
Voltage above 32V
(Punctual peaks )
Then:
The functioning and the GSM are not guaranteed
when the remaining capacity of the battery is not
sufficient.
The modem guarantees its own protection.
(Continuous over-voltage )
Voltage above 32V
The modem is protected by the fuse mounted on the
supply cable.
The modem does not have any internal protection. For that, you must use the supply cable
provided with the modem which has this protection.
The following tables show the modem consumptions depending on the different functions activated.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 56 / 71
For example:
The equipment is supplied with 12V with
- the battery charged
- RS 232 connected
- The GSM module in GPRS communication at 900 MHz
Board
RS
GSM
I Nom.(mA) I Pic.(mA)
28
3.2
191.3 804
Total : 222.5 804
The average consumption is 222.5 mA and the power supply must support current peaks of 804 mA.
The equipment is supplied with 12V with
- The battery charging
- RS 232 connected
- The GSM module in GPRS communication at 900 MHz
Board
Battery
RS
GSM
I Nom.(mA) I Pic.(mA)
28
122.6
3.2
191.3 804
Total : 345.1 804
The average consumption is 345.1 mA and the power supply must support current peaks of 804 mA.
8.2.1.1 Consumption of the board with battery charged
Table: Consumption of the board with battery charged
CONDITIONS
T=25°C
+VDC I Nom.(mA)
Battery charged @ 5,5V 50
GSM OFF @ 12V 28
RS 232 disconnected @ 24V 17
@ 32V 14
(1*) The consumptions of the power supply may vary by 5% depending on the temperature range (-20 °C to +55 °C).
8.2.1.2 Consumption of the board with battery charging
Table: Consumption of the board with battery charging
CONDITIONS
T=25°C
+VDC I Nom.(mA)
Battery charging @ 5,5V 295
GSM OFF @ 12V 151
RS 232 disconnected @ 24V 84
@ 32V 66
(1*) The consumptions of the power supply may vary by 5% depending on the temperature range (-20 °C to +55 °C).
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 57 / 71
8.2.1.3 Consumption of the RS 232
Table: Consumption of the RS 232 connection
CONDITIONS
T=25°C
+VDC I Nom.(mA)
Battery charged @ 5,5V 5.4
GSM OFF @ 12V 3.2
RS 232 disconnected @ 24V 1.9
@ 32V 1.6
(1*) The consumptions of the power supply may vary by 5% depending on the temperature range (-20 °C to +55 °C).
Typical value with a portable computer. The consumption may vary with other kinds of
equipment
8.2.1.4 Consumption of the GSM module
Table: Consumption of the GSM module
Battery charged and RS232 disconnected
CONDITIONS
T=25°C and SIM card 3V I Nom.(mA) I Nom.(mA) I Nom.(mA) I Nom.(mA)
+VDC
850 MHz 900 MHz 1800 MHz 1900 MHz
Idle mode (2*) @ 5,5V 52 52 52 52
@ 12V 30 30 30 30
@ 24V 17 17 17 17
@ 32V 14 14 14 14
In GSM communication @ 5,5V 283 281 250 239
1RX/1TX, Full Power @ 12V 146 145 131 126
@ 24V 81 81 74 71
Power (2W/1W) @ 32V 64 63 58 56
In GPRS CL10communication @ 5,5V 453 455 385 371
2RX/2TX, Full Power @ 12V 218 219 190 184
@ 24V 117 117 104 101
Power (2W/1W) @ 32V 93 93 81 79
During TX bursts @ 5,5V 2 020 2 020 1 573 1 428
@ 12V 832 832 658 601
@ 24V 387 387 302 277
Power (2W/1W) @ 32V 309 309 256 238
(1*) The consumptions of the power supply may vary by 5% depending on the temperature range (-20 °C to +55 °C).
(2*) Idle mode = modem registered on network but out of communication.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 58 / 71
8.2.2 Audio interface
The audio interface is available via the RJ 9 4/4 connector, (see paragraph 7.9.1 Microphone inputs, 7.9.2
Loud-speaker outputs (Speaker)) and pin 14 of the 14-pin connector for the Buzzer (see paragraph 7.9.3
Buzzer outputs ).
8.2.2.1 Microphone
Polarization characteristics for a Microphone HANDSET
Polarization output Parameter/Conditions Min Typ Max Units
Polarization tension
Set to 2.0 V 1.9 2.1 V
Set to 2.5 V 2.4 2.6 V
Polarization current 2.0 mA
Recommended characteristics for the Microphone
Input micro Parameters /Conditions Min Typ Max Units
Maximum Input Range –
Mic(+) to Mic(-)
Nominal Ref. Level –
Mic(+) to Mic(-)
Differential Input Resistance –
Mic(+) to Mic(-)
Inputs 3 dBm0 (Max. digital
sample amplitude when PGA
gain set to 0 dB)
32.5
mV
RMS
Differential MIC -10 dBm0
Differential MIC,
MICAMP gain = 25.6 dB
36 k
Microphone Pre-Amplifier Gain Differential MIC 25.6 dB
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 59 / 71
8.2.2.2 Loudspeaker
Output characteristics for the loudspeaker
Loudspeaker output Parameters/Conditions Min Typ Max Units
Output Swing 3.9 V
Maximum Differential Resistive
PP
120
Load
Maximum Differential Capacitive
Load
Common Mode Minimum
Resistive Load
Common Mode Maximum
Capacitive Load
Amplifier Gain
Output Swing 1.5 VPP
100 pF
At Internal Speaker (+) or (-) 200 k
At Internal Speaker (+) or (-) 50 pF
EARG = 1
EARG = 0
33
1
-11
dB
dB
Parameters Test Conditions Min Typ Max Units
Earphone output swing at
EARP-EARN
Distortion 2% and 120 , VSP input
level = +3 dBm0, amp gain = -11 dB
Distortion 2% and 33 , VSP input
level = -5.34 dBm0, amp gain = -11 dB
Distortion 2% and 120 , I2S input
level = +3 dBm0, amp gain = -11 dB
Distortion 2% and 120 , VSP input
level = +3 dBm0, amp gain = -1 dB
Distortion 2% and 33 , VSP input
level = -5.34 dBm0, amp gain = -1 dB
Distortion 2% and 120 , I2S input
level = +3 dBm0, amp gain = -1 dB
0.98
0.38
0.93
3.1 3.92
1.2 1.5
2.96 3.7
V
P-P
V
P-P
V
P-P
V
P-P
V
P-P
V
P-P
EARG = 1 1 dB
Amplifier Gain
EARG = 0 -11 dB
Earphone amplifier state
in power down
Earphone amplifier power
supply rejection
High Z
1 kHz, 100 mVp-p 50 dB
An external amplifier is necessary for a charge < 16 or if the volume is not adapted.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 60 / 71
8.2.2.3 Buzzer
Output characteristics
Characteristics Symbols Conditions Min. Typ. Max. Unit
collector-base voltage V
collector-emitter voltage V
CB0
CE0
collector current (DC) IC
peak collector current ICM
Collector Cutoff Current I
collector-emitter saturation
voltage
V
CB0
CEsat
transition frequency fT
collector capacitance CC
total power dissipation P
Ttot
Transmitter open
Open base
IE = 0; VCB = 60 V; Tj = 25 °C
IE = 0; VCB = 60 V; Tj = 125 °C
IC = 150 mA; IB = 15 mA *
IC = 500 mA; IB = 50 mA *
IC = 20 mA; VCE = 20 V; f = 100
MHz
IE = Ie = 0; VCB = 10 V; f = 1 MHz
T
25 °C
amb
48 V
40 V
600 mA
800 mA
10 nA
10 µA
300 mV
1 V
300 MHz
8 pF
225 mW
Example of transducer tested with the GenPro 53e :
Buzzer characteristics Values
Type Transducer AT-2720-T-R
Consumptions 1-30V peak/3.5mA max.
Resonance frequency 2.048Hz ±500HZ
Acoustic level (SPL) Min.88dBA @10cm
The output assembly of the internal module is in open collector.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
)
)
EG_GenPro53e_1040_UG_003_UK Page 61 / 71
8.2.3 Inputs/Output
By default, the GenPro 53e provides
5 opto-coupled inputs (E1 to E5)
3 open collector outputs (S1 to S3).
2 analog inputs (ANA1, ANA2).
8.2.3.1 Opto-coupled inputs
Table: Characteristics of opto-coupled inputs
Characteristics Symbols Conditions Min. Typ. Max. Unit
Max. current I
50 mA
F (rms
Max.inverted tension VR 5 V
Direct tension VF I
Inverted current IR V
= 10 mA 1.0 1.15 1.3 V
F
= 5 V 10 µA
R
Capacity CT V=0, f = 1 MHz --- 30 --- pF
Transfer Ratio IC / IF I
Saturation of transfer ratio IC / I
F (SAT
= 5 mA, VCE = 5 V 50 --- 600 %
F
IF = 1 mA, VCE = 0.4 V 60 %
The minimum of voltage command for voltage detection is: 5 V
The maximum voltage command is : 35 V
Internal electrical scheme of the three inputs
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 62 / 71
As an option (contect us) the inputs E3 and E5 can be insulated.
Input
E+ E-
pins pins
E3 insulated 11 10
E5 insulated 4 5
8.2.3.2 Output
Table: Characteristics of the open-collector output
Characteristics Symbols Conditions Max. Unit
max.Tension V
max.Tension V
Open transmitter 48 VDC
CE0
V
CES
= 0 V 48 VDC
BE
Collector current IC 0.5 A
Saturation tension V
Dissipation P
I
CEsat
T
Ttot
= 500 mA 1.3 V
C
amb
25 °C, Tj = 110 °C 0.78 W
Electrical scheme of the output
No protection is provided. The user must respect the values of the table above..
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 63 / 71
8.2.3.3 Analog input
Table: Characteristics of the option analog input
Characteristics Symbols Conditions Min. Typ. Max. Unit
Analog input ANA1 / 2 -0.3 10.8 Vdc
Conversion range 1.3 µ 10.33 Vdc
Polarization current From 1.3 µV to 10.33 V 0.064 345 µAdc
The integrator has the responsibility to protect the input from electrical perturbations and to
respect the values of the functioning parameters forecast.
Internal electrical scheme of the option analog input
8.2.4 SIM interface
Table: Characteristics of the SIM card supply tension
SIM card 3 V or 1.8 V
8.2.5 Option 2
nd
SIM interface
Contact us.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
8.2.6 RESET signal
You must pass through a transistor assembly to use the RESET signal.
EG_GenPro53e_1040_UG_003_UK Page 64 / 71
Cabling scheme
Table: Conditions of use
Parameters Condition Min. Typ. Max. Unit
VIL Input Voltage – Low -0.3 0.8 Vdc
VIH Input Voltage – High 2 3.3 Vdc
RIPU Internal Pull-Up Resistor 5.38K Ohms
8.2.7 Characteristics of the RS232 serial links
The characteristics are the same for the 2 serial links RS_232_0 and RS232_1
Table: Characteristics of the UART
Characteristics Symbols Conditions Min. Typ. Max. Unit
Input Voltage – Range V
Input Voltage – Range -25 +25 Vdc
Input
Input Voltage – Low VIL Input Voltage – Low 0.6 1.1 Vdc
Input Voltage – High VIH Input Voltage – High 1.5 24 Vdc
Input Hysteresis V
Input Hysteresis 0.5 Vdc
Hys
Input Resistance Rin Input Resistance 3 5 7 K
All transmitter outputs
Output Voltage V
out
loaded with 3 k to
±5 ±5.4 v
ground
Transmitter Output Resistance RR
RS-232 Output Short-Circuit
Current
300 50k
out
±60 mA
I
cc
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 65 / 71
8.2.8 RF GSM/DCS characteristics
8.2.8.1 RF functioning
The RF functioning complies with the ETSI GSM Standards.
The RF performances for the receiver and the transmitter are described below.
Table: Parameters of the RF receiver and transmitter
Receiver
Sensitivity in 850/900 - 106 dBm, GPRS Coding Scheme 1 (CS1)
Sensitivity in 1800/1900 - 106 dBm, GPRS Coding Scheme 1 (CS1)
Transmitter
Maximum power (Power Class1 - 850/900) at
ambient temperature
Maximum power (Power Class4 - 1800/1900) at
ambient temperature
33 dBm +/- 2 dB @ antenna connection
30 dBm +/- 2 dB @ antenna connection
8.2.8.2 GSM external antenna
The GSM external antenna is connected to the modem via the FAKRA-D connector.
The external antenna must have the characteristics described in the table below.
Table: Characteristics of the GSM external antenna
Frequency band 850/900/1800/1900 MHz
Impedance 50 Ohms nominal
DC impedance 0 Ohm
Gain 0 dBi in a mini direction
VSWR (Rx max TX max) 1.5:1
Polarization Linear
See paragraph 10 Recommended accessories, for the GSM antennas recommended by
ERCO & GENER.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 66 / 71
8.2.9 Power supply 3.8 V
When the battery is present, see the table below for the available tension.
Table: Conditions of use
Parameters Condition Min. Typ. Max. Unit
Vout
Without power supply * 2.8 4.2 Vdc
With power supply 5.5V - 32V 4.4 4.5 Vdc
Iout Max. 100 mA
* The GenPro 53e works only with battery.
The min. 2.8 V auto-protection limit of the battery. From this moment, the battery puts itself
under protection, and the output tension becomes null.
When the battery is not connected, the output tension is 4.4V Vout 4.5 V as long as the
power supply +VDC is present
8.2.10 Power_Out power supply
Contact us.
8.2.11 Option 100V power supply
Contact us.
8.3 Environmental characteristics
To ensure a correct functioning of the modem, the limits listed in the table below must be respected.
Table: Environmental characteristics
Operating temperature -20 °C to +60 °C
Storage temperature -40 °C to +85 °C
Operating humidity without condensation HR < 70% @ +55°C
Atmospheric pressure normal
When the temperature is more than 45 °C inside the box, the protection of the battery
management triggers. The battery will not be charged.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 67 / 71
8.4 Standards/Conformities
The product complies with the following requirements:
- R&TTE 1999/5/EC Directive,
- Regulations of standard ETSI EN 301 489-7 (02),
- ROHS Compliant : Directive 2002/95/CE,
- 2002/96/CE DEEE (crossed out wheelie bin).
The following marking appears under the device.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 68 / 71
9 Security recommendations
9.1 General security
It is important to respect the specific regulations concerning the use of radio equipment, in particular with the
possible risks of interference due to radio frequency (RF). Please respect carefully the following security
advices.
Turn off your GSM modem:
On an aircraft, the use of cellular telephone can endanger the plane operations; disturbing the cellular
network is illegal. The non-observance of this instruction can lead to the suspension or the exclusion
of the cellular phone services, or even to a trial, or both,
At a refueling station,
In any area with a potential explosive atmosphere that could cause an explosion or a fire,
In hospitals and other places where medical equipment may be used.
Restrictions of use of radio equipments in:
Fuel warehouses,
Chemical factories,
Places where destruction operations are in the running,
Other places where signs indicate that the use of cellular phones is prohibited or dangerous.
Other places where you should normally turn off the engine of your vehicle.
There can be a danger associated with the use of your GSM modem close to insufficiently protected medical
devices such as acoustic devices and pacemakers.
Consult the manufacturers of medical equipment to know if it is adequately protected.
Using your GSM modem close to other electronic equipments may also cause interferences if the equipment
is insufficiently protected.
Pay attention to the warnings and the recommendations of the manufacturers.
The modem is designed to be used with "fixed" and "mobile" applications:
“Fixed" application: The GSM modem is physically linked to a site and it is not possible to move it
easily to another site.
"Mobile" application: The GSM modem is designed to be used in various places (other than fixed) and
is intended to be used in portable applications.
The modem must be used at more than 20cm from the human body.
This equipment is supplied in Very Low Security Voltage and at non-dangerous energy level.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 69 / 71
9.2 Security in a vehicle
Do not use your Modem whilst driving, unless equipped with a correctly installed ear-piece/hands-free kit.
Respect the national regulations concerning the use of cellular telephones in vehicles. Road safety is always
a priority.
An incorrect installation of the GSM modem in a vehicle could cause an incorrect functioning of the vehicle’s
electronics. To avoid such problems, ensure that the installation was made by a qualified person. During the
installation, a verification of the electronic protection system of the vehicle must be done.
The use of a warning equipment that activates the headlights or the horn of a vehicle on public highway is
not authorized.
9.3 Care and maintenance
The suggestions hereunder will help you to preserve this product for many years.
Do not expose the modem to the extreme environments, to high temperature or high humidity.
Do not use or store the modem in dusty or dirty places, it could be damaged.
Do not try to disassemble the modem, at the risk of cancelation of the guarantee.
Do not expose the modem to water, rain or spilled beverage, it is not impermeable.
Avoid dropping, striking, or shaking the modem violently. The lack of care can damage it.
Do not place the modem next to computer disks, credit or travel cards or other magnetic supports. The
information contained on disks or cards can be affected by the modem.
The use of other equipments or accessories not made or not authorized by ERCO & GENER can cancel the
guarantee of the modem.
The battery is not under guarantee.
9.4 Your responsibility
This modem is under your responsibility. Treat it with care, it is not a toy. Keep it always in a secure place
and out of the reach of children.
Try to remember your PIN and PUK codes. Familiarize yourself with the modem and use the security
functions to lock it in case of non authorized using or in case of theft.
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
EG_GenPro53e_1040_UG_003_UK Page 70 / 71
10 Recommended Accessories
The accessories recommended by ERCO & GENER for the modem GenPro 53e, are described on our
website in the section Products/Accessories. For more information, contact our sales department.
11 Client support
ERCO & GENER ensures the client support for all its modems sold. You will then have access to:
The latest version of this document
The datasheet of the product
The latest versions of the OS user guides
Certificates
Application notes
The support concerning the EGM developments is optional (contact us).
Descriptions and non-contractual illustrations in this document are given as an indication only.
ERCO&GENER reserves the right to make any modifications
