User Guide
GenPro 325e
Reference: EG_GenPro325e_1103A4_UG_005_UK.doc
Revision: 005
Date: 16/06/2017
ZI Chacé - Rue Docteur Weiss – F-49400 SAUMUR
Tél. : +33 (0)2 41 83 13 00
SAS CAPITAL 500 000 € / R.C. ANGERS B 801 206 228 / SIRET 801 206 228 00018
EG_GenPro325e_1103A4_UG_005_UK.doc Page 2 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Document History
Rev. Modifications Author Date Validation Date
000 Creation YST 14/08/2015
001
Addition information about power range with
and without battery.
Modification power voltage to 7.2V instead of
7.5V.
Output 3.8V renamed Output V
BAT
PBR 12/11/2015
002 Evolution MSU 28/12/2015
003 Pass to release PBR 24/02/2016 YST 24/02/2016
004 Add power cable 4 wires with fuse. YST 12/10/2016 MSU 18/10/2016
005
Battery characteristic evolution.
Add precision on pinout of -Fit.
PBR 16/06/2017 MSU 16/06/2017
The main modifications of this document compared to the previous version are easily identifiable on a screen
by the blue color of the text.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 3 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
TABLE OF CONTENTS
PRESENTATION ............................................................................................................................................... 9
WARNING ....................................................................................................................................................... 10
COPYRIGHT ................................................................................................................................................... 11
SYMBOLS USED ............................................................................................................................................ 12
1 SECURITY RECOMMENDATIONS ....................................................................................................... 13
1.1 GENERAL SECURITY ......................................................................................................................... 13
1.2 SECURITY IN A VEHICLE .................................................................................................................... 14
1.3 CARE AND MAINTENANCE .................................................................................................................. 14
1.4 YOUR RESPONSIBILITY ...................................................................................................................... 14
2 PRESENTATION .................................................................................................................................... 15
2.1 CONTENT ......................................................................................................................................... 15
2.2 MODEM PACKAGING ......................................................................................................................... 15
2.3 MECHANICAL CHARACTERISTICS ....................................................................................................... 16
2.3.1 Fixing brackets ......................................................................................................................... 16
2.4 CHARACTERISTICS AND SERVICES .................................................................................................... 17
2.4.1 Services .................................................................................................................................... 17
2.5 ENVIRONMENTAL CHARACTERISTICS ................................................................................................. 19
3 INTERFACES ......................................................................................................................................... 20
3.1 FRONT SIDE ...................................................................................................................................... 20
3.2 BACK SIDE ....................................................................................................................................... 21
3.3 FUNCTIONAL ARCHITECTURE ............................................................................................................. 22
3.3.1 General ...................................................................................................................................... 22

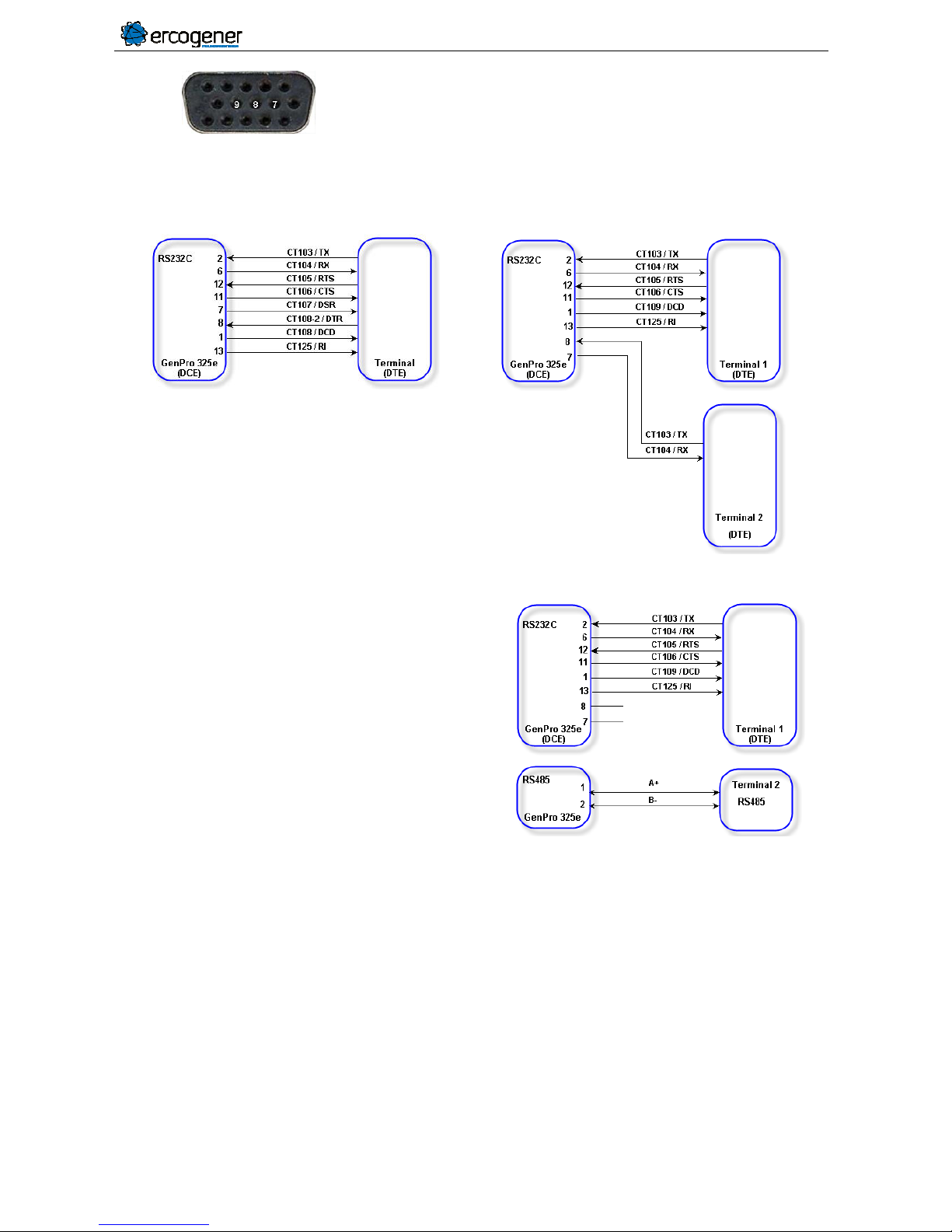

3.3.2 Functional architecture of optional serial ports ................................................................... 22
3.4 POWER SUPPLY ................................................................................................................................ 23
3.4.1 Power supply cables ............................................................................................................... 23
3.4.2 Power supply ............................................................................................................................ 23
3.4.3 Internal battery option (S0531B) ............................................................................................ 24
3.4.4 Consumptions of the GenPro 325e ........................................................................................ 25
3.4.4.1 Power supply dimensioning .......................................................................................... 26
3.5 SERIAL LINKS RS232C .................................................................................................................... 27
3.5.1 Serial link RS232 by default .................................................................................................... 27
3.6 RS485 SERIAL LINK ......................................................................................................................... 29
3.6.1 Connection recommendations ............................................................................................... 30
3.6.1.1 Connection with intermediate connector ..................................................................... 31
3.6.1.2 Direct connection ............................................................................................................ 32
3.7 BOOT ............................................................................................................................................. 32
EG_GenPro325e_1103A4_UG_005_UK.doc Page 4 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.8 RESET ........................................................................................................................................... 33
3.9 OPTO-COUPLED INPUTS .................................................................................................................... 34
3.9.1 Standard opto-coupled inputs ................................................................................................ 34
3.9.1.1 Inputs functioning ........................................................................................................... 35
3.9.2 Analog input 0-10V by default ................................................................................................ 36
3.9.3 Analog input 0-10V (option) .................................................................................................... 37
3.9.4 Multi One Wire input (option) .................................................................................................. 38
3.10 DIGITAL OUTPUTS ............................................................................................................................. 39
3.10.1.1 Output functioning .......................................................................................................... 40
3.11 WATCHDOG...................................................................................................................................... 40
3.12 SIM CARD ........................................................................................................................................ 41
3.13 LEDS OF THE MODEM ........................................................................................................................ 42
3.13.1 GSM Led ............................................................................................................................... 42
3.13.1.1 Without Application ........................................................................................................ 42
3.13.1.2 With EGM standard library ............................................................................................. 42
3.13.1.3 The application ERCOGENER EasePro _Vx ................................................................. 42
3.13.1.4 Owner application ........................................................................................................... 42
4 GSM EXTERNAL ANTENNA ................................................................................................................. 43
5 USE OF THE MODEM ............................................................................................................................ 44
5.1 SPECIFIC RECOMMENDATIONS FOR THE USE OF THE MODEM IN VEHICLES ............................................ 44
5.1.1 Recommended connection on the battery of a truck ........................................................... 44
5.2 TURNING THE MODEM OFF ............................................................................................................... 45
5.3 STARTING WITH THE MODEM .............................................................................................................. 46
5.3.1 Mounting the modem ............................................................................................................... 46
5.3.2 SIM card installation ................................................................................................................ 46
5.4 USE OF THE MODEM .......................................................................................................................... 47
5.4.1 Checking the communication with the modem .................................................................... 47
5.4.1.1 Without Application ........................................................................................................ 47
5.4.1.2 The GenPro 325e contains the application ERCOGENER EasePro _Vx ................... 48
5.4.1.3 The GenPro 325e contains the application ERCOGENER EaseIP _Vx ...................... 48
5.4.1.4 The GenPro 325e contains the application ERCOGENER « direct access » ............ 48
5.4.1.5 The owner application .................................................................................................... 49
5.5 CHECKING THE QUALITY OF THE GSM RECEPTION SIGNAL.................................................................. 49
5.6 VERIFICATION OF PIN CODE .............................................................................................................. 50
5.7 VERIFICATION OF MODEM REGISTRATION ON CELLULAR NETWORK ...................................................... 50
5.1 VERIFICATION OF MODEM REGISTRATION ON GPRS NETWORK ........................................................... 51
6 RECOMMENDED ACCESSORIES ........................................................................................................ 52
7 CLIENT SUPPORT ................................................................................................................................. 52
ANNEX 1 – 4-PIN MICRO-FIT CABLE WITHOUT FUSE .............................................................................. 53
ANNEX 2 – 4-WIRE MICRO-FIT CABLE WITH FUSE .................................................................................. 54
EG_GenPro325e_1103A4_UG_005_UK.doc Page 5 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
ANNEX 3 – 2-PIN MICRO-FIT CABLE ........................................................................................................... 55
ANNEX 4 - ABBREVIATIONS ........................................................................................................................ 56
DECLARATION OF CONFORMITY ............................................................................................................... 61
EG_GenPro325e_1103A4_UG_005_UK.doc Page 6 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Index of Tables
Table 1 : Mechanical characteristics ............................................................................................................... 16
Table 2 : Characteristics and services ............................................................................................................. 17
Table 3 : Environmental characteristics ........................................................................................................... 19
Tableau 4 : Front side connection ................................................................................................................... 20
Table 5 : Description of power supply pins ...................................................................................................... 23
Table 6 : Effects of power supply defect .......................................................................................................... 23
Table 7 : Characteristics of the polymer lithium battery .................................................................................. 24
Table 8 : Power supply range .......................................................................................................................... 25
Table 9 : Consumption with mode Power Off Mode @ 25 °C without battery charge .................................... 25
Table 10 : Consumption with attached mode @ 25 °C without battery charge ............................................... 25
Table 11 : Maximum consumption with data transfer mode @ 25 °C without battery charge ........................ 25
Tableau 12 : Consumption of battery charge @ 25 °C ................................................................................... 25
Table 13 : Electrical characteristics of RS232C signals .................................................................................. 27
Table 14 : Description of pins of serial link RS232C ....................................................................................... 27
Table 15 : Pins description of 2nd serial link .................................................................................................... 27
Table 16 : Pins description of serial link RS485 .............................................................................................. 29
Table 17 : Characteristics of RS485 serial link ................................................................................................ 29
Table 18 : Preparation of wire ......................................................................................................................... 31
Table 19 : Description of BOOT input .............................................................................................................. 32
Table 20 : Conditions of use of BOOT signal .................................................................................................. 32
Table 21 : Description of RESET input ............................................................................................................ 33
Table 22 : Conditions of use of RESET signal ................................................................................................ 33
Table 23 : Description of opto-coupled inputs ................................................................................................. 34
Table 24 : Characteristics of opto-coupled inputs ........................................................................................... 34
Table 25: Description of analog input 0-10V ................................................................................................... 36
Table 26: Characteristics of analog input 0-10V ............................................................................................. 36
Table 27 : Description of analog input 0-10V .................................................................................................. 37
Table 28 : Characteristics of analog input 0-10V ............................................................................................ 37
Table 29 : Description of Multi 1- Wire Bus ..................................................................................................... 38
Table 30 : Multi One Bus - Electrical characteristics ....................................................................................... 38
Table 31 : Description of digital outputs .......................................................................................................... 39
Table 32 : Characteristics of open collector output ......................................................................................... 39
Table 33 : Characteristics of the SIM card power voltage ............................................................................... 41
Table 34 : Status of GSM LED ........................................................................................................................ 42
Table 35 : Characteristics of GSM external antenna ....................................................................................... 43
Table 36 : RSSI value ...................................................................................................................................... 49
Table 37 : Verification of PIN code .................................................................................................................. 50
Table 38 : Verification of modem registration on cellular network ................................................................... 50
Table 39 : Verification of modem registration on GPRS network .................................................................... 51
Table 40 : Characteristics of power cable without fuse ................................................................................... 53
EG_GenPro325e_1103A4_UG_005_UK.doc Page 7 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Table 41 : Characteristics of power cable with fuse ........................................................................................ 54
Table 42 : Characteristics of 2-wire inputs cable ............................................................................................. 55
Table 43 : Wiring of 2-wire inputs cable .......................................................................................................... 55
EG_GenPro325e_1103A4_UG_005_UK.doc Page 8 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Index of Figures
Figure 1 : Content ............................................................................................................................................ 15
Figure 2 : Dimensions ...................................................................................................................................... 16
Figure 3 : Back side ......................................................................................................................................... 16
Figure 4 : Front side ......................................................................................................................................... 20
Figure 5 : Back side ......................................................................................................................................... 21
Figure 6 : Functional architecture .................................................................................................................... 22
Figure 7 : Architecture of optional serial ports ................................................................................................. 22
Figure 8 : Max consumption ............................................................................................................................ 26
Figure 9 : Block scheme of serial links ............................................................................................................ 28
Figure 10 : Cable length of RS485 serial link .................................................................................................. 30
Figure 11 : Standards signals of RS485 serial link .......................................................................................... 30
Figure 12 : Internal electrical scheme of BOOT .............................................................................................. 32
Figure 13 : Internal electrical scheme of RESET ............................................................................................ 33
Figure 14 : Chronogram of RESET signal ....................................................................................................... 33
Figure 15 : Internal electric scheme of opto-coupled inputs ............................................................................ 35
Figure 16 : Internal electric scheme of analog input 0-10V ............................................................................. 36
Figure 17 : Internal electric scheme of analog input 0-10V ............................................................................. 37
Figure 18 : Internal electrical scheme of Multi 1-Wire Bus .............................................................................. 38
Figure 19 : Internal electrical scheme of the output ........................................................................................ 39
Figure 20 : Example of relay control ................................................................................................................ 39
Figure 21 : Back side Led ................................................................................................................................ 42
Figure 22 : GSM external antenna .................................................................................................................. 43
Figure 23 : Recommended connection on the battery of a truck .................................................................... 44
Figure 24 : Mounting the modem ..................................................................................................................... 46
Figure 25 : Installation of the modem .............................................................................................................. 46
Figure 26 : 4-pin Micro-FIT cable without fuse ................................................................................................ 53
Figure 27 : 4-pin Micro-FIT cable with fuse ..................................................................................................... 54
Figure 28 : Fuse Mini Blade ............................................................................................................................. 54
Figure 29 : 2-pin Micro-FIT cable (Inputs) ....................................................................................................... 55
EG_GenPro325e_1103A4_UG_005_UK.doc Page 9 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Presentation
Entirely dedicated to embedded data services, the modem GenPro 325e combines HSPA / GPRS/ GSM
functions in the same robust casing.
Dedicated to industrial markets, the GenPro 325e provides by default two serial links of communication
allowing the following configurations: either two RS232C, the second one having only RX/TX signals, or one
RS232C and one RS485A.
The modem is quad-Bands (850/900//1800/1900 in 2G GSM/GPRS Class 12/EDGE.
The modem is six-Bands (Band I (2100 MHz), Band II (1900 MHz), Band IV (1700 MHz), Band V (850 MHz),
Band VI (800 MHz), Band VIII (900 MHz)) in 3G UMTS/HSDPA/HSUPA.
The GenPro 325e provides 3 operating modes depending on the embedded application:
External mode (standard) : The control is done by an external application. The modem is used with
the AT command set (see Commands List EG_EGM_CL_xxx_yy of ERCOGENER).
Autonomous mode: Once configured, the modem is autonomous; it cyclically registers the positions
and automatically transmits them to the client’s application via different services: SMS, GSM Data,
TCP socket GPRS/UMTS (see EG_EasePro_Vx_CL_yyy_UK of ERCOGENER).
Specific development mode: the EGM development tool allows the development of additional and
customized embedded applications. For more information about the tools and the training, please
contact our sales department.
Its protocols of IP connectivity integrated in the embedded application EasePro_Vx, are also available under
EGM libraries for a specific development, allowing a quick installation of embedded telematics solutions with
strong added-value..
This document describes the modem and provides the following information:
- General presentation,
- Functional description,
- Available basic services,
- Installation and use of the modem (first level),
- Recommended accessories for the use of the modem.
For more information about this document, ERCOGENER puts at your disposal the following elements:
- Commands List
External mode EG_EGM_CL_xxx_yy
Autonomous mode EG_EasePro_Vx_CL_yyy_UK
- Application Note EG_GenPro325e_1103A4_AN_xxx_yy
- Release Note EG_GenPro325e_1103A4_RL_xxx_yy
- Client support (Hot-Line)
EG_GenPro325e_1103A4_UG_005_UK.doc Page 10 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Warning
ERCOGENER recommends to read carefully all documents linked to the product GenPro 325e (User
Guide, Application Notes, Command List) that can be download on our website www.ercogener.com.
ERCOGENER cannot be held responsible for:
- The problems due to an inappropriate use of the GenPro 325e.
- The problems due to a wrong configuration
- The problems due to a wrong use of an embedded software application developed or supplied by a
third party.
-
The dysfunctions due to the absence or a bad coverage of the GSM, GPRS, 3G networks.
- The dysfunctions if the product is used for the watching of physical persons where human life is
engaged.
ERCOGENER reserves the right to modify the functions of its products "GenPro 325e" and
"EasePro" without previous notice.
- To avoid any risk of electrocution, do not open the casing.
- For any functioning, the casing must be closed.
- No internal part can be repaired by the user. The GenPro 325e must be returned to the factory for any
repair.
- The GenPro 325e must be placed in a normally ventilated area, out of sources of heat.
- In order to guarantee the electromagnetic compatibility, the length of the serial cable, the power supply
cable and the inputs/outputs cable must not exceed 3 meters.
- The GenPro 325e must not be connected directly to the mains supply; a voltage adapter must be used.
SCRAP THE WORN BATTERIES ACCORDING TO INSTRUCTIONS.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 11 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Copyright
The reproduction, transfer, distribution or storage of part or the totality of the contents of this document, in
any form, without the prior written authorization of ERCOGENER is strictly prohibited.
GenPro 325e is a trademark of ERCOGENER.
Hayes is a registered trademark of Hayes Microcomputer Product Inc. The names of products and
companies mentioned in this document may be names or trademarks of their respective holders.
The use of some products or services described in this document may require a paying subscription. The
availability of some products or services described in this document may change, depending on the
configurations and the materials.
In some countries, restrictions of use of the devices may be applied. For more information, thank you to
contact your nearest legally qualified local government representative.
ERCOGENER follows a method of continuous development. Consequently, ERCOGENER reserves the right
to change and improve any of its products described in this document, without notice.
The contents of this document are provided “as it is”. Except for the applicable obligatory laws, no guarantee
in any form, explicit or implicit, including but without being limited to it the implicit guarantees of aptitude to
marketing and of appropriateness to a particular use, is granted concerning the precision, the liability or the
contents of this document. ERCOGENER reserves the right to revise or withdraw this document at any time
and without notice.
ERCOGENER cannot be held responsible for any loss of data or income, as well as particular
damage, incidental, consecutive or indirect.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 12 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Symbols used
The following symbols are used to highlight the important information of this document.
A symbol for the essential information linked to the module integration and performance.
A warning symbol indicates the actions that could harm or damage the module
EG_GenPro325e_1103A4_UG_005_UK.doc Page 13 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
1 Security recommendations
1.1 General security
It is important to respect the specific regulations linked with the use of radio equipment, in particular with the
possible risks of interference due to radio frequency (RF). Please respect carefully the following security
recommendations.
Turn OFF your GSM modem:
On an aircraft. The non-observance of this instruction can lead to the suspension or the exclusion of
the cellular phone services, or even to a trial, or both,
At a refueling station,
In any area with a potential explosive atmosphere that could cause an explosion or a fire,
In hospitals and other places where medical equipment may be used.
Restrictions of use of radio equipment in:
Fuel warehouses,
Chemical factories,
Places where destruction operations are in the running,
Other places where signs indicate that the use of cellular phones is prohibited or dangerous.
Other places where you should normally turn OFF the engine of your vehicle.
There can be a danger associated with the use of your modem close to insufficiently protected medical
equipment such as audio devices and pacemakers.
Consult the manufacturers of medical equipment to know if it is adequately protected.
Using your modem close to other electronic equipment may also cause interferences if the equipment is
insufficiently protected.
Pay attention to the warnings and the recommendations of the manufacturers.
The modem is designed to be used with "fixed" and "mobile" applications:
“Fixed" application: The modem is physically linked to a site and it is not possible to move it easily to
another site.
"Mobile" application: The modem is designed to be used in various places (other than fixed) and is
intended to be used in portable applications.
The modem must be used at more than 20cm from the human body.
This equipment is powered at a Very Low Security Voltage and at non-dangerous energy level.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 14 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
1.2 Security in a vehicle
Do not use your modem whilst driving.
Respect the national regulations linked with the use of cellular telephones in vehicles. Road safety is always
a priority.
An incorrect installation of the modem in a vehicle could cause an incorrect functioning of the vehicle’s
electronics. To avoid such problems, make sure that the installation was made by a qualified person. During
the installation, a verification of the electronic protection system of the vehicle must be done.
The use of a warning equipment that activates the headlights or the horn of a vehicle on a public highway is
not authorized.
1.3 Care and maintenance
The following suggestions will help you to preserve this product for many years.
Do not expose the modem to the extreme environments, to high temperature or high humidity.
Do not use or store the modem in dusty or dirty places, it could be damaged.
Do not try to disassemble the modem, at the risk of cancelation of the guarantee.
Do not expose the modem to water, rain or spilled beverage, it is not impermeable.
Avoid dropping, striking, or shaking the modem violently. The lack of care can damage it.
Do not place the modem next to computer disks, credit or travel cards or other magnetic supports. The
information contained on disks or cards can be affected by the modem.
The use of other equipment or accessories not made or not authorized by ERCOGENER can cancel the
warranty of the modem.
The battery is not covered by the warranty when the option S0531B is installed
1.4 Your responsibility
This modem is under your responsibility. Treat it with care, it is not a toy. Keep it always in a secure place
and out of the reach of children.
Try to remember your PIN and PUK codes. Familiarize yourself with the modem and use the security
functions to lock it in case of non-authorized use or in case of theft.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 15 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
2 Presentation
2.1 Content
The GenPro 325e is supplied with:
- a GenPro 325e cardboard packaging,
- a modem GenPro 325e,
- 2 fixing brackets,
- a 4-wire power supply cable, input/output
(Red/Black /Orange/Green) stripped without fuse.
or
(Red/Black /Brown/Yellow) stripped with fuse.
- a 2-wire cable (Blue/ Yellow) stripped.
- a technical sheet (Instructions Sheet).
Figure 1 : Content
2.2 Modem packaging
The external dimensions of the modem packaging are:
- Width .................. : 109 mm,
- Height ................. : 58 mm,
- Depth ................. : 68 mm,
- Weight ................ : 185 to 205 g depending on options.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 16 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
2.3 Mechanical characteristics
Table 1 : Mechanical characteristics
Dimensions
73 x 54.5 x 25.5 mm (connectors excluded)
Complete dimensions
104 x 92 x 40 mm
Weight
87 grams (modem only)
< 190 grams (modem + brackets + cables)
Volume
101.5 cm³
Casing
Aluminum profile
Waterproof level
IP31
The illustration below shows the dimensions of the modem including the clearances necessary for the
installation of the modem.
Figure 2 : Dimensions
2.3.1 Fixing brackets
2 brackets to fix the modem on a support.
Figure 3 : Back side
Fixing brackets
EG_GenPro325e_1103A4_UG_005_UK.doc Page 17 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
2.4 Characteristics and Services
2.4.1 Services
The GenPro 325e is:
A UMTS/EDGE/GPRS/GSM modem dedicated to the transmission of binary data in asynchronous and
SMS.
The modem characteristics and the available services are summarized in the table below.
Table 2 : Characteristics and services
Functions 3G UMTS / HSPA - 2G GSM / GPRS / EDGE
• UMTS/HSPA 800/850/900/1700/1900/2100 MHz (Bands I, II, IV, V, VI, VIII)
3GPP Release 7 (HSPA+)
• GSM 4 band 850 / 900 / 1800 / 1900 MHz (support GSM / E-GSM / DCS / PCS)
3GPP Release 7
PBCCH support
• GPRS Class 12, CS1-CS4 - up to 86.5 kb/s
• EDGE Class 12, MCS1-9 - up to 236.8 kb/s
• CS GSM up to 9.6 kb/s
WCDMA up to 64 kb/s
• SMS MT/MO/CB PDU/Text mode SMS over PSD or CSD
• WCDMA/HSDPA/HSUPA Power Class 3 (24 dBm / Band VIII)
• GSM / GPRS Power Class 4 (33 dBm) for GSM/E-GSM bands
Power Class 1 (30 dBm) for DCS/PCS bands
• EDGE Power Class E2 (27 dBm) for GSM/E-GSM bands
Power Class E2 (26 dBm) for DCS/PCS bands
• Sensitivity GSM850/E-GSM900 @ 25 °C -110 dBm, Downlink RF level @ BER Class II < 2.4 %
DCS1800/PCS1900 @ 25 °C -109 dBm, Downlink RF level @ BER Class II < 2.4 %
UMTS 800 (band VI) -111 dBm, Downlink RF level for RMC @ BER < 0.1 %
UMTS 850 (band V) -112 dBm, Downlink RF level for RMC @ BER < 0.1 %
UMTS 900 (band VIII) -111 dBm, Downlink RF level for RMC @ BER < 0.1 %
UMTS 1700 (band IV) -111 dBm, Downlink RF level for RMC @ BER < 0.1 %
UMTS 1900 (band II) -111 dBm, Downlink RF level for RMC @ BER < 0.1 %
UMTS 2100 (band I) -111 dBm, Downlink RF level for RMC @ BER < 0.1 %
Packet Switched Data Rate
HSUPA category 6, up to 5.76 Mb/s
HSDPA category 8, up to 7.2 Mb/s
WCDMA data up to 384 kb/s DL/UL
Packet Switched Data Rate (GPRS/EDGE)
GPRS multi-slot class 12, CS1-CS4 up to 85.6 kb/s DL/UL
EDGE multi-slot class 12, MCS1-MCS9 up to 236.8 kb/s DL, MCS1-MCS4 up to 70.4 kb/s
UL
GPRS / EDGE multi-slot class determines the number of timeslots available for upload and download and thus the speed at which data
can be transmitted and received, with higher classes typically allowing faster data transfer rates.
GPRS / EDGE multi-slot class 12 implies a maximum of 4 slots in DL (reception) and 4 slots in UL (transmission) with 5 slots in total.
SIM Toolkit
EG_GenPro325e_1103A4_UG_005_UK.doc Page 18 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Interfaces
• GSM antenna: connector SMA-Female
• Power supply: +7.2 to +32 VDC (4-pin micro-FIT connector) (+8 to 32VDC with battery option)
• 1 serial port RS232 (300 to 115200bds) 15-pin Sub-D female
• 1 RS485 port with spring contact
• AT commands: 3GPP TS 27.007 / 27.005 / 27.010
• SIM reader (SIM 3V – 1,8V)
• 3 opto-coupled inputs
• 1 open collector output
• External device power supply via RI pin
Accessories supplied
• Fixing brackets (x2)
• Cable with 4-wire Micro FIT connector (Power supply, Input and output)
• Cable with 2-pin Micro FIT 2 connector (2 Inputs)
Options / Additional accessories *
• Analog inputs (0 – 10 Volts) S0534B
• Backup battery, RTC back up S0531B
• ONE WIRE Multi slaves S0535B
• DIN-rail kit K002
• EaseIP application S0519C
• NTRIP application S0445C
• Embedded software development kit SDK EGM
• Accessories: Antennas, cables, power supplies... (information available on our website)
* These options are in addition or replace some existing options, contact us (see § 3.3.2 Functional
architecture of optional serial ports )
EG_GenPro325e_1103A4_UG_005_UK.doc Page 19 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
2.5 Environmental characteristics
To ensure a correct operation of the modem, the specific limits described in the table below must be
respected.
Table 3 : Environmental characteristics
If the battery option, specific S0531B, is installed, the environmental conditions are different.
See table below.
Operating temperature range
Battery charging
0 °C to +45 °C
Battery discharging
-20 °C to +45 °C
Storage temperature range
1 year of storage with -20°C to + 35°C
3 months of storage with -20°C to + 45°C
1 month of storage with -20°C to + 60°C
Relative humidity
65 ±20%
Above 45 °C inside the box, the protection of the battery management triggers. The battery will
not be charged.
Operating temperature range
-20 °C to +60 °C
Storage temperature range
-40 °C to +85 °C
Operating humidity without condensation
HR < 70% @ +55°C
Atmospheric pressure
700 hPa to 1060 hPa (-400 m to 3000 m)
EG_GenPro325e_1103A4_UG_005_UK.doc Page 20 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3 Interfaces
3.1 Front side
Figure 4 : Front side
Tableau 4 : Front side connection
Micro Fit 4 pins
Sub-HD 15 pins
Micro Fit 2 pins
Spring cage
1 OUTPUT 1 [S1] 1 109 - DS/DCD [S]
1 INPUT 3 [E3]
1 RS485 A+
2 INPUT 1 [E1] 2 103 - ED/TXD [E]
2 INPUT 2 [E2]
2 RS485 B-
3 GND
3 Boot [E]
4 +VDC
4 NC
5 NC
6
104 - RD/RXD [S]
7
107 - PDP/DSR [E]
8
108/2 - TDP/DTR [E]
9
102 - TS/GND
10 NC
11
106 - PAE/CTS [S]
12
105 - DPE/RTS [E]
13 125 – IA/RI [S]
14 Reset [E]
15 Analog input 0-10V
Connector
Micro-Fit 4pts/M
Connector
Sub HD 15pts/F
Connector
Micro-Fit 2pts/M
Connector
Spring cage
A+ B-
EG_GenPro325e_1103A4_UG_005_UK.doc Page 21 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.2 Back side
Figure 5 : Back side
Connector
SMA-F
GSM LED
SIM card cover
EG_GenPro325e_1103A4_UG_005_UK.doc Page 22 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.3 Functional architecture
3.3.1 General
Figure 6 : Functional architecture
3.3.2 Functional architecture of optional serial ports
Contact us for the setting of the different options.
Figure 7 : Architecture of optional serial ports
EG_GenPro325e_1103A4_UG_005_UK.doc Page 23 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.4 Power supply
If the battery option is present, the fact of removing the power supply +V
DC
will not turn the
modem OFF. For this, see the § 5.2 Turning the modem OFF
3.4.1 Power supply cables
The modem is powered with the cable supplied with the equipment (ERCOGENER reference: 4402000107
or 4402304215). (See § ANNEX 1 – 4-pin Micro-FIT cable )
Table 5 : Description of power supply pins
Signal
Connector 4 pins
Pins N°
I/O Kind of I/O Description
+V
DC
GND
4
3
I
Analog Power supply
Corresponds to wires
4 - Red for +V
DC
3 - Black for GND
See ANNEX 1 – 4-pin Micro-FIT cable without fuse, ANNEX 2 –
4-wire Micro-FIT cable with fuse
The pins 1 and 2 are used for the functions Input/Output.
The power supply to the modem is done only via the pins 4 (+V
DC
) and 3 (GND).
3.4.2 Power supply
The modem must be powered by an external DC voltage (+V
DC
) between:
Standard
+7.2V ≤ +V
DC
≤ +32V
With battery option
+8V ≤ +V
DC
≤ +32V
The internal regulation is done by a DC/DC converter and allows the supply of all necessary internal DC
voltages.
The modem is also internally protected against voltage peaks of more than 32 V
DC
.
The following table describes the consequences of an overvoltage or drop of voltage on the modem.
Table 6 : Effects of power supply defect
Then:
Voltage falls below 7.2V
The functioning and the radio communication are not
guaranteed.
Voltage above 32V (Punctual
peaks)
The modem guarantees its own protection.
Voltage above 32V (Continuous
overvoltage)
The modem is protected by an internal resettable
fuse.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 24 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.4.3 Internal battery option (S0531B)
This battery allows to maintain the operation of the GenPro 325e in case of absence of its external power
supply.
The internal charging circuit allows to keep permanently the charge of the battery from the external power
supply.
When the battery is completely discharged, 4 h are necessary to obtain a new complete charge. It is normal
if the box is becoming a little bit hot in this case.
The autonomy of the battery mainly depends on the mode of use of the GenPro 325e (attachment in
3G/GPRS/GSM, Inputs/Outputs, RS232 connected...).
In the case where the software management of the battery guarantees that the voltage V
BAT
does not goes below 3,3 V, with a battery having 3 charging cycles and completely charged,
the autonomy is around:
1h in WCDMA Band I communication, serial link not connected, no input output
connected, max. power.
4h in GPRS communication - 900 MHz - 1Rx/1Tx P = 29.2 dBm, serial link not
connected, no input output connected, max. power.
11h attached to GPRS network without data transfer, serial link not connected, no
input output connected, max. power.
When the battery is charged, it is not possible to do an ON/OFF of the device. Only putting the
Reset input (pin 10 of the 16-pin Micro-FIT connector) to the Ground or sending the command
AT+EGMRST allows a reset of the modem.
When the temperature exceeds 45 °C inside the box, the protection of the battery management
triggers. The battery will not be charged..
If the battery is present, prepare the modem for storage or transport conditions, in order to
limit high discharges of the battery. For this, see § 5.2 Turning the modem OFF
Table 7 : Characteristics of the polymer lithium battery
The battery cannot be replaced or modified by the user; the device must never be opened.
For any intervention on the battery: the device must be returned to the factory.
Do not throw the modem and the battery on fire.
Voltage (max.)
4.2V
Type
Lithium Polymer (LiPolymer)
Capacity
980 mA/h typique
Exp. life time at 0.5C/0.5C
>500 cycles >80% of initial capacity at 20°C
Temperature range
Charge : 0°C to +45°C Discharge : -20°C to +60°C
Protection
( Resettable )
Discharge voltage : 2.50V ±0.050V
Maximum discharge current : 3A to 7A
EG_GenPro325e_1103A4_UG_005_UK.doc Page 25 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.4.4 Consumptions of the GenPro 325e
Table 8 : Power supply range
Power supply range
7.2 V
DC
to 32V
DC
(8 VDC to 32VDC with battery option)
Table 9 : Consumption with mode Power Off Mode @ 25 °C without battery charge
Power Off Mode
(1)
I
MOY MOM.
Unit.
VIN 7.2 12 24 32 V
I
MOY MAX
1.9 1.52 1 1 mA
(1)
The GenPro 325e is in Power Off mode with the command AT+CPWROFF + serial port disconnected.
Table 10 : Consumption with attached mode @ 25 °C without battery charge
Attached mode I
MOY MAX.
Unit.
VIN 7.2 12 24 32 V
GSM / GPRS
(2)
@ DRX = 5
3.2 2.5 1.51 1.4 mA
3G WCDMA @ P=23dBm
2.8 2.3 1.45 1.3 mA
(2)
AT+UPSV=1,4000 + serial port disconnected + GSM 900 attached to network PCL5
Table 11 : Maximum consumption with data transfer mode @ 25 °C without battery charge
Band Mode
Unit
VIN
7.2 12 24 32 V
Peak current GSM/GPRS
1955 950 500 395 mA
GSM
(3)
850/900 MHz P = 32.2 dBm typ.
300 140 70 55 mA
1800/1900 MHz P = 29.2 dBm typ.
205 110 55 45 mA
GPRS
3Rx +2Tx PCL5
850 MHz
P = 30.5 dBm typ.
240 135 70 55 mA
900 MHz
240 135 70 55 mA
1800 MHz
P = 27.5 dBm typ.
195 115 60 4v5 mA
1900 MHz
190 110 55 45 mA
WCDMA
Band I
P = 23 dBm typ.
420 240 120 95 mA
Band II
550 310 151 115 mA
Tableau 12 : Consumption of battery charge @ 25 °C
Battery charge IMOY MAX. Unit.
VIN 8 12 24 32 V
175 115 60 45 mA
EG_GenPro325e_1103A4_UG_005_UK.doc Page 26 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.4.4.1 Power supply dimensioning
The below graph shows the maximum peak current. The power supply must be able to supply this current
during the GSM "Burts".
Figure 8 : Max consumption
This consumption is not permanent. It corresponds to the burst consumption during GSM
communications.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 27 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.5 Serial links RS232C
By default, the GenPro 325e provides 2 serial links, but only one of them is active.
With the use of the port RS485, only the signals CT103/TX, CT104/RX, CT106/CTS,
CT105/RTS, CT109/DCD, CT125/RI remain available. The signals CT107/DSR and CT1082/DTR must not be connected (no physical link with the system port).
With the use of the second serial port RS232C, only the signals CT103/TX, CT104/RX,
CT106/CTS, CT105/RTS, CT109/DCD, CT125/RI remain available. The signals outputs
CT107/DSR and CT108-2/DTR have another assignment.
The use of the second serial port is linked to the embedded software application. It may be
not available with all configuration cases.
Table 13 : Electrical characteristics of RS232C signals
Characteristics Symbols Conditions Min. Typ. Max. Unit
Input Voltage – Range V
INPUT
Input Voltage – Range -25 +25 VDC
Input Voltage – Low VIL Input Voltage – Low 0.6 1.1 VDC
Input Voltage – High VIH Input Voltage – High 1.5 24 VDC
Input Hysteresis V
Hys
Input Hysteresis 0.5 VDC
Input Resistance Rin Input Resistance 3 5 7 K
Output Voltage V
OUT
All transmitter outputs
loaded with 3 k to
ground
±5 ±5.4 VDC
Transmitter Output
Resistance
R
OUT
300 50k
RS-232 Output Short-Circuit
Current
I
CC
±60 mA
3.5.1 Serial link RS232 by default
Table 14 : Description of pins of serial link RS232C
Signal
Connector
Sub-HD 15 pins
Pins N°
I/O
RS232
Standards
Description
CT109 / DCD 1 O DCD Data Carrier Detect
CT103 / TX 2 I TX Data transmission
CT104 / RX 6 O RX Data reception
CT107 / DSR 7 O DSR Data set ready / TX second serial link
CT108-2 / DTR 8 I DTR Data terminal ready / RX second serial link
CT106 / CTS 11 O CTS Ready to send
CT105 / RTS 12 I RTS Request to send
CT125 / RI 13 O RI Call indicator
GND 9 Ground
Table 15 : Pins description of 2
nd
serial link
Signal
Connector
Sub-HD 15 pins
Pins N°
I/O
RS232
Standards
Description Default
CT103 / TX 7 O TX Data transmission DSR
CT104 / RX 8 I RX Data reception DTR
GND 9 Ground
EG_GenPro325e_1103A4_UG_005_UK.doc Page 28 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Figure 9 : Block scheme of serial links
By default With second serial port RS232C
With RS485
EG_GenPro325e_1103A4_UG_005_UK.doc Page 29 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.6 RS485 serial link
By default, the GenPro 325e provides a serial link RS485 that can be used with a specific software
application.
Using the RS485 serial link requires the physical disconnection of the signals CT107/DSR
and CT108-2/DTR of the main serial link. See scheme above.
For the connection, see recommendations below.
Table 16 : Pins description of serial link RS485
Signal
Spring cage
connector
Pins N°
I/O
RS485
Standards
Description
A+ 1 I/O A/Y I/O not inverted
B- 2 I/O B/Z I/O inverted
Table 17 : Characteristics of RS485 serial link
Characteristics Symbols Conditions Min. Typ. Max. Unit
Interface voltage (A or B) VIO -1.25 6.1 VDC
Transmitter
Differential Output Voltage VOD 1,5 3 VDC
Driver Common Mode Output VOC 3 VDC
Short-Circuit Current I
OSD
–7V (A or B) 12V ±200 mA
Receiver
Input Current (A, B) IIN –7V (VIN) 12V -100 125 µA
Differential Input Threshold
Voltage
V
TH
0V B 6.1V ±0,2 VDC
Input Hysteresis VTH B = 0V 25 mVDC
Output High Voltage VOH
I
O
= –4mA, A-B = 200mV
2.4 V
DC
Output Low Voltage VOL 0,4 VDC
Termination resistance
Resistor RT 118.8 120 121.2 ohms
EG_GenPro325e_1103A4_UG_005_UK.doc Page 30 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Figure 10 : Cable length of RS485 serial link
Figure 11 : Standards signals of RS485 serial link
By software, the signals A / B can be polarized in A+ / B-.
3.6.1 Connection recommendations
The use of rigid wires is recommended.
In the case of use of flexible multi-stranded wires, and in order to guarantee a correct insertion, using needle-
nose pliers is mandatory.
As the spring contact connector is soldered on the printed circuit, the method of intermediate connection is
recommended, in case it would be necessary to disconnect the device.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 31 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Table 18 : Preparation of wire
Min. Max. Unit
Wires section
0,2 0,75 mm
2
24 18 AWG
The wires extraction is strongly NOT recommended; in case of absolute necessity, they have
to be pulled gently.
3.6.1.1 Connection with intermediate connector
Using rigid wires of 0.75mm² diameter and 5 cm length between the GenPro 325e and the connector allows
an easy connection and minimizes the risks of interference.
The outgoing wires can have a diameter less important.
Example of possible references:
Manufacturer WAGO WAGO WAGO
Ref 221-412 222-412 2273-202
Diameters
0.2 to 4 mm² / 24 to 12 AWG 0.1 to 2.5 mm² / 28 to 12 AWG 0.5 to 2.5 mm² / 18 to 14 AWG
EG_GenPro325e_1103A4_UG_005_UK.doc Page 32 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.6.1.2 Direct connection
This method must be adapted depending on the diameter of wire used.
In the case of small-diameter wire (0.4mm²), the previous method is the most reliable.
After having prepared the wire, pinch it at more or less 12 mm from the end, and insert it in the connector.
3.7 BOOT
This signal must NOT be connected, NOT used. The use of the BOOT function is strictly
reserved for the manufacturer and distributors.
Table 19 : Description of BOOT input
Signal
Sub_HD 15 pins
Pins N°
I/O Kind of I/O Description
BOOT
GND
3
9
I SCHMITT Boot modem
Table 20 : Conditions of use of BOOT signal
Parameters Conditions Min. Typ. Max. Unit
V
IL Input Voltage – Low -0.3 0.8 V
DC
VIH Input Voltage – High 2 3.3 VDC
RIPU Internal Pull-Up Resistor 5.38K
Figure 12 : Internal electrical scheme of BOOT
The use of the BOOT signal must be done through a transistor assembly or via dry contact.
The integrator has the responsibility to protect the input from electrical perturbations and to
respect the functioning parameters values.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 33 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.8 RESET
The use of the RESET function is strictly reserved for the manufacturer and distributors.
This signal must be used only in case of emergency RESET. A software RESET is always
preferable to a Hardware RESET. It is strongly unadvised to execute this function whilst in
communication or dialog, without having previously detached it from the operator network.
Using the RESET does not restore the factory parameters.
Table 21 : Description of RESET input
Signal
Sub-HD 15 pins
Pins N°
I/O Kind of I/O Description
RESET
GND
14
9
I SCHMITT Reset modem
Table 22 : Conditions of use of RESET signal
Parameters Conditions Min. Typ. Max. Unit
V
IL Input Voltage – Low -0.3 0.8 V
DC
VIH Input Voltage – High 2 3.3 VDC
RIPU Internal Pull-Up Resistor 5.38K
Figure 13 : Internal electrical scheme of RESET
The use of the RESET signal must be done through a transistor assembly or via dry contact.
The integrator has the responsibility to protect the input from electrical perturbations and to
respect the functioning parameters values.
Figure 14 : Chronogram of RESET signal
EG_GenPro325e_1103A4_UG_005_UK.doc Page 34 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.9 Opto-coupled inputs
By default, the GenPro 325e provides 3 opto-coupled inputs E1, E2 and E3
As an option, it is possible to have
Analog input (0-10V) specific S0534B
Multi One Wire Input, specific S0535B.
These options cannot be installed simultaneously with the opto-coupled inputs.
3.9.1 Standard opto-coupled inputs
Table 23 : Description of opto-coupled inputs
Signal
Pins N°
Connector
I/O Description
E1
E2
E3
2 Connector 4 pins
1 Connector 2 pins
2 Connector 2 pins
I Digital inputs 0 – 35 V
Corresponds to wires
2 – Orange or Yellow for E1
See ANNEX 1 – 4-pin Micro-FIT cable without fuse, ANNEX 2
– 4-wire Micro-FIT cable with fuse
Corresponds to wires
1 - Yellow for E2
2 - Blue for E3
See ANNEX 3 – 2-pin Micro-FIT cable
Table 24 : Characteristics of opto-coupled inputs
Characteristics Symbols Conditions Min. Typ. Max. Unit
Max. current I
F (rms)
50 mA
Max. inverted voltage VR 5 V
Direct voltage VF I
F
= 10 mA 1.0 1.15 1.3 V
Inverted current IR V
R
= 5 V 10 µA
Capacity CT V=0, f = 1 MHz --- 30 --- pF
Transfer ratio IC / IF I
F
= 5 mA, VCE = 5 V 50 --- 600 %
Saturation of transfer ratio IC / I
F (SAT)
IF = 1 mA, VCE = 0.4 V 60 %
Command voltage 3,5 35 V
Idle voltage 1 V
EG_GenPro325e_1103A4_UG_005_UK.doc Page 35 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
Figure 15 : Internal electric scheme of opto-coupled inputs
The minimum command voltage for the detection is: 3.5 V
The maximum command voltage is: 35 V
3.9.1.1 Inputs functioning
This function can also be controlled with AT commands:
AT+GPIOGET This command is used to read the inputs. The reading is done with the following format:
AT+GPIOGET=<n> with:
<n> = 7 : reading input 1
8 : reading input 2
9 : reading input 3
Examples:
Command Response Interpretation
AT+GPIOGET=7
+GPIOGET: 7= 1
OK
Input 1 read at 1, the input 1 is controlled
AT+GPIOGET=9
+GPIOGET: 9= 0
OK
Input 3 read at 0, the input 3 is not controlled
EG_GenPro325e_1103A4_UG_005_UK.doc Page 36 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.9.2 Analog input 0-10V by default
This input allows to have an analog input able to measure a voltage between 0 and 10V.
Table 25: Description of analog input 0-10V
Signal
Sub-HD 15 pins
Pin number
I/O Description
ANA 2
GND
15
9
I Analog input 0 – 10 V
Table 26: Characteristics of analog input 0-10V
Characteristics Symbols Conditions Min. Typ. Max. Unit
Analog input ANA 2 -0.3 11 V
DC
Conversion range 0 10.20 VDC
Polarization current From 0 to 10.20 V 0 345 µADC
Resolution 10 bits
The integrator has the responsibility to protect the input from electrical perturbations and to
respect the functioning parameters values.
Figure 16 : Internal electric scheme of analog input 0-10V
EG_GenPro325e_1103A4_UG_005_UK.doc Page 37 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.9.3 Analog input 0-10V (option)
The option Analog input 0-10V, specific S0534B, provides a second analog input able to measure a voltage
between 0 and 10V with GND reference.
Table 27 : Description of analog input 0-10V
Signal
Pins N°
Connector
I/O Description
ANA1
GND
1 Connector 2 pins
3 Connector 4 pins
I Analog input 0 – 10 V
Corresponds to wires
1 - Yellow for ANA1
3 - Black for GND
See ANNEX 1 – 4-pin Micro-FIT cable without fuse, ANNEX 2
– 4-wire Micro-FIT cable with fuse
See ANNEX 3 – 2-pin Micro-FIT cable
Table 28 : Characteristics of analog input 0-10V
Characteristics Symbols Conditions Min. Typ. Max. Unit
Analog input ANA1 / 2 -0.3 11 V
DC
Conversion range 0 10.20 VDC
Polarization current From 0 to 10.20 V 0 345 µADC
Resolution 10 bits
The integrator has the responsibility to protect the input from electrical perturbations and to
respect the functioning parameters values.
Figure 17 : Internal electric scheme of analog input 0-10V
EG_GenPro325e_1103A4_UG_005_UK.doc Page 38 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.9.4 Multi One Wire input (option)
The option Multi One Wire, specific S0535B, allows the reading of all 1-wire devices with the possibility to
have several devices on the same bus.
This option Multi 1-wire cannot be used with the EasePro application, but can be directly
controlled with an EGM development. Contact us.
Table 29 : Description of Multi 1- Wire Bus
Signal
Pins N°
Connector
I/O Kind of I/O Description
Bus One Wire
GND
2 Connector 2 pins
3 Connector 4 pins
I/O Analog Bus Multi One
Corresponds to wires
2 - Blue for Bus One Wire
3 - Black for GND
Table 30 : Multi One Bus - Electrical characteristics
Characteristics Symbols Conditions Min. Typ. Max. Unit
Input Voltage – Low V
IL
-0.3 0.9 VDC
Input Voltage – High VIH 1.9 3.3 VDC
Input Leakage Current I
LEAK
-10 10 µADC
Input capacitance CIN 10 pF
Output Low-level Voltage VOL @ charge 4mA 0.4 VDC
Output High-level Voltage VOH @ charge 4mA 2.8 3.3 VDC
Figure 18 : Internal electrical scheme of Multi 1-Wire Bus
EG_GenPro325e_1103A4_UG_005_UK.doc Page 39 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.10 Digital outputs
Table 31 : Description of digital outputs
Signal
Connector 4 pts
Pins N°
I/O Description
S1 1 Connector 4 pins O Open collector output
Corresponds to wires
1 – Green or Brown for S1
See ANNEX 1 – 4-pin Micro-FIT cable without fuse, ANNEX 2
– 4-wire Micro-FIT cable with fuse
Table 32 : Characteristics of open collector output
Characteristics Symbols Conditions Min. Typ. Max. Unit
Max. voltage V
CE0
Open transmitter 48 VDC
Max. voltage V
CES
V
BE
= 0 V 48 VDC
Collector current IC 0.5 ADC
Saturation voltage V
CEsat
I
C
= 500 mA 1.3 VDC
Dissipation P
Ttot
T
amb
25 °C, Tj = 110 °C 0.78 W
Figure 19 : Internal electrical scheme of the output
There is no protection. The user must respect the values of the above table.
Figure 20 : Example of relay control
EG_GenPro325e_1103A4_UG_005_UK.doc Page 40 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.10.1.1 Output functioning
This function can also be controlled with AT commands:
AT+GPIOSET=10 This command is used to control the output. By default, the output is assembled in open
collector. The control is done under the following format:
AT+GPIOSET=<n>,<x> with:
<n> = 10 : only one output available on the GenPro 325e (then n=10),
<x> = 0 : Output OFF
1 : Output ON
Examples:
3.11 Watchdog
The function WatchDog Hardware allows the monitoring of the modem software activity: by default, the
software management of the WatchDog is implemented in the embedded application; in case of a
development (EGM), it must be implemented in the embedded application of the client.
If the software activity is interrupted, the WatchDog component triggers a hardware Reset.
The WatchDog function is active only if there is a SIM card inside the modem.
Command Response Interpretation
AT+GPIOSET=10,1
OK
Output 1 at OFF, transistor closed
AT+GPIOSET=10,0
OK
Output 1 goes to ON (transistor open )
EG_GenPro325e_1103A4_UG_005_UK.doc Page 41 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.12 SIM card
By default, the GenPro 325e is equipped with a push-push SIM card reader accessible from the outside of
the modem.
Table 33 : Characteristics of the SIM card power voltage
SIM card
3 V or 1.8 V
Format
SIM (25x15x0,76 mm)
NOTE: It is possible to replace the SIM card by a SIM component (e-SIM) directly implanted on the printed
circuit. Contact us.
This function cannot be available simultaneously with the SIM card reader.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 42 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
3.13 Leds of the modem
Figure 21 : Back side Led
3.13.1 GSM Led
3.13.1.1 Without Application
The GenPro 325e does not contain any application. The Led is OFF.
3.13.1.2 With EGM standard library
The GenPro 325e contains the standard library. The Led is OFF.
3.13.1.3 The application ERCOGENER EasePro _Vx
The status of the GSM module is indicated by the status of the YELLOW GSM LED situated on the back side
of the modem. This is the yellow LED situated on the left.
Table 34 : Status of GSM LED
Status of GSM LED LED activity GSM status
OFF LED OFF The module is not activated or OFF.
ON LED permanent The module is attaching to GSM network.
LED flashing 0.5s ON / 1.5s OFF The module is attached to the GSM network.
LED flashing 0.2s ON / 0.6s OFF The module is in data, voice or GPRS communication.
3.13.1.4 Owner application
The GenPro 325e contains your application. The Led status depends on your parameters.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 43 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
4 GSM external antenna
The GSM external antenna is connected to the modem via the SMA-F connector.
The external antenna must respond to the characteristics described in the table below.
Figure 22 : GSM external antenna
Table 35 : Characteristics of GSM external antenna
Frequency band
850/900
824..960 MHz (GSM 850, GSM 900, UMTS B5, UMTS B6, UMTS B8)
1800/2100
1710..2170 MHz (GSM 1800, GSM 1900, UMTS B1, UMTS B2, UMTS B4)
Impedance
50 Ohms nominal
Input power
> 2 W peak
Gain
< 4.25 dBi for 850 MHz
< 7.30 dBi for 1700 MHz
< 2.74 dBi for 1900 MHz
VSWR
< 2:1 recommended < 3:1 acceptable
Return Loss
S
11
<-10 dB recommended S11<-6 dB acceptable
See § 6 Recommended accessories for the GSM antennas recommended by ERCOGENER.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 44 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
5 Use of the modem
5.1 Specific recommendations for the use of the modem in vehicles
The power supply connector of the modem GenPro 325e must NEVER be connected directly
to the battery of the vehicle.
5.1.1 Recommended connection on the battery of a truck
All trucks have a circuit breaker outside the cabin. The circuit breaker is used for security reasons:
The circuit breaker is connected to the ground of the truck, usually connected to the fuse box.
Most of truck circuit breakers do not cut the
+ 'PLUS' of the battery, but cut its 'GROUND'.
Figure 23 : Recommended connection on the battery of a truck
The scheme above shows a recommended power connection where the connection of the modem ground is
not directly connected to the battery, but connected after the circuit breaker (on the ground of the truck or in
the fuse box).
If this scheme is not respected, the modem can be damaged when starting the truck if the
circuit breaker is open. It cannot support important starting currents.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 45 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
5.2 Turning the modem OFF
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of
ERCOGENER); in this case, it is strongly advised to un-register from the network with the command
AT+COPS=2
When the battery is present (Option S0531B), a mechanism allows to stop completely the
application if the external power supply is unplugged, and also to prepare the modem for
storage or transport, in order to limit high discharges of the battery.
If the device is not used, it has to be deactivated by sending the following command:
If the modem contains an application developed with EGM
Disconnect the external power supply of the modem.
And send the command AT+GPIOSET=35,0
If the modem does not contain any embedded application, via the Boot-Loader menu
Bootloader V4.20 GP325 UA Gener SAM7SE256B Ublox (HWE4 rev A/B)
GSM voltage = 3628 mV
1 - Update application
2 - Erase objects
M - GSM direct access (external supply required)
A - Advanced
P - Power off
E – Exit
Disconnect the external power supply of the modem.
And Enter "P"
Important note: The switching of the battery and its auto-maintain will be automatically
reactivated once the modem will be plugged again to its external power
supply.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 46 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
5.3 Starting with the modem
5.3.1 Mounting the modem
To mount the modem on a support, use the fixing brackets as described below.
Figure 24 : Mounting the modem
- Must be fixed on a flat surface
- Max. height of the screw head: 2 mm
The aluminium casing of the modem is connected to the 0V (GND) of the power supply and
to the 0V of the RS232 serial link. To avoid any risk of conduction of the ground plane to
other equipment, the modem must be electrically insulated from its mechanical support.
5.3.2 SIM card installation
To install the SIM card, it is recommended to do the following operations with the modem turned OFF:
- Remove the SIM card cover on the back side.
- Carefully insert the SIM card into the reader.
Figure 25 : Installation of the modem
- Push the SIM card until hearing a "clic" that ensures its correct positioning.
- Put the SIM cover back.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 47 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
5.4 Use of the modem
Install the SIM card.
Connect the GSM antenna to the SMA-Female connector.
Connect the RS232 link between the DTE (COM port) and the modem (DCE).
Connect the power cable to the continuous and regulated external power source (for an automobile
application, see § 5.1 Specific recommendations for the use of the modem in vehicles).
Connect the power cable to the modem.
Use a communication software like Windows HyperTerminal ® set as follows:
Bits per second ....... : 115 200 bps,
Data Bits ................. : 8,
Parity ..................... : None,
Stop Bits ................. : 1,
Flow control ............ : None.
5.4.1 Checking the communication with the modem
5.4.1.1 Without Application
The GenPro 325e does not contain any application; it will return the menu of the BootLoader.
Menu by default when there is no application inside the equipment (example of display)
Bootloader V4.20 GP325 UA Gener SAM7SE256B Ublox (HWE4 rev A/B)
GSM voltage = 3628 mV
1 - Update application
2 - Erase objects
M - GSM direct access (external supply required)
A - Advanced
P - Power off
E – Exit
In the case where no communication can be established with the modem:
Check the RS232 connection between the DTE and the modem (DCE),
Check the configuration of the COM port of the DTE.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 48 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
5.4.1.2 The GenPro 325e contains the application ERCOGENER EasePro _Vx
Example of display when the EasePro application is present inside the equipment
*********************************************************
EasePro V2.22b6_EGM430b11 - GenPro325e A - Tue Jan 12 09:02:15 2016
0000/01/01-00:00:00: EGM_INIT_SOFTWARE_RESET
0000/01/01-00:00:01: gprs_set_account: , , , 0, 0
0000/01/01-00:00:01: hist_restore_wr_idx: write_block=0, write_idx=0
0000/01/01-00:00:01: hist_restore_rd_idx: read_block=0, read_index=0
0000/01/01-00:00:01: hist_init: flash history: ids=-3
0000/01/01-00:00:01: hist_init: flash history_CFG: ids=-3
0000/01/01-00:00:01: hist_init: subscribe flash
0000/01/01-00:00:01: hist_restore_rd_idx: read_block=0, read_index=0
0000/01/01-00:00:01: hist_restore_wr_idx: write_block=0, write_idx=0
0000/01/01-00:00:01: READY
Send the command AT+EGM3
The modem returns the version of the library
+EGM3: genapi V4.30b8, Date: Mon Nov 23 13:27:16 2015
In the case where no communication can be established with the modem:
Check the RS232 connection between the DTE and the modem (DCE),
Check the configuration of the COM port of the DTE
For more information about these AT commands and their associated parameters, see the documents
"Commands List EG_EasePro _Vx_CL_yyy_UK" of ERCOGENER.
5.4.1.3 The GenPro 325e contains the application ERCOGENER EaseIP _Vx
The GenPro 325e contains the application EaseIP _Vx.
Send the command ATI8. The modem returns the version (example of display)
EaseIP V1.20b7_EGM430b11 - GenPro325e A - Thu Jan 21 15:14:25 2016
For more information about these AT commands and their associated parameters, see the documents
"Commands List EG_EaseIP _Vx_CL_yyy_UK" of ERCOGENER.
5.4.1.4 The GenPro 325e contains the application ERCOGENER « direct access »
The GenPro 325e contains the application « GenPro25e-325e_V110_direct_modem_access_lzo.bin »
Send the command ATI8. The modem returns:
Undefined
EG_GenPro325e_1103A4_UG_005_UK.doc Page 49 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
5.4.1.5 The owner application
The GenPro 325e contains your application.
Set the RS232 port of the DTE according to your parameters (speed, data bits, parity and stop bit).
Check the display and the dialogue with the GenPro 325e according to your own characteristics.
5.5 Checking the quality of the GSM reception signal
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of
ERCOGENER); in this case, the modem will be able to make a call only if the received GSM signal is
powerful enough.
The command AT+CSQ allows to know the reception level (rssi) of the signal sent by the closest GSM Base
Transceiver Station (BTS), as well as the reception error code (g).
When the SIM card is inserted and the PIN code entered, the command AT+CSQ allows to measure the
signal from the BTS of the subscribed operator network.
This command cannot be used without the SIM card.
To check the quality of the GSM signal, do the following operations:
Use a communication software like Hyperterminal, enter the command AT+CSQ.
The response has the following format:
+CSQ : <rssi>, <ber> with:
<rssi> = indicates the reception level,
<ber> = receive bit error rate.
Check the returned value <rssi> with the help of the table below.
Table 36 : RSSI value
Value of <rssi> Gain in dbm Interpretation Value of <ber> Interpretation
0 -113 dbm Insufficient 0 to 7
See Standards ETSI
GSM 05.08
1 to 10 -111 to -95 dbm Insufficient
11 to 30 -93 to -53 dbm Sufficient
31 (max) -51dbm Perfect
99 Unknown/not detectable 99 Unknown/not detectable
For a normal operation in GSM, the minimum <rssi> must be between 11 and 15.
Below 10, the signal level is insufficient, the modem cannot work depending on the geographical
situation or the vehicle mobility. Above 15, the signal is sufficient.
This does not apply for UMTS communications where the level can be a lot lower.
For more information about the AT commands, see the document "EG_EGM_CL_xxx_yy" of ERCOGENER.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 50 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
5.6 Verification of PIN code
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of
ERCOGENER); in this case, the PIN code is necessary to make a call or to accept a response coming from
the GSM network. This code is held in the SIM card and can be modified by the user.
To check that the PIN code has been entered, use a communication software like Hyperterminal, and enter
the command AT+CPIN?
The table below shows the main responses given by the modem:
Table 37 : Verification of PIN code
Command Response Interpretation
AT+CPIN?
+CPIN : ERROR
The SIM card is absent or not
recognized
+CPIN : READY
The PIN code is correct
+CPIN : SIM PIN
The PIN code is wrong or not entered
yet
+CPIN : SIM PUK
The PUK code is required
For more information about the AT commands, see the document "EG_EGM_CL_xxx_yy" of ERCOGENER.
5.7 Verification of modem registration on cellular network
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of
ERCOGENER); in this case:
1. Make sure that a valid SIM card is inserted in the SIM card reader of the modem.
2. Use a communication software like Hyperterminal, and enter the following AT commands:
a. AT+CPIN="xxxx" to enter the PIN code. The user has only 3 attempts to enter the PIN code. After
the third attempt, only a second code (code PUK) supplied by the operator, will allow you to choose
a new PIN code.
b. AT+CREG? to check the registration status on the network. The response has the following
format:+CREG : <mode>, <stat> with :
<Mode> = configuration of the registration message not solicited,
<Stat> = registration status.
3. Check the registration status according to the value returned in the table below.
Table 38 : Verification of modem registration on cellular network
Command Response Interpretation
AT+CREG?
+CREG : 0,0
The modem is not recognized by the
network.
+CREG : 0,2 or 0,3
The modem is searching for a network
operator.
+CREG : 0,1
The modem is attached to the local
operator.
+CREG : 0,5
The modem is attached to the roaming
operator.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 51 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
If the modem is not registered: check the connection between the modem and the antenna or the
reception level of the signal (cf. paragraph 5.5 Checking the quality of the GSM reception signal ).
For more information about AT commands, see the document "EG_EGM_CL_xxx_yy" of
ERCOGENER.
5.1 Verification of modem registration on GPRS network
The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of
ERCOGENER); in this case:
1. Make sure that a valid SIM card is inserted in the SIM card reader of the modem.
2. Use a communication software like Hyperterminal, and enter the following AT commands:
a. AT+CPIN="xxxx" to enter the PIN code. The user has only 3 attempts to enter the PIN code. After
the third attempt, only a second code (code PUK) supplied by the operator, will allow you to choose
a new PIN code.
b. AT+CGREG? to check the registration status on the network. The response has the following
format :+CGREG : <mode>, <stat> with:
<Mode> = configuration of the registration message not solicited,
<Stat> = registration status.
3. Check the registration status according to the value returned in the table below.
Table 39 : Verification of modem registration on GPRS network
Command Response Interpretation
AT+CREG?
+CGREG : 0,0
The modem is not recognized by the
network.
+CGREG : 0,2 or 0,3
The modem is searching for a network
operator.
+CGREG : 0,1
The modem is attached in GPRS to the
local operator.
+CGREG : 0,5
The modem is attached in GPRS to the
roaming operator.
If the modem is not registered: check the connection between the modem and the antenna or the
reception level of the signal (cf. paragraph 5.5 Checking the quality of the GSM reception signal ).
For more information about the AT commands, see the document "EG_EGM_CL_xxx_yy" of
ERCOGENER.
EG_GenPro325e_1103A4_UG_005_UK.doc Page 52 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
6 Recommended accessories
The accessories recommended by ERCOGENER for the modem GenPro 325e are described on our website
in the section Products/Accessories. For more information, please contact our sales department.
7 Client support
ERCOGENER ensures the client support for all its modems sold. You will then have access to:
The latest version of this document
The datasheet of the product
The latest versions of the OS user guides
Certificates
Application notes
The support for the EGM developments is proposed as an option (contact us).
EG_GenPro325e_1103A4_UG_005_UK.doc Page 53 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
ANNEX 1 – 4-pin Micro-FIT cable without fuse
( ERCOGENER reference: 4402000107)
Figure 26 : 4-pin Micro-FIT cable without fuse
Table 40 : Characteristics of power cable without fuse
Component Characteristics
4-pin connector
Cable Length 1.5m
Wire Section : 0.75 mm²
Signal Color
+V
DC
Red
GND Black
INPUT 1 (I1) Orange
OUTPUT 1 (O1) Green
Wire tinned and
stri
pp
ed on 5mm
EG_GenPro325e_1103A4_UG_005_UK.doc Page 54 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
ANNEX 2 – 4-wire Micro-FIT cable with fuse
( ERCOGENER reference: 4402304215)
Figure 27 : 4-pin Micro-FIT cable with fuse
Table 41 : Characteristics of power cable with fuse
Component Characteristics
4-pin connector
Cable Length 1.5m
Wire Section : 0.75 mm²
Signal Color
+V
DC
Red
GND Black
INPUT 1 (I1) Yellow
OUTPUT 1 (O1) Brown
Fuse reference: Mini Blade for automobile 2A - 32V (color code : grey)
Figure 28 : Fuse Mini Blade
Fuse F2A/32V
(
Mini BLADE)
Wire tinned and
stri
pp
ed on 3mm
EG_GenPro325e_1103A4_UG_005_UK.doc Page 55 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
ANNEX 3 – 2-pin Micro-FIT cable
(ERCOGENER reference: 4402000108)
Figure 29 : 2-pin Micro-FIT cable (Inputs)
Table 42 : Characteristics of 2-wire inputs cable
Component Characteristics
2-pin connector
Cable Length 1.5m
Wire Section : 0.5 mm²
Table 43 : Wiring of 2-wire inputs cable
Pin N° Signal Color
1 Input (E2) Yellow
2 Input (E3) Blue
EG_GenPro325e_1103A4_UG_005_UK.doc Page 56 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
ANNEX 4 - Abbreviations
3GPP 3rd Generation Partnership Project
AC Alternative Current
ACM Accumulated Call Meter
ADC Analog to Digital Converter
ADN Abbreviated Dialing Numbers
AIeC Automatically Initiated eCall
AMR Adaptive Multi Rate
ANSI American National Standards Institute
APN Access Point Name
ARP Antenna Reference Point
ASCII American Standard Code for Information Interchange
AT AT Command Interpreter Software Subsystem, or attention
B2B Board-to-board connector
BB Baseband
BEP Bit Error Probability
BER Bit Error Rate
BL Black List
BSD Berkley Standard Distribution
BTS Base Transceiver Station
CB Cell Broadcast
CBM Cell Broadcast Message
CE Conformité Européene (European Conformity)
CLI Calling Line Identification
CLIP Calling Line Identification Presentation
CLIR Calling Line Identification Restriction
CLK ClocK
CM Connection Management
CMOS Complementary Metal Oxide Semiconductor
COLP Connected Line Identification Presentation
COLR Connected Line Identification Restriction
CPHS Common PCN Handset Specification
CR Carriage Return
CS Coding Scheme
CS Circuit Switched
CSD Circuit-Switched Data
CTM Cellular Text Modem
CTS Clear To Send
CUG Closed User Group
DA Destination Address
DAC Digital-to-Analog Converter
DARP Downlink Advanced Receiver Performance
dB Decibel
dBc Decibel relative to the Carrier power
dBi Decibel relative to an Isotropic radiator
dBm Decibel relative to one milliwatt
DC Direct Current
DCD Data Carrier Detect
DCE Data Communication Equipment
DCM Data Connection Management
DCS Digital Cellular System
DDC Display Data Channel (I2C compatible) Interface
DL Down-link (Reception)
DNS Domain Name Server
dnu Do not use
DRX Discontinuous Reception
EG_GenPro325e_1103A4_UG_005_UK.doc Page 57 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
DSB Development Support Board
DSP Digital Signal Processor
DSR Data Set Ready
DTE Data Terminal Equipment
DTMF Dual Tone Multi-Frequency
DTR Data Terminal Ready
DTX Discontinuous Transmission
DUT Device Under Test
EDGE Enhanced Data rates for Global Evolution
EEPROM Electrically Erasable Programmable Read-Only Memory
EFR Enhanced Full Rate
EGM Erco Gener Middleware
EGSM Extended GSM
E-GSM Extended GSM
EMC ElectroMagnetic Compatibility
EMI ElectroMagnetic Interference
ERP Effective Radiated Power
ESD ElectroStatic Discharges
ETS European Telecommunication Standard
ETSI European Telecommunications Standards Institute
E-UTRAN Evolved UTRAN
FCC Federal Communications Commission (U.S.)
FDD Frequency Division Duplex
FDMA Frequency Division Multiple Access
FDN Fixed Dialling Number
FIT Series of connectors (micro-FIT)
FOAT Firmware Over AT
FOTA Firmware Over The Air
FR Full Rate
FS File System
FTA Full Type Approval
FTP File Transfert Protocol
FW Firmware
GCF Global Certification Forum
GDI Generic Digital Interfaces
GLONASS Globalnaja Nawigazionnaja Sputnikowaja Sistema
GND GrouND
GNSS Global Navigation Satellite System
GPIO General Purpose Input Output
GPRS General Packet Radio Service
GPS Global Positioning System
GSM Global System for Mobile Communications
H High
HDLC High Level Data Link Control
HiZ High Impedance
HPLMN Home PLMN
HR Half Rate
HSDPA High Speed Downlink Packet Access
HSPA High Speed Packet Access
HSUPA High Speed Uplink Packet Access
HTTP HyperText Transfer Protocol
I Input
I/O Input / Output
I2C Inter-Integrated Circuit Interface
ICCID Integrated Circuit Card ID
ICMP Internet Control Message Protocol
ICP Inter Processor Communication
EG_GenPro325e_1103A4_UG_005_UK.doc Page 58 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
IEC International Electrotechnical Commission
IF Intermediate Frequency
IMEI International Mobile Equipment Identity
IMSI International Mobile Station Identity
IP Internet Protocol
IRA International Reference Alphabet
IRC Intermediate Result Code
ISDN Integrated Services Digital Network
ISO International Standards Organization
ISP Internet Service Provider
ITU International Telecommunications Union
IVS In-Vehicle System (eCall related)
kbps kbits per second
L Low
L3 Layer 3
LCC Leadless Chip Carrier
LCP Link Control Protocol
LED Light Emitting Diode
LF Line Feed
LLC Low Level Command
M2M Machine-To-Machine
MAX MAXimum
Mbps Mbits per second
MCC Mobile Country Code
MCS Modulation and Coding Scheme
ME Mobile Equipment
MIC MICrophone
Micro FIT Family of connectors from Molex
MIeC Manually Initiated eCall
MIN MINimum
MMI Man Machine Interface
MN Mobile Network Software Subsystem
MNC Mobile Network Code
MNP Microcom Networking Protocol
MO Mobile Originated
MS Mobile Station, also referred to as TE
MSD Minimum Set of Data (eCall related)
MSIN Mobile Subscriber Identification Number
MSISDN Mobile Systems International Subscriber Identity Number
MSPR Multi-Slot Power Reduction
MT Mobile Terminated
MWI Message Waiting Indication
N/A Not Applicable
nc Not connected
NITZ Network Identity and Time Zone
NMEA National Marine Electronics Association
NOM NOMinal
NTC Negative Temperature Coefficient
NVM Non-Volatile Memory
O Output
OD Open Drain
OLCM On Line Commands Mode
Pa Pascal (for speaker sound pressure measurements)
PAD Packet Assembler/Disassembler
PBCCH Packet Broadcast Control Channel
PC Personal Computer
PCB Printed Circuit Board
EG_GenPro325e_1103A4_UG_005_UK.doc Page 59 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
P-CID Physical Cell Id
PCL Power Control Level
PCM Pulse Code Modulation
PCN Personal Communication Network
PCN / IN Product Change Notification / Information Note
PCS Personal Communication System, also referred to as GSM 1900
PD Pull-Down
PDP Packet Data Protocol
PDU Protocol Data Unit
PIN Personal Identity Number
PLMN Public Land Mobile Network
POS Power-On Input (power domain)
PPP Point-to-Point Protocol
PS Packet Switched
PSAP Public Safety Answering Point (eCall related)
PSD Packet-Switched Data
PSK Phase Shift Keying
PU Pull-Up
PUK Personal Unblocking Key
QAM Quadrature Amplitude Modulation
QoS Quality of Service
R&TTE Radio and Telecommunication Terminal Equipment
RAM Random Access Memory
RDI Restricted Digital Information
RF Radio Frequency
RFI Radio Frequency Interference
RFU Reserved for Future Use
RI Ring Indicator
RMC Reference Measurement Channel
RMS Root Mean Square
ROPR Radio Output Power Reduction
RTC Real Time Clock
RTP Real-time Transport Protocol
RTS Request To Send
Rx Receiver
SAP SIM Access Profile
SAR Specific Absorption Rate
SC Service Centre
SELV Safety Extra Low Voltage
SI SIM Application Part Software Subsystem
SIM Subscriber Identity Module
SIP Session Initiation Protocol
SLIC Subscriber Line Interface Circuit
SMA SubMiniature version A RF connector
SMB SubMiniature version B RF connector
SMPL Sudden Momentary Power Loss
SMS Short Message Service
SMSC Short Message Service Center
SMTP Simple Mail Transfer Protocol
SNR Signal-to-Noise Ratio
SNTP Simple Network Time Protocol
SoR Steering of Roaming
SPI Serial Peripheral Interface
SPK SpeaKer
SPL Sound Pressure Level
SRAM Static Random Access Memory
SRB Signalling Radio Bearer
EG_GenPro325e_1103A4_UG_005_UK.doc Page 60 / 61
Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER SAS reserves the right to
make any modifications. This document is the property of ERCOGENER SAS. It may not be reproduced or disclosed to a third party
without the written consent of ERCOGENER SAS Dct_426_02
SUPL Secure User Plane Location
TA Terminal Adaptor
TCP Transfer Control Protocol
TCP/IP Transmission Control Protocol / Internet Protocol
TDMA Time Division Multiple Access
TE Terminal Equipment
TFT Traffic Flow Template
TP Transfer layer Protocol
TPC Transmit Power Control
TS Technical Specification
TTFF Time To First Fix
TU Typical Urban fading profile
Tx Transmitter
TYP TYPical
TZ Time Zone
UART Universal Asynchronous Receiver-Transmitter serial interface
UCS2 Universal Character Set
UDI Unrestricted Digital Information
UDP User Datagram Protocol
UI Unnumbered Information
UICC Universal Integrated Circuit Card
UIH Unnumbered Information with header Check
UL Up-link (Transmission)
UMTS Universal Mobile Telecommunications System
URC Unsolicited Result Code
USB Universal Serial Bus (power domain)
USIM UMTS Subscriber Identity Module
UTC Universal Time Clock
UTRAN Universal Terrestrial Radio Access Network
UUS1 User-to-User Signalling Supplementary Service 1
VSWR Voltage Stationary Wave Ratio
WCDMA Wideband Code Division Multiple Access
DECLARATION OF CONFORMITY
Loading...
