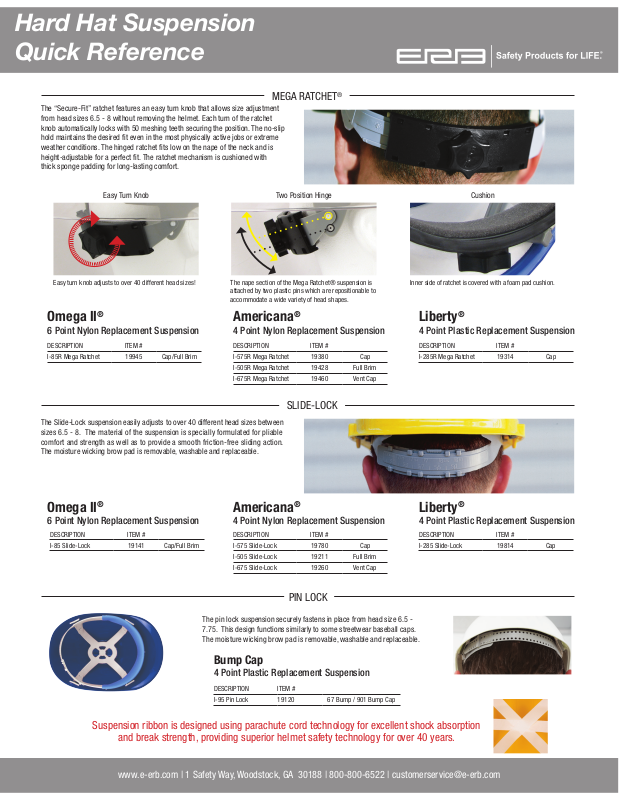

ERB Safety Hard Hat Suspension Quick Reference
Hard Hat Suspension
Quick Reference
MEGA RATCHET
The “Secure-Fit” ratchet features an easy turn knob that allows size adjustment
from head sizes 6.5 - 8 without removing the helmet. Each turn of the ratchet
knob automatically locks with 50 meshing teeth securing the position. The no-slip
hold maintains the desired fit even in the most physically active jobs or extreme
weather conditions. The hinged ratchet fits low on the nape of the neck and is
height-adjustable for a perfect fit. The ratchet mechanism is cushioned with
thick sponge padding for long-lasting comfort.
Easy Turn Knob
Easy turn knob adjusts to over 40 different head sizes!
Omega II
®
6 Point Nylon Replacement Suspension
DESCRIPTION ITEM #
I-85R Mega Ratchet 19945 Cap/Full Brim
The nape section of the Mega Ratchet® suspension is
attached by two plastic pins which are repositionable to
accommodate a wide variety of head shapes.
Americana
4 Point Nylon Replacement Suspension
DESCRIPTION ITEM #
I-575R Mega Ratchet 19380 Cap
I-505R Mega Ratchet 19428 Full Brim
I-675R Mega Ratchet 19460 Vent Cap
Two Position Hinge
®
Cushion
Inner side of ratchet is covered with a foam pad cushion.
®
Liberty
®
4 Point Plastic Replacement Suspension
DESCRIPTION ITEM #
I-285R Mega Ratchet 19314 Cap
The Slide-Lock suspension easily adjusts to over 40 different head sizes between
sizes 6.5 - 8. The material of the suspension is specially formulated for pliable
comfort and strength as well as to provide a smooth friction-free sliding action.
The moisture wicking brow pad is removable, washable and replaceable.
Omega II
6 Point Nylon Replacement Suspension
DESCRIPTION ITEM #
I-85 Slide-Lock 19141 Cap/Full Brim
®
Americana
4 Point Nylon Replacement Suspension
DESCRIPTION ITEM #
I-575 Slide-Lock 19780 Cap
I-505 Slide-Lock 19211 Full Brim
I-675 Slide-Lock 19260 Vent Cap
The pin lock suspension securely fastens in place from head size 6.5 -
7.75. This design functions similarly to some streetwear baseball caps.
The moisture wicking brow pad is removable, washable and replaceable.
Bump Cap
4 Point Plastic Replacement Suspension
DESCRIPTION ITEM #
I-95 Pin Lock 19120 67 Bump / 901 Bump Cap
SLIDE-LOCK
®
PIN LOCK
Liberty
®
4 Point Plastic Replacement Suspension
DESCRIPTION ITEM #
I-285 Slide-Lock 19814 Cap
Suspension ribbon is designed using parachute cord technology for excellent shock absorption
and break strength, providing superior helmet safety technology for over 40 years.
www.e-erb.com | 1 Safety Way, Woodstock, GA 30188 | 800-800-6522 | customerservice@e-erb.com
