Erbessd Reliability DigivibeMX Specifications

Vibration Analyzer, Data Collector

& Dynamic Balancer

DIGIVIBEMX I VIBRATION ANALYSIS AND DYNAMIC BALANCING

The most complete, reliable
and productive solution for

Vibration Analysis, Route
Based Data Collection and
Dynamic Balancing

!"#$"%#&

DigivibeMX is the most complete, reliable

and productive vibration analyzer, route
based data collector & dynamic balancer.

Do simple and complex analysis in both on
and o route modes.

The Balancing functions can be used in situ
and on balancing machines. The intuitive
interface is perfect for novice and expert
users alike.

FUNCTIONS

3D ODS Analysis

FFT Spectra 3D Waterfall

Dual Channel Functions

FFT Spectra with 2 million lines of resolution

Tendency and octave

Statistical machinery condition

For easy - Launch rutes

Easy-to-use ISO color alarm coding

Intelligent Analysis

Large Bearing Frequency Database

Synchronize with other users easily

Export to ASCII, WAV, UFF-58

bands (lines & columns)

'()* (+* '(,*

Gear Frequency Calculator

4 Channel, Triaxial Capable Option

Analysis and Balancing Reports (

Balancing in situ in 1 and 2 planes

Balancing calculator with 12 functions

Balancing without trial weights

2

CSS, Word, Excel)

DIGIVIBEMX I VIBRATION ANALYSIS AND DYNAMIC BALANCING

Take a Shot

Get results

No special hardware needed...
Use your existing tablet or
laptop

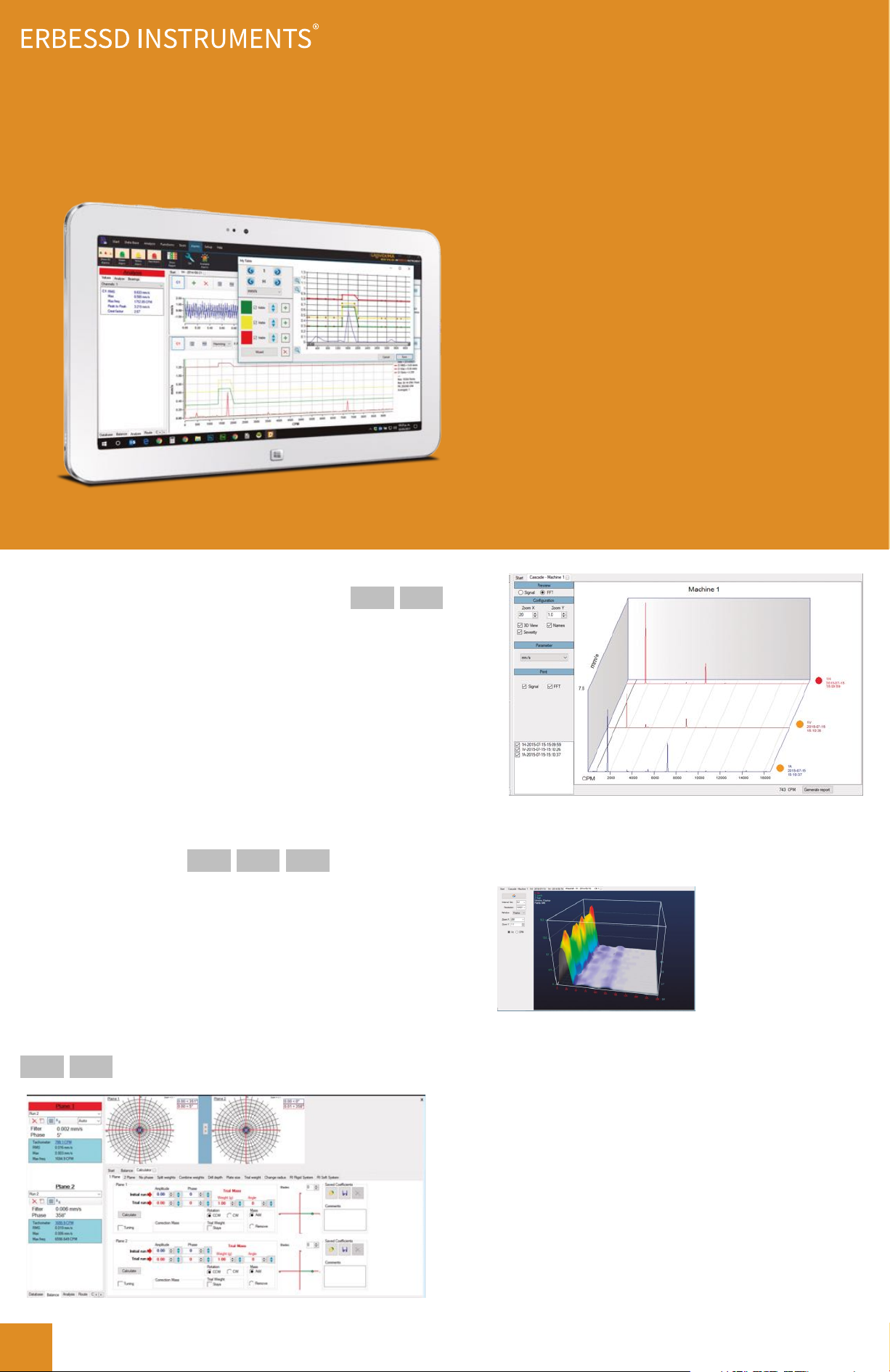

Advanced Analysis Dual Channels

Advanced features allow you to diagnose complex
problems in machinery and structures avoiding high costs
of downtime, collateral damage, and unplanned repairs.

The most common tools are:

Bearings and Gears

DigivibeMX Series has an expandable data base with
failure frequency of more than 34,000 bearings, including
functions for bearing fault frequency and gear mesh
calculation.

'()* '(+* '()* '(+*

The dual channel option saves time and allows for complex
2-channel analysis functions like cross-channel phase.

> Time domain
> FFT Pointers
> CPM, Hz, Orders
> FRF & Bump Test
> Waveform
> AnalysisTransient Capture
> Acceleration Enveloping

'()* '(+* '()* '(+*

Machine Database

> Orbits
> Cross Power Spectrum
> Transference function
> Coherence function
> Bode
> Nyquist
> Phase Analysis

> Company, Area, Machine
> Measurement points
> Type of coupling
> ISO Machine Class
> Export/Import DB
> Easily Defined Fault Frequencies

Compatibility

> ASCII Format
> UFF58 Files
> ANL BAL
> WAV (digital stethoscope)

3

DIGIVIBEMX I VIBRATION ANALYSIS AND DYNAMIC BALANCING

Functions and
Tools

that allow you to diagnose the
real status of your machines

Predictive Analysis Tools

DigivibeMX allows users to complete analysis on all types of
rotating machinery with tools like:

> Machinery database and routes
> Database with more than 34,000 bearings &

gear calculator

> Diagnosis Interpretation tool
> Cascade Spectra
> 3D ODS
> SmartAlert Alarms & Trending

FFT Spectra

The spectral analysis tools in DigivibeMX are based on the FFT
Algorythm. DigivibeMX is able to measure very low frequencies

0.4 hz up to 40 kHz depending on the DigivibeMX hardware
interface selected. DigivibeMX is able to achieve a maximum of
2 million lines of resolution.

'()* '(+* '(,*

'()* '(+*

> Spectra with 2 million
resolution lines

> Spectrogram
> 3D Spectra
> Pointers & cursors
> Zoom In - Zoom Out
> Markers
> FFT Averaging

Dynamic balancing in 1 and 2 planes

'()* '(,*

4

> Add or remove weight
> Separate or combine weights
> Trial weights
> Serial Balancings (without trial weights)
> Drill calculation
> Residual Imbalance
> Degree of quality
> Intelligent Machine Wizard
> Balancing Report
> Balancing Wizard for So Bearing Suspension balancing

without trial weight.

DIGIVIBEMX I VIBRATION ANALYSIS AND DYNAMIC BALANCING

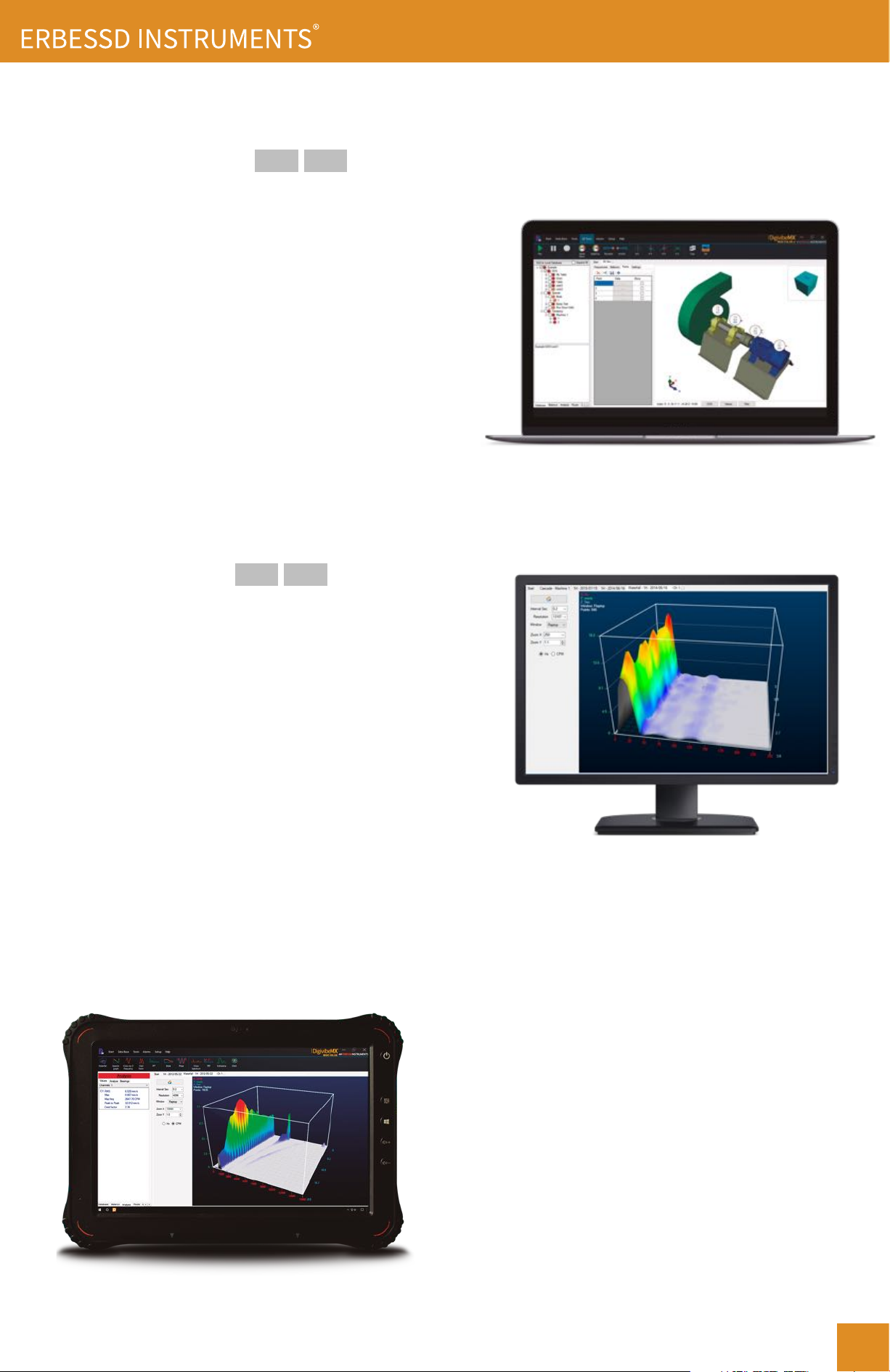

ODS Function

ODS analysis is now an easy task. Create your 3D model in 3D
design so ware (3DS Max, Blender, Solid Works, Windows 3D
Builder that comes free with Windows 10 etc.) all without having
to purchase special add on soware like MEScope or STAR Modal.

With phase analysis DigivibeMX also calculates the coherence
between signals, the cross power and the transference to ensure
that all of the recorded signals are consistent.

All the 3D simulations can be exported to AVI video or to an
animated graphic GIF.

3D Waterfall

'()* '(+*

'()* '(+*

The FFT graphic in cascade (waterfall) is a spectral representation
variable in time ( creating a 3D representation) showing how the
density of a signal varies as time passes.

DigivibeMX includes a tool that generates this graph easily with
the ability to rotate and zoom in with the mouse or your fingers
like in any other 3D soware.

System requirements

Requirements to install DigivibeMX:

> Processor Quad-Core or superior
> 4GB RAM
> Windows 10 (supports Windows 8.1 Windows 7*)
> SVGA Monitor or superior
> “Touch” mode for touch screen
> 4GB free disk space
> 1 USB 2.0 port

5

DIGIVIBEMX I VIBRATION ANALYSIS AND DYNAMIC BALANCING

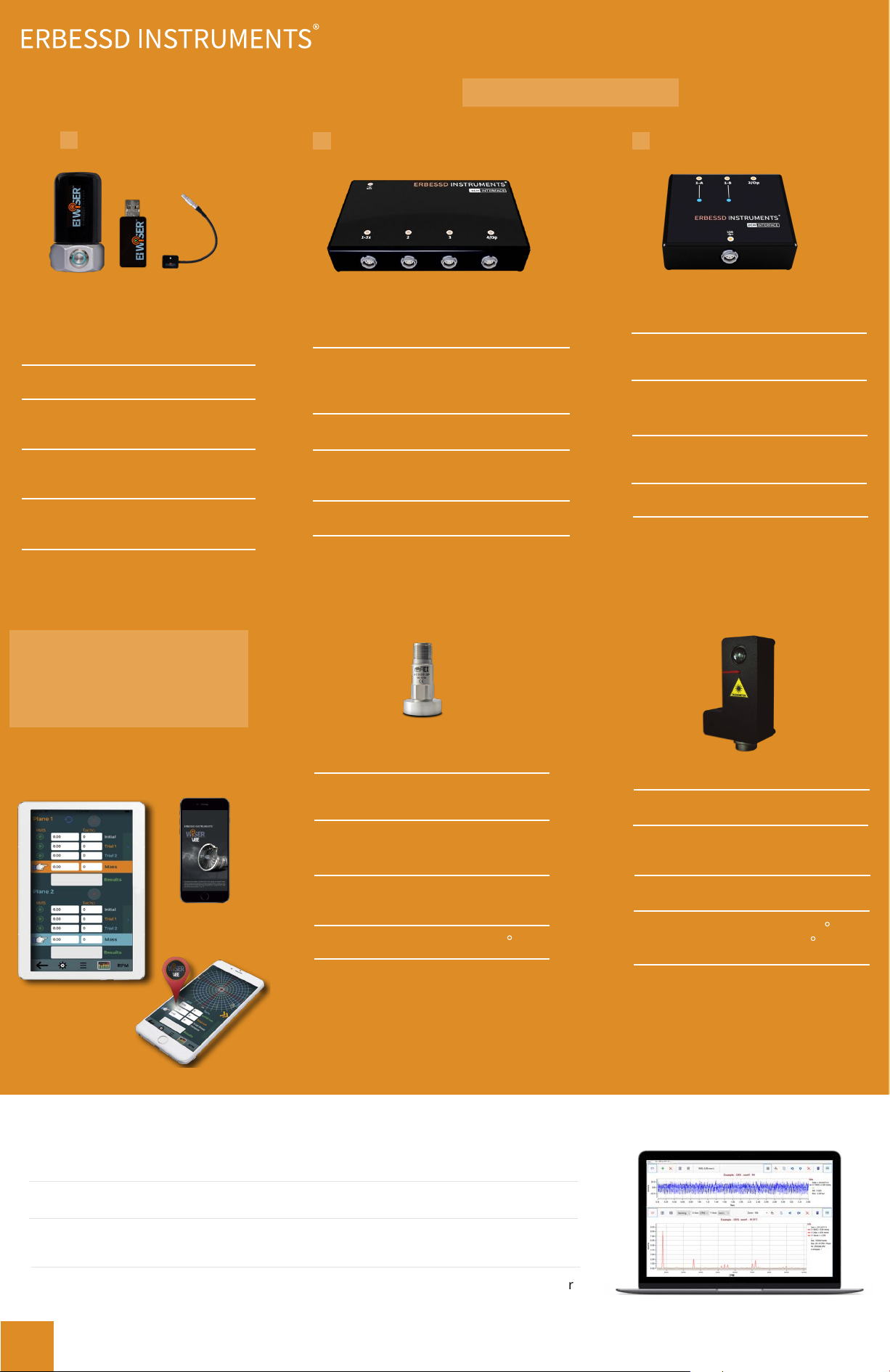

DigivibeMX includes:

EI-WiSER 4 Channel Interface 2 Channel Interface

Wireless accelerometer: 2.4 GHz

Sensitivity: 100 mV/g

Frequency Range:: (+/-3dB): 0.32 - 10 kHz

Operation distance: 30 m

Sample rate: 48 kHz - 24 bits

Standard

LEMO 5 Pin for additional sensors

Protection grade

IP 67

Rechargeable battery (CR-123)

14 hours of continuous use

Charger and USB receiver

4 Input 24V 5-pin connectors:

Up to 4 single axial accelerometers or 1 tri-axial
accelerometer and 1 single axis accelerometer.

Of the 4 connectors, 3 are for 5V sensors:

For optical sensor and non powered
accelerometers/proximity probes.

Sample rate: 11k Hz - 22kHz - 44kHz

Power supply: USB 5V - 250mA

5-Pin LEMO Output: 24V - 5mA cc / 5V

Frequency Range: 0.5-40kHz

Weight 300 g
Dimensions: 89 x 129 x 19.5 mm

One of our 3 Interfaces

3 LEMO 5 - pin Connectors

(Ch 1-A, Ch 1-B, Ch 2/Op)

Active Plane Indicator

(LED 1-A & LED 1-B)

Channel Auto Switching

*Only with DigivibeMX® V10+

IP 67 Protection grade

4-pin LEMO to USB cable (1m/3)

Frequency Range: 0.5-20kHz

Dimensions: 79 x 70 x 24 mm /
Weight: 153g

Download Free WiSER

applications

for iPAD & iPHONE

Accelerometer AC500

Dinamyc impact shock: 80 G Peak
(Max shock 5000g)

Freq. response (+/-3dB): 0.32 - 13kHz

Sensitivity: 100 mV/g +/- 10%
Transverse sensitivity: < 5%

Power supply: 2.5/5V or 24 Volt

Short-circuit protection

Operation temperature: -10 - 50 C

Protection grade: IP 67,III
Impact resistance: IEC 60028-27
Standard 2 or 3 Pin MIL connector
Weight: 50g
Made of: Stainless steel body
Includes: Magnetic Base w/neodymium

Laser Tachometer

Analogic output

Frequency Range: 1 - 5,000 Hz

Power supply: 5V
Current supply: 10mA

Operation distance: 20cm to 15m

Operating temperature: -10 -50 C
Storing temperature: -40 - 85 C

Protection grade: IP 60, III
Impact Resistance: IEC 60028-27
Weight: 60g
Nylamid body

Soware Highlights

Displacement: 0.5 mm to 30 mm (0.02 a 1200 mils)

Velocity: 0.002 to 3000 mm/s (0.0001 a 120 in/s)

Acceleration: 0.0001 to 100 G’s peak-peak
Lines of resolution: > 2,000,000

FFT Models: Rectangular, Hanning, Hamming, Flaptop, Blackman, CosSum, Bartlett, Kaiser
Measurements peak: 0 - peak / peak - peak / RMS
