Eraser LH100, LH115 Operating Manual

Operating Manual

Please Read Before Operating Unit

Glo-Ring Infrared Heat Tools

The Eraser Company, Inc.
PO Box 4961/ Oliva Drive
Syracuse, NY 13221, USA

Service and All Spare Parts Available

Phone: [phone]

Fax: [phone]

Website: www.eraser.com

E-mail: [email protected]

SPECIFICATIONS
Models - LH100, LH115

Maximum, Minimum Element Temperatures: See Charts

Power Input ........................................... 120V, 50/60 Hz or

220/240V, 50/60 Hz

Power Output.......................................................... 115Vac

With 1/2" Elements Fitted ................ Continuous 206W

Intermittent 264W

With 1" Elements Fitted ................... Continuous 206W

Intermittent 348W

With 2" Elements Fitted ................... Continuous 287W

Intermittent 348W

With 3" Elements Fitted ................... Continuous 348W

Intermittent 440W

Power Output..........................................................230Vac

With 1/2" Elements Fitted ................ Continuous 240W

Intermittent 311W

With 1" Elements Fitted ................... Continuous 195W

Intermittent 311W

With 2" Elements Fitted ................... Continuous 330W

Intermittent 377W

With 3" Elements Fitted ................... Continuous 348W

Intermittent 440W

Weight .........................................................10 oz. (280 g.)

Size................................................. 7 1/2" x 1 3/4" x 1 1/2"

(191mm x 44mm x 37mm)
Less elements - add element dimensions

p 2

GloRing Infrared Heat Tools

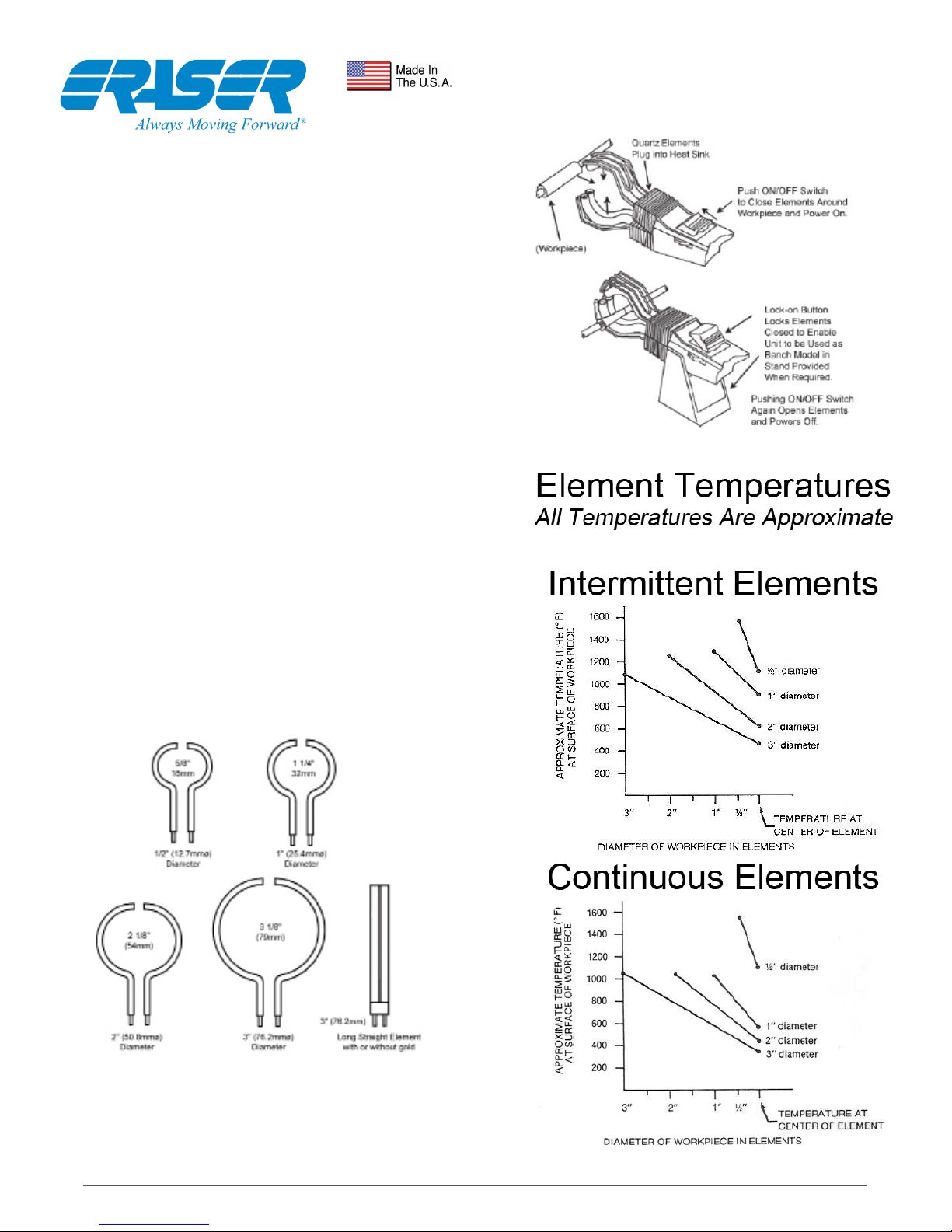

OPERATION

ELEMENTS:

Dimensions of internal diameter of elements in closed
position.

Most elements are available in intermittent and continuously rated
duty cycles. Intermittent elements heat up quicker and get hotter than
continuous elements.

**Continuous elements MUST be tted if unit is to remain

continuously on for more than 2 minutes.

**Intermittent elements should not be left on continuously for

more than 2 minutes.

Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • [email protected] • www.eraser.com • Fax [phone]

GLORING INFRARED HEAT TOOLS

p 3

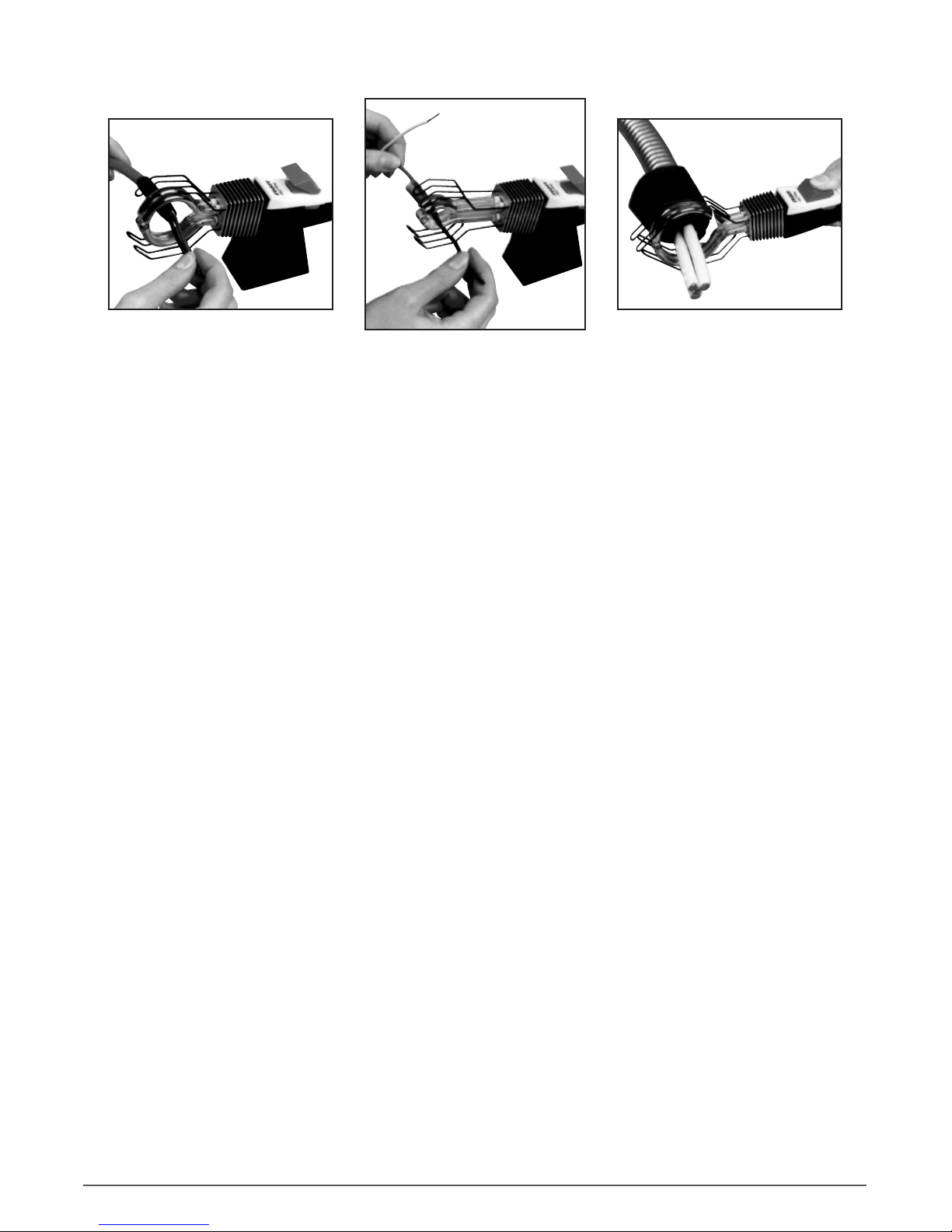

UNIT BEING USED AS BENCH MODEL

WITH LOCK-ON BUTTON

AND BENCH STAND.

FITTED WITH 1/2" DIAMETER

ELEMENTS. WORKING ON

SOLDER SLEEVE.

FITTED WITH 2" DIAMETER

ELEMENTS. SHRINKING LARGE

TUBING ON CABLE.

ORDERING INFORMATION
Units:

AH1901 (LH100).......................................................... Hand Glo-Ring heat tool and bench stand,115V 50/60Hz

AH1902 (LH100)...................................................Same as above, 220/240V 50/60Hz, tted with European plug

AH2001 (LH115) ................... Hand Glo-Ring and bench stand and variable temperature control, 115V 50/60Hz

AH2002 (LH115) .................................................... Same as above, 220/240, 50/60Hz, tted with European plug

Guards:

IH6517 ........................................................................................................... One pair 1/2” (12.7mm) wire guards

IH3551 .............................................................................................................. One pair 1” (25.4mm) wire guards

IH3552 ............................................................................................................. One pair 2” (50.8mm) wire guards

IH3553 ............................................................................................................. One pair 3” (76.2mm) wire guards

IH0129 ...........................................................................................Optional electrical foot switch for bench model

Elements, intermittent for hand use:

IH3511 .................................................................... 1/2” (12.7mmø) diameter intermittent element 115V 50/60Hz

IH4511 ....................................................................... 1” (25.4mmø) diameter intermittent element 115V 50/60Hz

IH4521 ...................................................................................................................................... 220/240V 50/60Hz

IH4512 ...................................................................... 2” (50.8mmø) diameter intermittent element 115V 50/60Hz

IH4522 ...................................................................................................................................... 220/240V 50/60Hz

IH4513 ....................................................................... 3” (76.2mmø) diameter intermittent element 115V 50/60Hz

IH0130 .................................................................. 3” (76.2mm) long straight element without gold 115V 50/60Hz

NOTE: Intermittent elements should not be left on continuously for more than two minutes.

Elements, continuous for units used as bench models:

IH6515 ....................................................................1/2” (12.7mmø) diameter continuous element 115V 50/60Hz

IH6516 ...................................................................................................................................... 220/240V 50/60Hz

IH5511 ........................................................................1” (25.4mmø) diameter continuous element 115V 50/60Hz

IH5521 ...................................................................................................................................... 220/240V 50/60Hz

IH5512 ........................................................................2” (50.8mmø) diameter continuous element 115V 50/60Hz

IH5522 ...................................................................................................................................... 220/240V 50/60Hz

IH5513 ........................................................................3” (76.2mmø) diameter continuous element 115V 50/60Hz

IH5523 ...................................................................................................................................... 220/240V 50/60Hz

NOTE: Continuous elements must be tted if unit is to remain on for more than two minutes.

Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • [email protected] • www.eraser.com • Fax [phone]

GLO-RING INFRARED HEAT TOOLS

p 4

OPERATING INSTRUCTIONS

SET-UP:

All hand-held Glo-Rings are packaged in Styrofoam
boxes. The box will contain the hand piece and a
bench stand. Depending on the unit ordered, each
hand piece will have a power supply cord attached.
The American plug is for use on 110/120V~,
50/60Hz mains supply. The European plug is for
use on 220/240V~, 50/60 Hz mains supply. Use a
properly grounded mains supply when using the
Glo-Ring hand tool.

To set up for use, assemble the hand piece and

quartz elements, ordered separately, by rmly

grasping the element near the base and gently
inserting the two contact pins into the sockets of the
heat sinks on the hand piece. Insert both elements
and be sure the elements are pushed in all the way.
Then install the wire guards into the holes drilled on
the top of the heat sinks.

! CAUTION: Never use elements which have

any broken quartz glass. Replace elements if
elements are cracked or broken. Environmental
conditions for proper operation should be
50°F - 104°F (10°C - 40°C) and 30-75% relative
humidity. The operation of the Glo-Ring heat
tool should be in an open well-ventilated work
space. This heat tool may be affected by outside
environmental disturbances.

OPERATION:

The hand-held units are available with or without
variable heat control. Units with the heat control
have a plastic wheel located on the lefthand side
of the hand piece which is rotated to provide
varying element temperatures. Units without the
heat control feature will immediately heat up to
approximately 1500°F(815°C) when the ON/OFF
button is activated.

The unit may be used either hand-held or stationary
on the bench stand provided. If using the bench
stand, it is recommended that the stand be secured
to the bench. Push the hand piece of the unit into
the bench stand to hold it. Slide the On/Off button
towards the elements to activate the unit, and
release to shut it off. If desired, the elements may
be locked on by tipping the On/Off switch upwards

while pushed forward. If using the unit on the bench
stand, turn the unit ON and lock the button, adjust
the temperature control if applicable and move the
material to be heated, through the elements. If
using the unit hand-held, move the tool along the
length of the material to be heated until the desired
results have been achieved.

! CAUTION: When working around the elements

caution should be used due to the high
temperatures of the elements and wire guards.
If the unit is being used intermittently, use the
intermittent elements, which will heat up faster.
If using the unit in a continuous mode, on the
bench stand with the lock-on button engaged,
use the continuous elements. See “Ordering
Information” for details on elements sizes and
types.

! CAUTION: Using intermittent elements in the

continuous mode for longer than 2 minutes may
cause them to burn out prematurely.

REPLACEMENT OF ELEMENTS:

Disconnect the hand piece from the mains supply
by unplugging the power supply cord. Make certain

that the elements have had sufcient time to cool

down. Firmly grasp the base of the element and
gently work the element out of the heat sink. This
procedure must be done for both elements. When
inserting new elements reverse the procedure
making certain that both elements are pushed in all
the way.

! CAUTION: The Glo-Ring Infrared Heat Tools

in operation, generate signicant heat and

should be treated with respect. Do not leave
units unattended when turned ON. When
changing elements, be sure unit is unplugged
from the power source and that the elements are
completely cooled to the touch. The elements
are manufactured from quartz glass. If dropped
or knocked sharply, they will break. If elements
are broken, replace immediately.

MAINTENANCE:

Keep units clean at all times and ensure that
elements and wire guards are securely installed. No
cleaning should be required in normal usage. No
other maintenance is required.

Eraser Company Inc. • Syracuse, NY USA • Ph: 315-454-3237 • [email protected] • www.eraser.com • Fax [phone]

GLO-RING INFRARED HEAT TOOLS

p 5

TROUBLE SHOOTING:

If one, or both elements in a pair do not heat,
replace them.

IMPORTANT: NO LIABILITY WILL BE INCURRED
BY THE ERASER COMPANY FOR INJURY,
DEATH, OR PROPERTY DAMAGE CAUSED
BY A PRODUCT WHICH HAS BEEN SET UP,
OPERATED, AND/OR INSTALLED CONTRARY TO
ERASER’S WRITTEN INSTRUCTION MANUAL,
OR WHICH HAS BEEN SUBJECTED TO MISUSE,
NEGLIGENCE, OR ACCIDENT, OR WHICH HAS
BEEN REPAIRED OR ALTERED BY ANYONE
OTHER THAN ERASER, OR WHICH HAS BEEN
USED IN A MANNER OR FOR A PURPOSE FOR
WHICH THE PRODUCT WAS NOT DESIGNED.

SYMBOLS:

Ground Location:

This protective Earth Ground Label is
located inside the hand unit beside the
ground wire. This wire is connected to the
Power Supply Cable and is wired back
through the Mains supply to ground.

Caution Label:

Refer to the operating instructions before
operating this unit.

Hi-Voltage is inside this unit and power
must be disconected before servicing
hand piece.

The Eraser Company, Inc.
PO Box 4961/ Oliva Drive
Syracuse, NY 13221, USA

Phone: [phone]

Fax: [phone]

Website: www.eraser.com

E-mail: [e-mail]

IR5307

REV 06/17
