27

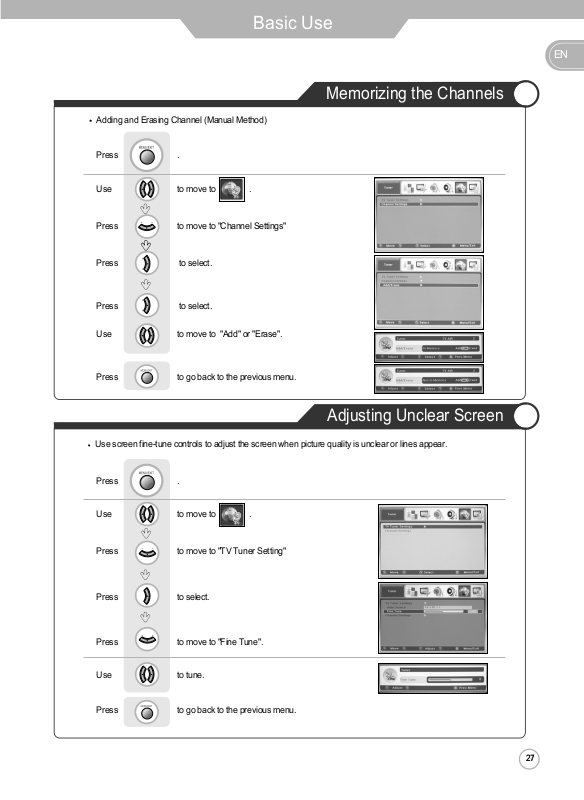

Memorizing the Channels
Adjusting Unclear Screen
EN
27
Basic Use
Use to move to .
Press to move to "Channel Settings"
Press to select.
Press to select.
Press .
Use to move to "Add" or "Erase".
Press to go back to the previous menu.
Adding and Erasing Channel (Manual Method)
Use screen fine-tune controls to adjust the screen when picture quality is unclear or lines appear.
Use to move to .
Press to move to "TV Tuner Setting"
Press to select.
Press to move to "Fine Tune".
Press .
Use to tune.
Press to go back to the previous menu.
28
Changing Picture Settings
28
Basic Use
Use to move to .
Press .
Use to move to the desired category.
Use to adjust the setting.
Press to go back to the previews menu.
Custom Picture Adjustment
Custom Mode
Brightness : It adjusts the brightness of the image.
Contrast : It adjusts the contrast of the image.
Sharpness : It adjusts the clarity of the image.
Color : It adjusts the intensity of the color.
Tint : It adjusts the natural tint of the image.
Color Temp : Control the red, green and blue to find a best impression of color on screen.
Phase(Component 1 , Component 2, PC) : Control this if it is out of focus.
Frequency(PC) : The position of screen is not on the right spot.
29
Changing Sound Settings
EN
Use to move to .
Press .
Use to move to the desired category.
Use to adjust the setting.
Press to exit menu.
Custom Sound Adjustment
29
Basic Use
Custom Mode
Treble : The high - pitched sound can be controlled.
Bass : The low - pitched sound can be controlled.
Balance : Control the volume of right and left speaker. The volume level 50 is recommended for the most
comfortable listening.
SRS WOW Control : SRS Labs in USA has developed the new concept of 3D sound technology for the better
sound effect with the combination of WOW, Trubass and FOCUS. With only two speakers,
it creates a stereophonic sound just like a multi - channel speakers.
Stereo Audio Out : If you would like to listen to the sound of TV through other equipments, you may connect
them to Audio out terminal.
< > is a trademark of SRS Labs, Inc.
<WOW> technology is incorporated under license from SRS Labs, Inc.
<WOW>, SRS and (
) symbol are trademarks of SRS Labs, Inc.
<WOW>, <WOW>, SRS and ( ) symbol are trademarks of SRS Labs, Inc.
30
Selecting the Menu Language
30
Basic Use
Menu screen can be viewed in the language preferred by the user.
Use to move to .
Press to move to "Language".
Press .
Use to select the desired language.
Press to exit menu.
Use to move to .
Press to move to "OSD Setting" .
Press to select.
Press .
Use select the "On" or "Off".
Press to move to "OSD Timeout(sec)".
use to select the desired OSD Timeout.
Press to exit menu.
Setting OSD Tone Menu Background
31
Changing Screen Size
EN
Wide
Zoom 1
4 : 3(Normal)
Zoom 2
Press button on the remote control (Image Size Control).
Or
Basic Use
Wide
4 : 3 (Normal)
Zoom 1
Zoom 2
Screen Size
Wide - It makes 16 : 9 format for input signal.
4 : 3 - It is the standard format of broadcasting.
Zoom 1 - It enlarges the natural screen factor by approx.(5%)
Zoom 2 - It eularges the natural screen factor by approx(10%)
Use to move to .
Press to move to "Image Size".
Press .
Use to select the desired "Image Size".
Press to exit menu.
32
Application
Using the V-Chip
The V-Chip feature automatically locks out programming that is deemed inappropriate for children.
The user must first enter a password before any of the V-Chip restrictions can be set up or changed.
Enter your 6-digit number.
The default password for a new TV set is
Press to select.
After entering a valid password, The "V-Chip" Menu Screen will appear.
First, Set up a personal identification number(password) and enable the V-Chip.
Use to move to "V-Chip".
Press to move to "Password".
Press to select.
Press .
Setting up your V-CHIP password
Use to move to "Change password"
Press to select.
Press to exit menu.
Enter your 6-digit New password
How to Enable / Disable the V-Chip
Use to move to "Status"
Press to select the "On" or "Off".
Press to exit menu.
33
EN
Application
Using the V-Chip
First, Set up a personal identification number (password) and enable the V-Chip.
Parental restrictions can be set up using either of two methods ;
The TV guidelines or the MPAA rating.
The V-Chip will automatically block certain categories that are "More restrictive".
For example, if you check "L" Sub-rating in TV-PG, then the "L" Sub-rating in TV-14 and TV-MA will
automatically be checked.
How to set up Restrictions using the "TV guidelines"
Use to move to "TV Parental Guide".
Press to select.
Use or to move to desired categories.
Press to set the restriction ratings.
Press to exit menu.
TV-Y : Young Children
TV-Y7 : Child 7 and over
TV-G : General audience
TV-PG : Parental guidance suggested
TV-14 : Parents strongly cautioned
TV-MA : Mature audience
The restrictions for these two groups work independently.
(young Children through age 7)
(everybody else)
FV : Fantasy Violence
V : Violence
S : Sexual situation
L : Adult Language
D : Sexual Suggestive Dialog
34
How to set up Restrictions usiug the Canadian English.
Application
Using the V-Chip
How to Set up Restrictions using the MPAA Ratings
Use to move to "Movie Rating"
Use to move to desired categories.
Press to set the restriction ratings.
Press to exit menu.
The MPAA rating system uses the Motion Picture Association of A
merica(MPAA) system, and its main
application is for movies.
When the V-Chip lock is on, the TV will automatically block any programs that are coded with objectionable
rating (either MPAA or TV-Rating).
First, Set up a personal identification number(password) and enable the V-Chip.
G : All Children and General audience.
PG : Parental guidance suggested
PG13 : Parental guidance for children under 13
R : Restricted viewing, parental guidance is suggested for children under17.
NC17 : No children under age 17
X : Adults only
NR : Not rated
Use to move to "Canadian English".
Use to move to desired categories.
Press to set the restriction ratings.
Press to exit menu.
