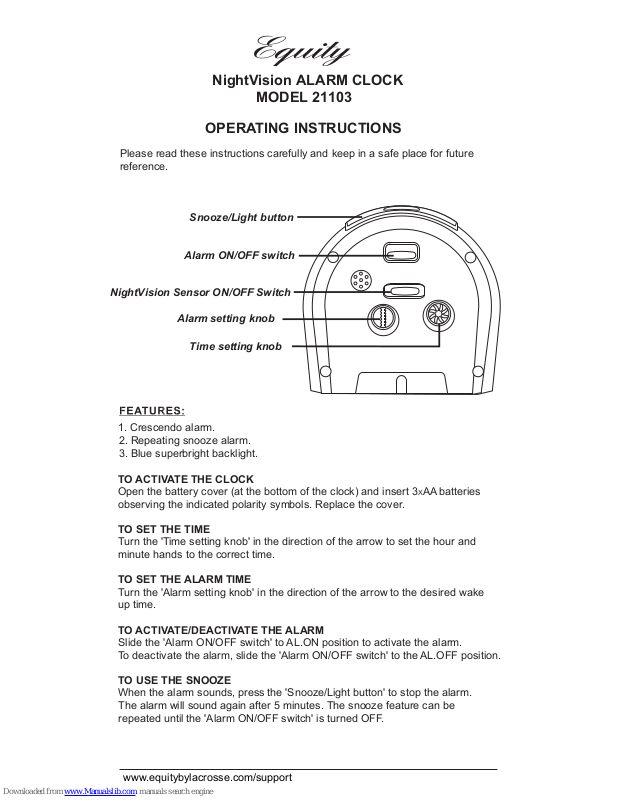

Page 1
NightVision ALARM CLOCK
MODEL 21103
OPERATING INSTRUCTIONS
Alarm ON/OFF switch
3. Blue superbright backlight.
TO ACTIVATE THE CLOCK
Open the battery cover (at the bottom of the clock) and insert 3
XAA batteries
observing the indicated polarity symbols. Replace the cover.
TO SET THE TIME
Turn the 'Time setting knob' in the direction of the arrow to set the hour and
minute hands to the correct time.
TO SET THE ALARM TIME
Turn the 'Alarm setting knob' in the direction of the arrow to the desired wake
up time.
TO ACTIVATE/DEACTIVATE THE ALARM
Slide the 'Alarm ON/OFF switch' to AL.ON position to activate the alarm.
To deactivate the alarm, slide the 'Alarm ON/OFF switch' to the AL.OFF position.
TO USE THE SNOOZE
When the alarm sounds, press the 'Snooze/Light button' to stop the alarm.
The alarm will sound again after 5 minutes. The snooze feature can be
repeated until the 'Alarm ON/OFF switch' is turned OFF.
1. Crescendo alarm.
Please read these instructions carefully and keep in a safe place for future
reference.
NightVision Sensor ON/OFF Switch
Snooze/Light button
Alarm setting knob
Time setting knob
www.equitybylacrosse.com/support
Page 2
CHANGING THE BATTERIES
- It is recommended that you replace the batteries annually, even if the product
is still running.
- Do not mix old and new batteries, Do not mix alkaline, standard (carbon-zinc),
or rechargeable (ni-cad, ni-mh, etc.)
.
- Only use AA (1.5V) Alkaline batteries in this clock.
- Please dispose of used batteries in a responsible manner.
MAINTENANCE
A soft cloth may be used to clean your clock. Do not use any corrosive cleaner
or chemical solutions on the clock. Keep the clock clean and dry to avoid any
problems.
You can activate a bright backlight display anytime by pressing
the snooze/light bar.
Two Year Warranty:
Equity products are warranted for two years from the date of consumer purchase
against defects on material and workmanship. During this period such defects
will be repaired, or the product will be replaced at Equity’s option, without charge.
This warranty does not cover damage caused by misuse or negligence.
ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED
WARRANTIES OR FITNESS AND MERCHANTABILITY, ARE LIMITED IN
DURATION TO A PERIOD OF TWO YEARS FROM THE DATE OF PURCHASE.
Some states do not allow limitations on how long an implied warranty lasts so the
above limitation may not apply to you. This warranty gives you specific legal rights
and you may also have other rights which vary from State to State.
If your clock is not working, send it with a letter explaining the problem
and $5.00 for postage and handling to:
Equity by La Crosse.
Warranty Department.
2830 26th St. S.
La Crosse, WI 54601
Please help in preservation of the environment and return used batteries to an
authorized deport. Remove the battery from the clock if you do not intend to use
for an extended period of time.
Made in China Printed in China
NightVision Operating Instructions:
This clock incorporates NightVision® Technology. To Activate the NightVision
sensor, slide the backlight switch to the “Sensor” position.
This cordless battery operated feature allows you to see the time in a dark
room. When light level is extremely low, the light sensor automatically
illuminates a dim glow behind the dial. When your eyes adjust in a darkened
room, you can see the time! The sensor automatically turns off the
NightVision® glow when the room brightens.To turn the backlight on all the time,
slide the backlight switch to the “ALWAYS ON” position.
Turning the backlight on all the time will reduce battery life.
www.equitybylacrosse.com/support
