C O N C E P T
LTD.LTD.

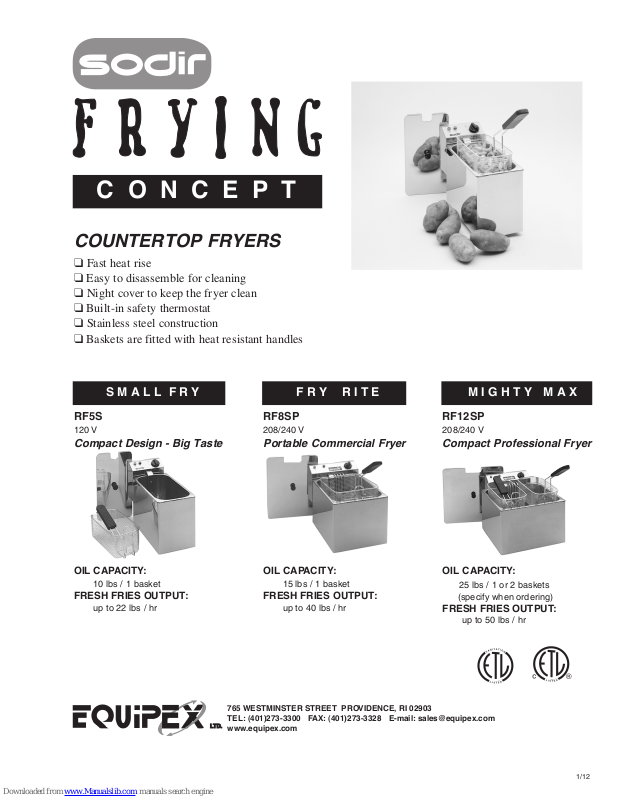

COUNTERTOP FRYERS
❑ Fast heat rise
❑ Easy to disassemble for cleaning
❑ Night cover to keep the fryer clean
❑ Built-in safety thermostat
❑ Stainless steel construction
❑ Baskets are fitted with heat resistant handles
S M A L L F R Y
RF5S
120 V
Compact Design - Big Taste
OIL CAPACITY:
10 lbs / 1 basket
FRESH FRIES OUTPUT:
up to 22 lbs / hr
F R Y R I T E M I G H T Y M A X
RF8SP
208/240 V
Portable Commercial Fryer
OIL CAPACITY:
15 lbs / 1 basket
FRESH FRIES OUTPUT:
up to 40 lbs / hr
RF12SP
208/240 V
Compact Professional Fryer
OIL CAPACITY:
25 lbs / 1 or 2 baskets
(specify when ordering)
FRESH FRIES OUTPUT:
up to 50 lbs / hr
765 WESTMINSTER STREET PROVIDENCE, RI 02903
TEL: (401)273-3300 FAX: (401)273-3328 E-mail: [email protected]
www.equipex.com
1/12
Page 2
COUNTERTOP FRYERS
LTD.LTD.
11
10
”
RF8SP
151/2
”
RF5S
”
7
”
151/2
”
11
”
* RF12SP
”
131/2
”
151/2
”
11
* available with 1 or 2 baskets
(specify when ordering)
S P E C I F I C A T I O N S
MODEL ELECTRICAL DIMENSIONS
RF5S 120V, 1.75KW, 15 Amps 7”Wx151/2”Dx11”H 5”Wx10”Dx4”H 20 lbs 5-15 P
RF8SP 208/240V, 1PH, 5KW, 22/24 Amps 10”Wx151/2”Dx11”H 8”Wx10”Dx4”H 25 lbs L6-30 P
RF12SP 208/240V, 1PH, 6.5KW, 28/31 Amps 131/2”Wx151/2”Dx11”H 12”Wx10”Dx4”H 30 lbs 6-50 P
BASKET
DIMENSIONS
SHIPPING
WEIGHT
NEMA
PLUG
WARRANTY: Limited one year parts and labor
