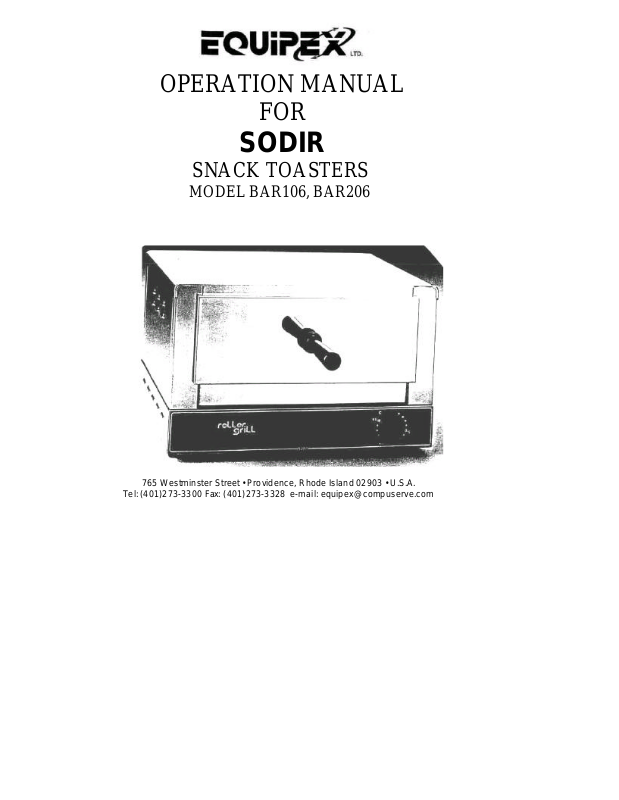

OPERATION MANUAL

FOR

SODIR

SNACK TOASTERS

MODEL BAR106, BAR206

765 Westminster Street • Providence, Rhode Island 02903 • U.S.A.

Tel: [phone] Fax: [phone] e-mail: [e-mail]

EQUiPEX

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed,
including the following:

1. Read all the instructions before use.

2. Do not touch hot surfaces. Use handles or knobs.

3. To avoid el ectrical shock, do not immerse the power cord, plug or connection box in
water or other liquid.

4. Close supervision is necessary when any appliance is used or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before
installing or removing parts, and before cleaning.

6. Do not operate any appliance with a damaged cord or plug or after appliance

malfunctions, or after damage of any kind. Return appliance to the nearest authorized
service facility for examination, repair or adjustment

7. The use of accessory attachments not recommended by the appliance manufacturer

may cause injury.

8. Do not use outdoors.

9. Do not allow cord to hang over edge of table or counter. Do not allow cord to touch

hot surfaces.

10. Do not place on or near a burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil.

12. Always attach plug to appliance before plugging cord into the wall outlet. To

disconnect, turn all controls to "OFF" then remove plug from the wall outlet

13. Do not use appliance other than for its intended use.

14. SAVE TH ESE INSTRUCTIONS.

INTRODUCTION

The SODIR Model # BAR -106 and # BAR-206 countertop snack toasters offer
speedy toasting and finishing. The units are designed for commercial applications,

especially when small footprint is an issue. The snack toasters are constructed of
stainless steel and are equipped with quartz heating elements, a 4-position switch,
a 15'minute timer with hold position and a red pilot light. Model # BAR -106 comes
with one wire rack, while # BAR -206 comes with two of wire racks. Each rack has
a mounted-on door with a heat -resistant handle.

SPECIFICATIONS

Model Electrical Plug Configuration

BAR106/1 120V, 1PH, 1.1KW, 10A NEMA-5-15P
BAR106 208/240V, 1PH, 0.93KW, 4/5A NEMA-6-15P
BAR206/1 120V, 1PH, 1.65KW, 14A NEMA-5-15P
BAR206 208/240V, 1PH, 1.4KW.6/7A NEMA-6-15P

INSTALLATION

The SODIR snack toasters need to be connected to a grounded outlet of proper
voltage (208/240V or 120V) depending on the model. DO NOT pla ce the unit in a
damp area or near steam source. Make sure that the back panel of the snack
toaster is not blocked.

OPERATION

The snack toasters are simple to operate. Turn the toaster on by rotating the
switch to one of the three following positions: "ALL ELEMENTS ON", "TOP
ELEMENTS ON", or "BOTTOM ELEMENTS ON". Turn the timer knob clockwise to
select the desired time. By turning the timer knob to the "HOLD" position indicated
by the marking "C" on the time dial, operate the unit in continuous mode. Put the
product on the wire rack and slide the rack into the unit. Always use the drip tray.
