Introduction …………………………….
The VGA Splitters, VS0201, VS0401 and VS0801,
broadcast and boost one VGA signal source for 2 , 4 or 8
VGA monitors respectively. There is no software or
interface card to install. Just connect the cables, power
up the system and you are ready to have duplicated VGA
images for multiple monitors with excellent quality.
Superb high bandwidth circuit enables high-resolution
VGA signal of up to 350Mhz to be displayed on multiple
monitors.
Application …………………………….
l presentations
l exhibits
l demonstration
l trade shows
l monitor testing and burn-in
l business meetings
Features …………………………………
l Duplicate one VGA input to multiple VGA outputs.
l Effective transmission distance: 65M (210ft)*
l Automatic power-save when VGA input is lost.
l Applicable to VGA, SVGA and multi-sync monitors.
l Cascaded operation for increased VGA outputs.
l Crisp clear VGA images
*With UL-2919 rated VGA cables.
Page 3
Connection …………………………….
One piece of HDB15 male-to-female cable is required to
connect from the Video Splitter Input to a computer's VGA
output. Multiple monitors should be connected to the
Video Splitter's output ports as shown below.

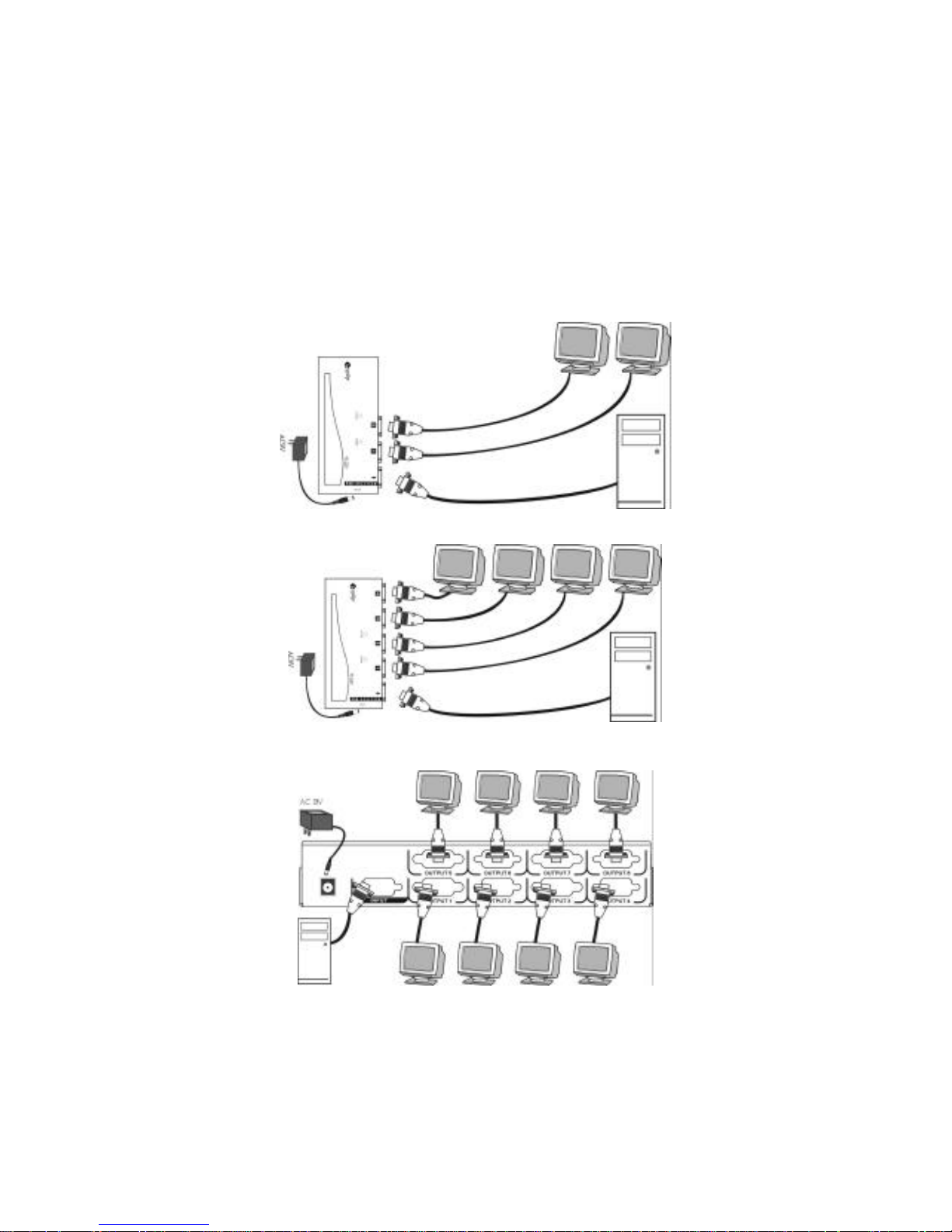

Figure 1 : VS0201 Connection
Figure 2 : VS0401 Connection
Figure 3 : VS0801 Connection
Page 4
Operation ………………………………
? ACTIVE LED turns on when there is VGA signal at the
Input port.
? POWER LED turns on when the Video Splitter is
powered up by the AC 9V power adapter.
Specification …………………………...
Function VS 0201
VS 0401
VS 0801
Number of VGA
output
2
4
8
Signal bandwidt h
300Mhz 350Mhz
Signal type VGA, SVGA, Multi-sync
LED
POWER (green) x 1
ACTIVE (amber) x 1
Cable length 65M (210ft) Max.
HDB15 male x 1 Connector - Input
-Output
HDB15
female x 2
HDB15
female x 4
HDB15
female x 8
Power consumption
AC 9V, 200mA, normal operation
10mA, power-save mode
Enclosure Metal
Weight 400g 428g 720g
H x D x W (mm) 20x85x180 40x196 x70
Page 5
Limited Warranty
IN NO EVENT SHALL THE DIRECT VENDOR'S
LIABILITY FOR DIRECT OR INDIRECT, SPECIAL,
INCIDENTIAL OR CONSEQUENTIAL DAMAGES, LOSS
OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL
LOSS WHICH MAY BE CAUSED BY THE USE OF THE
PRODUCT EXCEEDS THE PRICE PAID FOR THE
PDOCUDT.,
The direct vendor makes no warranty or representation, expressed
or implied with respect to the contents or use of this
documentation, and especially disclaims its quality, performance,
merchantability, or fitness for any particular purpose.
The direct vendor also reserves the right to revise or update the
product or documentation without obligation to not ify any user of
such revisions or updates. For further information, please contact
your direct vendor.
All the brand names and registered trademarks are the property of
their respective owners.
