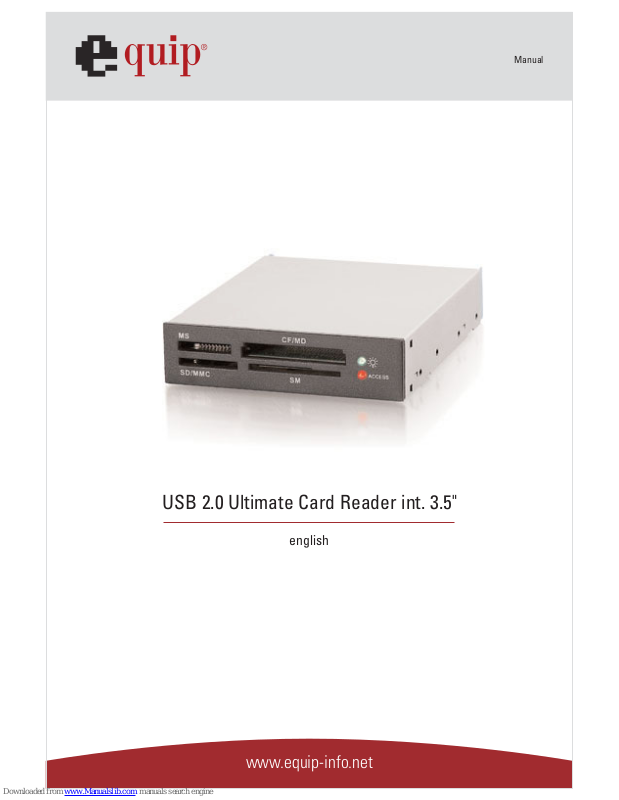

Equip USB 2.0 Ultimate Card Reader User Manual

Manual

www.equip-info.net

USB 2.0 Ultimate Card Reader int. 3.5"

english

Manual_Page 2

www.equip-info.net

Content

1. Package contents

____________________________________________________________________________

3

2. Layout

________________________________________________________________________________________________

3

3. Hardware Installation

_____________

___________________________________________________________

3

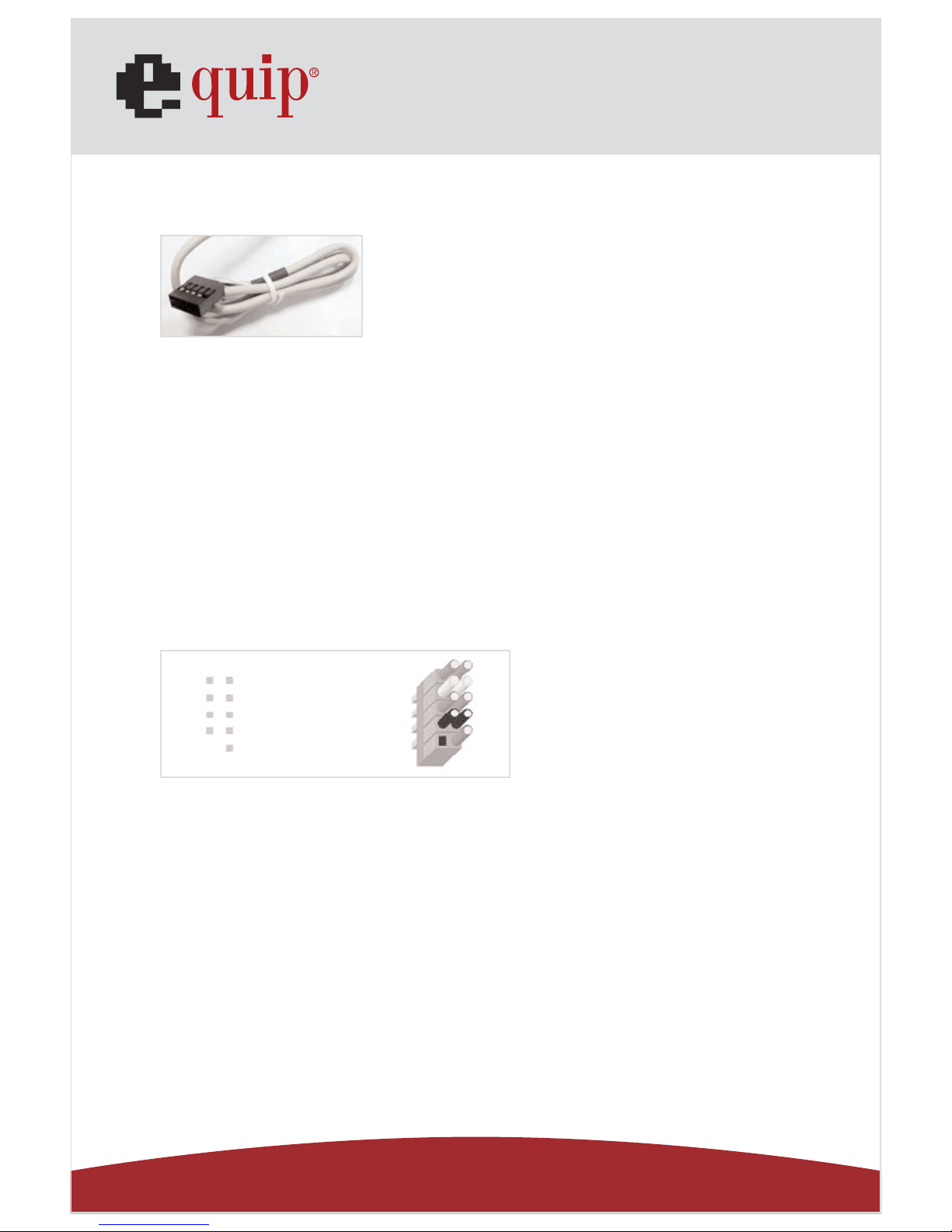

4. 4-pin USB Connector

________________________________________________________________________

4

5. USB Pin-out Header

________________________________________________________________________

4

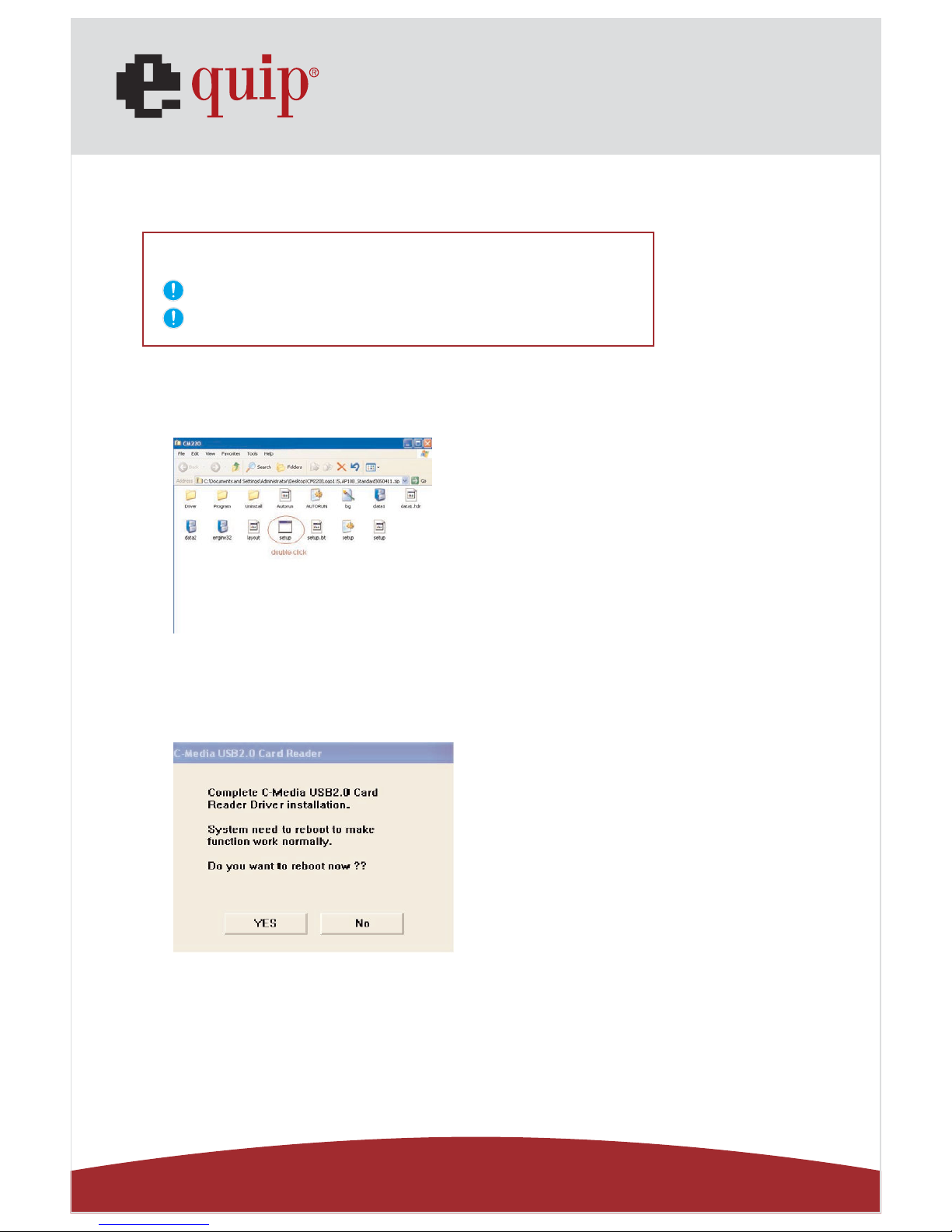

6. Software Installation

________________________________________________________________________

5

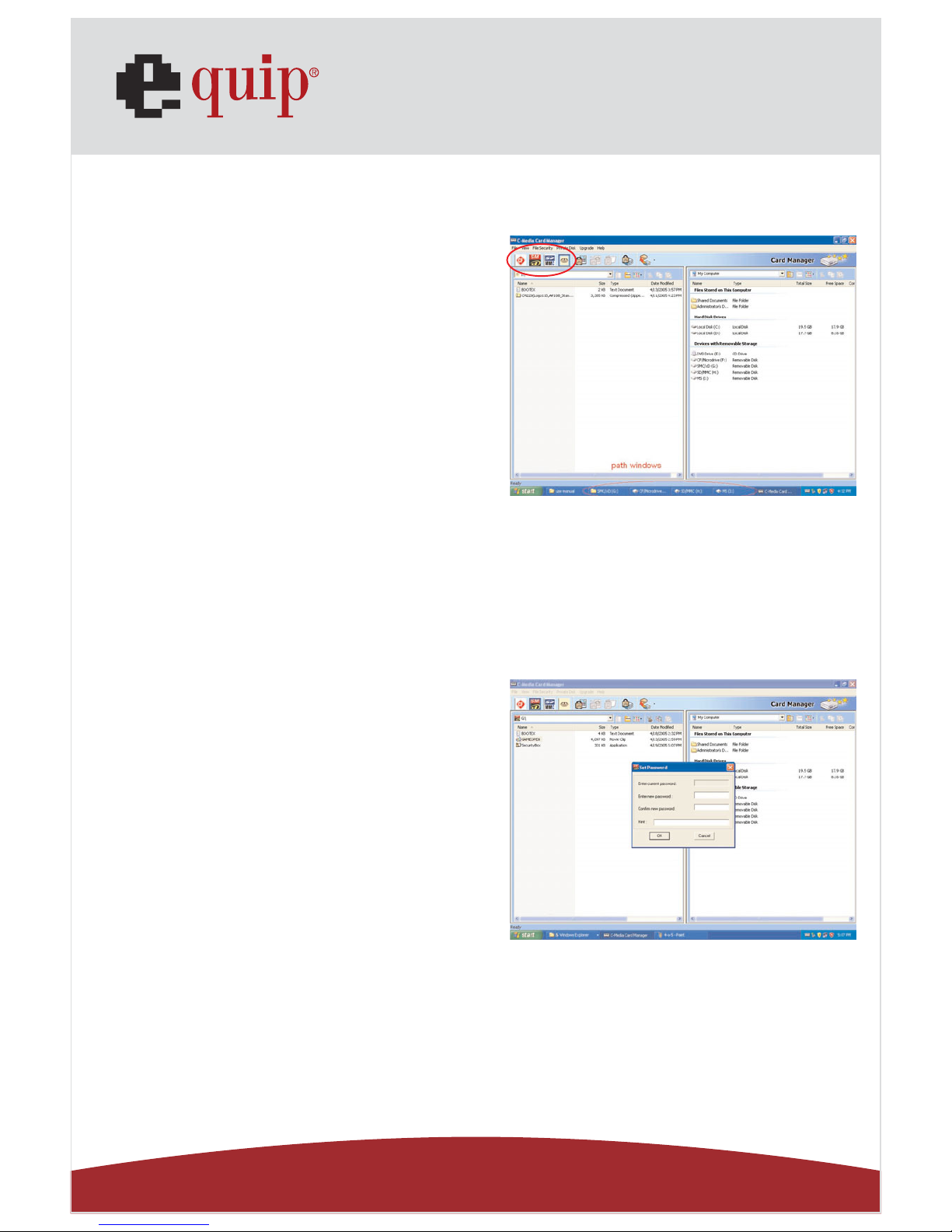

7. Functions of Application Software

____________________________________________________

6

A. The File Management Function

____________________________________________________________

6

B. The File-Security Function

____________________________________________________________________

6

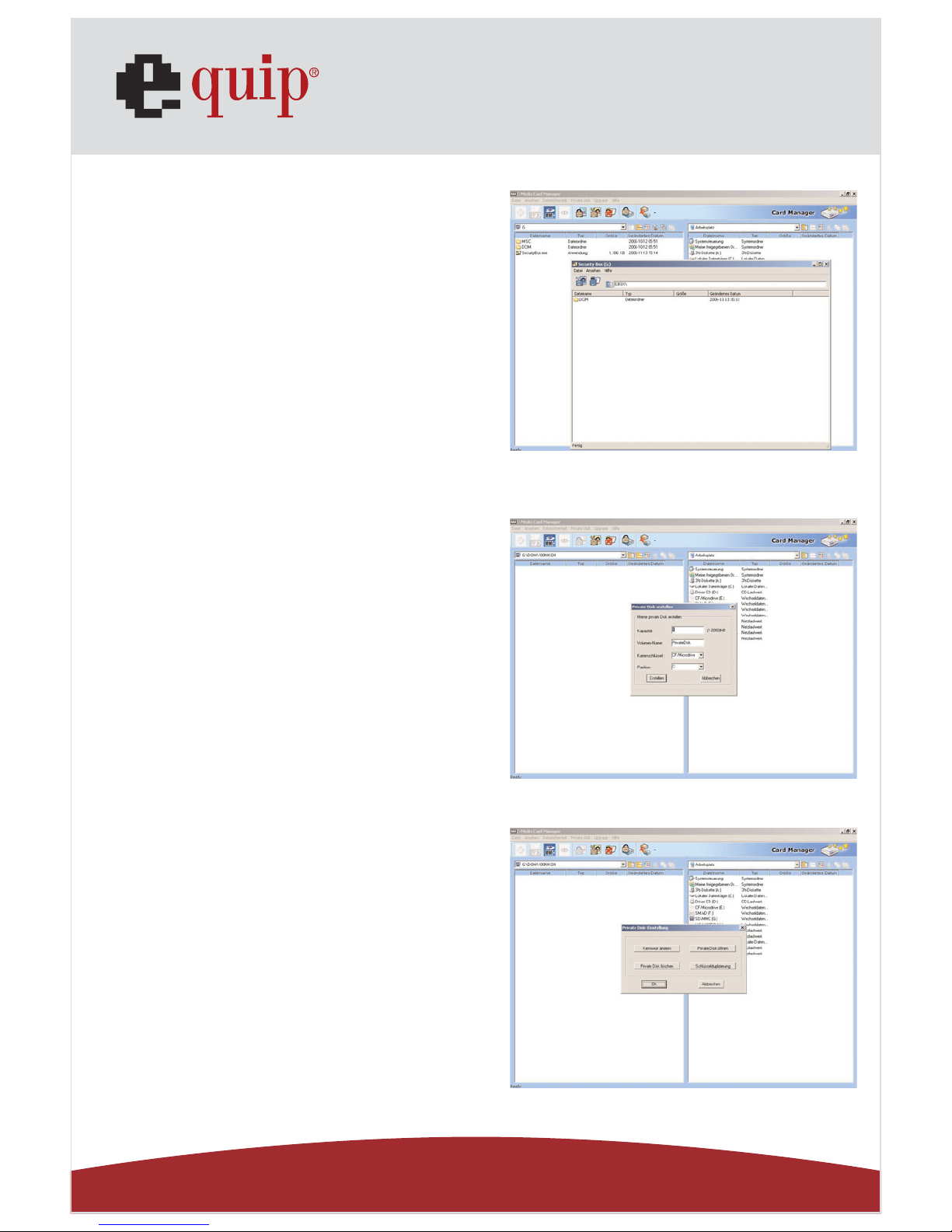

C. The Private Disk Function

____________________________________________________________________

7

D. Online Update Function

________________________________________________________________________

8

Manual_Page 3

www.equip-info.net

1. Package Contents

• USB2.0 Ultimate Card Reader internal 3,5"

• Setup CD

• Set of screws

• Front bezel in black

• Front bezel in silver

2. Layout

3. Hardware Installation

1. Turn OFF the power to your computer and all connected peripheral devices.

2. Unplug the power cord from the back of the computer.

3. Remove the computer’s cover.

4. Select an available 3.5" drive bay for mounting the Ultimate Card Reader/Writer,

remove the cover plate from the selected drive bay. Secure the Reader/Writer to the

drive bay by using the supplied mounting screws.

5. Connect the Ultimate Card Reader/Writer with the attached USB cable directly to

the motherboard.

Memory Stick Compact Flash/Microdrive

Secure Digital/
Multi Media Card

Smart Media/
xD Picture Card

Power LED

Activity LED
