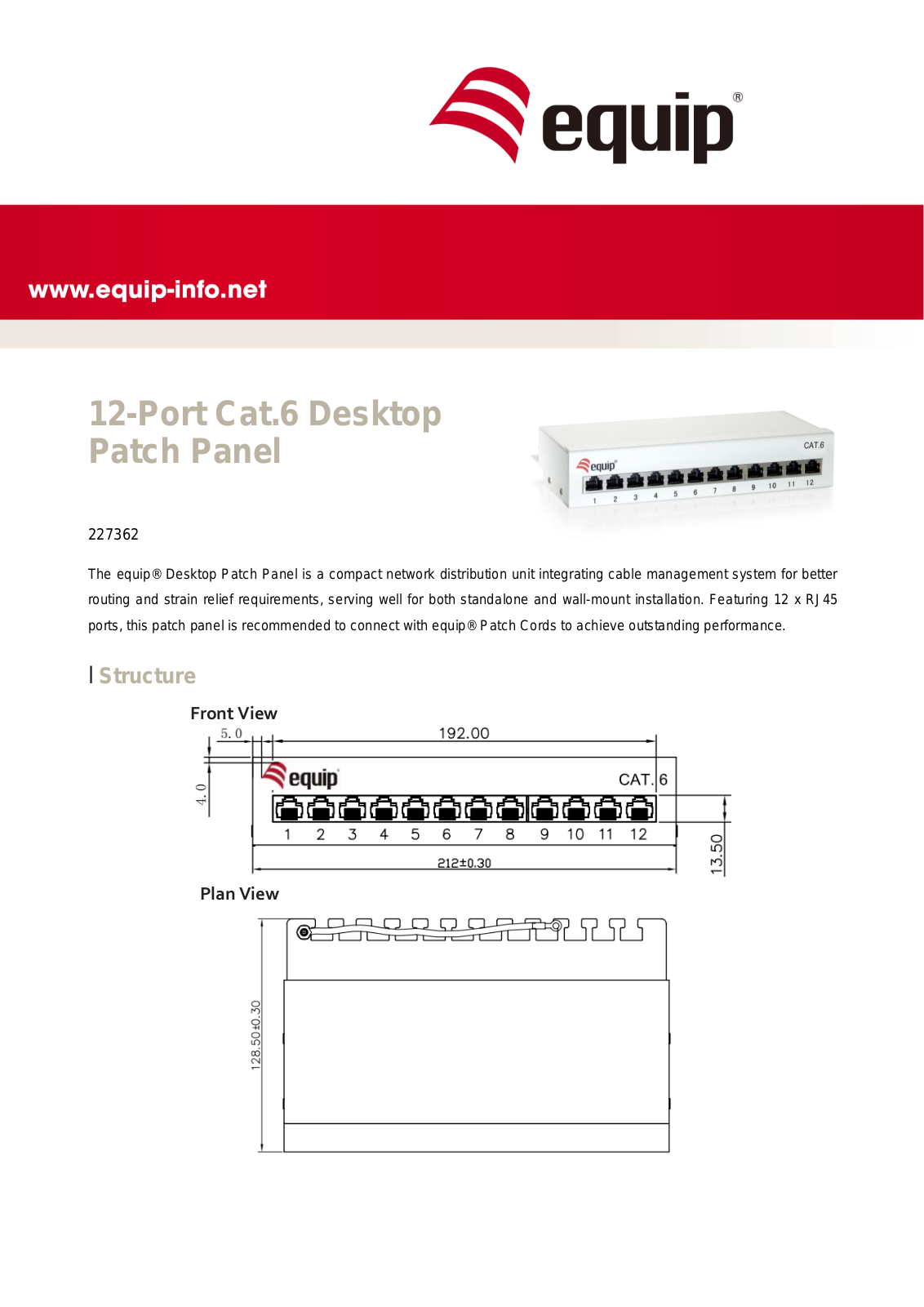

Page 1
12-Port Cat.6 Desktop
Patch Panel
227362
The equip® Desktop Patch Panel is a compact network distribution unit integrating cable management system for better
routing and strain relief requirements, serving well for both standalone and wall-mount installation. Featuring 12 x RJ45
ports, this patch panel is recommended to connect with equip® Patch Cords to achieve outstanding performance.
l Structure
Front View
Plan View

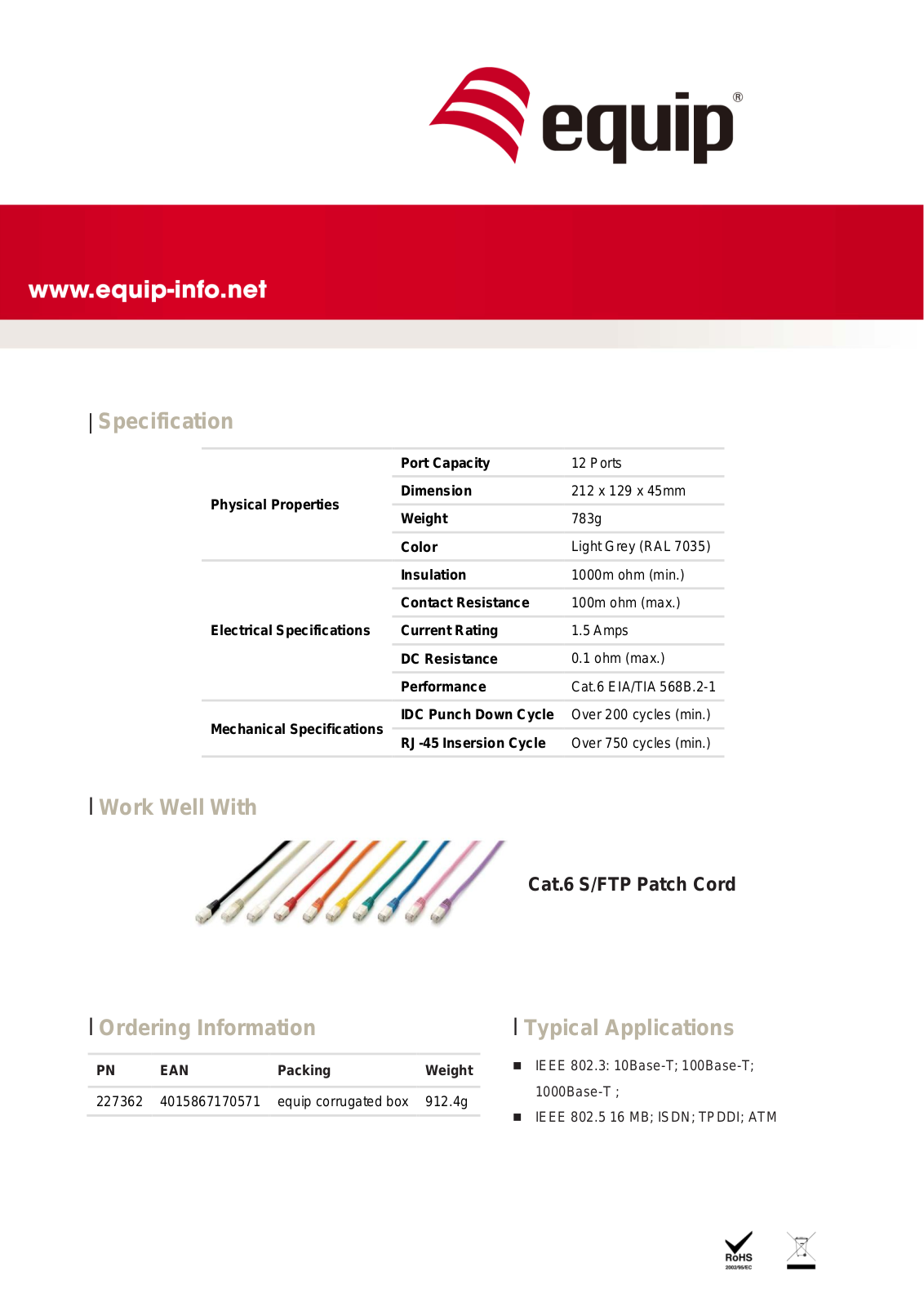

Page 2
| Specification
Physical Properties
Port Capacity
12 Ports
Dimension
212 x 129 x 45mm
Weight
783g
Color
Light Grey (RAL 7035)
Electrical Specifications
Insulation
1000m ohm (min.)
Contact Resistance
100m ohm (max.)
Current Rating
1.5 Amps
DC Resistance
0.1 ohm (max.)
Performance
Cat.6 EIA/TIA 568B.2-1
Mechanical Specifications
IDC Punch Down Cycle
Over 200 cycles (min.)
RJ-45 Insersion Cycle
Over 750 cycles (min.)
l Work Well With
Cat.6 S/FTP Patch Cord
l Ordering Information
PN
EAN
Packing
Weight
227362
4015867170571
equip corrugated box
912.4g
l Typical Applications
IEEE 802.3: 10Base-T; 100Base-T;
1000Base-T ;
IEEE 802.5 16 MB; ISDN; TPDDI; ATM
