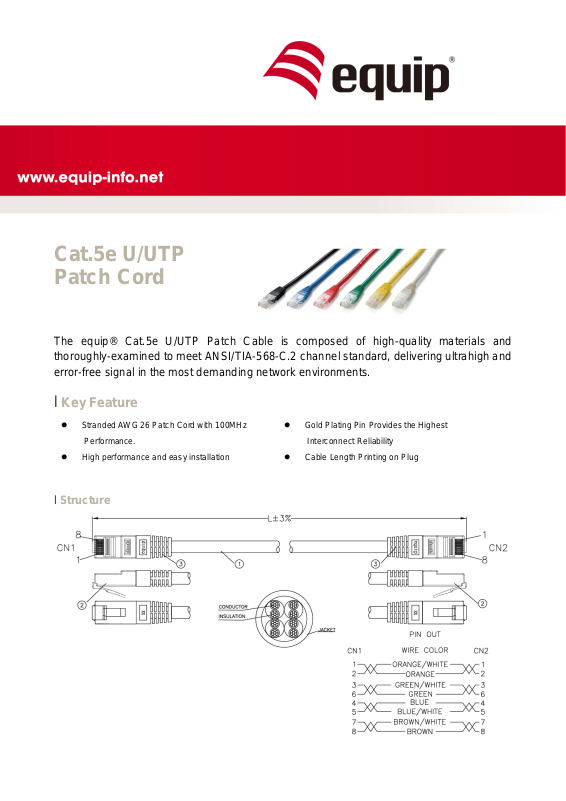

Equip 825413 User Manual

Cat.5e U/UTP
Patch Cord

The equip® Cat.5e U/UTP Patch Cable is composed of high-quality materials and
thoroughly-examined to meet ANSI/TIA-568-C.2 channel standard, delivering ultrahigh and
error-free signal in the most demanding network environments.

l Key Feature

 Stranded AWG 26 Patch Cord with 100MHz

Performance.

 High performance and easy installation

 Gold Plating Pin Provides the Highest

Interconnect Reliability

 Cable Length Printing on Plug

l Structure

l Specification

Conductor

Construction

26AWG, 7/0.16 ± 0.015mm

Insulation

Thickness

MIN at any point: 0.14mm MAX AVG:0.15 mm

Diameter

0.78± 0.02mm

Colors

Blue/White-Blue，Orange/White-Orange，Green/White-Green，Brown/White-Brown

Jacket

Material

PVC

Thickness

MIN at any point: 0.45mm MAX AVG: 0.55mm

Diameter

4.7 ± 0.3mm

Marking

equip CAT.5E U/UTP PATCH CABLE 4PR 26AWG ISO/IEC 11801 & EN 50288 &
TIA/EIA-568-C.2

Connector

RJ45 Plug

8P8C, 3u”

Typical
Applications

IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T ; 10GBASE-T
IEEE 802.5 16 MB; ISDN; TPDDI; ATM

l Ordering Information

Beige

Red

Blue

Green

Black

Yellow

0.25m

825413

825423

825433

825443

825453

825463

0.5m

825417

825427

825437

825447

825457

825467

1.0m

825410

825420

825430

825440

825450

825460

2.0m

825411

825421

825431

825441

825451

825461

3.0m

825412

825422

825432

825442

825452

825462

5.0m

825414

825424

825434

825444

825454

825464

7.5m

825415

825425

825435

825445

825455

825465

10m

825416

825426

825436

825446

825456

825466

15m

825418

825428

825438

825448

825458

825468

20m

825419

825429

825439

825449

825459

825469

30m

825480

Warranty : 5 years Packing: Poly bag
