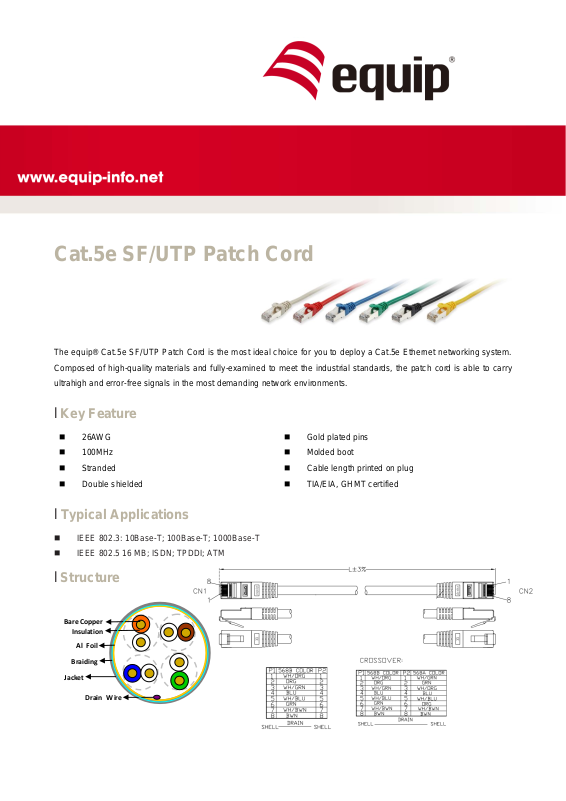

Equip 705413 User Manual

Cat.5e SF/UTP Patch Cord

The equip® Cat.5e SF/UTP Patch Cord is the most ideal choice for you to deploy a Cat.5e Ethernet networking system.
Composed of high-quality materials and fully-examined to meet the industrial standards, the patch cord is able to carry
ultrahigh and error-free signals in the most demanding network environments.

l Key Feature

 26AWG
 100MHz
 Stranded
 Double shielded

 Gold plated pins
 Molded boot
 Cable length printed on plug
 TIA/EIA, GHMT certified

l Typical Applications

 IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T
 IEEE 802.5 16 MB; ISDN; TPDDI; ATM

l Structure

Insulation

Bare Copper

Jacket

Al Foil

Drain Wire

Braiding

l Specification

Conductor

Material

Bare Copper

Construction

26AWG, 7/0.16 ± 0.015mm

Insulation

Thickness

MIN at any point: 0.29 mm / MAX AVG:0.31 mm

Diameter

1.05 ± 0.01mm

Colors

Blue-White/Blue, Orange-White/Orange, Green-White/Green, Brown-White/Brown

Jacket

Material

PVC

Thickness

MIN at any point: 0.48mm / MAX AVG: 0.50mm

Diameter

5.3 ± 0.3mm

Marking

equip CAT.5E SF/UTP PATCH CABLE E213738 CM (UL) C(UL) 4PR 26AWG
ISO/IEC 11801 & EN 50288 & TIA/EIA-568-B.2 VERIFIED

Connector

RJ45 Plug

8P8C, Two Fork 3u” Gold, shielded

l Ordering Information

Packing: equip zip bag
