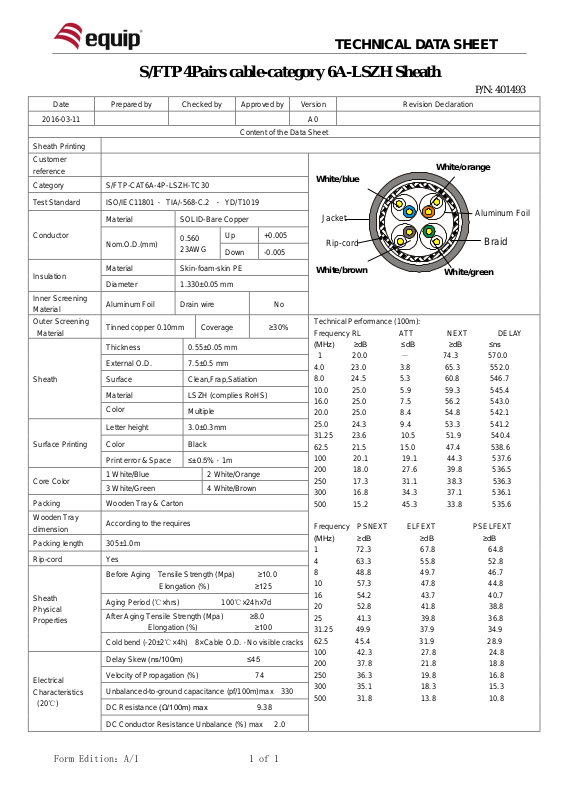

TECHNICAL DATA SHEET
Date
Prepared by
Checked by
Approved by
Version
Revision Declaration
2016-03-11
A0
Content of the Data Sheet
Sheath Printing
Customer
reference
Category
S/FTP-CAT6A-4P-LSZH-TC30
Test Standard
ISO/IEC11801、 TIA/-568-C.2 、 YD/T1019
Conductor
Material
SOLID-Bare Copper
Nom.O.D.(mm)
0.560
23AWG
Up
+0.005
Down
-0.005
Insulation
Material
Skin-foam-skin PE
Diameter
1.330±0.05 mm
Inner Screening
Material
Aluminum Foil
Drain wire
No
Outer Screening
Material
Tinned copper 0.10mm
Coverage
≥30%
Technical Performance (100m):
Frequency RL ATT NEXT DELAY
(MHz) ≥dB ≤dB ≥dB ≤ns
1 20.0 — 74.3 570.0
4.0 23.0 3.8 65.3 552.0
8.0 24.5 5.3 60.8 546.7
10.0 25.0 5.9 59.3 545.4
16.0 25.0 7.5 56.2 543.0
20.0 25.0 8.4 54.8 542.1
25.0 24.3 9.4 53.3 541.2
31.25 23.6 10.5 51.9 540.4
62.5 21.5 15.0 47.4 538.6
100 20.1 19.1 44.3 537.6
200 18.0 27.6 39.8 536.5
250 17.3 31.1 38.3 536.3
300 16.8 34.3 37.1 536.1
500 15.2 45.3 33.8 535.6
Frequency PSNEXT ELFEXT PSELFEXT
(MHz) ≥dB ≥dB ≥dB
1 72.3 67.8 64.8
4 63.3 55.8 52.8
8 48.8 49.7 46.7
10 57.3 47.8 44.8
16 54.2 43.7 40.7
20 52.8 41.8 38.8
25 41.3 39.8 36.8
31.25 49.9 37.9 34.9
62.5 45.4 31.9 28.9
100 42.3 27.8 24.8
200 37.8 21.8 18.8
250 36.3 19.8 16.8
300 35.1 18.3 15.3
500 31.8 13.8 10.8
Sheath
Thickness
0.55±0.05 mm
External O.D.
7.5±0.5 mm
Surface
Clean,Frap,Satiation
Material
LSZH (complies RoHS)
Color
Multiple
Surface Printing
Letter height
3.0±0.3mm
Color
Black
Print error & Space
≤±0.5%，1m
Core Color
1 White/Blue
2 White/Orange
3 White/Green
4 White/Brown
Packing
Wooden Tray & Carton
Wooden Tray
dimension
According to the requires
Packing length
305±1.0m
Rip-cord
Yes
Sheath
Physical
Properties
Before Aging Tensile Strength (Mpa) ≥10.0
Elongation (%) ≥125
Aging Period (℃×hrs) 100℃×24h×7d
After Aging Tensile Strength (Mpa) ≥8.0
Elongation (%) ≥100
Cold bend (-20±2℃×4h) 8×Cable O.D.，No visible cracks
Electrical
Characteristics
(20℃)
Delay Skew (ns/100m) ≤45
Velocity of Propagation (%) 74
Unbalanced-to-ground capacitance (pf/100m)max 330
DC Resistance (Ω/100m) max 9.38
DC Conductor Resistance Unbalance (%) max 2.0

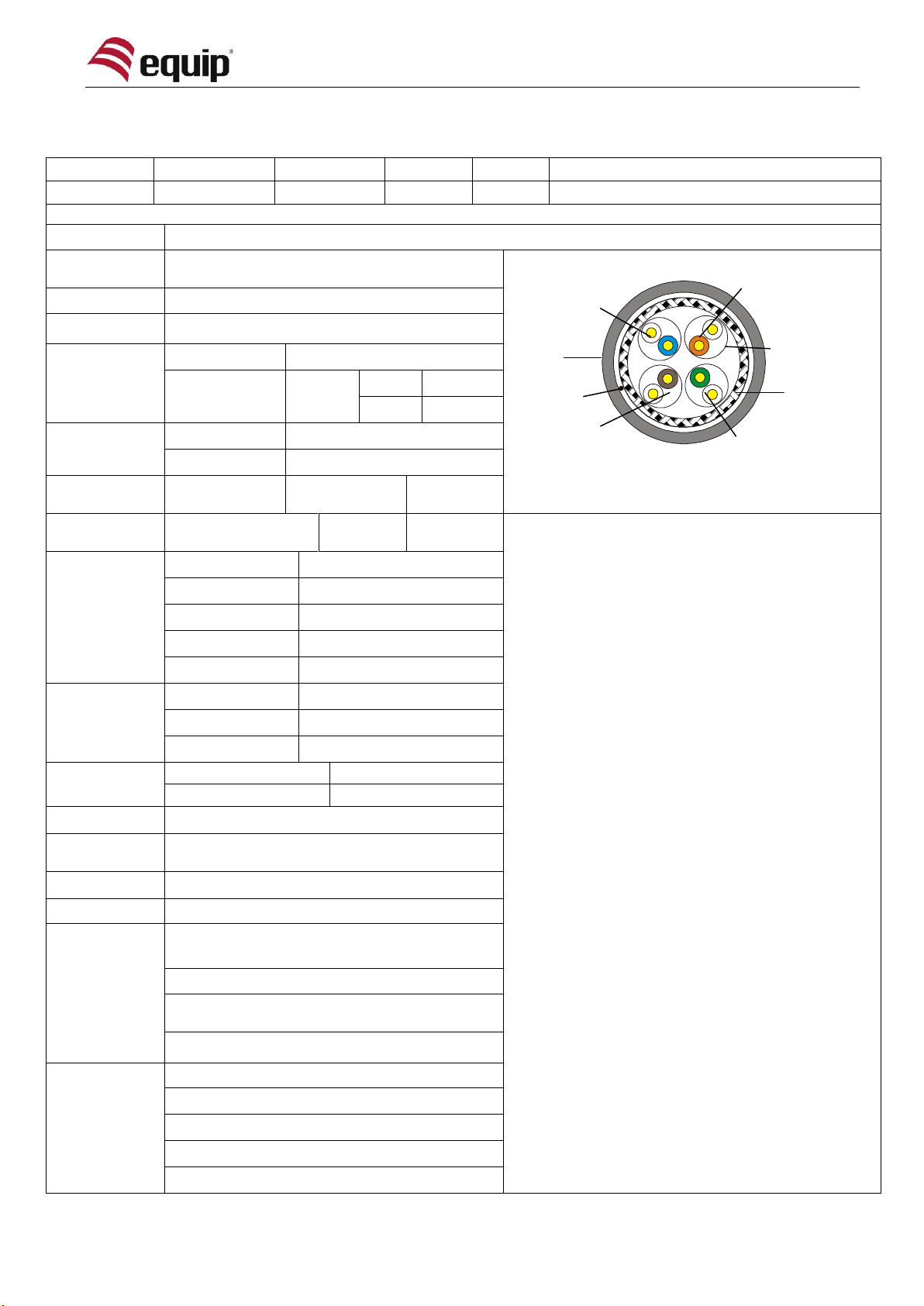

Jacket
White/blue
White/orange
White/green
White/brown
Rip-cord
Aluminum Foil
Braid
S/FTP 4Pairs cable-category 6A-LSZH Sheath
P/N: 401493
