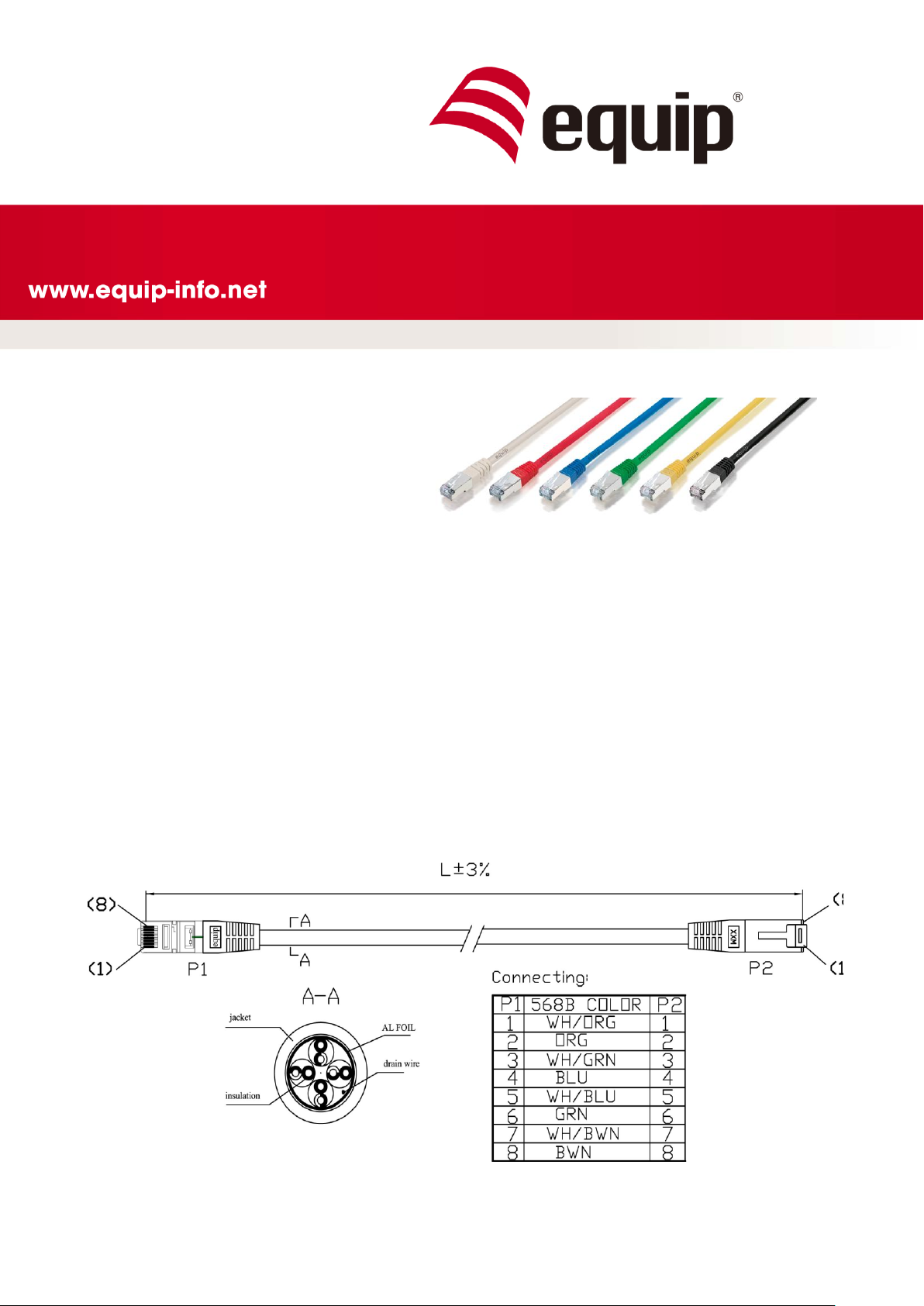

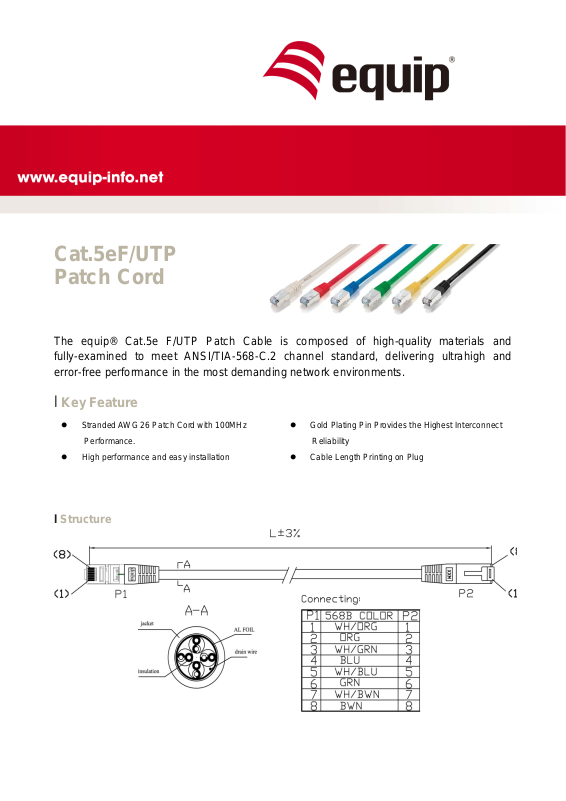

Cat.5eF/UTP
Patch Cord
The equip® Cat.5e F/UTP Patch Cable is composed of high-quality materials and
fully-examined to meet ANSI/TIA-568-C.2 channel standard, delivering ultrahigh and
error-free performance in the most demanding network environments.
l Key Feature
Stranded AWG 26 Patch Cord with 100MHz
Performance.
High performance and easy installation
Gold Plating Pin Provides the Highest Interconnect
Reliability
Cable Length Printing on Plug
l Structure
Page 2

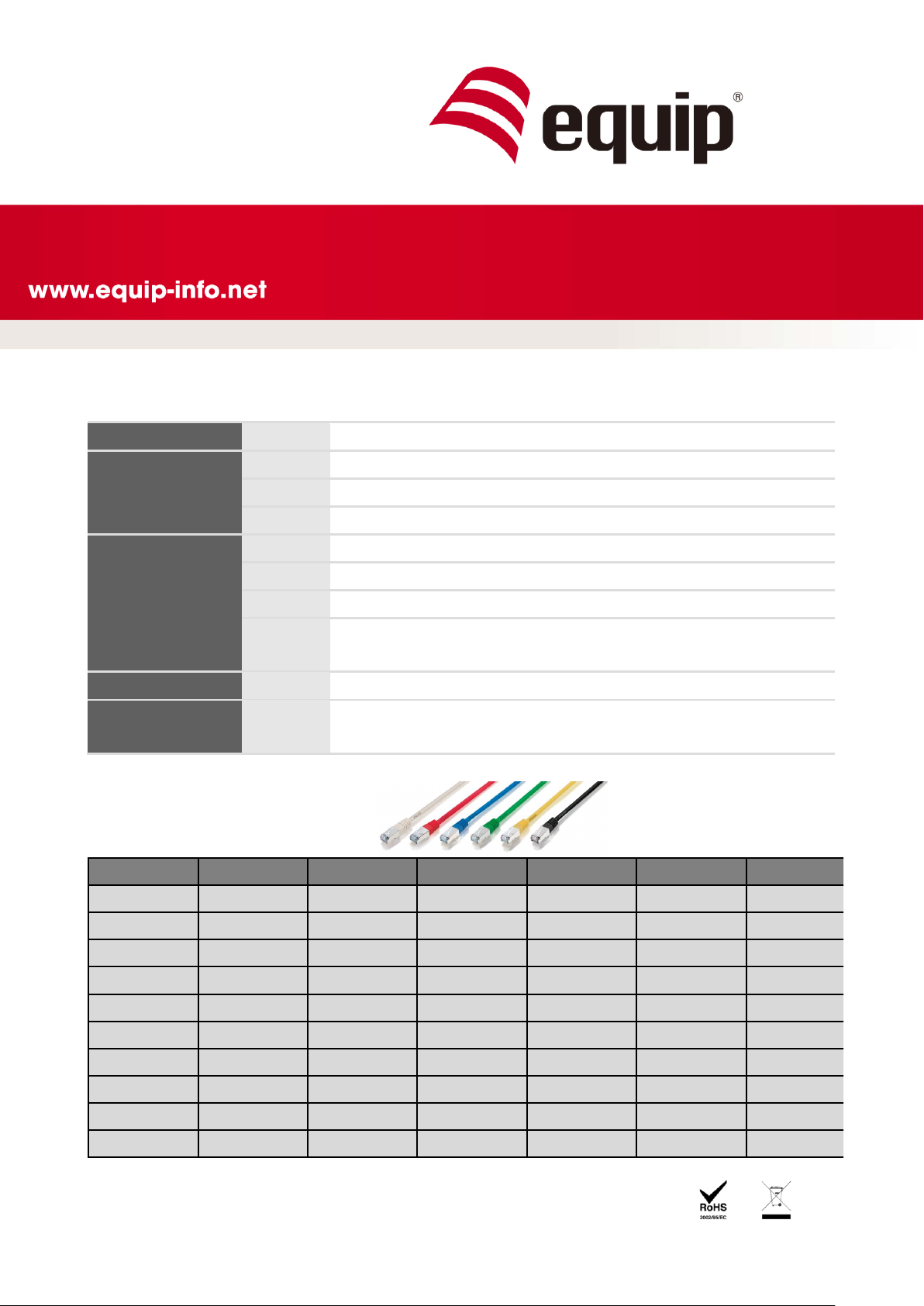

l Specification
Conductor
Construction
26AWG, 7/0.16 ± 0.0015mm
Insulation
Thickness
MIN at any point: 0.18mm MAX AVG:0.20mm
Diameter
0.90± 0.02
Colors
Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
Jacket
Material
PVC
Thickness
MIN at any point: 0.45mm MAX AVG: 0.55mm
Diameter
5.6± 0.3
Marking
equip CAT.5E F/UTP PATCH CABLE 4PR 26AWG ISO/IEC 11801 & EN 50288 &
TIA/EIA-568-c.2
Connector
RJ45 Plug
8P8C, 3u”
Typical Applications
IEEE 802.3: 10Base-T; 100Base-T; 1000Base-T ; 10GBASE-
IEEE 802.5 16 MB; ISDN; TPDDI; ATM
l Ordering Information
Beige
Red
Blue
Green
Black
Yellow
0.25m
225413
225423
225433
225443
225453
225463
0.5m
225417
225427
225437
225447
225457
225467
1.0m
225410
225420
225430
225440
225450
225460
2.0m
225411
225421
225431
225441
225451
225461
3.0m
225412
225422
225432
225442
225452
225462
5.0m
225414
225424
225434
225444
225454
225464
7.5m
225415
225425
225435
225445
225455
225465
10m
225416
225426
225436
225446
225456
225466
15m
225418
225428
225438
225448
225458
225468
20m
225419
225429
225439
225449
225459
225469
Packing: Poly bag
