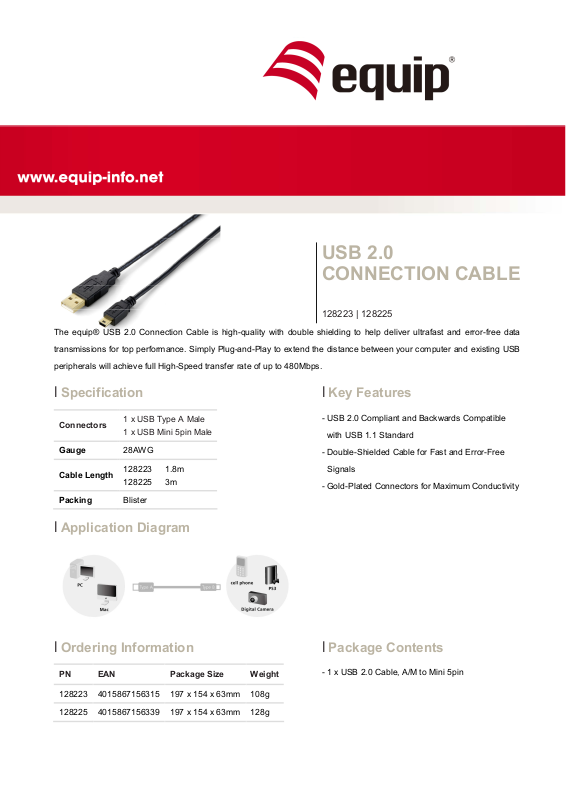

Page 1
USB 2.0
CONNECTION CABLE
128223 | 128225
The equip® USB 2.0 Connection Cable is high-quality with double shielding to help deliver ultrafast and error-free data
transmissions for top performance. Simply Plug-and-Play to extend the distance between your computer and existing USB
peripherals will achieve full High-Speed transfer rate of up to 480Mbps.
l Specification
Connectors
Gauge
Cable Length
Packing
1 x USB Type A Male
1 x USB Mini 5pin Male
28AWG
128223 1.8m
128225 3m
Blister
l Key Features
- USB 2.0 Compliant and Backwards Compatible
with USB 1.1 Standard
- Double-Shielded Cable for Fast and Error-Free
Signals
- Gold-Plated Connectors for Maximum Conductivity
l Application Diagram
l Ordering Information
PN EAN Package Size Weight
128223 4015867156315 197 x 154 x 63mm 108g
128225 4015867156339 197 x 154 x 63mm 128g
l Package Contents
- 1 x USB 2.0 Cable, A/M to Mini 5pin

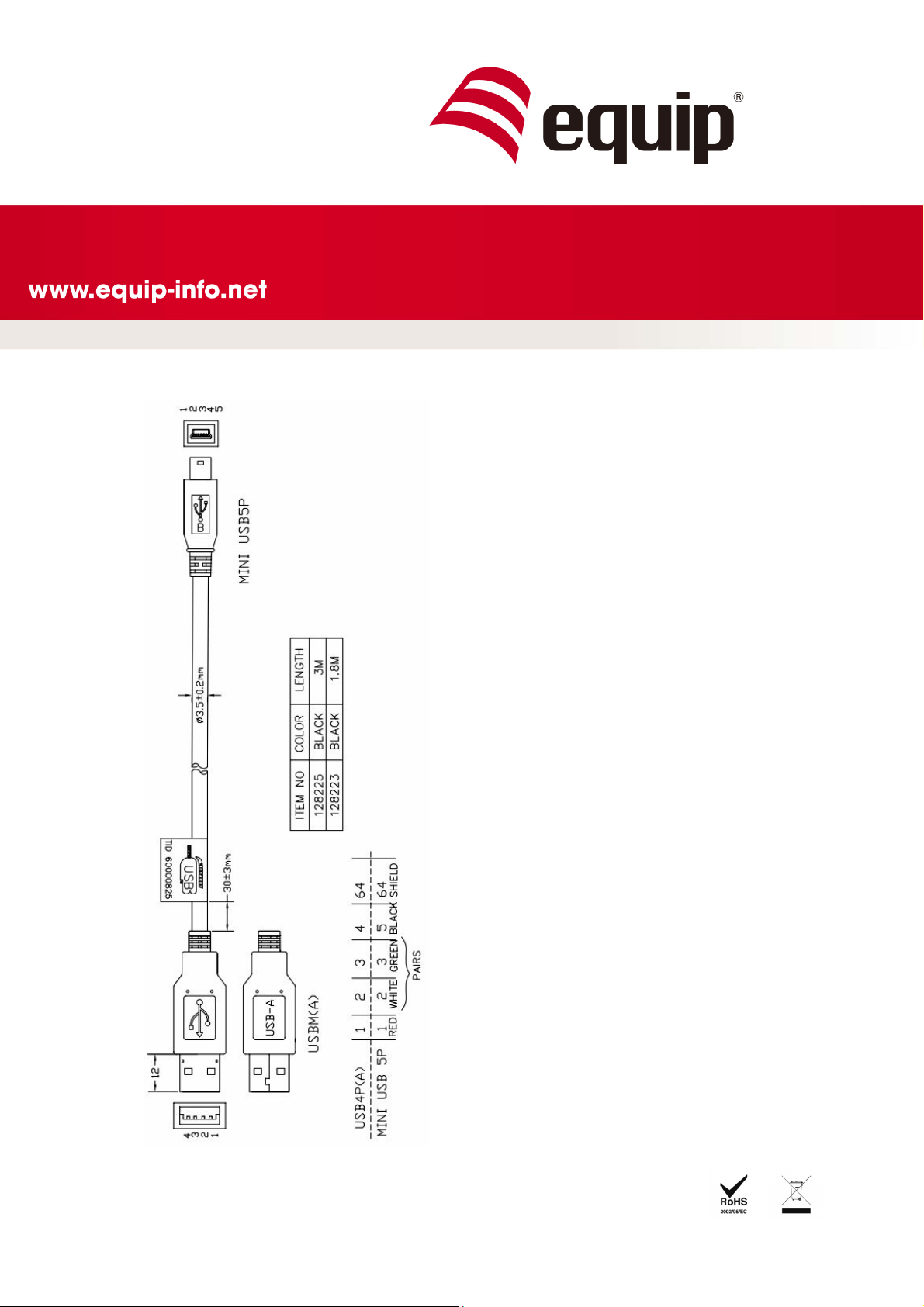

Page 2
