Equip 128144 User Manual

Manual

www.equip-info.net

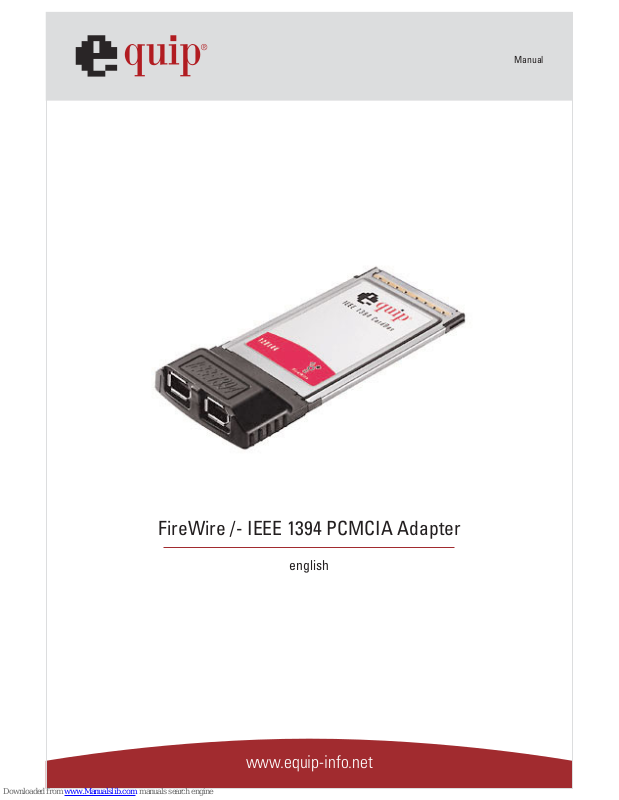

FireWire /- IEEE 1394 PCMCIA Adapter

english

Manual_Page 2

www.equip-info.net

Introduction

Thank you for purchasing IEEE1394 Card Bus Adapter. The adapter is a 32Bit bus interface

running up to 400Mbps high-speed band width, with the advantage of hot-plug swappable

and Plug & Play features you can easily install it in seconds, the installation is quite straight

forth, just slide the adapter into type II Card Bus slot of your notebook and it is done.

The Card Bus Adapter allows connection of your notebook with Fire Wire multimedia and

consumer devices such as high-speed mass storage devices, DVD-ROM Drives, Scanners

and latest DV Camcorders. You will be able to edit and create your digital movie works right

with your notebook anytime anywhere.

Hardware Installation

1. Slide the Card Bus adapter into slot of your notebook till it seated firmly with

feeling of locked. (Please refer to your PC card installation guide.)

2. Windows will automatically detect IEEE1394 Controller after Card Bus adapter

is inserted.

3. Connects your IEEE 1394 peripherals and OS will prompt to install relative driver.

(Please refer to your peripheral guide.)

Using self-powered IEEE 1394 devices

To avoid the overload of power consumption and crash of your system, we have designed

the Card Bus adapter with no bus power output, therefore you will need to connect the self-

powered peripherals such as D8, DV camcorder, DVD players etc to work properly, otherwise

a bus powered peripheral connect to the adapter could possibly not being detected by

Windows OS and not works at all.

Verify if your Card Bus adapter is properly installed

To ensure your adapter has been installed successfully, just click Device Manager on

Windows OS, you should have the entry title of "IEEE 1394 Bus Host Controller" on, click

on the "+" sign for sub-entry to reveal " VIA OHCl Compliant IEEE 1394 Host Controller" or

"PC1 OHCl Compliant IEEE 1394 Host Controller", the list will depend on your OS.

Thus you can be sure that the adapter is ready to work.
