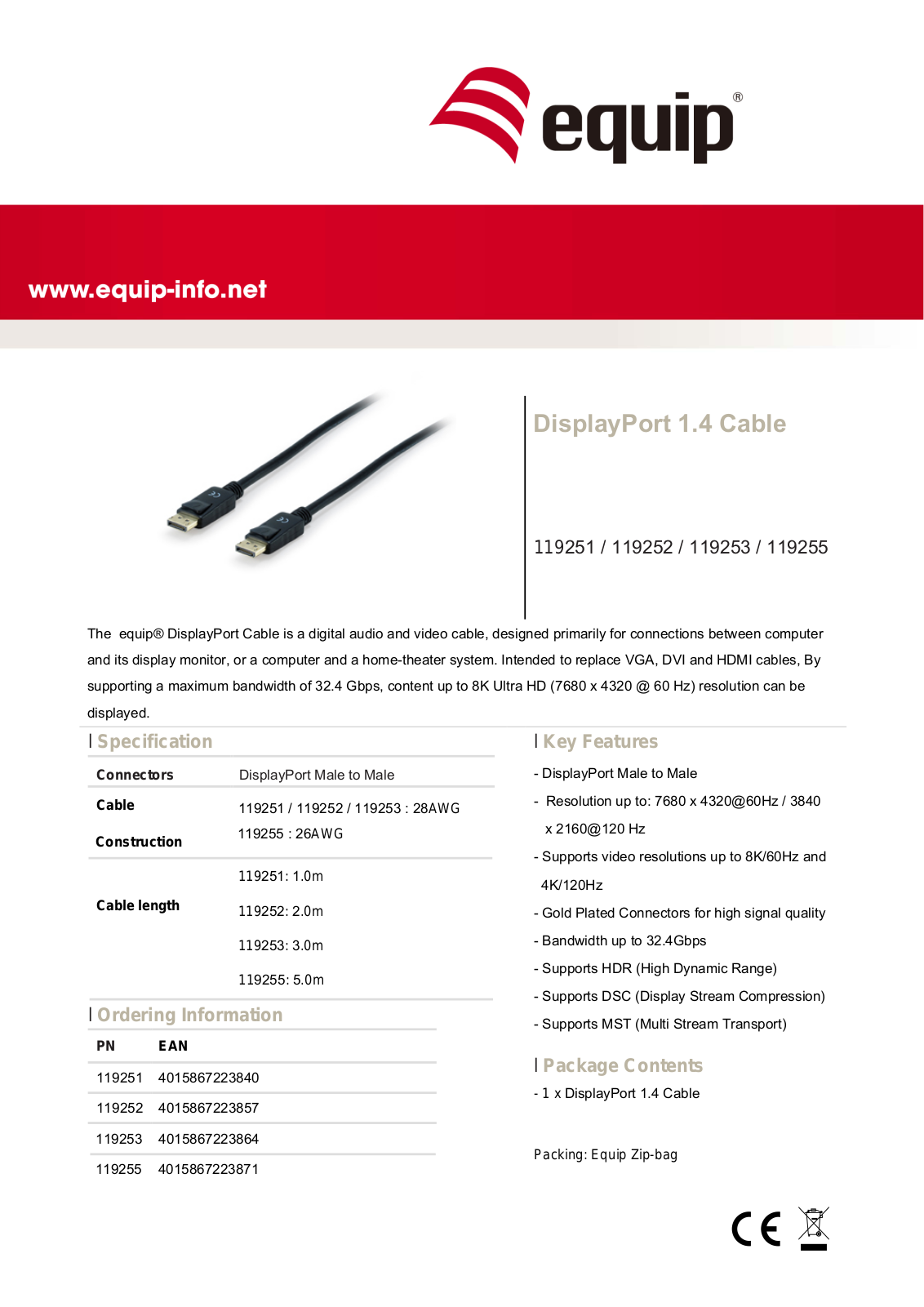

DisplayPort 1.4 Cable
l Specification
Connectors
Cable
Cable length
l Ordering Information
PN
EAN
Packing: Equip Zip-bag
119251 / 119252 / 119253 / 119255
The equip® DisplayPort Cable is a digital audio and video cable, designed primarily for connections between computer
and its display monitor, or a computer and a home-theater system. Intended to replace VGA, DVI and HDMI cables, By
supporting a maximum bandwidth of 32.4 Gbps, content up to 8K Ultra HD (7680 x 4320 @ 60 Hz) resolution can be
displayed.
l Key Features
Construction
119251
119252 4015867223857
119253
119255
4015867223840
4015867223864
4015867223871
DisplayPort Male to Male
119251 / 119252 / 119253 : 28AWG
119255 : 26AWG
119251: 1.0m
119252: 2.0m
119253: 3.0m
119255: 5.0m
- DisplayPort Male to Male
- Resolution up to: 7680 x 4320@60Hz / 3840
x 2160@120 Hz
- Supports video resolutions up to 8K/60Hz and
4K/120Hz
- Gold Plated Connectors for high signal quality
- Bandwidth up to 32.4Gbps
- Supports HDR (High Dynamic Range)
- Supports DSC (Display Stream Compression)
- Supports MST (Multi Stream Transport)
l Package Contents
- 1 x DisplayPort 1.4 Cable
