Page 1

Waterwave XP

User Manual

Order code: EQLED373

Page 2

Safety advice

WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CARE-

FULLY BEFORE YOUR INITIAL START-UP!

• Before your initial start-up, please make sure that there is no damage caused during transportation.

• Should there be any damage, consult your dealer and do not use the equipment.

• To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual.

• Please note that damages caused by user modications to this equipment are not subject to warranty.

CAUTION!

KEEP THIS EQUIPMENT AWAY FROM RAIN, MOISTURE AND LIQUIDS

CAUTION!

TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modication to the equipment.

• Never let the power cable come into contact with other cables. Handle the power cable and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the unit.

• Do not open the equipment and do not modify the unit.

• Do not connect this equipment to a dimmer pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the system’s life.

• Only use the equipment indoors.

• Do not expose to ammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the power-cable.

• Make sure that the available mains supply voltage is between 100~240V AC, 50/60Hz.

• Make sure that the power cable is never crimped or damaged. Check the equipment and the power cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately and have a qualied engineer inspect the equipment before operating again.

• This unit is not intended for xed installation.

• If the equipment has been exposed to drastic temperature uctuation (e.g. after transportation), do not connect power or switch it on immediately. The arising condensation might damage the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, stop use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light dealer for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualied technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• This lighting xture is for professional use only - it is not designed for or suitable for household use. The product must be installed by a qualied technician in accordance with local territory regulations. The safety of the installation is the responsibility of the installer. The xture presents risks of severe injury or death due to re hazards, electric shock and falls.

• Warning! Risk Group 2 LED product according to EN 62471. Do not view the light output with optical instruments or any device that may concentrate the beam.

• WARRANTY: One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and/or property.

www.prolight.co.uk Waterwave XP User Manual

Page 3

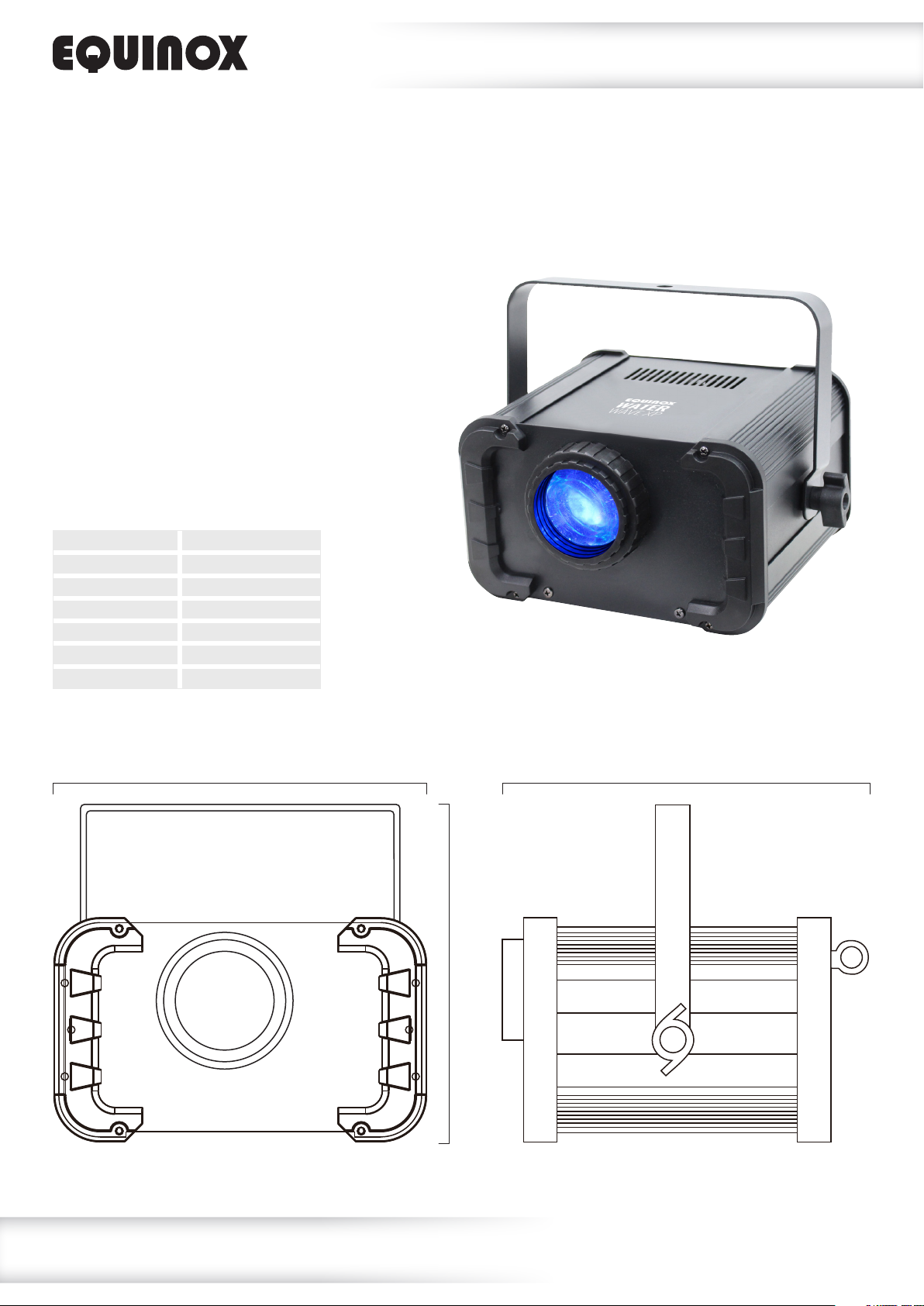

Product overview & technical specications

Waterwave XP

The Waterwave XP is a high-output multi-coloured rippling water effect, powered by a 100W LED and featuring an internal colour wheel generating 5 rich vibrant single and split colours plus open. This atmospheric effect comes supplied with 2 interchangeable lens cones creating a unique visual projection, to either ll a venue (60°) or produce a narrower effect (34°), ideal for bars and restaurants as well as marquees, shows or other events.

• 1 x 100W white LED

• Beam angle: 34° and 60° via supplied lenses

• Manual focus

• DMX channels: 3

• Manual, sound active and master/slave modes plus built-in programs

• 0-100% dimming and variable strobe

• 4 push button menu with LED display

• IEC power input/output

• 3-pin XLR input/output

• Fan cooled

• Supplied with hanging bracket

Specications

Power consumption 110W

Power supply 100~240V, 50/60Hz

Fuse F3A 250V

Dimensions 225 x 286 x 245mm

Weight 3.8kg

Order code EQLED373

286mm

245mm

225mm

www.prolight.co.uk Waterwave XP User Manual

Page 4

POWER INPUT:

100-240V~50/60Hz

FUSE: F3A 250V

MENUDOWN UP ENTER

POWER OUTPUT:

100-240V~50/60Hz

POWER CONSUMPTION: 110W

DMX INPUT

DMX OUTPUT

MIC

www.prolight.co.uk

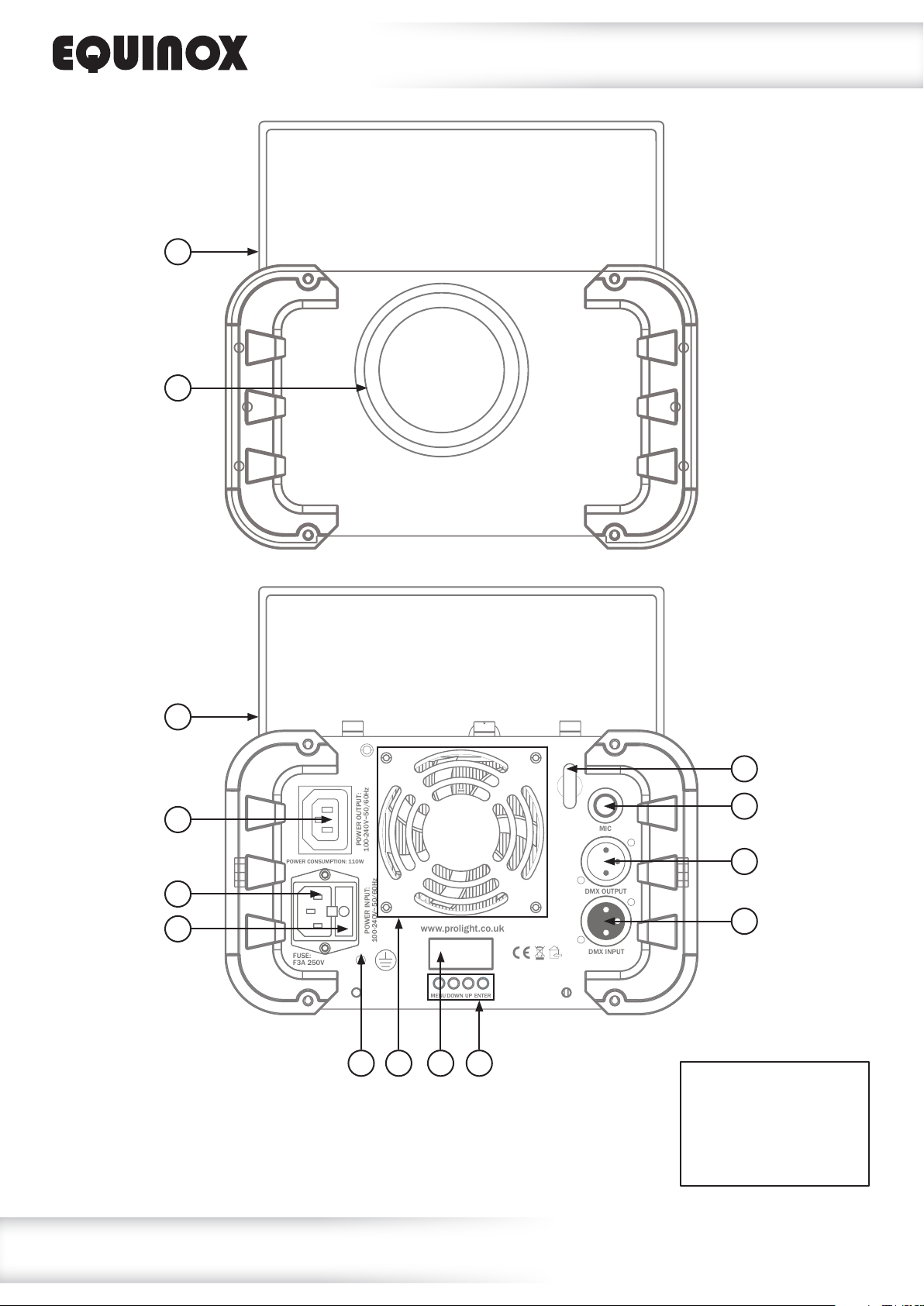

Technical specications

01 - Manual focus

02 - Hanging bracket

03 - Safety eye

04 - Microphone

05 - LED display

06 - Function buttons

07 - 3-Pin DMX input

08 - 3-Pin DMX output

09 - IEC power input

10 - IEC power output

11 - Fuse F3A 250V

12 - Earth point

0612 13 05

In the box: 1 x xture,

13 - Fan

1 x 34° lens cone, 1 x 60° lens cone, 1 x power cable, & 1 x user manual

www.prolight.co.uk Waterwave XP User Manual

Page 5

A d d r

S h o U

N A S L

S o U n

S e n S

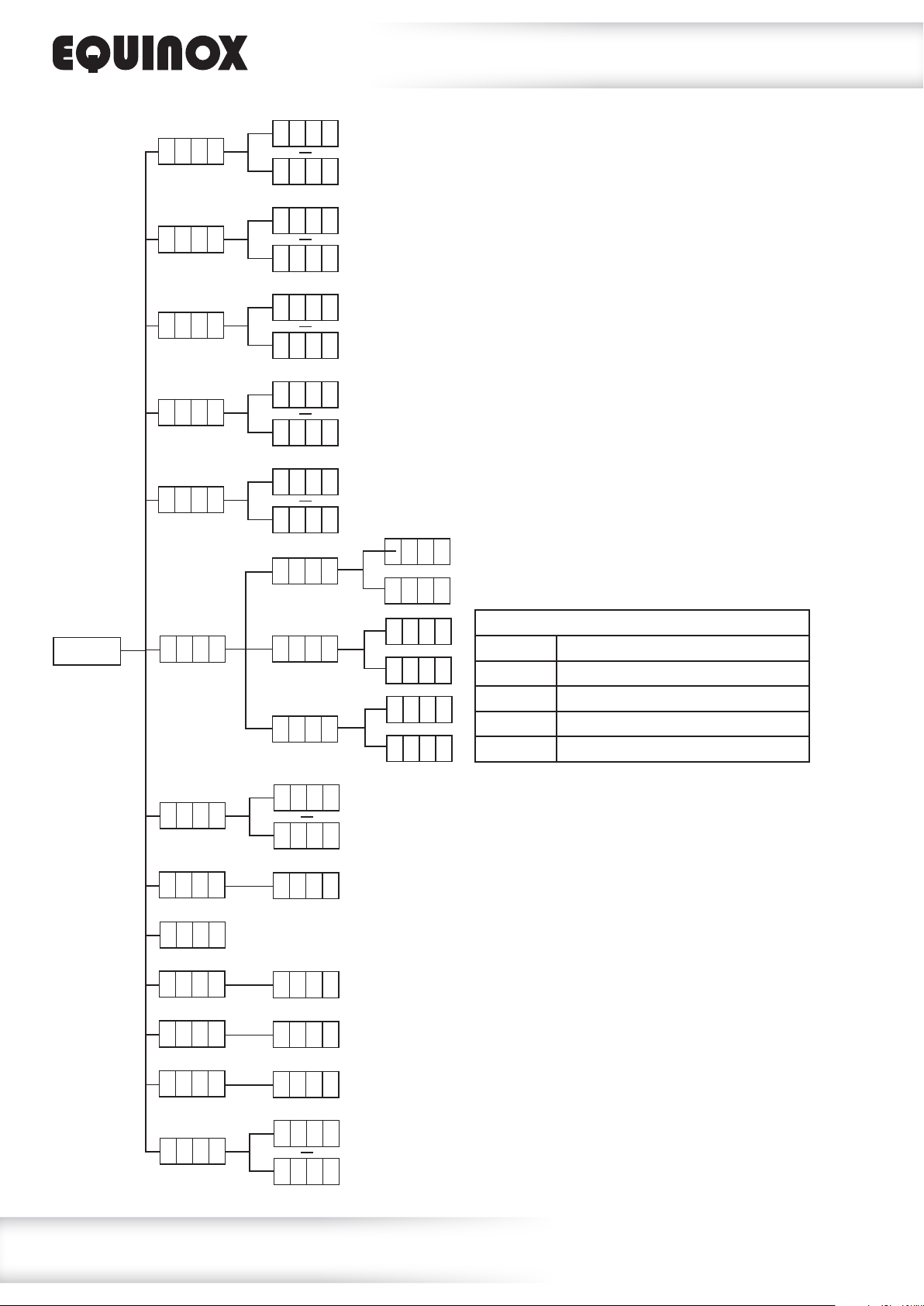

Operating instructions

A 0 0 1

DMX address setting

A 5 1 0

S h 0

Show modes

S h 1 5

N A S t

Master/slave mode

S L A u

o n

Sound active

o F F

Sound sensitivity

1 0 0

N a n u

L e d

d I s p

t e s t

t E N p

c o L o

U A v e

d I N N

o n

o F F

d S I P

Test mode

- - -

Manual mode

2 5 5

Wave effect direction/speed

0-9 Wave effect stop

2 5 5

0 0 0

2 5 5

LED backlight

Display invert

Fixture temperature

10-120 Clockwise wave effect (fast-slow)

121-134 Rotation stop

135-245 Anti-clockwise wave effect (slow-fast)

246-255 Rotation stop

F h r S

u E r

- - - -

Fixture hours

Software version

n o

r S t

Factory reset

y e s

www.prolight.co.uk Waterwave XP User Manual

Page 6

Operating instructions

DMX mode:

Operating in a DMX control mode environment gives the user the greatest exibility when it comes

to customising or creating a show. In this mode you will be able to control each individual trait of the

xture and each xture independently.

To access the DMX address mode, press the “MENU” button and use the “UP” and “DOWN” buttons to show Addr on the LED display. Now press the “ENTER”, this will show A001 and you can now press the “UP” and “DOWN” buttons to set the required DMX address from A001 to A510 .

Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

3 channel mode:

Channel Function Value Function

CH1 Dimmer 000-255

000-010 Stop

011-120 Clockwise (fast to slow)

121-134 Stop

135-245

246-255 Stop

000-009 White

010-021 White + Red

022-032 Red

033-043 Red + Green

044-054 Green

055-065 Green + Blue

066-076 Blue

077-087 Blue + Amber

088-098 Amber

099-109 Amber + UV

110-120 UV

121-127 UV + White

128-187 Clockwise (fast to slow)

188-196 Stop

197-255

CH2

CH3

Wave effect direction/ speed

Colour wheel/ speed

Master dimmer (0-100%) with sound active

Anti- clockwise (slow to fast)

Anti-clockwise (slow to fast)

www.prolight.co.uk Waterwave XP User Manual

Page 7

Operating instructions

Show mode:

To access the show modes, press the “MENU” button and use the “UP” and “DOWN” buttons to show

ShoU on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to

select between Sh 0 ~ Sh15. Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Master/slave mode:

To set the master unit, press the “MENU” button and use the “UP” and “DOWN” buttons to show

NASL on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to

select NASt. Press the “ENTER” button to conrm the setting.

Then select your desired program.

To set the other units in slave mode, press the “MENU” button and use the “UP” and “DOWN” buttons to show NASL on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select SLAu. Press the “ENTER” button to conrm the setting.

The unit will now run in sequence with the master unit.

To exit out of any of the above options, press the “MENU” button.

Please ensure that all slave units are set to the same DMX channel mode as the master unit.

Sound active:

To access the sound active setting, press the “MENU” button and use the “UP” and “DOWN” buttons to show SoUn on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between on or oFF. Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Sound sensitivity:

To adjust the sound sensitivity, press the “MENU” button and use the “UP” and “DOWN” buttons to show

Sens on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to

select between 1 ~ 100. Press the “ENTER” button to conrm the setting.

Value: 1 - 100 (1 = low, 100 = high)

To exit out of any of the above options, press the “MENU” button.

Manual mode:

To access the manual mode, press the “MENU” button and use the “UP” and “DOWN” buttons to show

NAnu on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons

to select the between coLo (colour), Uave (wave effect direction/speed) or dINN (master

dimmer). Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select between

0 ~ 255. Press the “ENTER” button to conrm the setting.

(See page 5 for wave effect direction/speed values).

To exit out of any of the above options, press the “MENU” button.

www.prolight.co.uk Waterwave XP User Manual

Page 8

Operating instructions

LED backlight:

To access the LED backlight setting, press the “MENU” button and use the “UP” and “DOWN” buttons to show Led on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select between on or oFF. Press the “ENTER” button to conrm the setting.

To exit out of any of the above options, press the “MENU” button.

Display invert setting:

To access the display invert setting, press the “MENU” button and use the “UP” and “DOWN” buttons to show dIsp on the LED display. Now press the “ENTER” button to display dSIP.

To exit out of any of the above options, press the “MENU” button.

Test mode:

To access the xtures test mode, press the “MENU” button and use the “UP” and “DOWN” buttons to show teSt on the LED display. Now press the “ENTER” button.

The unit will now run its test mode.

To exit out of any of the above options, press the “MENU” button.

Fixture temperature:

To display the xtures temperature, press the “MENU” button and use the “UP” and “DOWN” buttons to show teNp on the LED display. Now press the “ENTER” button.

The unit will now display the xtures temperature.

To exit out of any of the above options, press the “MENU” button.

Fixture hours:

To display the xtures hours, press the “MENU” button and use the “UP” and “DOWN” buttons to show

FhrS on the LED display. Now press the “ENTER” button.

The unit will now display the xtures hours.

To exit out of any of the above options, press the “MENU” button.

Software version:

To display the xtures software version, press the “MENU” button and use the “UP” and “DOWN” buttons to show vEr on the LED display. Now press the “ENTER” button.

The unit will now display the software version.

To exit out of any of the above options, press the “MENU” button.

Factory reset:

To reset the xture to factory settings, press the “MENU” button and use the “UP” and “DOWN” buttons to show rSt on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between no or yes. Press the “ENTER” button.

The unit will now perform a factory reset.

www.prolight.co.uk Waterwave XP User Manual

Page 9

DMX setup

Setting the DMX address:

The DMX mode enables the use of a universal DMX controller. Each xture requires a “start address”

from 1- 512. A xture requiring one or more channels for control begins to read the data on the channel

indicated by the start address. For example, a xture that occupies or uses 7 channels of DMX and was

addressed to start on DMX channel 100, would read data from channels: 100, 101, 102, 103, 104,

105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in

the chain starts at 107.

DMX 512:

DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent

xtures and controllers. A DMX controller sends DMX data instructions form the controller to the xture.

DMX data is sent as serial data that travels from xture to xture via the DATA “IN” and DATA “OUT”

XLR terminals located on all DMX xtures (most controllers only have a data “out” terminal).

DMX linking:

DMX is a language allowing all makes and models of different manufactures to be linked together

and operate from a single controller, as long as all xtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX xtures try to use the shortest

cable path possible. The order in which xtures are connected in a DMX line does not inuence the

DMX addressing. For example; a xture assigned to a DMX address of 1 may be placed anywhere in

a DMX line, at the beginning, at the end, or anywhere in the middle. When a xture is assigned a

DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit,

no matter where it is located in the DMX chain.

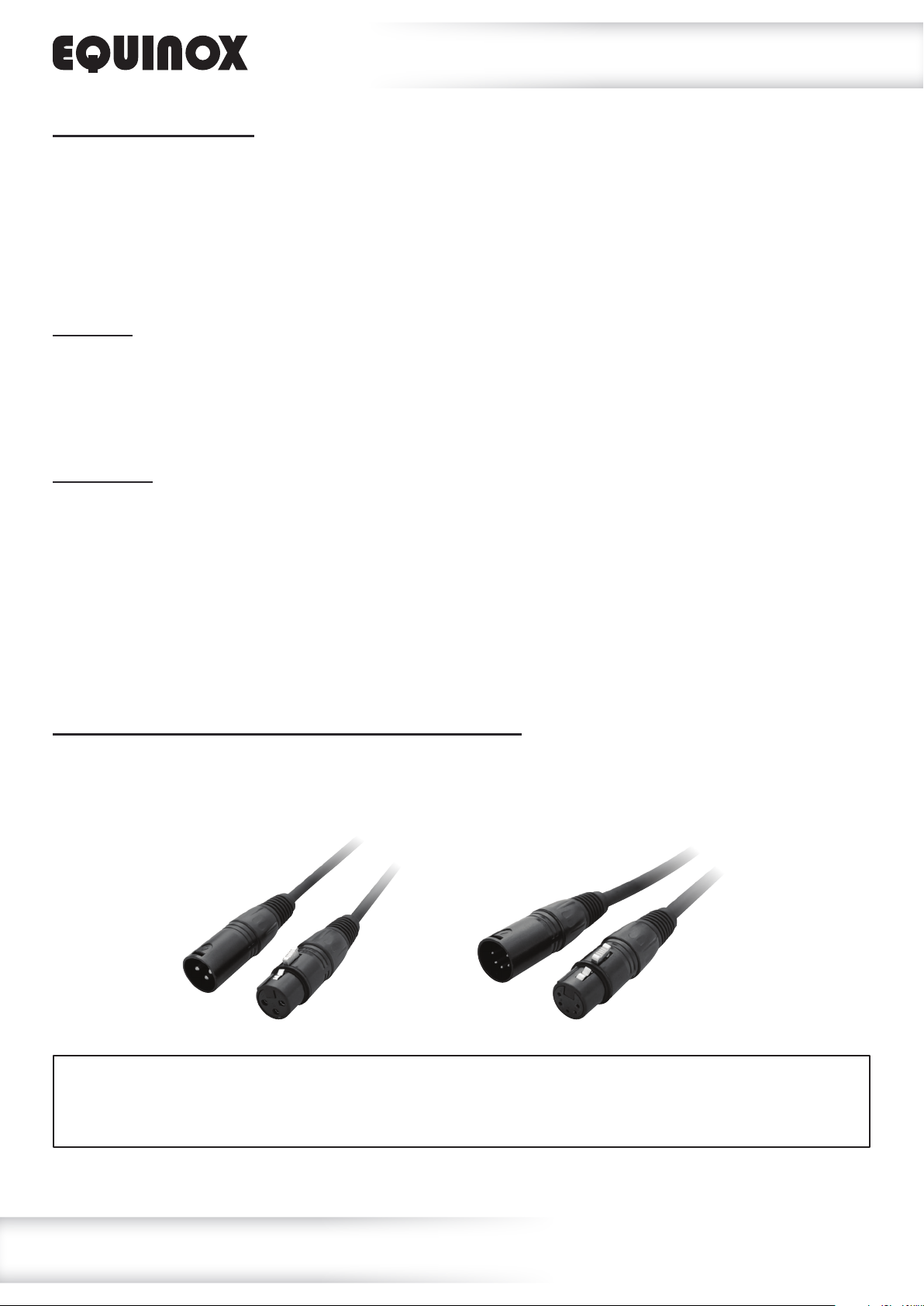

DATA cable (DMX cable) requirements (for DMX operation):

This xture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit.

Your unit requires either a standard 3-pin or 5-pin XLR connector for data input/output,

see images below.

Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers.

Please quote:

Also remember that DMX cable must be daisy chained and cannot be split.

CABL10 – 2m CABL11 – 5m CABL12 – 10m3-Pin:

CABL185 – 2m CABL187 – 5m CABL188 – 10m5-Pin:

www.prolight.co.uk Waterwave XP User Manual

Page 10

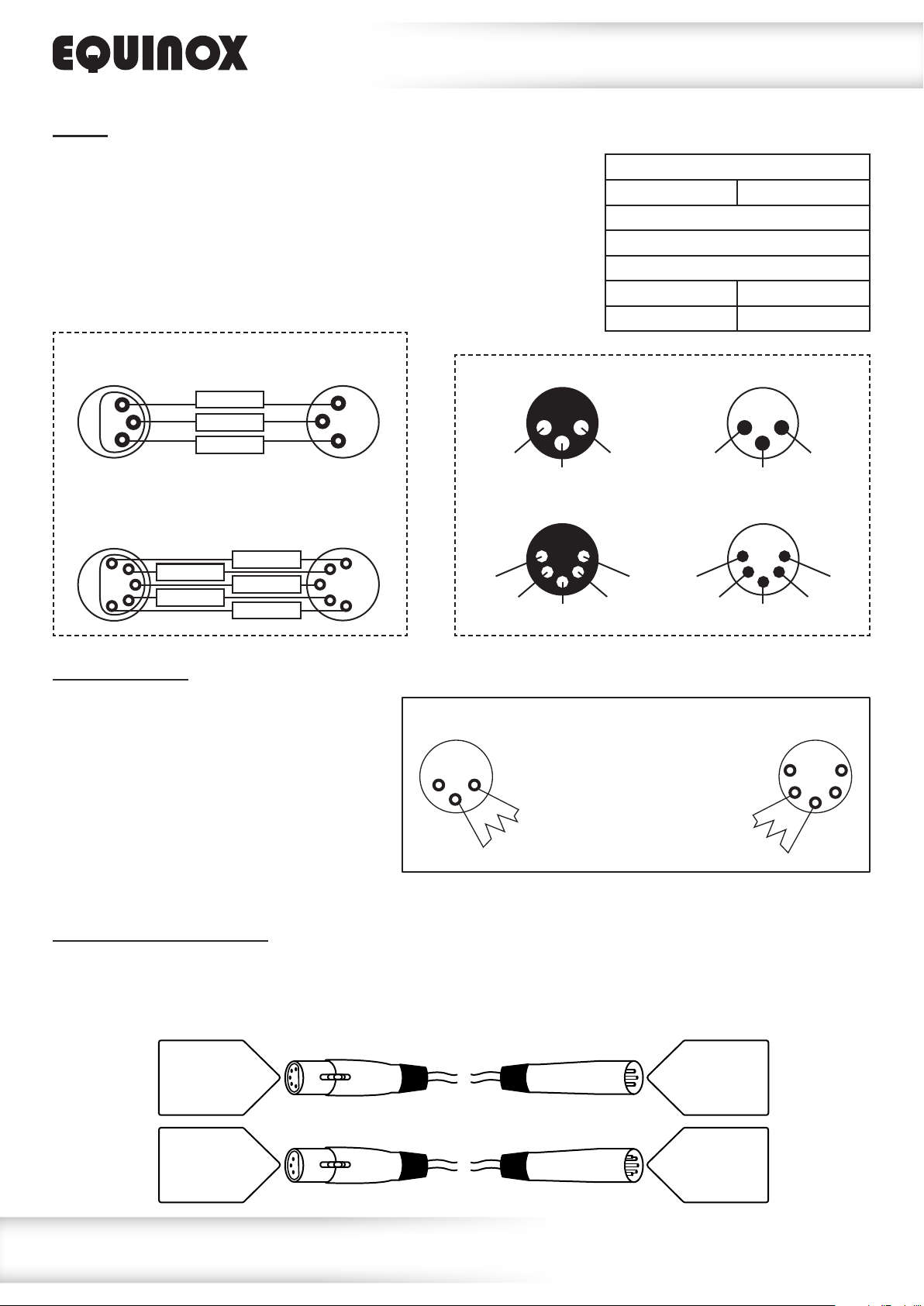

Notice:

DMX setup

Be sure to follow the diagrams below when making your own cables.

Do not connect the cables shield conductor to the ground lug or

allow the shield conductor to come in contact with the XLRs

outer casing. Grounding the shield could cause a short circuit

and erratic behaviour.

DMX 512

3-Pin XLR output

DMX 512

5-Pin XLR output

GROUND

DMX –

N/C

DMX +

DMX –

GROUND

DMX +

N/C

DMX 512

3-Pin XLR input

DMX 512

5-Pin XLR input

3-Pin XLR male 3-Pin XLR female

1 ground

3 hot

5-Pin XLR male 5-Pin XLR female

1 ground 5 N/C

2 cold

3 hot

2 cold

4 N/C

Pin Conguration

3-Pin 5-Pin

Pin 1 - Ground

Pin 2 - Negative

Pin 3 - Positive

– Pin 4 - N/C

– Pin 5 - N/C

2 cold

5 N/C 1 ground

4 N/C

3 hot

1 ground

2 cold

Line termination:

When longer runs of cable are used,

you may need to use a terminator on

the last unit to avoid erratic behaviour.

Using a cable terminator will decrease

the possibilities of erratic behaviour.

(3-pin - Order ref: CABL90,

3-Pin

1 2

Termination reduces signal

transmission problems and

interference. It is always

advisable to connect a DMX

terminal, (resistance 120

Ohm 1/4W) between pin 2

(DMX-) and pin 3 (DMX+) of

the last xture.

5-Pin

2 4

5-pin - Order ref: CABL89)

5-pin XLR DMX connectors:

Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR xtures

may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a

3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.

5-pin XLR (female) Pin 1: GND (screen) Pin 2: Signal (-) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C

3-pin XLR (male) Pin 1: GND (screen) Pin 2: Signal (-) Pin 3: Signal (+)

3-pin XLR (female) Pin 1: GND (screen) Pin 2: Signal (-) Pin 3: Signal (+)

5-pin XLR (male) Pin 1: GND (screen) Pin 2: Signal (-) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C

www.prolight.co.uk Waterwave XP User Manual

Page 11

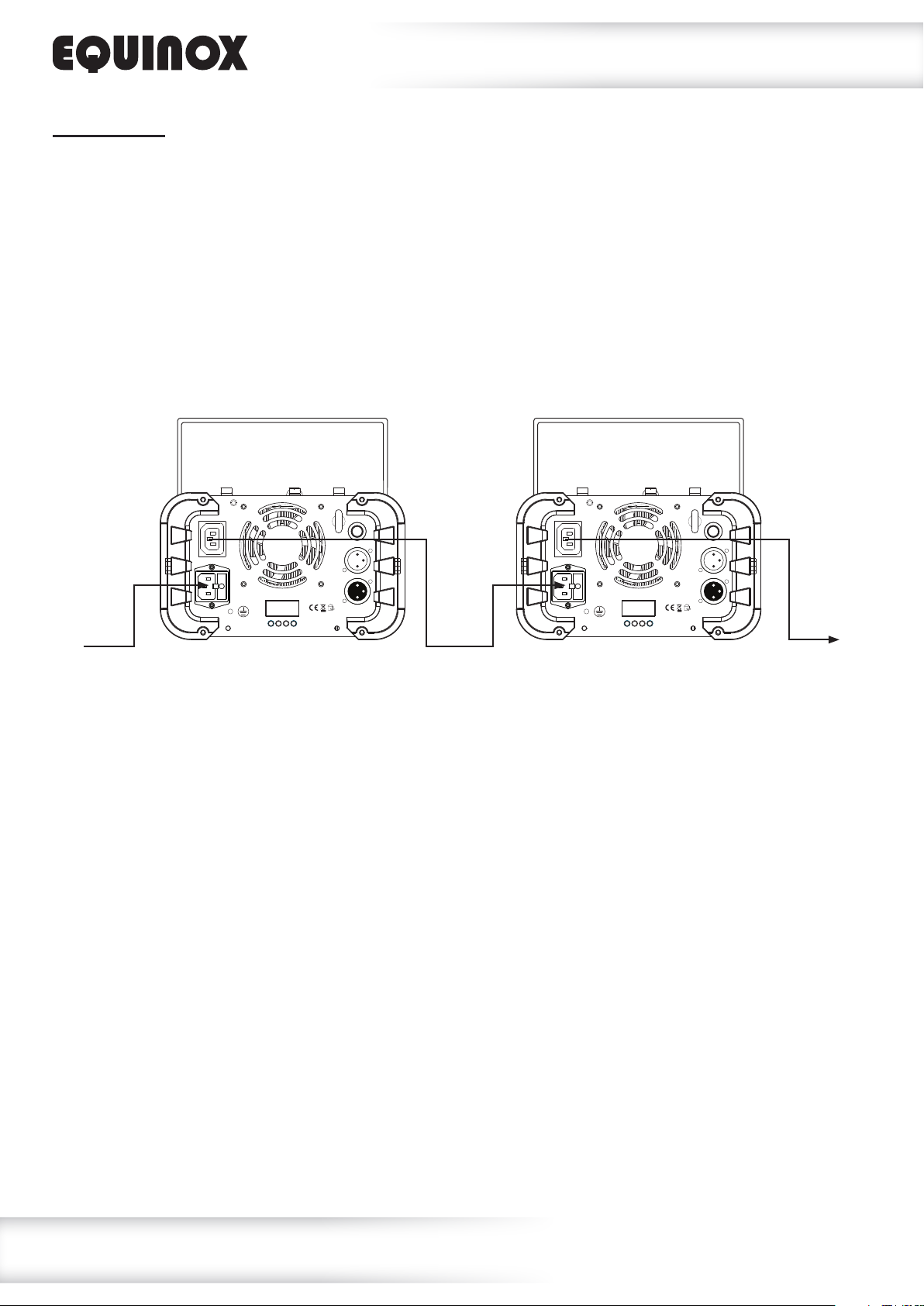

Multiple xture power linking

Power linking:

This xture provides power linking via the power output on the rear allowing multiple units to be

connected together. The maximum number of xtures that can be connected is 16 xtures @ 240V

or 8 xtures @ 120V (including the rst xture). After the maximum number of xtures are

connected a new power run will need to be started.

Please note: Caution should be used when power linking other xtures to the Waverwave XP as the

power consumption of other xtures will vary. Fixtures tted with lamps often require 2/3 times more

current on startup, these may require their own power source.

POWER CONSUMPTION: 110W

FUSE: F3A 250V

POWER OUTPUT:

100-240V~50/60Hz

POWER INPUT:

100-240V~50/60Hz

www.prolight.co.uk

MENUDOWN UP ENTER

MIC

DMX OUTPUT

DMX INPUT

POWER CONSUMPTION: 110W

FUSE: F3A 250V

POWER OUTPUT:

100-240V~50/60Hz

POWER INPUT:

100-240V~50/60Hz

www.prolight.co.uk

MENUDOWN UP ENTER

MIC

DMX OUTPUT

DMX INPUT

www.prolight.co.uk Waterwave XP User Manual

Page 12

WEEE notice

Correct Disposal of this Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries

with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed of

with other household wastes at the end of its working life. To prevent possible harm to the

environment or human health from uncontrolled waste disposal, please separate this from other

types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their

local government ofce, for details of where and how they can take this item for environmentally

safe recycling.

Business users should contact their supplier and check the terms and conditions of the

purchase contract. This product should not be mixed with other commercial wastes for disposal.

www.prolight.co.uk Waterwave XP User Manual
