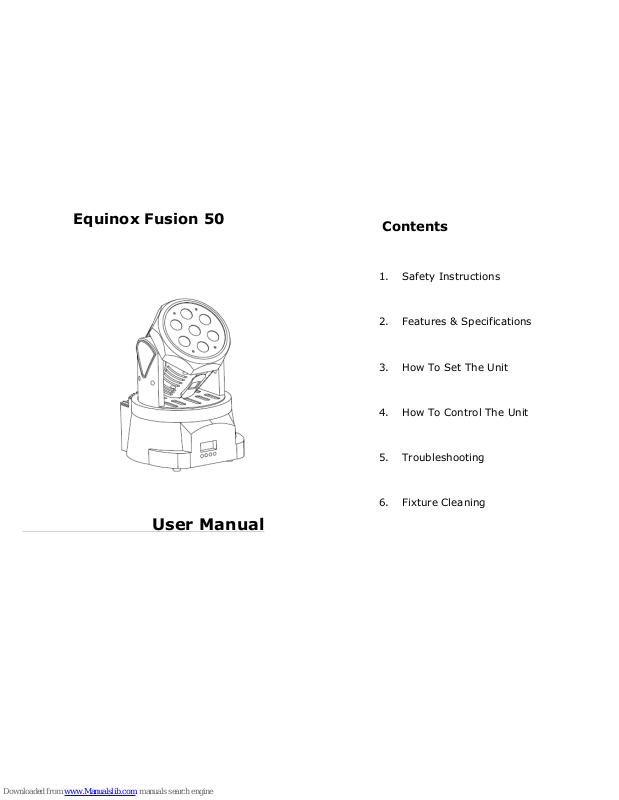

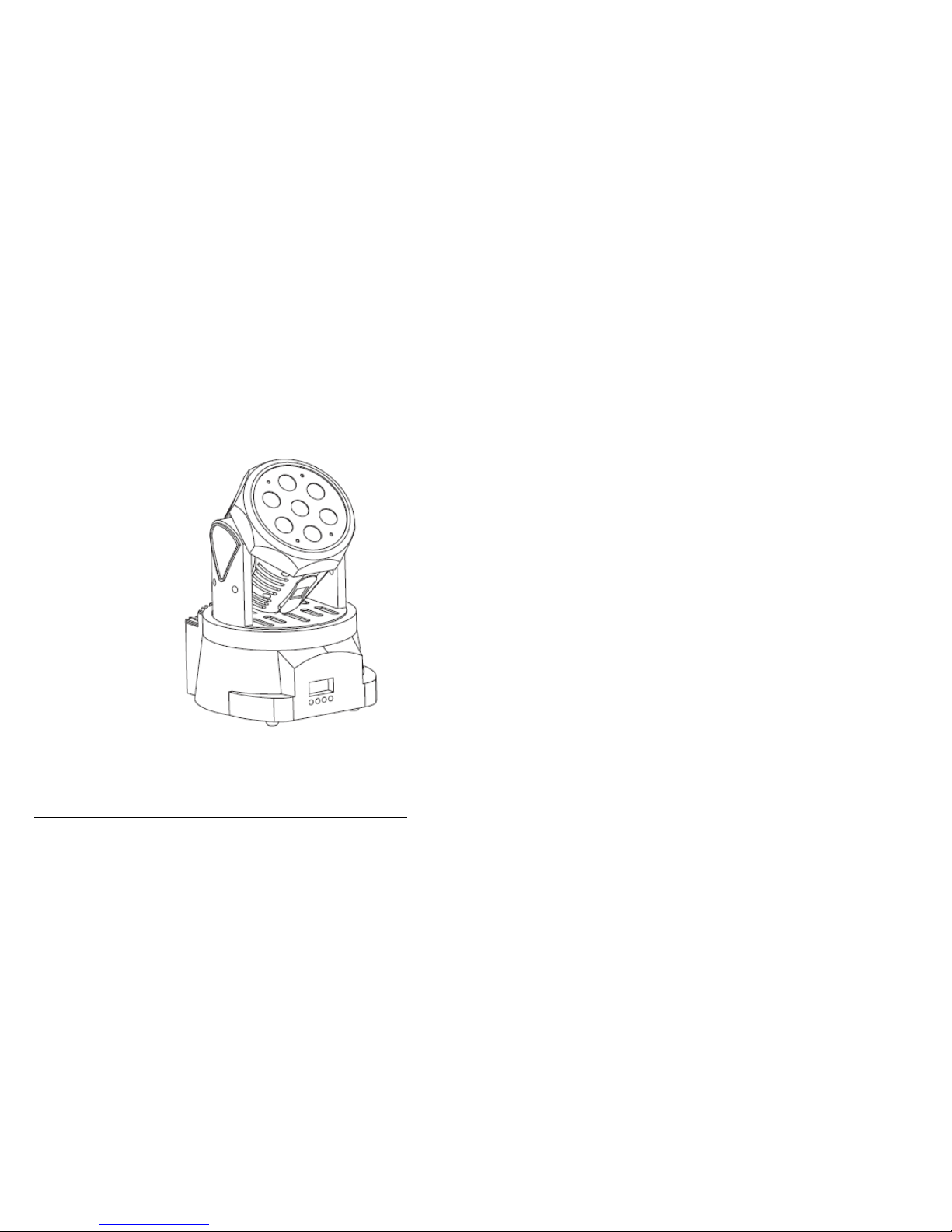

Equinox Fusion 50
User Manual
Contents
1. Safety Instructions
2. Features & Specifications
3. How To Set The Unit
4. How To Control The Unit
5. Troubleshooting
6. Fixture Cleaning
Page 2
1. Safety Instruction
WARNING
Please keep this User Guide for future consultation. If you sell the unit to
another user be sure that they also receive this.
Unpack and check carefully that there is no transportation damage before
using the unit.
! Before operating, ensure that the voltage and frequency of the power
supply match the power requirements of the unit.
! It’s important to ground the yellow/green conductor to earth in order to
avoid electric shock.
! The unit is for indoor use only. Use only in a dry location.
! The unit must be installed in a location with adequate ventilation, at
least 50cm from adjacent surfaces. Be sure that no ventilation slots are
blocked.
! Disconnect the mains power before replacement or servicing.
! Make sure there are no flammable materials close to the unit while
operating as they may cause a fire hazard.
! Always use a safety cable when installing this unit. Do not carry the unit
by its head only, always carry it using the base.
! The maximum ambient temperature is to: 40. Don’t operate it where
the temperature is higher than this.
! In the event of a serious operating problem stop using the unit
immediately. Never try to repair the unit by yourself. Repairs carried out
by unskilled people can lead to damage or malfunction. Please contact
the nearest authorized technical assistance center. Always use the same
type spare parts.
! Do not touch any power cables during operation as the high voltage may
cause an electric shock.
Warning
! To prevent or reduce the risk of electrical shock or fire, do not expose
the unit to rain or moisture.
Do not open the unit within five minutes after switching off.
! The housing and lenses must be replaced if they are visibly damaged.
Installation
The unit should be mounted via its screw holes onto the bracket. Always
ensure that the unit is firmly fixed to avoid vibration and slipping while
operating. Make sure that the structure to which you are attaching the
unit to is secure and is able to support a weight of 10 times of the unit’s
weight. Always use a safety cable that can hold 12 times of the weight of
the unit when installing the fixture.
The equipment must be installed by professionals and it must be
installed in a place where is out of the reach of people and no one can
pass by or under it.
2. Features & Technical Specification
Control: Sound active, auto, Master/slave and DMX-512 modes
DMX Channels: 9 channels
Electronic dimming: 0-100%
Electronic strobe with pulse and random effects
High output with low power consumption
Compact size and low weight
Voltage: 100V~240V, 50/60Hz
Fuse: T 3.0A
Power consumption: 85W
Light source: 8W x 7pcs 4 in1 RGBW quad color LED
Dimension: 173 x 173 x 249 mm
Weight: 3.6 kg
Pan/Tilt: 540°/180°
Power sockets: IEC
XLR sockets: 3-pin XLR IN/OUT
Please read the instructions carefully as they include important
information about ins tallation, usage and maintenance.
Page 3
3. How To Set The Unit

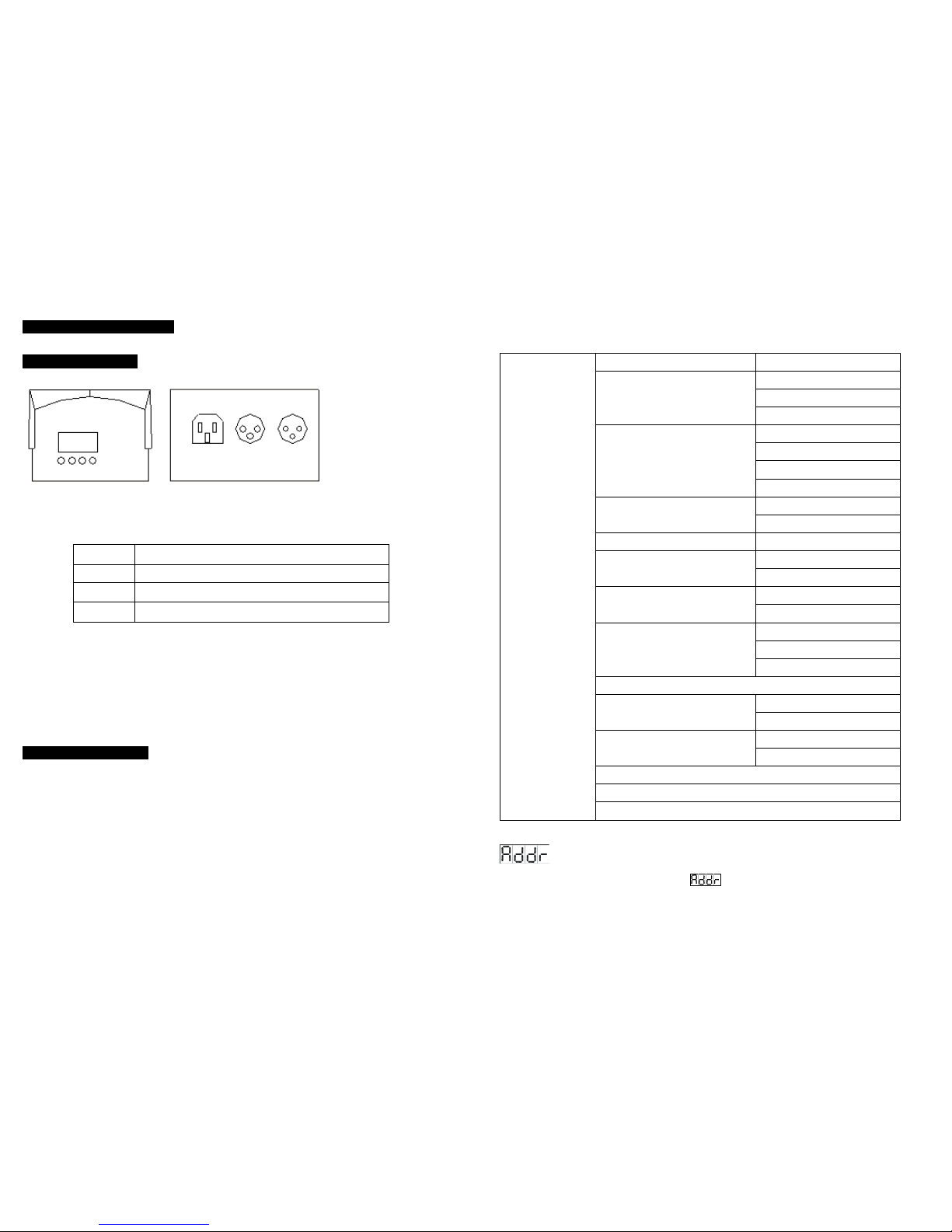

3.1 Control panel
Display
Shows the various menus and selected functions
Button
MENU
Selects the programming functions
DOWN
To go backward in the selected functions
UP
To go forward in the selected functions
ENTER
Confirms the selected functions
Mains input
Connection to the power supply.
DMX input/output
For DMX-512 linking. Use a 3-pin XLR cables to link to the controller or to
other units.
3.2 Main Functions
To select any of the given functions, press the MENU button up to where
the required function is showing on the display. Select the function by
pressing the ENTER button and the display will blink. Use the DOWN and
UP buttons to change the mode. Once the required mode has been
selected, press the ENTER button to confirm. To go back to the functions
without any changes, press the MENU button again. Press and hold the
MENU button for one second or wait for one minute to go back to the main
menu.
The main functions are as below:
Menu
ADDR
001-512
SLND
SL1
SL2
MAST
SHND
SH1
SH2
SH3
SH4
SOUN
ON
OFF
SENS
000-255
BLND
YES
NO
LED
ON
OFF
BALA
RED
GREEN
BLUE
DISP→INVERT
PAN INVERT
YES
NO
TILT INVERT
YES
NO
TEST
VER
REST
DMX Address Setting
Press the MENU button to select . Press the ENTER button and the
display will blink. Use the DOWN and UP buttons to choose the address
Page 4
from 1-255. Once the address has been selected, press the ENTER button
to confirm. To go back to the functions without any changes press the
MENU button again. Press and hold the MENU button for one second or
wait for one minute to go back to the main menu.
Master Mode or Slave Mode
Press the MENU button to select . Press the ENTER button and the
display will blink. Use the DOWN and UP buttons to select the
(Slave 1), (Slave 2) or (Master) mode. Once the mode
has been selected, press the ENTER button to confirm. To go back to the
functions without any changes press the MENU button again. Press and
hold the MENU button for one second or wait for one minute to go back to
the main menu.
Show Mode
Press the MENU button to select . Press the ENTER button and the
display will blink. Use the DOWN and UP buttons to select the
(show 1) or (show 2) or (show 3) or (show 4) mode.
Once the mode has been selected, press the ENTER button to confirm. To
go back to the functions without any changes press the MENU button
again. Press and hold the MENU button for one second or wait for one
minute to go back to the main menu.
Sound Mode
Press the MENU button to select . Press the ENTER button and the
display will blink. Use the DOWN and UP buttons to select the
(sound on) or (sound off) mode. Once the mode has been selected,
press the ENTER button to confirm. To go back to the functions without
any changes press the MENU button again. Press and hold the MENU
button for one second or wait for one minute to go back to the main menu.
Sound Sensitivity
Press the MENU and use UP and DOWN button to select and select
the sound sensitivity between value 0 and 255. Press the ENTER button
for confirmation after value selection. To go back to the functions without
any changes press the MENU button again.
Blackout Mode
Press the MENU button to select . Press the ENTER button and the
display will blink. Use the DOWN and UP buttons to select the (yes
blackout) or (no blackout) mode. Once the mode has been
selected, press the ENTER button to confirm. To go back to the functions
without any changes press the MENU button again. Press and hold the
MENU button for one second or wait for one minute to go back to the main
menu.
Led Display
Press the MENU button to select . Press the ENTER button and the
display will blink. Use the DOWN and UP buttons to select the (Led
display on) or (Led display off) mode. Once the mode has been
selected, press the ENTER button to confirm. To go back to the functions
without any changes press the MENU button again. Press and hold the
MENU button for one second or wait for one minute to go back to the main
menu.
Dimmer Calibrate
Press the MENU button to select . Press the ENTER button to
confirm, the current mode will blink. Use the DOWN and UP buttons to
select Red/ Green/Blue. Once the mode has been selected, press the
ENTER button to setup. Use the DOWN and UP buttons to change the
value (125~255). Once the mode has been selected, press the ENTER
Page 5
button to confirm. To go back to the functions without any changes press
the MENU button again. Press and hold the MENU button for one second or
wait for one minute to go back to the main menu.
Display Inversion
Press the MENU button to select . Press the ENTER button to change
to the mode (display normal), It will be automatically saved after 8
seconds. Press the ENTER button again to select the mode (display
inversion). To go back to the functions press the MENU button. Press and
hold the MENU button for one second or wait for one minute to go back to
the main menu.
Display normal mode is for floor standing the unit.
Display inversion mode is for hanging the unit from a ceiling.
Pan Inversion
Press the MENU button to select . Press the ENTER button and the
display will blink. Use the DOWN and UP buttons to select the
(normal) or (pan inversion) mode. Once the mode has been
selected, press the ENTER button to confirm. To go back to the functions
without any changes press the MENU button again. Press and hold the
MENU button for one second or wait for one minute to go back to the main
menu.
Tilt Inversion
Press the MENU button to select . Press the ENTER button and the
display will blink. Use the DOWN and UP buttons to select the
(normal) or (tilt inversion) mode. Once the mode has been
selected, press the ENTER button to confirm. To go back to the functions
without any change press the MENU button again. Press and hold the
MENU button for one second or wait for one minute to go back to the main
menu.
Auto-Test
Press the MENU button to select . Press the ENTER button and the
unit will run a self-test with its built-in programs. To go back to the
functions without any changes press the MENU button again. Press and
hold the MENU button for one second or wait for one minute to go back to
the main menu.
Reset
Press the MENU button to select . Press the ENTER button and all
channels of the unit will return to their standard position.
4. How To Control The Unit
1. Master/slave built-in preprogram function
2. Universal DMX controller
There is no need to turn the unit off when you change the DMX address as
new DMX address setting will be effected at once. Every time you turn the
unit on, it will show “ ” on the display and move all the motors to
their ‘home’ position and you may hear some noises for about 20 seconds.
After that the unit will be ready to receive DMX signal or run the built in
programs.
4.1 Master/Slave Built In Preprogrammed Function
By linking the units in master/slave connection, the first unit will control
the other units to give an automatic, sound activated, synchronized light
show. This function is good when you want an instant show. You have to
set the first unit as master and select show 1, show 2, show 3 or show
4 from the Show Mode. The other units must be set to either Slave 1
(normal) or Slave 2 (2 light show) mode. A DMX cable between the units
for daisy chain is needed.
Page 6
2-light show
In slave mode, Slave 1 means the unit works normally and Slave 2
means 2-light show. In order to create a great light show, you can set
Slave 2 on the second unit to get contrast movement to each other, even
if you have two units only.
4.2 DMX Controller
By using a universal DMX controller to control the units, you will need to
set a DMX address from 1 to 512 so that the units can receive a DMX
signal.
Press the MENU button until is showing on the display. Press the
ENTER button and the display will blink. Use the DOWN and UP buttons
to change the DMX-512 address. Once the address has been selected,
press the ENTER button to confirm. To go back to the functions without
any changes press the MENU button again. Press and hold the MENU
button one second or wait for one minute to go back to the main menu.

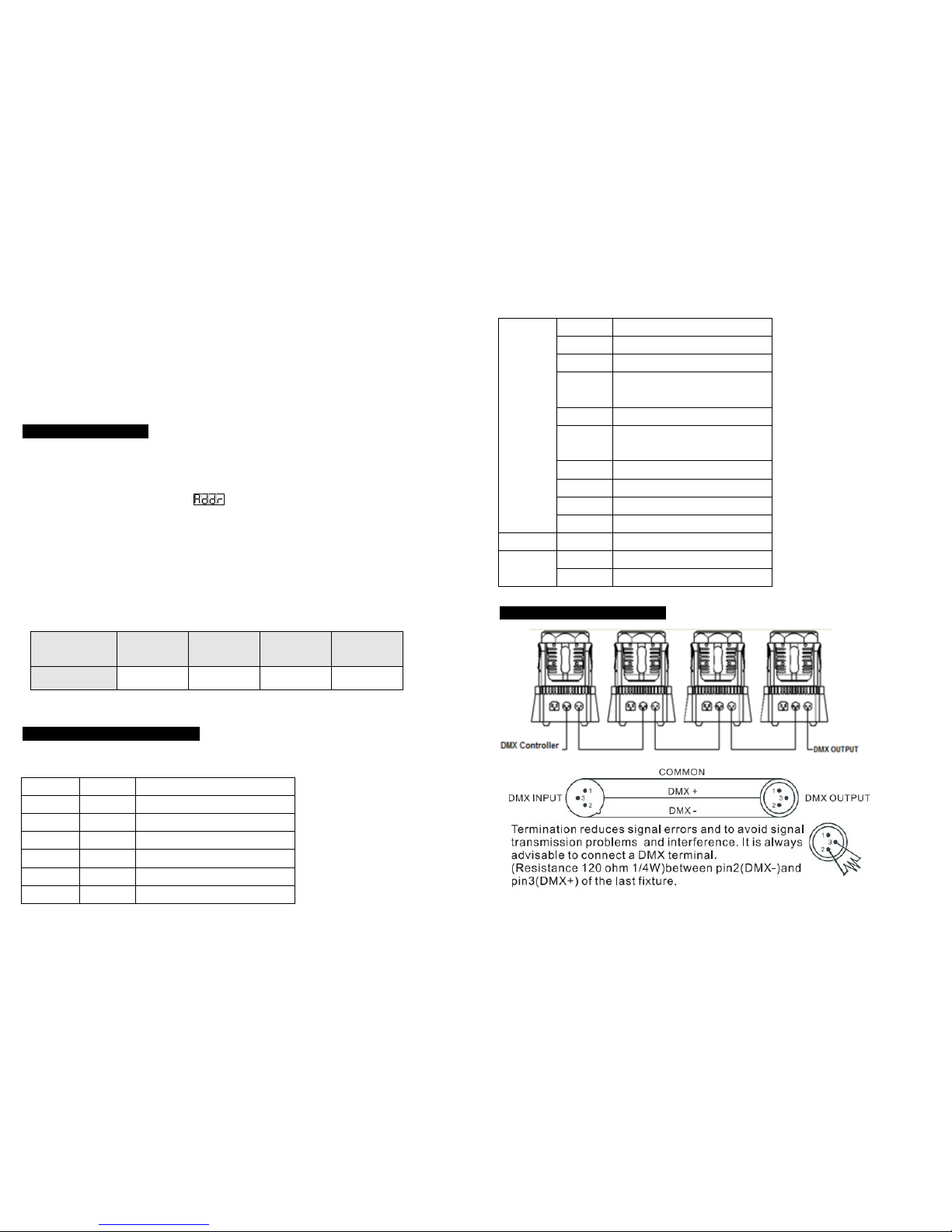

Please refer to the below diagram to address your first 4 units：
Channel
mode
Unit 1
Address
Unit 2
Address
Unit 3
Address
Unit 4
Address
9 channels
1
10
19
28
4.3 DMX 512 Configuration
Channel
Value
Function
1
0-255
Pan 2 0-255
Tilt 3 0-255
Red
4
0-255
Green
5
0-255
Blue 6 0-255
White
7
248-255
Open
240-247
Random Strobe
232-239
Open
190-231
Slow close
Fast Open
182-189
Open
140-181
Fast close
Slow Open
132-139
Open
16-131
Strobe (slow-fast)
8-015
Open
0-007
Close 8 0-255
Master dimmer
9
0-010
Stand alone (Sound mode)
011-255
Sound sensitivity low - high.
4.4 DMX512 CONNECTION
Page 7
1. In the last unit, the DMX has to be terminated with a termination plug.
Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin
3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the
last unit.
2. Connect the units together in a `daisy chain` with an XLR plug from
the output of the unit to the input of the next unit. The cable can not
be branched or split to a `Y` cable.
3. The DMX output and input connectors are a pass-through type to
maintain the DMX circuit when one of the units’ power is
disconnected.
4. Each lighting unit needs to have an address setup to receive the data
sent by the controller. The address number is between 0-512 (usually
0 & 1 are equal to 1).
5. The end of the DMX 512 system should be terminated to reduce signal
errors.
6. 3 pin XLR cable wiring configuration
3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal
(+)
5.Troubleshooting
Following are a few common problems that may occur during
operation and some suggestions for easy troubleshooting:
A. The unit does not work, no light and the fan does not work
1. Check the connection of the power and the main fuse.
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX cables to see if linked
correctly.
2. If the DMX address is showing but no response to the controller,
check the address settings and DMX polarity.
3. Try another DMX controller.
C. No response to the sound
1. Make sure the unit is not receiving a DMX signal.
2. Check the microphone to see if it is good by tapping it. The
microphone is located on the bottom plate of the unit.
6. Fixture Cleaning
The cleaning of external optical lenses must be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in
which the fixture operates: damp, smoky or particularly dirty surrounding
can cause a greater accumulation of dirt on the unit’s optics.
Clean with a soft cloth using normal glass cleaning fluid or mild soapy
water.
! Always dry the parts carefully.
! Clean the external optics at least every 20 days.
----------------------www.prolight.co.uk----------------------------------
Loading...
