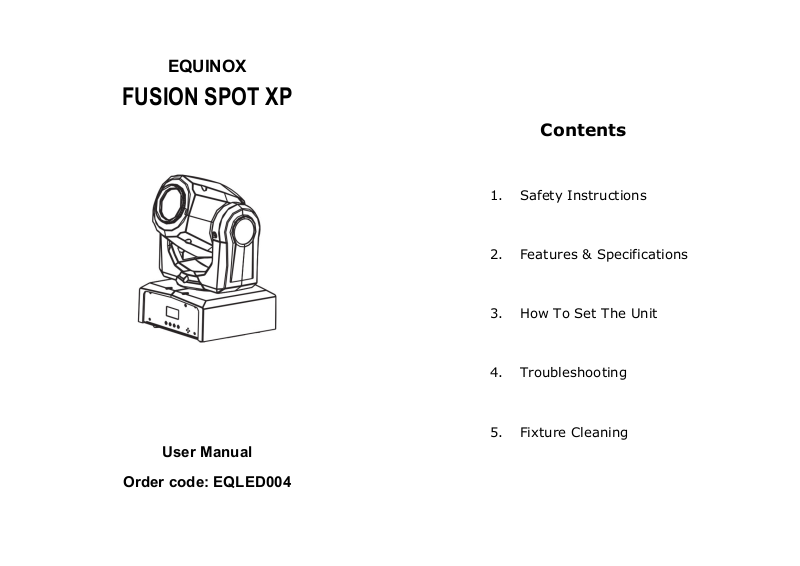

Equinox EQLED004 User Manual

EQUINOX

FUSION SPOT XP

User Manual

Order code: EQLED004

Contents

1. Safety Instructions

2. Features & Specifications

3. How To Set The Unit

4. Troubleshooting

5. Fixture Cleaning

1. Safety Instruction

WARNING

Please keep this User Guide for future consultation. If you sell the unit to

another user be sure that they also receive this.

Unpack and check carefully that there is no transportation damage before

using the unit.

! Before operating, ensure that the voltage and frequency of the power

supply match the power requirements of the unit.

! It’s important to ground the yellow/green conductor to earth in order to

avoid electric shock.

! The unit is for indoor use only. Use only in a dry location.

! The unit must be installed in a location with adequate ventilation, at

least 50cm from adjacent surfaces. Be sure that no ventilation slots are

blocked.

! Disconnect the mains power before replacement or servicing.

! Make sure there are no flammable materials close to the unit while

operating as they may cause a fire hazard.

! Always use a safety cable when installing this unit. Do not carry the unit

with its head only; always carry it using the base.

! The maximum ambient temperature is: 40°. Don’t operate it where the

temperature is higher than this.

! In the event of a serious operating problem stop using the unit

immediately. Never try to repair the unit by yourself. Repairs carried

out by unskilled people can lead to damage or malfunction.

Please contact the nearest authorized technical assistance center.

Always use the same type spare parts.

! Do not touch any power cables during operation as the high voltage

may cause an electric shock.

Warning

! To prevent or reduce the risk of electrical shock or fire, do not expose

the unit to rain or moisture.

Do not open the unit within five minutes after switching off.

! The housing and lenses must be replaced if they are visibly damaged.

! This lighting fixture is for professional use only - it is not designed for or

suitable for household use. The product must be installed by a qualified

technician in accordance with local territory regulations. The safety of

the installation is the responsibility of the installer. The fixture presents

risks of severe injury or death due to fire hazards, electric shock

and falls.

! Warning! Risk Group 2 LED product according to EN 62471. Do not view

the light output with optical instruments or any device that may

concentrate the beam.

! WARRANTY: One year from date of purchase.

Installation

The unit should be mounted via its screw holes onto the bracket. Always

ensure that the unit is firmly fixed to avoid vibration and slipping while

operating. Make sure that the structure to which you are attaching the

unit to is secure and is able to support a weight of 10 times of the unit’s

weight. Always use a safety cable that can hold 12 times of the weight

of the unit when installing the fixture.

The equipment must be installed by professionals and it must be

installed in a place where is out of the reach of people and no one can

pass by or under it.

Please read the instructions carefully as they include

important information about installation, usage and

maintenance.

2. Features & Technical Specifications

 Control: Sound active, Auto, Master/slave and DMX-512 modes

 DMX Channels: 1CH/8CH/10CH

 Gobos: 7 Gobos + open

 Colors: 7 Colors + Open

 Electronic dimming: 0-100%

 Compact size and light-weight

3. How To Set The Unit

3.1 Control panel

Display

Shows the various menus and selected functions

Buttons

MENU

Selects the programming functions

DOWN

To go backward in the selected functions

UP

To go forward in the selected functions

ENTER

Confirms the selected functions

Mains input

Connection to the power supply.

DMX input/output

For DMX 512 linking. Use a 3-pin XLR cables to link to the controller or to

other units.

3.2 Main Functions

To select any of the given functions, press the MENU button up to where

the required function is showing on the display. Select the function by

pressing the ENTER button and the display will blink. Use the DOWN and

UP buttons to change the mode. Once the required mode has been

selected, press the ENTER button to confirm. To go back to the functions

without any changes, press the MENU button again. Press and hold the

MENU button for one second or wait for one minute to go back to the

main menu.

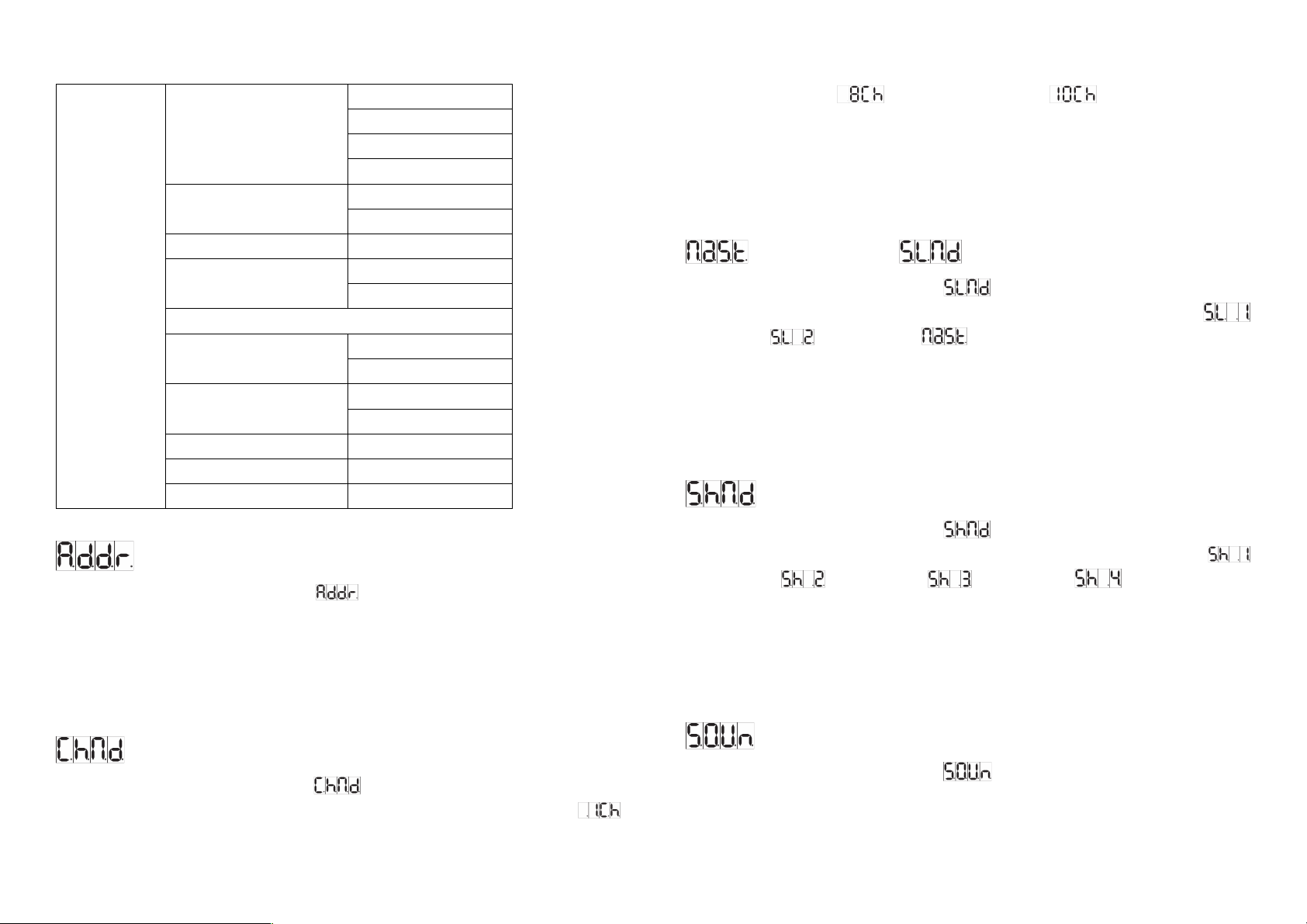

The main functions are as below:

Menu

ADDR

001-512

CHND

1CH/8CH/10CH

SLMD

MAST

SL1

SL2

Voltage: 100V~240V, 50/60Hz

Fuse: T6.3A 250V

Power consumption: 82W

Light source: 1 x 50W white LED

Dimension: 159 x 147 x 265mm

Weight: 2.6 kg

Pan/Tilt: 540°/270°

Power sockets: IEC power input

XLR sockets: 3-Pin XLR input/output
