Equalizer REGISTER BOOSTER EQ2 Operation Instructions Manual

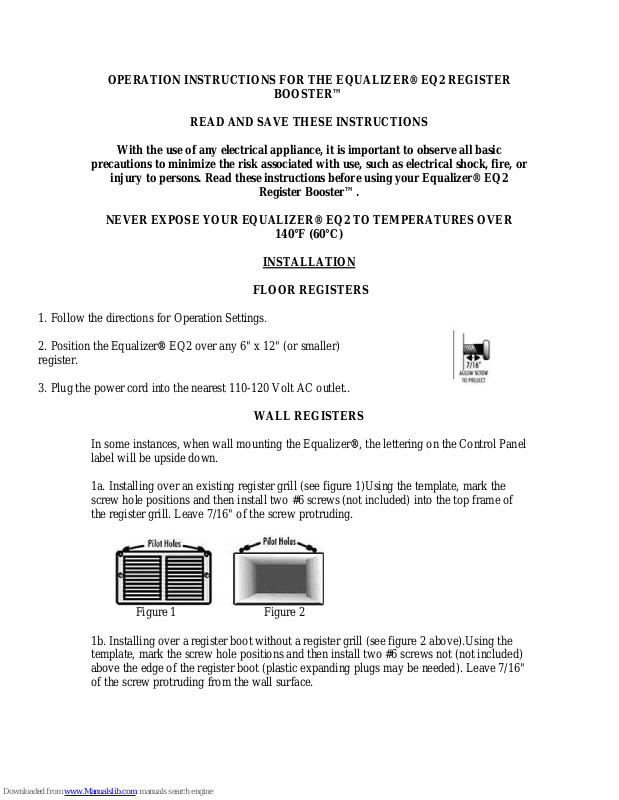

OPERATION INSTRUCTIONS FOR THE EQUALIZER® EQ2 REGISTER

BOOSTER™

READ AND SAVE THESE INSTRUCTIONS

With the use of any electrical appliance, it is important to observe all basic

precautions to minimize the risk associated with use, such as electrical shock, fire, or

injury to persons. Read these instructions before using your Equalizer® EQ2

Register Booster™.

NEVER EXPOSE YOUR EQUALIZER® EQ2 TO TEMPERATURES OVER

140°F (60°C)

INSTALLATION

FLOOR REGISTERS

1. Foll ow the directi ons for Opera ti on Settin gs.

2. Position the Equalizer® EQ2 over any 6" x 12" (or smaller)
register.

3. Plug the power cord i n to the nea rest 110-120 Volt AC outlet..

WALL REGISTERS

In some instances, when wall mounting the Equalizer®, the lettering on the Con trol Pa nel
label will be upside down.

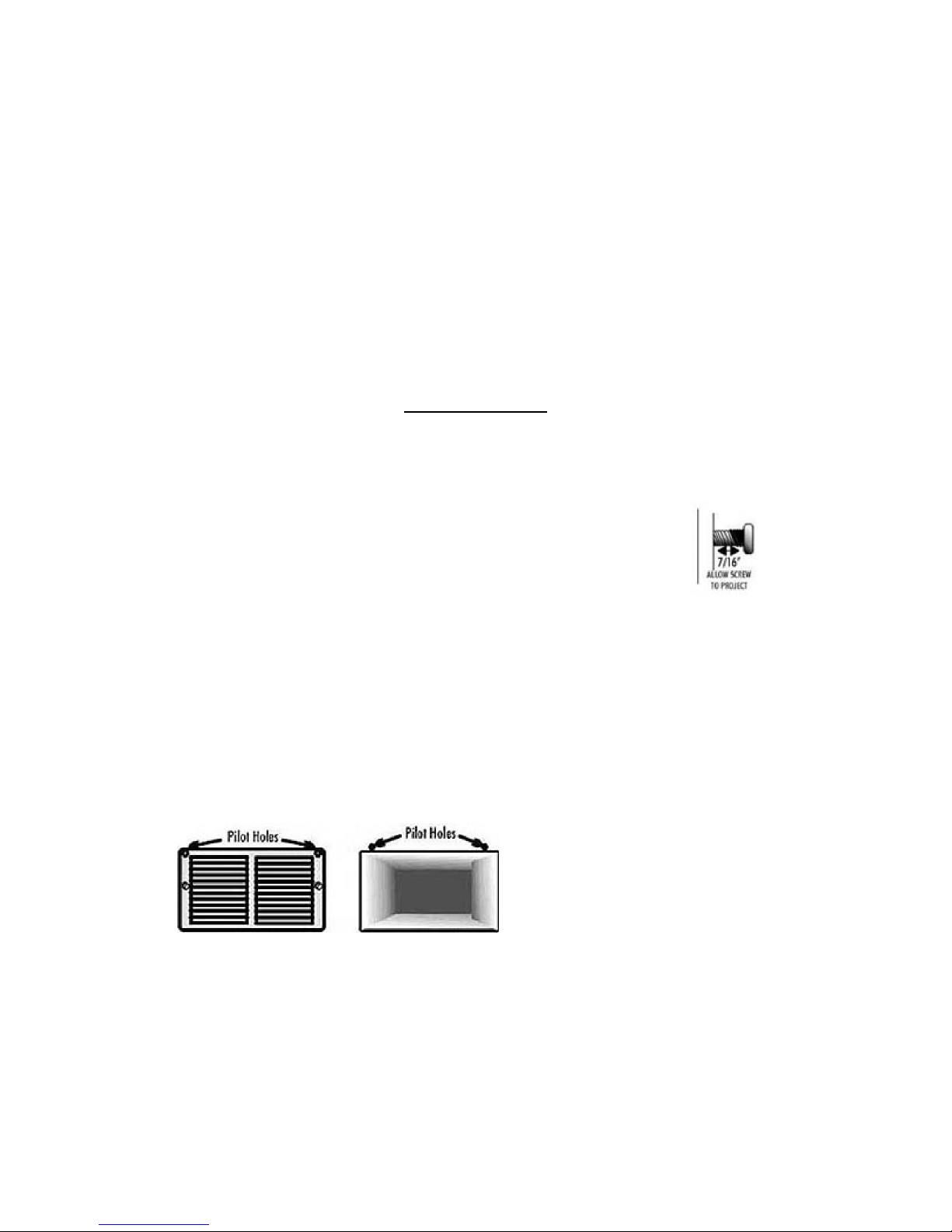

1a. Installing over an existing register grill (see figure 1)Using the template, mark the
screw hole positions and then install two #6 screws (not included) into the top frame of
the register grill. Leave 7/16" of the screw protruding.

Figure 1 Figure 2

1b. Installing over a register boot without a register grill (see figure 2 above).Using the
template, mark the screw hole positions and then install two #6 screws not (not included)
above the ed ge of th e register boot (pl astic expandin g plugs may be neede d). Leave 7/16"
of the screw pr otruding from th e wal l surfac e.

2. Install the Equalizer® EQ2 over the screws by placing the two evenly positioned
keyhole slots over the screw heads. Make sure the un it slips down over the screws .

3. Plug the power c ord i nto the neares t 120 Volt AC outlet.

CLEANING AND MAINTENANCE

Before cleani ng the Equalize r® EQ2 alway s dis connect the power cord from the outlet.
Dust may be removed from the exterior surfaces usi ng a soft cloth, the round brush
attachment of your vacuum or using a cloth that has b een lightly moisten ed with water
and a mild non-abrasive detergent.

Dust accumula tion in the interior of the Equal i zer® EQ2 may be removed by usi ng the
round brus h attachment of your vac uum cl eaner, or by attaching your vacuum cl ean er
hose to the blower side an d blowing dus t out. A ccumulati on of du s t in th e in terior will b e
minimized by regular repl acement of your furnace filter as recommende d by i ts
manufa cturer.

1. Make sure your furnace is not running.

2. Set the Sensitivity Differential switch to the MIN positi on.

3. Place the unit over the register and plug it in. Set the Function switch to Auto Heat
(winter) or Auto Cool (summer).

4. To adjust the fan motor ON/OFF point rotate the Set Point knob in the proper direction
for your hea ting or cooling applicati on until th e f an m otor switch es ON, th en slightly turn
the control knob in the opposite direction until the fan motor stops. DO NOT FORCE.

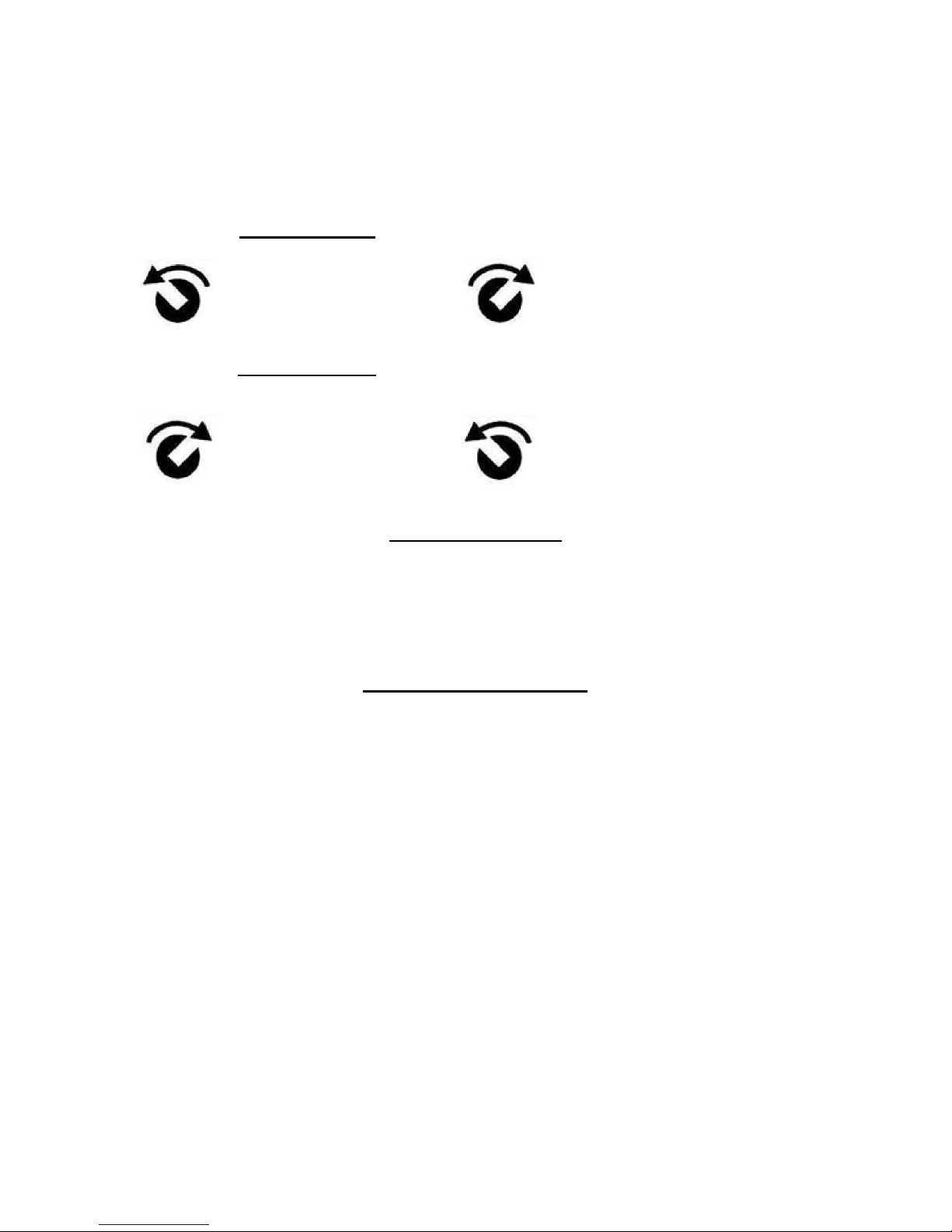

FOR HEATING

STEP ONE Turn counter

clockwise un til f an m otor run s

Position the Fun ction swi tch to AUTO HEA T.

STEP TWO Turn clockwise to
poin t wher e the f an m otor stops

FOR COOLING Position the Funct ion switch to AUTO COOL.

STEP ONE Turn clockwis e

until fan motor runs

STEP TWO Turn counter
clockwise un til fan m otor stops

IMPORTANT NOTE

To shorten the length time that your Equalizer® EQ2 Register Booster™ conti nues to run
after the f orce d ai r furnace or air condi ti on er has sh ut off, rotate the Se t Poin t knob
contro l slightly further, as in Step Two. Should you experience frequent On/Off cycling,
move the Sensitivity Differenti al switch to the MAX posi tion .

IMPORTANT WARNINGS

1) Your Equalizer® EQ2 will be as warm as the air that is delivered from the
register of your forced air furnace and/or cooling system. The maximum
temperature for a register is 140° Fahrenheit or 60° Centigrade. Your Equalizer®
EQ2 should never be exposed to higher temperatures or temperatures below
freezing.

2) Do not in any way block the air grills of the Equalizer® EQ2.

3) Unplug the Equalizer® EQ2 when not in use. Turn the unit off before
unplugging.

4) Do not operate the Equalizer® with a damaged plug or cord, if the unit
malfunctions, becomes noisy when operating, has been dropped or otherwise
damaged, or if the housing is damaged or broken.

5) The Equalizer® should never be exposed to moisture. Do not use the unit in an
open window, bathroom, or laundry area where it may come in contact with water.

6) The Equalizer® is designed for indoor use only.

7) Place the Equalizer® and the electrical cord where it will not be tripped over, and
is out of the traffic pattern.

8) Never insert any object or allow any object to enter the Equalizer® through the
grills, as this may damage the unit or cause it to malfunction.

9) The motor of the Equalizer® is equipped with a thermal fuse. Blocking rotation
of the fan or airflow may cause the motor to overheat. Should the motor overheat
and the fuse open, the motor can not be reset.

10) Do not use the Equalizer® near flammables such as gasoline, paint, or natural
gas.

11) The Equalizer® is intended for use as described in the instructions only. Other
use may cause fire, electrical shock, damage to the unit, or injury to persons and will
void any warranty by the manufacturer.

12) The Equalizer® has a polarized plug (one blade is wider than the other). To
reduce the risk of shock, this plug is intended to fit into a polarized outlet only one
way. If the plug does not fit into the outlet fully, reverse the plug. If it still does not
fit contact a qualified electrician. DO NOT attempt to defeat this safety feature.

13) If it is necessary to use an extension cord, use a heavy duty approved cord with
adequate wire size.

14) Pressure on the grills of the Equalizer® may cause the fan impeller to contact
these grills and damage the unit.

15) Do not use strong detergents or flammable liquids to clean the Equalizer®.

16) The housing of your Equalizer® is sealed at the factory. THERE ARE NO
SERVICEABLE PARTS INSIDE. Attempting to open the housing will expose you
to dangerous electricity, may cause fire, and will void any and all warranty.

17) To reduce the risk of fire or electrical shock, do not use the Equalizer® with any
solid state speed control device.

ONE YEAR LIMITED WARRANTY

Subject to the following limitations, Suncourt Inc. (manufact ur er) warrant s that the
Equalizer® EQ2 Register Booster™ will, for 1(one) ye ar f rom d ate of original re tail
purchase , but not exceedi ng two y ea rs from date of manuf acture, remain free from
appearanc e of def ects in w orkmanship or materials. This warranty is subj ec t to the
following limi tations: (a) m an ufacturer's li ability to the replacement or repai r of the unit

as decided by the m an ufa cturer; (b) a defective unit must be returned , prepaid, with proof
of purchase; and (c) this warranty does not apply to defects resulting from the alteration,
abuse, acci dental damage, unauth ori ze d repair, or misuse of the unit. This warran ty is
given in lieu of all other warranti es , guarantees, and condi tions on manufacturer's part,
and the man ufa cture r sh all have no tortious or oth er liability in respect to this Equal izer®
EQ2 Register Booster™.

SUNCOURT INC.

500 W. SECOND AVENUE

P.O. BOX 40

DURANT, IOWA 52747-0040
