EQUALIZER® SERIAL NUMBER
KEEP THIS FOR YOUR RECORDS
All Equalizer® tools are warranted for one year to be free of factory
defects. Warranty does not apply to abuse, misuse, or normal wear and
tear. We will repair or replace, at our option, any defective part. Tools are
repaired and sent back the same day they are received.
If you feel your tool is covered under warranty,
the entire tool, including all blades, must be returned to:
EQUALIZER INDUSTRIES, INC.
2611 OAKMONT DRIVE
ROUND ROCK, TEXAS 78665
If you want a tool repaired, but are not seeking to
have it repaired under warranty, we require that you return the
complete tool including the blades.
Equalizer Industries, Inc., reserves the right to refuse to repair, at
our expense, any tool which has not been properly maintained as
specified in the Users Guide. Particularly important are the following:
1. KEEP THE BLADES SHARP!!!!! This is the one thing most technicians WILL
NOT do and it WILL damage the tool.
2. Use a cutting lubricant. If you are using the short cut method (not
recommended by anyone anymore) use only clean water as a cutting
lubricant.
3. DO NOT HIT THE PINCHWELD. THIS WILL DESTROY THE DRIVE
MECHANISM OF YOUR TOOL.
If you have any questions about your tool, call us toll free at
800.334.1334 or fax us at 512.388.4188
Page 3
3
About Equalizer®Auto Glass Cut-Out Knife Blades…
Our blades are made of a special material. It has rounded edges and the correct
Rockwell hardness so it will not bind or buckle inside the sheath. The serrated
blades are made of spring steel and sharpened with a unique double-serration
method for faster cutting action The blade is made of mild steel so it will not shatter.
EEB793 • 4" Blade
ESB1304 • 4" Serrated Blade
EEB797 • 12" Blade
EEB795 • 8" Blade
ESB1312 • 12" Serrated Blade
ESB1308 • 8" Serrated Blade
Sharpening the Blade
To sharpen the blade, simply grind the edge on a bench grinder, belt sander, or use
a file or honing stone. You do not have to remove the blade to sharpen it. Be sure
to disconnect electric tools from the power source, disconnect air tools from air
pressure, and remove the battery from cordless tools. The use of any material other
than our blades will cause damage to the sheath and drive unit and will void your
warranty.
Between each removal
Every ten removals
Page 4
4
About Equalizer®Auto Glass Cut-Out Knife Sheaths…
The sheath is a unique patented idea that makes Equalizer® tools work. The sheath
is a protective sleeve that surrounds the blade so the blade will not damage the
dash or garnish mouldings. The sheath is designed to help you regulate the length
of the blade. This is important to keep the blade from hitting the pinchweld on
the outside. Sheaths are available in 4-inch, 8-inch and 12-inch sizes. The 4-inch
is most commonly used around quarter glasses where there is not much vertical
height. The 8-inch is the most commonly used size when removing windshields or
back glasses. The 12-inch is useful when reaching far below the dash on vehicles
where the windshield extends below the hood.
RUST PREVENTION
To prevent rust caused by water droplets, place a few drops of oil into the sheath
every day and allow it to run down into the blade holder.
Keep your blades sharp! This is crucial for effective cutting action and tool
longevity. A dull blade will destroy the drive mechanism in your Equalizer® tool.
Sharpen the blade between each removal with a diamond file. Be careful to
maintain the original sharpening angle.
Every ten removals, re-sharpen the blade on a bench grinder. Keeping a sharp
blade will help the tool cut faster, will reduce vibration, increase the life of the tool,
and reduce fatigue for the user. Most tool damage is caused because the blade
has not been kept sharp. Equalizer® does not warranty tools in these cases.
Before You Begin Cutting...
Spray the entire cutting area and blade
with plenty of water. Lubrication is vital for
maximum cutting ease. Failure to use water
increases cutting friction and will cause
tool damage. Periodically spray the blade
with water.
Page 5
General Safety Information
1. Always wear safety glasses and safety gloves when using Equalizer® tools.
2. Do not activate Equalizer® tools until they are in the cutting position. Disengage
the tool and let it stop before taking it out of the urethane.
3. The blade is sharp and can cut even when the tool is not running.
4. Do not force the tool. Put light forward pressure on the tool.
Let it do the work.
5. Consider your work environment. Do not use or expose power tools to rain
or damp weather.
6. Unplug electric tools before servicing and when
changing accessories.
7. Stay Alert!! Watch what you are doing. Use common sense.
5
Page 6
6

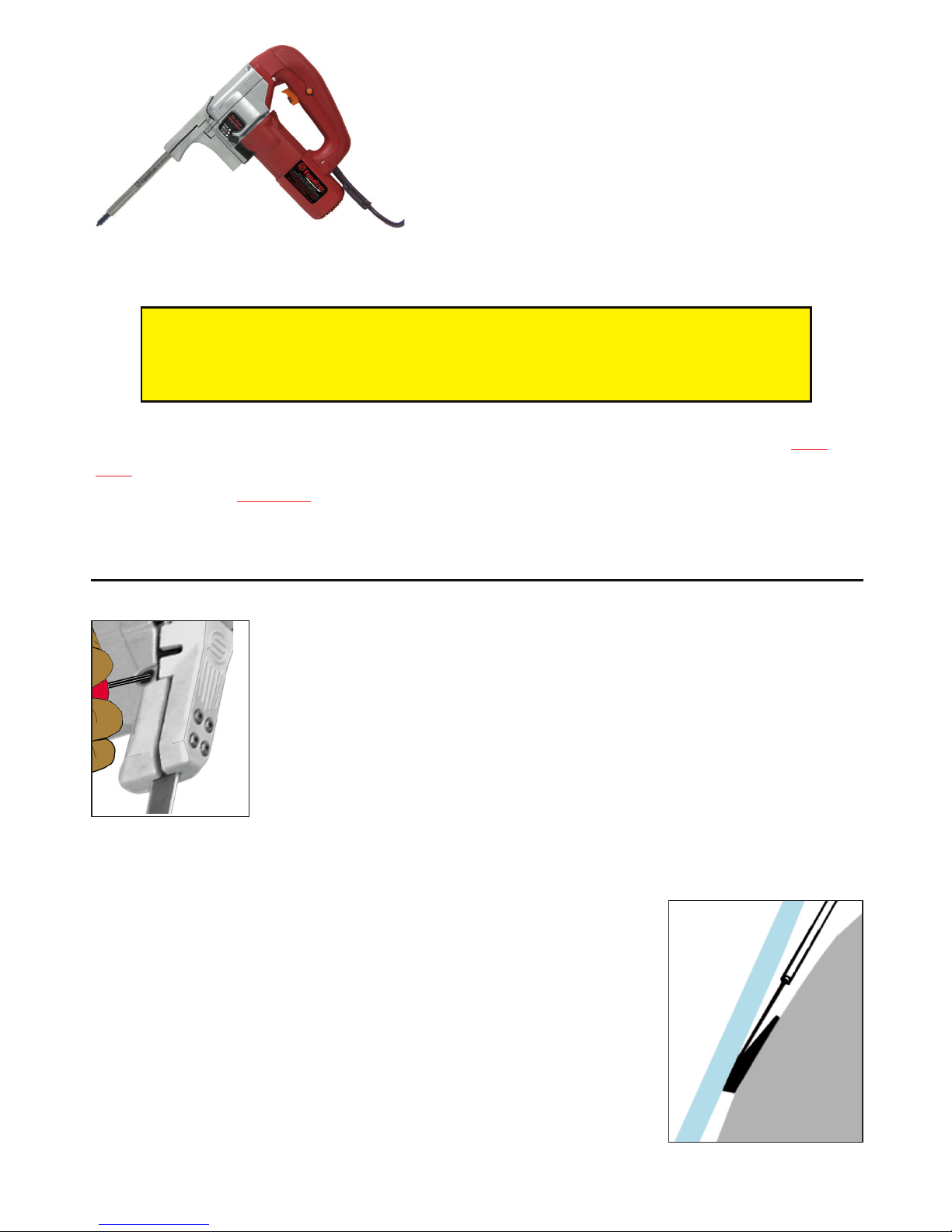

Changing the Blade
A hex screw holds the blade in place. Loosen the screw and pull
the blade out of the sheath. Insert a new blade and tighten the
screw tightly against the blade. The blade retaining screw is
accessible through the side of the base on all Equalizer® tools.
Put The Blade In Correctly
Look at how the blade is installed when you receive your
Equalizer® Magnum XP and always put it in the same way.
The flat side rides against the glass. This method of installing
the blade is important because the unique way the blade
is sharpened makes it hug the glass and cut the urethane
where it is easier to cut. The only exception to the above is
when the glass is encapsulated or has mouldings bonded to
the glass. If you are trying to take an encapsulated glass out
without breaking it, turn the blade around so the flat side will
hug the pinchweld. If you do not do this the blade may cut
into the plastic and damage the moulding.
It is acceptable to run The Equalizer® Magnum XP on a generator. Be sure the generator produces at least 1000
watts of 120-Volt alternating current. You can also run The Equalizer® Magnum XP on an inverter. Do not use an
inverter smaller than 1000 watts. If the inverter gives a signal that the battery which powers it is getting low be
sure to start the motor of your mobile vehicle to recharge the battery. Some inverters can continue to run these
tools even though the inverter is not producing 120-Volts of electricity. This can damage your tool.
Voltage .......................................................120 volts
Amps...............................................................4..5
Watts.............................................................. 540
Strokes Per Minute................................................3,200
The Equalizer® Magnum XP is an interior auto
glass cut-out knife. It is designed to cut the
urethane bonding which holds most modern
auto glass in cars. The .020” thick blade
reciprocates inside a metal sheath. This sheath
protects the dash and garnish mouldings and
regulates the depth at which the blade cuts. The
blade is exposed only 1/2 inch to 1-1/2 inches
on the end, depending on how you adjust the blade. The blade length is adjustable
because different cars have different widths of urethane bonding.
Page 7
7
Caution
Keep the sheath clean inside! Failure to do so can put excess strain
on the drive unit and damage it. We will not warranty tools
damaged in this way!
Sheath Maintenance
If urethane or butyl is pulled up into the sheath it can be cleaned by removing
the sheath and soaking it in a solvent. Avoid the use of harsh cleaners such as
lacquer thinner or similar “hot” cleaners. We recommend soaking the sheath in an
upright position so the urethane or butyl will drain out the bottom of the sheath.
Changing The Sheath
The sheath is held in place by four hex head
screws. To change the sheath, loosen the screws
and pull the sheath out of the sheath clamp.
Insert the new sheath and tighten the screws. Use
care not to overtighten the screws and crush the
sheath. Crushing the sheath can cause the blade to
bind and damage the drive unit.
Caution
When you are changing the blade and sheath at the same time, be
sure to put the sheath in and tighten it first, then install the blade. If you
install and tighten the blade first, the sheath can bind against it and
damage the tool.
Page 8
8
Remove & Replace
Windshields, Side Glasses & Back Glasses
Remove and replace windshields without breaking
them. Because of the thin blade (it is actually .002”
thinner than a normal piece of cut-out wire) you
can use your Equalizer® Magnum XP to remove auto
glass without breaking it. Keep the blade moving
and use Equalizer® Cutting Lubricant. Use a utility
knife to cut down to the pinchweld, on the outside,
taking care not to let the knife cut into the paint.
Use your Equalizer® Magnum XP to cut the glass
loose from the urethane. On bonded encapsulated
parts, turn the blade over so the flat side is against the pinchweld. If the blade is not
turned over it can cut into the plastic encapsulation and damage it.
Plunge Cuts & Cutting
Start the tool with the blade a short distance from the urethane. Then, with the tool
running at full speed, push the blade into the urethane. This is called a plunge cut.
Grip the tool firmly and do not allow it to kick back. Plunge cutting works better
with the tool running at full speed. Plunge cutting is possible because the blade is
sharp around the end. After the plunge cut you can cut in either direction because
the blade is sharp on both sides.

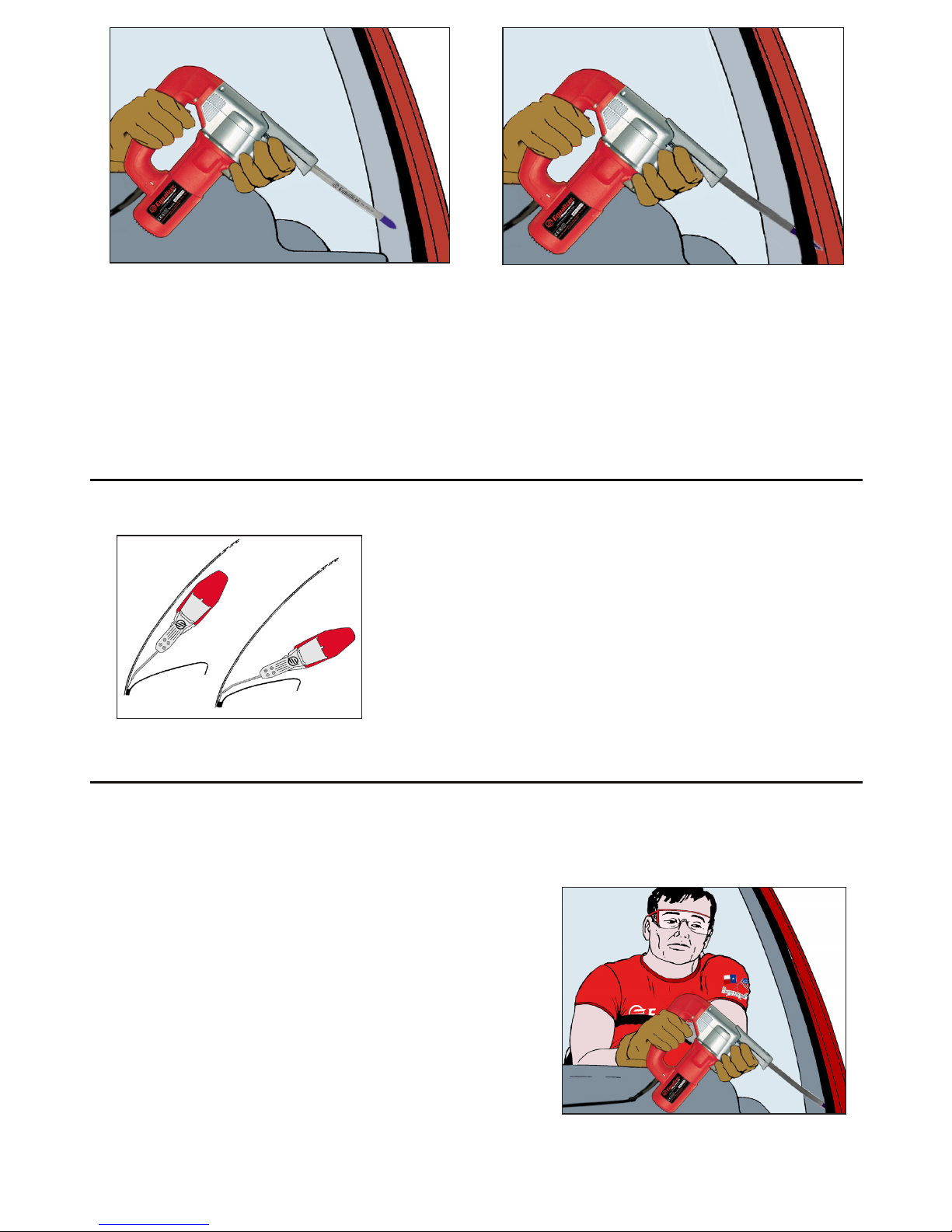

Proper Tool Use
The sheath is curved so the drive unit can be
held away from the glass. This curvature keeps
the blade from bending as it comes out of the
sheath. Not holding the tool so the blade goes
straight in and out can cause excessive friction,
overheating the blade and causing it to break.
This is extremely important on all blades, but
more important on serrated blades. Holding the
tool incorrectly can break serrated blades.
Page 9
9
5104
5102
4151W
5105
5106
5101
4200
4108
5103
Models:
EM415 • EM417
Equalizer
®
Magnum XP
Page 10
10

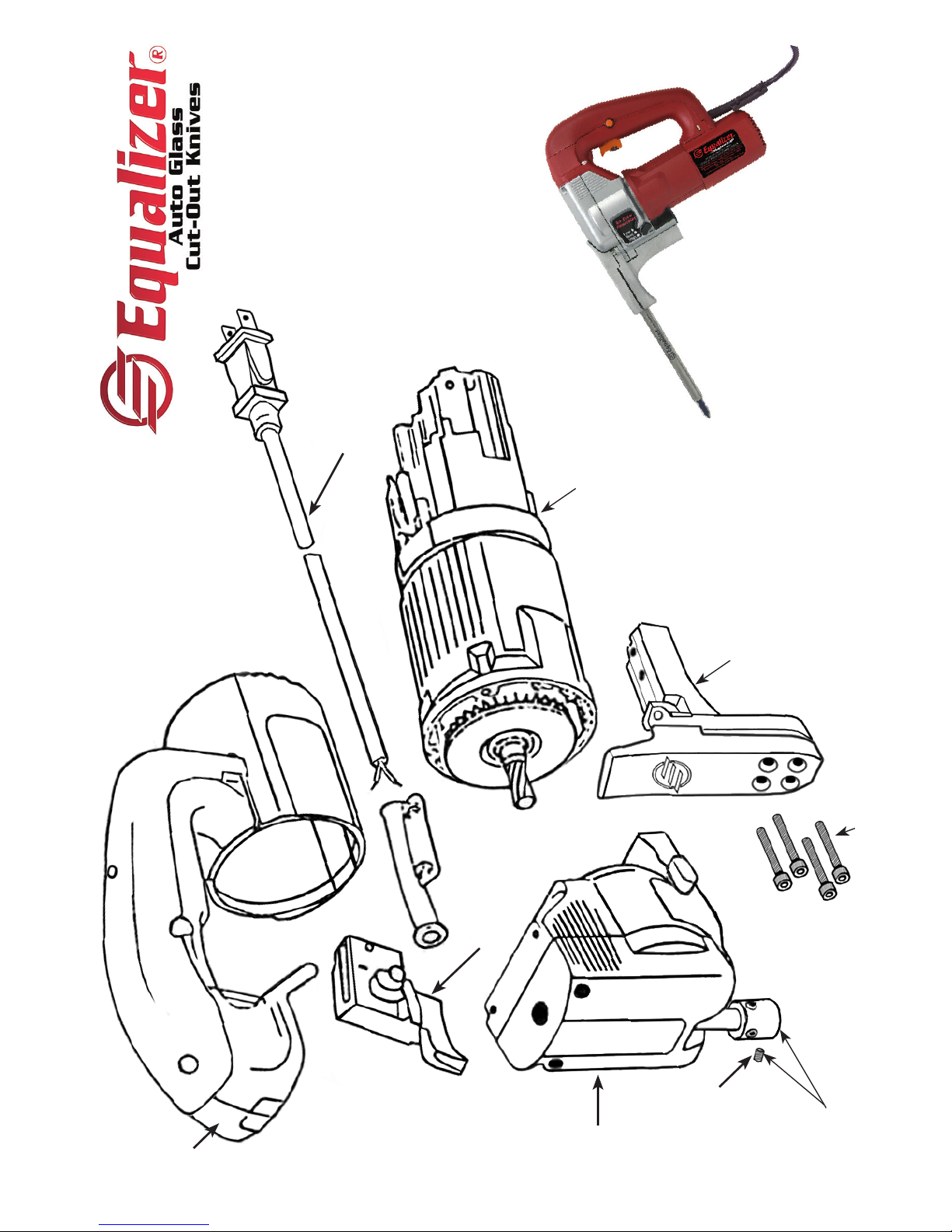

Part No. Description Quantity
4108 Cord and Plug Assembly 1
4151W Sheath Holder Screws 1
4200 1/4 X 20 X 5/16 Blade Retaining Screw 1
5101 Gear Case Assembly 1
5102 Motor Assembly 1
5103 Switch 1
5104 Sheath Holding Assembly (includes 4151-screws) 1
5105 Blade Holder & Screw 1
5106 Handle Set 1
