Page 1
HP350SD, HP550SD
HP1000SD
DOUBLE ACTING
HYDRAULIC SEALED
HAND PUMPS
Operator Instruction Manual
www.equalizerinternational.com
INNOVATION IN ITS MOST FUNCTIONAL FORM
Page 2
Page 3
INDEX
SECTION CONTENTS PAGE NO.
1 INTRODUCTION 1
2 SAFETY INFORMATION 2-3
3 KIT COMPONENTS 4
4 TECHNICAL DATA 5
5 HOW THE HAND PUMPS WORK 6
6 INSTALLATION AND OPERATION 7-9
6.1 HP350SD, HP550SD, HP1000SD
7-9
7 EXAMINATION, MAINTENANCE AND STORAGE 10
8 PARTS LISTS 11-13

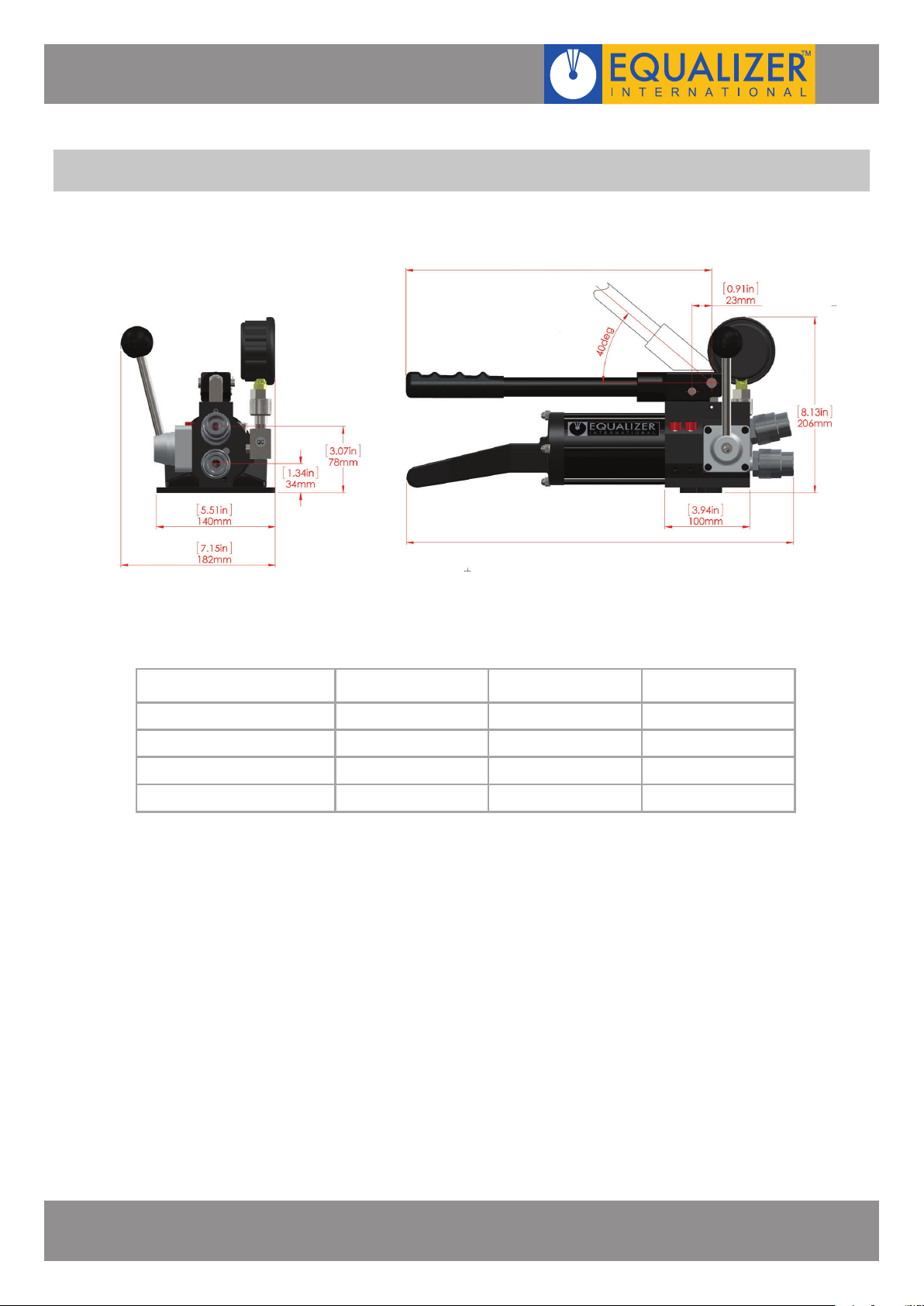

9 WEIGHTS AND DIMENSIONS 14
10 TROUBLESHOOTING 15-16
1. INTRODUCTION
The HP350SD, HP550SD and HP1000SD Hydraulic Hand Pumps output is regulated to 700
bar (10,000 psi) and is delivered from an output port threaded ⅜” NPT. The HP350SD,
HP550SD and HP1000SD can be used with any double acting 700 bar (10,000 psi) rated
hydraulic equipment.
The diaphragm oil reservoir means that, unlike conventional hand pump units, the HP350SD,
HP550SD and HP1000SD are operable at all angles and are highly resistant to accidental
spillage of hydraulic uid.
Pressure rating:
● 1st stage: 13.8 bar (197 psi)
● 2nd stage: 700 bar (10,000 psi)
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
HPSD_IM_REV_04
06/06/14
PAGE 1
Page 4
2. SAFETY INFORMATION
The operator MUST read this manual prior to using the tools.
Failure to comply with the following cautions and warnings could cause equipment
damage and personal injury; read the manual fully!
Read all the following instructions, warnings and cautions carefully. Follow all safety
precautions to avoid personal injury or property damage during system operation.
Equalizer International Ltd cannot be responsible for damage or injury resulting from unsafe
product use, lack of maintenance or incorrect product and/or system operation. Contact
Equalizer International Ltd when in doubt as to the safety precautions and applications. To
protect your warranty, use only good quality hydraulic oil of the grade 15cSt.
Only people competent in the use of hydraulic equipment should use these tools.
In all installations the site safety requirements must be adhered to. ALSO the safety of the
operator, and when present, any assisting personnel, is of paramount importance along with
the safety of others including, when present, the general public.
These instructions are only to cover the safe operation of THE EQUALIZER HP350SD, HP550SD
AND HP1000SD HYDRAULIC SEALED HAND PUMPS during normal maintenance/installation
operations. All other safety aspects must be controlled by the operation supervisor.
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 2
Page 5
A CAUTION is used to indicate correct operating or maintenance procedures and practices to
prevent damage to, or destruction of equipment or other property.
A WARNING indicates a potential danger that requires correct procedures or practices to avoid
personal injury.
A DANGER is only used when your action or lack of action may cause serious injury or even
death.
IMPORTANT: Operator must be competent in
the use of hydraulic equipment. The operator
must have read and understood all instructions,
safety issues, cautions and warnings before
starting to operate the Equalizer equipment.
WARNING: To avoid personal injury and
possible equipment damage, make sure all
hydraulic components are rated to a safe
working pressure of 700 bar (10,000 psi)
WARNING: Do not overload equipment. Overloading causes equipment failure and possible
personal injury.
CAUTION: Make sure that all system components are protected from external sources of
damage, such as excessive heat, ame, moving machine parts, sharp edges and corrosive
chemicals.
CAUTION: Avoid sharp bends and kinks that
will cause severe back-up pressure in hoses.
Bends and kinks lead to premature hose failure.
Do not drop heavy objects onto hoses. A sharp
impact may cause internal damage to hose wire
strands; applying pressure to a damaged hose
may cause it to rupture. Do not place heavy
weights on the hoses, or allow vehicles to roll
over the hoses; crush damage will lead to premature hose failure.
WARNING: Immediately replace worn
or damaged parts with genuine Equalizer
parts. Equalizer parts are designed to t
properly and withstand rated loads. For
repair or maintenance service contact your
Equalizer distributor or service centre.
DANGER: To avoid personal injury keep
hands and feet away from the tool and
workpiece during operation.
WARNING: Always wear suitable clothing
and Personal Protective Equipment (PPE).
DANGER: Do not handle pressurised hoses. Escaping oil under pressure can penetrate the skin, causing serious injury. If
oil is injected under the skin, seek medical
attention immediately.
WARNING: Never pressurize unconnected
couplers. Only use hydraulic equipment in
a connected system.
IMPORTANT: Do not lift hydraulic equipment by the hoses or couplers. Use the carrying handle or other means of safe transport.
CAUTION: Do not operate the equipment
without lubricating all moving parts. Use
only high pressure molybdenum disulphide
grease.
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 3
Page 6
3. KIT COMPONENTS
HP350SD KIT COMPONENTS
1 x HP350SD Pump Unit
1 x Pressure Gauge
1 x ⅜” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging
Product Code: HP350SDMIN
HP550SD KIT COMPONENTS
1 x HP550SD Pump Unit
1 x Pressure Gauge
1 x ⅜” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging
Product Code: HP550SDMIN
HP1000SD KIT COMPONENTS
1 x HP1000SD Pump Unit
1 x Pressure Gauge
1 x ⅜” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging
Product Code: HP1000SDMIN
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 4
Page 7
4. TECHNICAL DATA
STAGE HP350SD HP550SD HP1000SD
PUMP TYPE TWO SPEED TWO SPEED TWO SPEED
PRESSURE RATING 1st 13.8bar (197psi) 13.8bar (197psi) 13.8bar (197psi)
2nd 700bar (10,000psi) 700bar (10,000psi) 700bar (10,000psi)
NOMINAL OIL CAPACITY 350cc (21.4in3) 550cc (33.6in3) 1000cc (61.0in3)
USABLE OIL CAPACITY 300.0cc (18.3in3) 580.0cc (35.4in3) 1110.0cc (67.7in3)
OIL VOLUME PER
STROKE
MAX HANDLE EFFORT 33kgf (72.75lbf) 25kgf (55.12lbf) 21kgf (46.30lbf)
PISTON STROKE 18.0mm (0.71”) 18.0mm (0.71”) 18.0mm (0.71”)
1st 3.62cc (0.221in3) 3.62cc (0.221in3) 3.62cc (0.221in3)
2nd 0.77cc (0.046in3) 0.77cc (0.046in3) 0.77cc (0.046in3)
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 5
Page 8

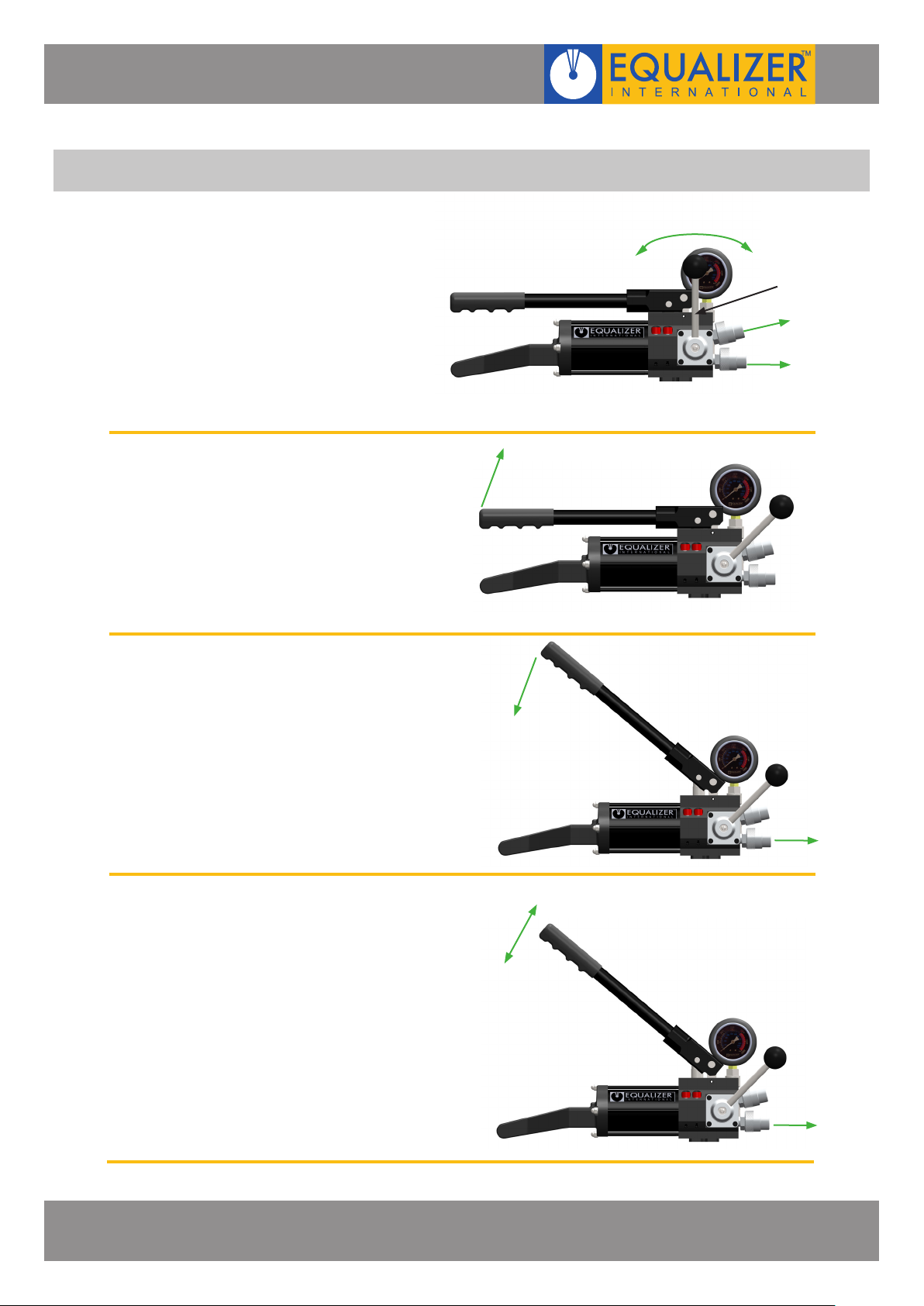

5. HOW THE HAND PUMPS WORK
1. The control lever is moved to the
advance position to pressurise the
lower/advance port or to the retract
position to pressurise the upper/
retract port.
2. The pump handle is raised, which
creates a vacuum in the piston
chamber which sucks oil from the
reservoir into the chamber.
Retract
Advance
Control lever
Retract
Advance
3. The pump handle is depressed,
which pumps the oil from the
chamber through the outlet port
and into the system to which the
pump is connected.
4. Steps 2 & 3 are repeated, which will
pump oil into the system until the
maximum pressure of
10,000 psi (700 bar) is achieved, at
which point the safety release valve
will open and the oil will cycle back
to the reservoir.
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 6
Page 9

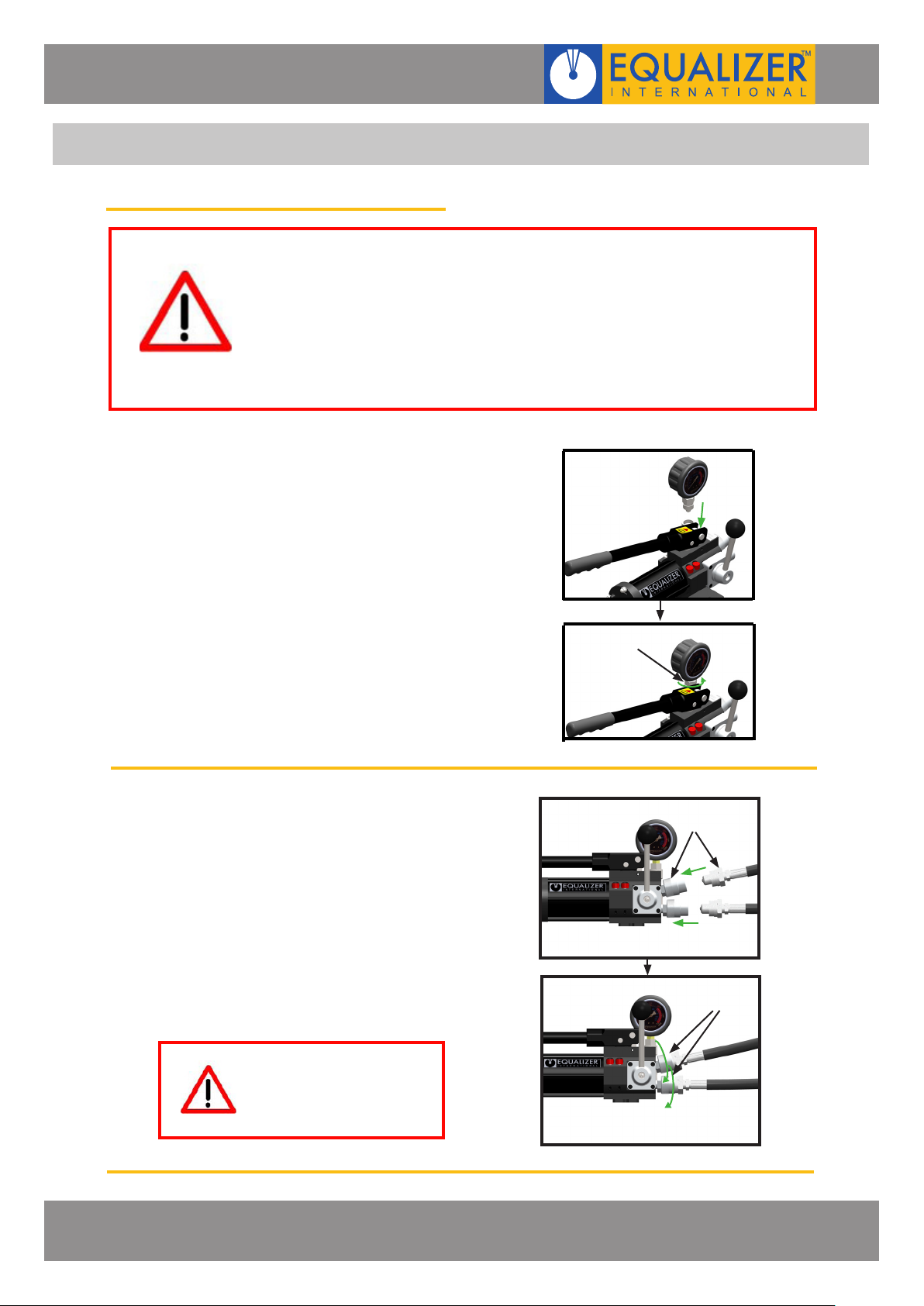

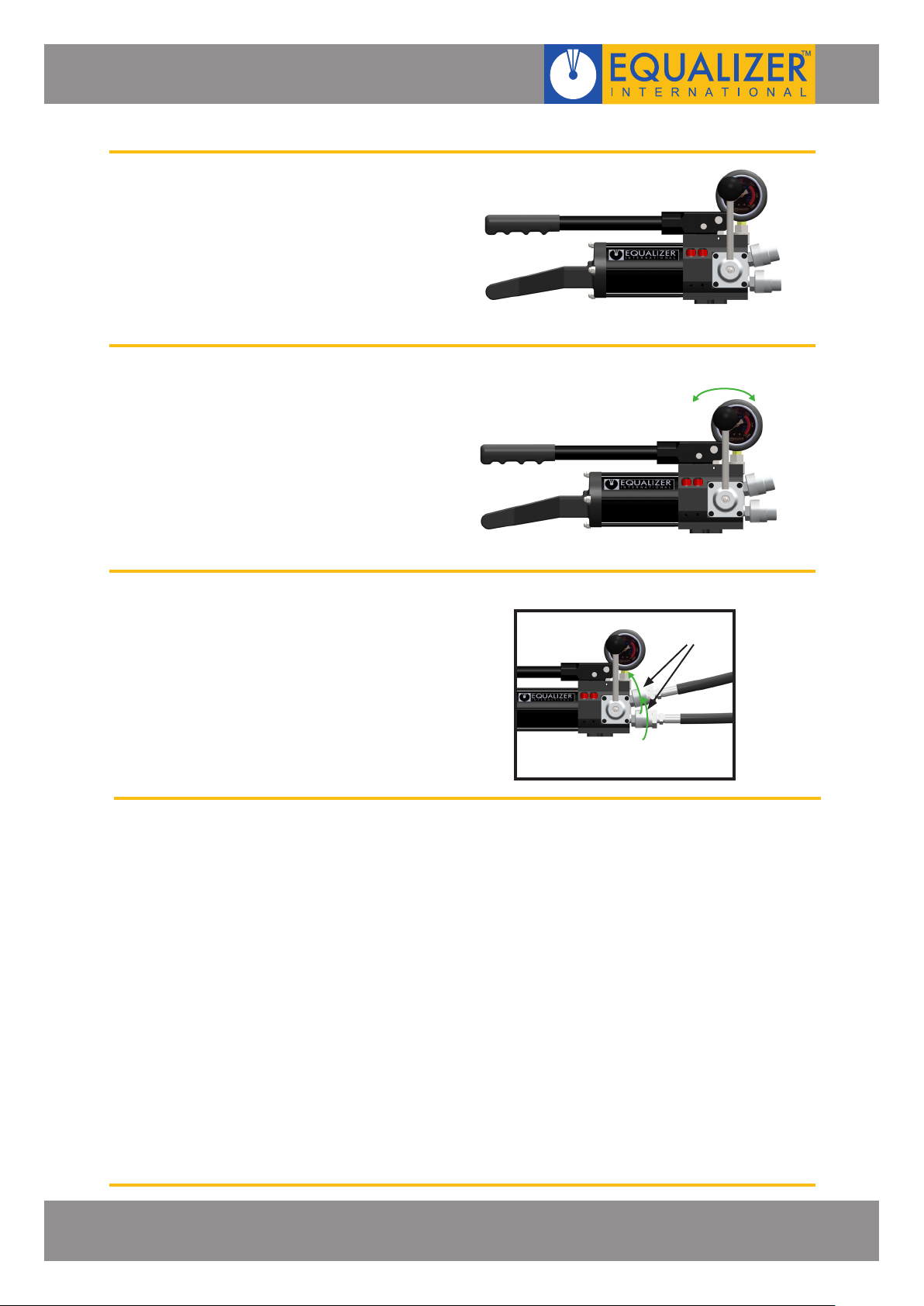

6. INSTALLATION AND OPERATION
6.1 HP350SD, HP550SD & HP1000SD
WARNING:
Never attempt to pressurise the pump when the pressure gauge is not
connected or the pump is not connected to a system!
DANGER:
Always check the hydraulic system in which the pump is to be used is rated
for 10,000 psi (700 bar). Over pressurising a hydraulic system will result in
component failure and personal injury!
1. Prior to using the pump the hydraulic
gauge must be tted.
push the male connector on the gauge
and female connector on the gauge
adaptor together fully and rotate the
locking ring counterclockwise until fully
tight.
LOCKING
RING
2. Ensure the hydraulic system you
wish to pressurise has been bled
and is free from air and leaks.
Connect the pump into the system
using the screw connector supplied
with the pump, push the male and
female connectors together fully and
rotate the locking ring clockwise
until fully tight.
WARNING:
Never disconnect the pump
or other components when
the system is pressurised
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
MALE AND FEMALE
CONNECTORS
LOCKING
RING
PAGE 7
Page 10

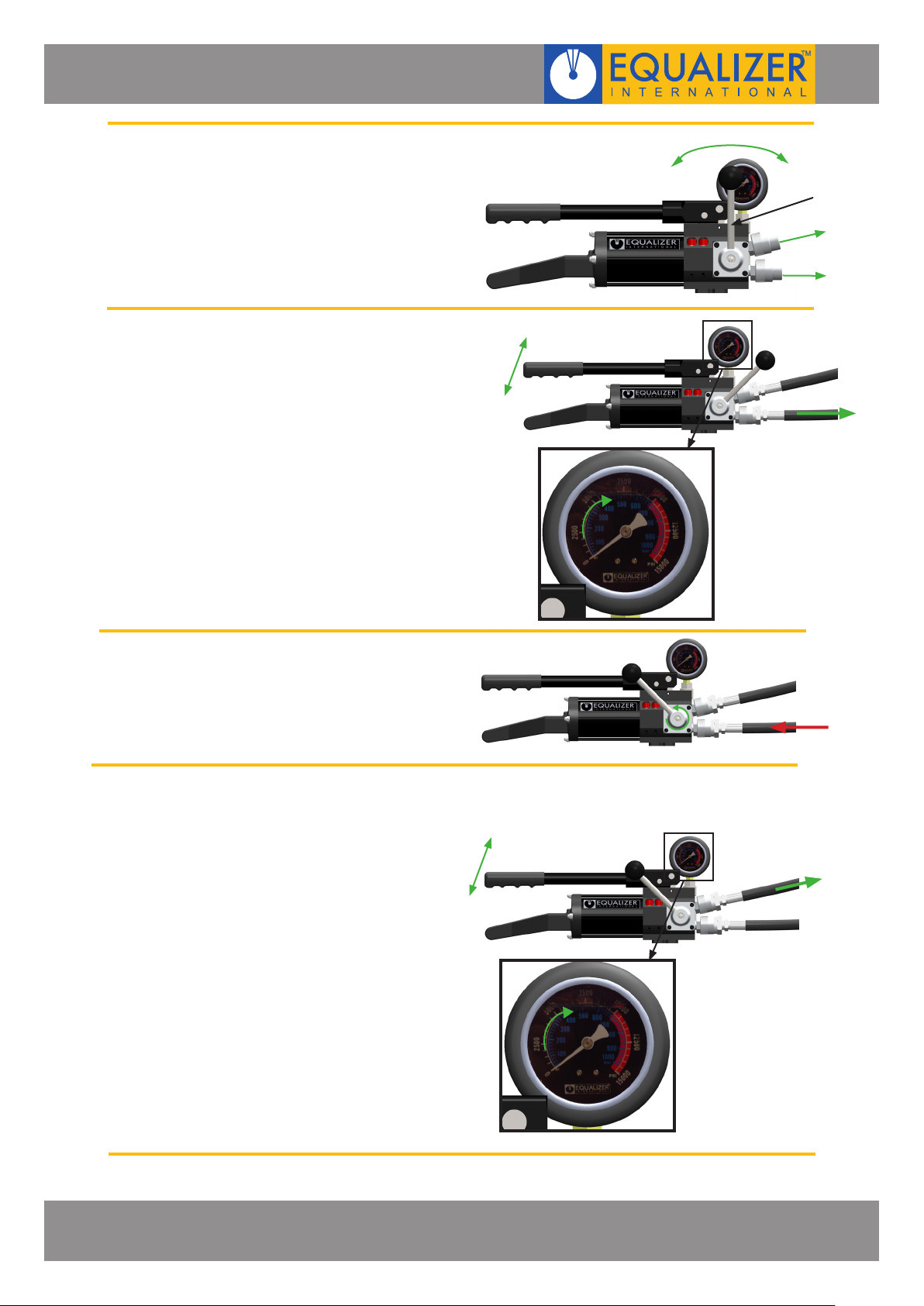

3. The HP350SD, HP550SD &
HP1000SD is tted with a control
lever. This enables the operator to
pressurise the advance or retract
hoses.
Pushing the control lever forward
to activate the advance port.
4. Pressurise the advance hose by
raising and depressing the pump
handle until the desired pressure is
indicated on the pressure gauge
N.B. max. pressure 10,000 psi (700
bar)
Retract
Advance
Control lever
Retract
Advance
5. To depressurise the advance hose
move the control lever to the retract
position this will redirect the ow
to the retract hose.
6. Pressurise the retract hose by raising
and depressing the pump handle
with the control lever in the retract
position until the desired pressure is
indicated on the pressure gauge
N.B. max. pressure 10,000 psi (700
bar)
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 8
Page 11
7. To keep pressure in both hoses, set
the control lever in the central
vertical position.
8. To depressurise both hoses, set
the control lever in the advanced
position untill the gauge indicates
zero pressure and then set the
control lever in the retract position
untill the gauge indicates zero
pressure.
9. Once both systems have been fully
depressurised the pump can be
disconnected by unscrewing the
couplers
LOCKING
RING
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 9
Page 12
7. EXAMINATION, MAINTENANCE AND STORAGE
• On return from each job and before allocation against subsequent work the
HP350SD / HP550SD /HP1000SD should be examined to ensure that they are service
able.
• Any missing or damaged items are to be replaced as soon as possible and prior to the
pump being used again.
• Store the pump in a cool dry place and ensure all machined surfaces are greased.
• Grease all moving parts each and every time the pump is used.
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 10
Page 13

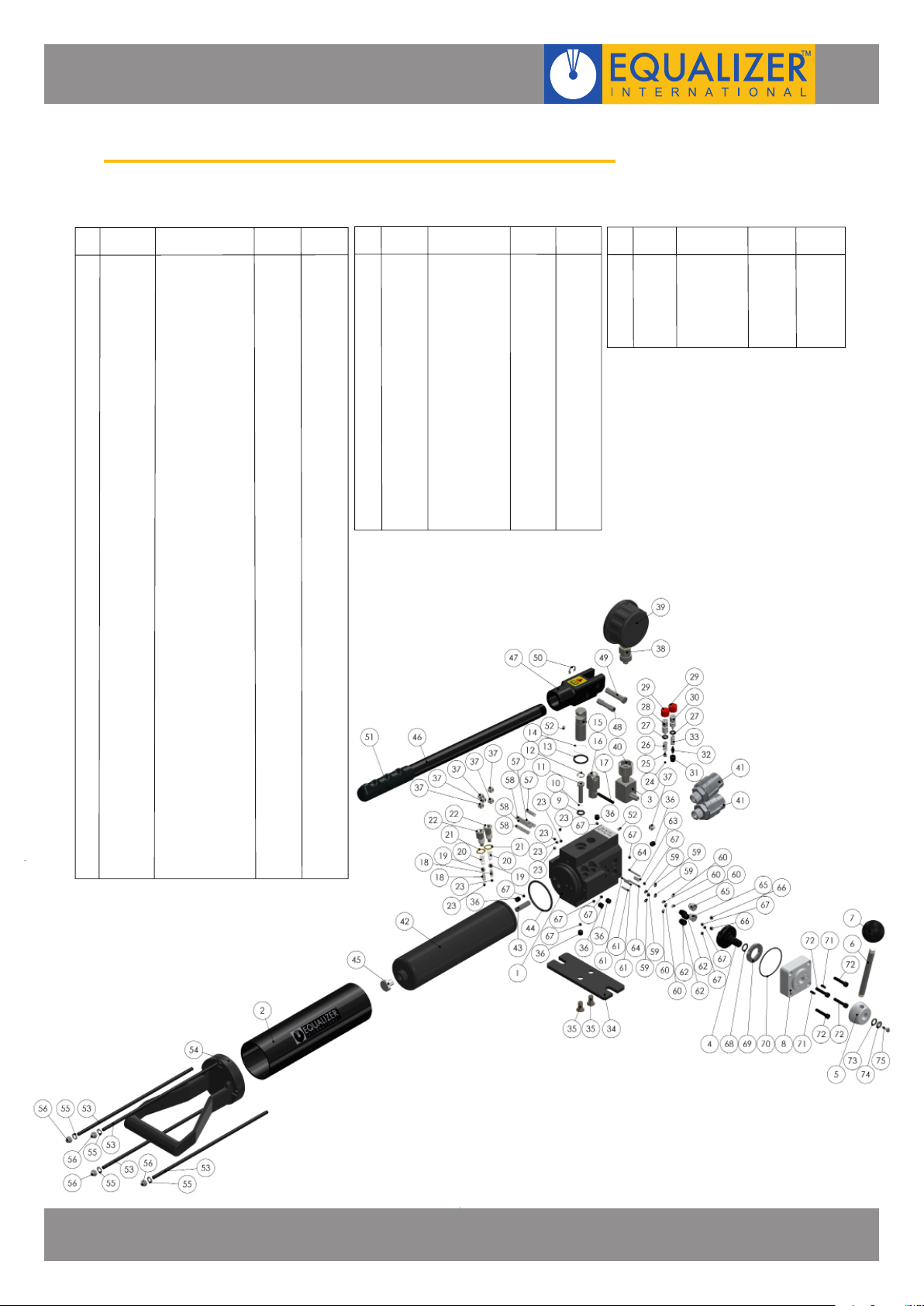

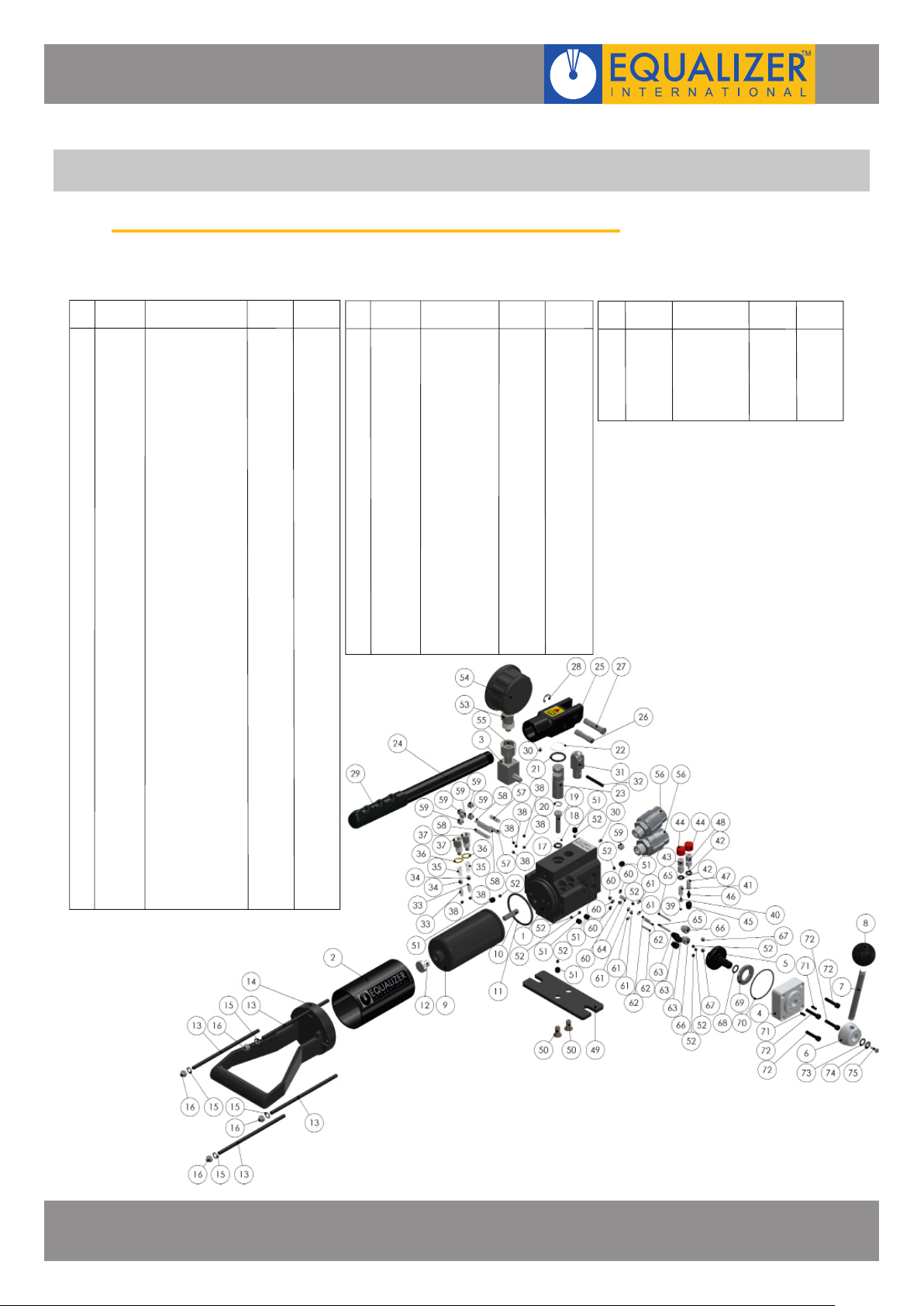

8. PARTS LISTS
HP350SD DOUBLE ACTING HYDRAULIC SEALED HAND PUMP
KIT
ITEM
01
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
PART No.
707001-01
715100-01
725200-01
715300-01
715400-01
715500-01
715700-01
715800-01
DESCRIPTION
PUMP HOUSING
RESERVOIR710601-0102
ELBOW707071-0103
TOP PLATE707052-0104
CONTROL SWITCH707048-0105
SWITCH BASE707055-0106
HANDLE707056-0107
HANDLE BALL707057-0108
SERVICE KIT A:
- RESERVOIR BLADDER
- OIL FILTER
- O-RING
- REFILLING PLUG
SERVICE KIT B:
- SCREW
- TAIL BASE
- SPRING WASHER
- NUT
SERVICE KIT C:
- O-RING
- BACK-UP RING
- PUMP PISTON
- SNAP RING
- O-RING
- BACK-UP RING
- PUMP PISTON
SERVICE KIT D:
- HANDLE
- YOKE
- PISTON PIN
- YOKE PIN
- RETAINING RING
- HANDLE GRIP
- SCREW
SERVICE KIT E:
- YOKE BASE
- SPRING PIN
SERVICE KIT G:
- SPRING
- STEEL BALL
- OUTLET BALL SPRING
- COPPER WASHER
- VALVE COVER SCREW
- STEEL BALL
SERVICE KIT H:
- STEEL BALL
- SPRING END CAP
- L.P. SPRING
- O-RING
- OVERLOAD COVER
SCREW
- CAP
- OVERLOAD COVER
SCREW
- CONE SEAT
- CONE
- LONG SEPARATOR
SPRING
QUANTITY
01
01
01
01
04
01
04
04
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
01
01
01
02
01
02
01
01
01
01
PUMP
QUANTITY
01
01
01
01
01
01
01
01
01
01
01
01
04
01
04
04
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
01
01
01
02
01
02
01
01
01
01
ITEM
49
50
51
52
59
30
53
54
55
56
--
57
58
59
38
60
61
62
63
64
65
66
67
52
PART No.
715900-01
716100-01
716200-01
716300-01
707100-01
707200-01
DESCRIPTION
SERVICE KIT I:
- BASE PLATE
- SCREW
SERVICE KIT K:
- SCREW
- CHECK BALL
- SCREW
- SCREW
SERVICE KIT L:
- GAUGE COUPLER
MALE
- GAUGE
SERVICE KIT M:
- GAUGE COUPLER
FEMALE
- COUPLER
- PORT GAUGE
ADAPTOR
SERVICE KIT Q:
- SPRING
- SPRING
- SCREW
- STEEL BALL
SERVICE KIT R:
- O-RING
- O-RING END CAP
- PIN
- BALL SEAT
- SPRING
- PIN
- BALL SEAT
- STEEL BALL
- CHECK BALL
KIT
QUANTITY
01
02
04
04
01
01
01
01
01
01
01
02
03
05
05
05
05
03
02
01
02
02
02
04
PUMP
QUANTITY
01
02
06
06
01
01
02
01
01
01
00
02
03
05
05
05
05
03
02
01
02
02
02
04
ITEM
68
69
70
71
72
73
74
75
707300-01
DESCRIPTIONPART No.
SERVICE KIT S:
- O-RING
- BEARING
- O-RING
- SPRING PIN
- SCREW
- O-RING
- WASHER
- SCREW
KIT
QUANTITY
01
01
01
02
04
01
01
01
PUMP
QUANTITY
01
01
01
02
04
01
01
01
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 11
Page 14
HP550SD DOUBLE ACTING HYDRAULIC SEALED HAND PUMP
ITEM
PART No.
01
707001-01
02
710601-01
03
707071-01
04
707048-01
05 SWITCH BASE
707055-01
06
707056-01
707057-01
07
08
707052-01
715300-01
09
10
11
12
13
14
15
715500-01
16
17
715700-01
18
19
20
21
22
23
715800-01
24
25
26
27
28
29
30
31
32
33
715900-01
34
35
716100-01
36
37
52
67
716200-01
38
39
716300-01
40
41
--
735100-01
42
43
44
45
DESCRIPTION
PUMP HOUSING
RESERVOIR
ELBOW
CONTROL SWITCH
HANDLE
HANDLE BALL
TOP PLATE
SERVICE KIT C:
- O-RING
- BACK-UP RING
- PUMP PISTON
- SNAP RING
- O-RING
- BACK-UP RING
- PUMP PISTON
SERVICE KIT E:
- YOKE BASE
- SPRING PIN
SERVICE KIT G:
- SPRING
- STEEL BALL
- OUTLET BALL SPRING
- COPPER WASHER
- VALVE COVER SCREW
- STEEL BALL
SERVICE KIT H:
- STEEL BALL
- SPRING END CAP
- L.P. SPRING
- O-RING
- OVERLOAD COVER
SCREW
- CAP
- OVERLOAD COVER
SCREW
- CONE SEAT
- CONE
- LONG SEPARATOR
SPRING
SERVICE KIT I:
- BASE PLATE
- SCREW
SERVICE KIT K:
- SCREW
- SCREW
- SCREW
- CHECK BALL
SERVICE KIT L:
- GAUGE COUPLER
MALE
- GAUGE
SERVICE KIT M:
- GAUGE COUPLER
FEMALE
- COUPLER
- PORT GAUGE
ADAPTOR
SERVICE KIT N:
- RESERVOIR BLADDER
- OIL FILTER
- O-RING
- REFILLING PLUG
KIT
QUANTITY
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
01
01
01
02
01
02
01
01
01
01
01
02
04
01
01
04
01
01
01
01
01
01
01
01
01
PUMP
QUANTITY
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
01
01
01
02
01
02
01
01
01
01
01
02
06
01
01
06
01
01
01
01
01
01
01
01
ITEM
46
47
48
49
50
51
53
54
55
56
57
58
37
23
59
60
61
62
63
64
65
66
67
PART No.
735300-01
735200-01
707100-01
707200-01
DESCRIPTION
SERVICE KIT O:
- HANDLE
- YOKE
- PISTON PIN
- YOKE PIN
- RETAINING RING
- HANDLE GRIP
- SCREW
SERVICE KIT P:
- SCREW
- TAIL BASE
- SPRING WASHER
- NUT
SERVICE KIT Q:
- SPRING
- SPRING
- SCREW
- STEEL BALL
SERVICE KIT R:
- O-RING
- O-RING END CAP
- PIN
- BALL SEAT
- SPRING
- PIN
- BALL SEAT
- STELL BALL
- CHECK BALL
KIT
QUANTITY
01
01
01
01
01
01
0152
04
01
04
04
02
03
05
05
05
05
03
03
01
02
02
02
04
PUMP
QUANTITY
01
01
01
01
01
01
01
04
01
04
04
02
03
05
05
05
05
03
03
01
02
02
02
04
ITEM
68
69
70
71
72
73
74
75
PART No.
707300-01
DESCRIPTION
SERVICE KIT S:
- O-RING
- BEARING
- O-RING
- SPRING PIN
- SCREW
- O-RING
- WASHER
- SCREW
KIT
QUANTITY
01
01
01
02
04
01
01
01
PUMP
QUANTITY
01
01
01
02
04
01
01
01
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
www.equalizerinternational.com
PAGE 12
Page 15
HP1000SD DOUBLE ACTING HYDRAULIC SEALED HAND PUMP
ITEM
PART No.
01
707001-01
520002-01
03
707071-01
04
707048-01
05 SWITCH BASE
707055-01
06
707056-01
707057-01
07
08
707052-01
715300-01
09
10
11
12
13
14
15
715500-01
16
17
715700-01
18
19
20
21
22
23
715800-01
24
25
26
27
28
29
30
31
32
33
715900-01
34
35
716100-01
36
37
52
67
716200-01
38
39
716300-01
40
41
--
735100-01
520001-01
42
43
44
45
DESCRIPTION
PUMP HOUSING
RESERVOIR02
ELBOW
CONTROL SWITCH
HANDLE
HANDLE BALL
TOP PLATE
SERVICE KIT C:
- O-RING
- BACK-UP RING
- PUMP PISTON
- SNAP RING
- O-RING
- BACK-UP RING
- PUMP PISTON
SERVICE KIT E:
- YOKE BASE
- SPRING PIN
SERVICE KIT G:
- SPRING
- STEEL BALL
- OUTLET BALL SPRING
- COPPER WASHER
- VALVE COVER SCREW
- STEEL BALL
SERVICE KIT H:
- STEEL BALL
- SPRING END CAP
- L.P. SPRING
- O-RING
- OVERLOAD COVER
SCREW
- CAP
- OVERLOAD COVER
SCREW
- CONE SEAT
- CONE
- LONG SEPARATOR
SPRING
SERVICE KIT I:
- BASE PLATE
- SCREW
SERVICE KIT K:
- SCREW
- SCREW
- SCREW
- CHECK BALL
SERVICE KIT L:
- GAUGE COUPLER
MALE
- GAUGE
SERVICE KIT M:
- GAUGE COUPLER
FEMALE
- COUPLER
- PORT GAUGE
ADAPTOR
SERVICE KIT N:
- RESERVOIR BLADDER
- OIL FILTER
- O-RING
- REFILLING PLUG
KIT
QUANTITY
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
01
01
01
02
01
02
01
01
01
01
01
02
04
01
01
04
01
01
01
01
01
01
01
01
01
PUMP
QUANTITY
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
01
01
01
02
01
02
01
01
01
01
01
02
06
01
01
06
01
01
01
01
01
01
01
01
ITEM
46
47
48
49
50
51
53
54
55
56
57
58
37
23
59
60
61
62
63
64
65
66
67
PART No.
735300-01
735200-01
520003-01
707100-01
707200-01
DESCRIPTION
SERVICE KIT O:
- HANDLE
- YOKE
- PISTON PIN
- YOKE PIN
- RETAINING RING
- HANDLE GRIP
- SCREW
SERVICE KIT P:
- SCREW
- TAIL BASE
- SPRING WASHER
- NUT
SERVICE KIT Q:
- SPRING
- SPRING
- SCREW
- STEEL BALL
SERVICE KIT R:
- O-RING
- O-RING END CAP
- PIN
- BALL SEAT
- SPRING
- PIN
- BALL SEAT
- STELL BALL
- CHECK BALL
KIT
QUANTITY
01
01
01
01
01
01
0152
04
01
04
04
02
03
05
05
05
05
03
03
01
02
02
02
04
PUMP
QUANTITY
01
01
01
01
01
01
01
04
01
04
04
02
03
05
05
05
05
03
03
01
02
02
02
04
ITEM
68
69
70
71
72
73
74
75
PART No.
707300-01
DESCRIPTION
SERVICE KIT S:
- O-RING
- BEARING
- O-RING
- SPRING PIN
- SCREW
- O-RING
- WASHER
- SCREW
KIT
QUANTITY
01
01
01
02
04
01
01
01
PUMP
QUANTITY
01
01
01
02
04
01
01
01
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
www.equalizerinternational.com
PAGE 13
Page 16
9. WEIGHTS AND DIMENSIONS
B
A
HP350SD HP550SD HP1000SD
OVERALL LENGTH (A) 456.0mm (17.95”) 454.0mm (17.87”) 769.0mm (30.28”)
HANDLE LENGTH (B) 360.0mm (14.17”) 490.0mm (19.29”) 537.0mm (21.14”)
PUMP WEIGHT 5.0kg (11.0lb) 5.6kg (12.3lb) 6.7kg (14.8lb)
GROSS KIT WEIGHT 5.5kg (12.1lb) 6.1kg (13.4lb) 7.2kg (15.9lb)
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 14
Page 17
10. TROUBLESHOOTING
Problem: Hoses are connected and the pump quickly reaches maximum pressure but the tool has not advanced
One or more of the connectors are
not fully tightened and the
hydraulic oil cannot pass through
from the pump to the cylinder
Problem: Hoses are connected and the tool advances but there is minimal pressure on the pump handle and the
xxxxxxxxxhandle is rising back of its own accord
There is dirt or a damaged valve
seat within the pump unit
Check all connectors are fully tightened and the release valve is in the
fully closed position
The pump should be sent to an authorised Equalizer distributor for repair
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 15
Page 18
Problem: The tool the hand pump is driving is advancing but does not reach full pressure
Air could be present in
the hydraulic system

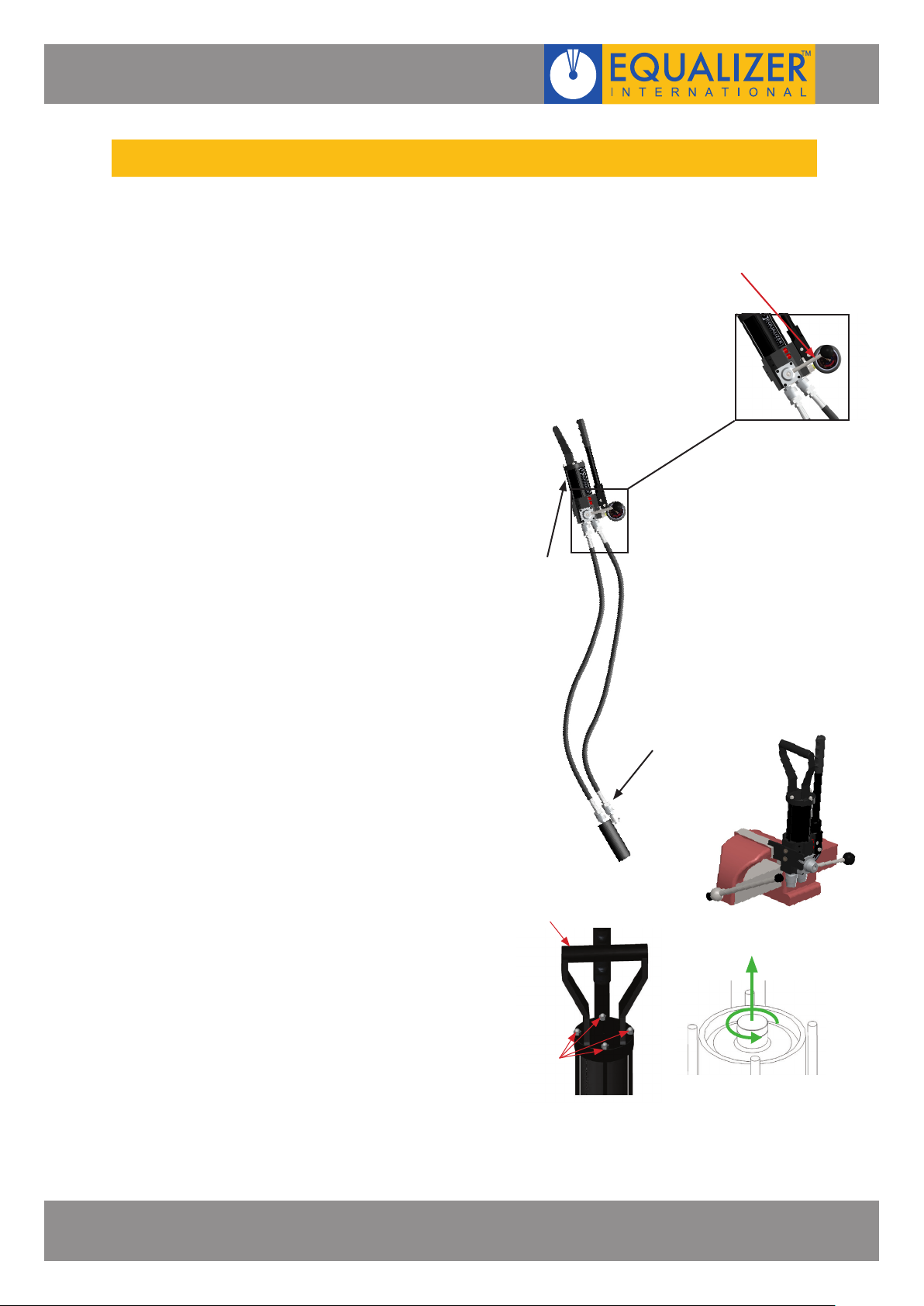

Use the airlock removal
procedure as follows:
1. Connect the hand pump to the
Actuator with the hydraulic
hoses
2. Set the control lever to the
advance position, and prime
the pump until the hydraulic
cylinder is fully extended and a
small pressure is achieved
3. With the hand pump held
above the actuator and the
actuator in an upright position,
set the control valve to the
retract position and prime the
pump until the actuator is fully
retracted and a small pressure
is achieved. this will cause
air that is within the system
to be forced up through the
pump and vented into the oil
reservoir
4. Repeat steps 1 - 3 three or
four times to ensure that all air
is removed from the system
and the tool will reach full
working pressure
control lever
OIL
RESERVOIR
5. Release all pressure from the
system then disconnect the
hand pump from the hydraulic
hose, grip the baseplate of the
hand pump body in a vice with
the pump body vertical and the
main handle at the top
6. Remove the four nuts holding
the main handle and lift off
7. Grip the relling plug with
pliers and extract it by pulling
and twisting simultaneously.
Ensure the reservoir body is
held down when removing the
relling plug as pulling up on
the reservoir body will release
the bladder within, and oil will
spill out.
8. Fill the reservoir to the top with
a good quality hydraulic oil of
the grade 15 cSt
9. Reinsert the relling plug, wipe
away any oil, and reassemble
by reversing the disassembly
process
ACTUATOR
COUPLER
MAIN
HANDLE
NUTS
HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL
PAGE 16
Loading...
