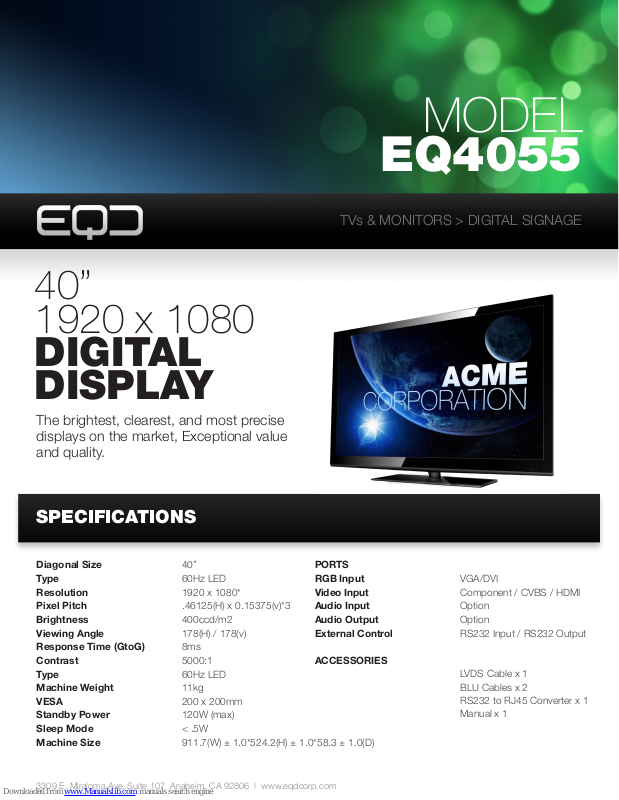

Page 1
40”
1920 x 1080
DIGITAL
DISPLAY
The brightest, clearest, and most precise
displays on the market, Exceptional value
and quality.
MODEL
EQ4055
TVs & MONITORS > DIGITAL SIGNAGE
SPECIFICATIONS
Diagonal Size 40”
Type 60Hz LED
Resolution 1920 x 1080*
Pixel Pitch .46125(H) x 0.15375(v)*3
Brightness 400ccd/m2
Viewing Angle 178(H) / 178(v)
Response Time (GtoG) 8ms
Contrast 5000:1
Type 60Hz LED
Machine Weight 11kg
VESA 200 x 200mm
Standby Power 120W (max)
Sleep Mode < .5W
Machine Size 911.7(W) ± 1.0*524.2(H) ± 1.0*58.3 ± 1.0(D)
3309 E. Miraloma Ave. Suite 107 Anaheim, CA 92806 | www.eqdcorp.com
PORTS
RGB Input VGA/DVI
Video Input Component / CVBS / HDMI
Audio Input Option
Audio Output Option
External Control RS232 Input / RS232 Output
ACCESSORIES
LVDS Cable x 1
BLU Cables x 2
RS232 to RJ45 Converter x 1
Manual x 1
