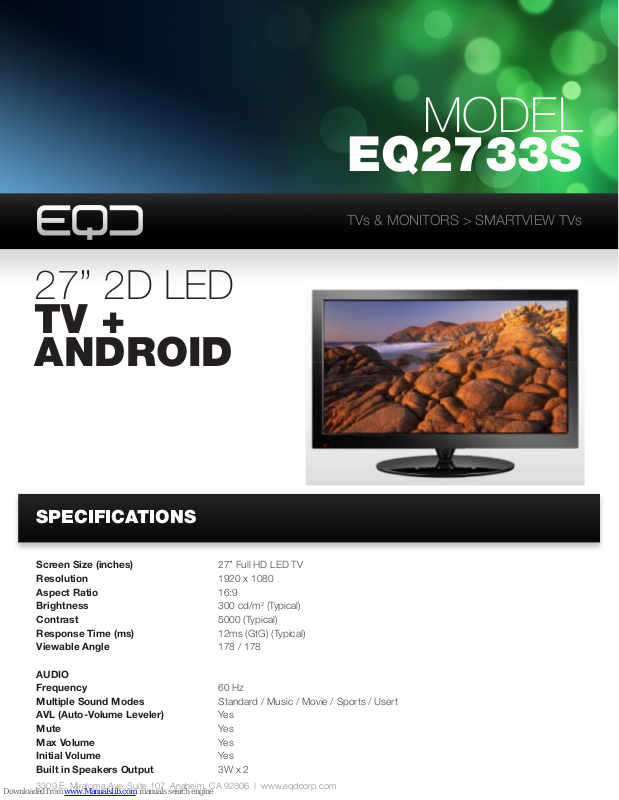

Page 1
27” 2D LED
TV +
ANDROID
MODEL
EQ2733S
TVs & MONITORS > SMARTVIEW TVs
SPECIFICATIONS
Screen Size (inches) 27” Full HD LED TV
Resolution 1920 x 1080
Aspect Ratio 16:9
Brightness 300 cd/m2 (Typical)
Contrast 5000 (Typical)
Response Time (ms) 12ms (GtG) (Typical)
Viewable Angle 178 / 178
AUDIO
Frequency 60 Hz
Multiple Sound Modes Standard / Music / Movie / Sports / Usert
AVL (Auto-Volume Leveler) Yes
Mute Yes
Max Volume Yes
Initial Volume Yes
Built in Speakers Output 3W x 2
3309 E. Miraloma Ave. Suite 107 Anaheim, CA 92806 | www.eqdcorp.com
32
Page 2
EQ2733S
TVs & MONITORS > SMARTVIEW TVs
FUNCTION
OSD Language English / French / Spanish / Portuguese
Default Language English
Color Temperature Cool / Standard / Warm
PC Adjust (auto adjust) Yes
Auto-timer On Yes
Display Mode 16:9 , ZOOM1, ZOOM2, Auto or 4:3
Noise Reduction Ye s
Channel Edit Ye s
Automatic Search Yes
Manual Search Yes
Channel List Yes
Favorite List Ye s
Display Ye s
MODEL
CONNECTIVITY
HDMI (480i, 480p, 576i, 576p, 720p, 1080i, 1080p)
HDMI Input 2
S-VIDEO Input 1
YPbPr Input 1
AV Input 1
15 Pin D-sub (VGA/PC) 1
PC Audio Input 1
Earphone Output 1
USB (one for service port) 1
ANDROID
CPU Cortex A9 up to 1.0 GHz
RAM 512M DDR2
FLASH 4 GB for System and Application Software
External Storage USB Storage, SD Card (FAT, FAT32, NTFS)
WiFi 802.11 b/g/n, Built-in module operational, Need ANT
Operating System 2.3
USB 2
SD Card 1
RJ-45 1
33
3309 E. Miraloma Ave. Suite 107 Anaheim, CA 92806 | www.eqdcorp.com
Page 3
ELECTRICITY PARAMETERS
No. of Built in Speakers 2
Audio Output Power (Built-In) (W) 3W x 2
Voltage Range (V) 100-240V
Power Frequency (Hz) 50/60 Hz
ACCESSORIES
Power Cord 1
Paper User Manual 1
Remote Control 1
Batteries 2 (AAA)
MODEL
EQ2733S
TVs & MONITORS > SMARTVIEW TVs
PACKING
Unit (without base) 656 x 59 x 406
Unit (with base) 656 x 290 x 465
Net Weight / Gross Weight 7 / 9 KG
Carton Box Size 720 x 130 x 510
STD 20’ F 306
STD 20’ F 680
STD 20’ F 840
3309 E. Miraloma Ave. Suite 107 Anaheim, CA 92806 | www.eqdcorp.com
34
