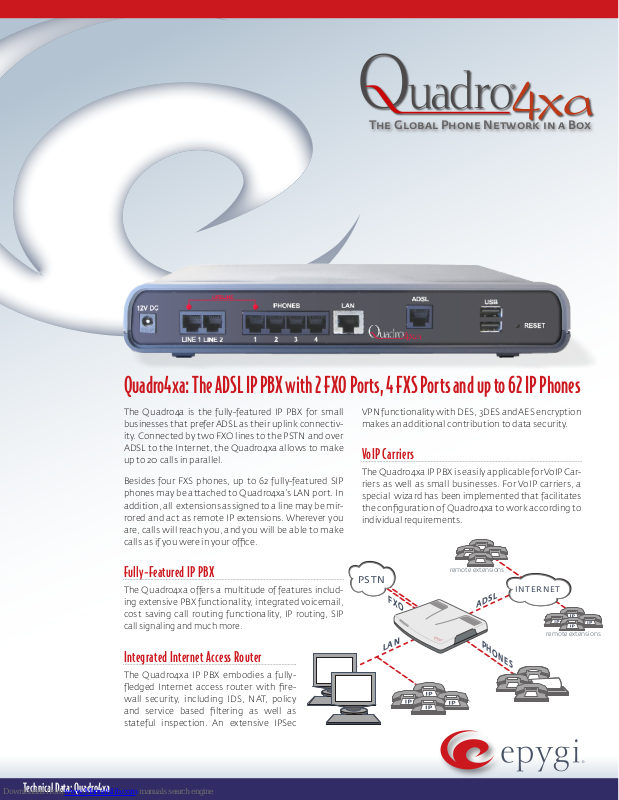

Epygi Quadro Quadro 4xa Specifications
The Global Phone Network in a Box
Quadro4xa: The ADSL IP PBX with 2 FXO Ports, 4 FXS Ports and up to 62 IP Phones
The Quadro4a is the fully-featured IP PBX for small
businesses that prefer ADSL as their uplink connectivity. Connected by two FXO lines to the PSTN and over
ADSL to the Internet, the Quadro4xa allows to make
up to 20 calls in parallel.
Besides four FXS phones, up to 62 fully-featured SIP
phones may be attached to Quadro4xa’s LAN port. In
addition, all extensions assigned to a line may be mirrored and act as remote IP extensions. Wherever you
are, calls will reach you, and you will be able to make
calls as if you were in your ofce.
Fully-Featured IP PBX
The Quadro4xa offers a multitude of features including extensive PBX functionality, integrated voicemail,
cost saving call routing functionality, I
call signaling and much more
.
P routing, SIP
Integrated Internet Access Router
The Quadro4xa IP PBX embodies a fullyedged Internet access router with rewall security, including IDS, NAT, policy
and service based ltering as well as
stateful inspection. An extensive IPSec
VPN functionality with DES, 3DES and AES encryption
makes an additional contribution to data security.
VoIP Carriers
The Quadro4xa IP PBX is easily applicable for VoIP Carriers as well as small businesses. For VoIP carriers, a
special wizard has been implemented that facilitates
the conguration of Quadro4xa to work according to
individual requirements.
remote extensions
PSTN
FXO
LA N
AD S L
PHO NES
IN TER NET
remote extensions
Technical Data: Quadro4xa
Telephony
Voice Features
Voice Coding G.711, G.723 (5.3, 6.3 kbit/s), G.726 (16, 24,
32, 40 Kbps), G.729A, iLBC (13,33 kbit/s , 15,2 kbit/s);
(ITU-T: G711, G.723.1 Annex A, G.726, G729 Annex A; RFC
3951 :iLBC; IETF;ITU-T Q.23, Q.24, Bellcore GR.506,
GR.181; ITU-T G.168-2000, 2002; ETS_300659_1,2,3)
NAT traversal (both manually and STUN)
VAD, CNG, G.168 echo cancellation
Lifeline POTS (single line) on line 1
Bandwidth Rquirements
Per call WAN bandwidth requirements for the
following codecs (non-encrypted/VPN encrypted):
G.711a/G.711u 20 msec 84 kbps/105 kbps
G.726-16 20 msec 37 kbps/59 kbps
G.726-24 20 msec 45 kbps/65 kbps
G.726-32 20 msec 52 kbps/74 kbps
G.726-40 20 msec 60 kbps/80 kbps
G.729a 20 msec 29 kbps/49 kbps
G.723 30 msec 21 kbps/34 kbps
iLBC 30 msec 27 kbps/41 kbps
PBX Features
Call blocking, Forwarding, Holding, Transferring
Call relay, Call waiting, Caller ID Detection
Voice mail
Call park, Pickup, Paging, Intercom
Multilevel auto attendant with Interactive Voice
Response (IVR) and VoiceXMLv2 support
Voice mail with SMS notication
Distinctive ringing
Speed dialing
Many extension ringing
Receptionist
Call hunting, Hiding Caller ID
Automated Call back from Auto Attendant
Hold music
Call statistics
Do Not Disturb service
Unied messaging
3-way conferencing
Hotline service
T.38 fax, fax relay and clear channel fax
Unied Fax Messaging
Busy auto-redial
Directory assistance
Dial plans (call routing)
Time of day dialing
Call Queue
Call Signaling
SIP on the WAN and LAN side (RFCs: 3261, 3263, 3265,
3311, 3323, 3324, 3325, 3428, 3515, 3578, 3581, 3725,
3891, 3892, 3842, 3856, 3863, 4028, 4235)
SDP (RFC 2327)
RTP (RFCs: 1889, 1890, 2833, 3389, 3550, 3551, 3555,
draft-ietf-avt-rfc2833bis-05, draft-ietf-avt-rtp-
ilbc-o5),
in band and out of band signaling support
RTP Proxy
Fax over IP (ITU_T: T4, T30, T38, V17, V21, V27 ter, V29)
POTS Signaling
Loop start
FSK and DTMF Caller ID support
Connectivity
Extensions
Up to 70 extensions including FXS phones LAN IP
Phones remote and virtual extensions
All extensions can be registered on several SIP servers
LAN IP Phones
30 SIP phones by default
32 additional SIP phones may be added with feature
keys
Remote IP extensions may be enabled for all SIPphones
System Capacity
20 simultaneous VoIP calls with external parties
Unlimited station to station calling for IP Phones
Unlimited station to station calling for Analog Phones
2 simultaneous PSTN calls with external parties
Up to 4 simultaneous calls through a VPN
Premise Connections
4 short-loop FXS ports (RJ11)
1 Ethernet 10/100BASE T port (RJ45)
1 USB master connection
Uplink Connection
2 FXO ports to the Central Ofce (RJ11)
1 ADSL port (RJ11)
DSL Layer: ITU: G.992.1 (G.dmt) Annex A, G.992.2
(G.lite) Annex A, G.994.1; ANSI T1.413 Issue 2;
ATM Layer: VCI (0-2047) VPI 0-15 address range;
Single VCI support, ATM Forum UNI3.1/4.0
PVC, AAL5, UBR
Application Adaption Protocols: RFC 2684
Connection Types: PPPoE, PPPoA, RFC 1483B
Other Quadro IP PBX models offer also ISDN, Ethernet
or G.SDSL uplink connectivity. Please refer t0 the
corresponding Technical Data Sheets.
USB Expansion
USB memory sticks for additional voice mail storage
Billing
Radius Client (RFCS: 2865, 2866)
System
Management
Multilingual WEB interface accessible from LAN and
WAN (HTTP/HTTPS), the WAN management access
can be switched off
Password control
Remote diagnostics and software upgrade
Auto-provisioning
VoIP Carrier Wizard
Downoad/restore conguration
Legible and editable conguration les
Auto-conguration via TFTP
SNMP Monitoring
Third Party Call Control XML RPC
Reset button with factory reset option
Custom Language Pack
Internet
STUN/NAT traversal (RFC 3489)
IPSec VPN with DES, 3DES and AES encryption in tun-
nel mode (RFCs: 2402, 2406, 2409).Manual and
automatic IKE key support
PPTP VPN
L2TP VPN
Firewall security via:
Intrusion Detection System
NAT (Network Address Translation)
Policy and service-based ltering
Stateful inspection rewall
DHCP server on the LAN side
DHCP client on the WAN side
DNS server with forwarding functionality
SNTP (Simple Network Time Protocol) server/client for
computer clock synchronization
PPPoE connection to the ISP with PAP/(MS)CHAP
authentication, IEFT RFC 2516
PPPoA, encapsulation RFC 2364
IP DIFFSERV for QoS
Mail client to send voice messages as e-mail
attachments (.wav) and system notications
DNS (DYNDNS) support with third party
Port forwarding
Port translation
Diagnostics/Testing
LEDs: Busy, Info, Fault, USB, LAN, WAN, Line 1, Line 2
IP Call Quality Rating
Remote testing and VoIP diagnostics
Power-up diagnostics
Environmental
Physical Dimensions
Desktop devices, wall-mountable:
Measurements: 10.04” x 8.27” x 1.77”
Weight: 22.6 ounces (640 g)
Conditions
41°F - 104°F (5°C - 40°C) operating temperature
41°F - 140°F (5°C - 60°C) storage temperature
5% - 90% non-condensing humidity
Power Supply
Input 100 - 240 VAC; 50/60 Hz; 0.5 A
Output 12.0 VDC; 1.5 A
(25.5 x 21.0 x 4.5 cm)
Ep yg i Technol ogi es , L td . • 6 900 D all as Pa rkway, Sui te 85 0 • P la no, Texas 75024 • Tel /Fax: ( +1) 97 2.692.1166 • E- ma il: s ale s@e pygi .c om
