The Global Phone Network in a Box

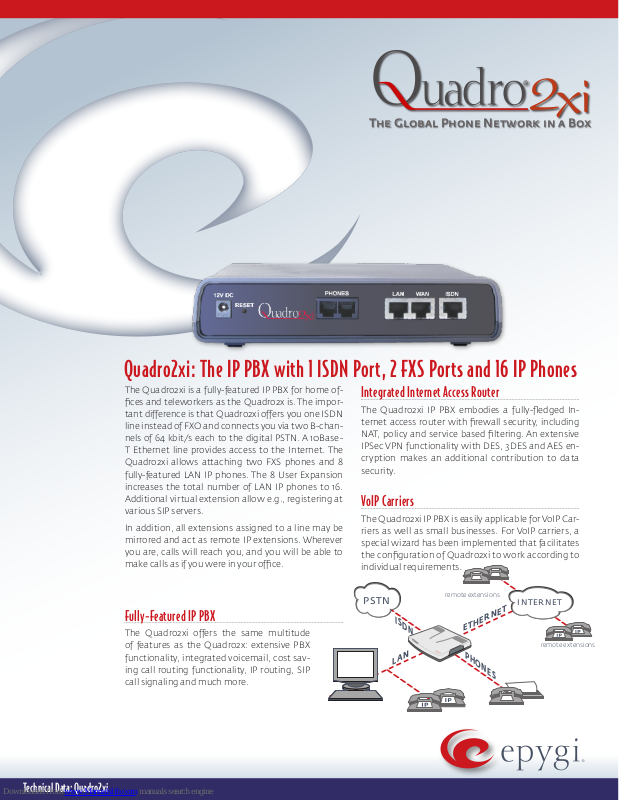

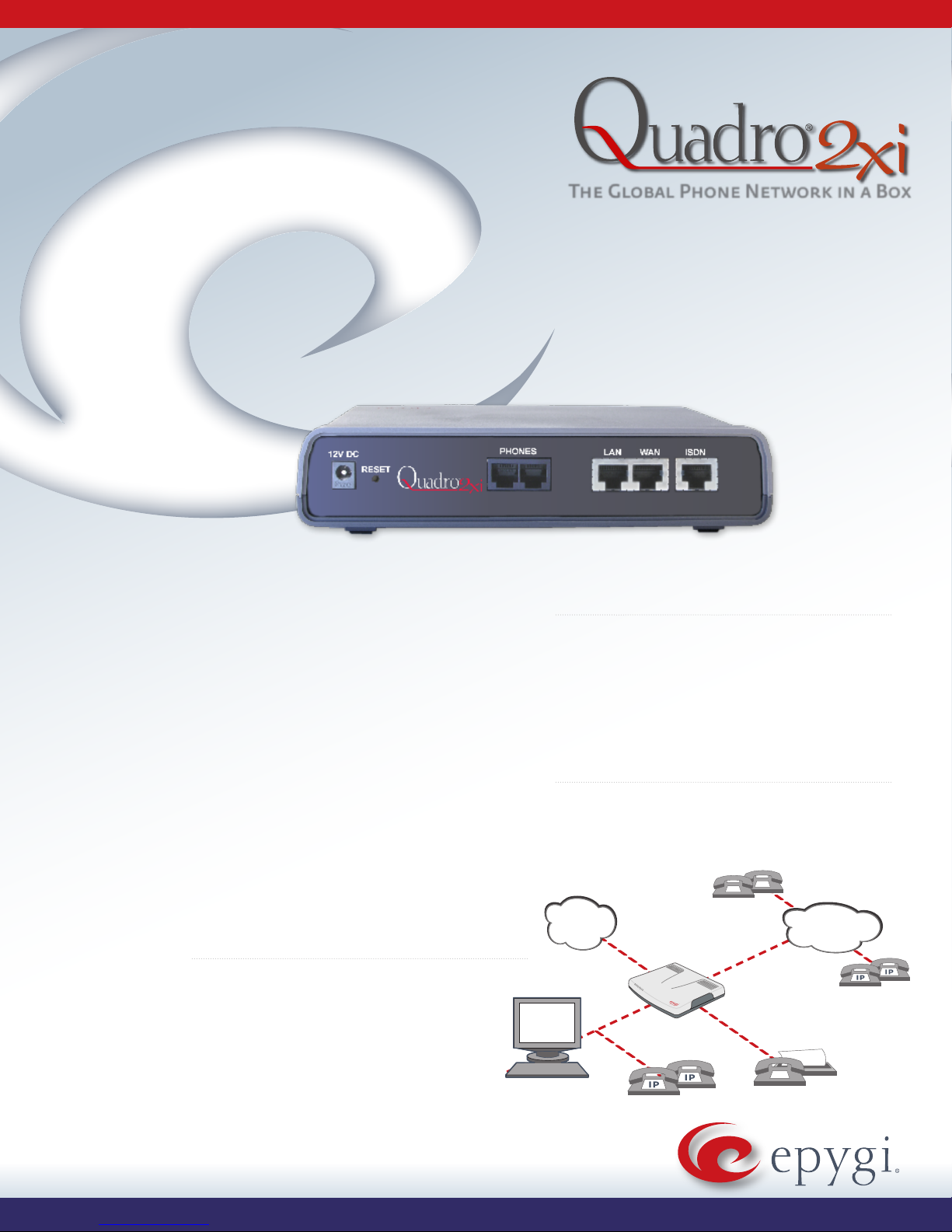

Quadro2xi: The IP PBX with 1 ISDN Port, 2 FXS Ports and 16 IP Phones
The Quadro2xi is a fully-featured IP PBX for home of-
ces and teleworkers as the Quadro2x is. The important difference is that Quadro2xi offers you one ISDN
line instead of FXO and connects you via two B-channels of 64 kbit/s each to the digital PSTN. A 10BaseT Ethernet line provides access to the Internet. The
Quadro2xi allows attaching two FXS phones and 8
fully-featured LAN IP phones. The 8 User Expansion
increases the total number of LAN IP phones to 16.
Additional virtual extension allow e.g., registering at
various SIP servers.
In addition, all extensions assigned to a line may be
mirrored and act as remote IP extensions. Wherever
you are, calls will reach you, and you will be able to
make calls as if you were in your ofce.
Integrated Internet Access Router
The Quadro2xi IP PBX embodies a fully-edged Internet access router with rewall security, including
NAT, policy and service based ltering. An extensive
IPSec VPN functionality with DES, 3DES and AES encryption makes an additional contribution to data
security.
VoIP Carriers
The Quadro2xi IP PBX is easily applicable for VoIP Carriers as well as small businesses. For VoIP carriers, a
special wizard has been implemented that facilitates
the conguration of Quadro2xi to work according to
individual requirements.
Fully-Featured IP PBX
The Quadro2xi offers the same multitude
of features as the Quadro2x: extensive PBX
functionality, integrated voicemail, cost saving call routing functionality, IP routing, SIP
call signaling and much more.
Technical Data: Quadro2xi
PSTN
ISDN
LA N
remote extensions
ET H E R N E T
PHONE S
IN TER NET
remote extensions
Page 2
Telephony
Voice Features
Voice Coding G.711, G.723 (5.3, 6.3 kbit/s), G.726 (16, 24,
32, 40 Kbps), G.729A, iLBC (13,33 kbit/s, 15,2 kbit/s);
(ITU-T: G711, G.723.1 Annex A, G.726, G729 Annex A; RFC
3951 :iLBC; IETF;ITU-T Q.23, Q.24, Bellcore GR.506,
GR.181; ITU-T G.168-2000, 2002; ETS_300659_1,2,3)
NAT traversal (both manually and STUN)
VAD, CNG, G.168 echo cancellation
Bandwidth Requirements
Per call WAN bandwidth requirements for the
following codecs (non-encrypted/VPN encrypted):
G.711a/G.711u 20 msec 84 kbps/105 kbps
G.726-16 20 msec 37 kbps/59 kbps
G.726-24 20 msec 45 kbps/65 kbps
G.726-32 20 msec 52 kbps/74 kbps
G.726-40 20 msec 60 kbps/80 kbps
G.729a 20 msec 29 kbps/49 kbps
G.723 30 msec 21 kbps/34 kbps
iLBC 30 msec 27 kbps/41 kbps
PBX Features
Call blocking, Forwarding, Holding, Transferring
Call relay, Call waiting, Caller ID Detection
Voice mail
Call park, Pickup, Paging, Intercom
Multilevel auto attendant with Interactive Voice
Response (IVR) and VoiceXMLv2 support
Voice mail with SMS notication
Distinctive ringing
Speed dialing
Many extension ringing
Receptionist
Call hunting, Hiding Caller ID
Automated Call back from Auto Attendant
Hold music
Call statistics
Do Not Disturb service
Unied messaging
3-way conferencing
Hotline service
T.38 fax, fax relay and clear channel fax
Unied Fax Messaging
Busy auto-redial
Directory assistance
Dial plans (call routing)
Time of day dialing
Call Queue
Call Signaling
SIP on the WAN and LAN side (RFCs: 3261, 3263, 3265,
3311, 3323, 3324, 3325, 3428, 3515, 3578, 3581, 3725,
3891, 3892, 3842, 3856, 3863, 4028, 4235)
SDP (RFC 2327)
RTP (RFCs: 1889, 1890, 2833, 3389, 3550, 3551, 3555,
draft-ietf-avt-rfc2833bis-05, draft-ietf-avt-rtp-
ilbc-o5),
in band and out of band signaling support
RTP Proxy
Fax over IP (ITU_T: T4, T30, T38, V17, V21, V27 ter, V29)
POTS Signaling
Loop start
FSK and DTMF Caller ID support
Connectivity
Extensions
Up to 70 extensions including FXS phones LAN IP
Phones remote and virtual extensions
All extensions can be registered on several SIP servers
LAN IP Phones
8 SIP phones by default
8 additional SIP phones may be added with a feature
key
Remote IP extensions may be enabled for all SIP
phones
System Capacity
10 simultaneous VoIP calls with external parties
Unlimited station to station calling for IP phones
Unlimited station to station calling for analog phones
2 simultaneous ISDN calls with external parties
Up to 4 simultaneous calls through a VPN
Premise Connections
2 short-loop FXS ports (RJ11)
1 Ethernet 10/100BASE T port (RJ45)
Uplink Connection
1 ISDN port to the Central Ofce (RJ45)
1 Ethernet 10BASE T (RJ45)
(Other Quadro IP PBX models offer also FXO, ADSL or
G.SDSL uplink connectivity. Please refer t0 the
corresponding Technical Data Sheets.)
Billing
Radius Client (RFCS: 2865, 2866)
Internet
STUN/NAT traversal (RFC 3489)
IPSec VPN with DES, 3DES and AES encryption
in tunnel mode (RFCs: 2402, 2406, 2409). Manual and
automatic IKE key support
PPTP VPN
L2TP VPN
Firewall security via:
NAT (Network Address Translation)
IDS
Policy and service -based ltering
Stateful inspection rewall
DHCP server on the LAN side
DHCP client on the WAN side
DNS server with forwarding functionality
SNTP (Simple Network Time Protocol) server/client for
computer clock synchronization
PPPoE connection to the ISP with PAP/(MS)CHAP
authentication
IP DIFFSERV for QoS
Mail client to send voice messages as e-mail
attachments (.wav) and system notications
DNS (DYNDNS) support with third party
Port forwarding
Port translation
System
Management
Multilingual WEB interface accessible from LAN and
WAN (HTTP/HTTPS), the WAN management access
can be switched off
Password control
Remote diagnostics and software upgrade
Auto-provisioning
VoIP Carrier Wizard
Downoad/restore conguration
Legible and editable conguration les
Auto-conguration of IP phones via TFTP
SNMP Monitoring
Third Party Call Control XML RPC is available to order
Reset button with factory reset option
Custom Language Pack
Outlook Feature
Diagnostics/Testing
LEDs: Busy, Info, Fault, LAN, WAN, Line 1, Line 2
IP Call Quality Rating
Remote testing and VoIP diagnostics
Power-up diagnostics
Loop-back testing
Environmental
Physical Dimensions
Desktop devices, wall-mountable:
Measurements: 7.41” x 6.24” x 1.77”
Weight: 13 ounces (360 g)
Conditions
41°F - 104°F (5°C - 40°C) operating temperature
41°F - 140°F (5°C - 60°C) storage temperature
5% - 90% non-condensing humidity
Power Supply
Input 100 - 240 VAC; 50/60 Hz; 0.5 A
Output 12.0 VDC; 1.5 A
Regulatory Compliance
Safety: EN 60950;
EMC: FCC Part 15 Class B;
Telecom: TBR3 (ISDN);
(19 x 16 x 4.5 cm)
EN55022 Class B, EN55024; EN 60950;
ISDN Signaling
ITU-T: Q.921, Q.931, Q.951; ETSI ETS300 102;
NTT INS64 for Japan
