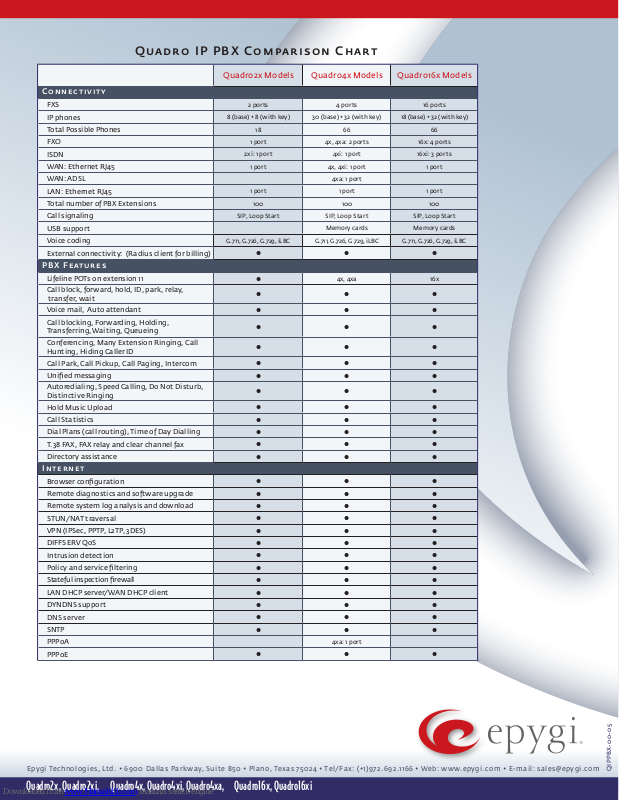

Qu a dr o I P PBX C omp a ri so n C ha r t

Connectivity

FXS

IP phones

Total Possible Phones

FXO

ISDN

WAN: Ethernet RJ45

WAN: ADSL

LAN: Ethernet RJ45

Total number of PBX Extensions

Call signaling

USB support

Voice coding

External connectivity: (Radius client for billing)

PBX Feat u r e s

Lifeline POTs on extension 11

Call block, forward, hold, ID, park, relay,
transfer, wait

Voice mail, Auto attendant

Call blocking, Forwarding, Holding,
Transferring, Waiting, Queueing

Conferencing, Many Extension Ringing, Call
Hunting, Hiding Caller ID

Call Park, Call Pickup, Call Paging, Intercom

Unied messaging

Autoredialing, Speed Calling, Do Not Disturb,
Distinctive Ringing

Hold Music Upload

Call Statistics

Dial Plans (call routing), Time of Day Dialling

T.38 FAX, FAX relay and clear channel fax

Directory assistance

Internet

Browser conguration

Remote diagnostics and software upgrade

Remote system log analysis and download

STUN/NAT traversal

VPN (IPSec, PPTP, L2TP, 3DES)

DIFFSERV QoS

Intrusion detection

Policy and service ltering

Stateful inspection rewall

LAN DHCP server/WAN DHCP client

DYNDNS support

DNS server

SNTP

PPPoA

PPPoE

Quadro2x Models Quadro4x Models Quadro16x Models

2 ports 4 ports 16 ports

8 (base) + 8 (with key) 30 (base) + 32 (with key) 18 (base) + 32 (with key)

18 66 66

1 port 4x, 4xa: 2 ports 16x: 4 ports

2xi: 1 port 4xi: 1 port 16xi: 3 ports

1 port 4x, 4xi: 1 port 1 port

4xa: 1 port

1 port 1 port 1 port

100 100 100

SIP, Loop Start SIP, Loop Start SIP, Loop Start

Memory cards Memory cards

G.711, G.726, G.729, iLBC G.711, G.726, G.729, iLBC G.711, G.726, G.729, iLBC

• • •

•

4x, 4xa 16x

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

• • •

4xa: 1 port

• • •

Ep ygi Techno log ies , Ltd . • 6900 Da lla s Par kway, Suite 85 0 • Plan o, Te xas 75 024 • Tel/ Fax: [phone] • We b: www.ep ygi.c om • E-m ail : s ales@ epygi .co m

Quadro2x, Quadro2xi, Quadro4x, Quadro4xi, Quadro4xa, Quadro16x, Quadro16xi

QI PPB X-0 0-05

IP PBXs

The Global Phone Network in a Box

Quadro2x, Quadro2xi, Quadro4x, Quadro4xi, Quadro4xa, Quadro16x, Quadro16xi

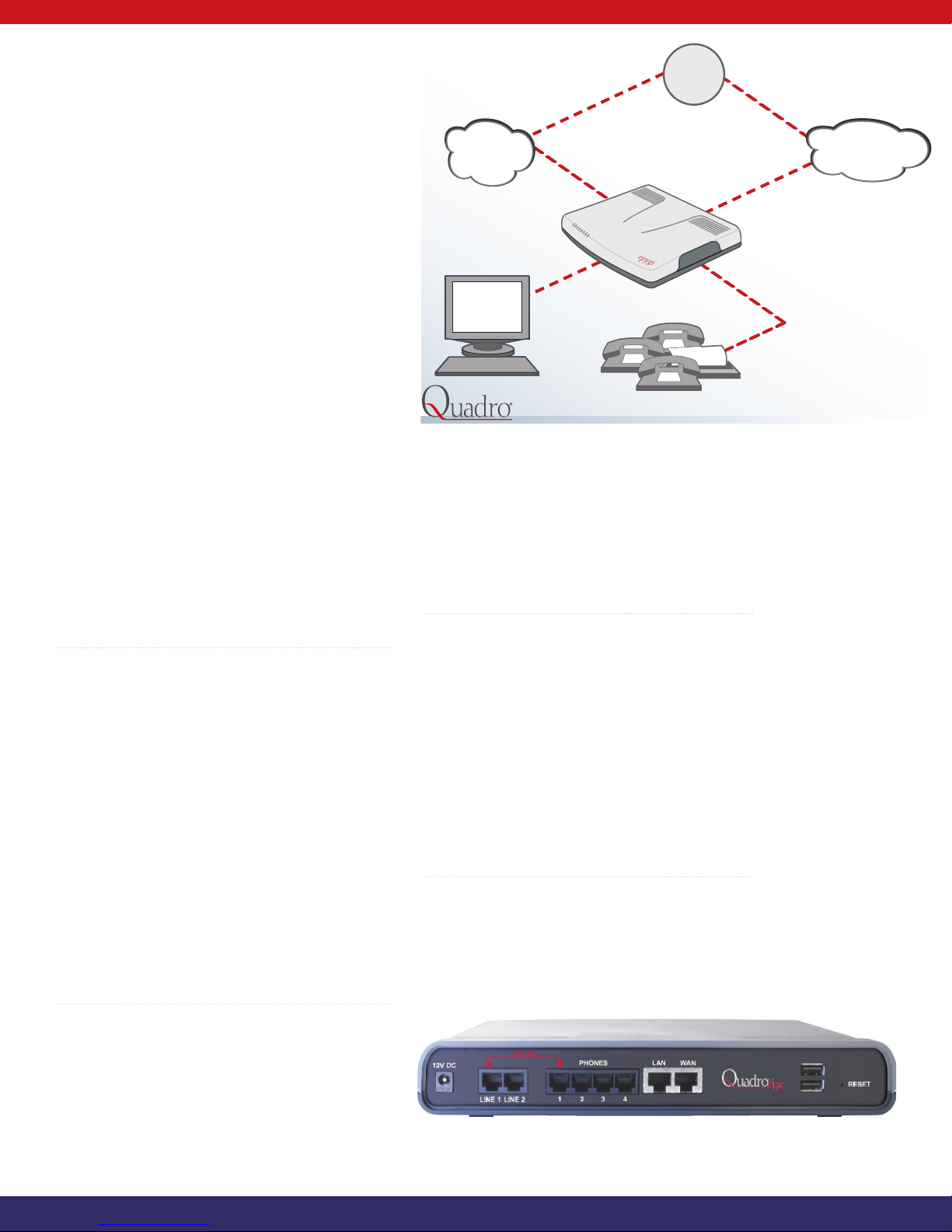

The Quadro “All In One Box”
solution, designed and
manufactured by
Epygi Technologies, Ltd.,
begins a new era in

PSTN

ISD N

FXO

ITSP

INTE R N ET

ETHERNET

x D S L

telecommunications.

Quadro brings it all together — the value of free
city-to-city long distance phone calls, the exibil­ity and ease of your preferred VoIP carrier, if you
want a familiar local phone provider for emergen­cy services and continuity, the ability to mix and
match phone equipment with both IP phones and

analog phones on the same network, and nally,

the robust features of an intelligent, programma­ble PBX on your own premise. You are in control.
It’s your own Global Phone Network in a Box™.

Expand your home teleworker capabilities. Use
your mobile phone to make overseas calls using
only your local rate minutes. Or, make it part of

your ofce phone system, and everyone can make

free long distance or international calls. And
that’s just the start.

It’s Easy

Connect a Quadro to your broadband DSL, cable,
or ISDN network interface. The Quadro automati­cally congures itself. In minutes, you are mak­ing Voice over IP calls for free. Connect IP phones,
ordinary analog phones, or assign PBX trunks so

that your entire ofce or household can use the

Quadro. The voice quality through the Quadro’s
digital signal processor (DSP) is almost always
better than your current long distance calls.

LAN

IP PBXs

Since the Quadro also contains call forwarding
and call routing instructions, people who are out

of the ofce can still be reached automatically.

New York, Los Angeles, London, Tokyo or Buenos
Aires, the world becomes your virtual office.
Communications has never been so inexpensive,

exible or convenient.

PHO N E S

It’s Secure

The Quadro has a lifeline safety feature in the
event of a power failure. If your power goes out,
one phone immediately connects to the public
phone network for emergency services.

The Quadro has many PBX (Private Branch Ex­change) features such as voicemail, 3-way confer­encing, call waiting, and call statistics to name
a few. The Quadro is also packed with network

features including a rewall and a Virtual Private

Network (VPN) for secure communications.

When there isn’t a Quadro device on the other
end, you can still call free of charge to any IP phone
or computer. By using an Internet telephone VoIP
gateway service provider (ITSP), you talk long­distance to anyone on the public phone network
for pennies per minute.

It’s Flexible

FXO or ISDN lines go to your local phone company
so you can make calls from home or on the road.

When you call from outside the ofce, Quadro’s

Caller ID recognizes your mobile phone number
and immediately authenticates your access to the
Quadro.

It’s Inexpensive

Realize a quick payback on your initial invest­ment. Then enjoy recurring cost savings every
time you use your Quadro. No obsolescence. No
upgrades. No maintenance fees. No license fees.

Revolutionary? Absolutely!

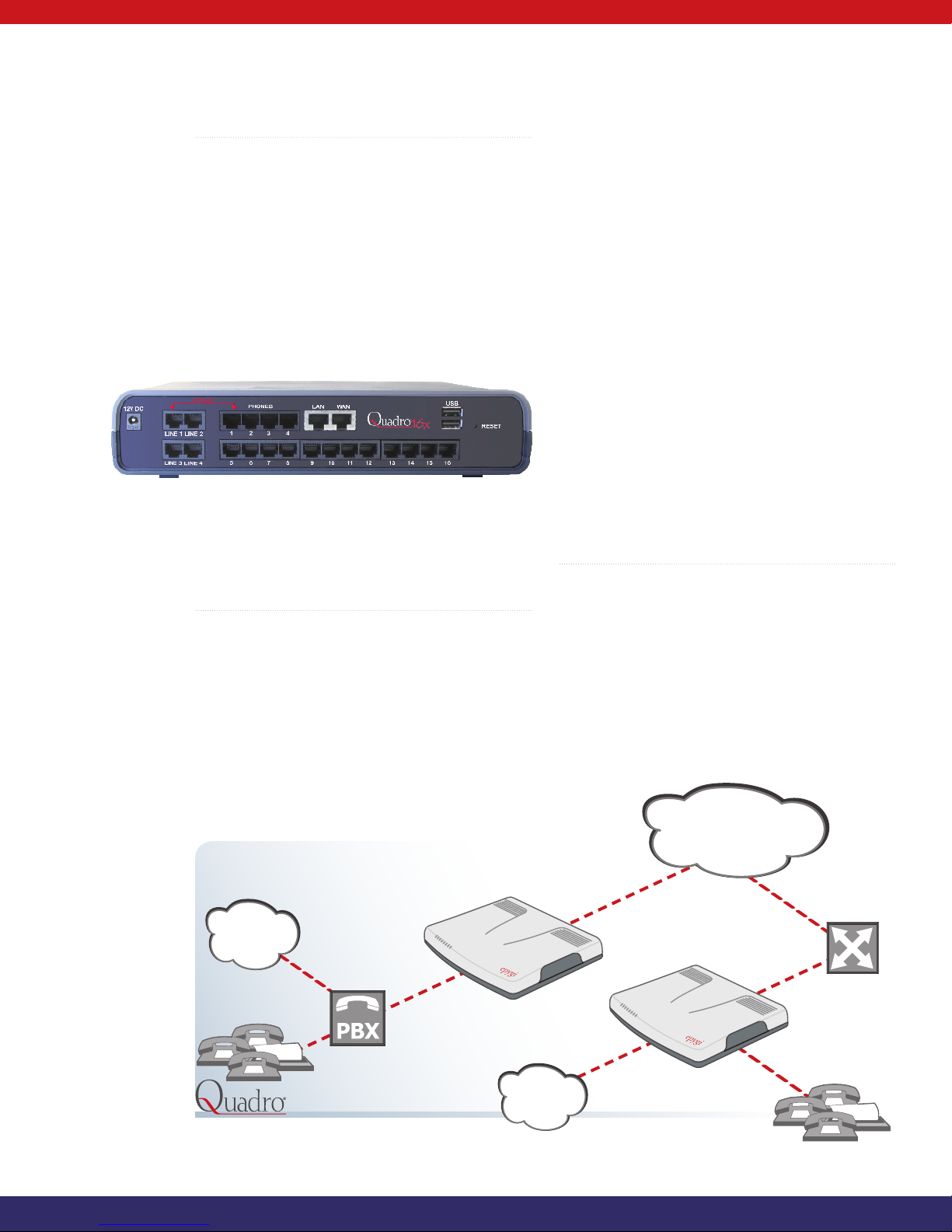

Interfaces

A good place to start is always with the back
panel. The Quadro IP PBXs offer connections for
up to four phone lines (FXO), up to 16 phone ex­tensions (FXS) and up to 62 LAN IP phones. Up to
32 additional IP phones may be connected, us­ing a feature key. The ISDN variants (2xi, 4xi and
16xi) deliver up to three ISDN ports. An Ethernet
10/100BASE-T port connects all Quadro IP PBXs to
your local area network. A 10BASE-T Ethernet port
or an xDSL port allows access to your wide area
network (WAN).

The Quadro prioritizes voice over data to enhance
voice quality using a Codec that best meets your
needs- G.711, G.726, G.729 and iLBC.

Then, voice streams are passed from the DSP to
the CPU where IP headers are added for routing
via the Internet. Other IP applications include
DHCP and PPP, Network Address Translation
(NAT), RADIUS billing support, Network Time
Protocol (NTP) for clock synchronization, a WEB

server (HTTP) for conguration and monitoring,

a Simple Mail Transfer Protocol (SMTP) client, a
rewall, Intrusion Detection System (IDS), Do­main Name Service (DNS), Virtual Private Net­work (VPN) and a Session Initiation Protocol (SIP)
agent for retrieval of call routing information
from public and private SIP servers.

Yet, all of this complexity is easy to maintain and
direct with the streamlined GUI interface. You
control your own voice mail, call forwarding, call
blocking, priority (least cost) routing, messages
and interactive voice prompts and voice mail. No
longer does a small phone system suffer from a
lack of robust features and sophisticated perfor­mance.

The Company

How Does the Quadro Do It?

The Quadro is a very sophisticated and compre­hensive system. If you wish, use the Quadro as
your company’s primary data router. Manage all
your company’s voice and data needs on one box.

The core of the Quadro is the Call Manager on a
CPU running Linux software. The Call Manager
maintains state and interfaces with the FXS and
FXO ports (to set up and terminate voice calls).
It also performs PBX functions. The Call Manager
sends voice streams through the digital signal
processor for voice compression.

PSTN

FXO

ISDN

Epygi Technologies’ headquarters is in Plano,

Texas (North Dallas). Epygi products benet from

extensive knowledge in telecommunications,
DSP voice processing and data networking. Epygi

Sales and Development ofces are in the United

States, Canada, Spain, France, Italy, Germany,
United Kingdom, Armenia and Japan. The compa­ny utilizes a sales organization of distributors and
resellers. Our expanding product line includes IP
PBXs, conference servers and gateways.

INTERNET

ETHERNET

x D S L

IP PBXs

Local
PSTN

FXO

ISDN
