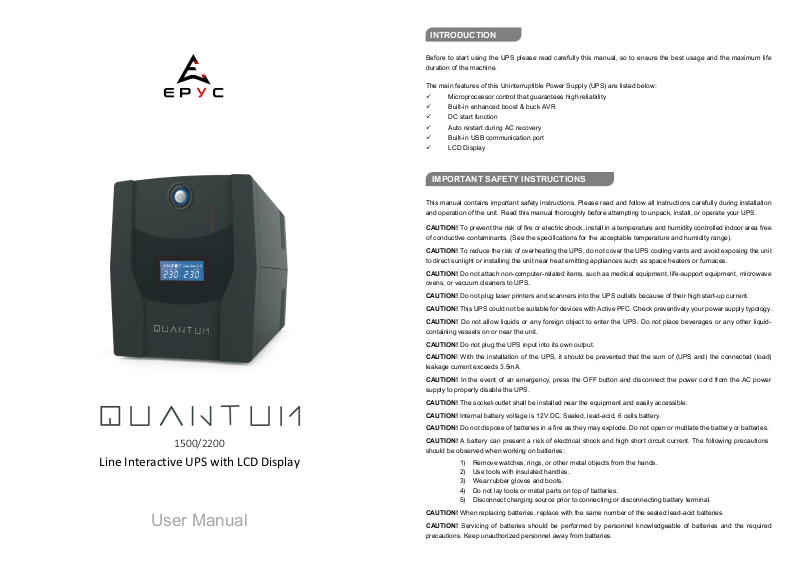

EPYC Quantum 1500, Quantum 2200 User Manual

IMPORTANT SAFETY INSTRUCTIONS
INTRODUCTION

1500/2200

Line Interactive UPS with LCD Display

User Manual

Before to start using the UPS please read carefully this manual, so to ensure the best usage and the maximum life

duration of the machine.

The main features of this Uninterruptible Power Supply (UPS) are listed below:

 Microprocessor control that guarantees high reliability

 Built-in enhanced boost & buck AVR

 DC start function

 Auto restart during AC recovery

 Built-in USB communication port

 LCD Display

This manual contains important safety instructions. Pl ease read and follow all instructions carefully during installation

and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate your UPS.

CAUTION! To prevent the risk of fire or electric shock, install in a temperature and humidity controlled indoor area free

of conductive contaminants. (See the specifications for the acceptable temperature and humidity range).

CAUTION! To reduce the risk of overheating the UPS, do not cover the UPS cooling vents and avoid exposing the unit

to direct sunlight or installing the unit near heat emitting appliances such as space heaters or furnaces.

CAUTION! Do not attach non-computer-related items, such as medical equipment, life-support equipment, microwave

ovens, or vacuum cleaners to UPS.

CAUTION! Do not plug laser printers and scanners into the UPS outlets because of their high start-up current.

CAUTION! This UPS could not be suitable for devices with Active PFC. Check preventively your power supply typology.

CAUTION! Do not allow liquids or any foreign object to enter the UPS. Do not place beverages or any other liquid-

containing vessels on or near the unit.

CAUTION! Do not plug the UPS input into its own output.

CAUTION! With the installation of the UPS, it should be prevented that the sum of (UPS and) the connected (load)

leakage current exceeds 3.5mA.

CAUTION! In the event of an emergency, press the OFF button and disconnect the power cord from the AC power

supply to properly disable the UPS.

CAUTION! The socket-outlet shall be installed near the equipment and easily accessible.

CAUTION! Internal battery voltage is 12V DC. Sealed, lead-acid, 6 cells battery.

CAUTION! Do not dispose of batteries in a fire as the y may explode. Do not open or mutilate the battery or batteries.

CAUTION! A battery can present a risk of electrical shock and high short circuit current. The following precautions

should be observed when working on batteries:

1) Remove watches, rings, or other metal objects from the hands.

2) Use tools with insulated handles.

3) Wear rubber gloves and boots.

4) Do not lay tools or metal parts on top of batteries.

5) Disconnect charging source prior to connecting or disconnecting battery terminal.

CAUTION! When replacing batteries, replace with the same number of the sealed lead-acid batteries.

CAUTION! Servicing of batteries should be performed by personnel knowledgeable of batteries and the required

precautions. Keep unauthorized personnel away from batteries.

CAUTION! Unplug the UPS prior to cleaning and do not use liquid or spray detergent.

POSITIONING

INSTALLING YOUR UPS SYSTEM
DEFINITIONS FOR ILLUMINATED LED INDICATORS

BASIC FUNCTIONALITIES

CAUTION! This UPS utilizes voltages that may be hazardous. Do not attempt to disassemble the unit. The unit contains

no user replaceable parts. Only authorized service personnel may perform repairs.

CAUTION! Do not attach a power strip or surge suppressor with >1,5m wire to the UPS

CAUTION! Do not stick fingers into sockets.

Please follow the instructions to correctly position your UPS:

1. The UPS must be placed on a horizontal surface.

2. This UPS is projected for indoor use.

3. The UPS must not be exposed to direct sunlight or any heat source.

4. The air temperature must be between 0°C and 40°C (25°C is the ideal temperature).

5. Ambient humidity must be less than 90%.

6. The UPS must not be placed on dust y environments.

7. The UPS must be placed at least 15 cm. far from walls to ensure enough ventilation.

8. Do not obstruct or pour any liquid on ventilation hol es.

9. Do not cover the UPS with any object.

10. Keep away liquids, flammable gases or corrosive substances.

INSTALLING YOUR UPS SYSTEM

UNPACKING

The box should contain the following: UPS unit x1, USB cable x1, IEC cable x1.

HARDWARE INSTALLATION GUIDE

1. Your new UPS may be used immediately upon receipt. However, recharging the battery for at least 8 hours is

recommended to ensure that the battery's maximum charge capacity is achieved. Charge loss may occur during

shipping and storage. To recharge the battery, simply leave the unit plugged into an AC outlet. The unit will charge

in both the ON and OFF position.

2. With the UPS unit off and unplugged, connect the computer, monitor, and any externally powered data storage

device (Zip drive, Jazz drive, Tape drive, etc.) into the battery power supplied outlets. DO NOT plug a laser printer,

copier, space heater, vacuum, paper shredder or other large electrical device into the battery power supplied outlets.

The power demands of these devices will overload and possibly damage the unit.

3. Plug the UPS into a 2 pole, 3 wire grounded receptacle (wall outlet). Make sure the wall branch outlet is protected

by a fuse or circuit breaker and does not service equipment with large electrical demands (e.g. air conditioner,

refrigerator, copier, etc). Avoi d using extension cords.

4. Press the power switch to turn the unit on. The power on indicator light will illuminate and the unit will "beep".

5. If an overload is detected, an audible alarm will sound and the unit will emit one long beep. To correct this, turn the

UPS off and unplug at least one piece of equipment from the battery power supplied outlets. W ait 10 seconds. Make

sure the circuit breaker is depressed and then turn the UPS on.

6. To maintain optimal battery charge, leave the UPS plugged into an AC outlet at all times.

7. To store your UPS for an extended period, cover it and store with the battery fully charged. Recharge the battery

every three months to ensure battery life.

Front panel

1. Power Switch

Press the switch for 2 seconds to turn the UPS ON or OFF.

Sound disable: the audible alarm can be turned OFF or ON by quickly
pressing the power switch twice. The default setting is for the Alarm On.

2. Led Indicator

This LED is illuminated when the UPS is working.

3. LCD Display

The LCD will display the UPS status including input voltage, output
voltage, percentage of load and battery…etc.

Rear panel

1. USB COMM. Port

This port allows connection to the USB port on the computer, so to get
access to remote monitoring and shutdown operations through the UPS
management software.

2. Input Circuit Breaker

The circuit breaker provides optimal overload protection.

3. Input power cord

Connect to utility power.

4. Battery Backup & Surge Protected Outlets

The UPS provides outlets for connected equipment to insure temporary
uninterrupted operation during a power fail ure and against surges and
spikes.

LCD Display layout

Indicators definition

Battery mode - Battery capacity
Line mode - Battery charging (cycle lighting)

Line mode

Fault/Ala rm

- Battery full charghed (lighting)

AC Input voltage

Battery mode

Sound disabled

Load capacity

Output voltage
