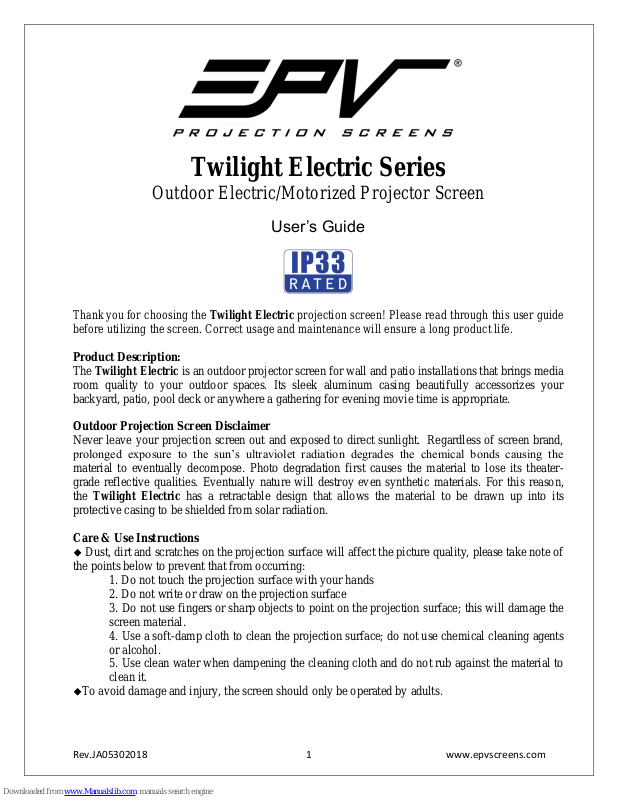

EPV Twilight Electric Series User Manual

Rev.JA05302018 1 www.epvscreens.com

Twilight Electric Series

Outdoor Electric/Motorized Projector Screen

User’s Guide

Thank you for choosing the Twilight Electric projection screen! Please read through this user guide
before utilizing the screen. Correct usage and maintenance will ensure a long product life.

Product Description:

The Twilight Electric is an outdoor projector screen for wall and patio installations that brings media
room quality to your outdoor spaces. Its sleek aluminum casing beautifully accessorizes your
backyard, patio, pool deck or anywhere a gathering for evening movie time is appropriate.

Outdoor Projection Screen Disclaimer

Never leave your projection screen out and exposed to direct sunlight. Regardless of screen brand,

prolonged exposure to the sun’s ultraviolet radiation degrades the chemical bonds causing the

material to eventually decompose. Photo degradation first causes the material to lose its theater­grade reflective qualities. Eventually nature will destroy even synthetic materials. For this reason,
the Twilight Electric has a retractable design that allows the material to be drawn up into its
protective casing to be shielded from solar radiation.

Care & Use Instructions

◆ Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of

the points below to prevent that from occurring:

1. Do not touch the projection surface with your hands

2. Do not write or draw on the projection surface

3. Do not use fingers or sharp objects to point on the projection surface; this will damage the
screen material.

4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents
or alcohol.

5. Use clean water when dampening the cleaning cloth and do not rub against the material to
clean it.

◆To avoid damage and injury, the screen should only be operated by adults.

Rev.JA05302018 2 www.epvscreens.com

Understanding the Ingress Protection Rating IP33

Important Safety & Warning Precautions

Make sure to read this user’s guide and follow the procedures below.

• Please retain this user’s guide for future reference.

• To avoid damaging the unit, do not use with any unauthorized accessories not recommended by the

manufacturer.

• Handle the unit carefully during transportation to avoid any damages.

• To ensure safe and reliable operation, direct connection to a properly grounded power source is

advised.

• The power outlet supplying power to the unit should be close to the unit and easily accessible.

• Do not install the unit on uneven or inclined surfaces.

• Do not put heavy objects on the power cord and position it properly to avoid creating a trip obstacle.

• Never overload the power cord to prevent an electric shock or fire due to a loose contact or a short

circuit.

• There are not user serviceable parts in this unit. Do not attempt to disassemble this unit by yourself.

No one except authorized technicians can open and make repairs to this unit.

• Make sure the power source this unit is connected to has a continuous power flow.

• If there is need to use an extension cord, make sure the cord has an equal rating as the appliance to

avoid overheat.

• Do not handle the power plug when your hands are wet or your feet are in contact with water.

Do not use this unit under the following circumstances.

• Disconnect the power cord under the conditions of heavy rain, wind, thunder or lightning.

• Avoid direct Sunshine, rain shower and moisture.

• Keep away from fire sources and high temperature to prevent this device from overheating.

• Cut off the power supply first before transportation or maintenance.

• Fully disconnect from the power supply when the unit is not in use for a long period of time, as

should be done with any other electric household appliance.

• To avoid possible injury and/or an electric shock, do not attempt to use the screen if there is obvious

damage or if there are any evident broken parts.

Rev.JA05302018 3 www.epvscreens.com

WARNING

The Screen’s Top Black Drop is already set to its maximum drop distance. There is NO extra top black drop
in the roller. Please be aware of this as it will void the limitation of your warranty.
Individual modifications to this product are prohibited and will void the warranty with the manufacturer.
Please contact Customer Service for any questions.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that the interference will not occur on a installation. If this equipment causes
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures.

✓ Reorient or relocate the receiving antenna of the device which may be causing the interference.
✓ Increase the separation between the screen and the device’s receiver.
✓ Connect the equipment into a different power outlet other than the device.

Pre-Installation

1. Carefully unpack the screen.

2. Always handle the screen in a leveled position on a clean surface.

3. In order to protect the screen from exposure to stains, keep the screen out of contact with foreign

particles such as dust, sawdust, and/or liquids.

NOTE

Wall screws included with this product are complementary and may not be adequate for all mounting surfaces.
Consult with a professional installer or hardware store for proper mounting screws and anchors.

Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling
on the viewing surface will not cause the casing to become loose or fall. The installer must insure that the
fasteners used are of adequate strength and suitable for the installation location.

Hardware Parts List for Twilight Electric Series

A. Mounting

Bracket x2pcs

B. M10 Anchor and

M4x50 Screw x4pcs

C. M8x35 Anchor and

M4x35 Screw x4pcs

D. Suspended Ceiling

Bracket Connector x2pcs

E. M5x15 Screw&

Bolt x4pcs

G. Magnetic weight

bar bracket x2pcs

H. Curved Stake

x2pcs

I. Carabiner x2pcs

J. Elastic String x2pcs

K. Bubble leveler

x1pc
