INSTRUCTION MANUAL
1
START NOW WITH EPULSETM.
Having a life that is free from aches and pains is easier
than you expected. Now you too can overcome your
ailments and be pain free. By using your E-Pulse
TM
Pro on
a regular basis, not only will you feel relief, you will be on
the road to a healthier lifestyle.
INTRODUCTION
E-Pulse
TM
Pro is a 21st Century revolutionary wonder that
has the ability to create the feeling of an actual massage.
With an unprecedented 6 modes, our E-Pulse
TM
Pro unit
brings relief from a host of ailments. Equipped with two
output ports, our unit supports up to four pads at once for
maximum relief.
Similar technology has been used by chiropractors,
doctors, orthopedists, and physical therapists for the past
three plus decades to provide pain relief for an array of
needs and ailments. Now you too can experience the
ultra-smooth, deep tissue massage sensations of your
own lightweight, portable, and durable E-Pulse
TM
Pro
device.
2
OPERATING INSTRUCTIONS
1) Plug in both sets of wires into the two ports which are
located at the bottom of your E-Pulse
TM
Pro device.
2) Attach two pads by snapping both onto the fasteners
attached to the connecting wires.
3) Remove the protective plastic covers from the pads and
sprinkle a few drops of water before using. This will
prolong the durability and life of your pads.
4) Place pads right on the skin near the desired or affected
area of the body. Please read the precautions and FAQ
sections in order to safely use the device.
5) Turn on the device by sliding the switch located on the
top left to its On position. Your unit is now activated.
6) Increase the intensity of your device to the desired
setting and sit back, relax, and enjoy the different
pulses and sensations as well as the relief from your
tension or pain.
7) The timer is automatically set on your device for
20 minutes. This may be increased in ten-minute
increments to a maximum of 60 minutes. To do this,
press the (T) button on the front of the device. Your
massage unit will shut off automatically after the
allotted time has passed. You can stop your device at
any time by tuning it off. Simply slide the On/Off button
to its Off position. Upon finishing your session, please
rinse the pads with cool water and rest them face down
on the plastic pad rest. Doing this will extend the life of
your pads by protecting them from dirt particles as well
as other types of dust and matter.
8) Get to know your E-Pulse
TM
Pro by experimenting
with all of the 6 therapeutic pulses and modes. When
changing modes, the intensity of the pulse or massage
will reset itself back to the minimum strength. You
can regulate the intensity of your unit by pressing the
plus (+) and minus (-) buttons located below the face
of the unit. After regular use, you will start to feel the
therapeutic relief that is given by the E-Pulse
TM
Pro.
9) To recharge the lithium battery, simply plug the
E-Pulse
TM
Pro device to a computer or an electric outlet
using the USB cable and plug provided.
3
4
POWER
ON/OFF
USB PORT
(M) CHANGE
MODE
(-) DECREASE
STRENGTH
(+) INCREASE
STRENGTH
(T) TIME
OUTPUTS TO
CONNECT PADS
5
MODES
The E-Pulse
TM
Pro has six (6) modes for you to
benefit from and enjoy:
Each of the 6 modes offers a unique pulse with
therapeutic and pleasant sensations which will help you
feel relief from aches and pains generated from different
ailments of the back, the head, joints, lower and upper
6
extremities, and illnesses such as Fibromyalgia, Arthritis,
Rotator Cuff, Joint Disease, Osteoporosis, Migraine
Headaches and Cluster Headaches, TMJ, Chronic Fatigue,
and others.
PRECAUTIONS
• Pregnant women and nursing mothers should avoid
using this device.
• Never use this device on yourself if you have a
pacemaker. Also never place the pads in the region of
the heart.
• This device must be avoided by those who are dependent
on life support equipment such as respirators or
artificial lungs and /or any other related medical
apparatus.
• Never touch the inner gel side of the pad while
connected to a functioning device.
• Keep this device out of reach from children.
FREQUENTLY ASKED QUESTIONS
How does E-PulseTM Pro work?
E-PulseTM Pro uses bio-electric stimulus to massage your
7
muscles. Your muscles respond to the impulses by
contracting and relaxing rhythmically. This massage helps
to reduce tension and knots. It can also reduce
inflammation and alleviate the pain. With regular use, your
E-Pulse
TM
Pro can help your muscles and joints feel better.
The soothing sensations are similar to what you receive
when treated by a massage specialist, chiropractor or
physical therapist.
Where can I use my E-PulseTM Pro pads?
You can use the E-PulseTM Pro on almost every muscle
and joint area on your body. Do not apply the massage
pads near the heart, the pubic region, scarred areas, on
the throat or in the mouth. As a general rule, if you have a
muscle or joint that hurts, place the pads on or around the
area making sure both pads are aligned with the muscles.
The best way to relieve your pain is to find the pain points
and apply the pads there.
E-Pulse
TM
Pro is ideal for women to use on their abdominal
muscles after giving birth as well as anyone who lives a
sedentary lifestyle. The E-Pulse
TM
Pro may help tone abs,
break down cellulite, and tone other areas of the body.
The E-Pulse
TM
Pro is also beneficial to the elderly as well
8
as other people who are forced to sit for prolonged periods
of time. You can use the device on different muscle groups
to maintain muscle tone and prevent stiffness and atrophy.
E-Pulse
TM
Pro is also relieves tired, achy, and strained
muscles. It is designed to give you relaxation and a deep
soothing massage.
How far up on the back of my neck can I put
the massage pads?
About half-way up the neck is the ideal placement for your
massage pads. If you have tension at the base of your
head, placing the pads halfway up should help that area.
This also helps with headaches.
I put the massage pads on my shoulders and the
massage sensation feels uncomfortable.
What should I do?
You probably have a lot of tension in that area. Most people
don’t realize how much muscular tension they have until
they get a massage. If the uncomfortable feeling persists
for more than a minute or two, move the massage pads
over or down a little. Sometimes, an indirect massage is
necessary for the really sensitive areas. We also
recommend decreasing the intensity of your massage.
9
Is E-PulseTM Pro safe to use?
Bio-electric stimulus is perfectly safe for use. Not only is
it safe, it is very therapeutic for most people. There are
cases however, when people with certain health conditions
cannot use this massager. Pregnant women must avoid
using this massager. Patients with a pacemaker or life
support equipment, such as an artificial heart-lung
device(s) and/or respirator-type medical devices must
avoid using this massager.
How long do the massage pads last?
With frequent use, the two pair of pads included with the
massager should last about 4-6 months. Always make
sure to apply a few drops of water on the pads before
applying and rinse accordingly after use. Cover the pads
with their protective films and place them on the round
holder so they don’t dry out.
If you feel an unpleasant or stinging sensation, the pads
may be worn out and need replacement. If they look good
and have good adhesiveness, check your battery as it may
be getting low and a simple charge can help. More massage
pads can always be ordered from our website.
10
How long will the batteries last in the massager?
Generally about 30 to 42 hours of runtime, or more. This
kind of technology is not hard on batteries. You can also
use the unit with the wall charger or directly from your
computer using the USB cable.
Does E-PulseTM Pro have a warranty?
Yes, E-PulseTM Pro has a two-year factory warranty. Check
our warranty on page 21 for further details or online at
www.magicpulsemassage.com.
We advise you to consult your doctor if you have
or think you have any of the following conditions
before using your E-PulseTM Pro:
• An acute disease
• Cardiac dysfunction
• Epilepsy
• High blood pressure
• High fever
• An infectious disease
• Any malignancies
• Recent surgery
• Skin problems
11
REMEMBER TO KEEP YOUR DEVICE AND PADS
OUT OF THE REACH OF CHILDREN!
TREATMENT AND RELIEF FOR SCIATICA
1) Plug two sets of wires into both ports of the device.
2) Attach pads to the wires after lightly sprinkling with
water.
3) Align the pads to the lower back on both the right
and left sides.
4) Attach the two remaining pads on your lower
extremities by sticking them both on the lower outer
thighs.
5) Regulate the intensity to your comfort and set your
timer for maximum results.
6) Favorite modes for treatment of Sciatica are both the
Pushing and Acupuncture modes. It is advisable to
do this treatment as needed for thirty minutes at
a time. Doing so treats the symptoms and pains
associated with Sciatica.
12
NECK PAIN:
Suffering from neck pain? We have the answer! Your
E-Pulse
TM
Pro may soothe and comfort a sore and aching
neck.
1) Plug in one wire into the port on either the right or left
side of your device.
2) Fasten both pads by snapping them on to the wires.
3) Attach the pads two inches below your neck.
4) Attach the other two pads an inch to both the right and
left of the other set.
5) Turn on your device and set your timer for 20 minutes.
6) For maximum benefits and relief, use your massager
on a daily basis for twenty minutes at a time.
SHOULDER PAIN AND ROTATOR’S CUFF:
1) Use one set of wires with two pads. After lightly
wetting your pads, attach one ½ inch from the top of
shoulder on the front side. Attach the remaining pad
½ inch from the top of your shoulder on the back side.
2) Set your device to the Acupuncture mode.
3) Set the desired intensity.
4) Set timer for 20-30 minutes.
5) Remember to moisten the pads and store on pad holder
after treatment.
13
Your E-Pulse
TM
Pro has a plethora of benefits.
Regular use provides a healthier lifestyle and will help
keep you free from aches and pains. Increased circulation,
relaxation, and the release of Serotonin and other
endorphins are several of the benefits you can experience
from regular use.
14

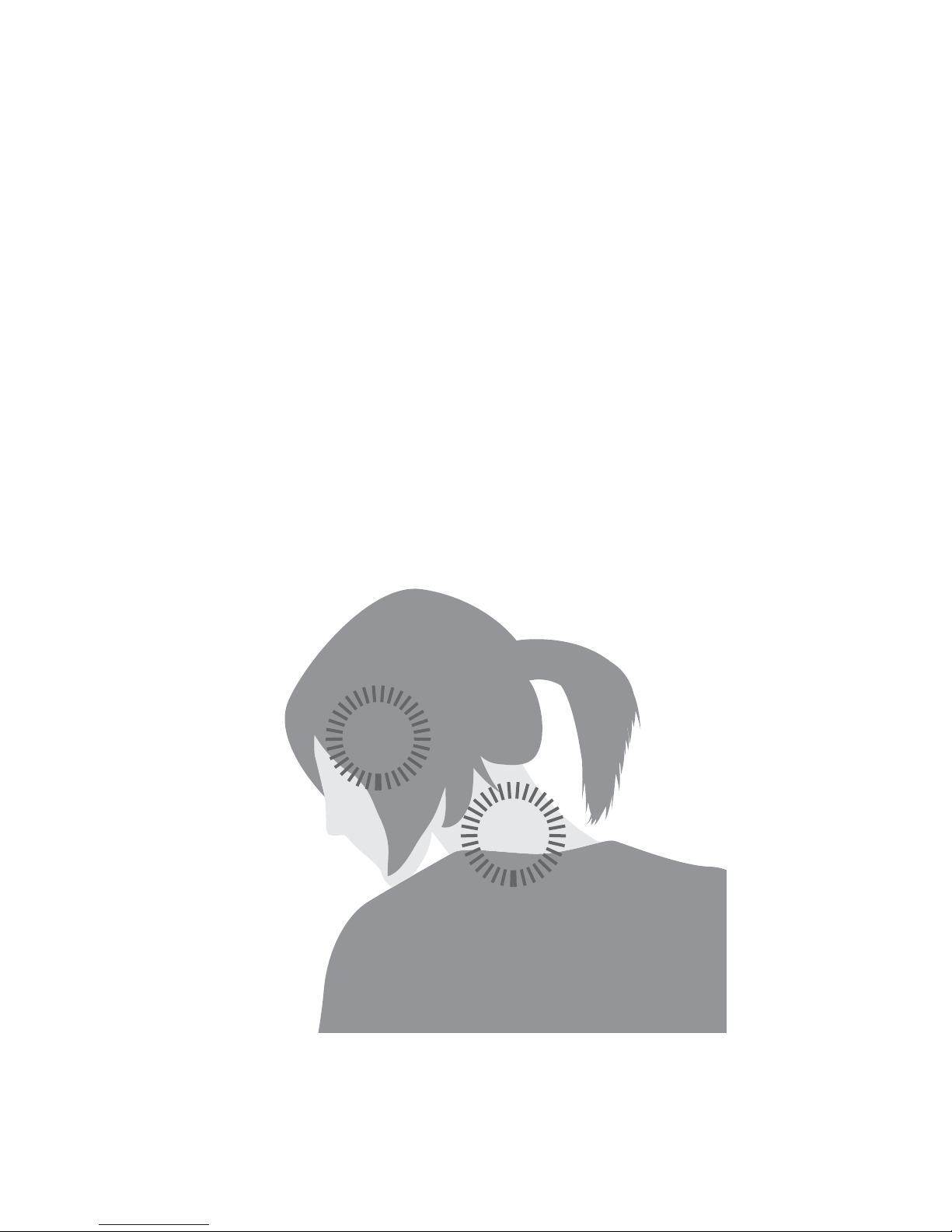

MIGRAINE, CLUSTER AND OTHER HEADACHES:
For maximum relief, attach small size pads to the back of
head and to the temples.
1) Set mode for either Tapping or Scraping
2) Regulate intensity to the desired level.
3) Set timer for 30 minutes as needed.
4) Upon completion of massage session, detach pads,
rinse with water, and place on holder. This keeps the
pads clean and ready for the next use.
15
TONING ABS AND MUSCLES:
1) Attach four pads to the leads by fastening them by
the snaps.
2) Sprinkle a few drops of water on your pads.
3) Place two pads on alternate sides about one inch above
the navel.
4) Place the other two pads two inches below your navel
on alternate sides.
5) Set your device to Auto Combination mode.
6) Set your timer to 40 minutes and increase the intensity
to the desired strength.
16
PAIN IN WRISTS, HANDS, AND UPPER EXTREMITIES:
The E-Pulse
TM
Pro is a smart option when it comes to pain
in your upper extremities. Thousands of people suffer
from pain in the wrists, knuckles, joints, hands, and
forearms. The pain often stems from Arthritis, Carpal
Tunnel Syndrome, Joint Disease, and other ailments. The
E-Pulse
TM
Pro will intensely massage these problematic
areas and offer you added relief by increasing the
circulation of the affected areas.
WRIST JOINT AND KNUCKLE PAIN:

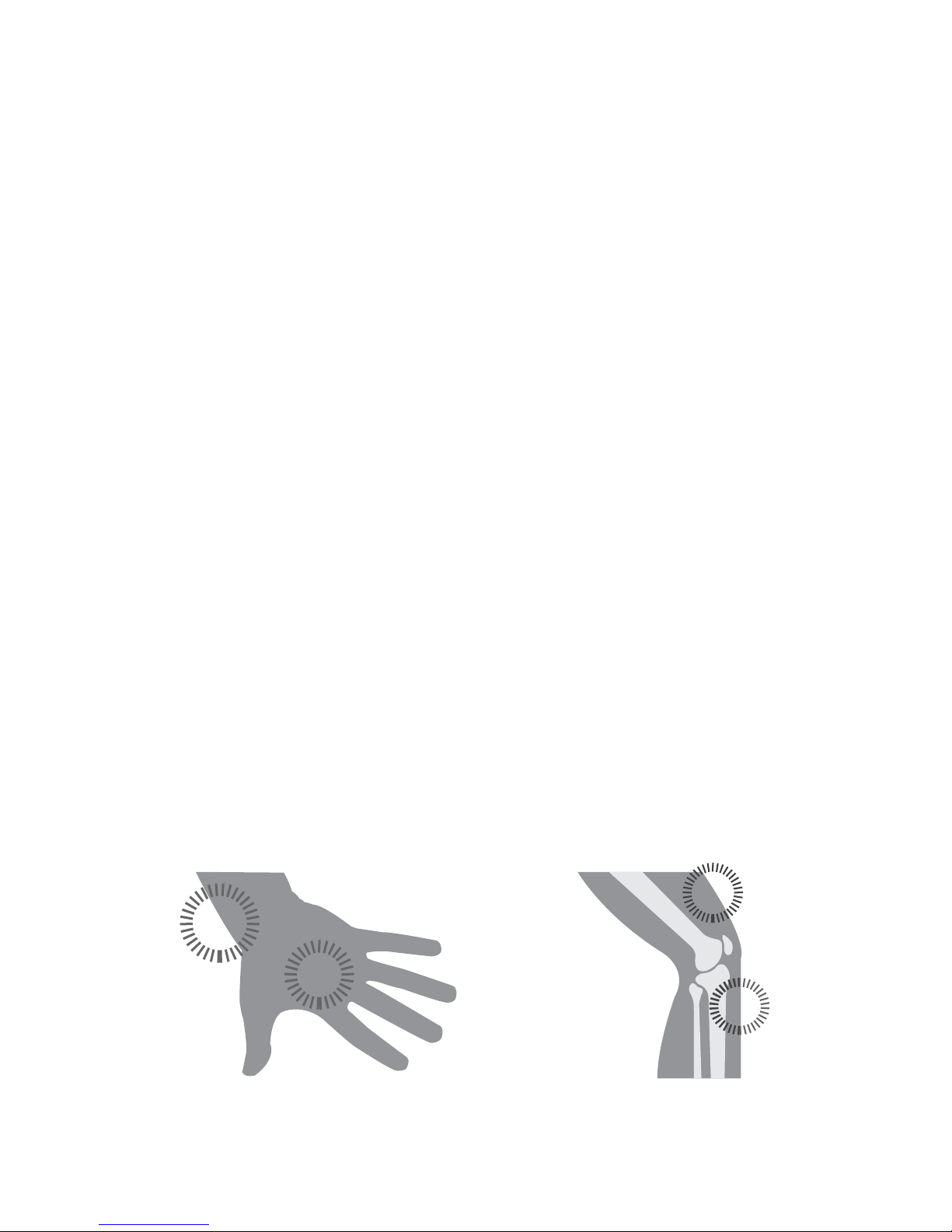

1) Apply one pad to the underside of the wrist.
2) Apply another pad to the top of the hand right below
the knuckles.
3) Set your mode to Acupuncture.
4) Set timer for 30 minutes.
5) If both hands and wrists are affected, repeat the
process on the other hand and wrist.
17
CARPAL TUNNEL SYNDROME AND OTHER JOINT PAIN:
Many people suffer from Carpal Tunnel Syndrome and
other related joint pain. Immediate relief is felt when using
the E-Pulse
TM
Pro.
For fast relief and treatment, use your device daily,
following these steps:
1) Moisten massage pads with a few drops of water and
attach to the fasteners on the output wire.

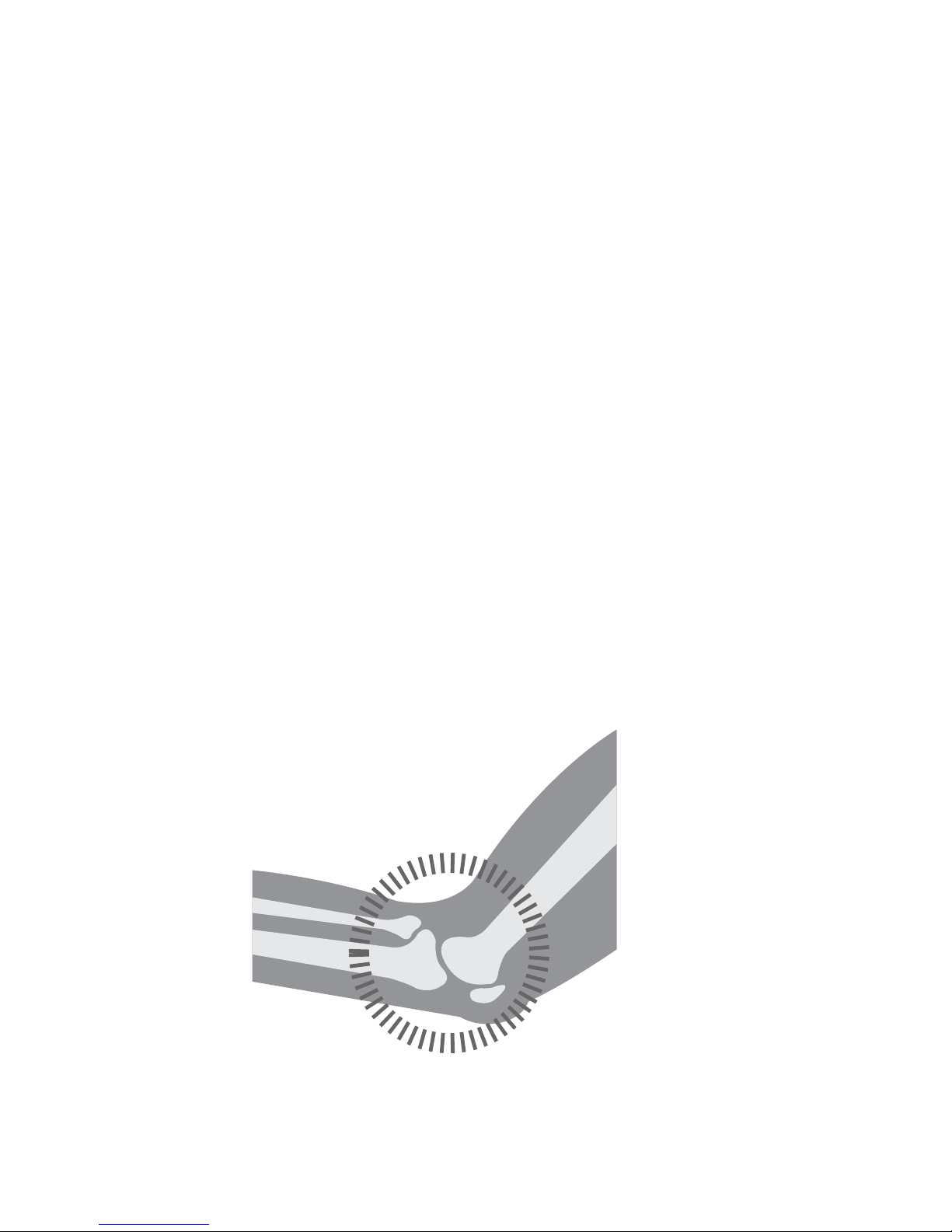

2) Stick one pad on the inside of the forearm and the other
on the area of the elbow.
3) Set the mode to Acupuncture and regulate the desired
intensity.
4) Enjoy the treatment and massage for up to 30 minutes.
18
FOOT MASSAGE USING PUSHING MODE:
E-Pulse
TM
Pro can help to increase the blood flow and
circulation of the feet and legs. By sending oxygen through
the extremities, there is increased circulation and mobility.
The E-Pulse
TM
Pro may help those suffering from
Diabetes, Varicose Veins, Planters Fasciitis and other
problems. There are two ways to benefit from the
Pushing mode. One is by using the pads. Another option is
to connect E-Pulse
TM
Massage Shoes to the device.
FOOT MASSAGE USING PADS:
1) Connect both output wires to the two ports on the
bottom of the E-Pulse
TM
Pro.
2) Moisten the massage pads with a few drops of water
and snap to the fasteners on each wire.
3) Attach one pad to the top of your foot
19
4) Attach the other pad to the sole of the foot.
5) While in a sitting position, activate the device and set it
to the Pushing mode.
6) Regulate to the preferred intensity.
7) Set timer for 30 minutes.
8) REMEMBER to remain seated through the duration
of the treatment.
REFLEXOLOGY WITH MASSAGE SHOES:
1) Another way to enjoy Reflexology is to use the
E-Pulse
TM
Pro Massage Shoes (sold separately) instead
of pads.
2) Both Slippers can be fastened to the output wires.
The snaps are located on the right inner side of
each slipper.
3) After attaching the slippers to the device, in a seated
position, slide your feet into our one-size-fits-all
slippers and adjust the fitting by tightening or loosening
the Velcro straps.
4) Choose Pushing mode
5) Regulate the intensity.
6) Set timer for 30 minutes.
7) REMEMBER to remain seated through the duration
of the treatment.
8) Relax and enjoy the sensations as they stimulate and
heal the feet and legs.
20
E-Pulse
TM
Pro is a portable and durable device that can
accompany you wherever you go. We at Enovative
Technologies understand that aches and pains should not
impair or interfere with the quality of your life. Our
sensibly designed E-Pulse
TM
Pro is ready to go wherever
you go. Whether you are on your way to a business trip
by plane or car, or at home with family and friends; your
device is ready for you to use at any given time.
Your USB cord and adapter make it possible to charge
the device either on your computer or from an electrical
outlet. Sleek, with a state of the art design, you can carry
the stylish E-Pulse
TM
Pro in your pocket.
Whether it’s a massage that is desired or pain relief that
is needed, E-Pulse
TM
has the answer. E-PulseTM Pro has
enhanced the quality of life of hundreds of thousands
of people. Now you too can be comfortable by using the
device regularly. Improve the quality of your life starting
right now!
WARRANTY
The E-Pulse
TM
Pro device has a two-year limited warranty (valid
in the USA, Canada, and UK only). E-Pulse
TM
Pro is guaranteed
free from defect in material and workmanship for a period of two
years from date of purchase, except as noted below.
The warranty does not cover damage caused by misuse, abuse or
accident, the attachment of any unauthorized accessory or
alteration of the product. This warranty is only effective if the
unit is purchased in the USA, Canada, or UK. Under this warranty,
E-Pulse
TM
Pro shall not be responsible for any type of
incidental, consequential, or special damages. All implied
warranties, including but not limited to those implied warranties
of merchantability, are limited in the total duration of 2 years
from original purchase date.
To obtain warranty service on you E-Pulse
TM
Pro, please email
info@epulsemassage.com to receive return merchandise
authorization (RMA) instructions. A processing fee may apply.
21
Distributed by
ENOVATIVE TECHNOLOGIES
www.enovativetech.com
Loading...
