Epson V11H868041 User Manual

LightScene EV-100/105 User's Guide

LightScene EV-100/105 User's Guide ........................................................................................................ 9

Introduction to Your Projector ................................................................................................................. 10

Setting Up the Projector ........................................................................................................................... 23

Projector Features.............................................................................................................................. 10

Product Box Contents.................................................................................................................... 11

Additional Components ................................................................................................................ 13

Optional Equipment and Replacement Parts................................................................................. 13

Warranty and Registration Information .......................................................................................... 14

Notations Used in the Documentation ................................................................................................ 14

Where to Go for Additional Information .............................................................................................. 15

Additional Projector Software and Manuals........................................................................................ 15

Projector Part Locations ..................................................................................................................... 16

Projector Parts - Front ................................................................................................................... 17

Projector Parts - Rear .................................................................................................................... 18

Projector Parts - Interface Panel.................................................................................................... 19

Projector Parts - Top...................................................................................................................... 20

Projector Parts - Remote Control................................................................................................... 21

Projector Placement........................................................................................................................... 23

Projector Setup and Installation Options ....................................................................................... 23

Adjusting the Projection Angle .................................................................................................. 26

Projection Distance........................................................................................................................ 28

Attaching and Removing the Cable Clips ........................................................................................... 29

Connecting to a Computer for HDMI Video and Audio ....................................................................... 30

Connecting to an HDMI Video Source................................................................................................ 31

Connecting to External Speakers....................................................................................................... 31

Inserting an SD Card.......................................................................................................................... 32

Installing Batteries in the Remote Control .......................................................................................... 33

Using the Projector on a Network ............................................................................................................ 35

Wired Network Projection................................................................................................................... 35

Connecting to a Wired Network ..................................................................................................... 35

Selecting Wired Network Settings ................................................................................................. 36

Wireless Network Projection .............................................................................................................. 39

Selecting Wireless Network Settings Manually.............................................................................. 40

Wireless LAN Menu Settings .................................................................................................... 43

Selecting Wireless Network Settings in Windows.......................................................................... 45

Selecting Wireless Network Settings on Mac ................................................................................ 46

Setting Up Wireless Network Security ........................................................................................... 46

Using a QR Code to Connect a Mobile Device .............................................................................. 47

Setting Up Projector Network E-Mail Alerts ........................................................................................ 49

Network Projector E-mail Alert Messages ..................................................................................... 50

Setting Up Monitoring Using SNMP ................................................................................................... 51

Controlling a Networked Projector Using a Web Browser .................................................................. 52

Using Crestron Connected................................................................................................................. 55

Setting Up Crestron Connected..................................................................................................... 55

Controlling a Networked Projector Using Crestron Connected...................................................... 56

Art-Net Channel Definitions................................................................................................................ 58

Setting Up Web API ........................................................................................................................... 62

Registering a Digital Certificate on the Projector ................................................................................ 63

Importing a Web Server Certificate Using the Projector Menus..................................................... 63

Registering Digital Certificates from a Web Browser ..................................................................... 65

Digital Certificate Types................................................................................................................. 67

Using Basic Projector Features ............................................................................................................... 69

Turning On the Projector .................................................................................................................... 69

Turning Off the Projector .................................................................................................................... 71

Selecting the Language for the Projector Menus................................................................................ 72

Setting the Date and Time.................................................................................................................. 73

Image Shape...................................................................................................................................... 74

Correcting Image Shape with H/V Keystone.................................................................................. 74

Correcting Image Shape with Quick Corner .................................................................................. 76

Focusing the Image Using the Focus Buttons .................................................................................... 78

Zooming Into and Out of Images ........................................................................................................ 79

Shutting Off the Picture and Sound Temporarily ................................................................................ 80

Remote Control Operation ................................................................................................................. 80

Selecting an Image Source ................................................................................................................ 81

Using Spotlight Mode ......................................................................................................................... 82

Selecting a Playlist on an SD Card..................................................................................................... 83

Overlay Effects and Shape Filters ...................................................................................................... 86

Selecting a Shape Effect ............................................................................................................... 87

Adjusting the Color of the Effect .................................................................................................... 88

Adjusting the Brightness of the Effect ............................................................................................ 89

Projection Modes ............................................................................................................................... 90

Changing the Projection Mode Using the Remote Control ............................................................ 90

Changing the Projection Mode Using the Menus........................................................................... 91

Turning On Automatic Luminance Adjustment ................................................................................... 92

Image Aspect Ratio ............................................................................................................................ 93

Changing the Image Aspect Ratio ................................................................................................. 93

Available Image Aspect Ratios ...................................................................................................... 94

Color Mode......................................................................................................................................... 95

Changing the Color Mode.............................................................................................................. 95

Available Color Modes................................................................................................................... 96

Controlling the Volume with the Volume Buttons................................................................................ 97

Adjusting Projector Features ................................................................................................................... 98

Using Multiple Projectors ................................................................................................................... 98

Projector Identification System for Multiple Projector Control ........................................................ 98

Setting the Projector ID............................................................................................................. 99

Setting the Remote Control ID ................................................................................................ 100

Adjusting the Projector's Brightness Level................................................................................... 100

Blending the Image Edges .......................................................................................................... 102

Scaling an Image......................................................................................................................... 104

Adjusting Color Uniformity ........................................................................................................... 106

Matching the Image Colors ......................................................................................................... 108

Projecting One Image Simultaneously (Synchronized Playback) ................................................ 110

Selecting a Test Pattern Using the Remote Control ......................................................................... 111

Selecting a Test Pattern Using the Menus ....................................................................................... 112

Scheduling Projector Events ............................................................................................................ 112

Saving a Scheduled Event........................................................................................................... 113

Viewing Scheduled Events .......................................................................................................... 113

Editing a Scheduled Event........................................................................................................... 114

Projector Security............................................................................................................................. 115

Password Security Types ............................................................................................................ 116

Setting a Password .......................................................................................................................... 116

Selecting Password Security Types ................................................................................................. 117

Entering a Password to Use the Projector........................................................................................ 118

Saving a User's Logo Image to Display ............................................................................................ 119

Copying Menu Settings Between Projectors .................................................................................... 122

Saving Settings to an SD Card .................................................................................................... 122

Transferring Settings from an SD Card........................................................................................ 124

Adjusting the Menu Settings .................................................................................................................. 126

Using the Projector's Menus............................................................................................................. 126

Image Quality Settings - Image Menu .............................................................................................. 128

Input Signal Settings - Signal Menu.................................................................................................. 130

Projector Feature Settings - Settings Menu...................................................................................... 131

Projector Setup Settings - Extended Menu....................................................................................... 134

Projector Network Settings - Network Menu..................................................................................... 138

Projector Information Display - Info Menu ........................................................................................ 140

Event ID Code List....................................................................................................................... 141

Projector Reset Options - Reset Menu............................................................................................. 143

Maintaining and Transporting the Projector ......................................................................................... 145

Projector Maintenance ..................................................................................................................... 145

Cleaning the Lens........................................................................................................................ 145

Cleaning the Projector Case ........................................................................................................ 146

Cleaning the Air Vents................................................................................................................. 146

Replacing the Remote Control Batteries .......................................................................................... 147

Transporting the Projector................................................................................................................ 149

Solving Problems .................................................................................................................................... 150

Projection Problem Tips ................................................................................................................... 150

Projector Light Status ....................................................................................................................... 151

Solving Image or Sound Problems ................................................................................................... 154

Solutions When No Image Appears............................................................................................. 154

Solutions When "No Signal" Message Appears........................................................................... 155

Displaying From a PC Laptop ................................................................................................. 156

Displaying From a Mac Laptop ............................................................................................... 156

Solutions When "Not Supported" Message Appears ................................................................... 156

Solutions When Only a Partial Image Appears............................................................................ 157

Solutions When a Playlist Does Not Play..................................................................................... 157

Solutions When the Image Contains Noise or Static ................................................................... 158

Solutions When the Image is Fuzzy or Blurry .............................................................................. 158

Solutions When the Image Brightness or Colors are Incorrect .................................................... 159

Solutions to Sound Problems ...................................................................................................... 160

Solving Projector or Remote Control Operation Problems ............................................................... 160

Solutions to Projector Power or Shut-Off Problems..................................................................... 161

Solutions to Problems with the Remote Control........................................................................... 161

Solutions When a Battery Message Appears .............................................................................. 162

Solutions to Password Problems ................................................................................................. 162

Solving Network Problems ............................................................................................................... 163

Solutions When Wireless Authentication Fails ............................................................................ 163

Solutions When You Cannot Access the Projector Through the Web ......................................... 163

Solutions When You Cannot Access the SD Card Through the Web .......................................... 164

Solutions When Network Alert E-Mails are Not Received............................................................ 164

Solutions When the Image Contains Static During Network Projection ....................................... 165

Where to Get Help............................................................................................................................ 165

Technical Specifications ........................................................................................................................ 167

General Projector Specifications ...................................................................................................... 167

Projector Light Source Specifications............................................................................................... 168

Remote Control Specifications ......................................................................................................... 169

Projector Dimension Specifications.................................................................................................. 169

Projector Electrical Specifications .................................................................................................... 170

Projector Environmental Specifications............................................................................................ 171

Projector Safety and Approvals Specifications................................................................................. 171

Supported Video Display Formats.................................................................................................... 171

Notices ..................................................................................................................................................... 173

Recycling.......................................................................................................................................... 173

Important Safety Information ............................................................................................................ 173

Laser Safety Information .................................................................................................................. 173

Important Safety Instructions............................................................................................................ 176

Restriction of Use ........................................................................................................................ 179

List of Safety Symbols...................................................................................................................... 179

FCC Compliance Statement............................................................................................................. 183

Binding Arbitration and Class Waiver ............................................................................................... 184

Trademarks...................................................................................................................................... 187

Copyright Notice............................................................................................................................... 188

A Note Concerning Responsible Use of Copyrighted Materials................................................... 189

Copyright Attribution.................................................................................................................... 189

LightScene EV-100/105 User's Guide

Welcome to the LightScene EV-100/105 User's Guide.

For a printable PDF copy of this guide, click here.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Additional Projector Software and Manuals Projector Part Locations

Projector Features

The LightScene EV-100/105 projector includes these special features:

Bright, high-resolution projection system

• Up to 2000 lumens of color brightness (color light output) and white brightness (white light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• Native resolution of 1280 × 800 pixels (WXGA)

Flexible connectivity

• HDMI port for computer or video device connection

• Wired and wireless network support for projection, monitoring, and control via remote network computer

• Use Epson iProjection (Windows/Mac) to simultaneously project up to four images from network computers or mobile devices using the Epson iProjection app

• Projection from iOS or Android devices with the free Epson iProjection app; visit epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information

• Audio out port for connecting external speakers

Innovative display and operation features

• Long-life laser light source

• Spotlight design with 360-degree horizontal rotation for flexible display and mounting options

• Epson's quick-connect on-screen QR code feature for easy wireless setup

• High digital zoom ratio for larger images in shorter projection distances

• 2,500,000:1 contrast ratio and Dynamic Contrast control for sharp, detailed images

• Epson's Direct Power On and Auto Power On features for quick and easy setup

• Support for Crestron Connected network monitoring systems

• Network message broadcast system to project timely messages to all networked projectors

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector

2 Remote control

3 Remote control batteries (2 AA alkaline)

4 Power cord

5 Cable cover

6 Direct mount

7 Cable clips

8 Safety wire

9 Wire hook mount

10 Hex wrench

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain additional components.

Note: To connect a Mac that does not include a compatible video output port, you need to obtain an adapter that allows you to connect to an input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

Unless listed as available from Epson in this table, see your local computer or electronics dealer for purchase information.

Signal or connection type

HDMI Compatible HDMI cable

Audio out Commercially available 3.5 mm mini jack stereo cable

USB Compatible USB cable (for 1200 mA power supply connection only)

Parent topic: Projector Features

Additional component necessary

Available for purchase from Epson or an authorized Epson reseller.

Note: Older Mac computers (2009 and earlier) may not support HDMI audio.

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766) in the U.S. or 800-807-7766 in Canada. Or you can purchase online at epsonstore.com (U.S. sales) or epsonstore.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Lighting track mount (white) ELPMB54W

Lighting track mount (black) ELPMB54B

Floor stand (white) ELPMB55W

Floor stand (black) ELPMB55B

In addition to the accessories listed above, 1-year and 2-year extended service plans are available.

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• epson.com/support (U.S.) or epson.ca/support (Canada)

View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24 hours a day.

• If you still need help after checking this manual and any other sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."

Parent topic: Introduction to Your Projector

Related references

Where to Get Help

Additional Projector Software and Manuals

After connecting and setting up the projector, install the projector software from the included software CD or, if you don't have a CD, download the software and manuals as necessary.

You can install the projector software programs listed here and view their manuals for instructions on using them.

Note: If you still need help after checking this manual and the sources listed here, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help."

Projector software Manual Description

Epson Projector Management (Windows only)

Epson iProjection (Windows/Mac)

Epson Projector Management Operation Guide

Epson iProjection Operation Guide (Windows/Mac)

Lets you monitor and control your projector through the network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you project the computer screens of users over a network.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Projector software Manual Description

EasyMP Network Updater (Windows only)

Epson iProjection app Instructions are included

— Open Source Software

Epson Projector Content Manager

EasyMP Network Updater Operation Guide

with the app

License

Epson Projector Content Manager Operation Guide

Lets you update firmware for a projector over a wired LAN.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Lets you project from an iOS device, Android device, or Chromebook if your projector is connected to a network that includes a wireless access point.

Visit epson.com/iprojection (U.S.) or

epson.ca/iprojection (Canada) for more

information.

You can download this document from the Epson web site. Go to epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

Lets you add images and movies to playlists, and save them on an SD card; insert the SD card into the projector to project your playlist content without using a cable connection.

You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support

(Canada) and select your projector.

Parent topic: Introduction to Your Projector

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front Projector Parts - Rear Projector Parts - Interface Panel Projector Parts - Top

Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front

1 Projection lens

2 Remote control receiver

3 Status lights

4 Ball joint adjustment screw

5 Ball joint

6 Air intake vent

7 Power supply unit

8 Projection unit

Parent topic: Projector Part Locations

Related references

Projector Light Status

Projector Parts - Rear

1 Air exhaust vent

2 Interface panel

3 Power button

4 Cable clip attachment point

5 Power inlet

6 Cable cover

Parent topic: Projector Part Locations

Projector Parts - Interface Panel

1 Network (LAN) port

2 HDMI port

3 SD card slot

4 Audio Out port

5 USB-A port (for 1200 mA power supply connection only)

6 Cable clip attachment point

Parent topic: Projector Part Locations

Related tasks

Connecting to a Computer for HDMI Video and Audio Connecting to an HDMI Video Source Connecting to External Speakers Inserting an SD Card

Projector Parts - Top

1 Direct mount holes (4)

2 Optional lighting track mount holes (7)

3 Optional floor stand holes (6)

Parent topic: Projector Part Locations

Related references

Optional Equipment and Replacement Parts

Projector Parts - Remote Control

1 Power button

2 HDMI button (selects HDMI video source)

3 LAN button (connects to a network source)

4 Numeric buttons (select playlist assigned to each numeric button)

5 ID button (selects a projector to use with the remote control)

6 Menu button (accesses projector menu system)

7 Arrow buttons (move through on-screen options)

8 Enter button (selects options)

9 User button (customizable for different functions)

10 Focus button (adjusts projector focus)

11 Zoom button (zoom into and out of the image)

12 Pattern button (displays a test pattern)

13 Keystone button (corrects distortion in the image)

14 SD Viewer button (displays the playlists stored on the SD card)

15 Effect button (changes the shape and color of an image)

16 Volume up/down buttons (adjusts volume of externally connected speakers)

17 Default button (displays the Reset menu)

18 Esc button (cancels/exits functions)

19 A/V Mute button (turns off picture and sound)

20 SD button (plays a playlist on the SD card)

21 Spotlight button (switches to spotlight mode)

22 Remote control emitter

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

Projector Placement Attaching and Removing the Cable Clips Connecting to a Computer for HDMI Video and Audio Connecting to an HDMI Video Source Connecting to External Speakers Inserting an SD Card Installing Batteries in the Remote Control

Projector Placement

Your projector is designed to be installed on a wall or ceiling (with the included mount).

You can also place the projector on almost any flat surface (with the optional floor stand) to project an image in a portable setup, or on a lighting track (with the optional lighting track mount).

Keep these considerations in mind as you select a projector location:

• Follow the instructions in the Installation Guide to install the projector on a wall or ceiling.

• If installing on a lighting track, use only the optional lighting track mount (ELPMB54).

• If the projector is not mounted, place it on a sturdy, level surface using the optional floor stand (ELPMB55).

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Related references

Optional Equipment and Replacement Parts

Projector Setup and Installation Options

You can set up or install your projector in the following ways:

Mounted on a ceiling or lighting track

Mounted on a wall

Placed on the floor or on a table or portable cart

Note: Use the direct mount (included) only for mounting the projector on a wall or ceiling. If installing on

a lighting track, use only the optional lighting track mount (ELPMB54). If you do not mount the projector, use only the optional floor stand (ELPMB55).

Note: Be sure to leave at least the following amount of space around the projector to avoid blocking the air exhaust and intake vents.

1 11.8 inches (30 cm)

2 7.8 inches (20 cm)

If you are installing multiple projectors next to each other, be sure to leave at least 20 inches (50 cm) of space between the projectors. Also make sure heated air from an exhaust vent does not go into the air intake vent of another projector.

You can rotate the projection unit 360 degrees horizontally and 90 degrees vertically. You can also tilt the image 90 degrees in either direction.

Make sure to select the correct Projection setting in the Extended menu.

Adjusting the Projection Angle

Parent topic: Projector Placement

Adjusting the Projection Angle

You can adjust the projection angle using the ball joint on the projection unit.

1. Turn the projector on.

2. Loosen the ball joint screw using the supplied hexagonal wrench. Make sure to support the

projection unit while loosening the screw so that it does not move suddenly.

Warning: Do not grip the ball joint with your fingers while loosening the screw or your fingers could get pinched.

3. Tilt the projection unit to adjust the projection angle.

Caution: Make sure the cables do not tangle around the ball joint or you may damage the projector.

4. When you finish, tighten the ball joint screw using the supplied hexagonal wrench. Make sure to

support the projection unit so that it does not move.

Caution: Do not force the ball joint to move after tightening the ball joint screw or you may damage the projector.

Parent topic: Projector Setup and Installation Options

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Refer to the tables in the Installation Guide to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the Projection Distance Calculator here (U.S.), here (Canada), or here (Caribbean).

Parent topic: Projector Placement

Attaching and Removing the Cable Clips

You can install the cable clips that came with your projector to provide additional support to the power cord and HDMI cable.

1. Connect the power cord and HDMI cable to the projector.

2. Insert the end of each cable clip anchor into the cable clip slot above the power inlet and HDMI port

as shown.

1 Cable clip slot

2 Cable clip anchor

3 Power cable clip

4 HDMI cable clip

3. Place the open cable clips around the power cord and HDMI cable, but do not lock them.

4. Slide each cable clip onto the anchors and lock the clips onto the power and HDMI anchors as

shown.

To remove the cable clips, open the clips and disconnect the cables. Then pinch the sides of each cable clip anchor and carefully pull them out of the cable clip slots.

Parent topic: Setting Up the Projector

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable.

Note: To connect a Mac that does not include an HDMI video output port, you need to obtain an adapter that allows you to connect to the HDMI input port on the projector. Contact Apple for compatible adapter options. To connect a smartphone or tablet, you may need to obtain an adapter that allows you to connect to the HDMI input port on the projector. This allows you to mirror your smartphone or tablet screens, watch movies, and more. Contact your device manufacturer for compatible adapter options.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Note: The projector converts the digital audio signal sent from your computer into a stereo analog signal if you are connecting to external speakers. (Make sure the HDMI audio playback device on your computer's audio settings is set to EPSON PJ.)

Parent topic: Setting Up the Projector

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Note: The projector converts the digital audio signal sent from your video source into a stereo analog signal if you are connecting to external speakers.

Parent topic: Setting Up the Projector

Connecting to External Speakers

To play the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.

You can also connect the projector to an amplifier with speakers.

Warning: Do not connect headphones to the projector; the excessive sound pressure may damage your hearing.

1. Make sure your computer or video source is connected to the projector with an HDMI cable.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pin-

jack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Setting Up the Projector

Related references

Projector Setup Settings - Extended Menu

Inserting an SD Card

Insert a commercially available SD card into the projector's SD card slot.

Note: An SD card is required to project from a playlist created using the Epson Projector Content Manager software.

Make sure you use an SDHC card of Class 10 or higher with a maximum capacity of 32GB, or an SD card formatted in FAT16 or FAT32.

Parent topic: Setting Up the Projector

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector.

Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types, or mix new and old batteries.

1. Remove the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

3. Replace the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser Using Crestron Connected Art-Net Channel Definitions Setting Up Web API Registering a Digital Certificate on the Projector

Wired Network Projection

You can project through a wired network. To do this, you connect the projector to your network with an Ethernet cable, and then set up your projector and computer for network projection.

After connecting and setting up the projector as described here, install the network software from the included CD or, if you don't have a CD, download the software and manuals as necessary.

Note: If your projector is connected via a LAN (Ethernet) cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the Epson network software.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter ( ).

4. Select Network Configuration and press Enter ( ).

5. Select the Basic menu and press Enter ( ).

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app. (No default password.)

• Projector Keyword lets you turn on a security password to prevent access to the projector by anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the Epson iProjection (Windows/Mac) software to access the projector.

• Display Keyword lets you select whether or not to display a projector keyword on the projected image when using the Epson iProjection (Windows/Mac) software to access the projector.

• Display LAN Info lets you select how the projector displays network information. You can select an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter ( ) to select them.

7. Select the Wired LAN menu and press Enter ( ).

8. If necessary, select IP Settings and press Enter ( ).

9. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on

the remote control. To select a highlighted number, press Enter ( ).

10. To prevent display of the IP address on the standby screen, turn off IP Address Display.

11. To connect the projector to the network using IPv6, select On as the IPv6 Settings option. Then select the Auto Configuration and Use Temporary Address settings as necessary.

12. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

Wireless Network Projection

You can project over a wireless network. To do this, you must set up your projector and computer for wireless projection.

To connect wirelessly to your projector, configure the connection using the projector's Network menus.

After setting up the projector as described here, install the network software from the included CD or, if you don't have a CD, download the software and manuals as necessary.

Note: Make sure to set the date and time before using the projector's Network menus.

Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings on Mac Setting Up Wireless Network Security Using a QR Code to Connect a Mobile Device

Parent topic: Using the Projector on a Network

Related references

Additional Projector Software and Manuals

Optional Equipment and Replacement Parts

Related tasks

Setting the Date and Time

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

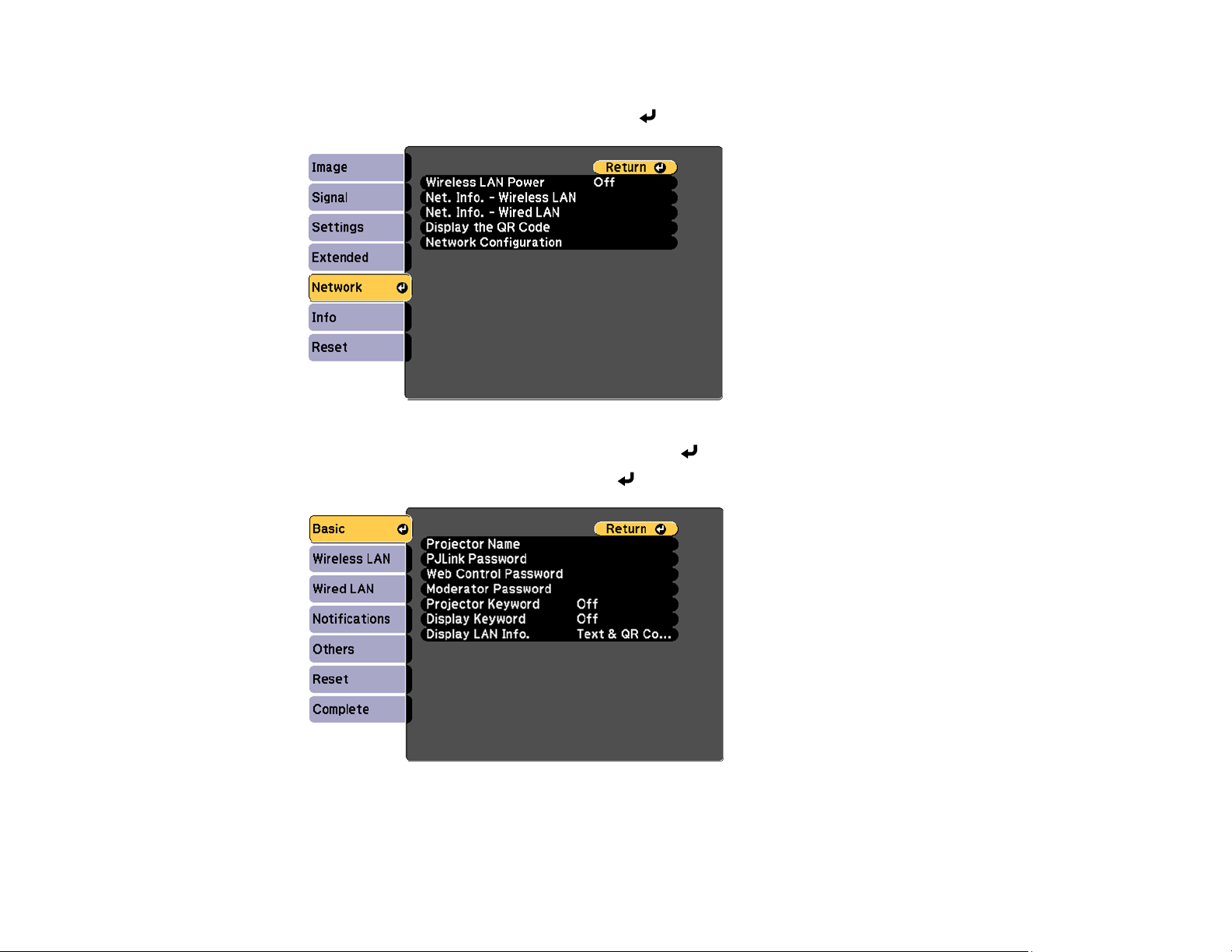

3. Select the Network menu and press Enter ( ).

4. Select On as the Wireless LAN Power setting and press Esc.

5. Select Network Configuration and press Enter ( ).

6. Select the Basic menu and press Enter ( ).

7. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Moderator Password lets you enter a password up to 4 numbers long for accessing the projector

as a moderator with the Epson iProjection (Windows/Mac) software or the Epson iProjection app. (No default password.)

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the Epson iProjection (Windows/Mac) software or the Epson iProjection app to access the projector.

• Display Keyword lets you select whether or not to display a projector keyword on the projected

image when using the Epson iProjection (Windows/Mac) software to access the projector.

• Display LAN Info lets you select how the projector displays network information. You can select

an option to display a QR code that lets you quickly connect your iOS or Android devices using the Epson iProjection app.

Note: Use the displayed keyboard to enter the name, passwords, and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter ( ) to select them.

8. Select the Wireless LAN menu and press Enter ( ).

9. Select the settings on the Wireless LAN menu as necessary for your network.

Note: Some items may be unavailable if Quick or Advanced connection mode is selected.

10. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer, or iOS or Android device.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description

Connection Mode Quick

Advanced

Selects the type of wireless connection:

Quick: lets you directly connect to multiple devices and computers using the projector's built-in wireless network.

Advanced: lets you connect to multiple devices and computers via a wireless network access point

Search Access Point To Search View Search for available wireless

network access points in

Advanced connection mode

SSID Up 32 alphanumeric characters Manually set the SSID (network

name) of the wireless LAN system the projector is connecting to

Setting Options Description

Security Open

WPA2-PSK

WPA/WPA2-PSK

WPA2-EAP

WPA/WPA2-EAP

Passphrase Various passphrases from 8 to

32 characters (from a web browser, the maximum is 63 characters)

Selects the type of security used on the wireless network

WPA2-PSK: uses WPA2 security with AES for encryption. Use the Passphrase value to establish a connection from a computer

WPA/WPA2-PSK: uses WPA personal mode; encryption is dependent on the access point settings; Passphrase must be the same as the access point

WPA2-EAP: uses WPA2 security with AES for encryption

WPA/WPA2-EAP: uses WPA enterprise mode; encryption is dependent on the access point settings

Selects the pre-shared key used on the network; passphrases are case-sensitive. If the network settings are reset after the passphrase has been changed more than once, the first passphrase is restored.

EAP Method EAP Type

User name

Password

Client Certificate

Verify Server Cert.

CA Certificate

RADIUS Server Name

Sets the EAP settings for WPA2EAP and WPA/WPA2-EAP security

Setting Options Description

Channel 1ch

6ch

11ch

IP Settings DHCP (On or Off)

IP Address

Subnet Mask

Gateway Address

SSID Display On

Off

IP Address Display On

Off

IPv6 Settings IPv6

Auto Configuration

Use Temporary Address

Parent topic: Selecting Wireless Network Settings Manually

In Quick connection mode, selects the frequency band (channel) used by the wireless LAN

Selects DHCP if your network assigns IP addresses automatically, or turns off DHCP so you can enter the network's IP address, subnet mask, and gateway address as needed

Selects whether to display the SSID on the network standby screen and Home screen

Selects whether to display the IP address on the network standby screen and Home screen

Selects the IPv6 settings when you connect the projector to the network using IPv6

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, access the Desktop and double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings on Mac

Before connecting to the projector, select the correct wireless network on your Mac.

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on a wireless network. Set up one of the following security options to match the settings used on your network:

• WPA2-PSK

• WPA2-EAP*

• WPA/WPA2-PSK*

• WPA/WPA2-EAP*

* Available only in Advanced connection mode.

Note: If you want to set up WPA2-EAP or WAP/WAP2-EAP security, register your digital certificate file and place it on the SD card you will install in the projector.

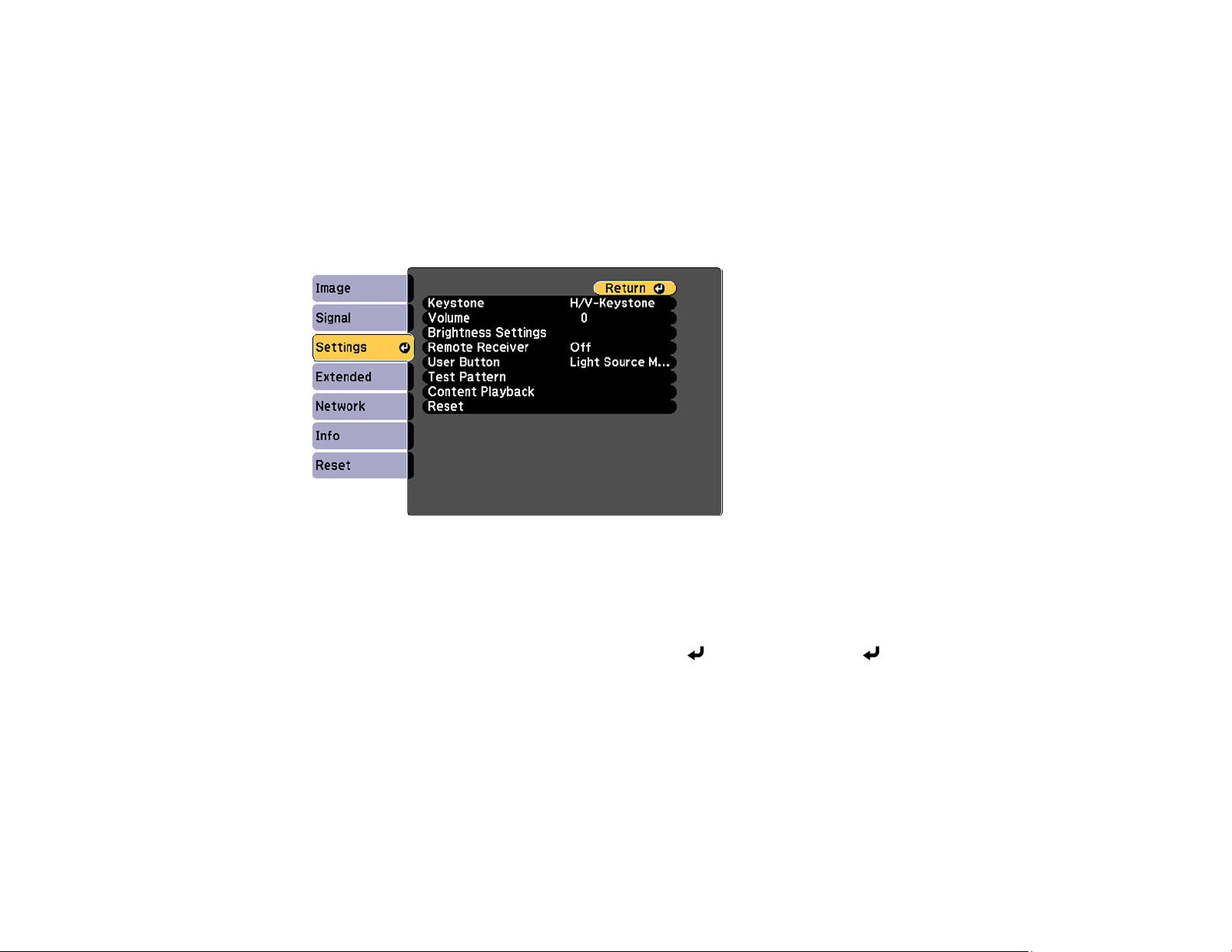

1. Press the Menu button.

2. Select the Network menu and press Enter ( ).

3. Select Network Configuration and press Enter ( ).

4. Select the Wireless LAN menu and press Enter ( ).

5. Select the Security setting and press Enter ( ).

6. Select the security settings for your network.

7. When you finished, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wireless Network Projection

Related tasks

Inserting an SD Card

Using a QR Code to Connect a Mobile Device

After you select the wireless network settings for your projector, you can display a QR code on the screen and use it to connect a mobile device using the Epson iProjection app.

Note: Make sure you have installed the latest version of Epson iProjection on your device. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for more information.

1. Press the Menu button.

2. Select the Network menu and press Enter ( ).

3. Select Network Configuration and press Enter ( ).

4. Select the Basic menu and press Enter ( ).

5. Set the Display LAN Info setting to Text & QR Code.

6. Select Complete and follow the on-screen instructions to save your settings and exit the menus.

7. Do one of the following:

• Press the LAN button on the remote control.

• Select Display the QR Code in the projector's Network menu.

Your projector displays the QR code on the projection surface.

Note: If you do not see the QR code after pressing the LAN button, press Enter ( ) to display it.

8. Start Epson iProjection on your mobile device.

9. Use the QR code reader feature to read the QR code and connect your device to the projector. Visit

epson.com/iprojection (U.S.) or epson.ca/iprojection (Canada) for instructions.

Parent topic: Wireless Network Projection

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

2. Select the Network menu and press Enter ( ).

3. Select Network Configuration and press Enter ( ).

4. Select the Notifications menu and press Enter ( ).

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server setting.

Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a number from 0 to 255).

7. Select a number for the SMTP server Port Number setting, from 1 to 65535 (default is 25).

8. Enter the sender's email address as the From setting.

9. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses. Your e-mail address can be up to 32 alphanumeric characters long.

10. If you are using the PJLink protocol for projector control, turn on the PJLink Notification setting and enter the IP address where you want to receive PJLink notifications as the Notified IP Address setting.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• The email address entered as the From setting

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button.

2. Select the Network menu and press Enter ( ).

3. Select Network Configuration and press Enter ( ).

4. Select the Notifications menu and press Enter ( ).

5. Turn on the SNMP setting.

6. Enter up to two IP addresses to receive SNMP notifications as the Trap IP Address setting, using 0 to 255 for each address field.

Note: Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x is a number from 0 to 255).

7. Select the Others menu and press Enter ( ).

8. If you want to use the Secure HTTP protocol to encrypt communication when using Web Control, turn on the Secure HTTP setting and import the web server certificate using the Web Server Cert. setting.

9. If available, select the Priority Gateway setting for your network.

10. If your network environment uses a Crestron Connected controller, turn on the Crestron Connected setting to allow the projector to be detected.

11. If your network environment uses an Art-Net communication protocol, turn on the Art-Net setting.

12. If you want this projector to receive broadcast messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Epson Projector Management software.

13. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 11.0 or later, Microsoft

Edge, Google Chrome, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On in the Extended menu, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer or device connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key.

Note: If you attempt to connect to the Epson Web Control screen via a proxy server, the screen will not be displayed. Make a direct connection to the Epson Web Control screen.

You see the Epson Web Control screen:

4. To control projection remotely, select the Remote option from the Epson Web Control screen.

Note: If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

You see a screen like this:

1 Power button control

2 Selects the image source or turns on Spotlight mode

3 A/V Mute button control

4 Volume button controls

5 Adds overlay effect to image

6 Selects a saved playlist

5. Select the icon corresponding to the projector function you want to control.

6. To select projector menu settings, select Advanced on the Epson Web Control screen.

Note: If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

7. Select the name of the menu and follow the on-screen instructions.

Parent topic: Using the Projector on a Network

Using Crestron Connected

If you are using the Crestron Connected network monitoring and control system, you can set up your projector for use on the system. Crestron Connected lets you control and monitor your projector using a web browser.

Note: You cannot use the Message Broadcasting tool for Epson Projector Management when you use Crestron Connected.

For additional information on Crestron Connected, contact Crestron.

Setting Up Crestron Connected Controlling a Networked Projector Using Crestron Connected

Parent topic: Using the Projector on a Network

Setting Up Crestron Connected

To set up your projector for monitoring and control using a Crestron Connected system, make sure your computer and projector are connected to the network.

Note: If you want to use the Crestron Connected system when the projector is turned off, you need to adjust the Standby Mode settings in the Extended menu.

1. Press the Menu button.

2. Select the Network menu and press Enter ( ).

3. Select Network Configuration and press Enter ( ).

4. Select the Others menu and press Enter ( ).

5. Set the Crestron Connected setting to On to allow the projector to be detected.

Note: Enabling Crestron Connected disables the Epson Message Broadcasting feature in the Epson Projector Management software.

6. Turn off the projector, then turn it on again to enable the setting.

Parent topic: Using Crestron Connected

Related references

Projector Setup Settings - Extended Menu

Controlling a Networked Projector Using Crestron Connected

Once you have set up your projector to use Crestron Connected, you can control and monitor projection using a compatible web browser.

1. Start your web browser on a computer connected to the network.

2. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Epson Web Control screen:

3. Select Crestron Connected.

You see this screen:

4. Select the input source that you want to control in the Sources List box. You can scroll through available sources using the up and down arrows in the box.

5. To control projection remotely, click the on-screen buttons that correspond to the projector's remote control buttons. You can scroll through button options at the bottom of the screen.

Note: These on-screen buttons do not directly correspond to the projector's remote control buttons:

• OK acts as the button

• Menu displays the projector's menu

6. To view information about the projector, click the Info tab.

7. To change projector, Crestron, and password settings, click the Tools tab, select settings on the displayed screen, and click Send.

8. When you finish selecting settings, click Exit to exit the program.

Parent topic: Using Crestron Connected

Art-Net Channel Definitions

Art-Net is an Ethernet communication protocol based on the TCP/IP protocol. You can control the projector by using a DMX controller or an application system.

The following table lists the channel definitions used to control the projector in Art-Net.

Channel/Function Operation Parameters Description

1 Adjusting light (dimming)

2 Shutter control Shutter open

0% to 100% 0 to 255 (default is 0) Adjusts the image

brightness

Non-operational

Shutter closed

0 to 63 (default is 128)

64 to 191

192 to 255

Enables/disables A/V Mute

Channel/Function Operation Parameters Description

3 Switch source Non-operational

HDMI

LAN

SD Player

Spotlight

Non-operational

7 Zoom (+) lens adjustment (large)

(+) lens adjustment (medium)

(+) lens adjustment (small)

Non-operational

(-) lens adjustment (small)

(-) lens adjustment (medium)

(-) lens adjustment (large)

8 Electronic focus (+) lens adjustment (large)

(+) lens adjustment (medium)

(+) lens adjustment (small)

Non-operational

0 to 7 (default is 0)

8 to 15

16 to 23

24 to 31

32 to 39

40 to 255

0 to 31 (default is 128)

32 to 63

64 to 95

96 to 159

160 to 191

192 to 223

224 to 255

0 to 31 (default is 128)

32 to 63

64 to 95

96 to 159

Switches to the specified source

Zooms using the specified amount of movement

Performs electronic focus using the specified amount of movement

(-) lens adjustment (small)

(-) lens adjustment (medium)

(-) lens adjustment (large)

160 to 191

192 to 223

224 to 255

Channel/Function Operation Parameters Description

10 Content playback Non-operational

Playlist 1

Playlist 2

Playlist 3

Playlist 4

Playlist 5

Playlist 6

Playlist 7

Playlist 8

Playlist 9

Playlist 10

Playlist 11

Playlist 12

Playlist 13

Playlist 14

Playlist 15

0 to 3 (default is 0)

4 to 7

8 to 11

12 to 15

16 to 19

20 to 23

24 to 27

28 to 31

32 to 35

36 to 39

40 to 43

44 to 47

48 to 51

52 to 55

56 to 59

60 to 63

Plays the specified playlist

Channel/Function Operation Parameters Description

10 Content playback Playlist 16

Playlist 17

Playlist 18

Playlist 19

Playlist 20

Playlist 21

Playlist 22

Playlist 23

Playlist 24

Playlist 25

Playlist 26

Playlist 27

Playlist 28

Playlist 29

Playlist 30

Playlist 31

Playlist 32

64 to 67

68 to 71

72 to 75

76 to 79

80 to 83

84 to 87

88 to 91

92 to 95

96 to 99

100 to 103

104 to 107

108 to 111

112 to 115

116 to 119

120 to 123

124 to 127

128 to 131

Playlist 33

Playlist 34

Playlist 35

Playlist 36

Playlist 37

Playlist 38

Playlist 39

Playlist 40

132 to 135

136 to 139

140 to 143

144 to 147

148 to 151

152 to 155

156 to 159

160 to 163

Channel/Function Operation Parameters Description

10 Content playback Playlist 41

Playlist 42

Playlist 43

Playlist 44

Playlist 45

Playlist 46

Playlist 47

Playlist 48

Playlist 49

Playlist 50

Non-operational

11 Power control Power off

Non-operational

Power on

13 Lock Cannot control

Can control

164 to 167

168 to 171

172 to 175

176 to 179

180 to 183

184 to 187

188 to 191

192 to 195

196 to 199

200 to 203

204 to 255

0 to 63 (default is 128)

64 to 191

192 to 255

0 to 127 (default is 0)

128 to 255

Turns the projector power on or off

Enables/disables ArtNet operations

Note: If you are controlling the projector using Art-Net and operating it from the remote control, settings made by the DMX controller or application software may differ from the projector's actual status. If you want to apply all the channel controls to the projector, set Channel 13 to Cannot control, then set it back to Can control.

Parent topic: Using the Projector on a Network

Setting Up Web API

You can setup Web API from a Web browser and operate the projector using Web API.

1. Open the Epson Web Control from your Web browser.

2. Select Developer's Menu.

3. Set the Enable API setting to On.

4. Enter one of the following Web APIs to operate the projector:

URL Supported methods Description

http://<ip>/api/v01/contentmgr/remote/power/on GET/POST/PUT Turns the projector on

http://<ip>/api/v01/contentmgr/remote/power/off 0 to 63 (default is 128)

http://<ip>/api/v01/contentmgr/playlist/play/:id 0 to 7 (default is 0)

http://<ip>/api/v01/contentmgr/playlist/stop 0 to 31 (default is 128)

Note: In the above URLs, enter the IP address for the projector in the <ip> field. For example, a URL instructing a projector with the IP address 192.168.0.2 to playback playlist ID 3 would look like this: http://192.168.0.2/api/v01/contentmgr/playlist/play/3

If secure HTTP is enabled, change the http in the URL to https.

Parent topic: Using the Projector on a Network

Related tasks

Controlling a Networked Projector Using a Web Browser

Registering a Digital Certificate on the Projector

(WebAPI may not respond immediately)

Follow the instructions here if you need to install a digital certificate on the projector to provide security for your presentation files.

Note: You can register a digital certificate over a network. However, be sure to register just once or the certificate may not install correctly.

Importing a Web Server Certificate Using the Projector Menus Registering Digital Certificates from a Web Browser Digital Certificate Types

Parent topic: Using the Projector on a Network

Importing a Web Server Certificate Using the Projector Menus

You can create your web server certificate and import it using the projector menus and an SD card.

Note: You can also register digital certificates from your web browser. Make sure to only register once,

or the certificate may not install correctly.

1. Insert an SD card into the projector's SD card slot, if necessary. (Make sure your digital certificate file is compatible with projector registration and saved in the root directory of the SD card.)

2. Press the Menu button.

3. Select the Network menu and press Enter ( ).

4. Select the Network Configuration setting and press Enter ( ).

5. Select the Others menu and press Enter ( ).

6. Select On as the Secure HTTP setting.

7. Select the Web Server Cert. setting and press Enter ( ).

8. Select Register and press Enter ( ).

9. Press Enter ( ) to display the certificate list.

10. Select the certificate you want to import from the displayed list.

A message is displayed prompting you to enter the password for the certificate.

11. Enter the password and press Enter ( ).

The certificate is imported and a completion message appears.

Parent topic: Registering a Digital Certificate on the Projector

Registering Digital Certificates from a Web Browser

You can register the digital certificates on the projector for wireless LAN authentication.

1. Make sure your digital certificate file is compatible with projector registration.

2. Make sure the projector is turned on.

3. Start your web browser on a computer or mobile device connected to the network.

4. Type the projector's IP address into the browser's address box and press the computer's Enter key.

You see the Web Control screen and a prompt to enter a user ID and password.

5. Enter the following information in uppercase or lowercase letters, exactly as shown:

• For the user ID, enter EPSONWEB. (You cannot change the user ID.)

• For the password, enter the default password admin. (You can change the Web Control password

using the projector's Network menu.)

6. Select Advanced.

7. Under Network, select Certificate.

You see a screen like this:

8. Click the Choose File button, select the certificate file, and click Open.

9. Enter a password in the Password box.

10. When you finish registering the certificate, click Apply to finalize your changes and complete the registration.

Parent topic: Registering a Digital Certificate on the Projector

Digital Certificate Types

You can register these types of digital certificates.

Client Certificate (PEAP-TLS/EAP-TLS)

Specification Description

Format PKCS#12

Extension PFX/P12

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Password Up to 32 alphanumeric characters; required

CA Certificate (PEAP/PEAP-TLS/EAP-TLS/EAP-FAST)

Specification Description

Format X509v3

Extension DER/CER/PEM

Encryption RSA

Hashes MD5/SHA-1/SHA-256/SHA-384/SHA-512

Key length 512/1024/2048/4096 bit

Encoding BASE64/Binary

Web Server Certificate (Secure HTTP)

Specification Description

Format PKCS#12

Extension PFX/P12

Specification Description

Encryption RSA

Hashes SHA-256

Key length 2048 bit

Common name Network host name

Organization Optional

Password Up to 32 alphanumeric characters; required

Parent topic: Registering a Digital Certificate on the Projector

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Setting the Date and Time Image Shape Focusing the Image Using the Focus Buttons Zooming Into and Out of Images Shutting Off the Picture and Sound Temporarily Remote Control Operation Selecting an Image Source Using Spotlight Mode Selecting a Playlist on an SD Card Overlay Effects and Shape Filters Projection Modes Turning On Automatic Luminance Adjustment Image Aspect Ratio Color Mode Controlling the Volume with the Volume Buttons

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Connect the power cord to the projector's power inlet.

2. Plug the power cord into an electrical outlet.

The projector's On/Standby light turns blue. This indicates that the projector is receiving power.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

Note: If the projector is installed in a lighting track (using the optional lighting track mount), the

projector enters standby mode as soon as you turn on the lighting track.

3. Press the power button on the projector or remote control to turn on the projector.

The Status light flashes blue as the projector warms up. After about 30 seconds, the Status light stops flashing and turns blue.

Warning: Never look into the projector lens when the laser is on. This can damage your eyes and is especially dangerous for children and pets.

Caution: Make sure no objects are blocking the light from the projector lens. Objects blocking the lens for an extended time can melt and light that is reflected back into the lens can cause the projector to malfunction.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media and press the play button, if necessary.

• Press one of the source buttons (Spotlight, HDMI, LAN, or SD) on the remote control to switch to the

correct image source.

Note: If the Auto Power On setting in the Extended menu is set to HDMI, the projector automatically turns on when an HDMI signal is detected.

• Change the screen output from the computer when using a laptop.

Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Laser life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

Note: When using the A/V Mute feature, the laser is still on. To turn off the laser, turn off the projector.

1. Press the power button on the projector or remote control.

The projector displays a shutdown confirmation screen.

2. Press the power button again. (To leave it on, press any other button.)

The laser turns off and the Status light turns off.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

Caution: Do not turn the projector on immediately after turning it off. Turning the projector on and off frequently may shorten the life of the laser.

Note: If the projector is installed in a lighting track (using the optional lighting track mount), also turn off the power to the lighting track.

3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.

Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter ( ).

4. Select the Language setting and press Enter ( ).

5. Select the language you want to use and press Enter ( ).

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Setting the Date and Time

You can set the date and time for the projector.

Note: If the Schedule Protection setting in the Password Protection screen is enabled, you cannot change the date and time settings.

1. Press the Menu button.

2. Select the Extended menu and press Enter ( ).

3. Select the Operation setting and press Enter ( ).

4. Select the Date & Time setting and press Enter ( ).

You see a screen like this:

5. Select the Date & Time setting and press Enter ( ).

6. Select your date and time settings. Then select Set to confirm your changes.

7. When you are finished, press the Menu button to exit.

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

Correcting Image Shape with H/V Keystone Correcting Image Shape with Quick Corner

Parent topic: Using Basic Projector Features

Correcting Image Shape with H/V Keystone

You can use the projector's Keystone setting to correct the shape of an image that is unevenly rectangular on the sides.

Note: You cannot combine Keystone correction with other image shape correction methods.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display the pattern by pressing the Pattern button on the remote control.

2. Press the Menu button.

3. Select the Settings menu and press Enter ( ).

Note: You can also press the Keystone button on the remote control to display the Keystone

adjustment screen.

4. Select the Keystone setting and press Enter ( ).

5. Select H/V Keystone and press Enter ( ). Then press Enter ( ) again.

6. Use the arrow buttons on the remote control to select between vertical and horizontal keystone correction, and to adjust the image shape as necessary.

V-Keystone

H-Keystone

7. When you are finished, press Esc.

After correction, your image is slightly smaller.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

Note: To provide the best possible image quality, adjust the projector's position to correct the image shape. If this isn't possible, use the Quick Corner setting to correct the image shape.

Note: You cannot combine Quick Corner correction with other image shape correction methods.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display the pattern by pressing the Pattern button on the remote control.

2. Press the Menu button.

3. Select the Settings menu and press Enter.

Note: You can also press the Keystone button on the remote control to display the Keystone adjustment screen.

4. Select the Keystone setting and press Enter.

5. Select the Quick Corner setting and press Enter ( ). Then press Enter ( ) again.

You see the Quick Corner adjustment screen:

Note: To reset your adjustments, press and hold the Esc button for at least 2 seconds to display a reset screen. Then select Yes.

6. Use the arrow buttons on the remote control to select the corner of the image you want to adjust. Then press Enter ( ).

7. Press the arrow buttons to adjust the image shape as necessary. Press Enter ( ) to return to the area selection screen.

8. When you are finished, press Esc.

Parent topic: Image Shape

Related references

Projector Feature Settings - Settings Menu

Focusing the Image Using the Focus Buttons

You can adjust the sharpness of the projected image using the focus buttons on the remote control.

1. Turn on the projector and display an image.

2. Press the Focus arrow buttons on the projector's remote control to adjust the focus.

3. Press the Esc button when finished.

Parent topic: Using Basic Projector Features

Zooming Into and Out of Images

You can draw attention to parts of an image by zooming into a portion of the image and enlarging it on the screen.

1. Press the Zoom + button on the remote control.

You see a crosshair on the screen indicating the center of the zoom area.

2. Use the following buttons on the remote control to adjust the zoomed image:

• Use the arrow buttons to position the crosshair in the image area you want to zoom into.

• Press the Zoom + button repeatedly to zoom into the image area, enlarging it as necessary.

• To pan around the zoomed image area, use the arrow buttons.

• To zoom out of the image, press the Zoom – button as necessary.

• To return to the original image size, press Esc.

Parent topic: Using Basic Projector Features

Shutting Off the Picture and Sound Temporarily

You can temporarily turn off the projected picture and sound if you want to redirect your audience's attention during a presentation. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

If you want to display an image such as a company logo or picture when the presentation is stopped, you can set up this feature using the projector's menus.

1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.

2. To turn the picture and sound back on, press A/V Mute again.

Parent topic: Using Basic Projector Features

Related tasks

Saving a User's Logo Image to Display

Remote Control Operation

The remote control lets you control the projector from almost anywhere in the room, up to 23 feet (7 m) away. You can point it at the front or back of the projector.

Make sure that you aim the remote control at the projector's receiver within the angles listed here.

1 ±60°

2 ±15°

3 23 feet (7 m)

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.

Parent topic: Using Basic Projector Features

Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and SD card, you may want to switch from one image source to the other.

1. Make sure the connected image source you want to use is turned on.

2. For video image sources, insert a DVD or other video media and press its play button, if necessary.

3. Press the button for the source you want on the remote control.

1 HDMI source (switches to images from a connected computer or other HDMI video source)

2 Network source (switches to images from a computer or mobile device connected over a

network)

3 SD card source (switches to images on an inserted SD card)

4 Spotlight (switches to spotlight mode)

Parent topic: Using Basic Projector Features

Using Spotlight Mode

You can use spotlight mode to project a virtual spotlight and customize the position, size, shape and width of the light.

1. Press the Spotlight button on the remote control.

The projection image becomes a spotlight.

2. Press the Effect button on the remote control to change the overlay effect and shape filter for the spotlight.

Parent topic: Using Basic Projector Features

Related concepts

Overlay Effects and Shape Filters

Selecting a Playlist on an SD Card

You can create playlists combining images and movies and save them to an SD card. You can then insert the SD card into the projector and select the playlist you want to project.

Note: See the Epson Projector Content Manager Operation Guide for information about creating playlists and exporting them to an SD card.

1. Insert an SD card containing content playlists into the projector's SD card slot.

2. To select a playlist, do one of the following:

• Press the SD button on the projector's remote control to project the playlist on the SD card that

was played last. If there is a timetable assigned, the playlist will play back according to the schedule in the timetable.

• Press the SD Viewer button on the projector's remote control and use the arrow buttons to select

a playlist from the displayed list.

• Start a specific playlist assigned to a favorite playlist's button by pressing the corresponding

number button on the projector's remote control.

Note: You can assign playlists to each of the number buttons (1 to 9) on the projector's remote control using the Epson Projector Content Manager software. See the Epson Projector Content Manager Operation Guide for details.

Parent topic: Using Basic Projector Features

Related references

Additional Projector Software and Manuals

Overlay Effects and Shape Filters

You can select Color Filter, Lightness, and Shape Filter settings to create an overlay effect. You can then assign a separate Overlay Effect to each input source. You can also assign Overlay Effect and size and position settings for the standard shape effect filters in your projector's menu.

Note: You can apply filters and effects to an entire playlist on an SD card, but not to each video or image file in the playlist. For more information on effects, see the Epson Projector Content Manager Operation Guide for details.

Caution: Do not remove the SD card or unplug the projector while using Overlay Effect. Otherwise, you may damage data saved on the SD card.

Selecting a Shape Effect Adjusting the Color of the Effect Adjusting the Brightness of the Effect

Parent topic: Using Basic Projector Features

Selecting a Shape Effect

You can select a standard or customized shape effect filter and apply it to the spotlight or playlist.

1. Press the Effect button on the projector's remote control.

You see this screen:

2. Set the Overlay Effect setting to On.

3. Select Shape Filter and press Enter ( ).

You see this screen:

4. To change the shape of the effect, select Shape, press Enter ( ), select a shape option, and press Menu to exit.

Note: The standard shape effect filters are Circle 1 to Circle 3 and Rectangle 1 to Rectangle 3.

You can also create custom shapes using the Epson Projector Content Manager software.

5. To apply a filter to the effect, select Filter Effect, press Enter( ), select a filter effect option, and press Menu to exit.

6. To change the size of the effect, select Size, press Enter ( ), and use the left and right arrow buttons to adjust the height and width. Press Menu to exit.

7. To change the position of the effect, select Position, press Enter ( ), and use the arrow buttons to adjust the position of the shape. Press Menu to exit.

Parent topic: Overlay Effects and Shape Filters

Adjusting the Color of the Effect

You can add a color to the overlay effect from the list of available effects. You can then apply the overlay effect to the spotlight or a playlist.

1. Press the Effect button on the projector's remote control.

You see this screen:

2. Set the Overlay Effect setting to On.

3. Select Color Filter and press Enter ( ).

You see this screen:

4. Select Color Filter, press Enter ( ), and use the left and right arrow buttons to select a color for the overlay effect. Press Menu to exit.

5. To assign a color that is not available in the Color Filter list, select Custom, press Enter ( ), and use the arrow buttons to adjust the color. Press Menu to exit.

Parent topic: Overlay Effects and Shape Filters

Adjusting the Brightness of the Effect

You can lighten or darken the overlay effect and apply it to the spotlight or playlist.

1. Press the Effect button on the projector's remote control.

You see this screen:

2. Set the Overlay Effect setting to On.

3. Select Lightness and press Enter ( ).

4. Use the left and right arrow buttons to lighten or darken the effect.

5. Press Menu to exit.

Parent topic: Overlay Effects and Shape Filters

Projection Modes

Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.

• Front (default setting) lets you project from a table in front of the screen.

• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.

• Rear flips the image horizontally to project from behind a translucent screen.

• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind

a translucent screen.

Changing the Projection Mode Using the Remote Control Changing the Projection Mode Using the Menus

Parent topic: Using Basic Projector Features

Changing the Projection Mode Using the Remote Control

You can change the projection mode to flip the image over top-to-bottom.

1. Turn on the projector and display an image.

2. Hold down the A/V Mute button on the remote control for 5 to 10 seconds.

The image disappears briefly and reappears flipped top-to-bottom.

3. To change projection back to the original mode, hold down the A/V Mute button for 5 to 10 seconds again.

Parent topic: Projection Modes

Changing the Projection Mode Using the Menus

You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the projector menus.

1. Turn on the projector and display an image.

2. Press the Menu button on the remote control.

3. Select the Extended menu and press Enter ( ).

4. Select the Projection setting and press Enter ( ).

5. Select a projection mode and press Enter ( ).

6. Press Menu or Esc to exit the menus.

Parent topic: Projection Modes

Related references

Projector Setup Settings - Extended Menu

Turning On Automatic Luminance Adjustment

In the Dynamic color mode, you can turn on the Dynamic Contrast setting to automatically optimize the image luminance. This improves the image contrast based on the brightness of the content you project.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

3. Select the Image menu and press Enter ( ).

4. Select the Dynamic Contrast setting, choose one of the following options, and press Enter ( ):

• Normal to adjust brightness at the standard speed.

• High Speed to adjust brightness as soon as the scene changes.

Note: The Dynamic Contrast setting cannot be adjusted when Multi-Projection is set to On.

5. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Related references

Image Quality Settings - Image Menu

Image Aspect Ratio

The projector can display images in different width-to-height ratios called aspect ratios. Normally the input signal from your video source determines the image's aspect ratio. However, for certain images you can change the aspect ratio to fit your screen by pressing a button on the remote control.

If you always want to use a particular aspect ratio for a certain video input source, you can select it using the projector's menus.

Changing the Image Aspect Ratio Available Image Aspect Ratios

Parent topic: Using Basic Projector Features

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image to resize it.

Note: For HDMI sources, the input signal determines the image's aspect ratio. You can only change the Aspect setting when the input signal is HDMI.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

3. Select the Signal menu and press Enter ( ).

4. Select Aspect and press Enter ( ).

5. Select the aspect ratio you want to use for your input signal and press Enter ( ).

6. Press Menu or Esc to exit the menus.

Parent topic: Image Aspect Ratio

Related references

Input Signal Settings - Signal Menu

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the input signal from your image source.

Aspect ratio setting Description

Auto Automatically sets the aspect ratio according to the input signal.

Normal Displays images using the full projection area and maintains the

4:3 Converts the aspect ratio of the image to 4:3.

16:9 Converts the aspect ratio of the image to 16:9.

aspect ratio of the input signal.

Aspect ratio setting Description

Full Displays images using the full width of the projection area, but does

Zoom Displays images using the full width of the projection area and

Native Displays images as is (aspect ratio and resolution are maintained).

Parent topic: Image Aspect Ratio

Color Mode

The projector offers different Color Modes to provide optimum brightness, contrast, and color for a variety of viewing environments and image types. You can select a mode designed to match your image and environment, or experiment with the available modes.

If you always want to use a particular color mode for a certain video input source, you can select it using the projector menus.

Changing the Color Mode Available Color Modes

Parent topic: Using Basic Projector Features

not maintain the aspect ratio.

maintains the aspect ratio of the image (areas that extend beyond the edges of the projected screen are not projected).

Changing the Color Mode

You can change the projector's Color Mode to optimize the image for your viewing environment.

1. Turn on the projector and switch to the image source you want to use.

2. If you are projecting from a DVD player or other video source, insert a disc or other video media and press the play button, if necessary.

3. Press the Menu button on the remote control.

4. Select the Image menu and press Enter ( ).

5. Select Color Mode and press Enter ( ).

6. Press the arrow buttons to select a color mode setting and press Enter ( ).

7. When you are finished, press Esc.

Parent topic: Color Mode

Related references

Image Quality Settings - Image Menu

Available Color Modes

You can set the projector to use these Color Modes, depending on the input source you are using:

Color Mode Description

Dynamic Best for images projected in a bright room

Normal Best for images projected in with natural colors

Parent topic: Color Mode

Controlling the Volume with the Volume Buttons

The volume buttons control any external speakers you connected to the projector.

You must adjust the volume separately for each connected input source.

1. Turn on the projector and start a presentation that includes audio.

2. To lower or raise the volume, press the Volume buttons on the remote control.

A volume gauge appears on the screen.

3. To set the volume to a specific level for an input source, use the projector menus.

Parent topic: Using Basic Projector Features

Related references

Projector Feature Settings - Settings Menu

Adjusting Projector Features

Follow the instructions in these sections to use your projector's feature adjustments.

Using Multiple Projectors Selecting a Test Pattern Using the Remote Control Selecting a Test Pattern Using the Menus Scheduling Projector Events Projector Security Setting a Password Selecting Password Security Types Entering a Password to Use the Projector Saving a User's Logo Image to Display Copying Menu Settings Between Projectors

Using Multiple Projectors

You can combine the projected images from two or more projectors to create one large image. Follow the instructions in these sections to set up and project from multiple projectors.

Projector Identification System for Multiple Projector Control Adjusting the Projector's Brightness Level Blending the Image Edges Scaling an Image Adjusting Color Uniformity Matching the Image Colors Projecting One Image Simultaneously (Synchronized Playback)

Parent topic: Adjusting Projector Features

Projector Identification System for Multiple Projector Control

You can operate multiple projectors using one remote control for more elaborate presentations. To do this, you assign an identification number to each projector and to the remote control. Then you can operate all the projectors at once or individually.

Setting the Projector ID Setting the Remote Control ID

Parent topic: Using Multiple Projectors

Setting the Projector ID

If you want to control multiple projectors from a remote control, give each projector a unique ID.

1. Press the Menu button.

2. Select the Extended menu and press Enter ( ).

3. Select the Multi-Projection setting and press Enter ( ).

4. Select Projector ID and press Enter ( ).

5. Press the arrow buttons on the remote control to select the identification number you want to use for the projector. Then press Enter ( ).

Repeat these steps for all the other projectors you want to operate from one remote control.

Note: If you don't know the projector's ID, aim the remote control at the projector and press the ID button to temporarily display the projector's ID on the screen.

Parent topic: Projector Identification System for Multiple Projector Control

Related references

Projector Setup Settings - Extended Menu

Setting the Remote Control ID

The remote control's ID is set to zero by default so it can operate any compatible projector. If you want to set the remote control to operate only a particular projector, you need to set the remote control's ID to match the projector's ID.

Note: You must set the remote control ID to match the projector ID each time you turn on the projector you have set it to control.

1. Turn on the projector you want the remote control to operate with exclusively.

2. Aim the remote control at that projector.

3. Hold down the ID button on the remote control while you press the numeric button that matches the projector's ID. Then release the buttons.

4. Press the ID button on the remote control to check if the ID-setting process worked.

You see a message displayed by the projector.

• If the remote control is listed as On, the remote control ID is set to operate only the listed projector.

• If the remote control is listed as Off, the remote control ID is not set properly. Repeat the steps

above to set the ID to match the projector you want to control.

Parent topic: Projector Identification System for Multiple Projector Control

Related references

Projector Setup Settings - Extended Menu

Adjusting the Projector's Brightness Level

When projecting with multiple projectors, you must adjust the brightness setting so that all projectors are equally bright. (Even after adjusting the brightness levels, the brightness of each projector may not match exactly.)

100

Epson V11H868041 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Optional Equipment and Replacement Parts

Warranty and Registration Information

Notations Used in the Documentation

Where to Go for Additional Information

Additional Projector Software and Manuals

Projector Part Locations

Projector Parts - Front

Projector Parts - Rear

Projector Parts - Interface Panel

Projector Parts - Top

Projector Parts - Remote Control

Setting Up the Projector

Projector Placement

Projector Setup and Installation Options

Adjusting the Projection Angle

Projection Distance

Attaching and Removing the Cable Clips

Connecting to a Computer for HDMI Video and Audio

Connecting to an HDMI Video Source

Connecting to External Speakers

Inserting an SD Card

Installing Batteries in the Remote Control

Using the Projector on a Network

Wired Network Projection

Connecting to a Wired Network

Selecting Wired Network Settings

Wireless Network Projection

Selecting Wireless Network Settings Manually

Wireless LAN Menu Settings

Selecting Wireless Network Settings in Windows

Selecting Wireless Network Settings on Mac

Setting Up Wireless Network Security

Using a QR Code to Connect a Mobile Device

Setting Up Projector Network E-Mail Alerts

Network Projector E-mail Alert Messages

Setting Up Monitoring Using SNMP

Controlling a Networked Projector Using a Web Browser

Using Crestron Connected

Setting Up Crestron Connected

Controlling a Networked Projector Using Crestron Connected

Art-Net Channel Definitions

Setting Up Web API

Registering a Digital Certificate on the Projector

Importing a Web Server Certificate Using the Projector Menus

Registering Digital Certificates from a Web Browser

Digital Certificate Types

Using Basic Projector Features

Turning On the Projector

Turning Off the Projector

Selecting the Language for the Projector Menus

Setting the Date and Time

Image Shape

Correcting Image Shape with H/V Keystone

Correcting Image Shape with Quick Corner

Focusing the Image Using the Focus Buttons

Zooming Into and Out of Images

Shutting Off the Picture and Sound Temporarily

Remote Control Operation

Selecting an Image Source

Using Spotlight Mode

Selecting a Playlist on an SD Card

Overlay Effects and Shape Filters

Selecting a Shape Effect

Adjusting the Color of the Effect

Adjusting the Brightness of the Effect

Projection Modes

Changing the Projection Mode Using the Remote Control

Changing the Projection Mode Using the Menus

Turning On Automatic Luminance Adjustment

Image Aspect Ratio

Changing the Image Aspect Ratio
