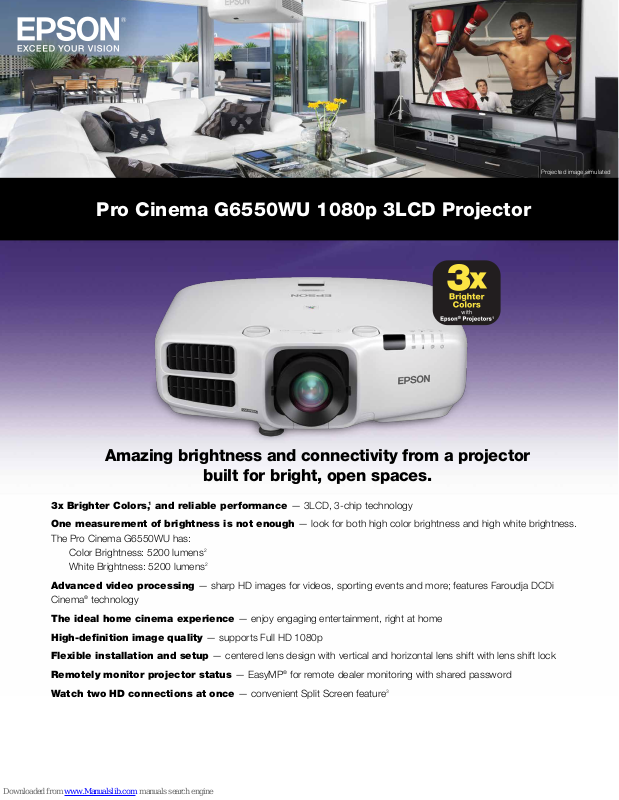

Page 1
Pro Cinema G6550WU 1080p 3LCD Projector
1
Amazing brightness and connectivity from a projector
Projected image simulated
built for bright, open spaces.
3x Brighter Colors,1 and reliable performance — 3LCD, 3-chip technology
One measurement of brightness is not enough — look for both high color brightness and high white brightness.
The Pro Cinema G6550WU has:
Color Brightness: 5200 lumens
White Brightness: 5200 lumens
Advanced video processing — sharp HD images for videos, sporting events and more; features Faroudja DCDi
Cinema® technology
The ideal home cinema experience — enjoy engaging entertainment, right at home
High-definition image quality — supports Full HD 1080p
Flexible installation and setup — centered lens design with vertical and horizontal lens shift with lens shift lock
Remotely monitor projector status — EasyMP® for remote dealer monitoring with shared password
Watch two HD connections at once — convenient Split Screen feature
2
2
3
Page 2
Pro Cinema G6550WU 1080p 3LCD Projector
1
2
WHITE
BRIGHTNESS
2
LUMENS
5200
Amazing brightness and connectivity from a projector built for
bright, open spaces.
The Pro Cinema G6550WU home theater projector is the perfect choice for premium home entertainment in large,
open spaces with ambient light. Offering 3x Brighter Colors1 than competitive models, Epson® 3LCD projectors ensure
sharp, vivid images. The Pro Cinema G6550WU supports Full HD 1080p and features advanced video processing for
the ideal home cinema experience. This versatile performer can even project content from two HD connections, side
by side, with the Split Screen3 function. A centered lens and locking lens shift make setup easy. And, installers can
monitor the projector’s status remotely to change internal settings or issue email reminders regarding maintenance.
3x Brighter Colors with Epson
Brilliant image quality requires high color
brightness (color light output), and Epson 3LCD
projectors have 3x Brighter Colors than leading
competitive projectors.
One brightness measurement (lumens) is not
enough. A projector’s specification needs to
show both high color brightness and high white
brightness. If color brightness is lower than white
brightness, images may be dark, dull and lose
detail. If not provided, be sure to ask for a
projector’s color brightness specification.
High color brightness and high white brightness
1
EPSON
COMPETITOR
1
COLOR
BRIGHTNESS
5200
LUMENS
WHITE
BRIGHTNESS
5200
LUMENS
3LCD — The #1 projection
technology in the world
• All 3LCD projectors have both high color
brightness and high white brightness
1
2
• All 3LCD projectors have 3 chips
• 25% lower power consumption for lower
energy costs
4
• 20 years of road-tested reliability
2
3LCD, 3-chip technology
Award-winning Faroudja DCDi Cinema
for premium video quality
Color brightness significantly lower than white brightness
Actual photographs of projected images from an identical signal source.
Price, resolution and white brightness are similar for both projectors
(Epson 3LCD and 1-chip DLP competitor). Both projectors are set to
their brightest mode.
The best-selling projectors in the world.
Epson offers a wide range of high-quality projectors to meet almost any need. Built with image quality
and reliability in mind, Epson high-definition projectors take home theater entertainment to a whole new
level, featuring color and detail that’s sure to win rave reviews from friends and family alike.
Faroudja DCDi Cinema is a video enhancement technology
that produces exceptional image quality without introducing
artifacts. Faroudja developed DCDi (Directional Correlational
Deinterlacing) to eliminate jaggy images by using a unique
algorithm.
Page 3
Installation flexibility
Lens shift
Epson lens shift technology enables outstanding installation
flexibility with an incredible range of up to + or – 67 percent on
the vertical axis and up to + or – 30 percent on the horizontal
axis with lens shift lock.
Centered lens design
Featuring a centered lens design, the Pro Cinema G6550WU
makes installation easy to plan. Positioning the ceiling mount,
screen and projector can be performed individually and
independent of one another.
Point and arc correction
Adjust each side of a projected image in an arc or barrelshaped way, making it easier than ever to get a perfectly
rectangular image.
Convenient test patterns
The Pro Cinema G6550WU includes nine test patterns
including linearity, color reproduction, bleeding and tone
production. It even detects distortion.
Easy maintenance
The Pro Cinema G6550WU requires very little maintenance.
But when it does, it’s easier than ever. The easily accessible
filter, which can capture particles as small as three microns,
has a recommended 10,000-hour cleaning schedule.
5
The
lamp can be accessed through the rear side panel. There
are no screws, so the lid can be easily removed without any
special tools.
Twice the HD content
Split Screen3 allows you to watch content from two
different HD inputs, simultaneously, on a single screen,
using one of three layout options.
Layout Option 1:
50-50% Split Screen
Diverse connectivity
Connect with virtually any system with HDMI™, DisplayPort,
VGA, BNC and LAN connectivity.
Easy Management
The EasyMP Monitor tool makes it easy for installers to monitor
their customer’s projector status, set up email notifications,
verify and change internal settings related to maintenance
issues, and more, without having to visit the customer’s home.
The password protection feature ensures only authorized
people have access to monitor the projector.
• Monitoring — You, or anyone you give access to, can
monitor the power status (ON/OFF) or see problems or alerts
requiring attention via icons displayed on EasyMP Monitor.
You can also check the lamp operating time or detailed
information such as input sources.
• Controlling — You can carry out operations such as
switching input sources, or changing the settings in the
projector’s configuration menu. To save energy, you can use
the EasyMP Monitor Schedule function to turn the power
on/off, or use Timer Settings for regular or particular timeactivated actions.
®
Layout Option 2:
Main image on the left
Layout Option 3:
Main image on
the right
For more information on Epson’s environmental
programs, go to eco.epson.com
Eco Features
• RoHS compliant
• Recyclable product
• Epson America, Inc. is a SmartWay SM
Transport Partner
6
7
Page 4
Pro Cinema G6550WU 1080p
3LCD Projector
LAN
RJ-45
HDMI
Display Port
S-Video
Video
Audio R & L
Product Name Product Code UPC
PowerLite
®
Pro Cinema G6550WU V11H513020MB 0 10343 91297 7
Genuine Epson Lamp V13H010L76 0 10343 90738 6
Replacement Air Filter V13H134A43 0 10343 90739 3
Specifications
Projection System
High-aperture Epson 3LCD, 3-chip technology
Projection Method
Front/rear/ceiling mount
Product Color
White
Driving Method
Epson Poly-silicon TFT Active Matrix
Pixel Number
2,304,000 dots (1920 x 1200) x 3
Color Brightness
Color Light Output: 5200 lumens
White Brightness
White Light Output: 5200 lumens
Native Resolution
1920 x 1200 (WUXGA)
Resize
640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Aspect Ratio
Supports 4:3, 16:9, 16:10
Pixel Arrangement
Cross stripe
Contrast Ratio
(High Brightness, Dynamic Mode) 5000:1
with Auto Iris on
Color Reproduction
Up to 1 billion colors
Size (projected distance)
50" – 300"
Lens Shift
Vertical (Standard lens): ±67 percent
Horizontal: ±30 percent
Keystone Correction
Vertical: ±30 degrees
Horizontal: ±30 degrees
Lamp Type
380 W UHE
Lamp Life
4000/2500 hour
2
2
8
(ECO/Normal mode)
Effective Scanning
Frequency Range
Pixel Clock
13.5 MHz – 162 MHz (up to UXGA 60 Hz)
Horizontal
15 kHz – 92 kHz
Vertical
50 Hz – 85 Hz
Video I/O
Display Performance
NTSC: 480 line
PAL: 576 line
(depends on observation of the
multi-burst pattern)
Input Signal
NTSC/NTSC4.43/PAL/M-PAL/N-PAL/
PAL60/SECAM/480i/576i/480p/576p/720p/
1080i/1080p
Pixel works: video chip
3D Y/C separation,
noise reduction motion compensated
Interlace-Progressive conversion
(2 – 2, 3 – 2 film detection)
Interfaces
HDMI x 1
DisplayPort x 1
Computer: D-sub 15 pin x 1
Video-1: 5-BNC x 1
Video-2: RCA x 1
Composite video: BNC x 1
S-Video x 1
Audio-in: Mini stereo x 3
Audio-in: RCA (L&R) x 1
Network: RJ-45 x 1, 100 Mbps
USB Type-A x 1, Type-B x 1
Serial: RS-232c
Hardwire remote jack x 1
Monitor-Out: D-sub 15 pin x 1
Standard Projection Lens
Type
Manual focus/zoom
F-number
1.65 – 2.55
Focal Length
21.28 mm – 37.94 mm
Zoom Ratio
Optical zoom 1 – 1.8
Throw Ratio Range
1.52 – 2.76 (4:3)
1.26 – 2.30 (16:10, 16:9)
Computer 1
Other Features
Operating Temperature
32 ˚ to 113 ˚F (0 ˚ to 45 ˚C)
Power Supply Voltage
100 – 240 V ±10%, 50/60 Hz AC
Power Consumption
528 W (Normal Mode)
421 W (ECO Mode)
2.8 W Standby (Communication on)
0.31 W Standby (Communication off)
Fan Noise
39 dB (Normal Mode)
31 dB (ECO Mode)
Security
Security cable hole, lens lock,
®
Kensington
lock provision
Remote Control
Features
Power, source search selection, computer,
video, A/V mute, freeze, user ID, auto, aspect,
color mode, number, page up and down,
e-zoom, volume, help, menu, enter, esc and
pointer functions
Operating Angle
Right/left:
Front: ± 60 degrees
Rear: ± 30 degrees
Upper/lower:
Front: ± 20 degrees
Rear: +10 to +50 degrees
Operating Distance
49 ft
Support
The Epson Connection SM
Pre-sales support U.S. and Canada
800-463-7766
Internet website www.epson.com
Service Programs
Four-year limited warranty, Epson Home Service
program, PrivateLine
support (U.S. and Canada only) and 90-day
limited lamp warranty
Audio
1 & 2
BNC
Video
Kensington
Security
Lock Port
®
dedicated toll-free
Audio 3
RS-232c
Power Control Panel
Remote
Monitor Out
Audio
What’s In The Box
A PowerLite Pro Cinema G6550WU projector,
one standard lens, power cable, computer cable
(VGA), projector remote control with batteries, user
manual CD, EasyMP software CD, Quick Setup
Sheet and lens lock screw. Also sold with (not in
the box) a spare lamp and ceiling mount.
Dimensions (W x D x H)
Including Feet (with standard lens)
19.88" x 15.94" x 6.73"
Excluding Feet, Lens
19.88" x 15.04" x 5.67"
Weight with standard lens 21.5 lb
Accessory Part Numbers
Genuine Epson lamp (ELPLP76) V13H010L76
Replacement air filter (ELPAF43) V13H134A43
Long-throw zoom V12H004L06
Middle-throw 1 zoom V12H004M04
Middle-throw 2 zoom V12H004M05
Short-throw zoom V12H004U01
Rear projector wide fixed V12H004R03
Quick Wireless Connect key
(ELPAP09) V12H005M09
Replacement remote control 158279900
Advanced projector ceiling mount
with precision gear ELPMBPRG
Adjustable suspended ceiling
channel kit ELPMBP01
Kensington security lock ELPSL01
50-inch portable screen
(4:3 aspect ratio) ELPSC06
60-inch portable pop-up screen
(4:3 aspect ratio) ELPSC07
80-inch portable pop-up screen
(4:3 aspect ratio) ELPSC08
Duet™ portable projector screen
(4:3/16:9 combination) ELPSC80
Distribution amplifier ELPDA01
Out
1 Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Color brightness (color light output) measured in accordance with IDMS 15.4.
Color brightness will vary depending on usage conditions.
2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in
accordance with ISO 21118.
3 Consult your user manual for input combinations.
4 Data source: ProjectorCentral.com Jan. 2013. Average of 1128 shipping models for which the manufacturers provided lumens and total power data, all resolutions and brightness levels. Energy efficiency was
measured as wattage per lumen. It was measured for both 3LCD and 1-chip projectors in each of five brightness segments. 3LCD projectors averaged less required electricity per lumen in each of the five segments.
5 Recommendation based on normal room conditions. Cleaning requirements may vary depending on use, environment and other conditions. Cleaning intervals may be adjusted to accommodate the environment in
which the projector is used.
6 See our website for convenient and reasonable recycling options at www.epson.com/recycle
7 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.
8 ECO Mode is 4000 hours. Normal Mode is 2500 hours. Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
Epson America, Inc.
3840 Kilroy Airport Way, Long Beach, CA 90806
Specifications and terms are subject to change without notice. EPSON, Easy Management, EasyMP and PowerLite are registered trademarks, EPSON Exceed Your Vision is a registered logomark and Better
Products for a Better Future is a trademark of Seiko Epson Corporation. PrivateLine is a registered trademark, Duet is a trademark and Epson Connection is a service mark of Epson America, Inc. SmartWay is
a service mark of the U.S. Environmental Protection Agency. All other product and brand names are trademarks and/or registered trademarks of their respective companies. Epson disclaims any and all rights in
these marks. Copyright 2014 Epson America, Inc. CPD-40038R1 1/14
Epson Canada Limited
185 Renfrew Drive, M arkha m, Onta rio L3 R 6G3
www.epson.com
www.epson.ca
Loading...
