PowerLite® Home Cinema 2000/2030
*412537900*
*412537900*
Audio Out port

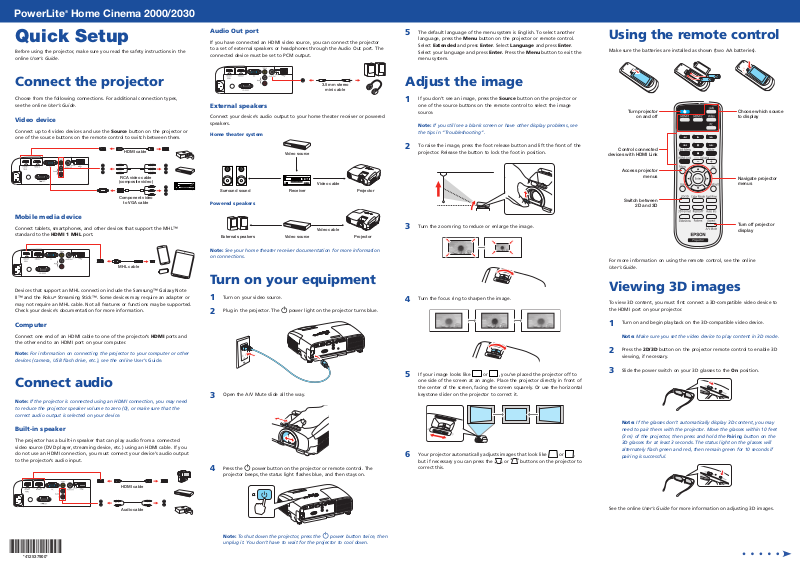

Quick Setup
Before using the projector, make sure you read the safety instructions in the
online User’s Guide.
Connect the projector
Choose from the following connections. For additional connection types,
see the online User’s Guide.
Video device
Connect up to 4 video devices and use the Source button on the projector or
one of the source buttons on the remote control to switch between them.
HDMI cable
RCA video cable
(composite video)
Component video
to VGA cable
If you have connected an HDMI video source, you can connect the projector
to a set of external speakers or headphones through the Audio Out port. The
connected device must be set to PCM output.
3.5 mm stereo
mini cable
External speakers
Connect your device’s audio output to your home theater receiver or powered
speakers.
Home theater system
Video source
Video cable
Surround sound Receiver Projector
Powered speakers
Mobile media device
Connect tablets, smartphones, and other devices that support the MHL™
standard to the HDMI 1 MHL port.
MHL cable
Devices that support an MHL connection include the Samsung™ Galaxy Note
II™ and the Roku® Streaming Stick™. Some devices may require an adapter or
may not require an MHL cable. Not all features or functions may be supported.
Check your device’s documentation for more information.
Computer
Connect one end of an HDMI cable to one of the projector’s HDMI ports and
the other end to an HDMI port on your computer.
Note: For information on connecting the projector to your computer or other
devices (camera, USB flash drive, etc.), see the online User’s Guide.
Video cable
External speakers Video source Projector
Note: See your home theater receiver documentation for more information
on connections.
Turn on your equipment
Turn on your video source.
1
Plug in the projector. The power light on the projector turns blue.
2
Connect audio
Note: If the projector is connected using an HDMI connection, you may need
to reduce the projector speaker volume to zero (0), or make sure that the
correct audio output is selected on your device.
Built-in speaker
The projector has a built-in speaker that can play audio from a connected
video source (DVD player, streaming device, etc.) using an HDMI cable. If you
do not use an HDMI connection, you must connect your device’s audio output
to the projector’s audio input.
HDMI cable
Audio cable
Open the A/V Mute slide all the way.
3
Press the power button on the projector or remote control. The
4
projector beeps, the status light flashes blue, and then stays on.
Note: To shut down the projector, press the power button twice, then
unplug it. You don’t have to wait for the projector to cool down.
The default language of the menu system is English. To select another
5
language, press the Menu button on the projector or remote control.
Select Extended and press Enter. Select Language and press Enter.
Select your language and press Enter. Press the Menu button to exit the
menu system.
Adjust the image
If you don’t see an image, press the Source button on the projector or
1
one of the source buttons on the remote control to select the image
source.
Note: If you still see a blank screen or have other display problems, see
the tips in “Troubleshooting”.
To raise the image, press the foot release button and lift the front of the
2
projector. Release the button to lock the foot in position.
Using the remote control
Make sure the batteries are installed as shown (two AA batteries).
Turn projector
on and off
Control connected
devices with HDMI Link
Choose which source
to display
Turn the zoom ring to reduce or enlarge the image.
3
Turn the focus ring to sharpen the image.
4
Access projector
menus
Switch between
2D and 3D
For more information on using the remote control, see the online
User’s Guide.
Navigate projector
menus
Turn off projector
display
Viewing 3D images
To view 3D content, you must first connect a 3D-compatible video device to
the HDMI port on your projector.
If your image looks like or , you’ve placed the projector off to
5
one side of the screen at an angle. Place the projector directly in front of
the center of the screen, facing the screen squarely. Or use the horizontal
keystone slider on the projector to correct it.
Your projector automatically adjusts images that look like or ,
6
but if necessary you can press the or buttons on the projector to
correct this.
Turn on and begin playback on the 3D-compatible video device.
1
Note: Make sure you set the video device to play content in 3D mode.
Press the 2D/3D button on the projector remote control to enable 3D
2
viewing, if necessary.
Slide the power switch on your 3D glasses to the On position.
3
Note: If the glasses don’t automatically display 3D content, you may
need to pair them with the projector. Move the glasses within 10 feet
(3 m) of the projector, then press and hold the Pairing button on the
3D glasses for at least 3 seconds. The status light on the glasses will
alternately flash green and red, then remain green for 10 seconds if
pairing is successful.
See the online User’s Guide for more information on adjusting 3D images.
