Introduction

The EPSON® PowerLite® Cinema 500 projector lets you enjoy theater-quality images in the
relaxing environment of your own home. Designed especially for home cinema use, it offers
these outstanding features:

■ 1280 × 720 resolution, 1200:1 contrast ratio, and up to 1000 lumens for incredibly rich,

sharp images

■ DCDi

■ HDMI

■ True 16:9 wide-format projection

■ Flexible setup configurations, including front or rear projection and ceiling mounted,

■ Adjustable color modes to quickly optimize viewing for different lighting environments,

■ Vertical and horizontal lens shift to position the image without distortion, and electronic

®

technology by Faroudja and PixelworksTM Digital Natural ExpressionTM

technology to make moving images appear clear and lifelike

TM

port for superior, uncompressed digital video

with a screen trigger port to automatically raise and lower your projection screen

and Cinema Color Editor software for making fine custom color adjustments

zoom and focus for precise image adjustment

■ Parental control using the projector’s Operation Lock

Registration and Warranty

The EPSON PowerLite Cinema 500 comes with a basic two-year carry-in warranty. For
details, see page 76.

In addition, for customers who register their projector, EPSON offers free Extra Care
Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to
be repaired. Instead, EPSON will ship you a replacement unit anywhere in the United States
or Canada, usually via overnight delivery. See your Extra Care Home Service brochure for
details.

To register, simply fill out the registration card that came with your projector and mail it to
EPSON. Or you can register online at http://www.epson.com/webreg. Registering also lets
you receive special updates on new accessories, products, and service.

SM

Home

7

Projector Parts

Control panel

Lamp cover

Ventilation slots

Adjustable foot

HDMI port

Vertical lens shift knob

Horizontal lens shift knob

Lens cover

Infrared receiver

Video port

S-Video port

USB port

Input A ports

D4 port (used

mainly in

Japan)

Kensington

lock port

Input B ports

8 Projector Parts

®

Network port

Infrared receiver

Trigger out port

AC power inlet

Control (RS-232C) port

Projection Controls

Zoom button

Lamp light

Power button

Temperature

light

Menu button

Displays the projector’s menus

Memory button

Recalls custom picture settings

Menu navigation buttons
Menu selection/Line menu

Selects menu items or opens
Line Menu

Menu navigation
buttons

Focus

button

Menu button

Displays the on-screen menu

Source button

Switches the video input source

Aspect button

Changes the picture’s
aspect ratio

Esc button

Exits the current menu item

Keystone correction buttons

Corrects the shape of a non-rectangular image

On/Off buttons

Color Mode button

Optimizes viewing for
different lighting environments

Aspect button

Changes the picture’s aspect ratio

ESC button

Exits the current menu item

Blank button

Turns off the screen image

Pattern button

Displays test patterns to adjust
the image

Source buttons

Switch between equipment
connected to the projector

Zoom and Focus buttons

Illumination button

Lights the buttons on the remote
control

Projection Controls 9

Optional Accessories

EPSON provides the following optional accessories for the projector:

Product Part number

Replacement lamp (ELPLP28) V13H010L28
Air filter replacement (ELPAF04) V13H134A04
Ceiling mount ELPHB01
Kensington security lock ELPSL01
Macintosh

and desktop adapter)
S-video cable ELPSV01

You can purchase many of these accessories from your dealer, by calling EPSON
at [phone], or by visiting the EPSON Store
(U.S. sales only). In Canada, please call [phone] for dealer referral.

®

adapter set (includes monitor adapter

ELPAP01

SM

at www.epsonstore.com

10 Optional Accessories

Using This Manual

This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.

Please follow these guidelines as you read through the manual:

Warnings: Must be followed carefully to avoid bodily injury.

Cautions: Must be observed to avoid damage to your equipment.

Notes: Contain important information about your projector.

Tips: Contain helpful projection tips.

Getting More Information

Need additional help? Take advantage of EPSON’s automated support services 24 hours a
day at http://support.epson.com. Use this site to download FAQs or product information and
e-mail your questions to EPSON support.

If you need more help, you can use the EPSON PrivateLine
[phone] and enter the PIN on the PrivateLine support card that came with your
projector.

®

Support service. Call

Using This Manual 11

12 Using This Manual

Setting Up the Projector

Follow the instructions in this section to choose a location for the projector, connect the
cables, and display and adjust the image.

Choosing a Location

You can install the projector for various viewing setups, as shown below.

Front/Ceiling

Front

If you install the projector in a rear or overhead position, you’ll need to flip and/or mirror the
image by selecting the correct Projection option (see page 19). For overhead projection, you’ll
also need to install the optional ceiling mount bracket (see page 10 for ordering information).

For all setups, it’s best to place the projector at
a height where its lens is between the top and
bottom of the screen. That way, you can keep
the projector level and use the vertical lens
shift knob to position the image. This
produces the best-looking picture.

If you place the projector above or below
screen level, you’ll have to tilt it up or down to
aim the image at the screen; this distorts the shape of the image, but you can correct its shape
using the projector’s Keystone function (see page 20).

Rear/Ceiling

Rear

13

If you place the projector off to the side, aim it straight ahead (rather than at the center of the
screen), then use the horizontal lens shift knob to center the image. Do not place the projector
farther to the left or right than the edge of the screen, or you will not be able to project a
square (or rectangular) image.

Vertical lens shift knob

Horizontal lens shift knob

The maximum size of the image is determined by the distance from the projector’s lens to the
screen. Depending on how you use the Zoom and other settings, the actual size may be
smaller. Use this table as a rough guide for projector placement:

Projection distance Maximum image size (16:9)

2.9 feet 30 in. (26 × 14 in.)

3.9 feet 40 in. (34 × 19 in.)

5.9 feet 60 in. (52 × 29 in.)

7.9 feet 80 in. (69 × 39 in.)

9.9 feet 100 in. (87 × 49 in.)

19.9 feet 200 in. (174 × 98 in.)

29.9 feet 300 in. (261 × 147 in.)

Also keep these considerations in mind:

■ Make sure there is plenty of space for ventilation around and under the projector. Do not

set the projector on top of loose materials that could block the vents underneath.

■ Make sure the projector is within 10 feet of a grounded electrical outlet or extension cord.

14 Choosing a Location

Connecting the Cables

You can connect the projector to any type of video equipment, such as a VCR, DVD player,
digital tuner, cable or satellite box, video game console, camcorder, or digital camera. You can
also connect it to a desktop or laptop PC or Apple

You can connect up to five pieces of video equipment at the same time, using any of the
commercially available cables shown below:

Port name Video equipment connection Computer connection

HDMI Use an HDMI cable: Use an HDMI cable:

®

Macintosh® system.

Input A or

Input B

Component
video terminals

S-Video Use an S-video cable: —

Video Use an RCA video cable: —

Use a component video cable
(with RCA-style connectors):

Connect the cable to the three
component video terminals on the
left, as shown. Be sure to match
corresponding colors between the
cable and the terminals.

Select YCbCr, YPbPr, or
RGB-Video as the Input Signal
setting (see page 19).

Use a VGA-to-BNC monitor cable,
and attach RCA adapters to each
of the five BNC connectors:

When connecting the cable, use
the marking on each connector as
a guide to match it to the correct
terminal on the projector.

Select RGB as the Input Signal
setting (see page 19).

Note: For details on compatible video formats, see page 69.

Connecting the Cables 15

For best results, connect your video equipment to the HDMI (High-Definition Multimedia
Interface) port, if possible. If your equipment doesn’t support HDMI, connect it to one of the
following ports (highest quality listed first): Input A or B (for component video), S-Video, or
Video (for composite video).

Connect video equipment to one of these ports

Connect a computer to one of these ports

If you connect to the Input A or B port, be sure to select the correct Input Signal setting for
your equipment, or the image may not display properly (see page 19).

Making Other Connections

Connect the power cable and other cables described below, depending on how you plan to
use the projector.

■ Power cable

Plug the power cable into the projector and a grounded electrical outlet. The P power

light on the projector’s control panel turns orange when the projector is receiving power

and is in standby mode.

16 Connecting the Cables

■ Control (RS-232C), USB, or network port

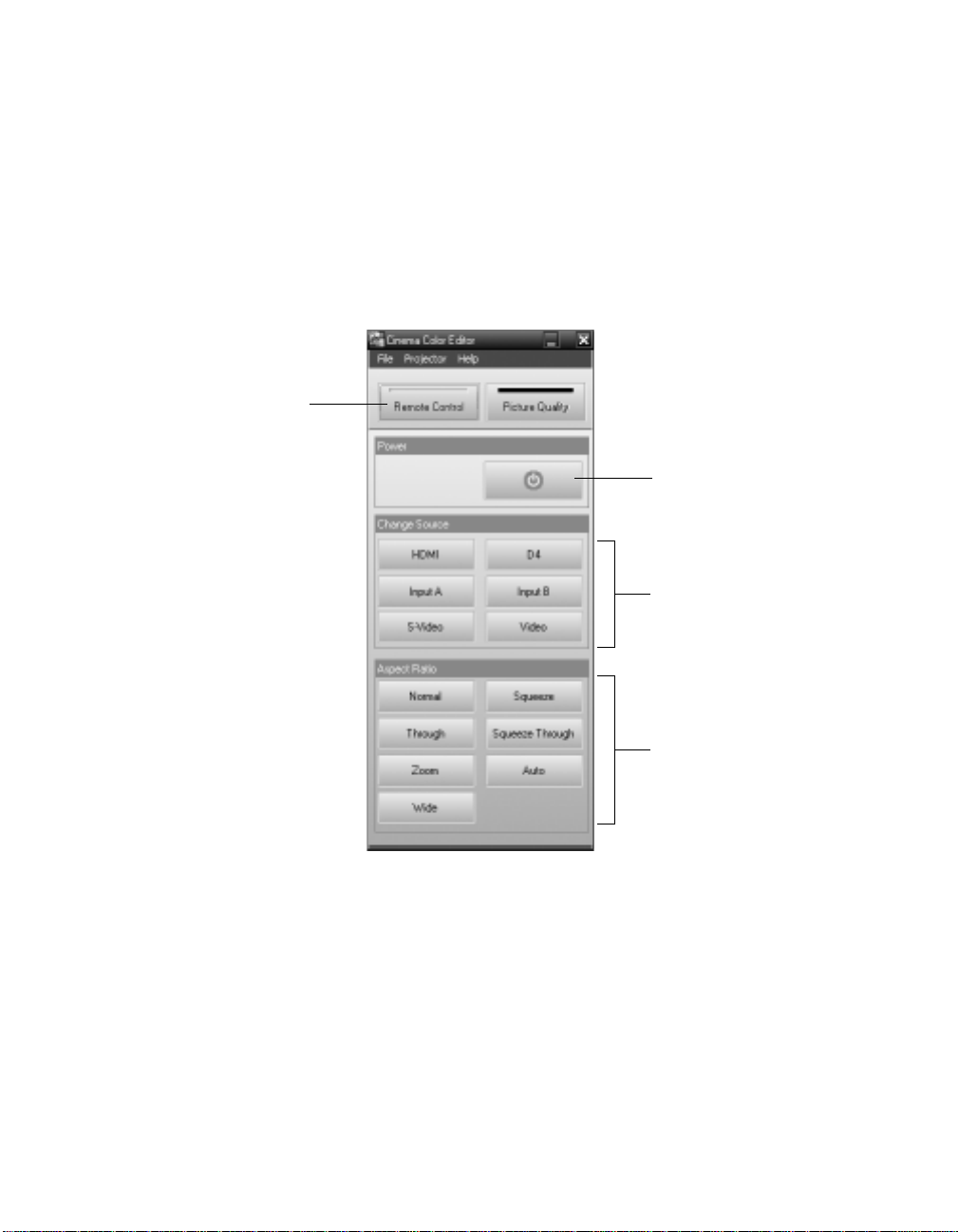

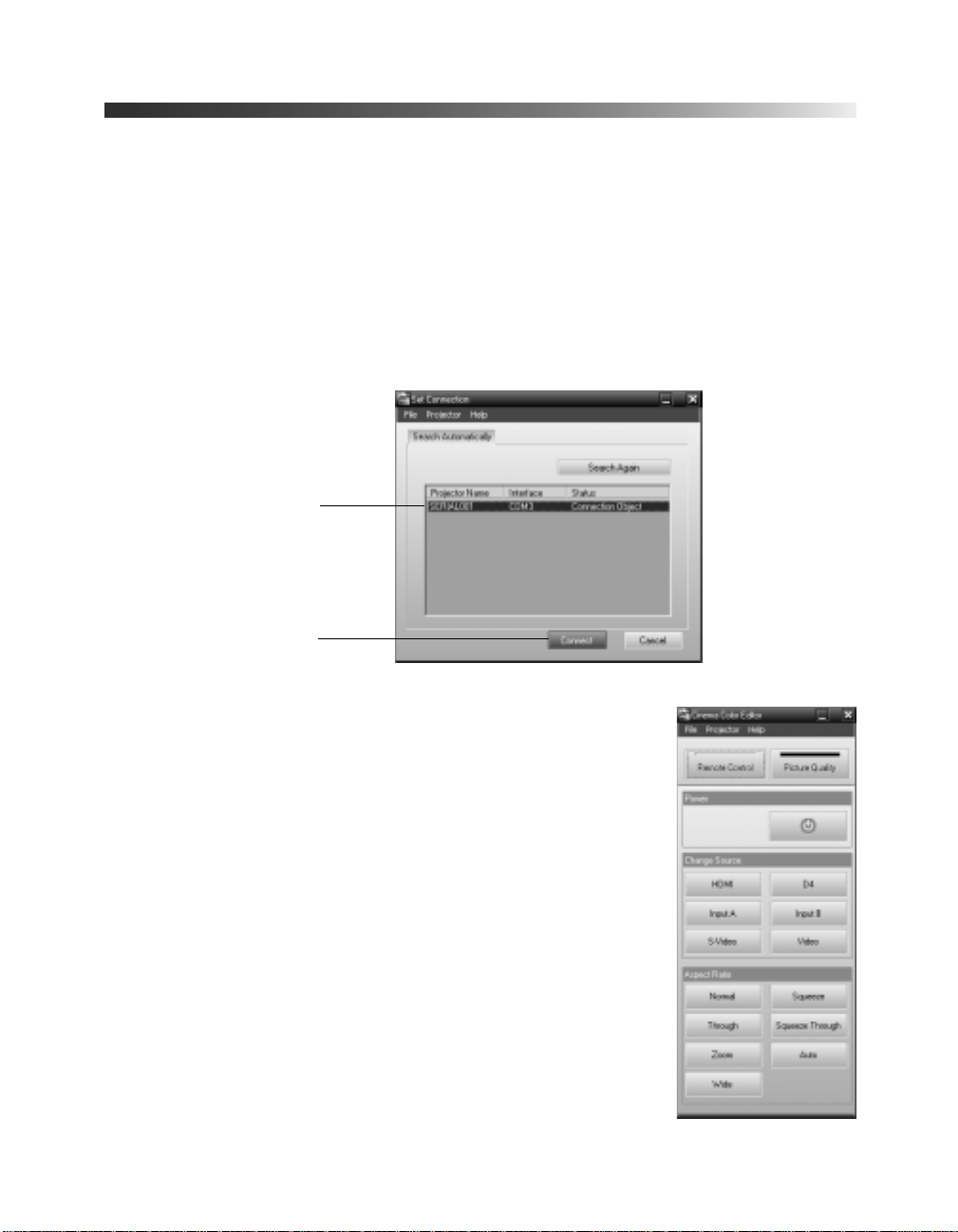

Connect a computer to one of these ports to use the Cinema Color Editor software.

See pages 43 and 44 for details.

Caution: Be sure to install the Cinema Color Editor software before connecting a USB cable.

See page 42

■ Trigger out port

.

This port outputs a 12-volt DC signal when the projector

is turned on. This lets a central control system monitor

whether the projector is on or off, and can be used to raise

or lower your projection screen automatically when the

projector is in use.

Connect a 3.5-mm mini jack to the port, as shown.

Installing the Cable Cover

Once you’ve connected all the cables, you can install the cover to conceal them from view.

1. Turn the projector upside-down.

2. Press the cover firmly into place, as shown.

3. Tighten the thumbscrews on the cover, then

return the projector to its upright position.

Note: If the projector is to be ceiling-mounted, you can change the direction of the EPSON logo
plate. Use the eraser-end of a pencil or similar tool to push in on the side of the plate closer to the
ventilation slots. Rotate the plate as needed, then press it back into place.

Connecting the Cables 17

Displaying and Adjusting the Image

Make sure your video or computer equipment is turned on, then turn on the projector as
described on page 21. If necessary, select the correct source to display the image (see page 22).

Note: If you turn on the connected equipment before starting the projector, the projector
automatically detects and displays the image. If you turn on the projector first, or have multiple
pieces of connected equipment, you may have to select the source manually.

If an image does not appear, check the troubleshooting tips on page 61.

Focusing and Zooming the Image

Follow the steps below to adjust the sharpness or size of the image.

Note: Before starting, you may want to display a test pattern to facilitate adjustment. Press the

Pattern button on the remote control, then select Cross-hatching.

1. Press the Focus or Zoom button on the projector or remote control.

You see this screen:

2. Use the arrow buttons to adjust the image.

Note: If you use the remote control, you can stand close to the screen while focusing the

image. This lets you adjust the picture more precisely.

3. Press ESC when done.

18 Displaying and Adjusting the Image

Inverting and Mirroring the Image

If the image is displayed upside-down or backward, select the correct Projection option:

1. Press the

2. Use the menu navigation buttons to open the

menu, then open the

Projection.

Menu button on the remote control.

Setting

Screen menu, and then select

Menu

button

3. Choose from these options:

■ Front if the projector is located in front of the

screen (for example, on a table).

■ Front/Ceiling if the projector is located in front

of the screen and mounted overhead.

■ Rear if the projector is located behind the screen.

■ Rear/Ceiling if the projector is located behind

Menu

navigation

buttons

the screen and mounted overhead.

Selecting the Input Signal Setting

If you’re using the projector’s Input A or Input B port, select the correct setting for the type of
equipment you’ve connected to it:

1. Press the

2. Use the menu navigation buttons to open the

menu, and then select Input A or Input B (depending on the port to which you’ve

connected the equipment).

Menu button on the remote control.

Setting menu, then open the Input Signal

3. Choose from these options:

■ YCbCr if your video player outputs an NTSC signal.

■ YPbPr if your video player outputs an HDTV signal.

■ RGB-Video if your video player outputs an RGB video signal.

■ RGB if the image is coming from a computer.

Note: If you’re unsure which setting to use, check the label next to the port on your video

equipment.

Displaying and Adjusting the Image 19

Positioning the Image

If the image is not centered on the screen, use the horizontal and vertical lens shift knobs to
adjust its position.

Note: You can display a test pattern to facilitate adjustment. Press the Pattern button on the
remote control, then select Cross-hatching.

Vertical lens shift knob

Horizontal lens shift knob

Adjustable feet

If you still need to raise the height of the image after using the vertical lens shift knob, lift the
front of the projector and rotate the adjustable feet until the image is positioned correctly.
You can also use the feet to correct the angle of the image if it’s tilted.

Performing Keystone Correction

If the projected image looks like or , use the Keystone function to correct its shape.

Note: If the image is shaped like or , the projector has been placed off to the side of the
screen and angled toward it. Face the projector straight ahead (instead of at the center of the
screen), then use the horizontal lens shift knob to center the image.

To perform keystone correction, press the arrow buttons
on the projector, or access the menu system as follows:

1. Press the

2. Use the menu navigation buttons to open the

menu, then open the

Keystone.

3. Use the arrow buttons to adjust the shape of the

image.

4. Press the

20 Displaying and Adjusting the Image

Menu button on the remote control.

Screen menu, and then select

Menu button when done.

Setting

Menu

button

Menu

navigation

buttons

Basic Operation

Make sure the projector is set up as described on page 13, then follow the instructions below
to turn it on and display an image.

Turning On the Projector

1. Remove the lens cap.

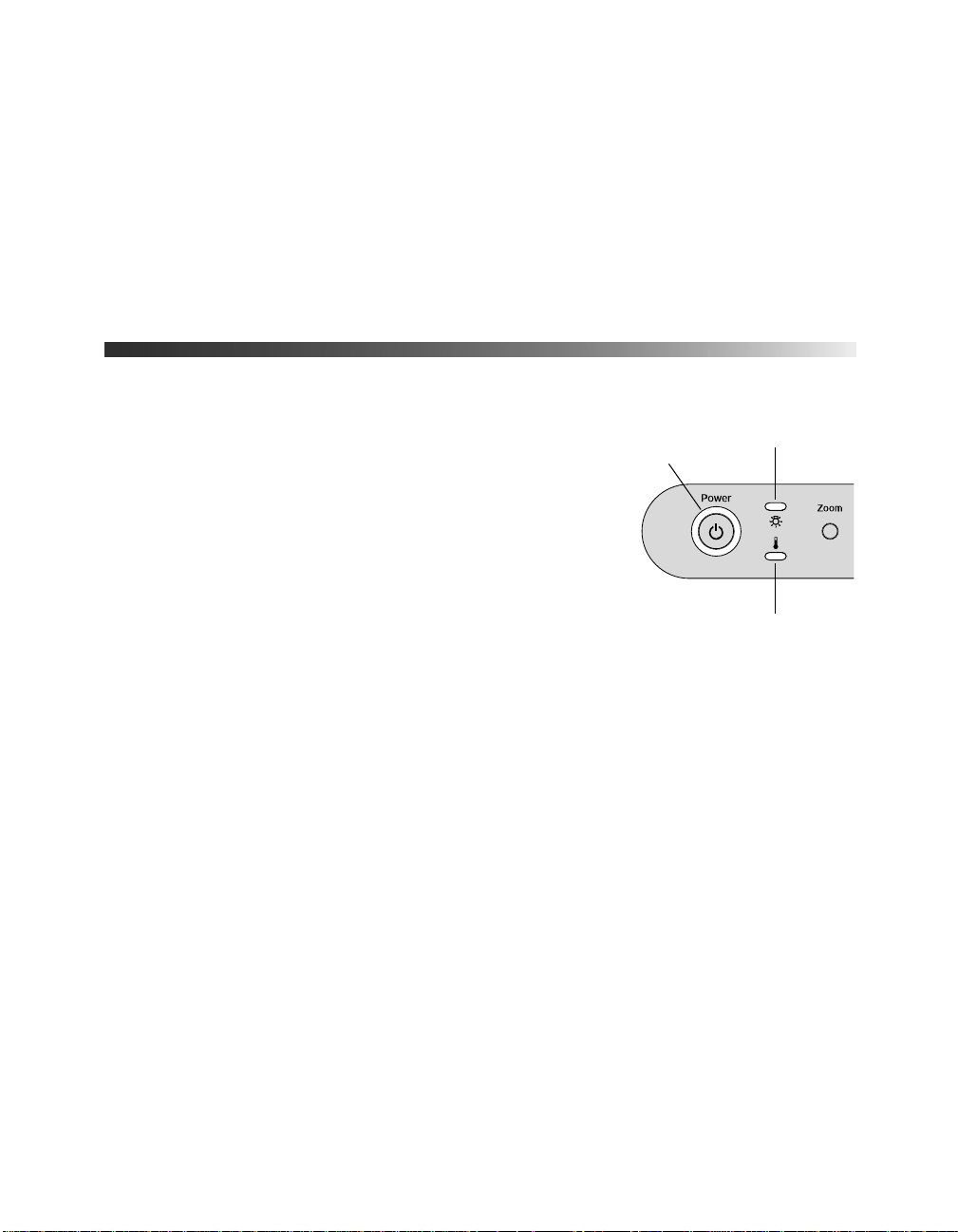

2. Press the

Power button on the projector.

Note: If this is your first time using the remote control,

make sure batteries are installed as described on page 55.

To keep children from turning on the projector, you can use

the projector’s Operation Lock (see page 25).

The projector takes about 30 seconds to warm up and

display an image. If you don’t see a picture, you may

need to change the image source as described on the

next page.

On button on the remote control, or press the

Turn on the projector

21

Turning the Projector Off

To turn off the projector, press the Off button on the remote control (or press the Power
button on the projector twice). Let the projector cool while the Ppower light flashes (about
30 seconds). Once the light stops flashing and stays on, it’s safe to unplug the projector.

Caution: Turn the projector off when not in use. Continuous 24-hour-a-day use may reduce its
overall life. Never unplug the projector without turning it off and letting it cool as described above, or
you could damage it and reduce lamp life.

Selecting the Image Source

The Source buttons let you switch between images from different pieces of equipment
connected to the projector (such as a DVD player, cable or satellite box, or video game
console).

If you don’t see the image you want, press the

Source button that corresponds to the port to

which your video source is connected. For example:

To select the image source connected to
the Video port . . .

Note: Do not press the Input A or B button repeatedly, or you will change the Input Signal setting.
If the screen colors don’t look right, make sure the correct Input Signal is selected (see page 19).

If you’re projecting in a darkened room, press the button (located near the bottom of the remote
control). This lights up the buttons on the remote control.

To temporarily turn off the image and darken the screen (without turning off the projector), press
the Blank button. Press the Blank button again to return to normal viewing.

...press the Video button

22 Selecting the Image Source

Choosing the Aspect Ratio

In many cases, video signals are automatically resized to fit on your screen when Auto is
selected as the Aspect setting. If you’re viewing images through the Input A or B port, you
may need to change the size of the image (or aspect ratio) by pressing the
the remote control.

■ If your video source is connected to the projector’s HDMI, S-Video, or Video port, select

Auto to automatically display your image in the correct size.

■ If the Auto option is unavailable (when the source is connected to the Input A or B port),

you’ll most likely want to choose one of these settings:

Normal for standard TV broadcasts, computer images, or images having a 4:3 aspect

ratio.

Zoom for images recorded in 16:9 (wide-screen) format.

4:3 image using Normal setting 16:9 image using Zoom setting

Aspect button on

You can also select from these options:

■ Wide if you want to expand a 4:3 image to 16:9 so it fills the whole screen. This stretches

only the right and left sides of the image; the central part is unchanged.

■ Squeeze for DVDs or video recordings made in a compressed (or anamorphic) 16:9

format, sometimes called “Squeeze Mode.”

■ Through if your image is smaller than 1280 × 720 pixels and you want to display it at its

original pixel size without resizing it to fit on the screen.

■ Squeeze Through if your image is recorded in Squeeze Mode, is smaller than

1280 × 720 pixels, and you want to display it at its original pixel size.

Note: If you display a 4:3 image using the Zoom setting, the edges of the image will be cut off. You
can use the Zoom Caption option and other settings to resize and reposition the image to your liking
(see page 36).

For details on how the projector resizes the picture when you choose an Aspect setting, see
page 70.

Choosing the Aspect Ratio 23

Choosing the Color Mode

You can change the Color Mode to automatically adjust brightness, contrast, and color,
letting you quickly optimize the projected image for various lighting environments. You can
also select a different color mode for each input source—which is useful if you view different
types of images from different sources. (For example, you might set the S-Video source to

Living Room if it’s usually used for watching movies, and set the Video source to Dynamic

for playing video games.)
Select the image source you want to adjust, then press the

Color Mode button on the remote

control. Choose from these settings:

■ Dynamic for projecting images with vivid color in brightly lit rooms.

■ Living Room for projecting images with vivid color under ordinary room lighting.

■ Natural for projecting in subdued lighting; increases contrast and makes flesh tones

appear more natural.

■ Theatre for projecting in subdued lighting; enhances the appearance of movies with dark

scenes.

■ Theatre Black for projecting in fully darkened rooms.

■ sRGB for projecting computer images that conform to the sRGB color standard.

Note: You can fine-tune the color and other image quality settings using the projector’s menu
system (see page 29) or the Cinema Color Editor software (see page 41). You can also create your
own customized groups of settings (see page 34).

24 Choosing the Color Mode

Locking the Projector

The projector includes various lock settings to prevent the image from being accidentally
changed once it’s adjusted, and to keep children from using the projector without adult
supervision.

To access the lock settings, follow these steps:

1. Press the

Menu button on the remote control.

2. Use the menu navigation buttons to open the

menu, then open the Operation menu, and then

select

Lock Setting.

3. Choose from these options:

■ Focus Lock to prevent the focus from being

changed.

■ Zoom Lock to prevent the picture size from

being changed.

■ Operation Lock to disable all the buttons on the

projector’s control panel. To operate the
projector, you must use the remote control.

Setting

Menu

button

Menu

navigation

buttons

Locking the Projector 25

26 Locking the Projector

Making Adjustments

You can use the projector’s on-screen menus to adjust the image quality, such as the
brightness, contrast, sharpness, and color. You can also change how the menus display, sleep
mode settings, and other projector features.

Using the Menu System

You can access the menu system either from the remote control or by using the buttons on the
projector’s control panel. With the menu system, you can adjust any of the settings described
in this chapter. You can also change the menu language and choose from various options that
control how the menus display (see page 28).

1. Press the

You see a screen similar to this one (the actual screen depends on the equipment you’ve

connected):

Note: If no equipment is connected to the projector, some options may not be available.

2. Use the arrow buttons to highlight the desired option, then press to select it.

3. Change any settings, as needed. (You may have to press to confirm your choice.)

4. When done, press the

button to exit.

Menu button on the projector or remote control.

Options for highlighted menu

Main
menu
options

Esc button to return to the previous menu, or press the Menu

27

Changing How the Menu Displays

Sel

Use these options to control how the menu displays on the screen.

■ Language

Setting ! Language

Select from nine languages to use in the menu system.

■ Menu Position

Setting ! On-Screen Display ! Menu Position

Use the arrow buttons to choose a position on the screen for displaying the menu.

■ Navigation Bar

Setting ! On-Screen Display ! Navigation Bar

ect whether to display the navigation bar, which
prompts you on which buttons to push to choose
menu options.

Navigation bar

■ Menu Color

Setting ! On-Screen Display ! Menu Color

Select a color scheme for displaying the menus.

28 Using the Menu System

Adjusting the Image Quality

Before fine-tuning the image using these adjustments, make sure you have already selected the
best Color Mode for your picture and viewing environment, as described on page 24. Then
use the settings in this section to finish adjusting the picture to your liking.

Most image quality settings are saved independently for each input source (Video, S-Video,
HDMI, Input A, Input B). After you finish adjusting the settings for one input source, be
sure to switch to each additional input source you’ll be using and make any necessary
adjustments.

Brightness and Contrast Settings

The Brightness setting controls how much light is produced by the projector lamp, and the
other settings listed below control how the projector interprets the light and dark areas of
the picture.

Adjust the Brightness first, then fine-tune the image with the remaining settings.

■ Brightness

Image ! Picture Quality ! Brightness

Adjust the brightness so it’s suitab le for yo ur viewing conditions. For example, if you’re
projecting in a brightly lit room or onto an especially large screen, you may need to
increase the brightness. Decrease the brightness for dark rooms or small screens; this also
reduces power consumption and fan noise, and helps to prolong the life of the lamp.

Note: You can display a test pattern to facilitate adjustment.
Press the Pattern button on the remote control, then select Gray
scale. Then press the button on the remote control to open an
on-screen “line menu” and access the Brightness setting.

■ Setup Level

Setting ! Advanced ! Setup Level

This setting adjusts the threshold at which dark areas of the image are rendered black
(7.5 IRE). For compatibility with most video equipment sold in the United States, set to

7.5%. Check your video equipment’s specifications to be sure of the correct setting.

Adjusting the Image Quality 29

■ Input Level/Contrast

Image ! Picture Quality ! Input Adjustment ! Input Level/Contrast

Note: If you cannot access the Input Level and Contrast settings, highlight Input Adjustment
(the first item in the menu list) and press the button, then choose Input Level/Contrast in
the sub-menu.

Adjust the Input Level to set the overall brightness of the image. Then adjust the contrast,
as needed.

■ White Level/Black Level

Image ! Picture Quality ! Input Adjustment ! White Level/Black Level

Note: If you cannot access the White Level and Black Level settings, highlight Input
Adjustment (the first item in the menu list) and press the button, then choose White
Level/Black Level in the sub-menu.

Adjust the White Level so that details in the brightest parts of the image are not washed
out. Then adjust the Black Level so that shadow-level details are still visible in the darkest
parts of the image.

■ EPSON Super White

Setting ! Advanced ! EPSON Super White

Note: This setting can be used only when the Color Mode is set to Natural, Theatre, or Theatre
Black (see page 24).

If bright parts of the image are washed out or overexposed (when the input signal
contains values over 100 IRE), turn this setting on to compensate.

■ DVI-Video Level

Setting ! Advanced ! DVI-Video Level

Note: This setting can be used only when HDMI is selected as the image source (see page 22).

If your video equipment has a DVI port and you’ve connected it to the projector using an
HDMI/DVI cable, set the level of the projector to match that of the video equipment.
When this setting is turned on, the projector disregards the EPSON Super White setting.

30 Adjusting the Image Quality

Sharpness and Picture Quality Settings

If the image looks fuzzy, or if it contains noise or flickering, you can use these settings to
correct it.

■ Sharpness

Image ! Picture Quality ! Sharpness

Use this function to make lines and edges appear more distinct in the image.

■ Progressive

Setting ! Advanced ! Progressive

Leave this setting on Film/Auto so the projector automatically senses the type of image
and displays it in the optimal mode. When receiving an interlaced image (in 480i or 575i
format), the projector converts it to progressive. The projector uses DCDi (Directional
Correlational Deinterlacing) for video-sourced images. For film-sourced images, the
projector uses 3-2 pulldown detection and optimizes the image accordingly.

You can adjust the projector’s sensitivity to still or moving images using the Motion
Detection setting, described below.

If you notice the projected image switching between film and video mode, change the
setting to
camera photos) or pausing a video, you may want to switch to
interlaced-to-progressive (IP) conversion from taking place.

Video. If you’re viewing still images (such as computer graphics or digital

Off to prevent

Note: This setting applies only when viewing component video and the input signal is in 480i or
575i format (see page 69).

■ Motion Detection

Setting ! Advanced ! Motion Detection

This setting works with the Progressive setting (described above). If you notice that
moving images seem jittery or halting, or diagonal lines appear jagged, move the slider bar
toward

M (for motion). To increase detail for still images, move the slider bar toward S

(for still).

■ Noise Reduction

Setting ! Advanced ! Noise Reduction

Leave this setting off, unless viewing images from a weak signal with a lot of noise. Turn
the setting on and select one of the noise reduction options to suppress interference and
makes images appear softer (available only if the image source is set to Video or S-Video).

Adjusting the Image Quality 31

Color Settings

If the image colors don’t look correct, you can adjust them using these settings. Use the first
three settings described below to make the most visible changes. If you only need to make
slight adjustments, you can fine-tune the picture with the remaining settings.

Note: You can also make color adjustments by attaching a PC or laptop to the projector and using
the Cinema Color Editor software. See page 41.

■ Color Intensity

Image ! Picture Quality ! Color Intensity

Adjusts the color saturation of the image (not available for computer images).

■ Tint

Image ! Picture Quality ! Tint

Shifts the color balance between magenta and green (not available for computer images).

■ Abs. Color Temp.

Image ! Color Adjustment ! Abs. Color Temp. ! Abs. Color Temp.

Shifts the color balance between red and blue, making the image appear warmer or
cooler.

Note: You can display a test pattern to facilitate adjustment. Press the Pattern button on the
remote control, then select Gray scale. Then press the button on the remote control to
open an on-screen “line menu” and access the Abs. Color Temp. setting.

■ Flesh Tone

Image ! Color Adjustment ! Abs. Color Temp. ! Flesh Tone

Makes fine adjustments to the tint. Controls the amount of magenta or green in the
image. Also useful for correcting black-and-white images, if they look tinted.

Note: You can also access the Flesh Tone setting by pressing the button on the remote
control to open an on-screen “line menu.”

■ RGB

Image ! Color Adjustment ! RGB/RGBCMY ! RGB

Note: If you cannot access the RGB settings, highlight RGB/RGBCMY (the first item in the
menu list) and press the button, then choose RGB in the sub-menu.

Use the RGB settings to fine-tune the color of the image. You can adjust the offset,
gamma, and gain for each signal color (red, green, and blue). Use
shades,

Gamma for intermediate shades, and Gain for the lightest shades.

32 Adjusting the Image Quality

Offset to adjust darker

■ RGBCMY

Image ! Color Adjustment ! RGB/RGBCMY ! RGBCMY

Note: If you cannot access the RGBCMY settings, highlight RGB/RGBCMY (the first item in
the menu list) and press the button, then choose RGBCMY in the sub-menu.

Use the RGBCMY settings to adjust the hue and saturation of the six color components
(red, green, blue, cyan, magenta, yellow). After moving a slider bar, highlight

Apply and

press to save your changes.

Adjustments for Computer Images

In addition to the settings described above, you can adjust the Tracking and Sync settings for
analog RGB computer images. Normally, these settings are adjusted automatically by the
projector. If you notice that the image is blurr y or contains dark vertical bands, you may need
to adjust the settings yourself.

■ Auto Setup

Image ! Auto Setup

Leave this setting on so that the projector automatically adjusts the tracking, sync, and
position of the image.

■ Tracking

Image ! Picture Quality ! Tracking

Adjust the tracking to eliminate vertical bands. Easiest to adjust
when the image contains a lot of fine detail (such as black text
on a white background).

■ Sync.

Image ! Picture Quality ! Sync.

Adjust the synchronization to eliminate blurriness. For best results,
make sure the tracking is properly adjusted first.

Adjusting the Image Quality 33

Saving and Resetting Menu Selections

Once you’ve adjusted the picture settings, you can save them as a group using the Memory
feature. This lets you easily recall them, and switch from one group of settings to another.
You can save up to nine groups of settings.

If necessary, you can use the projector’s reset options to restore its factory-default settings.
You can clear all the settings, or just the settings in a specific menu.

Creating Memory Settings

After adjusting the picture to your liking, you can save your settings as a group in the
projector’s memory. This stores all the image quality settings described on pages 29
through 33, the image sizing options (page 36), and the Aspect and Color Mode settings
(pages 23 and 24).

1. Press the

2. Open the

Menu button on the remote control.

Image menu, then select Memory: Standard (or Memory: Advance if

you’ve made changes using the RGBCMY settings).

3. Select the memory name you want to use, then press the button to save your settings.

Note: Saved settings are indicated by a green highlight next to the memory name. If you
select a name that is already in use, the existing settings will be erased and new ones saved in
their place. You can use Cinema Color Editor to rename the settings (see page 51).

Recalling Memory Settings

Once you have created one or more memory settings, you
can easily recall them:

1. Press the

2. If necessary, choose
type of setting you want to use.

3. Use the arrow buttons to select the desired setting, then
press the button.

After a moment, the image appears on the screen using
your selected setting.

Memory button on the remote control.

Standard or Advance to select the

Memory

button

34 Saving and Resetting Menu Selections

Resetting the Projector

If the image quality isn’t what you expect, one or more settings may be adjusted improperly.
If necessary, you can restore the projector to its factory-default (original) settings.

To restore the settings in a specific menu (such as the Image or Setting menu), open that
menu, select
Image menu:

Open the Image
menu . . .

You can also reset the lamp usage timer, clear the memory settings, or restore all the projector
settings to their original values. Follow these steps:

Reset, and confirm as needed. The example below shows how to reset the

...and select

Reset

1. Press the

2. Open the

Menu button on the remote control.

Reset menu.

3. Do one of the following:

■ Select Lamp-Hours Reset to clear the lamp usage timer and reset it to zero

(see page 58 for more information).

■ Select Memory Reset to clear any memory settings you created as described on

page 34.

■ Select All Reset to return all projector menus to their original settings.

Note: All Reset does not reset the lamp usage timer, menu language, Input Signal, and
memory settings.

Saving and Resetting Menu Selections 35

Customizing Projector Features

Use the settings in this section to adjust the image size and position, suppress on-screen text,
and select basic setup options.

Image Sizing

Before adjusting any of these settings, make sure you have already selected an appropriate
aspect ratio for the type of picture you’re viewing (see page 23).

■ Output Scaling

Setting ! Advanced ! Output Scaling

For component video formats, this setting lets you see the edges of the image that are not
normally visible in the picture (see page 70). Select
and visible parts of the image.

Normal displays images at the standard size.

Larger to view the both the hidden

For HDMI signals, select

Auto for normal operation. Select Smaller to show a slightly

reduced image if you see interference at the top or bottom of the screen for computer
images (displays digital video at standard size). Select

Normal to expand digital video so

it includes both the hidden and visible parts of the picture (displays computer images at
full size).

■ Position

Setting ! Screen ! Position

Use the arrow buttons to fine-tune the position of the image on the screen.

■ Zoom Caption

Setting ! Screen ! Zoom Caption

Lets you adjust the shape and position of the image so that subtitles are visible (available
only if the aspect ratio has been set to Zoom). Use
of the image, and

Zoom Position to move the image up or down.

Vertical Size to adjust the proportions

36 Customizing Projector Features

Screen Options

■ Message

Setting ! On-Screen Display ! Message

Turn this setting off if you want to prevent on-screen messages from appearing (such as
the no-signal message, or the identifying text that appears when you switch between
image sources or color modes).

■ User’s Logo

Setting ! User’s Logo

Lets you display an image of your choice when the projector is warming up, not receiving
a signal, or when you press the

To capture the image, first set the projector to display the image you want to use. Then
select

User’s Logo and follow the instructions on the screen. When done, change the

Background Color setting to

■ Startup Screen

Setting ! On-Screen Display ! Startup Screen

Turn this setting off if you want to prevent your user’s logo (see above) from appearing
while the projector is warming up.

■ Background Color

Blank button to temporarily stop projection.

Logo, as described below.

Setting ! On-Screen Display ! Background Color

Changes the screen that’s used when the projector is not receiving a signal or when you
press the

Logo to display your user’s logo on a black background.

Blank button to temporarily stop projection. Select Blue (instead of Black) or

Customizing Projector Features 37

Connectivity

Use these settings to set up the projector when you connect a PC or laptop for running
Cinema Color Editor (see page 41).

■ COM Port

Setting ! Operation ! COM Port

Select the type of cable you’ve connected to your PC or laptop. Choose USB or RS-232C
(for a serial cable).

■ Network

Setting ! Operation ! Network

Use these settings to configure your projector if you’ve connected it to a network. Select

DHCP if your network assigns addresses automatically through a DHCP router or server;

otherwise enter the projector’s IP address using the arrow buttons on the remote control.
Press the button to confirm the new address, then turn the projector off and back on
so the new settings take effect.

Note: SNMP trap IP addresses are not used in home environments. If the projector is being set
up on a large-scale business network, consult your IS department for assistance.

■ Network Monitoring

Setting ! Operation ! Network Monitoring

If you’ve connected the projector to a network and you want to be able to turn it on
remotely using Cinema Color Editor, switch this setting to
conserve power when the projector is in standby mode.

Note: If Network Monitoring is turned on, the cooling fan will continue to operate after the
projector is turned off. This is normal.

Other Setup Options

■ Keystone

Setting ! Screen ! Zoom Caption

Adjusts the shape of the image, if the left and right sides are not parallel after tilting the
projector up or down at the screen (see page 20).

■ Projection

Setting ! Screen ! Projection

Mirrors and/or inverts the image for front, rear, and overhead projection.

38 Customizing Projector Features

On. Otherwise, leave it off to

■ Input Signal

Setting ! Input Signal

Adjust these settings for the type of equipment connected to the projector:

Video Signal: Leave this setting on Auto so the projector can automatically interpret

the format, such as NTSC or PAL (for standard TV formats).

Input A (or Input B): Change this setting to match the type of equipment connected to

the Input A (or Input B) port:

■ For component video, select Component (Auto) to let the projector automatically

interpret the signal; or select

Component (YCbCr) or Component (YPbPr) to

manually select your video equipment’s signal.

■ Select RGB-Video if your video equipment outputs a signal in RBG format.

■ Select RGB if you’ve connected a computer.

D4: Change this setting to match the type of equipment connected to the D4 port (used

mainly in Japan).

■ Trigger Out

Setting ! Operation ! Trigger Out

Turn on this setting if you want the Trigger out port to output a 12-volt signal while
the projector is operating. You can use this to raise or lower your projection screen.

■ Sleep Mode

Setting ! Operation ! Sleep Mode

Turn off this setting if you don’t want the projector to enter sleep mode. (Sleep mode
shuts the projector off automatically when there is no video signal.) Select

10 min., or 5min. as the length of time before shutoff; decreasin g the time conserves

30 min.,

power and extends the life of the lamp. To turn the projector back on, press the
button on the remote control, or press the

■ Button Illumination

Setting ! Operation ! Button Illumination

Power button on the projector.

Lets you turn off the illumination of the control panel buttons on the projector.

■ Lock Setting

Setting ! Operation ! Lock Setting

Lets you lock the projector’s focus and zoom settings, or lock the projector’s control panel
to make it more difficult for a child to turn on the projector. See page 25.

Customizing Projector Features 39

On

40 Customizing Projector Features

Using Cinema Color Editor

You can use the Cinema Color Editor software that came with your projector to adjust each
color in the picture individually. You can also use the software in place of the remote control
to operate the projector, switch image sources, adjust the picture’s aspect ratio, or change
image quality settings. Once you’ve adjusted the picture to your liking, you can save your
settings so you can easily recall them for future use.

Setting Up Your Computer

Before using Cinema Color Editor, follow the instructions in this section to install the
software and connect the projector to your computer.

System Requirements

You can install Cinema Color Editor on any Windows® or Macintosh system that meets these
minimum requirements:

Windows Macintosh

®

Microsoft

®

NT
Pentium
10MB RAM, 2MB hard disk space 7MB RAM, 5MB hard disk space

Windows 98 SE, 2000,

4.0, Me, or XP

®

MMXTM, 166 MHz or better Power Macintosh G3, 300 MHz or better

XGA (1024 × 768) or better display adapter and monitor

Macintosh OS 8.6 through 9.x, OS X

10.1.5 or later

41

Installing the Software

Follow these steps to install the software:

1. Insert the Cinema Color Editor CD-ROM in your computer.

2. Turn off any anti-virus software that may be running, then click

3. Read the license agreement and click

Agree.

Continue.

You see this screen:

Not shown for Macintosh

4. Click

Install and follow the on-screen instructions to install the software.

Caution: If you will be using a USB cable to connect to your computer, be sure to let the USB
driver install as part of the installation sequence.

5. At the last screen, click Exit.

6. Restart your computer, if prompted.

42 Setting Up Your Computer

Connecting With a Serial or USB Cable

If you want to connect to your computer using a serial (RS-232C) or USB cable, follow the
steps below. To connect using a network cable, see page 44.

1. Connect the projector to your computer using either a USB cable (included with your
projector) or a serial (RS-232C) cable.

Note: You can use any standard (commercially available) USB or serial cable.

Connect either a USB or RS-232C (serial) cable;
do not connect both

2. Turn on the projector.

3. Make sure the projector’s COM Port setting is correct for the type of cable you’re using
(see page 38). Select either

USB (if you’re using a USB cable) or RS-232C (for a serial

cable).

4. Windows: If you see a Found New Hardware or Add New Hardware screen, follow the
instructions on the screen to finish installing the EPSON USB driver.

Caution: Make sure you have already installed all the software from the CD-ROM. If not, click

Cancel and follow the instructions on page 42 first.
If you see a screen saying that the software has not passed Windows Logo testing, click

Continue anyway.

Setting Up Your Computer 43

Connecting With a Network Cable

Follow these steps to connect to your projector using a network cable:

1. Connect to the projector using a commercially available 10baseT or 100baseTX network
cable (Category 5 or better).

Note: If you’ll be connecting the cable directly to the computer running Cinema Color Editor,
use a “crossover” network cable. To connect to an access point on the network, such as a hub
or router, use a standard “straight-through” cable.

To computer or
network access point

2. Connect the other end of the cable to your computer or network access point, as desired.

3. Turn on the projector.

4. Press the
settings (

Menu button on the remote control, then access the projector’s network

Setting ! Operation ! Network).

5. Do one of the following:

■ Select DHCP if your computer or network assigns addresses automatically using

DHCP.

■ Otherwise, turn off DHCP and use the arrow buttons on the remote control to enter

the projector’s IP address. The first three parts of the address should be the same as
for the computer running Cinema Color Editor; the last part should be a unique
number. Use 255.255.255.0 as the subnet mask. When done entering an address,
press the button to confirm it.

6. If you want to be able to turn on the projector from Cinema Color Editor, enable

Network Monitoring (see page 38).

7. Turn the projector off and back on so the new settings take effect.

44 Setting Up Your Computer

Using Cinema Color Editor

To start Cinema Color Editor, follow these steps:

1. Make sure the projector is connected and turned on, as described on the previous pages.

2. Windows: Click

Start, Programs, EPSON Projector, and then Cinema Color Editor.

Macintosh: From the Applications folder on your hard drive, open the
and double-click

Cinema Color Editor.

You see this screen:

Select your projector . . .

...and click Connect

3. Select the name of the projector you want to adjust, then
click

Connect. You see this screen:

Now you can control the projector and adjust its settings as
described on the following pages.

CCEditor folder

Using Cinema Color Editor 45

Remote Control Operations

You can use Cinema Color Editor to change the image source, adjust the aspect ratio, or turn
the power on or off—just as you would from the remote control.

Caution: Do not use the remote control or projector buttons to operate the projector while Cinema
Color Editor is in use. If a problem occurs, select Update to Latest Status from the Projector menu
in Cinema Color Editor.

1. Click the Remote Control tab.

Select Remote Control

Turn the projector on/off
(see note below)

Change the image source
(see page 22)

2. Click one of the buttons for the options shown above.

Note: To be able to turn the projector on from Cinema Color Editor, Network Monitoring must
be turned on (see page 38).

46 Using Cinema Color Editor

Adjust the aspect ratio
(see page 23)

Adjusting the Picture Quality

You can use Cinema Color Editor in place of the projector’s menu system to adjust the image.

1. Click the

Picture Quality tab.

First, select

Picture Quality

Then click one of these

buttons to access

additional settings

2. Click one of the buttons shown above to access additional settings. See the referenced
page number below for details on using each setting:

Button Available adjustments Page reference

Input Adjustment
Brightness
Color Intensity
Tint
Sharpness
Color Temp. and Flesh Tone
Tracking
Sync.

page 30
page 29
page 32
page 32
page 31
page 32
page 33
page 33

Color Mode
Color Adjustment

EPSON Super White
Progressive
Motion Detection
Output Scaling
Setup Level
Noise Reduction
DVI-Video Level
Auto Setup

page 24
page 48

page 30
page 31
page 31
page 36
page 29
page 31
page 30
page 33

Using Cinema Color Editor 47

Adjusting the Color

You can use the Color Adjustment settings to fine-tune the color of the image. If you select
RGB as the color mode, you can adjust the offset, gamma, and gain for each signal color (red,
green, and blue). Or select RGBCMY to adjust the hue and saturation for each of six colors.

1. Select

1. Select Picture

2. Click Adjustment of

2. Select one of the following color modes, then click

Picture Quality, then click Adjustment of image.

Quality


3. Select the
color mode

4. Click Adjust

Adjust.

■ RGB: Lets you adjust the offset, gamma, and gain for each signal color. Use Offset

to adjust darker shades,

Gamma for intermediate shades, and Gain for the lightest

shades.

■ RGBCMY: Lets you adjust the hue and saturation for each of six colors, as shown on

the color palette below. After moving a slider bar, click

Adjust the hue
(red, green,
blue, cyan,
magenta,
yellow)

48 Using Cinema Color Editor

Apply.

Adjust the
saturation

Saving and Recalling Picture Settings

Once you’ve adjusted the picture using Cinema Color Editor, you can save your settings in
the projector’s memory. Then you can use the remote control (or Cinema Color Editor) to
easily recall them for future use.

To save your settings on the projector:

1. Select

Picture Quality, then click Memory management and choose Register.

1. Select

Picture Quality

2. Click Memory
management

2. On the next screen, select an unused memory name, then click
settings are saved to the projector’s memory.

1. Select an unused
memory name

3. Click

Register

Register. Your current

2. Click Register

Note: If you’ve made changes to the projector’s RGBCMY settings, your settings are saved in the
projector’s Advance memory area; otherwise they’re saved under Standard.

Using Cinema Color Editor 49

To use a memory setting you’ve saved on the projector:

Access the projector’s memory settings either from the remote control (see page 34) or by
using Cinema Color Editor as follows:

1. Select

Picture Quality, then click Memory management and choose Select.

1. Select

Picture Quality

2. Click Memory
management

2. Click the tab where the setting you want to use is stored (

1. Select Standard
or Advance

2. Select the setting
you want to use

3. Click

Select

Standard or Advance).

3. Click Select

3. Select the desired memory setting, then click
on the screen using the selected setting.

50 Using Cinema Color Editor

Select. After a moment, your image appears

Managing Your Settings

In addition to your projector’s memory settings, you can store any number of additional
settings on your computer’s hard drive. You can also use Cinema Color Editor to rename or
delete memory settings stored on your projector.

To save or recall settings on your computer:

In Cinema Color Editor, open the

■ Save setting to store the current Cinema Color Editor settings on your computer’s hard

File menu, then choose one of the following:

drive.

■ Set from file to adjust the picture from settings previously saved on your hard drive.

Note: You can also transfer settings directly between the projector’s memory and your computer’s
hard drive using the File Read and Save In File buttons (shown in the figure below).

To rename a memory setting stored on the projector:

1. Select

2. Click the tab where your setting is stored (

Picture Quality, then click Memory management and choose Edit.

Standard or Advance), select the setting

whose name you want to change, then click

1. Select Standard
or Advance

2. Select the setting
whose name you
want to change

Memory Name Change.

3. Click Memory
Name Change

3. Type a name up to 12 characters long, then click

To clear a memory setting stored on the projector:

1. Select

Picture Quality, then click Memory management and choose Edit.

2. Select the setting you want to delete, then click
deletion.

OK.

Memory Reset and confirm the

Using Cinema Color Editor 51

52 Using Cinema Color Editor

Maintenance

Your projector needs little maintenance. All you need to do on a regular basis is keep the lens
clean. You also need to clean the air filter periodically to prevent overheating.

Warning: Before you clean any part of the projector, turn it off and unplug the power cord.
Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical
voltages in the projector can injure you severely. Do not try to service this product yourself,
except as specifically explained in this User’s Guide.

The only parts you should replace are the lamp and air filter. If another part needs replacing,
contact your dealer or a qualified servicer.

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface.

■ Use a canister of compressed air to remove dust.

■ To remove dirt or smears, use lens-cleaning paper. If necessary, moisten a soft cloth with

lens cleaner and gently wipe the lens surface.

Caution: Never rub the lens with abrasive materials.

Cleaning the Projector Case

Before you clean the case, turn off the projector and unplug the power cord.

■ To remove dirt or dust, wipe the case with a soft, dry, lint-free cloth.

■ To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral

detergent. Then wipe the case.

Caution: Never use wax, alcohol, benzene, thinner, or other chemical detergents. These
can damage the case.

53

Cleaning and Replacing the Air Filter

Clean the air filter on the bottom of the projector after every 100 hours of use. If it’s not
cleaned periodically, it can become clogged with dust, preventing proper ventilation. This can
cause overheating and damage the projector.

1. Turn off the projector and wait for the P power light to stop flashing.

2. Unplug the power cord and disconnect any cables.

3. Turn the projector over. Then use a small vacuum
cleaner designed for computers and other office
equipment to clean the filter, as shown. If you don’t have
one, gently clean the filter using a very soft brush (such
as a clean artist’s paintbrush).

If the dirt is difficult to remove or the filter is broken,
replace it. Contact your dealer or call EPSON at
[phone] and ask for part number
In Canada, call [phone] for dealer referral.

4. If you need to replace the filter, release the tab and lift
the cover up.

5. Remove the old filter and replace it with a new one.

V13H134A04.

6. To replace the cover, insert the tabs and press down until the cover clicks into place.

54 Cleaning and Replacing the Air Filter

Changing the Remote Control’s Batteries

The remote control uses two AA batteries. If you suspect they are weak, take the remote
control to a darkened room and press the illumination button. If the buttons on the
remote control do not glow red, replace the batteries as described below.

Warning: Keep batteries away from children. If a battery should be swallowed, contact your
doctor immediately.

1. Release the tab and lift open the cover.

2. Remove the old batteries and insert new AA batteries as shown.

3. Replace the cover.

Storing the Projector

If you need to store the projector for an extended time, do the following:

■ Make sure the temperature and humidity of the storage area are within the recommended

range for the projector (14 to 140 °F [-10 to 60 °C] and 10 to 90% relative humidity).

■ Attach the lens cover and retract the feet.

■ Remove the batteries from the remote control.

■ Pack the projector in its original packaging or equivalent.

Changing the Remote Control’s Batteries 55

Transporting the Projector

Note: EPSON shall not be liable for any damages incurred during transportation.

The projector contains many glass and precision parts. If you need to transport it, follow these
guidelines to prevent damage:

■ When shipping the projector for repairs, use the original packaging material if possible. If

you do not have the original packaging, use equivalent materials. Be sure the carrier is
capable of transporting fragile equipment and is aware that the projector is fragile.

■ When you are hand-carrying the projector, grip the recessed handles on the sides.

Replacing the Lamp

The projection lamp lasts for up to 3000 hours (in low brightness mode) or 1700 hours
(in high brightness mode). You can use the Info menu to check how long it’s been in use (see
page 58). It’s time to replace the lamp when:

■ The projected image gets darker or starts to deteriorate.

■ The projector’s lamp light flashes orange at half-second

Lamp light

intervals.

■ The message Replace the lamp appears on the screen

when you start projecting.

Note: Lamp life results will vary depending on mode selected,
environmental conditions, and usage.

Contact your dealer or call EPSON at [phone] in the United States for a replacement
lamp. Request part number

V13H010L28. In Canada, call [phone] for dealer referral.

Be sure to read the “Important Safety Information” on page 73 before replacing the lamp.

Warning: Let the lamp cool fully before replacing it. In the unlikely event that the lamp has
broken, small glass fragments may be present and should be removed carefully to avoid injury.

The lamp component contains mercury. Please consult your state and local regulations
regarding proper disposal or recycling, and do not place in the trash.

Caution: Never touch the lamp with your bare hands; the invisible residue left by the oil on
your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

56 Transporting the Projector

Follow these steps to replace the lamp:

1. Turn off the projector and wait for the P power light to stop flashing.

2. Unplug the power cord and any cables.

3. If the projector has been on, let it cool for about an hour.

4. Loosen the two screws securing the lamp cover (they don’t come all the way out), and
then remove the cover.

5. Loosen the two screws securing the lamp.

6. Grasp the lamp as shown and pull it straight out.

7. Gently insert the new lamp and tighten its screws.

Caution: Don’t touch the glass portion of the lamp assembly. Touching the glass could
result in premature lamp failure.

Replacing the Lamp 57

8. Replace the cover and tighten its screws. (The projector won’t work if the lamp cover is
open or loose.)

9. Reset the lamp usage timer, as described in the next section.

Resetting the Lamp Usage Timer

After replacing the lamp, follow these steps to reset the lamp usage timer:

1. Press the

2. Use the menu navigation buttons to open the

Reset

3. When you see a confirmation prompt, highlight

4. When you’re finished, press the

Menu button on the projector or remote control.

Reset menu, then select Lamp-Hours

.

Yes and press the button.

Menu button to exit.

The lamp usage timer doesn’t register until you’ve used the lamp for at least 10 hours.

Checking the Projector Status

You can use the Info menu to view information about the current display settings and how
long the projection lamp has been in use. To access the Info menu:

1. Press the

2. Use the menu navigation buttons to open the
appears:

■

■ Source ■ Refresh Rate

Menu button on the projector or remote control.

Info menu. The following information

Lamp Hours ■ Video Signal

■ Input Signal ■ Sync Info

■ Resolution

Note: The information displayed depends on the currently selected image source.
The Lamp Hours shows 0H until you’ve used the lamp for at least 10 hours.

The resolution indicates the total number of scan lines in the source signal; the
number of visible scan lines depends on the signal format standard and selected
display settings (see page 70).

58 Checking the Projector Status

Problem Solving

This section explains how to interpret the projector’s status lights, solve problems with the
picture and remote control, and contact technical support.

What To Do When the Lights Flash

The lights on top of the projector indicate the projector’s
status and let you know when a problem occurs.

If the projector isn’t working correctly, first turn it off, let
it cool, and unplug it. Then plug the power cord back in
and turn on the projector. If this doesn’t solve the
problem, check the status lights on top of the projector.

The P power light is orange.

The projector is in standby mode. Unplug it or press the

Power button to turn it on.

The P power light is flashing green.

The projector is warming up. Wait for the picture to appear.

The P power light is flashing orange and you can’t turn on the projector.

The lamp is cooling down. Wait until the light stops flashing, then press the

The P power light does not come on.

Make sure the power cord is connected securely both at the power outlet and the projector.

Power light

Lamp light

Temperature light

Power button.

59

The temperature light is flashing orange.

High-speed cooling is in progress. If the projector gets too hot again, projection stops
automatically. Make sure there is plenty of space around and under the projector for
ventilation. Clean or replace the air filter if necessary (see page 54).

The temperature light is red.

The projector is too hot, which turns off the lamp automatically. Let it cool for five minutes,
then turn it back on. Make sure there is plenty of space around and under the projector for
ventilation. Also, clean or replace the filter if necessary (see page 54).

The lamp light is flashing orange.

The lamp needs to be replaced soon (see page 56). Make sure you have a spare lamp handy.

The lamp light is red.

■ The lamp needs to be replaced (see page 56).

■ If you just replaced the lamp, the cover may be loose or off. Make su re it’s securely

fastened (see page 56).

The lamp and/or temperature light is fla shing red.

There is an internal problem. Disconnect the projector from its electrical outlet and contact
EPSON for assistance (see page 65).

Solving Picture Problems

You cannot turn on the projector.

■ Make sure the power cord is connected, then wait a moment for the P power light to

turn orange before pressing the

■ If you’ve set the Operation Lock, the control panel buttons are disabled; you must use

the remote control to turn on the projector (see page 25).

■ If you’re trying to turn on the projector from Cinema Color Editor, the projector

must be connected via a network cable and
(see page 44).

60 Solving Picture Problems

Power button.

Network Monitoring must be enabled

No picture appears on the screen or you see the message No Signal displayed.

■ Press the Source button on the projector or one of the Source buttons on the remote

control to select the correct input source. Allow a few seconds for the projector to sync up
after pressing the button.

■ Press the Blank button on the remote control to make sure the picture hasn’t been turned

off temporarily.

■ Check that the P power light is green, not flashing, and the lens cover is off.

■ The projector may be in standby (or sleep) mode. If the P power light is orange, press the

Power button to turn the projector back on.

■ Make sure your video equipment is turned on.

■ Make sure your cable(s) are connected correctly (see page 15).

You’re using a computer and no picture appears on the screen.

If you’re using a PC:

■ Press the function key that lets you display on an external monitor. It’s often labeled with

an icon such as , but it may also be labeled
the

Fn key while pressing it. Check your laptop’s manual or online help.

CRT/LCD. You may have to hold down

On most systems, the key lets you toggle between the LCD screen and the
projector, or display on both at the same time. Allow a few seconds for the projector to
sync up after pressing it.

■ If the function key doesn’t let you display simultaneously on both screens, you might

need to use the Display utility in the Control Panel to make sure that both the LCD
screen and external monitor port are enabled. From the Control Panel, open the
utility. In the Display Properties dialog box, click the

Advanced. The method for adjusting the setting varies from computer to computer; you

may need to click a

Monitor tab, then make sure the external Monitor port is set as your

Settings tab, then click

Display

primary display or enabled. See your computer manual or online help for details.

If you’re using a Macintosh with OS X:

1. Select

2. Click

System Preferences from the Apple menu and click Displays.

Detect Displays.

3. To display the entire desktop on both your projector screen and LCD screen, click

the

Arrange tab. (If you don’t see this tab, make sure it isn’t hidden by another

window.)

Solving Picture Problems 61

4.Click

Mirror Displays in the lower corner
of the screen. One of the monitor icons
automatically moves on top of the other.

Click here

If you’re using a Macintosh with OS 9.x or earlier:

1. From the Apple menu, select

Control Panels, then click
Monitors and Sound.

2. Click the

Arrange icon, and

Click here

then drag one monitor icon on
top of the other.

Arrange option isn’t available,

If the
you may need to select one of the
Simulscan resolutions. Click the

Monitor icon and then select a

Drag one
monitor icon on
top of the other

Simulscan resolution from the

Resolution box. (Allow a few

seconds for the projector to sync up.)

The picture is upside-down or reversed.

Change the

Projection setting in the menu system (see page 38).

Only part of the picture is displayed, or the picture is distorted.

■ Press the Aspect button to select a different aspect ratio (see page 23).

■ If the Aspect is set to Zoom, you may need to use the Zoom Caption option to see the

top or bottom section of the screen (so that subtitles are visible). See page 36.

■ Check the Output Scaling to make sure it’s adjusted correctly (see page 36).

■ Use the Position setting to reposition the image on the screen (see page 36).

■ If you’ve connected a computer and you see only half the image, make sure the

computer’s Dual Display setting is turned off.

62 Solving Picture Problems

The picture isn’t rectangular.

■ If the image looks like or , the projector has been placed off to one side of the

screen and angled toward it. Face the projector straight ahead (instead of at the center of
the screen), then use the horizontal lens shift knob to center the image (see page 20).

■ If the image looks like or , use the remote control to access the Keystone

function to correct its shape (see page 20). Or press the and buttons on the
projector’s control panel.

Note: You won’t have to use the Keystone function to correct the image, as long as you place
the projector level (not angled up or down) and at a height between the top and bottom of the
screen. Then use the vertical lens shift knob to position the image. This produces the
best-looking picture.

The picture contains static or noise.

■ Make sure the Input Signal is set correctly for your connected video equipment (see

page 39).

■ If you’re viewing still images and you notice flickering or horizontal lines, turn on the

Progressive setting (see page 31). You may also need to adjust the Motion Detection

setting (see page 31).

■ Make sure your cables are securely connected at both ends.

■ If you’re using an extension cable, you may pick up interference unless you use a signal

amplifier. Or try turning on

Noise Reduction (see page 31).

■ If you’re displaying the same image on your computer and projector screen, try turning

off your laptop’s LCD display.

The picture is blurry.

■ Make sure the Input Signal is set correctly for your video equipment (see page 39).

■ There may be dirt on the lens. Clean the lens as described on page53.

■ Adjust the focus (see page 18).

■ Make sure the lens is not fogged by condensation. If you’ve just moved the projector from

a cold environment, wait a couple of minutes before using it.

■ Adjust the Sharpness setting (see page 31).

■ If you’re projecting from a computer, you may need to adjust the Tracking and Sync

settings (see page 33).

Solving Picture Problems 63

The colors on the screen don’t look right.

■ Make sure the Input Signal is set correctly for your connected video equipment (see

page 39). If you switched picture sources by pressing the Input A or Input B button, the
Input Signal setting may have changed (pressing the Input A or B button repeatedly
switches the Input Signal setting).

■ Press the Color Mode button on the remote control to select a different color mode.

■ Check the brightness and contrast settings described on page 29.

■ Fine-tune the colors with the settings listed on page 32.

■ If the picture looks dark, you may need to replace the lamp. Check the lamp usage timer

to see how long the lamp has been in use (see page 58). Replace the lamp if it’s close to
the end of its service life (see page 56).

Solving Remote Control Problems

The projector doesn’t respond to remote control commands.

■ Make sure you’re within about 30 feet of the projector, and the remote control is not

angled away from the projector by more than 30° in any direction.

■ You may need to replace the remote control’s batteries (see page55).

■ Dim the room lights and turn off any fluorescent lights. Make sure the projector is not in

direct sunlight.

■ Turn off nearby equipment that emits infrared energy, such as a radiant room heater.

■ You cannot operate the projector with the remote control or control panel buttons while

Cinema Color Editor is in use. If a problem occurs, select
the Projector menu in Cinema Color Editor.

64 Solving Remote Control Problems

Update to Latest Status from

Where To Get Help

EPSON provides technical assistance 24 hours a day at http://support.epson.com. Here
you can access troubleshooting information, download product documentation, and receive
technical advice through e-mail.

To use the EPSON PrivateLine Support service, call [phone] and enter the PIN on
the EPSON PrivateLine Support card that came with your projector. This is the fastest way of
speaking to a live representative, and it’s free. This service is available 6
Time, Monday through Friday, for the duration of your warranty period.

You may also speak with a projector support specialist by dialing one of these numbers:

■ U.S.: [phone], 6AM to 6 PM, Pacific Time, Monday through Friday

■ Canada: [phone], 6AM to 6 PM, Pacific Time, Monday through Friday

Toll or long distance charges may apply.
Before you call, please have the following information ready:

■ Product name (EPSON PowerLite Cinema 500)

■ Product serial number (located on the bottom of the projector)

■ Computer configuration, if you’re connected to a computer

■ Description of the problem

AM to 6 PM, Pacific

You can purchase screens, carrying cases, or other accessories from EPSON at
[phone] or by visiting the EPSON Store at www.epsonstore.com (U.S. sales only). In
Canada, please call [phone] for dealer referral.

Where To Get Help 65

66 Where To Get Help

Specifications

General

Type of display Poly-silicon TFT active matrix
Size of LCD panels 0.7 inch (18 mm) wide
Lens F=2.1 to 4.3, f= 21.4 to 31.7 mm
Resolution

(native format) 1280 × 720 pixels, 720p
Brightness 1000 ANSI lumens maximum (Dynamic/Living Room color mode)
Contrast ratio 1200:1
Image size 30 to 300 inches (0.76 to 7.6 m)
Projection distance 2.9 to 37 feet (0.9 to 11.3 m)
Zoom ratio 1:1.5
Aspect ratio 16:9
Noise level 36 dB (Dynamic/Living Room color mode)

27 dB (Natural/Theatre/sRBG color mode)

Keystone correction Vertical: -15 to +15°

Lamp

Type UHE (Ultra High Efficiency)
Power consumption 200 W
Lamp life Approx. 1700 hours (Dynamic/Living Room color mode)

Approx. 3000 hours (Natural/Theatre/sRBG color mode)

Part number V13H010L28

Remote Control

Range Approx. 30 feet (10 m)
Batteries AA × 2

67

Dimensions

Height 4.7 inches (119 mm)
Width 17.7 inches (450 mm)
Depth 13.6 inches (345 mm)
Weight 13.8 lb. (6.2 kg)

Electrical

Rated frequency 50/60 Hz AC
Power supply 100 to 120 VAC, 3.3 A

200 to 240 VAC, 1.5 A

Power consumption Operating: 290 W max.

Standby: 0.7 W

Environmental

Temperature Operating: 41 to 95 °F (5 to 35 °C)

Storage: 14 to 140 °F (-10 to 60 °C)

Humidity Operating: 20 to 80% RH, non-condensing

Storage: 10 to 90% RH, non-condensing

Safety

United States FCC 47CFR Part 15B Class B (DoC)

Canada ICES-003 Class B

CE Marking Directive 89/336/EEC

68 Specifications

UL1950 Rev. 3

CSA C22.2 No. 950-95 (cUL)

EN 55022, EN 55024

Pixelworks DNXTM ICs are used in this projector.

Compatible Video Formats

The projector supports analog video in NTSC, PAL, and SECAM formats, and it
automatically adjusts to the incoming signal. It can receive these formats as composite video,
S-video, or component video—which it accepts through the Video, S-Video, and Input A/B
ports, respectively.

The projector also supports digital video (SDTV, HDTV) and various monitor display
formats. Digital video is accepted by the HDMI port. The Input A and Input B ports also
accept digital video (in either component video or RGB video format), as well as analog RGB
computer monitor signals.

Digital video formats

Format Signal name Resolution Aspect ratio

SDTV 480i

480p (not available in RGB video)
575i
575p

HDTV 720p

1080i

Note: The signal name refers to the total number of visible scan lines (e.g., 720) and the display
mode (interlaced or progressive), as defined by the signal format.

If you’re projecting from a computer in analog RGB format, set the computer’s video card at
a refresh rate (vertical frequency) that’s compatible with one of the monitor formats listed
below. The frequencies of some computers may not allow images to display correctly.

640
640
768
768

1280
1920

× 480
× 480
× 576
× 576

× 720
× 1080

4:3
4:3
4:3
4:3

16:9
16:9

Computer monitor formats

Format Resolution Refresh rate (Hz)

VGA 640
VESA 640
SVGA 800
XGA 1024
MAC13”

MAC16”
MAC19”

× 480 60
× 480 72, 75, 85
× 600 60, 72, 75, 85

× 768 43, 60, 70, 75

640
832
1024

× 480
× 624

× 768

67
75
75

Specifications 69

Image Size and Aspect Ratio Settings

Digital and analog picture formats include a portion of the image that is not normally visible
on the screen. For example, a 720p digital video signal includes 750 total scan lines, of which
only 720 are active. The projector displays the active picture area, as shown below:

DVD player

Note: Using the Output Scaling function, you can set the projector to display both the hidd en and
visible parts of the image. You can also use the Position and Zoom Caption options to view the
picture’s hidden edges (see page 36).

720p

signal

1280

720 active scan lines
750 total scan lines

720

When the source signal’s resolution differs from the projector’s native resolution (1280 × 720
pixels) or aspect ratio (16:9), the image has to be resized to fit optimally on the screen. In
many cases, the projector can automatically resize the picture when Auto is selected as the
Aspect setting (see page 23).

DVD player

575p

signal

768

576

960

4:3 aspect ratio

720

If necessary, you can select a different Aspect setting to optimize the image. The resolution at
which the image displays for a given setting depends on the currently active picture source, as
listed in the following tables.

Analog TV

Format (4:3)
NTSC 960
PAL or SECAM 960

70 Specifications

Aspect setting

Squeeze/

Normal Zoom

× 720 1280 × 720 1280 × 720 596 × 446 794 × 446
× 720 960 × 720 960 × 720 708 × 528 944 × 528

Wide Through

Squeeze
Through

Digital component video

Signal

Format

SDTV
(4:3)

name

480i
480p
575i
575p

HDTV
(16:9)

720p
1080i

Digital RGB video

Signal

Format

SDTV
(4:3)

HDTV
(16:9)

name

480i
480p
575i
575p

720p
1080i

Normal Zoom

960
960
960
960

1280
1280

× 720
× 720
× 720
× 720

× 720
× 720

1280
1280
1280
1280

—
—

Normal Zoom

960
960
960
960

1280
1280

× 720
× 720
× 720
× 720

× 720
× 720

1280
1280
1280
1280

—
—

Aspect setting

× 720
× 720
× 720
× 720

Aspect setting

× 720
× 720
× 720
× 720

Squeeze/
Wide Through

1280
1280
1280
1280

—
—

× 720
× 720
× 720
× 720

596
596
708
708

1176
—

× 446
× 446
× 528
× 528

× 664

Squeeze/
Wide Through

1280
1280
1280
1280

—
—

× 720
× 720
× 720
× 720

640
640
768
768

1280
—

× 480
× 480
× 576
× 576

× 720

Squeeze
Through

794

× 446

794

× 446

944

× 528

944

× 528

—
—

Squeeze
Through

853

× 480

853

× 480

1024

× 576

1024

× 576

—
—

Computer monitor formats (analog RGB)

Format (4:3)
VGA 960
VESA 960
SVGA 960
XGA 960
SXGA 960
MAC13”

MAC16”
MAC19”
MAC21”

Normal Zoom

× 720 1280 × 720 1280 × 720 640 × 480 853 × 480
× 720 1280 × 720 1280 × 720 640 × 480 853 × 480
× 720 1280 × 720 1280 × 720 800 × 600 1066 × 600
× 720 1280 × 720 1280 × 720 — —
× 720 1280 × 720 1280 × 720 — —

960
960
960
954

× 720
× 720
× 720
× 720

1280
1280
1280
1280

Aspect setting

× 720
× 720
× 720
× 720

Squeeze/
Wide Through

1280
1280
1280
1280

× 720
× 720
× 720
× 720

640
832
—
—

× 480

× 624

Squeeze
Through

853

× 480

1109

× 624

—
—

Specifications 71

72 Specifications

Notices

Important Safety Information

Follow these safety instructions when setting up and using the projector:

■ Never look into the projector lens when the lamp is turned on; the bright light can

damage your eyes. Never let children look into the lens when it is on.

■ Never open any cover on the projector, except the lamp and filter covers. Dangerous

electrical voltages inside the projector can severely injure you.

■ Except as specifically explained in this User’s Guide, do not attempt to service this product

yourself. Refer all servicing to qualified service personnel.

■ The projector and its accessories come packaged in plastic bags. Keep plastic bags away

from small children to avoid any risk of suffocation.

■ Don’t place the projector on an unstable cart, stand, or table. Also, don’t use the projector

near water or sources of heat.

■ Use the type of power source indicated on the projector. If you’re not sure of the power

available, consult your dealer or power company.

■ Place the projector near a wall outlet where the plug can be easily unplugged.

■ Don’t insert the plug into an outlet with dust present, and insert the plug firmly into the

outlet. Failure to do so could result in sparks or fire.

■ Don’t overload wall outlets, extension cords, or integral convenience receptacles. This can

cause fire or electric shock.

■ Don’t block the slots and openings in the projector case. They provide ventilation and

prevent the projector from overheating. Don’t operate the projector on a sofa, rug, or
other soft surface, or in a closed-in cabinet unless proper ventilation is provided.

■ Never push objects through the cabinet slots or spill liquid into the projector.

■ Unplug the projector from the wall outlet and refer servicing to qualified service

personnel under the following conditions: when the power cord or plug is damaged or
frayed; if liquid has been spilled into the projector, or if it has been exposed to rain or
water; if it doesn’t operate normally when you follow the operating instructions, or if it
exhibits a distinct change in performance, indicating a need for service; if it has been
dropped or the housing has been damaged.

73

■ Don’t place the projector where the cord can be walked on. This may result in fraying or

damage to the plug.

■ Unplug the projector from the wall outlet before cleaning. Use a damp cloth for cleaning.

Do not use liquid or aerosol cleaners.

■ This product includes a lamp component that contains mercury. Please consult your state

and local regulations regarding proper disposal or recycling, and do not place in the trash.

■ Unplug the projector during lightning storms or when not in use for extended periods.

■ Don’t place the projector or remote control on top of heat-producing equipment.

■ If you use the projector in a country other than where you purchased it, use the correct

power cord for that country.

■ Don’t stand on the projector or place heavy objects on it.

■ Don’t use the projector outside of the required temperature range of 41 to 95 °F (5 to

35 °C). Doing so may cause an unstable display and could lead to projector damage.

■ Don’t store the projector outside of the required temperature range of 14 to 140 °F

(-10 to 60 °C) or in direct sunlight for long periods of time. Doing so may cause damage
to the case.

Remote Control Information

You can operate the projector by remote control via a line-of-sight infrared (IR) receiver at the
front and rear of the projector. The projector may not respond to remote control commands
under the following conditions:

■ There is an object between the remote control and the IR receiver on the projector.

■ Ambient light is too bright.

■ Certain types of fluorescent lighting are used.

■ Other equipment that emits infrared energy, such as a radiant room heater, is in the

room.

If you experience problems, try the following:

■ The remote control’s batteries may be low on power; replace them.

■ Dim the ambient lighting and/or turn off any fluorescent lights.

■ Close any window coverings and/or move the projector out of direct sunlight.

■ Turn off other equipment that emits infrared energy.

74 Remote Control Information

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause interference to radio
and television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

■ Consult the dealer or an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification of this device and may cause interference levels which exceed the limits established by the
FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment
interface cable with this device. If this equipment has more than one interface connector, do not leave
cables connected to unused interfaces. Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.

FCC Compliance Statement 75

Declaration of Conformity

According to 47CFR, Part 2 and 15 for Class B Personal Computers and Peripherals; and/or CPU
Boards and Power Supplies used with Class B Personal Computers:

We: EPSON AMERICA, INC.
Located at: 3840 Kilroy Airport Way

MS 3-13
Long Beach, CA 90806-2469
Telephone: [phone]

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and
15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative
unit tested and found to be compliant with the standards. Records maintained continue to reflect the
equipment being produced can be expected to be within the variation accepted, due to quantity
production and testing on a statistical basis as required by 47CFR §2.909. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

Trade Name: EPSON
Type of Product: Projector
Model: EMP-TW500
Marketing Name: PowerLite Cinema 500

EPSON AMERICA, INC., LIMITED WARRANTY

What Is Covered: Epson America, Inc. (“EPSON”) warrants to the original end user customer that the
EPSON product enclosed with this limited warranty statement, if purchased and used in the United
States or Canada, conforms to the manufacturer’s specifications and will be free from defects in
workmanship and materials for a period of two (2) years from the date of original purchase (except that
the warranty period is 90 days for projector lamps). For warranty service, you must provide proof of the
date of original purchase.

What EPSON Will Do To Correct Problems: Should your EPSON projector require service during the
warranty period, EPSON will, at its option, exchange or repair the projector without charge for parts
or labor. If EPSON authorizes an exchange for the defective unit, EPSON will ship a replacement
projector to you, freight prepaid, to an address in Canada or the U.S. (excluding Puerto Rico and U.S.
Possessions). Shipments to other locations will be made freight collect. You are responsible for securely
packaging the defective unit and returning it to EPSON within five (5) working days of receipt of the
replacement. EPSON requires a debit or credit card number to secure the cost of the replacement
projector in the event that you fail to return the defective one. If your projector is being repaired by
carry-in warranty service, please bring the product securely packaged in its original container or an
equivalent to your EPSON Dealer or EPSON Customer Care Center. EPSON will, at its option,

76 Declaration of Conformity

repair or replace on an exchange basis the defective unit, without charge for parts or labor. When
warranty service involves the exchange of the product or of a part, the item replaced becomes EPSON
property. The exchanged product or part may be new or previously repaired to the EPSON standard of
quality, or, at EPSON’s option, may be another model of like kind and quality. Exchange or
replacement products assume the remaining warranty period of the product covered by this limited
warranty, except that each replacement lamp carries the limited 90-day warranty stated above.

What This Warranty Does Not Cover: This warranty covers only normal use of the product in the
United States and Canada. 24-hour-per-day use of this produ ct causes unusu al strain and is not
considered normal use. This warranty does not cover consumables (e.g., fuses), other than lamps. This
warranty does not apply to refurbished or reconditioned products, and this warranty is not transferable.
EPSON is not responsible for warranty service should the EPSON label or logo or the rating label or
serial number be removed or should the product fail to be properly maintained or fail to function
properly as a result of misuse, abuse, improper installation, neglect, improper shipping, damage caused
by disasters such as fire, flood, and lightning, improper electrical current, software problems,
interaction with non-EPSON products, or service other than by an EPSON Authorized Servicer.
Postage, insurance, or shipping costs incurred in presenting your EPSON product for carry-in warranty
service are your responsibility. If a claimed defect cannot be identified or reproduced in service, you
will be held responsible for costs incurred.

THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIE D WARRANTIE S.
IF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED
TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS STATED HEREIN, ANY
STATEMENTS OR REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM ARE
VOID. EXCEPT AS PROVIDED IN THIS WRITTEN WARRANTY, NEITHER EPSON
AMERICA, INC. NOR ITS AFFILIATES SHALL BE LIABLE FOR ANY LOSS,
INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR INABILITY TO USE THE
EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF WARRANTY OR ANY
OTHER LEGAL THEORY. IF THE REMEDY ABOVE FAILS , EPSON’S ENTIRE LIABILITY
SHALL BE LIMITED TO A REFUND OF THE PRICE PAID FOR THE EPSON PRODUCT
COVERED BY THIS LIMITED WARRANTY.

In Canada, warranties include both warranties and conditions.
Some jurisdictions do not allow limitations on how long an implied warranty lasts, and some

jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitations and exclusions may not apply to you.This warranty gives you specific legal rights, and
you may also have other rights, which vary from jurisdiction to jurisdiction.

To locate the Authorized EPSON Servicer nearest you, call the EPSON Connection

SM

at
[phone] + PIN or [phone] in the U.S. and [phone] in Canada, or write to:
Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-30 12.

Epson America, Inc., Limited Warranty 77

78 Epson America, Inc., Limited Warranty

Index

A

Abs. Color Temp. setting, 32
Accessories, 10, 65
Adjustment pattern, 18, 29
Air filter

cleaning and replacing, 54

ordering, 10
Anti-theft device, 8, 10
Aspect button, 9, 23, 62
Aspect ratio, selecting, 23, 70 to 71

B

Background Color setting, 37
Batteries, changing, 55
Black level, 30
Blank button, 9, 22
Blurry picture, 63
Brightness

setting, 29

specification, 67
Button Illumination setting, 39

C

Cable cover, installing, 17
Cables, connecting, 15 to 17, 43 to 44
Cinema Color Editor

setting up, 41 to 44

using, 45 to 51
Cleaning

air filter, 54

lens and projector case, 53
Color

adjusting, 32 to 33, 47 to 48

problems, 64
Color Mode, 9, 24, 64

Color temperature setting, 32
COM Port setting, 38
Computer, displaying an image, 61 to 62
Contrast ratio, 67
Contrast setting, 30
Control panel, projector, 9

D

DCDi, 7, 31
Declaration of Conformity, 76
Desktop adapter, Macintosh, 10
DHCP, 38, 44
Documentation, 11
DVI-Video Level setting, 30

E

Electrical requirements, 68
EPSON

accessories, 10, 65
Home Service, 7
PrivateLine Support, 65
technical support, 11, 65
warranty, 7, 76 to 77

EPSON Super White setting, 30

F

Faroudja, 7
FCC Compliance Statement, 75
Feet, adjustable, 20
Filter, see Air filter
Flesh Tone setting, 32
Flickering, 31, 63
Focus adjustment, 18

79

G

L

Gain, color, 32
Gamma, 32

H

HDMI, 7, 15, 16
Help, 65
Home Service, 7

I

Illumination of buttons, 22, 39

adjusting, 18 to 20, 29 to 33, 47 to 48

changing aspect ratio, 23, 70 to 71

positioning, 20, 36

resizing, 23, 36

selecting source, 22

upside-down or backwards, 19
Image problems, 60 to 64
Info menu, 58
Input Signal setting, 19, 39
Interference, signal, 31, 63
Interlaced mode setting, 31

K

Kensington anti-theft device, 8, 10
Keystone buttons, 9
Keystone correction, 13, 20, 63

Lamp

checking usage timer, 58
life, 67
ordering, 10, 56
replacing, 56 to 58
resetting usage timer, 58
safety instructions, 73 to 74

specifications, 67
Language setting, 28
Lens shift knobs, 20
Lens, cleaning, 53
Lights, projector, 59 to 60
Line menu, 9, 29, 32
Lock

Kensington, 8, 10

settings, 25

M

Macintosh desktop adapter, 10
Memory button, 9, 34
Memory settings

creating, 34, 49

deleting, 35, 51

renaming, 51

using, 34, 50
Menu button, 9, 27
Menus

available settings, 28 to 39

customizing, 28

line menu, 9, 29, 32

using, 27
Message setting, 37
Motion Detection setting, 31
Moving projector, 56

80 Index

N

R

Network

cable, 44
DHCP, 38, 44

settings, 38, 44
Network Monitoring setting, 38, 44
No image, 61 to 62
Noise reduction, 31

O

Offset, 32
Output scaling, 36, 70

P

Pattern, adjustment, 18, 29
Picture problems, 60 to 64
Pixelworks, 7, 68
Positioning image, 20, 36, 70
Positioning projector, 13 to 14
Problems

picture, 60 to 64

remote control, 64, 74
Progressive mode setting, 31
Projection distance, 14, 67
Projector

cable cover, installing, 17

checking status, 58

cleaning, 53

control panel, 9

dimensions, 68

feet, 20

lights, 59 to 60

locking, 8, 10, 25

menus, 28 to 39

parts, 8

positioning, 13 to 14

resetting menu options, 35

storing, 55

transporting, 56

turning on and off, 21 to 22, 60

Registration, 7
Remote control

buttons, 9
changing batteries, 55
lighting up buttons, 22

problems, 64, 74
Replacing lamp, 56 to 58
Resetting

lamp usage timer, 35, 58

memory settings, 35, 51

projector settings, 35
Resolution

compatible formats, 69

projector, 58, 67
RGB settings, 32, 48
RGBCMY settings, 33, 48
RS-232C (serial) cable, 38, 43

S

Safety approvals, 68
Safety instructions, 73 to 74
Serial cable, 38, 43
Setup level, 29
Sharpness, 31
Sleep mode, 39
Source buttons, 9
Source, selecting image, 22
Specifications

compatible video formats, 69

electrical, 68

environmental, 68

general, 67

lamp, 67

remote control, 67
Squeeze mode, 23
Startup screen, selecting, 37
Static, 63
Storing projector, 55
Support, see Technical support
Sync (Synchronization) setting, 33

Index 81

T

Technical support, 11, 65
Through setting, 23
Tint, 32
Tracking, 33
Transporting projector, 56
Trigger Out setting, 39
Trigger port, 17
Turning on and off projector, 21 to 22, 60

U

USB cable, 38, 43
User’s Logo setting, 37

V

Video, compatible formats, 69

W

Warranty, 7, 76to 77
Where to Get Help, 65
White level, 30
Wide setting, 23

Z

Zoom adjustment, 18
Zoom Caption setting, 23, 36, 70
Zoom setting, 23

82 Index
