Epson PowerLite Cinema 200PLUS User Manual

Epson® PowerLite® Cinema 200+

Home Theater Projector

User’s Guide

Copyright Notice

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of Seiko Epson Corporation. The information contained herein is designed only for use with
this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for
damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of
this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to
strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or
any consumable products other than those designated as Original Epson Products or Epson Approved Products by
Seiko Epson Corporation.

Epson is a registered trademark and the 3LCD logo is a trademark of Seiko Epson Corporation.

PrivateLine and PowerLite are registered trademarks, and Epson Extra Care, Epson Connection and Epson Store
are service marks of Epson America, Inc.

Pixelworks, Digital Natural Expression, and DNX are trademarks of Pixelworks, Inc.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of
their respective owners. Epson disclaims any and all rights in those marks.

2

© 2005 Epson America, Inc. 2/05

CPD-18712R1

Contents

Introduction 7

Registration and Warranty 7
Projector Parts 8
Projector Controls 9
Optional Accessories 10
Using This Manual 10

Getting More Information 10

Setting Up the Projector 11

Choosing a Location 11
Connecting the Cables 13

Other Connections 14

Basic Operation 17

Turning On the Projector 17

Turning Off the Projector 18
Selecting the Image Source 18
Choosing the Aspect Ratio 19
Choosing the Color Mode 20
Displaying and Adjusting the Image 20

Focusing and Zooming the Image 21

Selecting the Input Signal Setting 21

Inverting and Mirroring the Image 22

Positioning the Image 22

Performing Keystone Correction 23
Locking the Projector 24

3

Making Adjustments 25

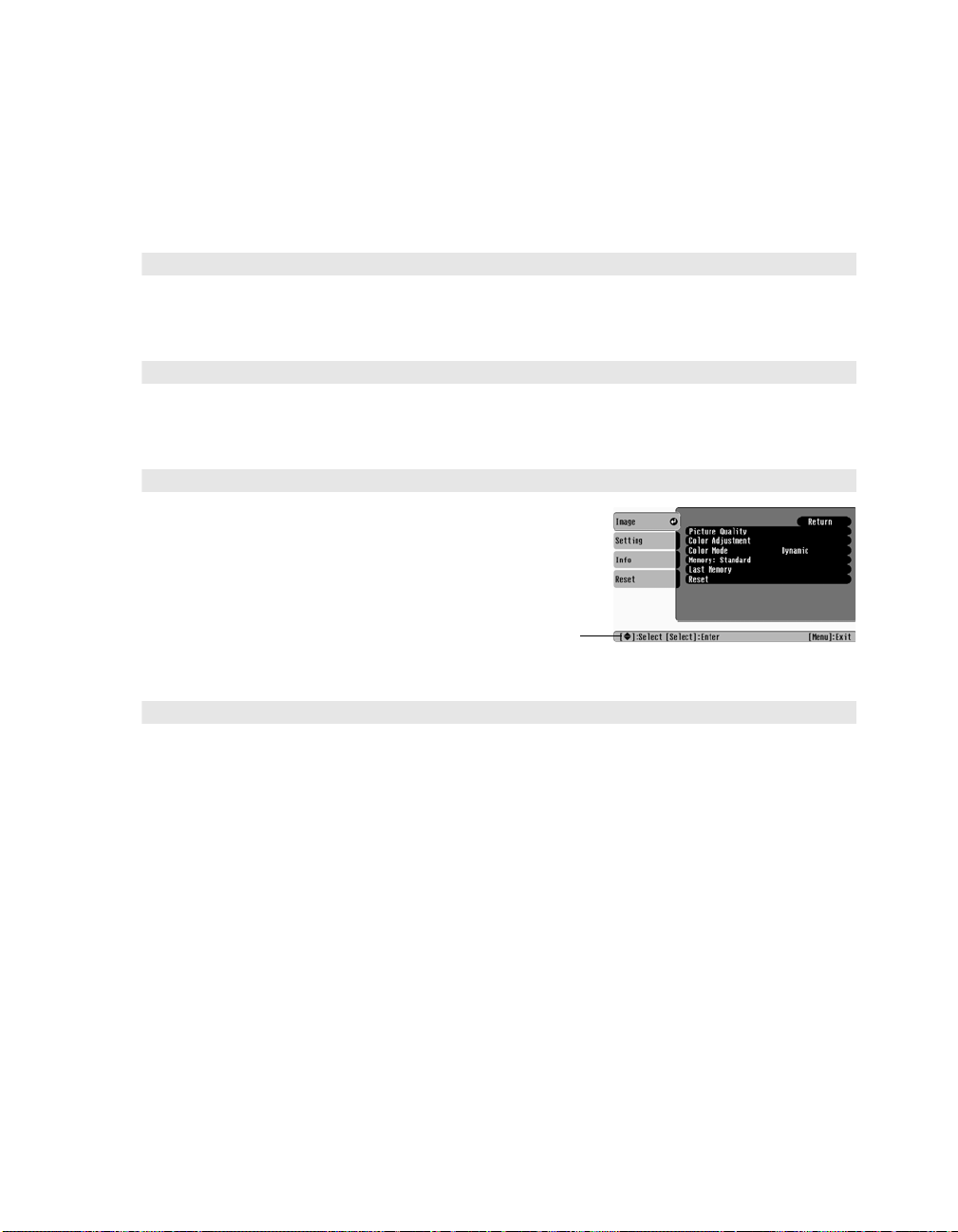

Using the Menu System 25

Changing How the Menu Displays 26
Adjusting the Image Quality 27

Brightness and Contrast Settings 27

Sharpness and Picture Quality Settings 28

Color Settings 29

Adjustments for Computer Images 30
Saving and Resetting Menu Selections 31

Creating Memory Settings 31

Resetting the Projector 32
Adjusting the Image Size 33
Setting Screen Display Options 34
Selecting Other Projector Options 34

Using Cinema Color Editor 37

4

Setting Up Your Computer 37

System Requirements 37

Installing the Software 38

Connecting to the Computer 39
Using Cinema Color Editor 40

Performing Remote Control Operations 42

Adjusting the Picture Quality 43

Adjusting the Color 44

Saving and Recalling Picture Settings 45

Managing Your Settings 47

Maintenance 49

Cleaning the Lens 49
Cleaning the Projector Case 49
Changing the Remote Control’s Batteries 50
Cleaning and Replacing the Air Filter 51
Replacing the Lamp 52

Resetting the Lamp Usage Timer 53
Storing the Projector 54
Transporting the Projector 54

Problem Solving 55

What To Do When the Lights Flash 55
Checking the Projector Status 56
Solving Picture Problems 57
Solving Remote Control Problems 60
Where To Get Help 61

Specifications 63

General 63
Lamp 63
Remote Control 63
Dimensions 64
Electrical 64
Environmental 64
Safety 64
Compatible Video Formats 65
Aspect Ratio Settings 66

5

Notices 69

Important Safety Information 69
Remote Control Information 70
FCC Compliance Statement 71
Declaration of Conformity 72
Epson America, Inc. Limited Warranty 72

Index 75

6

Introduction

The Epson® PowerLite® Cinema 200+ projector lets you enjoy theater-quality images in the
relaxing environment of your own home. Designed especially for home cinema use, it offers
these outstanding features:

■ 1280 × 720 resolution, 1000:1 contrast ratio, and up to 1500 lumens for incredibly rich,

sharp images

■ Pixelworks

images appear clear and lifelike

■ True 16:9 wide-format projection

■ Flexible setup configurations, including front or rear projection and ceiling-mounted,

with a screen trigger port to automatically raise and lower your projection screen

■ Vertical and horizontal lens shift to position the image without distortion

■ Adjustable color modes to quickly optimize viewing for different lighting environments

and Cinema Color Editor software for making fine custom color adjustments

■ Electronic zoom and focus for precise image adjustment

TM

Digital Natural ExpressionTM (DNXTM) technology to make fast-moving

■ Parental control using the projector’s child lock

Registration and Warranty

The Epson PowerLite Cinema 200+ comes with a basic two-year carry-in warranty. For
details, see page 72.

In addition, for customers who register their projector, Epson offers free Epson Extra Care
Home Service. In the unlikely event of an equipment failure, you won’t have to wait for your
unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United
States or Canada, usually via overnight delivery. See your Extra Care Home Service brochure
for details.

To register, simply fill out the registration card that came with your projector and mail it to
Epson. Or you can register online at http://www.epson.com/webreg. Registering also lets you
receive special updates on new accessories, products, and service.

SM

7

Projector Parts

Control panel

Lamp cover

Ventilation slots

Adjustable foot

Vertical lens shift knob

Horizontal lens shift knob

Lens cover

Infrared receiver

8

Input A

(component video)

D4 port

(not used

in the U.S.)

Trigger out

port

(computer VGA port)

AC power inlet

Input B

S-Video port

Control (RS-232C) port

USB port

Kensington

Video port (composite video)

Infrared receiver

®

lock port

Projector Controls

Focus button

Indicator lights

Power button

Menu button

Displays the on-screen menu

Memory button

Recalls custom picture settings

Menu navigation buttons

Menu selection/Line menu

Selects menu items or opens
Line Menu

Menu navigation
buttons

Zoom

button

Menu button

Displays the on-screen menu

Source button

Switches between equipment
connected to the projector

Aspect button

Changes the picture’s
aspect ratio

Esc button

Exits the current menu item

Keystone correction buttons

Corrects the shape of a non-rectangular image

On/Off buttons

Color Mode button

Optimizes viewing for
different lighting environments

Aspect button

Changes the picture’s aspect ratio

ESC button

Exits the current menu item

Blank button

Turns off the screen image

Pattern button

Displays test patterns to help
you adjust the image

Source buttons

Switch between equipment
connected to the projector

Zoom and Focus buttons

Illumination button

Lights the buttons on the
remote control

9

Optional Accessories

Epson provides the following optional accessories for the projector:

Product Part number

Replacement lamp (ELPLP28) V13H010L28

Air filter replacement (ELPAF04) V13H134A04

Ceiling mount ELPHB01

Kensington security lock ELPSL01

S-Video cable ELPSV01

You can purchase many of these accessories from your dealer, by calling Epson
at [phone], or by visiting the Epson Store

SM

at www.epsonstore.com

(U.S. sales only). In Canada, please call [phone] for dealer referral.

Using This Manual

This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.

10

Please follow these guidelines as you read through the manual:

Warnings: Must be followed carefully to avoid bodily injury.

Cautions: Must be observed to avoid damage to your equipment.

Notes: Contain important information about your projector.

Tips: Contain helpful projection tips.

Getting More Information

Need additional help? Take advantage of Epson’s automated support services 24 hours a day
at http://support.epson.com. Use this site to download FAQs or product information and
e-mail your questions to Epson support.

If you need more help, you can use the Epson PrivateLine
[phone] and enter the PIN on the PrivateLine support card that came with your
projector.

®

Support service. Call

Setting Up the Projector

Follow the instructions in this section to choose a location for the projector, connect the
cables, and display and adjust the image.

Choosing a Location

You can install the projector for various viewing setups, as shown below.

Front/Ceiling

Front

If you install the projector in a rear or overhead position, you’ll need to flip and/or mirror the
image by selecting the correct Projection option (see page 22). For overhead projection, you’ll
also need to install the optional ceiling mount bracket (see page 10 for ordering information).

For all setups, it’s best to place the projector at
a height where its lens is between the top and
bottom of the screen. That way, you can keep
the projector level and use the vertical lens
shift knob to position the image. This
produces the best-looking picture.

If you place the projector above or below
screen level, you’ll have to tilt it up or down to
aim the image at the screen; this distorts the shape of the image, but you can correct its shape
using the projector’s Keystone function (see page 23).

Rear/Ceiling

Rear

11

If you place the projector off to the side, aim it straight ahead (rather than at the center of the
screen), then use the horizontal lens shift knob to center the image. Do not place the projector
farther to the left or right than the edge of the screen, or you will not be able to project a
square (or rectangular) image.

Vertical lens shift knob

Horizontal lens shift knob

The maximum size of the image is determined by the distance from the projector’s lens to the
screen. Depending on how you use the Zoom and other settings, the actual size may be
smaller. Use this table as a rough guide for projector placement:

Projection distance Maximum image size (16:9)

2.9 feet 30 in. diagonal (26 × 14 in.)

3.9 feet 40 in. diagonal (34 × 19 in.)

5.9 feet 60 in. diagonal (52 × 29 in.)

7.9 feet 80 in. diagonal (69 × 39 in.)

9.9 feet 100 in. diagonal (87 × 49 in.)

19.9 feet 200 in. diagonal (174 × 98 in.)

29.9 feet 300 in. diagonal (261 × 147 in.)

12

Also keep these considerations in mind:

■ Make sure there is plenty of space for ventilation around and under the projector. Do not

set the projector on top of loose materials that could block the vents underneath.

■ Make sure the projector is within 10 feet of a grounded electrical outlet or extension cord.

Connecting the Cables

You can connect the projector to any type of video equipment, such as a VCR, DVD player,
HDTV tuner, cable or satellite box, video game console, camcorder, or digital camera. You
can also connect it to a desktop or laptop PC or Apple

You can connect up to four pieces of equipment at the same time, as shown in this table:

Port name Video equipment connection Computer connection

Video Use a standard RCA video cable: —

S-Video Use a standard S-Video cable: —

®

Macintosh system.

Input A
(Component)

Input B — Use a standard VGA computer cable:

Note: For details on compatible video formats, see page 65.

Use a standard component video
cable (with RCA-style connectors):

Select YCbCr, YPbPr, or RGB-Video as
the Input Signal setting (see page 21).

—

13

Connect your video or computer equipment to these ports:

Connect a computer to this port

D4 port
(not used
in the U.S.)

Connect video equipment to any of these ports

If you connect to the Input A port, be sure to select the correct Input Signal setting for your
equipment, or the image may not display properly (see page 21).

Other Connections

■ Power cable

Plug the power cable into the projector and a grounded electrical outlet. The P power

light on the projector’s control panel turns orange when the projector is receiving power

and is in standby mode.

14

■ Control (RS-232C) and USB ports

Connect a computer to one of these ports to use the Cinema Color Editor software. See

page 39 for details.

■ Trigger out port

This port outputs a 12-volt DC signal when the projector

is turned on. This lets a central control system monitor

whether the projector is on or off. It can also be used to

raise or lower your projection screen automatically when

the projector is in use.

Connect to it using a 3.5-mm mini jack cable, as shown.

15

16

Basic Operation

Make sure the projector is set up as described on page 11, then follow the instructions below
to turn it on and display an image.

Turning On the Projector

1. Remove the lens cap.

2. Press the

Power button on the projector.

The projector takes about 30 seconds to warm up and

display an image. If you don’t see a picture, you may

need to change the image source as described on the

next page.

Note: If this is your first time using the remote control,

make sure batteries are installed as described on page 50.

To keep children from turning on the projector, you can use

the projector’s Child Lock (see page 24).

On button on the remote control or press the

Turn on the projector

17

Turning Off the Projector

To turn off the projector, press the Off button on the remote control or press the Power
button on the projector twice.

Let the projector cool while the Ppower light flashes red (about 30 seconds). Once the light
stops flashing and stays on, it’s safe to unplug the projector.

Caution: Turn the projector off when not in use. Continuous 24-hour-a-day use may reduce its
overall life. Never unplug the projector without pressing the Off or Power button and letting it cool,
or you could damage the projector and reduce lamp life.

Selecting the Image Source

The Source buttons let you switch between images output from different pieces of equipment
connected to the projector (such as a DVD player, cable or satellite box, or video game
console).

If you don’t see the image you want, press the

Source button that corresponds to the port to

which your video source is connected.

For example:

To select the image source connected to
the Video port . . .

Note: If you’re projecting in a darkened room, press the button (located near the bottom of the
remote control). This lights up all the keys.

To temporarily turn off the image and darken the screen (without turning off the projector), press
the Blank button. Press the Blank button again to return to normal viewing.

. . . press the Video button

18

Choosing the Aspect Ratio

Composite and S-Video signals are sized automatically to fit on your screen when Auto is
selected as the Aspect setting. If you’re viewing a component video signal, you may need to
change the size of the image (or aspect ratio) by pressing the
control.

■ If your video source is connected to the projector’s Video or S-Video port, select Auto to

automatically display your image in the correct size.

■ If the Auto option is unavailable (when the source is connected to the Input A or B port),

you’ll most likely want to choose one of these settings:

Normal for standard TV broadcasts, computer images, or images having a 4:3 aspect

ratio.

Zoom for images recorded in 16:9 (wide-screen) format.

4:3 image using Normal setting 16:9 image using Zoom setting

Aspect button on the remote

On occasion, you may wish to select one of these options:

■ Squeeze if DVDs or video recordings are made in a compressed (or anamorphic) 16:9

format, sometimes called “Squeeze Mode.”

■ Through if your image is smaller than 1280 × 720 pixels and you want to display it at its

original pixel size without resizing it to fit on the screen.

■ Squeeze Through if your image is recorded in Squeeze Mode, is smaller than

1280 × 720 pixels, and you want to display it at its original pixel size.

Note: If you display a 4:3 image using the Zoom setting, the edges of the image will be cut off. You
can use the Zoom Caption option to resize and reposition the image (see page 33).

For details on how the projector resizes the picture when you choose an Aspect setting, see
page 66.

19

Choosing the Color Mode

You can change the Color Mode to automatically adjust the brightness, contrast, and color,
letting you quickly optimize the projected image for various lighting environments. You can
also select a different color mode for each input source, which is useful if you view different
types of images from different sources. (For example, you might set the S-Video source to

Living Room if that source is usually used for watching movies, and set the Video source to
Dynamic for playing video games.)

Select the image source you want to adjust, then press the

Color Mode button on the remote

control. Choose from these settings:

■ Dynamic for projecting in bright rooms; images retain their natural color.

■ Living Room for projecting in rooms with subdued lighting; images retain their natural

color. (Enables the Black and White Image Enhancer feature.)

■ Natural for projecting in darkened rooms; increases contrast and makes flesh tones

appear more natural.

■ Theatre for projecting movies with dark scenes.

■ sRGB for projecting computer images that conform to the sRGB color standard.

Note: You can fine-tune the color and other image quality settings using the projector’s menu
system (see page 27) or the Cinema Color Editor software (see page 37). You can also create your
own customized groups of settings (see page 31).

Displaying and Adjusting the Image

Make sure your video or computer equipment is turned on, then turn on the projector as
described on page 17. If necessary, select the correct source to display the image (see page 18).

20

Note: If you turn on the connected equipment before starting the projector, the projector
automatically detects and displays the image. If you turn on the projector first, or have multiple
pieces of connected equipment, you may have to select the source manually.

If an image does not appear, check the troubleshooting tips on page 57.

Focusing and Zooming the Image

To adjust the sharpness or size of the image:

Note: Before starting, you may want to display a test pattern to facilitate adjustment. Press the

Pattern button on the remote control, then select Cross-hatching.

1. Press the Focus or Zoom button on the projector or

remote control. You see this screen:

2. Use the arrow buttons to adjust the image

sharpness or size.

Note: If you use the remote control, you can stand close

to the screen while focusing the image. This lets you

adjust the picture more precisely.

3. Press ESC when done.

Selecting the Input Signal Setting

If you’re using the projector’s Input A port, select the correct setting for the type of video
equipment you’ve connected to it:

1. Press the

2. Use the menu navigation buttons to open the

Menu button on the remote control.

Setting menu, then open the Input Signal

menu and select Input A.

3. Choose from these options:

■ YCbCr for a video player that outputs an NTSC signal.

■ YPbPr for a video player that outputs an HDTV signal.

■ RGB-Video for a video player that outputs an RGB video signal.

Note: Check the label next to the port on your video equipment, if you’re unsure of which

setting to use.

21

Inverting and Mirroring the Image

If the image is displayed upside-down or backward, change the Projection option:

1. Press the

2. Use the menu navigation buttons to open the

menu, then open the

Projection.

Menu button on the remote control.

Setting

Screen menu and select

Menu

button

3. Choose from these options:

■ Front if the projector is located in front of the

screen (for example, on a table).

■ Front/Ceiling if the projector is located in front

Menu

navigation

buttons

of the screen and mounted overhead.

■ Rear if the projector is located behind the screen.

■ Rear/Ceiling if the projector is located behind the screen and mounted overhead.

Positioning the Image

If the image is not centered on the screen, use the horizontal and vertical lens shift knobs to
adjust its position.

Note: You can display a test pattern to make adjustment easier. Press the Pattern button on the
remote control, then select Cross-hatching.

Vertical lens shift knob

22

Horizontal lens shift knob

Adjustable feet

If you still need to raise the height of the image after using the vertical lens shift knob, lift the
front of the projector and rotate the adjustable feet until the image is positioned correctly.
You can also use the feet to correct the angle of the image if it’s tilted.

Performing Keystone Correction

If the projected image looks like or , use the Keystone function to correct its shape.

Note: If the image is shaped like or , the projector has been placed off to the side of the
screen and angled toward it. Face the projector straight ahead (instead of at the center of the
screen), then use the horizontal lens shift knob to center the image.

To perform keystone correction:

1. Press the

2. Use the menu navigation buttons to open the

menu, then open the

Keystone.

Menu button on the remote control.

Setting

Screen menu and select

3. Use the arrow buttons to adjust the shape of the

image.

4. Press the

Menu button when done.

Menu

button

Menu

navigation

buttons

23

Locking the Projector

The projector includes various Lock settings to prevent the image from being accidentally
changed once it’s adjusted, and to keep children from turning on the projector without adult
supervision.

To access the Lock settings, follow these steps:

1. Press the

2. Use the menu navigation buttons to open the

menu, then open the Operation menu and select

Lock Setting.

Menu button on the remote control.

Setting

Menu

button

3. Choose from these options:

■ Focus Lock to prevent the focus from being

changed.

■ Zoom Lock to prevent the picture size from

Menu

navigation

buttons

being changed.

■ Child Lock to make it more difficult to turn on the projector from the control panel

(but does not affect operation of the remote control).

To turn on the projector, either use the remote control, or press and hold the
projector’s

■ Key Lock to disable all the buttons on the projector’s control panel.

Power button for at least 3 seconds.

24

Making Adjustments

You can use the projector’s on-screen menus to adjust the image quality, such as the
brightness, contrast, sharpness, and color. You can also change how the menus display, select
sleep mode settings, and control other projector features.

Using the Menu System

You can access the menu system either from the remote control or the projector’s control
panel to adjust any of the settings described in this chapter. You can also change the menu
language and control how the menus display (see page 26).

1. Press the

You see a screen similar to this one (the actual screen

depends on the equipment you’ve connected):

Main
menu
options

Note: If no equipment is connected to the projector, some options may not be available.

2. Use the arrow buttons to highlight the desired menu, then press to select it.

3. Use the arrow buttons to select a menu option.

4. Use the arrow buttons to change settings as needed. (You may have to press to

confirm your choice.)

5. Press the

Menu button on the projector or remote control.

Menu

Options for highlighted menu

Esc button to return to the previous menu or press the Menu button to exit.

button

25

Changing How the Menu Displays

Sel

Use these options to control how the menu displays on the screen.

■ Language

Setting Æ Language

Select from nine languages to use in the menu system.

■ Menu Position

Setting Æ On-Screen Display Æ Menu Position

Use the arrow buttons to choose a position on the screen for displaying the menu.

■ Navigation Bar

Setting Æ On-Screen Display Æ Navigation Bar

ect whether to display the navigation bar, which

tells you which buttons to push.

Navigation bar

■ Menu Color

Setting Æ On-Screen Display Æ Menu Color

Select a color scheme for the menu displays.

26

Adjusting the Image Quality

Before fine-tuning the image using these adjustments, make sure you have already selected the
best Color Mode for your picture and viewing environment, as described on page 20. The
Color Mode adjusts various settings to approximately correct levels, simplifying your
adjustment of the picture.

Most image quality settings are saved independently for each input source (Video, S-Video,
Input A, Input B). After you finish adjusting the settings for one input source, be sure to
switch to each additional input source you’ll be using and make any necessary adjustments.

Brightness and Contrast Settings

The Brightness setting controls how much light is produced by the projector lamp. The
other settings listed below control how the projector interprets the light and dark areas of
the picture.

Adjust the Brightness first, then fine-tune the image with the other settings, as described.

■ Brightness

Image Æ Picture Quality Æ Brightness

Adjust the brightness so it’s suitable for your viewing conditions. For example, if you’re

projecting in a brightly lit room or onto an especially large screen, you may need to

increase the brightness. Decrease the brightness for dark rooms or small screens; this also

reduces power consumption and fan noise, and helps to prolong the life of the lamp.

■ Setup Level

Setting Æ Advanced Æ Setup Level

For compatibility with most video equipment sold in the United States, set this option

to 7.5%. This adjusts the threshold at which dark areas of the image are rendered black.

Check your video equipment’s specifications to be sure of the correct setting.

■ Input Level/Contrast

Image Æ Picture Quality Æ Input Adjustment Æ Input Level/Contrast

Adjust the Input Level to set the overall brightness of the image. Then adjust the contrast,

as needed.

27

■ White Level/Black Level

Image Æ Picture Quality Æ Input Adjustment Æ White Level/Black Level

Adjust the White Level so that details in the brightest parts of the image are not washed

out. Then adjust the Black Level so that shadow-level details are still visible in the darkest

parts of the image.

Sharpness and Picture Quality Settings

If the image looks fuzzy, or it contains noise or flickering, you can use these settings to
correct it.

■ Sharpness

Image Æ Picture Quality Æ Sharpness

Use this function to make lines and edges appear more distinct in the image.

■ Progressive

Setting Æ Advanced Æ Progressive

Leave this setting off when viewing images containing a lot of movement, such as videos

and DVDs. If you notice horizontal lines or flickering when viewing still images (such as

computer graphics or digital camera photos) or when pausing videos, turn the setting on.

28

■ Noise Reduction

Setting Æ Advanced Æ Noise Reduction

Leave this setting off unless you’re viewing images from a weak signal with a lot of noise.

Turning the setting on suppresses interference and makes images appear softer (available

only if the image source is set to Video or S-Video).

Color Settings

If the image colors don’t look correct, you can adjust them using these settings. Use the first
three settings described below to make the most visible changes. If you only need to make
slight adjustments, you can fine-tune the picture with the last two settings.

Note: You can also make color adjustments by attaching a PC or laptop to the projector and using
the Cinema Color Editor software. See page 37.

■ Color Intensity

Image Æ Picture Quality Æ Color Intensity

Use this setting to adjust the color saturation of the image. (This setting is not available

for computer images.)

■ Tint

Image Æ Picture Quality Æ Tint

Use this setting to shift the color balance between magenta and green. (This setting is not

available for computer images.)

■ Color Temp.

Image Æ Color Adjustment Æ Color Temp. Æ Color Temp.

Use this setting to shift the color balance between red and blue.

Note: You can also access the Color Temp. setting by pressing the button on the remote

control to open an on-screen “line menu.”

■ Flesh Tone

Image Æ Color Adjustment Æ Color Temp. Æ Flesh Tone

Use this setting to make fine adjustments to the magenta or green tint in the image, also

useful for correcting black-and-white image tints.

Note: You can also access the Flesh Tone setting by pressing the button on the remote

control to open an on-screen “line menu.”

■ RGB

Image Æ Color Adjustment Æ RGB

Use the RGB settings to fine-tune the color of the image. You can adjust the offset,

gamma, and gain for each signal color (red, green, and blue). Use

shades,

Gamma for intermediate shades, and Gain for the lightest shades.

Offset to adjust darker

29

Adjustments for Computer Images

In addition to the settings described above, you can adjust the Tracking and Sync settings for
analog RGB computer images. Normally, these settings are adjusted automatically by the
projector. If you notice that the image is blurry or contains dark vertical bands, you may need
to adjust the settings yourself.

■ Auto Setup

Image Æ Auto Setup

Leave this setting on so that the projector automatically adjusts the tracking, sync, and

position of the image.

■ Tracking

Image Æ Picture Quality Æ Tracking

Adjust the tracking to eliminate vertical bands. This is easiest to

adjust when the image contains a lot of fine detail (such as black

text on a white background).

■ Sync.

Image Æ Picture Quality Æ Sync.

30

Adjust the synchronization to eliminate blurriness. For best results,

make sure the tracking is properly adjusted first.

Saving and Resetting Menu Selections

Once you’ve adjusted the picture settings, you can save them as a group using the Memory
feature. This lets you easily recall them and switch from one group of settings to another. You
can save up to six groups of settings.

If necessary, you can use the projector’s reset options to restore its factory-default (original)
settings. You can clear all the settings or just the settings in a specific menu.

Creating Memory Settings

After adjusting the picture to your liking, you can save your settings as a group in the
projector’s memory. This stores all the image quality settings described on pages 27
through 30, plus the Aspect and Color Mode settings (pages 19 and 20).

1. Press the

2. Open the

Menu button on the remote control.

Image menu, then select Memory: Standard.

3. Select the memory name you want to use, then press the button. Your settings are

saved.

Note: Saved settings are indicated by a green highlight next to the memory name. If you

select a name that is already in use, the existing contents will be erased and the new settings

saved in their place. You can use Cinema Color Editor to customize the names of the settings

(see page 47).

Once you have created one or more memory settings, you
can easily recall them:

1. Press the

Memory button on the remote control.

2. If you’ve used Cinema Color Editor to create

advanced memory settings, choose

Advance to select the type of setting you want

Standard or

Memory

button

to use.

3. Use the arrow buttons to select the desired setting,

then press the button.

Note: Select Last Memory if you want to return to the

last standard memory setting that was used (available

only if you’ve created advanced memory settings using

Cinema Color Editor).

After a moment, the image appears on the screen using your selected setting.

31

Resetting the Projector

If the image quality isn’t what you expect, one or more settings may be adjusted improperly.
If necessary, you can restore the projector to its factory-default (original) settings.

To restore the settings in a specific menu (such as the Image or Setting menu), open that
menu, select
Image menu:

Open the Image
menu . . .

You can also reset the lamp usage timer, clear the memory settings, or restore all the projector
settings to their original values. Follow these steps:

Reset, and confirm as needed. The example below shows how to reset the

. . . and select

Reset

1. Press the

2. Open the

Menu button on the remote control.

Reset menu.

3. Do one of the following:

■ Select Lamp-Hours Reset to clear the lamp usage timer and reset it to zero

(see page 53 for more information).

■ Select Memory Reset to clear any memory settings you created, as described on

page 31.

■ Select All Reset to return almost all projector menus to their original settings.

Note: All Reset does not reset the lamp timer, menu language, Input Signal, and memory

settings.

32

Adjusting the Image Size

Before adjusting any of these settings, make sure you have already selected an appropriate
aspect ratio for the type of picture you’re viewing (see page 19).

■ Output Scaling

Setting Æ Advanced Æ Output Scaling

For standard video formats, this setting lets you see the edges of the image that are not

normally visible in the picture. Select

100% size and composite video and S-Video formats at 95%. (

92% size.)

Larger to view component video and RGB video at

Normal displays images at

For analog-RGB computer signals, select

if you see interference at the top or bottom of the screen. (

Smaller to display a slightly smaller image

Normal displays images

at 100%.)

■ Position

Setting Æ Screen Æ Position

Use the arrow buttons to fine-tune the position of the image on the screen.

■ Zoom Caption

Setting Æ Screen Æ Zoom Caption

Lets you adjust the shape and position of the image so that subtitles are visible (available

only if the aspect ratio has been set to Zoom). Use

of the image and

Zoom Position to move the image up or down.

Vertical Size to adjust the proportions

33

Setting Screen Display Options

■ Message

Setting Æ On-Screen Display Æ Message

Turn this setting off if you want to prevent on-screen messages from appearing (such as

the no-signal message, or the text that appears when you switch between image sources or

color modes).

■ Background Color

Setting Æ On-Screen Display Æ Background Color

Changes the screen that’s used when the projector is not receiving a signal or when you

press the

Logo (to display the EPSON logo on a black background).

■ Startup Screen

Setting Æ On-Screen Display Æ Startup Screen

Turn this setting off if you want to prevent the EPSON logo from appearing while the

projector is warming up.

Blank button to temporarily stop projection. Select Blue, instead of Black, or

34

Selecting Other Projector Options

■ Keystone

Setting Æ Screen Æ Zoom Caption

Adjusts the shape of the image, if the left and right sides are not parallel after tilting the

projector up or down (see page 23).

■ Projection

Setting Æ Screen Æ Projection

Mirrors and/or inverts the image for front, rear, or overhead projection.

■ Input Signal

Setting Æ Input Signal

Adjust these settings for the type of equipment connected to the projector:

Video Signal: Leave this setting on Auto so the projector can automatically interpret

the picture (only affects images displayed through the Video or S-Video port).

Input A: Change this setting to match the type of equipment connected to the Input A

port. If necessary, check the label on your equipment to match the setting.

D4: Change this setting to match the type of equipment connected to the D4 port (not

used in the U.S.).

■ COM Port

Setting Æ Operation Æ COM Port

Select the type of port you’ve used to connect your PC or laptop for running the Cinema

Color Editor software. Choose

■ Trigger Out

Setting Æ Operation Æ Trigger Out

USB or RS-232C.

Turn on this setting if you want the Trigger out port to output a 12-volt signal while the

projector is operating. You can use this to raise or lower your projection screen

automatically. See page 15 for more information.

■ Sleep Mode

Setting Æ Operation Æ Sleep Mode

Sleep mode shuts the projector off automatically after 30 minutes when there is no video

signal. Turn off this setting if you don’t want the projector to enter sleep mode. Leave the

setting on to conserve power and extend the life of the lamp.

■ Lock Setting

Setting Æ Operation Æ Lock Setting

Lets you lock the projector’s focus and zoom settings. Also lets you lock the buttons on

the projector’s control panel or set a child lock that makes it more difficult to turn on the

projector. See page 24 for details.

35

36

Using Cinema Color Editor

You can use the Cinema Color Editor software that came with your projector to adjust each
color in the picture individually. You can also use the software in place of your remote
control, letting you switch image sources, adjust the picture’s aspect ratio, or change image
quality settings right from your computer.

Setting Up Your Computer

Before using Cinema Color Editor, follow the instructions in this section to install the
software and connect the projector to your computer.

System Requirements

You can install Cinema Color Editor on any Windows® or Macintosh system that meets these
minimum requirements:

Windows Macintosh

Microsoft
2000, or XP

Pentium® MMXTM 166 MHz or better Power Macintosh G3 300 MHz or better

10MB RAM 7MB RAM

2MB hard disk space 5MB hard disk space

®

Windows NT® 4.0, 98SE, Me,

XGA (1024 × 768) or better display adapter and monitor

Macintosh OS 8.6 through 9.x, OS X 10.1.5
or later

37

Installing the Software

Before you begin, make sure that the projector is not connected to your computer. Then
follow these steps to install the software:

1. Insert the Cinema Color Editor CD-ROM in your computer.

2. Turn off any anti-virus software that may be running, then click

3. Read the license agreement and click

Agree.

Continue.

You see this screen:

Not shown for Macintosh

4. Click

Install and follow the on-screen instructions to perform the installation.

Caution: If you will be using a USB cable to connect to your computer, be sure to let the USB

driver install as part of the installation sequence.

5. At the last screen, click Exit.

6. Restart your computer if prompted (Macintosh

only).

38

Connecting to the Computer

Before you begin, make sure you have already installed all the software from the CD-ROM.
Then follow these steps to connect the projector to your computer:

1. Connect the projector to your computer using either a USB cable (included with your

projector) or an RS-232C (serial) cable.

Note: You can use any standard (commercially available) USB or serial cable.

Connect either a USB or RS-232C (serial) cable

2. Turn on the projector.

3. Make sure the projector’s COM Port setting is correct for the type of cable you’re using

(see page 35). Select either

USB (if you’re using a USB cable) or RS-232C (for a serial

cable).

4. Windows: If you see a Found New Hardware or Add New Hardware screen, follow the

instructions on the screen to finish installing the EPSON USB driver.

Caution: Make sure you have already installed all the software from the CD-ROM. If not, click

Cancel and follow the instructions on page 38 first.

If you see a screen saying that the software has not passed Windows Logo testing, click

Continue anyway.

39

Using Cinema Color Editor

To start Cinema Color Editor, follow these steps:

1. Make sure the projector is connected and turned on, as described on page 39.

2. Windows: Click

Color Editor

Start, Programs, EPSON Projector, and double-click Cinema

.

Macintosh: From the Applications folder on your hard drive, open the

and double-click

Cinema Color Editor.

You see this screen:

Select your projector . . .

. . . and click Connect

CCEditor folder

40

3. Select the name of the projector you want to adjust, then

click

Connect. You see this screen:

Now you can control the projector and adjust its settings as
described on the following pages.

41

Performing Remote Control Operations

You can use Cinema Color Editor to change the image source, adjust the aspect ratio, or turn
the power off—just as you would from the remote control.

1. Click the

Select Remote Control

Remote Control button.

Turn off the power

Change the image source
(see page 18)

Adjust the aspect ratio
(see page 19)

42

2. Click the buttons as necessary for the operations shown above.

Adjusting the Picture Quality

You can use Cinema Color Editor in place of the projector’s menu system to adjust the
image quality.

1. Click the

Picture Quality button.

Select Picture Quality

Click one of these buttons
to access additional
settings

2. Click one of the buttons shown above to access additional settings. See the referenced

page number below for details on using each setting:

Button Available adjustments Page reference

Input Adjustment
Brightness
Color Intensity
Tint
Sharpness
Color Temp. and Flesh Tone

Color Mode
Color Adjustment

Progressive
Output Scaling
Setup Level

pages 27 and 28
page 27
page 29
page 29
page 28
page 29

page 20
page 44

page 28
page 33
page 27

43

Adjusting the Color

You can use the Cinema Color Editor to fine-tune the color of the image. If you select RGB
as the color mode, you can adjust the offset, gamma, and gain for each signal color (red,
green, and blue). If you select RGBCMY, you can adjust the hue and saturation for each of
the six colors.

1. Click the

Select

Picture Quality

Click

Adjustment of image

2. Select one of the following color modes, then click

Picture Quality button, then click Adjustment of image.

Select the color mode Click Adjust

Adjust.

■ RGB: Lets you adjust the offset, gamma, and gain for each signal color. Use Offset

to adjust darker shades,

Gamma for intermediate shades, and Gain for the lightest

shades.

■ RGBCMY: Lets you adjust the hue and saturation for each of six colors, as shown on

the color palette below. After moving a slider bar, click

Apply.

44

Adjust the hue
(red, green,
blue, cyan,
magenta,
yellow)

Adjust the
saturation

Saving and Recalling Picture Settings

Once you’ve adjusted the picture using Cinema Color Editor, you can save your settings in
the projector’s memory. Then you can use the remote control (or Cinema Color Editor) to
easily recall them for future use.

To save your settings on the projector:

1. Select

2. On the next screen, click the

Picture Quality, then click Memory management and choose Register.

Select

Picture Quality

Click Memory
management

Advance tab to save your settings if you’ve made changes to

the picture using the RGBCMY adjustments. Otherwise, click

Select Standard
or Advance

Select an unused
memory name

Click

Register

Standard.

Click Register

3. Select an unused memory name, then click

the projector’s memory.

Register. Your current settings are saved to

45

To use a memory setting you’ve saved on the projector:

Access the projector’s memory settings either from the remote control (see page 31) or by
using Cinema Color Editor as follows:

1. Select

Picture Quality, then click Memory management and choose Select.

Select

Picture Quality

Click Memory
management

2. Click the tab where the setting you want to use is stored (

Select Standard
or Advance

Select the setting
you want to use

Click

Select

Standard or Advance).

46

Click Select

3. Select the desired memory setting, then click

on the screen using the selected settings.

Select. After a moment, your image appears

Managing Your Settings

In addition to your projector’s twelve memory settings (six standard and six advanced), you
can store any number of settings on your computer’s hard drive. You can also use Cinema
Color Editor to rename or delete memory settings stored on your projector.

To save or recall settings on your computer:

In Cinema Color Editor, open the

■ Save setting to store the current Cinema Color Editor settings on your computer’s hard

File menu, then choose one of the following:

drive.

■ Set from file to adjust the picture from settings previously saved on your hard drive.

Note: You can also transfer settings directly between the projector’s memory and your computer’s
hard drive using the File Read and Save In File buttons (shown in the figure below).

To rename a memory setting stored on the projector:

1. Select

2. Click the tab where your setting is stored (

Picture Quality, then click Memory management and choose Edit.

Standard or Advance), select the setting

whose name you want to change, then click

Select Standard or
Advance

Select the setting
whose name you
want to change

Memory Name Change.

Click Memory
Name Change

3. Type a name up to 12 characters long, then click

To clear a memory setting stored on the projector:

1. Select

Picture Quality, then click Memory management and choose Edit.

2. Select the setting you want to delete, then click

deletion.

OK.

Memory Reset and confirm the

47

48

Maintenance

Your projector needs little maintenance. All you need to do on a regular basis is keep the lens
clean. You also need to clean the air filter periodically to prevent overheating.

Warning: Before you clean any part of the projector, turn it off and unplug the power cord.
Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical
voltages in the projector can injure you severely. Do not try to service this product yourself,
except as specifically explained in this User’s Guide.

The only parts you should replace are the lamp and air filter. If another part needs replacing,
contact your dealer or a qualified servicer.

Cleaning the Lens

Clean the lens whenever you notice dirt or dust on the surface.

Use a canister of compressed air to remove dust.

To remove dirt or smears, use lens-cleaning paper. If necessary, moisten a soft cloth with lens
cleaner and gently wipe the lens surface.

Caution: Never rub the lens with abrasive materials.

Cleaning the Projector Case

Before you clean the case, turn off the projector and unplug the power cord.

To remove dirt or dust, wipe the case with a soft, dry, lint-free cloth.

To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral detergent.
Then wipe the case.

Caution: Never use wax, alcohol, benzene, thinner, or other chemical detergents. These

can damage the case.

49

Changing the Remote Control’s Batteries

The remote control uses two AA batteries. If you suspect they are weak, take the remote
control to a darkened room and press the illumination button. If the buttons on the
remote control do not glow red, replace the batteries as described below.

Warning: Keep batteries away from children. If a battery is swallowed, contact your doctor
immediately.

1. Release the tab and lift open the cover.

2. Remove the old batteries and insert new AA batteries as shown.

50

3. Replace the cover.

Cleaning and Replacing the Air Filter

Clean the air filter on the bottom of the projector after every 100 hours of use. If it’s not
cleaned periodically, it can become clogged with dust, preventing proper ventilation. This can
cause overheating and damage the projector.

1. Turn off the projector and wait for the P power light to stop flashing.

2. Unplug the power cord and disconnect any cables.

3. Turn the projector over. Use a small vacuum cleaner

designed for computers and other office equipment to

clean the filter, as shown. If you don’t have one, gently

clean the filter using a very soft brush (such as a clean

artist’s paintbrush).

If the dirt is difficult to remove or the filter is broken,

replace it. To purchase a filter, contact your dealer or call

Epson at [phone] to find an Epson authorized

reseller or visit http://www.epsonstore.com (U.S. sales

only). Request part number

call [phone] for dealer referral.

4. If you need to replace the filter, release the tab and lift

the cover up.

V13H134A04. In Canada,

5. Remove the old filter and replace it with a new one.

6. To replace the cover, insert the tabs and press down until the cover clicks into place.

51

Replacing the Lamp

The projection lamp lasts for up to 3000 hours (in low brightness mode) or 1700 hours
(in high brightness mode). You can use the Info menu to check how long it’s been in use
(see page 56). It’s time to replace the lamp when:

■ The projected image gets darker or starts to deteriorate.

■ The projector’s warning light flashes red at half-second

intervals.

■ The message Replace the lamp appears on the screen

when you start projecting.

Note: Lamp life results will vary depending on mode selected,
environmental conditions, and usage.

To purchase a replacement lamp, contact your dealer or call Epson at [phone] to find
an Epson authorized reseller or visit http://www.epsonstore.com (U.S. sales only). Request
part number

Be sure to read the “Important Safety Information” on page 69 before replacing the lamp.

Warning: Let the lamp cool fully before replacing it. In the unlikely event that the lamp has
broken, small glass fragments may be present and should be removed carefully to avoid injury.

The lamp component contains mercury. Please consult your state and local regulations
regarding proper disposal or recycling, and do not place in the trash.

V13H010L28. In Canada, call [phone] for dealer referral.

52

Caution: Never touch the lamp with your bare hands; the invisible residue left by the oil on
your hands may shorten the lamp life. Use a cloth or glove to handle the new lamp.

Follow these steps to replace the lamp:

1. Turn off the projector and wait for the P power light to stop flashing.

2. Unplug the power cord and any cables.

3. If the projector has been on, let it cool for about an hour.

4. Loosen the two screws securing the lamp cover

(they don’t come all the way out), and then

remove the cover.

5. Loosen the two screws securing the lamp.

6. Grasp the lamp as shown and pull it straight out.

7. Gently insert the new lamp and tighten its screws.

Caution: Don’t touch the glass portion of the lamp assembly. Touching the glass could

result in premature lamp failure.

8. Replace the cover and tighten its screws. (The projector won’t work if the lamp cover is

open or loose.)

9. Reset the lamp usage timer, as described in the next section.

Resetting the Lamp Usage Timer

After replacing the lamp, follow these steps to reset the lamp usage timer:

1. Press the

2. Use the menu navigation buttons to open the

Reset

3. When you see a confirmation prompt, highlight

4. When you’re finished, press the

The lamp usage timer doesn’t register until you’ve used the lamp for at least 10 hours.

Menu button on the projector or remote control.

Reset menu, then select Lamp-Hours

.

Yes and press the button.

Menu button to exit.

53

Storing the Projector

If you need to store the projector for an extended time, do the following:

1. Make sure the temperature and humidity of the storage area are within the recommended

range for the projector (14 to 140 °F [–10 to 60 °C] and 10 to 90% relative humidity).

2. Attach the lens cover and retract the feet.

3. Remove the batteries from the remote control.

4. Pack the projector in its original packaging or equivalent.

Transporting the Projector

Note: Epson shall not be liable for any damages incurred during transportation.

The projector contains many glass and precision parts. If you need to transport it, follow these
guidelines to prevent damage:

■ When shipping the projector for repairs, use the original packaging material if possible. If

you do not have the original packaging, use equivalent materials. Be sure the carrier is

capable of transporting fragile equipment and is aware that the projector is fragile.

■ When you are hand-carrying the projector, grip the recessed handles on the sides.

54

Problem Solving

This section explains how to interpret the projector’s status lights, solve problems with the
picture and remote control, and contact technical support.

What To Do When the Lights Flash

The lights on top of the projector indicate the
projector’s status and let you know when a problem
occurs.

If the projector isn’t working correctly, first turn it
off, let it cool, and unplug it. Then plug the power
cord back in and turn on the projector. If this doesn’t
solve the problem, check the status lights on top of
the projector.

The P power light is orange.

The projector is in standby mode. Unplug it or press the

The P power light is flashing green.

The projector is warming up. Wait for the picture to appear.

The P power light is flashing orange and you can’t turn on the projector.

The lamp is cooling down. Wait until the light stops flashing, then press the

The P power light does not come on.

Make sure the power cord is connected securely both at the power outlet and the projector.

Power light

Warning light

Power button to turn it on.

Power button.

55

The warning light is flashing orange.

High-speed cooling is in progress. If the projector gets too hot again, projection stops
automatically. Make sure there is plenty of space around and under the projector for
ventilation. Clean or replace the air filter if necessary (see page 51).

The warning light is red.

The projector is too hot, which turns off the lamp automatically. Let it cool for five minutes,
then turn it back on. Make sure there is plenty of space around and under the projector for
ventilation. Also, clean or replace the filter if necessary (see page 51).

The warning light is flashing red at one-second intervals.

■ The lamp cover may be loose or off. Make sure it’s securely fastened (see page 52).

■ There is an internal problem. Turn off the projector and, when the P power light stops

flashing, unplug it. Contact your dealer.

The warning light is flashing red at half-second intervals.

The lamp needs to be replaced (see page 52).

56

Checking the Projector Status

You can use the Info menu to view information about the current display settings and how
long the projection lamp has been in use. To access the Info menu:

1. Press the

2. Use the menu navigation buttons to open the

appears:

■

■ Source ■ Refresh Rate

■ Input Signal ■ Sync Info

■ Resolution

Note: The information displayed depends on the currently selected image source.

The Lamp Hours shows 0H until you’ve used the lamp for at least 10 hours.

Menu button on the projector or remote control.

Info menu. The following information

Lamp Hours ■ Video Signal

Solving Picture Problems

You cannot turn on the projector.

■ Make sure the power cord is connected, then wait a moment for the P power light to

turn orange before pressing the

■ If you’ve set the Key Lock, the control panel buttons are disabled; you must use the

remote control to turn on the projector (see page 24).

■ If you’ve set the Child Lock, use the remote control or press and hold the Power button

on the projector for at least 3 seconds to turn it on (see page 24).

Power button.

No picture appears on the screen or you see the message

■ Press the Source button on the projector or one of the Source buttons on the remote

No Signal displayed.

control to select the correct input source. Allow a few seconds for the projector to sync up

after pressing the button.

■ Press the Blank button on the remote control to make sure the picture hasn’t been turned

off temporarily.

■ Check that the P power light is green, not flashing, and the lens cover is off.

■ The projector may be in standby (or sleep) mode. If the P power light is orange, press the

Power button to turn the projector back on.

■ Make sure your video equipment is turned on.

■ Make sure your cables are connected correctly (see page 13).

You’re using a computer and no picture appears on the screen.

If you’re using a PC:

■ Press the function key that lets you display on an external monitor. It’s often labeled with

an icon such as , but it may also be labeled

Fn key while pressing it. Check your laptop’s manual or online help.

the

CRT/LCD. You may have to hold down

On most systems, the key lets you toggle between the LCD screen and the

projector, or display on both at the same time. Allow a few seconds for the projector to

sync up after pressing it.

■ If the function key doesn’t let you display simultaneously on both screens, you might

need to use the Display utility in the Control Panel to make sure that both the LCD

screen and external monitor port are enabled. From the Control Panel, open the

Display

57

utility. In the Display Properties dialog box, click the Settings tab, then click

4.Click

Advanced. The method for adjusting the setting varies from computer to computer; you

may need to click a

Monitor tab, then make sure the external Monitor port is set as your

primary display or enabled. See your computer manual or online help for details.

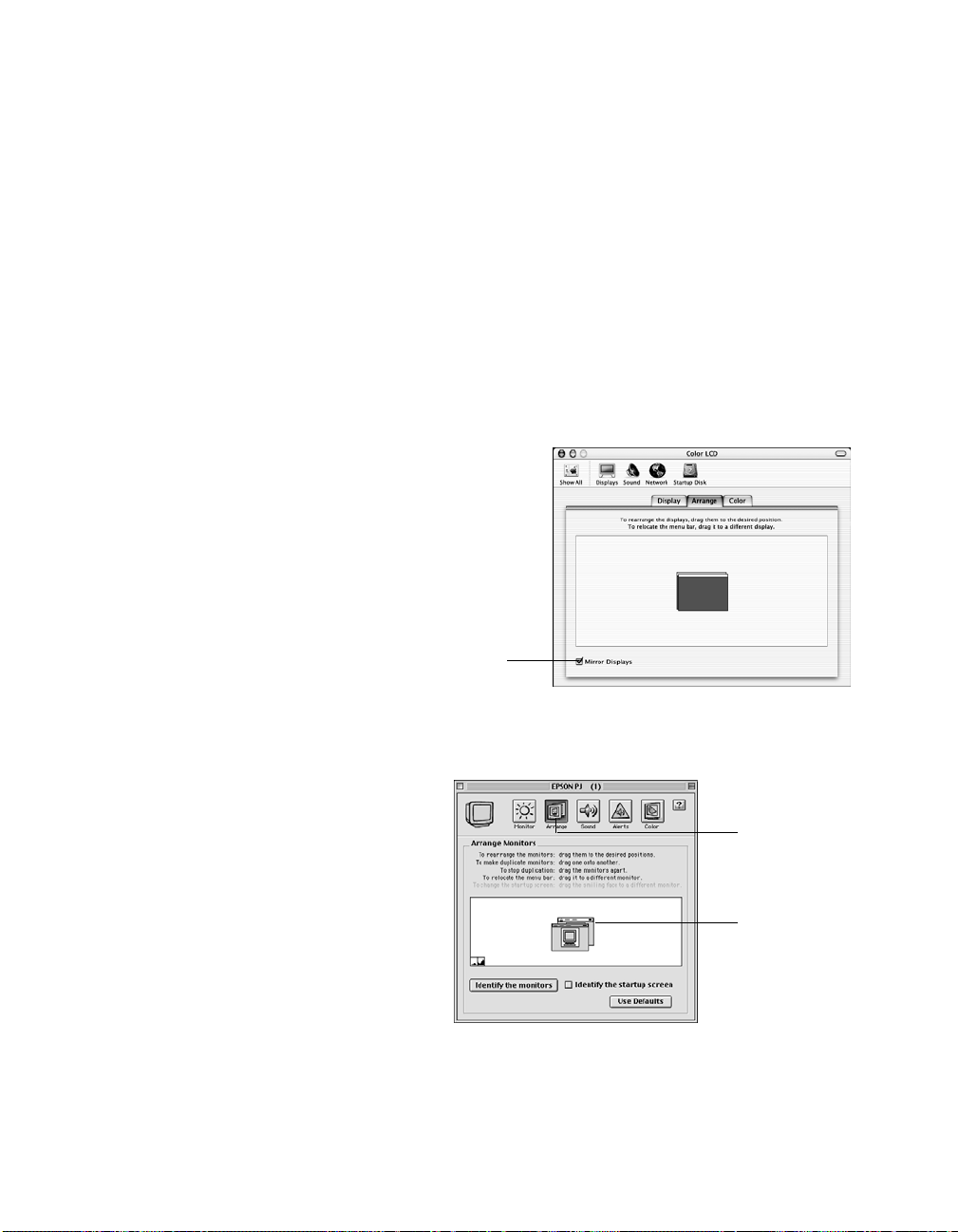

If you’re using a Macintosh with OS X:

1. Select

2. Click

System Preferences from the Apple menu and click Displays.

Detect Displays.

3. To display the entire desktop on both your projector screen and LCD screen, click
the

Arrange tab. (If you don’t see this tab, make sure it isn’t hidden by another

window.)

Mirror Displays in the lower corner
of the screen. One of the monitor icons
automatically moves on top of the other.

Click here

If you’re using a Macintosh with OS 9.x or earlier:

1. From the Apple menu, select

Control Panels, then click
Monitors and Sound.

2. Click the

Arrange icon, and

Click here

then drag one monitor icon on
top of the other.

58

If the

Arrange option isn’t available,

you may need to select one of the
Simulscan resolutions. Click the

Monitor icon and then select a

Simulscan resolution from the

Resolution box. (Allow a few

seconds for the projector to sync up.)

Drag one
monitor icon on
top of the other

The picture is upside-down or reversed.

Change the

Projection setting in the menu system (see page 34).

Only part of the picture is displayed, or the picture is distorted.

■ Press the Aspect button to select a different aspect ratio (see page 19).

■ If the Aspect is set to Zoom, you may need to use the Zoom Caption option to see the

top or bottom section of the screen (so that subtitles are visible). See page 33.

■ Check the Output Scaling to make sure it’s adjusted correctly (see page 33).

■ Use the Position setting to reposition the image on the screen (see page 33).

■ If you’ve connected a computer and you see only half the image, make sure the

computer’s Dual Display setting is turned off.

The picture isn’t rectangular.

■ If the image looks like or , the projector has been placed off to one side of the

screen and angled toward it. Face the projector straight ahead (instead of at the center of
the screen), then use the horizontal lens shift knob to center the image (see page 22).

■ If the image looks like or , use the remote control to access the Keystone

function to correct its shape (see page 23). Or press the and buttons on the
projector’s control panel.

Note: You won’t have to use the Keystone function, as long as you place the
projector level (not angled up or down) at a height between the top and bottom of the
screen, and use the vertical lens shift knob to position the image. This produces the
best-looking picture.

The picture contains static or noise.

■ Make sure the Input Signal is set correctly for your connected video equipment (see

page 35).

■ If you’re viewing still images and you notice flickering or horizontal lines, turn on the

Progressive setting (see page 28).

■ Make sure your cables are securely connected at both ends.

■ If you’re using an extension cable, you may pick up interference unless you use a signal

amplifier. Or try turning on

■ If you’re displaying the same image on your computer and projector screen, try turning

Noise Reduction (see page 28).

off your laptop’s LCD display.

59

The picture is blurry.

■ Make sure the Input Signal is set correctly for your video equipment (see page 35).

■ There may be dirt on the lens. Clean the lens as described on page 49.

■ Adjust the focus (see page 21).

■ Make sure the lens is not fogged by condensation. If you’ve just moved the projector from

a cold environment, wait a couple of minutes before using it.

■ Adjust the Sharpness setting (see page 28).

■ If you’re projecting from a computer, you may need to adjust the Tracking and Sync

settings (see page 30).

The colors on the screen don’t look right.

■ Make sure the Input Signal is set correctly for your connected video equipment (see

page 35).

■ Press the Color Mode button on the remote control to select a different color mode.

■ Check the brightness and contrast settings described on page 27.

■ Fine-tune the colors with the settings listed on page 29. You can also use Cinema Color

Editor to adjust each color individually (see page 37).

■ If the picture looks dark, you may need to replace the lamp. Check the lamp usage timer

to see how long the lamp has been in use (see page 56). Replace the lamp if it’s close to
1700 hours.

60

Solving Remote Control Problems

The projector doesn’t respond to remote control commands.

■ Make sure you’re within about 30 feet of the projector, and the remote control is not

angled away from the projector by more than 30° in any direction.

■ You may need to replace the remote control’s batteries (see page 50).

■ Dim the room lights and turn off any fluorescent lights. Make sure the projector is not in

direct sunlight.

■ Turn off nearby equipment that emits infrared energy, such as a radiant room heater.

Where To Get Help

Epson provides technical assistance 24 hours a day at http://support.epson.com. Here you
can access troubleshooting information, download product documentation, and receive
technical advice through e-mail.

To use the Epson PrivateLine Support service, call [phone] and enter the PIN on the
Epson PrivateLine Support card that came with your projector. This is the fastest way of
speaking to a live representative, and it’s free. This service is available 6
Time, Monday through Friday, for the duration of your warranty period.

You may also speak with a projector support specialist by dialing one of these numbers:

■ U.S.: [phone], 6 AM to 6 PM, Pacific Time, Monday through Friday

■ Canada: [phone], 6 AM to 6 PM, Pacific Time, Monday through Friday

Toll or long distance charges may apply.

Before you call, please have the following information ready:

■ Product name (Epson PowerLite Cinema 200+)

■ Product serial number (located on the bottom of the projector)

■ Computer configuration, if you’re connected to a computer

■ Description of the problem

AM to 6 PM, Pacific

You can purchase screens, carrying cases, or other accessories from an Epson authorized
reseller. For product information or to find the nearest authorized reseller, please call
800-GO-EPSON (800-463-7766). Or browse our catalog of products at www.epson.com,
select the product you are interested in, and click “Where to Buy.” To purchase online, please
visit the Epson Store at www.epsonstore.com (U.S. sales only). In Canada, please call
[phone] for dealer referral.

61

62

Specifications

General

Type of display Poly-silicon TFT active matrix

Size of LCD panels 0.7 inch (18 mm) wide

Lens F=2.1 to 2.8, f=21.4 to 31.7 mm

Resolution
(native format) 1280 × 720 pixels, 720p

Brightness 1500 ANSI lumens maximum (Dynamic/Living Room color mode)

Color reproduction 24 bit, 16.8 million colors

Contrast ratio 1000:1

Image size 30 to 300 inches (0.76 to 7.6 m)

Projection distance 2.9 to 37 feet (0.9 to 11.3 m)

Zoom ratio 1:1.5

Aspect ratio 16:9

Noise level 37 dB (Dynamic/Living Room color mode)

28 dB (Natural/Theatre/sRGB color mode)

Keystone correction Vertical: –15 to +15°

Lamp

Type UHE (Ultra High Efficiency)

Power consumption 200 W

Lamp life Approx. 1700 hours (Dynamic/Living Room color mode)

Approx. 3000 hours (Natural/Theatre/sRGB color mode)

Part number V13H010L28

Remote Control

Range Approx. 30 feet (10 m)

Batteries AA × 2

63

Dimensions

Height 4.5 inches (114 mm)

Width 17.3 inches (440 mm)

Depth 12.6 inches (320 mm)

Weight 11.8 lb. (5.3 kg)

Electrical

Rated frequency 50/60 Hz AC

Power supply 100 to 120 VAC, 3.0 A

200 to 240 VAC, 1.4 A

Power consumption Operating: 270 W max.

Standby: 0.3 W

Environmental

Temperature Operating: 41 to 95 °F (5 to 35 °C)

Storage: 14 to 140 °F (–10 to 60 °C)

Humidity Operating: 20 to 80% RH, non-condensing

Storage: 10 to 90% RH, non-condensing

64

Safety

United States FCC 47CFR Part 15B Class B (DoC)

UL1950 Rev. 3

Canada ICES-003 Class B

CSA C22.2 No. 950-95 (cUL)

CE Marking Directive 89/336/EEC

EN 55022, EN 55024

Compatible Video Formats

The projector supports analog video in NTSC, PAL, and SECAM formats, and it
automatically adjusts to the incoming signal. It can receive these formats as composite video,
S-Video, or component video—which it accepts through the Video, S-Video, and Input A
(Component) ports, respectively.

The projector also supports digital video (SDTV, HDTV) and various monitor display
formats. The projector’s Input A port accepts SDTV and HDTV in either component video
or RGB video format; the Input B port accepts computer monitor signals (analog RGB).

Digital video formats

Format Signal name Resolution Aspect ratio

SDTV 480i

480p
575i
575p
625i
625p

HDTV 720p

1080i

640 × 480
640 × 480
768 × 576

× 576

768
768 × 576
768 × 576

1280 × 720
1920 × 1080

If you’re projecting from a computer, set the computer’s video card at a refresh rate (vertical
frequency) that’s compatible with one of the monitor formats listed below. The frequencies of
some computers may not allow images to display correctly.

4:3
4:3
4:3
4:3
4:3
4:3

16:9
16:9

Computer monitor formats

Format Resolution Refresh rate (Hz)

VGA 640 × 480 60

VESA 640

SVGA 800

XGA 1024 × 768 43, 60, 70, 75, 85, iMac

SXGA 1280

MAC13”
MAC16”
MAC19”
MAC21”

× 480 72, 75, 85

× 600 60, 72, 75, 85, iMac

× 1024 60

640
832
1024
1152

× 480
× 624

× 768
× 870

67
75
75
75

65

Aspect Ratio Settings

Images can be automatically resized to display at the projector’s native resolution
(1280 × 720) when the Aspect setting is set to Auto. If necessary, you can select a different
Aspect setting to optimize the image (see page 19). The resolution at which the image displays
for a given setting depends on the currently active picture source, as listed below.

Analog TV

Aspect setting

Squeeze

Format

NTSC 960 × 720 1280 × 720 1280 × 720 596 × 446 794 × 446

PAL or SECAM 960 × 720 960 × 720 960 × 720 708 × 528 944 × 528

Digital component video

Signal

Format

SDTV 480i

HDTV 720p

name

480p
575i
575p
625i
625p

1080i

Normal Zoom Squeeze Through

Aspect setting

Normal Zoom Squeeze Through

× 720

960
960 × 720

× 720

960
960 × 720
960 × 720

× 720

960

1280

× 720
× 720

1280

× 720

1280
1280 × 720

× 720

1280
1280 × 720
1280 × 720

× 720

1280

—
—

× 720

1280
1280 × 720

× 720

1280
1280 × 720
1280 × 720

× 720

1280

—
—

× 446

596
596 × 446

× 528

708
708 × 528
708 × 528

× 528

708

1176

× 664

—

Through

Squeeze
Through

× 446

794
794 × 446

× 528

944
944 × 528
944 × 528

× 528

944

—
—

66

Digital RGB video

Signal

Format

SDTV 480i

HDTV 720p

name

480p
575i
575p
625i
625p

1080i

Aspect setting

Normal Zoom Squeeze Through

960
960
960
960
960
960

1280
1280

× 720
× 720
× 720
× 720
× 720
× 720

× 720
× 720

1280
1280
1280
1280
1280
1280

—
—

× 720
× 720
× 720
× 720
× 720
× 720

1280
1280
1280
1280
1280
1280

—
—

× 720
× 720
× 720
× 720
× 720
× 720

640
640
768
768
768
768

1280
—

× 480
× 480
× 576
× 576
× 576
× 576

× 720

Squeeze
Through

× 480

853

× 480

853

× 576

1024
1024

× 576
× 576

1024

× 576

1024

—
—

Computer monitor formats (analog RGB)

Aspect setting

Squeeze

Format

VGA 960 × 720 1280 × 720 1280 × 720 640 × 480 853 × 480

VESA 960

SVGA 960 × 720 1280 × 720 1280 × 720 800 × 600 1066 × 600

XGA 960 × 720 1280 × 720 1280 × 720 — —

SXGA 960

MAC13”
MAC16”
MAC19”
MAC21”

Normal Zoom Squeeze Through

× 720 1280 × 720 1280 × 720 640 × 480 853 × 480

× 720 1280 × 720 1280 × 720 — —

960 × 720
960 × 720

× 720

960
954 × 720

1280

× 720

1280 × 720

× 720

1280
1280 × 720

1280

× 720

1280 × 720

× 720

1280
1280 × 720

640

× 480

832 × 624
—
—

Through

853 × 480
1109 × 624
—
—

Pixelworks DNXTM ICs are used in this projector.

67

68

Notices

Important Safety Information

Follow these safety instructions when setting up and using the projector:

■ Never look into the projector lens when the lamp is turned on; the bright light can damage your

eyes. Never let children look into the lens when it is on.

■ Never open any cover on the projector, except the lamp and filter covers. Dangerous electrical

voltages inside the projector can severely injure you.

■ Except as specifically explained in this User’s Guide, do not attempt to service this product

yourself. Refer all servicing to qualified service personnel.

■ The projector and its accessories come packaged in plastic bags. Keep plastic bags away from small

children to avoid any risk of suffocation.

■ Don’t place the projector on an unstable cart, stand, or table. Also, don’t use the projector near

water or sources of heat.

■ Use the type of power source indicated on the projector. If you’re not sure of the power available,

consult your dealer or power company.

■ Place the projector near a wall outlet where the plug can be easily unplugged.

■ Don’t insert the plug into an outlet with dust present, and insert the plug firmly into the outlet.

Failure to do so could result in sparks or fire.

■ Don’t overload wall outlets, extension cords, or integral convenience receptacles. This can cause

fire or electric shock.

■ Don’t block the slots and openings in the projector case. They provide ventilation and prevent the

projector from overheating. Don’t operate the projector on a sofa, rug, or other soft surface, or in a
closed-in cabinet unless proper ventilation is provided.

■ Never push objects through the cabinet slots or spill liquid into the projector.

■ Unplug the projector from the wall outlet and refer servicing to qualified service personnel under

the following conditions: when the power cord or plug is damaged or frayed; if liquid has been
spilled into the projector, or if it has been exposed to rain or water; if it doesn’t operate normally
when you follow the operating instructions, or if it exhibits a distinct change in performance,
indicating a need for service; if it has been dropped or the housing has been damaged.

■ Don’t place the projector where the cord can be walked on. This may result in fraying or damage

to the plug.

■ Unplug the projector from the wall outlet before cleaning. Use a damp cloth for cleaning. Do not

use liquid or aerosol cleaners.

69

■ This product includes a lamp component that contains mercury (Hg). Please consult your state

and local regulations regarding proper disposal or recycling, and do not place in the trash.

■ Unplug the projector during lightning storms or when not in use for extended periods.

■ Don’t place the projector or remote control on top of heat-producing equipment.

■ If you use the projector in a country other than where you purchased it, use the correct power cord

for that country.

■ Don’t stand on the projector or place heavy objects on it.

■ Don’t use the projector outside of the required temperature range of 41 to 95 °F (5 to

35 °C). Doing so may cause an unstable display and could lead to projector damage.

■ Don’t store the projector outside of the required temperature range of 14 to 140 °F

(–10 to 60 °C) or in direct sunlight for long periods of time. Doing so may cause damage
to the case.

WARNING: This product contains chemicals, including lead, known to the State of California to
cause birth defects or other reproductive harm. Wash hands after handling. (provided in accordance

with Proposition 65 in Cal. Health & Safety Code § 25249.5 et seq)

Remote Control Information

You can operate the projector by remote control via a line-of-sight infrared (IR) receiver at the front
and rear of the projector. The projector may not respond to remote control commands under the
following conditions:

70

■ There is an object between the remote control and the IR receiver on the projector.

■ Ambient light is too bright.

■ Certain types of fluorescent lighting are used.

■ Other equipment that emits infrared energy, such as a radiant room heater, is in the room.

If you experience problems, try the following:

■ The remote control’s batteries may be low on power; replace them.

■ Dim the ambient lighting and/or turn off any fluorescent lights.

■ Close any window coverings and/or move the projector out of direct sunlight.

■ Turn off other equipment that emits infrared energy.

FCC Compliance Statement

For United States Users

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause interference to radio
and television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

■ Consult the dealer or an experienced radio/TV technician for help.

WARNING

The connection of a non-shielded equipment interface cable to this equipment will invalidate the FCC
Certification of this device and may cause interference levels which exceed the limits established by the
FCC for this equipment. It is the responsibility of the user to obtain and use a shielded equipment
interface cable with this device. If this equipment has more than one interface connector, do not leave
cables connected to unused interfaces. Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.

For Canadian Users

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations.

71

Declaration of Conformity

According to 47CFR, Part 2 and 15 for Class B Personal Computers and Peripherals; and/or CPU
Boards and Power Supplies used with Class B Personal Computers:

We: EPSON AMERICA, INC.
Located at: 3840 Kilroy Airport Way

MS 3-13
Long Beach, CA 90806-2469
Telephone: [phone]

Declare under sole responsibility that the product identified herein, complies with 47CFR Part 2 and
15 of the FCC rules as a Class B digital device. Each product marketed is identical to the representative
unit tested and found to be compliant with the standards. Records maintained continue to reflect the
equipment being produced can be expected to be within the variation accepted, due to quantity
production and testing on a statistical basis as required by 47CFR §2.909. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

Trade Name: EPSON
Type of Product: Projector
Model: EMP-TW200H
Marketing Name: PowerLite Cinema 200+

72

Epson America, Inc. Limited Warranty

Basic Two-Year Warranty and 90-Day Lamp Warranty

What Is Covered: Epson America, Inc. (“Epson”) warrants to the original retail purchaser of the Epson
product enclosed with this limited warranty statement that the product, if purchased new and operated
in the United States or Canada, conforms to the manufacturer’s specifications and will be free from
defects in workmanship and materials for a period of two (2) years from the date of original purchase
(except that the warranty period is 90 days for projector lamps). For warranty service, you must provide
proof of the date of original purchase.

What Epson Will Do To Correct Problems: If you elect carry-in warranty service, please bring the product
securely packaged in its original container or an equivalent, along with proof of the date of original
purchase, to your Epson Dealer or Epson Customer Care Center. Epson will, at its option, repair or
replace on an exchange basis the defective unit, without charge for parts or labor. When warranty
service involves the exchange of the product or of a part, the item replaced becomes Epson property.
The exchanged product or part may be new or previously refurbished to the Epson standard of quality,
and at Epson’s option, the replacement may be another model of like kind and quality. Epson’s liability
for replacement of the covered product will not exceed the original retail selling price of the covered

product. Exchange or replacement products or parts assume the remaining warranty period of the
product covered by this limited warranty. However, each replacement lamp carries the limited 90-day
warranty stated above.

What This Warranty Does Not Cover: This warranty does not apply to refurbished or reconditioned
products. This warranty covers only normal consumer use in the United States and Canada.
24-hour-per-day use causes unusual strain and is not considered normal use. This warranty does not
cover consumables (e.g., fuses), other than lamps. This warranty is not transferable. Epson is not
responsible for warranty service should the Epson label or logo or the rating label or serial number be
removed or should the product fail to be properly maintained or fail to function properly as a result of
misuse, abuse, improper installation, neglect, improper shipping, damage caused by disasters such as
fire, flood, and lightning, improper electrical current, software problems, interaction with non-Epson
products, or service other than by an Epson Authorized Servicer. Postage, insurance, or shipping costs
incurred in presenting your Epson product for carry-in warranty service are your responsibility. If a
claimed defect cannot be identified or reproduced in service, you will be held responsible for costs
incurred.

Notices

THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN LIEU OF
ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO,
THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. SOME LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES.
IF THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE LIMITED
TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS STATED HEREIN, ANY
STATEMENTS OR REPRESENTATIONS MADE BY ANY OTHER PERSON OR FIRM ARE
VOID. IN THE EVENT THE REMEDIES ABOVE FAIL, EPSON’S ENTIRE LIABILITY SHALL
BE LIMITED TO A REFUND OF THE PRICE PAID FOR THE EPSON PRODUCT
COVERED BY THIS LIMITED WARRANTY. EXCEPT AS PROVIDED IN THIS WRITTEN
WARRANTY, NEITHER EPSON AMERICA, INC. NOR ITS AFFILIATES SHALL BE LIABLE
FOR ANY LOSS, INCONVENIENCE, OR DAMAGE, INCLUDING DIRECT, SPECIAL,
INCIDENTAL, OR CONSEQUENTIAL DAMAGES, RESULTING FROM THE USE OR
INABILITY TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF
WARRANTY OR ANY OTHER LEGAL THEORY.

In Canada, warranties include both warranties and conditions. Some jurisdictions do not allow
limitations on how long an implied warranty lasts and some jurisdictions do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitations and exclusions may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights, which
vary from jurisdiction to jurisdiction. To locate the Authorized Epson Servicer nearest you, call the
Epson Connection

SM

at [phone] + PIN or [phone] in the U.S. and [phone] in

Canada or write to: Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-3012.

73

74

Index

A

Accessories, 10, 61
Adjustment pattern, 21
Air filter

cleaning and replacing, 51

ordering, 10
Anti-theft device, 8, 10
Aspect button, 9, 19, 59
Aspect ratio, selecting, 19, 66 to 67

B

Background Color setting, 34
Batteries, changing, 50
Blank button, 9, 18
Blurry picture, 60
Brightness

setting, 27

specification, 63

C

Cables, connecting, 13 to 15
Child lock, 24
Cinema Color Editor

setting up, 37 to 39

using, 40 to 47
Cleaning

air filter, 51

lens and projector case, 49
Color

adjusting, 29, 43 to 44

problems, 60
Color Mode, 9, 20, 60
Color Temp setting, 29
COM Port setting, 35
Computer, displaying an image, 57 to 58

Contrast ratio, 63
Contrast setting, 27
Control panel, projector, 9

D

Declaration of Conformity, 72
Documentation, 10

E

Electrical requirements, 64
Epson

accessories, 10, 61
Home Service, 7
PrivateLine Support, 61
technical support, 10, 61
warranty, 7

F

FCC Compliance Statement, 71
Feet, adjustable, 22
Filter, see Air filter
Flesh Tone setting, 29
Flickering, 28, 59
Focus adjustment, 21

G

Gain, color, 29
Gamma, 29

H

Help, 61
Home Service, 7

75

I

M


adjusting, 20 to 23, 27 to 30, 43 to 44

changing aspect ratio, 19, 66 to 67

positioning, 22, 33

resizing, 19, 33

selecting source, 18

upside-down or backwards, 22
Image problems, 57 to 60
Info menu, 56
Input Signal setting, 21, 35
Interference, signal, 28, 59
Interlaced mode setting, 28

K

Kensington anti-theft device, 8, 10
Keystone buttons, 9
Keystone correction, 11, 23, 59

L

Lamp

checking usage timer, 56

life, 63

ordering, 10, 52

replacing, 52 to 53

resetting usage timer, 53

safety instructions, 69 to 70

specifications, 63
Language setting, 26
Lens shift knobs, 22
Lens, cleaning, 49
Lights, projector, 55 to 56
Lock

Kensington, 8, 10

settings, 24

Memory button, 9, 31
Memory settings

creating, 31, 45
deleting, 32, 47
renaming, 47

using, 31, 46
Menu button, 9, 25
Menus

available settings, 26 to 35

customizing, 26

using, 25
Message setting, 34
Moving projector, 54

N

No image, 57 to 58
Noise reduction, 28

O

Offset, 29
Output scaling, 33

P

Pattern, adjustment, 21
Picture problems, 57 to 60
Pixelworks, 7, 67
Positioning image, 22
Positioning projector, 11 to 12
Problems

picture, 57 to 60

remote control, 60, 70
Progressive mode setting, 28
Projection distance, 12, 63

76

Projector

checking status, 56
cleaning, 49
control panel, 9
dimensions, 64
feet, 22
lights, 55 to 56
locking, 8, 10, 24
menus, 26 to 35
parts, 8
positioning, 11 to 12
resetting menu options, 32
storing, 54
transporting, 54
turning on and off, 17 to 18, 57

Source buttons, 9
Source, selecting image, 18
Specifications

compatible video formats, 65

electrical, 64

environmental, 64

general, 63

lamp, 63

remote control, 63
Squeeze mode, 19
Startup screen, selecting, 34
Static, 59
Storing projector, 54
Support, see Technical support
Sync (Synchronization) setting, 30

R

Registration, 7
Remote control

buttons, 9
changing batteries, 50
lighting up buttons, 18

problems, 60, 70
Replacing lamp, 52 to 53
Resetting

lamp usage timer, 32, 53

memory settings, 32, 47

projector settings, 32
Resolution

compatible formats, 65

projector, 63
RGB settings, 29, 44
RGBCMY settings, 44
RS-232C (serial) cable, 35, 39

S

Safety approvals, 64
Safety instructions, 69 to 70
Serial cable, 35, 39
Setup level, 27
Sharpness, 28
Sleep mode, 35

T

Technical support, 10, 61
Through setting, 19
Tint, 29
Tracking, 30
Transporting projector, 54
Trigger Out setting, 35
Trigger port, 15
Turning on and off projector, 17 to 18, 57

U

USB cable, 35, 39

V

Video, compatible formats, 65

W

Warranty, 7
Where to Get Help, 61

77

Z

Zoom adjustment, 21
Zoom Caption setting, 19, 33
Zoom setting, 19

78
