SERVICE MANUAL

Color Inkjet Printer

M200/M201, M205, M100/M101, M105

CONFIDENTIAL

SEMF12-012

Notice:

by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION.

 All effort have been made to ensure the accuracy of the contents of this manual. However, should any errors be

detected, SEIKO EPSON would greatly appreciate being informed of them.

 The contents of this manual are subject to change without notice.  The above not withstanding SEIKO EPSON CORPORATION can assume no responsibility for any errors in this

manual or the consequences thereof.

EPSON is a registered trademark of SEIKO EPSON CORPORATION.

Note :Other product names used herein are for identification purpose only and may be trademarks or registered

trademarks of their respective owners. EPSON disclaims any and all rights in those marks.

Printer CS Quality Assurance Department

Confidential

Safety Precautions

All safety procedures described here shall be strictly adhered to by all parties servicing and maintaining this product.

DANGER

Strictly observe the following cautions. Failure to comply could result in serious bodily injury or loss of life.

1. Always disconnect the product from the power source and peripheral devices when servicing the product or performing maintenance.

2. When performing works described in this manual, do not connect to a power source until instructed to do so. Connecting to a power source causes high voltage in the power supply unit and some electronic components even if the product power switch is off. If you need to perform the work with the power cable connected to a power source, use extreme caution to avoid electrical shock.

WARNING

Strictly observe the following cautions. Failure to comply may lead to personal injury or loss of life.

1. Always wear protective goggles for disassembly and reassembly to protect your eyes from ink in working. If any ink gets in your eyes, wash your eyes with clean water and consult a doctor immediately.

2. When using compressed air products; such as air duster, for cleaning during repair and maintenance, the use of such products containing flammable gas is prohibited.

PRECAUTIONS

Strictly observe the following cautions. Failure to comply may lead to personal injury or damage of the product.

1. Repairs on Epson product should be performed only by an Epson certified repair technician.

2. No work should be performed on this product by persons unfamiliar with basic safety knowledge required for electrician.

3. The power rating of this product is indicated on the serial number/rating plate. Never connect this product to the power source whose voltages is different from the rated voltage.

4. Replace malfunctioning components only with those components provided or approved by Epson; introduction of second-source ICs or other non-approved components may damage the product and void any applicable Epson warranty.

5. The capacitors on the Main Board may be electrically charged right after the power turns off or after driving motors which generates counter electromotive force such as when rotating the PF Roller or when moving the CR Unit. There is a risk to damage the Main Board if the Head FFC is short-circuited with the capacitors on the Main Board electrically charged, therefore, after the power turns off or after motors are driven, leave the printer untouched for approximately 30 seconds to discharge the capacitors before starting disassembly/ reassembly.

6. To prevent the circuit boards from short-circuiting, be careful about the following when handling FFC or cables.



When handling FFC, take care not to let the terminal section of FFC touch metal parts.

 When connecting cables/FFC to the connectors on circuit boards, connect them straight to the connectors to avoid

slant insertion.

Confidential

7. In order to protect sensitive microprocessors and circuitry, use static discharge equipment, such as anti-static wrist straps, when accessing internal components.

8. Do not tilt this product immediately after initial ink charge, especially after performing the ink charge several times. Doing so may cause ink to leak from the product because it may take some time for the waste ink pads to completely absorb ink wasted due to the ink charge.

9. Never touch the ink or wasted ink with bare hands. If ink comes into contact with your skin, wash it off with soap and water immediately. If you have a skin irritation, consult a doctor immediately.

10. When disassembling or assembling this product, make sure to wear gloves to avoid injuries from metal parts with sharp edges.

11. Use only recommended tools for disassembling, assembling or adjusting the printer.

12. Observe the specified torque when tightening screws.

13. Be extremely careful not to scratch or contaminate the following parts.

Nozzle plate of the Printhead

  CR Scale  PF Scale  Coated surface of the PF Roller  Gears  Rollers  LCD  Scanner Sensor  Exterior parts

14. Never use oil or grease other than those specified in this manual. Use of different types of oil or grease may damage the component or give bad influence on the printer function.

15. Apply the specified amount of grease described in this manual.

16. Make the specified adjustments when you disassemble the printer.

17. When cleaning this product, follow the procedure described in this manual.

18. When transporting this product after filling the ink in the printhead, pack the printer without removing the ink cartridges in order to prevent the printhead from drying out.

19. Make sure to install antivirus software in the computers used for the service support activities.

20. Keep the virus pattern file of antivirus software up-to-date.

21. When disassembling/reassembling this product, if you find adhesive power of the double-sided tape which secure the parts or FFC is not enough, replace the tape with new one and attach it correctly to the specified points where the parts or FFC should be secured.

22. Unless otherwise specified in this manual, the labels attached on the returned product should be transferred to the corresponding attachment positions on the new one referring to the labels on the returned product.

Confidential

About This Manual

This manual, consists of the following chapters, is intended for repair service personnel and includes information necessary for properly performing maintenance and servicing the product.

CHAPTER 1. TROUBLESHOOTING

Describes the step-by-step procedures for the troubleshooting.

CHAPTER 2. DISASSEMBLY / REASSEMBLY

Describes the disassembly/reassembly procedures for main parts/units of the product, and provides the standard operation time for servicing the product.

CHAPTER 3. ADJUSTMENT

Describes the required adjustments for servicing the product.

CHAPTER 4. MAINTENANCE

Describes maintenance items and procedures for servicing the product.

CHAPTER 5. APPENDIX

Provides the following additional information for reference:

• Connector Diagram

• Points to be checked before packing the printer

• Protection for Transportation

Symbols Used in this Manual

Various symbols are used throughout this manual either to provide additional information on a specific topic or to warn of possible danger present during a procedure or an action. Pay attention to all symbols when they are used, and always read explanation thoroughly and follow the instructions.

Indicates an operating or maintenance procedure, practice or condition that, if not strictly observed, could result in serious injury or loss of life.

Indicates an operating or maintenance procedure, practice, or condition that, if not strictly observed, could result in bodily injury, damage or malfunction of equipment.

May indicate an operating or maintenance procedure, practice or condition that is necessary to accomplish a task efficiently. It may also provide additional information that is related to a specific subject, or comment on the results achieved through a previous action.

For Chapter 2 “Disassembly/Reassembly”, symbols other than indicated above are used to show additional information for disassembly/reassembly. For the details on those symbols, see "2.2 Disassembly/Reassembly

Procedures (p31)".

Confidential

Revision Status

Revision Date of Issue Description

A October 17, 2012 First Release

Confidential

M200 / M205 / M100 / M105 Series

Chapter 1 Troubleshooting

1.1 Troubleshooting....................................................................................................................................................... 10

1.1.1 Troubleshooting Workflow ............................................................................................................................ 10

1.2 Power-On Sequence ................................................................................................................................................ 12

1.3 Fatal Error Code List ............................................................................................................................................... 14

1.3.1 Displaying the Fatal Error Code..................................................................................................................... 14

1.3.2 Printer Fatal Error Code ................................................................................................................................. 15

1.3.3 Scanner Fatal Error Code ............................................................................................................................... 17

Chapter 2 Disassembly/Reassembly

2.1 Overview ................................................................................................................................................................. 19

2.1.1 Tools ............................................................................................................................................................... 19

2.1.2 Jigs .................................................................................................................................................................. 19

2.1.2.1 Making the Spring Hook Jig.................................................................................................................. 19

2.1.3 Locations of the Parts/Units ........................................................................................................................... 20

2.1.4 Standard Operation Time for Servicing the Product ...................................................................................... 23

2.1.5 Checks and Precautions before Disassembling .............................................................................................. 26

2.1.5.1 Factors which Affect the Print Quality .................................................................................................. 26

2.1.5.2 Factors which Affect the Safety of Service Personnel such as Ink Leakage during Operation ............ 27

2.2 Disassembly/Reassembly Procedures ..................................................................................................................... 31

2.2.1 Configuration .................................................................................................................................................. 31

2.2.2 Disassembly Flowchart................................................................................................................................... 32

2.2.2.1 Multifunction Printer specific parts ....................................................................................................... 34

2.2.2.2 Singlefunction Printer specific parts...................................................................................................... 37

2.2.2.3 Common Printer Mechanism ................................................................................................................. 40

2.2.2.4 Unit/Assy ............................................................................................................................................... 42

2.2.3 Disassembly Flowchart (Printhead/Main Board) ........................................................................................... 45

2.3 Detailed Disassembly/Reassembly Procedure for each Part/Unit........................................................................... 46

2.4 Routing FFCs/cables ............................................................................................................................................... 56

Revision A

Chapter 3 Adjustment

3.1 Required Adjustments ............................................................................................................................................. 60

3.2 Adjustment Program................................................................................................................................................ 67

3.2.1 Operating Environment .................................................................................................................................. 67

3.2.2 Details of the Adjustment Program ................................................................................................................ 67

3.2.2.1 CR Motor Heat Protection Control / PF Motor Heat Protection Control .............................................. 67

3.2.3 Scanner Motor Heat Protection Control ......................................................................................................... 68

3.3 Mechanism Adjustment / Check ............................................................................................................................. 69

3.3.1 Checking the Platen Gap ................................................................................................................................ 69

3.3.2 CR/PF Belt Tension Check............................................................................................................................. 71

Chapter 4 Maintenance

4.1 Overview ................................................................................................................................................................. 74

4.1.1 Cleaning .......................................................................................................................................................... 74

4.1.2 Lubrication...................................................................................................................................................... 74

4.2 Lubrication Points and Instructions......................................................................................................................... 75

Confidential

M200 / M205 / M100 / M105 Series

Chapter 5 Appendix

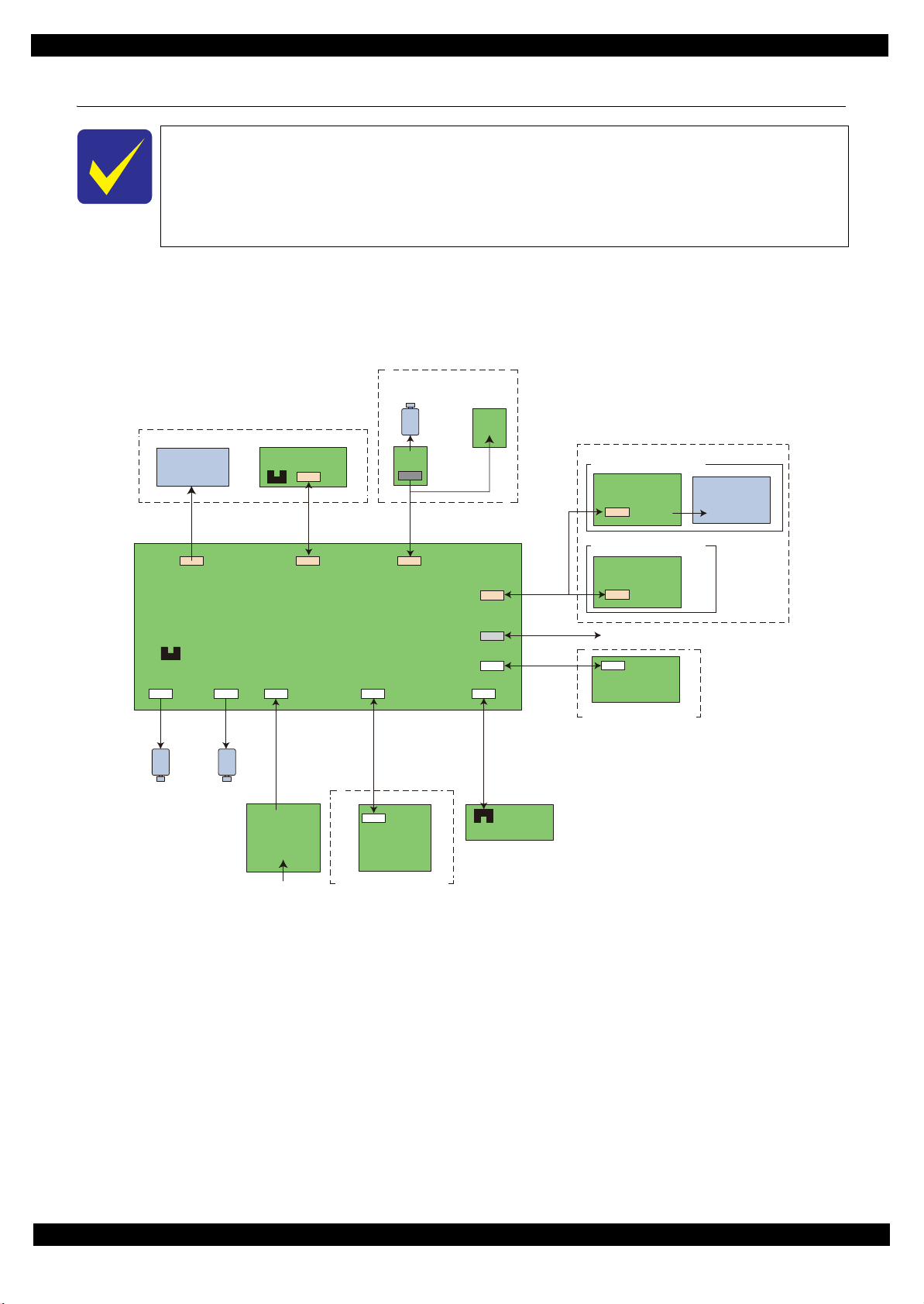

5.1 Connector Diagram ................................................................................................................................................. 81

5.2 Points to be checked before packing the printer...................................................................................................... 82

5.3 Protection for Transportation .................................................................................................................................. 83

5.3.1 Securing the CR Unit...................................................................................................................................... 83

5.3.2 Securing the Paper Support/Paper Support Sub ............................................................................................. 84

Revision A

Confidential

CHAPTER 1

TROUBLESHOOTING

Confidential

M200 / M205 / M100 / M105 Series

1.1 Troubleshooting

This section describes the troubleshooting workflow and fatal error information.

1.1.1 Troubleshooting Workflow

The following page describes the troubleshooting workflow. Follow the flow when troubleshooting problems.

 In this chapter, the product names are called as follows:

• M200 Series: M200/M201

• M205 Series: M205

• M100 Series: M100/M101

• M105 Series: M105

 This flowchart is compiled based on the following contents.

• Our experience regarding the quality problem.

• ESK’s repair data.

• Printer Mechanism specification for the product.

 M100/M105 Series are not equipped with the ADF/Scanner unit, therefore, the

troubleshooting related to the ADF/Scanner unit is not applied.

 If the reason for the return is evident, first check the phenomenon user claims recurs,

then proceed to the troubleshooting.

Revision A

Start

Turn on the power

Does printer turn on the

power?

Yes

Is Power-on sequence

finished without error?

Yes

Standby condition

Print check pattern

Does an error occur

when printing?

Yes

(p 11)

What is returned reason?

ADF/Scanner failure

Copy an image

Is scanning operation

finished without

trouble?

Yes

ADF failure?

Yes

Copy an image by ADF

Is ADF operation

finished without

trouble?

Yes

Printer failure only

(p 11)

Is printing operation

finished without trouble?

Yes

(p 11)

*1: If the Hopper of ASF on the returned product touches the LD Roller, the

initial ink charge has not been completed for the product yet.

*2: In case of “Not Trouble Found”, check fatal error code.

Finish

Figure 1-1. Troubleshooting Workflow (1)

Troubleshooting Troubleshooting Workflow 10

Confidential

M200 / M205 / M100 / M105 Series Revision A

No Power

[Presumable Cause]

• PS Unit damage

• Main Board damage

[Major Troubleshooting]

• PS Unit replacement

• Main Board replacement

The power-on sequence does not start

(p 10)

Please refer to " 1.3 Fatal Error

Code List (p14)".

Fatal error

Error is indicated during power-on

sequence

*: If the printer can turn on but turns off right away, the protection

circuit may cut off the power due to an error such as a circuit failure.

Error is indicated during printing nozzle check pattern.(p 10)

(p 10)

Incomplete Initial Ink Charge

[Occurrence Condition]

Ink LED is ON and STM indicates "Initial ink charging is not complete".

[Major Occurrence Timing]

• Print start timing

[Troubleshooting]

• Perform initial ink charge

Maintenance error

[Occurrence Condition]

This error occurs when maintenance counter in EEPROM exceeds the specified value.

[Major Occurrence Timing]

• Power-on timing

• Print start timing

• Cleaning timing

[Troubleshooting]

• Porous Pad replacement & Maintenance counter reset

Ink End error

[Occurrence Condition]

This error occurs when ink in Ink Cartridge is empty.

[Major Occurrence Timing]

• Power-on timing

• Print start timing

• Cleaning timing

[Troubleshooting]

• Refill ink and reset ink counter by panel.

Problems related to print result or during printing (p 10)

4 5 6

Paper Jam Fatal error

[Occurrence Condition]

This error occurs when CR Unit is blocked by jammed paper.

[Major Occurrence Timing]

• Power-on timing

[Major Troubleshooting]

• Remove jammed paper

※ On this product, if CR Unit touches jammed paper, CR Unit moves back in the opposite direction so that customer can remove the paper. However, if CR Unit cannot move in this sequence, this error occurs.

Scanning cannot be performed successfully

(p 10)

ADF does not operate normally

(p 10)

Paper Jam error

[Occurrence Condition]

This error occurs when top/ bottom of paper is not detected by PE Sensor in the specified steps of paper loading / ejecting operation correctly.

[Major Occurrence Timing]

• Power-on timing

• Paper loading timing

• Paper eject timing

[Major Troubleshooting]

1 Perform paper eject operation

from operation panel.

• Success Starts paper feeding operation again if printer has print data.

•Fail Occurs paper jam error again.

2 If fail in the above 1, remove

the paper by opening Scanner Unit.

3 Perform paper eject operation

from operation panel again.

• Success Starts paper feeding operation again if printer has print data.

•Fail Occurs paper jam error again.

4 Check the following if failed i n

Step 3.

• Foreign object

• Detached parts

• PE Sensor Lever

• PE Sensor

• Porous Pad on Paper Guide Front

• Main board

No Paper error

[Occurrence Condition]

This error occurs when top of paper can not be detected correctly by PE Sensor in the specified steps up to completion of the paper loading operation. (No paper / No loading / large paper skew)

[Major Occurrence Timing]

• Paper loading timing

[Major Troubleshooting]

1 Set paper in ASF and perform

paper feed operation.

2 If the paper stops before

reaching PE Sensor, remove it and check the paper condition.

If paper is OK, set paper in ASF and move edge guides to appropriate position, and perform 2 again. B)If damage in the above 2, check foreign materials / parts come-off / parts transformation in paper path.

4 If the problem is not solved by

3-A) & 3-B), check the following.

• Foreign object

• Detached parts

• Surface condition of LD Roller or PF Roller

• PE Sensor Lever

•PE Sensor

• Main Board

•PF Motor

Double Feed error

[Occurrence Condition]

When manual duplex printing is selected using the printer driver, this error occurs if the actual paper length detected by PE Sensor does not match with the paper length specified in the printer driver. (The error occurs when the actual length is longer than the theoretical length specified in the driver.)

[Major Occurrence Timing]

• Paper loading timing

• Paper eject timing

[Troubleshooting]

• PE Sensor Lever replacement

• PE Sensor replacement (Main Board replacement)

• Main Board replacement

※ This error may occur in the manual duplex printing if the inverted sheet printed on the first side sticks to the second sheet when the first side printing is complete and the sheet is inverted and set to ASF to print on the other side.

Paper Size Unmatch error

[Occurrence Condition]

This error occurs if the actual paper length detected by PE Sensor does not match with the paper length specified in the printer driver. (The error occurs no matter when the actual length is longer or shorter than the theoretical length specified in the driver.)

[Major Occurrence Timing]

• Paper eject timing

[Troubleshooting]

• PE Sensor Lever replacement

• PE Sensor replacement (Main Board replacement)

• Main Board replacement

Poor Printing

[Phenomenon]

• Poor printing quality

• Ink stain on paper

• Dot missing

• Paper eject without printing

[Presumable Cause]

• Driver / Panel mis-setting

• Contamination of CR scale

• Contamination of Printhead cover

• Printhead damage

• Ink clogging of Printhead

• Contamination on Cap Unit / Wiper of Ink System Assy

• Ink System Assy damage

• Float of Porous Pad on Paper Guide Front

• Narrower/Wider PG (out of standard)

• PE Sensor Lever damage

• PE Sensor damage

• Ink tank ventilation film gets wet.

[Major Troubleshooting]

• Driver / Panel re-setting

• CR Scale replacement

• Printhead cover cleaning

• Printhead cleaning

• Printhead replacement

• Rubber cleaning of Cap Unit

• Ink System Assy replacement

• Porous Pad re-installation

• Printer replacement

• PE Sensor Lever replacement

• PE Sensor replacement (Main Board replacement)

• Ink tank replacement

Poor Paper Loading

[Presumable Cause]

• Use of 3rd party media

• Edge guide mis-setting

• Foreign material

• Part come-off

• Contamination of LD Roller or PF roller

[Major Troubleshooting]

• Recommendation of EPSON media

• Edge guide re-setting

• Foreign material removal

• Part re-installation

• Roller replacement

Abnormal Noise

[Presumable Cause]

• Foreign material

• Insufficient grease

• Gear damage

[Major Troubleshooting]

• Foreign material removal

• Lubrication of grease

• Gear replacement

Blank printing

[Phenomenon]

• Blank printing

[Presumable Cause]

• Valve closes

• Ink tank ventilation film gets wet

• Ink tube crumples

• Ink tube connection is incomplete

[Major Troubleshooting]

• Open valve

• Ink tank replacement

• Ink tube re-installation

Scanner failure

[Presumable Cause]

• Contamination of Scanner Glass

• Contamination of Document Pad

• CIS Unit bonding failure

• CIS Unit damage

• Scanner Motor damage

• Insufficient grease

[Major Troubleshooting]

• Scanner Glass cleaning

• Document Pad cleaning

• Document Pad replacement

• CIS Unit replacement

• Scanner Motor replacement

• Lubrication of grease

ADF Unit failure

[Phenomenon]

• Paper is not fed

• Multi-feed

• Paper jam

• Skewed document

[Presumable Cause]

• Deterioration of Pickup Roller

• Deterioration of ADF Pad Assy

• Damage to gears

• Damage to Scanner Motor

• Contamination on document glass

• Foreign object

• Damage to ADF Paper Guide Cover Assy

• Deterioration of Paper Eject Roller

• Scanner Carriage

[Major Troubleshooting]

• Replace ADF Paper Guide Cover Assy

• Replace ADF Pad Assy

• Clean document glass

• Remove foreign material

• Replace ADF Unit

• Replace Scanner Unit

failure

Figure 0-1. Troubleshooting Workflow (2)

Troubleshooting Troubleshooting Workflow 11

Confidential

M200 / M205 / M100 / M105 Series

1.2 Power-On Sequence

This section describes the power-on sequences in two conditions. The preconditions are as follows.

 Condition 1: Normal power-on sequence (See Table 1-1.)



Turning on the printer after turning it off without an error.

 Initial ink charge has finished and every cartridge has sufficient ink.  No paper on the paper path.  The Printhead is capped with the Cap Assy.  The CR Unit is normally fixed by the Change Lever.  Maintenance error recovery has never been performed.

Table 1-1. Condition 1: Normal Power-on Sequence

Operation

1. Printhead initialization and fuse inspection

1-1.Initializes the Printhead, and checks for the fuse on the circuit boards in the printer.

2. Checking for waste ink overflow

2-1.Checks the waste ink counter if the waste ink overflow is occurring.

3. Seeking the home position

3-1.The CR Unit moves to the 80-digit side slowly and confirms it touches the Change Lever (CR lock).

Revision A

CR Unit/PF Roller

movement and

position

3-2.The CR Unit moves to the 0-digit side slowly.

3-3.After the PE Sensor checks if paper exists, the PF Motor rotates clockwise for one second and releases the CR lock.

3-4.While checking if the CR Unit does not touch the Change Lever (CR lock) or the foreign material, the CR Unit

moves to the 80-digit side slowly until it touches the Left Frame.

3-5.The distance from the position where the CR Unit touched to the Left Frame is regarded as the standard distance

from the origin position, and the home position is fixed. From then on, the CR Unit position is monitored according to the signals from the CR Encoder.

3-6.The CR Unit moves to near its home position quickly.

4. Detecting ink cartridge and initializing ink system

4-1.To detect ink, the CR Unit moves back and forth between near the Change Lever and near the Left Frame for two

times.

4-2.The CR Unit returns to its home position.

5. Low temperature operation sequence

5-1.The CR Unit quickly moves back and forth between near the Change Lever and near the Left Frame for two times.

Note 1: The rotation directions of the PF Motor are as follows.

Clockwise: Paper is fed normally Counterclockwise: Paper is fed backward

*2: The conditions of the CR lock are as follows.

Red CR lock is set

White CR lock is released *3: The fatal error occurs if there is a problem such as the fuse blew. *4: The empty suction operation may occur depending on the situation. *5: Executed when the detected temperature is under 5

C (41oF) by the thermistor on the Printhead.

Troubleshooting Power-On Sequence 12

Confidential

M200 / M205 / M100 / M105 Series

 Condition 2: Power-on sequence after recovering from a paper jam error (See Table 1-2.)



Turning on the printer after turning it off with a paper jam fatal error.

 There still remains paper on the paper path out of the detecting area of the PE Sensor.  Maintenance error recovery has never been performed.

Revision A

Table 1-2. Condition 2: Power-on Sequence after Recovering from a Paper Jam Error

Operation

Executes No.1 to No.3 on the normal power-on sequence (Table 1-1).

4. Detecting remaining paper

4-1.5.The CR Unit returns to its home position.

4-2.The CR Unit moves to the 80-digit side and confirms there is no paper.

4-3.The CR Unit quickly returns to its home position, and displays on the LCD or with flashing LEDs that the paper jam

error occurs.

When the user removes the paper and releases the paper jam error by panel operation, the normal power-on sequence from No.1 (Table 1-1) is executed

again.

Note *1: “Paper exists” is detected when the CR Unit touches the paper. When “paper does not exist” is detected, the power-on sequence

of condition 1 (Table 1-1) is executed from No.4.

*2: If the paper jam error cannot be solved after repeating the power-on sequence on condition 2 (

into the paper jam fatal error for the third time.

CR Unit/PF Roller

movement and

position

Table 1-2) twice, the printer turns

 To recover from the maintenance error, the dedicated software that can be downloaded

from the web site which can be accessed from STM3 is required.

 The printer operation related to the maintenance error recovery is as follows.

• When the waste ink counter reaches the threshold value (1) for the first time and the maintenance error occurs, the counter threshold of the maintenance error is changed to threshold value 2 after performing recovery from the maintenance error.

• After the threshold value (2) is enabled, the warning; to notify the possibility of ink leakage out of the printer, is displayed every time the waste ink counter increases by 1%.

• If the waste ink counter reaches the threshold value (2), the maintenance error occurs. Then, the waste ink counter is changed back to the threshold value (1) after recovering from the maintenance error, and the warning is displayed repeatedly according to the increment of the waste ink counter until the maintenance error occurs when the threshold value (2) is reached. (Recovery from the maintenance error can be performed up to the specified number of times.)

Troubleshooting Power-On Sequence 13

Confidential

M200 / M205 / M100 / M105 Series

1.3 Fatal Error Code List

This section describes how to check the fatal error code, description, and the possible causes.

1.3.1 Displaying the Fatal Error Code

The fatal error code is stored in the EEPROM on the Main Board and can be read out using the Adjustment Program. The code can be displayed on the LCD of the control panel by a special panel operation.

 Only the printer fatal error code can be displayed by this panel operation.

 For the fatal error codes, descriptions, and their possible causes, see" 1.3.2 Printer Fatal

Error Code (p15)".

The following describes the panel operation for the product to display the fatal error code.

Method of displaying the fatal error code

1. Press the following buttons simultaneously while the fatal error is occurring.

Menu button

  Stop button  OK button

Revision A

Figure 1-2. Displaying the Fatal Error Code (1)

2. Check the displayed fatal error code.

Menu button

OK button

LCD display

FATAL CODE:0x02

Stop button

Fatal error code

Figure 1-3. Displaying the Fatal Error Code (2)

Troubleshooting Fatal Error Code List 14

Confidential

M200 / M205 / M100 / M105 Series

1.3.2 Printer Fatal Error Code

This section describes the printer fatal error code and the possible cause for this product.

Table 1-3. Fatal Error List (Printer)

Revision A

Error type

DC motor error

Error

code

01H CR PID excess load error

02H CR PID excess speed error

03H CR PID reverse error

04H CR PID lock error

08H CR load position reverse error

09H CR load position excess speed error

0AH CR load position excess load error

F1H PF PID excess load error

F2H PF PID excess speed error

Error name Possible cause

• CR Motor failure

• CR Unit drive mechanism overload (paper jam, foreign object, insufficient grease, deformation of the Main Frame)

• Some part may be detached. (Paper Guide Upper Assy, Cap Assy)

• Tooth skip of the CR Timing Belt

• Improper tension of the CR Timing Belt

• Cable disconnection

• Main Board failure (Motor driver failure)

• CR Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• Main Board failure (Motor driver failure)

• CR Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• Some external force is applied to the printer such as stopping the CR Unit during printer operation, vibration or the like.

• Tooth skip of the CR Timing Belt

• Paper jam

• Main Board failure (Motor driver failure)

• CR Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• CR Motor failure

• CR Unit drive mechanism overload (paper jam, foreign object, insufficient grease, deformation of the Main Frame)

• Some part may be detached. (Paper Guide Upper Assy, Cap Assy)

• Cable disconnection

• Main Board failure (Motor driver failure)

• CR Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• Main Board failure (Motor driver failure)

• CR Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• Tooth skip of the CR Timing Belt

• Improper tension of the CR Timing Belt

• Paper jam

• Main Board failure (Motor driver failure)

• CR Motor failure

• CR Unit drive mechanism overload (paper jam, foreign object, Change Lever failure)

• Cable disconnection

• Main Board failure (Motor driver failure)

• PF Motor failure

• PF drive mechanism overload (paper jam, foreign object, insufficient grease, deformation of the Main Frame)

• Tooth skip of the PF Timing Belt

• Improper tension of the PF Timing Belt

• Cable disconnection

• Main Board failure (Motor driver failure)

• PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• Tooth skip of the PF Timing Belt

• Improper tension of the PF Timing Belt

• Main Board failure (Motor driver failure)

Troubleshooting Fatal Error Code List 15

Confidential

M200 / M205 / M100 / M105 Series

Revision A

Table 1-3. Fatal Error List (Printer)

Error type

DC motor error

Motor drive time error

Printhead system error

Sequence error

Circuit error 80H Circuit error (include blowout of a fuse) • Main Board failure

Error

code

F3H PF PID reverse error

F4H PF PID lock error

F8H PF load position reverse error

F9H PF load position excess speed error

FAH PF load position excess load error

D1H CR (PID) driving time error • Main Board failure (Firmware failure)

D2H CR (load position) driving time error

D3H PF (PID) driving time error • Main Board failure (Firmware failure)

D4H PF (BS) driving time error

40H Transistor temperature error • Main Board failure

41H X-Hot detect error (pre printing)

42H X-Hot detect error (after flushing)

43H Head temperature error

50H Home position error

56H

5BH Insoluble paper jam error

Contact error at ink replacement timing (Power-off)

Error name Possible cause

• PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• Tooth skip of the PF Timing Belt

• Improper tension of the PF Timing Belt

• Paper jam

• Paper is pulled out from the ASF side when paper is fed

• Main Board failure (Motor driver failure)

• PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• PF Motor failure

• PF drive mechanism overload (paper jam, foreign object, insufficient grease, deformation of the Main Frame)

• Cable disconnection

• Main Board failure (Motor driver failure)

• PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• Tooth skip of the PF Timing Belt

• Improper tension of the PF Timing Belt

• PF Encoder failure (contaminated/detached scale, Encoder Sensor failure)

• Tooth skip of the PF Timing Belt

• Improper tension of the PF Timing Belt

• Main Board failure (Motor driver failure)

• PF Motor failure

• PF drive mechanism overload (paper jam, foreign object)

• Tooth skip of the PF Timing Belt

• Improper tension of the PF Timing Belt

• Cable disconnection

• Change Lever failure

• CR Motor failure

• Main Board failure (Motor driver failure)

• Change Lever failure

• CR Motor failure

• Main Board failure (Motor driver failure)

• Printhead failure

• Main Board failure

• Foreign object

• Deformation of the Main Frame

• Change Lever failure

• Paper jam

• Foreign object

• Ink Cartridges are not installed correctly

• Paper jam

• Foreign object

• Deformation of the Main Frame

• Change Lever failure

• Paper jam

Troubleshooting Fatal Error Code List 16

Confidential

M200 / M205 / M100 / M105 Series

1.3.3 Scanner Fatal Error Code

This section describes the scanner fatal error code and the possible cause for this product.

Table 1-4. Fatal Error List (Scanner)

Error code Error name Possible cause

Revision A

10H Home position detection error

14H Measurement error

20H LED lightning error

36H Paper jam error

• CIS Module failure

• Scanner Housing Upper failure (home seek pattern

• Scanner Housing Lower failure (the rack section

• Scanner Motor failure

• Insufficient grease

• Foreign object

• FFC disconnection/failure

• Main Board failure

• Scanner Motor failure

• Insufficient grease

• Foreign object

• Gear failure

• Deformation of the shaft

• CIS Module failure

• Foreign object

• Scanner Housing Upper failure (white standard pattern

• Main Board failure

•Paper jam

• Loading/ejecting papers out of the standard range or curled papers

• Using long papers (Legal or longer)

is dirty)

is damaged)

is dirty)

Note *1: The home seek pattern and the white standard pattern are attached on the back of the Scanner Housing Upper near the home

position.

*2: The rack section is the linearly-arranged toothed area on the Scanner Housing Lower. (See Fig. 1-4.)

Scanner Housing Lower

Figure 1-4. Rack section

Rack section

Troubleshooting Fatal Error Code List 17

Confidential

CHAPTER 2

DISASSEMBLY/REASSEMBLY

Confidential

M200 / M205 / M100 / M105 Series

2.1 Overview

In this chapter, the product names are called as follows:

 M200 Series: M200/M201  M205 Series: M205  M100 Series: M100/M101  M105 Series: M105

This chapter describes procedures for disassembling the main parts/units of this product. Unless otherwise specified, disassembled parts/units can be reassembled by reversing the disassembly procedure. See the cautions or tips for disassembly/reassembly described in "2.3 Detailed Disassembly/Reassembly Procedure for each Part/

Unit (p46)".

Read the "Safety Precautions(p3)" before disassembling and reassembling. When you have to remove units or parts that are not described in this chapter, see the exploded diagrams of SPI (Service Parts Information).

2.1.1 Tools

Use only specified tools to avoid damaging the printer.

Name Availability EPSON Part Code

(+) Phillips screwdriver #1 O 1080530

(+) Phillips screwdriver #2 O ---

Flathead screwdriver O ---

Flathead Precision screwdriver #1 O ---

Tweezers O ---

Longnose pliers O ---

Acetate tape --- 1003963

Note 1: Some of the tools listed above are commercially available.

2: EPSON provides the tools listed with EPSON part code.

Revision A

2.1.2 Jigs

Name Quantity EPSON Part Code

Spring hook jig* 1 Can be made with a commercial item See " Making the Spring Hook Jig (p19)".

Thickness gauge (1.5 mm) 2 Commercially available

Thickness gauge (2.0 mm) 2 Commercially available

Sonic tension meter 1 1294120

Note *: If performing the disassembling/reassembling procedure is difficult using tweezers such as when reassembling " Cap Lever / Cap

Assy (p52)", the spring hook jig helps you to remove/attach the spring easier.

2.1.2.1 Making the Spring Hook Jig

Fold a clip (commercial item) as shown in Fig. 2-1.

Before folding

Fold here

Clip

Figure 2-1. Making the Spring Hook Jig

After folding

Fold appropriate length

to hitch a spring.

40 mm or more

Clip

Disassembly/Reassembly Overview 19

Confidential

M200 / M205 / M100 / M105 Series

2.1.3 Locations of the Parts/Units

This section shows the locations of the main parts/units of this product.

The parts/units which can not be seen in the following pictures are indicated in dotted lines ().

 Exterior parts

Revision A

Front

Left

2 3 4

Right

Rear

No. Name No. Name

1 Housing Rear (p34)

2 Tray Front Assy (p34)

3 Frame Base Assy (p41)

Panel Unit (p37)

5 Hinge (p34) (M200/M205 Series)

6 Housing Right (p34)

Panel Board (p43) / Panel Button (p43) / Panel Housing Upper Assy (p43)

Housing Left Assy (p34)

• Housing Left (p43)

• Ethernet Cover (p43) (M200/M100 Series)

ADF/Scanner Unit (p34) (M200/M205 Series)

• ADF Unit (p42)

• Scanner Unit (p42)

9 Paper Support (p34)

10 Paper Support Sub (p34)

ADF Paper Guide Cover Assy (p35) / Paper Support Cover (p35) / Bevel Gear Shaft (p42) / Combination Gear 24.9.6 (p42) / ADF Document Support (p42) / ADF Pad Assy (p42)

Scanner Housing Upper (p42) / Scanner Carriage Unit (p42) / Scanner Housing Lower (p42) / CIS Module Unit (p42) / Scanner Motor (p42)

Figure 2-2. Exterior Parts

Disassembly/Reassembly Overview 20

Confidential

M200 / M205 / M100 / M105 Series

 Printer mechanism

Revision A

8 9

10411

No. Name No. Name

1 CR Driven Pulley Assy (p41) 11 Paper Guide Upper Assy (p44)

2 CR Scale (p41) 12 Adapter Cover (p35)

3 CR Timing Belt (p44) 13 Ink Supply Tank Cover (p34)

4 Printhead (p34)

5 CR Encoder Sensor (p44)

6 Adapter (p35)

Ink Supply Tank Assy (p35)

Cap (p35) / Valve Lever (p43) / Ink Supply Tank Tube Assy (p43) / Housing Ink Supply Tank (p43) / Ink Supply Tank (p43)

15161718

7 CR Unit (p44) 15 Ink Supply Tube Guide 1st (p35)

8 PF Roller Unit (p44) 16 Joint (p35)

9 Star Wheel Holder Assy (p36) 17 Ink Supply Tube Guide 2nd (p35)

10 Paper Guide Front Unit (p34) 18 Ink Supply Tube (p35)

Figure 2-3. Printer Mechanism: Front

No. Name No. Name

1 Hopper (p45) 3 Cap Assy (p36)

2 Cap Lever (p39) 4 Porous Pad for Cap Assy (p36)

Figure 2-4. Printer Mechanism: Right

Disassembly/Reassembly Overview 21

Confidential

M200 / M205 / M100 / M105 Series

Revision A

4 6 73 5

No. Name No. Name

1 Wireless LAN Module (p40) (M205/M105 Series) 5 PF Timingbelt (p40)

2 EJ Roller (p36) 6 PF Scale (p40)

3 Ethernet Board Assy (p36) (M200/M100 Series) 7 PF Encoder Sensor (p40)

4 PF Motor Assy (p44) 8 EJ Roller Gear (p40)

Figure 2-5. Printer Mechanism: Left

No. Name No. Name

1 CR Motor (p40) 7 Waste Ink Pad Assy (p34)

2 Pump Unit (p44) 8 Paper Back Lever (p34)

3 LD Roller Assy (p40) 9 Retard Roller Assy (p34)

4 LD Roller Cover (p41) 10 PE Sensor Lever (p40)

5 Head FFC (p44) 11 PS Unit (p40)

2 4 5

8 9

10 117

6 Main Board (p40)

Figure 2-6. Printer Mechanism: Rear

Disassembly/Reassembly Overview 22

Confidential

M200 / M205 / M100 / M105 Series

2.1.4 Standard Operation Time for Servicing the Product

The following are the standard operation time for servicing the product. This standard operation time was determined with the MTTR result measured using the prototype of M200/M205 Series which have the most functions. For other models described in this manual, perform the repair work referring to this standard operation time though the time varies due to the structural difference between models.

The underlined parts/units are supplied as After Service Parts.

Table 2-1. Standard Operation Time

Time (mm:ss)

Parts/Unit

Replacement

Housing Rear 0:36 0:36

Paper Support 0:09 0:09

Paper Support Sub 0:23 0:23

Tray Front Assy 0:22 1:35 1:57

Tray Front 0:15 0:15

Tray Front Support 0:22 0:22

Paper Guide Front Unit

Waste Ink Pad Assy 0:42 0:45 1:27

Paper Back Lever 1:52 1:52

Retard Roller Assy

FFC Cover Outer 0:26 0:26

Holder Board

Printhead 2:20 18:47 21:07

ADF Paper Guide Cover Assy 0:25 0:25

ADF Cable Cover 0:27 0:27

Paper Support Cover

Document Mat 0:13 0:13

Adapter Cover

Ink Supply Tube Guide 1st 0:45 0:45

Tube Guide Sheet Sub

Tube Pressing Plate 0:34 0:34

Ink Supply Tube Guide 2nd 1:11 1:11

Joint

Adapter 0:33 0:33

Tube Guide Sheet

Ink Supply Tube

Star Wheel Holder Assy 1:34 1:34

Ink Supply Tank Cover 0:06 0:06

Ink Tube Cover 0:16 0:16

Ink Supply Tank Assy 1:54 1:54

Ink Supply Tank Side Porous Pad

Ink Supply Tank Upper Porous Pad 2:44 2:44

Cap 0:25 0:25

Valve Lever 1:08 1:08

Ink Supply Tank 1:32 1:32

Ink Supply Tank Tube Assy 1:32 1:32

0:49 8:13 9:02

2:00 0:47 2:47

0:56 0:56

0:06 0:06

0:18 0:18

0:55 0:55

0:25 0:25

1:35 1:35

1:54 1:54

1:25 1:25

Adjustment/

inspection

Revision A

Total

Disassembly/Reassembly Overview 23

Confidential

M200 / M205 / M100 / M105 Series

Parts/Unit

Housing Ink Supply Tank 1:32 1:32

ADF/SCN Unit 2:46 2:52 5:38

ADF Unit

ADF Hinge Left 5:28 5:28

ADF Document Support

ADF Hinge Right 3:53 3:53

Cover Gear Assy 4:29 4:29

Bevel Gear Shaft

Combination Gear 24.9.6 4:33 4:33

ADF Frame Assy 5:04 5:04

ADF Front Frame 6:00 6:00

Spur Gear 20.4 / 25.8 6:04 6:04

ADF Driven Gears 6:42 6:42

ADF Upper Frame Assy 6:44 6:44

ADF Pad Assy

ADF Base Assy 6:15 6:15

Scanner Unit

Scanner Housing Upper 5:05 5:05

CIS Module Unit 5:28 5:28

Spacer 5:44 5:44

CIS Module 5:44 5:44

Scanner Motor Gear Cover 5:58 5:58

Combination Gear 18.4.9.66 6:05 6:05

Scanner Carriage Unit 6:09 6:09

Scanner Motor 8:25 8:25

CIS Holder Unit 8:25 8:25

Scanner Housing Lower 6:09 6:09

Housing Left

Ethernet Cover 4:25 4:25

Panel FFC Cover

Hinge 3:02 3:02

Housing Right 5:32 5:32

Strengthen Plate Upper 4:09 4:09

Strengthen Plate Lower 4:10 4:10

Cap Assy

Cap Lever 5:15 5:15

Porous Pad for Cap Assy

Star Wheel Holder Assy 1:52 3:18 5:10

EJ Roller 3:48 3:18 7:04

Panel Unit 5:27 5:27

Panel Housing Upper Assy 6:01 6:01

Panel Board 7:33 7:33

Panel Button 9:04 9:04

Table 2-1. Standard Operation Time

Replacement

3:32 2:52 6:24

7:06 7:06

4:34 4:34

7:23 7:23

3:30 2:52 6:22

4:19 4:19

3:04 3:04

5:06 5:06

5:21 5:21

Time (mm:ss)

Adjustment/

inspection

Revision A

Total

Disassembly/Reassembly Overview 24

Confidential

M200 / M205 / M100 / M105 Series

Parts/Unit

Panel Housing Upper 9:04 9:04

Housing Front 7:00 7:00

Main Board FFC Holder 4:45 4:45

Ethernet Board Assy

Wireless LAN Module 4:53 4:53

EJ Roller Gear 4:33 4:33

PF Motor Cover

PS Unit 4:41 1:28 6:09

PF Scale Sheet 4:29 4:29

PF Encoder Sensor 4:43 4:43

PF Scale 4:55 4:55

PF Grounding Spring 5:02 5:02

PF Driven Pulley Assy 5:39 1:10 6:49

PF Timing Belt 6:26 1:10 7:36

Hopper

LD Roller Assy 7:30 0:47 8:17

Spur Gear 37.2

Extension Spring 0.137 7:46 7:46

Clutch 7:50 7:50

LD Roller Shaft Assy

Shield Plate 7:43 7:43

Main Board

CR Motor

PE Sensor Lever 10:05 0:47 10:52

CR Scale 9:16 3:07 12:23

CR Driven Pulley Assy 9:48 9:48

CR Scale Cover Frame 8:35 8:35

LD Roller Cover 8:59 8:59

FFC Holder 9:06 9:06

Main Frame Assy 16:06 12:45 28:51

Antistatic Cloth 14:40 14:40

Paper Guide Upper Assy

CR Unit 17:42 11:21 29:03

CR Timing Belt 17:56 0:40 18:36

CR Encoder Sensor 18:08 18:08

Head FFC

Frame Base Assy 14:12 7:28 21:40

Pomp Unit

Spur Gear 16.5 17:22 17:22

PF Roller Unit

PF Motor Assy 21:12 1:08 22:20

Frame Base 21:12 6:53 28:05

Table 2-1. Standard Operation Time

Time (mm:ss)

Replacement

5:05 5:05

4:28 4:28

5:00 3:03 8:03

7:34 7:34

7:50 7:50

EEPROM Data Copy OK 8:39 1:10 9:49

EEPROM Data Copy NG 8:39 28:27 37:06

9:08 1:00 10:08

18:54 8:50 27:44

17:42 17:42

17:13 17:13

20:21 5:51 26:12

Adjustment/

inspection

Total

Revision A

Disassembly/Reassembly Overview 25

Confidential

M200 / M205 / M100 / M105 Series

2.1.5 Checks and Precautions before Disassembling

2.1.5.1 Factors which Affect the Print Quality

HOW TO PLACE THE INK TANK ASSY WHEN DISASSEMBLING/REASSEMBLING

The film under sealing film attached on the Ink Supply Tank Assy of this printer is ventilation film. The ink in the ink tanks is vented to atmosphere through this film to keep ink supply to the Printhead stable. If the film gets wet with ink, the ink in the tanks is not properly vented and printing may not be capable.

In order to prevent this from occurring, make sure to place the Ink Supply Tank Assy as shown below after removing it.

Revision A

Ink Supply Tank Assy

Do not place the Ink Supply Tank Assy with its film side down. Otherwise, ink in the Ink Supply Tank Assy may reach and cover the ventilation film, and the printing failure may occur.

Figure 2-7. How to Place the Ink Tank Assy

Disassembly/Reassembly Overview 26

Confidential

M200 / M205 / M100 / M105 Series

2.1.5.2 Factors which Affect the Safety of Service Personnel such as Ink Leakage during Operation

Ink may spill when removing the following parts from L350/L300/L355/L210/L110 Series. This section describes the parts that may cause ink spill and the means to minimize the ink spill when removing the parts.

THE PARTS THAT MAY CAUSE INK SPILL WHEN REMOVING

Parts When ink may spill Location

Joint Removing the Ink Supply Tank Tube Assy / Ink Supply Tube from the Joint A

Revision A

Ink Supply Tank

Ink Supply Tank Tube Assy (w/Valve Assy)

Adapter Removing the Ink Supply Tube from the Adapter C

Ink Supply Tube

Note : These parts are indicated with the icon in disassembly/reassembly flowchart. (See "2.2 Disassembly/Reassembly Procedures

(p31)".)

• Removing the tubes of the Ink Supply Tank Tube Assy from the Joint

• Removing the tubes of the Ink Supply Tank Tube Assy from the Ink Supply Tank

• Removing the Ink Supply Tank Tube Assy / Ink Supply Tube from the Joint

• Removing the Ink Supply Tube from the Adapter

Joint Ink Supply Tank Assy

Adapter

A, B

A, C

Ink Supply Tank Tube Assy Ink Supply Tube

Figure 2-8. Location

Disassembly/Reassembly Overview 27

Confidential

M200 / M205 / M100 / M105 Series

MEANS DO TO MINIMIZE THE INK SPILL

Even observing the points described in this section, ink may spill in the following situations. Therefore, be careful not to contaminate the inside of the printer or its surroundings by preparing the container to receive the leaked ink, or the like.

 When removing the Ink Supply Tank Tube Assy (w/Valve Assy), some ink will spill from

both ends of the tube even the Valve Lever is closed.

 When removing the Ink Supply Tube Assy, all the ink in the tube will spill.

Before disassembling, confirm that the printer is in the following condition.

 Choke Valve is closed

Do not turn the Valve Lever too much when closing the Choke Valve, otherwise, the Valve Lever and/or Valve Assy may get damaged.

Before disassembling:



Turn the Valve Lever and be sure to close the Choke Valve.

 After reassembling is complete:

Open the Choke Valve to perform the print inspection.

 Before returning the printer to the user after repairing:

Make sure to turn the Valve Lever up to the choke position to close the Choke Valve before packing the printer.

Revision A

Open position

Valve Lever

Choke position

Valve Lever

Choke position (When checking with the Valve Lever removed.)

Valve shaft

Choke Valve shaft is secured more tightly in Choke position than in Open position.

Figure 2-9. Opening/closing the Choke Valve

 Adapter is removed

Before disconnecting the joint parts of the ink path, make sure that the Adapter is removed from the Carriage.

Adapter

Carriage

Ink path

Ink valve

Figure 2-10. Adapter

The Adapter has an ink valve which cuts off the ink path when removing the Adapter from the Carriage.

Disassembly/Reassembly Overview 28

Confidential

M200 / M205 / M100 / M105 Series

DISCHRGING INK FROM THE INK SUPPLY TANK

Discharging ink is recommended only when disconnecting the Ink Supply Tank Tube Assy from the Ink Supply Tank. Before performing the above disconnection, discharge ink from the Ink Supply Tank as follows.

Necessary tools



• Container for each discharged ink

• Injector (with a tip of φ3.2 mm)

• Tube (capable to be connected to the joint)

Prior to the following steps, connect the injector with the tube, and then discharge ink according to the procedure.



Discharging procedure

1. Remove the Housing Rear, ADF/Scanner Unit, Housing Left, Hinge, Housing Right.

2. With the choke value closed (p 28), place the Ink Supply Tank Assy on a place where its bottom is higher than the top of the Printhead.

3. Prepare a container for ink to discharge, then disconnect the Ink Supply Tank Tube from the joint and put its tip into the container for the ink.

Revision A

4. Open the choke valve to discharge the ink in the Ink Supply Tank Assy to the container.

Ink Supply Tank Assy

Ink Supply Tank Tube

Joint

Container for discharged ink

Figure 2-11. Discharging Ink (1)

Disassembly/Reassembly Overview 29

Confidential

M200 / M205 / M100 / M105 Series

5. When the ink stops flowing from the tube, close the choke valve, and then connect the Ink Supply Tank Tube Assy to the joint.

6. Disconnect the Ink Supply Tube from the joint, and connect the tube connected with the injector to the joint.

7. Open the choke valve again, and suck up the remaining ink in the Ink Supply Tank into the injector.

8. Close the choke valve and disconnect the tube from the injector, then connect the Ink Supply Tube to the joint.

Revision A

(tip of

Injector

φ 3.2 mm)

Tube

Joint

Figure 2-12. Discharging Ink (2)

 It is recommended that the ink in the Ink Supply Tank should be discharged completely

before proceeding to disassembling/reassembling.

 After all the reassembling work is complete, the discharged ink of each color should be

refilled back to the Ink Supply Tank before performing the adjustment. Confirm the colors indicated on the film of the Ink Supply Tank so as not to mistake them, and make sure to refill each ink back to the correct tank from the corresponding ink supply hole.

Ink supply hole

Ink Supply Tank Assy

Disassembly/Reassembly Overview 30

Confidential

M200 / M205 / M100 / M105 Series

2.2 Disassembly/Reassembly Procedures

This section describes procedures for disassembling the parts/units in a flowchart format. For some parts/units, detailed procedures or precautions are provided (accordingly indicated by icons and cell's color). Refer to the explanations in the example chart below and perform an appropriate disassembling and assembling procedure. (See "2.3 Detailed Disassembly/Reassembly Procedure for each Part/Unit (p46) ".) For routing cables, see "2.4 Routing FFCs/cables (p56)".

2.2.1 Configuration

This section describes the configuration of the disassembly flowchart.

The disassembly flowchart is divided into the “Multifunction Printer specific parts”, “Singlefunction Printer specific parts”, “Common Printer Mechanism”, and the “Unit/Assy”. Each section describes the following contents.

No. Item Description Compatible Model

Revision A

2.2.2.1

2.2.2.2

2.2.2.3

2.2.2.4 Unit/Assy Describes the disassembly flowchart for the Unit/Assy components

Multifunction Printer specific parts

Singlefunction Printer specific parts

Common Printer Mechanism

Multifunction Printer

START

2.2.2.1

Multifunction Printer

specific parts

Describes the disassembly flowchart for the Multifunction Printerspecific parts

Describes the disassembly flowchart for the Singlefunction Printerspecific parts

Describes the disassembly flowchart for the Printer Mechanism common in the Multifunction Printer and Singlefunction Printer

Singlefunction Printer

START

2.2.2.2

Singlefunction Printer

specific parts

2.2.2.4

Unit/Assy

M200 Series

M205 Series

M100 Series

M105 Series

Common to all models

2.2.2.4

Unit/Assy

2.2.2.3

Common Printer

Mechanism

2.2.2.4

Unit/Assy

Figure 2-13. Configuration

Disassembly/Reassembly Disassembly/Reassembly Procedures 31

Confidential

M200 / M205 / M100 / M105 Series

2.2.2 Disassembly Flowchart

WF-2540 / WF-2530 / WF-2520 / WF-2510 / WF-2010 series described in this manual have differences in their structure because the same printer mechanism is used for some of them and the composition of housings or functions differs.

The functions and differences according to the models are as follows.

Table 2-2. Function List According to Models

Item

ADF/Scanner O O --- ---

Panel

Wireless LAN --- O --- O

Wired LAN O --- O ---

Disassembly Flowchart Start Position p 34 p 34 p 37 p 37

2Line Bitmap type O O --- ---

LED & Button type --- --- O O

Table 2-3. Components According to Functions

Item Specification

The following part is not mounted on the models without the ADF/Scanner.

ADF/Scanner

Panel

Wireless LAN The Wireless LAN Module is not mounted on the models without the Wireless LAN.

• ADF/Scanner Unit

• Main Board FFC Holder

The shape and unit of components below differ due to the difference of specifications of Panel.

• Panel Unit

• Main Board

• Shield Plate

 The Ethernet Board Assy is not mounted on the models without the Wired LAN.

Wired LAN

 The shape and unit of components of the Housing Left Assy differ due to the support/unsupport of the Wired

LAN.

Multifunction Printer Singlefunction Printer

M200 Series M205 Series M100 Series M105 Series

Revision A

Therefore, parts and units are colored and classified into 2 types in the flowchart given in this section.



Common parts/unit: Black

 Model-specific parts/unit: Red

Disassembly/Reassembly Disassembly/Reassembly Procedures 32

Confidential

M200 / M205 / M100 / M105 Series

The example below shows how to see the charts on the following pages.

The name enclosed in gray indicate a part/unit that must be removed on the way to the target parts.

Shows necessary procedures before removing the following parts.*

Paper Guide

Upper Assy (p29)

CR Timing Belt FFC/ Cable *1

Shows the procedure number on the “FFC/ cable list”.

Revision A

Black letters indicate a part/ unit not supplied as an ASP.

Item Description Reference

Parts/unit name

White-letter

Black-letter

Icon

Frame Base Assy

---

(p21) (p27)

Shows removal/installation as a unit/assy. is available.

: Indicates the connection to the disassembly flowchart for the Unit/Assy

: Indicates the connection between the disassembly flowchart

: Indicates the connection to the Common Printer Mechanism

Note "*": The box with only part names means the removal of the parts. If the name of

FFC or a cable is shown, disconnect the FFC or cable from the connector.

Part/unit supplied as an ASP ---

Part/unit not supplied as an ASP ---

Indicates a practice or condition that could result in injury or loss of life if not strictly observed.

Indicates a practice or condition that could result in damage to, or destruction of equipment if not strictly observed.

Indicates the parts that are inevitably broken in the disassembling procedure, and should be replaced with a new one for reassembly.

Indicates the parts that may cause the ink spill when they are removed.

Indicates necessary check items in the disassembling/ assembling procedure.

Indicates supplementary explanation for disassembly is given.

Indicates particular tasks to keep quality of the units are required.

Indicates particular routing of cables is required.

Indicates particular adjustment(s) is/are required.

Indicates lubrication is required.

Indicates the number of screws securing the parts/ units.

Indicates the points secured with other than a screw such as a hook, rib, dowel or the like.

Housing Rear

(p22) (p43)

Reference page

White letters indicate a part/unit supplied as an ASP.

Shows the screw types and the specified torque on the

“Screw type/torque list”.

Indicates the reference page in blue-letter

2.1.5Checks and Precautions before Disassembling (p26)

Indicates the reference page in blue-letter

Chapter 3 " Adjustment (p59)"

Chapter 4 " Maintenance (p73)"

---

Disassembly/Reassembly Disassembly/Reassembly Procedures 33

Confidential

M200 / M205 / M100 / M105 Series Revision A

2.2.2.1 Multifunction Printer specific parts

START

Housing Rear

(p 47)

 Scanner FFC  Grounding wire (x2)

ADF/Scanner

Unit

(p 46) (p 56)

Housing Left

Assy

S16

(p 47)

Tray Front Assy

(p 59)

(p 42)

(p 43)

---

(p 43)

Paper Support

Sub

---

Paper Support

---

Panel FFC Cover

---

Paper Guide

Front Unit

(p 59)

Hinge

---

Waste Ink Pad

Assy

(p 47) (p 59)

 Extension spring (x2)

Paper Back

Lever

(p 73)

Retard Roller

Assy

(p 59)

---

FFC Cover

Outer

(p 50)

Adapter Cover

(p35)

Adapter (p35)

 CR Encoder FFC

Holder Board

---

 Head FFC

---

Ink Supply Tank

Cover

---

(p 54)

Ink Tube Cover

---

(p 35)

Common parts/unit

Model-specific parts/unit

Hinge (p34)

Ink Supply Tank

Cover (p34)

Ink Tube Cover

(p34)

Ink Supply Tube

Guide 1st (p35)

Ink Supply Tank

Assy (p35)

Housing Right

(p34)

Panel FFC Cover

(p34)

Panel Unit (p37)

Housing Front

(p36)

(p 41)

iii

Paper Support

Sub (p34)

Paper Support

(p34)

(p 40)

Ink Supply Tank

Cover (p34)

Ink Tube Cover

(p 36)

(p 40)

(p34)

Ink Supply Tube

Guide 1st (p35)

Ink Supply Tank

Assy (p35)

Housing Right

(p 47)

(p 36)

The following parts can be replaced without removing the ADF/Scanner Unit. However, the working space for replacement is narrow and dark. Therefore, if you find it difficult to work, remove the ADF/Scanner Unit first before replacement.

 Printhead/Holder Board

 Paper Guide Front Unit

Flowchart 2-1. Multifunction Printer specific parts (1)

Printhead

S10

(p 49) (p 59)

---

Screw type/torque list

Symbol Screw Type Torque

C.B.P-TITE (S-P1) SCREW 3x12 F/ZN-3C 6 ± 1 kgf·cm

C.B.P-TITE SCREW 2.6x5 F/ZN-3C 6 ± 1 kgf·cm

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

S21

C.B.P-TITE SCREW 2x8 F/ZN-3C 2 C.B.P-TITE SCREW 2x8 F/ZN-3C 2.5 kgf·cm

C.B.P-TITE SCREW 2x8 F/ZN-3C 4 C.B.P-TITE SCREW 3x10 F/ZB-3C 6 ± 1 kgf·cm

C.B.P-TITE SCREW 3x10 F/ZN-3C 6 C.B.P-TITE SCREW 3x10 F/ZN-3C 5 ± 1 kgf·cm

C.B.P-TITE SCREW 2.5x8 F/ZN-3C 2.5 C.B.P-TITE SCREW 3x10 F/ZN-3C 7 ± 1 kgf·cm

C.B.P-TITE SCREW 3x8 F/ZN-3C 6 C.B.P-TITE SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm

C.B.S-TITE (P2) SCREW 3x6 F/ZN-3C 7 C.B.S-TITE SCREW 2x4 F/ZN-3C 2 ± 0.5 kgf·cm

C.B.S-TITE SCREW 3x8 F/ZN-3C 6 C.B.S-TITE SCREW 3x6 F/ZB-3C 6 ± 1 kgf·cm

C.B.S-TITE SCREW 3x6 F/ZN-3C 6 C.B.S-TITE SCREW 3x6 F/ZN-3C 8 ± 1 kgf·cm

C.B.S-TITE SCREW 3x6 F/ZN-3C 7 C.P-TITE SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm

C.B.S-TITE SCREW 3x8 F/ZB-3C 6

± 0.5 kgf·cm

± 1 kgf·cm

± 0.5 kgf·cm

± 1 kgf·cm

Disassembly/Reassembly Disassembly/Reassembly Procedures 34

Confidential

M200 / M205 / M100 / M105 Series Revision A

(p 34)

ADF Paper

Guide Cover

Assy

(p 46) (p 55)

Adapter Cover

(p 49)

 Ink Supply Tube

(p 34)

---

ADF Cable

Cover

---

Paper Support

Cover

---

Document Mat

 Ink Supply Tank Tube

---

(p 46)

---

Ink Supply Tube

Guide 1st (p35)

Ink Supply Tank

Assy

Cap

---

Tube Guide

Sheet Sub

(p 53)

Tube Pressing

Plate (p35)

---

 Ink Supply Tank Tube

Ink Supply Tube

Guide 1st

(p 52)

Tube Pressing

Plate

---

Ink Supply Tube

---

 Ink Supply Tank Tube  Ink Supply Tube

Joint

---

(p 54)

---

Ink Supply Tank

Side Porous Pad

(p 52)

---

(p 43)

Common parts/unit

Model-specific parts/unit

Guide 2nd

Adapter

(p 54)

---

Tube Guide

Sheet
