Epson GT-7000 User Manual

Where to Find Information

This User's Guide

This guide leads you through the scanner setup and options installation, tells you how to use the scanner, and how to make basic scans. It also offers troubleshooting tips and customer support information.

EPSON Scan!II & EPSON TWAIN User's Guide

This guide leads you through the EPSON scanner software installation, tells you how to use the Start Button function, and how to make basic software settings. It also offers troubleshooting tips and calibrating information.

Information on EPSON Scanner Software for Windows

Online help provides you with detailed information on EPSON TWAIN and EPSON Scan! II. Access online help from the EPSON Scanner folder, or click the Help button in the EPSON TWAIN or EPSON Scan! II dialog box.

Information on PageManager and other Software

See the PageManager for EPSON, and other software documentation.

HTML Color Guide (may not be available in some countries)

Explains the basics of color imaging and shows you how to get impressive results from your scanner and other EPSON products. See the scanner software the Color Guide.
User’s Guide
for information on accessing
®
Color Image Scanner
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of SEIKO EPSON CORPORATION. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information contained herein.
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product.
SEIKO EPSON CORPORATION and its affiliates shall not be liable against any damages or problems arising from the use of any options or any consumable products other than those designated as Original EPSON Products or EPSON Approved Products by SEIKO EPSON CORPORATION.
EPSON is a registered trademark of SEIKO EPSON CORPORATION. IBM and PS/2 are registered trademarks of International Business Machines Corporation. Macintosh is a registered trademark of Apple Computer, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation in the United States of America and other countries. Presto! is a trademark of NewSoft Technology Corporation.
General Notice:
trademarks of their respective companies.
Copyright © 1998 by SEIKO EPSON CORPORATION, Nagano, Japan.
Other product names used herein are for identification purposes only and may be
User's Guide

Declaration of Conformity

Manufacturer: SEIKO EPSON CORPORATION Address: 3-5, Owa 3-chome, Suwa-shi,
Nagano-ken 392-8502 Japan
Representative: EPSON EUROPE B.V. Address: Prof. J. H. Bavincklaan 5 1183
AT Amstelveen The Netherlands
Declares that the Product:
Product Name: Image Scanner Model: G680A/G680B
Conforms to the following Directive(s) and Norm(s):
Directive 89/336/EEC:
EN 55022 Class B EN 61000-3-2 EN 61000-3-3 EN 50082-1 IEC 801-2 IEC 801-3 IEC 801-4
Directive 73/23/EEC:
November, 1998
H. Horiuchi President of EPSON EUROPE B.V.
ii
EN 60950

Contents

Introduction
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warnings, Cautions, and Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ENERGY STAR Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
For United Kingdom Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Chapter 1 Setting Up the Scanner
Unpacking the Scanner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Scanner Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Choosing a Place for the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
Installing a SCSI Interface Board (Windows Only) . . . . . . . . . . .1-7
Releasing the Transportation Lock . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Plugging in the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-9
Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-10
Connecting the Scanner (SCSI) to Your Computer. . . . . . . . . . . . 1-11
Understanding SCSI connections. . . . . . . . . . . . . . . . . . . . . .1-12
Setting the SCSI ID number . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Setting the terminator switch . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Connecting the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
Power-on sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-18
Power-off sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-19
Connecting the Scanner (USB) to Your Computer . . . . . . . . . . . . 1-20
Understanding USB connections . . . . . . . . . . . . . . . . . . . . . .1-20
Connecting the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
iii
Chapter 2 Using Your Scanner
Lights and Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Placing a Document on the Scanner . . . . . . . . . . . . . . . . . . . . . . . 2-4
Removing the Cover for Thick or Large Documents . . . . . . . . . 2-7
Sizing Up Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
RAM and hard disk size. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Accelerator boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Video cards. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
File compression software . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
Chapter 3 Options
Using the Film Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Unpacking the Film Adapter. . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Installing the Film Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Film holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Loading slides and film . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Scanning normal (reflective) documents . . . . . . . . . . . . . . . 3-11
Using the Automatic Document Feeder . . . . . . . . . . . . . . . . . . . . 3-12
Unpacking the Automatic Document Feeder . . . . . . . . . . . 3-12
Installing the Automatic Document Feeder . . . . . . . . . . . . 3-13
Loading paper into your Automatic Document Feeder . . 3-15
Loading documents manually. . . . . . . . . . . . . . . . . . . . . . . . 3-17
Document specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
Chapter 4 Maintenance and Troubleshooting
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Cleaning the scanner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Replacing the fluorescent lamp. . . . . . . . . . . . . . . . . . . . . . . 4-3
Cleaning or replacing the paper path guide . . . . . . . . . . . . 4-3
Transporting the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
iv
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
Error indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-9
Operating problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Quality problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Clearing Jammed Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-20
Changing the SCSI ID number or SCSI board. . . . . . . . . . . . . . . .4-22
Appendix A Technical Specifications
Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-4
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
Safety Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-5
CE marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
SCSI Interface (SCSI model only) . . . . . . . . . . . . . . . . . . . . . . . . . .A-6
USB Interface (USB model only) . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
Initialization Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-8
Automatic Document Feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-9
Film Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10
Appendix B Contacting Customer Support
For United Kingdom and the Republic of Ireland Users. . . . . . .B-3
For Australian Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5
For Singapore Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6
For Hong Kong Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7
For Philippines Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Glossary
Index
v
vi

Introduction

Features

The EPSON GT-7000/GT-7000 PHOTO/GT-7000 USB scanner
offers the following features:
Maximum optical resolution of 600 dots per inch (dpi) for
main scanning, and 2400 dpi with micro step for sub scanning (36-bit input, 24-bit output).
Start Button control for shortcut scanning operation.
Light body with A4/Letter size scanning area.
Full color or grayscale scanning. Capture your images with
256 colors, or over 16 million colors; or up to 256 shades of gray.
EPSON Scan! II scanner utility and EPSON TWAIN let you
take full advantage of your scanner's advanced features.
Auto Area Segmentation (AAS) allows you to separate text
from photographs on a page so that grayscale images are clearer and text recognition is more accurate.
Text Enhancement Technology (TET) enhances text
recognition accuracy for optical character recognition (OCR) scanning.
EPSON TWAIN's “Quality & de-screening” option
automatically removes unwanted moiré patterns from scanned images for higher quality output.
The GT-7000 PHOTO includes the Film Adapter which
enables negative film and slide film to be scanned. The Film Adapter is available as an option for the GT-7000/GT-7000 USB.
Introduction
1
The Automatic Document Feeder which enables continuous
sheets scanning is available as an option.

Options

The following optional items are available to expand the versatility of your scanner. For detailed information on the use of these options, see Chapter 3 of this guide.
Automatic Document Feeder (B81314✽✽✽)
Designed primarily for optional character recognition (OCR) scanning, the Automatic Document Feeder allows you to scan up to 20 pages automatically, then use them in word processing programs, as if you had typed the text yourself.
Film Adapter (B81313✽✽✽)
Allows you to scan transparent materials; primarily 35 mm slides and filmstrips. The Film Adapter’s reading area allows you to scan film up to 4 × 5 inches in size.
Note:
The asterisk is a substitute for the last digit of the product number, which varies by country.

Warnings, Cautions, and Notes

Warnings
must be followed carefully to avoid bodily injury.
w
Cautions
must be observed to avoid damage to your equipment.
c
Notes
contain important information and useful tips on the operation of
your scanner.
2
Introduction

Important Safety Instructions

Read all these instructions and save them for later reference.
Follow all warnings and instructions marked on the scanner.
Unplug the scanner before cleaning. Clean with a damp cloth
only. Do not spill liquid on the scanner.
Do not place the scanner on an unstable surface, or near a
radiator or heat source.
Use only the type of power source indicated on the scanner's
label.
Connect all equipment to properly grounded power outlets.
Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and off.
Do not let the power cord become damaged or frayed.
If you use an extension cord with the scanner, make sure the
total ampere rating of the devices plugged into the extension cord does not exceed the cord's ampere rating. Also, make sure the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.
Except as specifically explained in this
attempt to service the scanner yourself.
Unplug the scanner and refer servicing to qualified service
personnel under the following conditions:
If the power cord or plug is damaged; if liquid has entered the scanner; if the scanner has been dropped or the case damaged; if the scanner does not operate normally or exhibits a distinct change in performance. (Do not adjust controls that are not covered by the operating instructions.)
If you plan to use the scanner in Germany, observe the
following:
User's Guide
Introduction
, do not
3
To provide adequate short-circuit protection and over­current protection for this scanner, the building installation must be protected by a 16 Amp circuit breaker.
Note for German-speaking users:
Bei Anschluß des Scanners an die Stromversorgung muß sichergestellt werden, daß die Gebäudeinstallation mit einem 16 A­Überstromschalter abgesichert ist.
NERGY STAR Compliance
E
As an ENERGY STAR Partner, EPSON has determined that this product meets the
NERGY STAR guidelines for energy
E
efficiency.
The International Equipment Program is a voluntary partnership
with the computer and office equipment industry to promote the introduction of energy-efficient personal computers, monitors, printers, fax machines, copiers, and scanners, in an effort to reduce air pollution caused by power generation.
NERGY STAR Office
E
4
Introduction

For United Kingdom Users

Safety information

Warning:
w
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol (
The blue wire must be connected to the terminal in the plug marked with the letter N.
The brown wire must be connected to the terminal in the plug marked with the letter L.
for voltage and check that the appliance voltage corresponds to the supply voltage.
Important:
coloured in accordance with the following code:
Green and yellow — Earth Blue — Neutral Brown — Live
G
This appliance must be earthed. Refer to the rating plate
The wires in the mains lead fitted to this appliance are
).
If damage occurs to the plug, replace the cord set or consult a qualified electrician.
Replace fuses only with a fuse of the correct size and rating.
Introduction
5
6
Introduction
Chapter 1

Setting Up the Scanner

Unpacking the Scanner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Scanner Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Choosing a Place for the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
Installing a SCSI Interface Board (Windows Only) . . . . . . . . . . . . 1-7
Releasing the Transportation Lock . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Plugging in the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Connecting the Scanner (SCSI) to Your Computer. . . . . . . . . . . . . 1-11
Understanding SCSI connections. . . . . . . . . . . . . . . . . . . . . . . 1-12
Setting the SCSI ID number . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Setting the terminator switch . . . . . . . . . . . . . . . . . . . . . . . . . . 1-15
Connecting the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-16
Power-on sequence. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
Power-off sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
Connecting the Scanner (USB) to Your Computer . . . . . . . . . . . . . 1-20
Understanding USB connections . . . . . . . . . . . . . . . . . . . . . . . 1-20
Connecting the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-21
1
Setting Up the Scanner
1-1

Unpacking the Scanner

Your GT-7000/GT-7000 PHOTO/GT-7000 USB comes shipped with CD-ROMs which include the driver software that runs your scanner, and some additional items, depending on your scanner model.
SCSI interface cable
( SCSI model only )
scanner
power cord

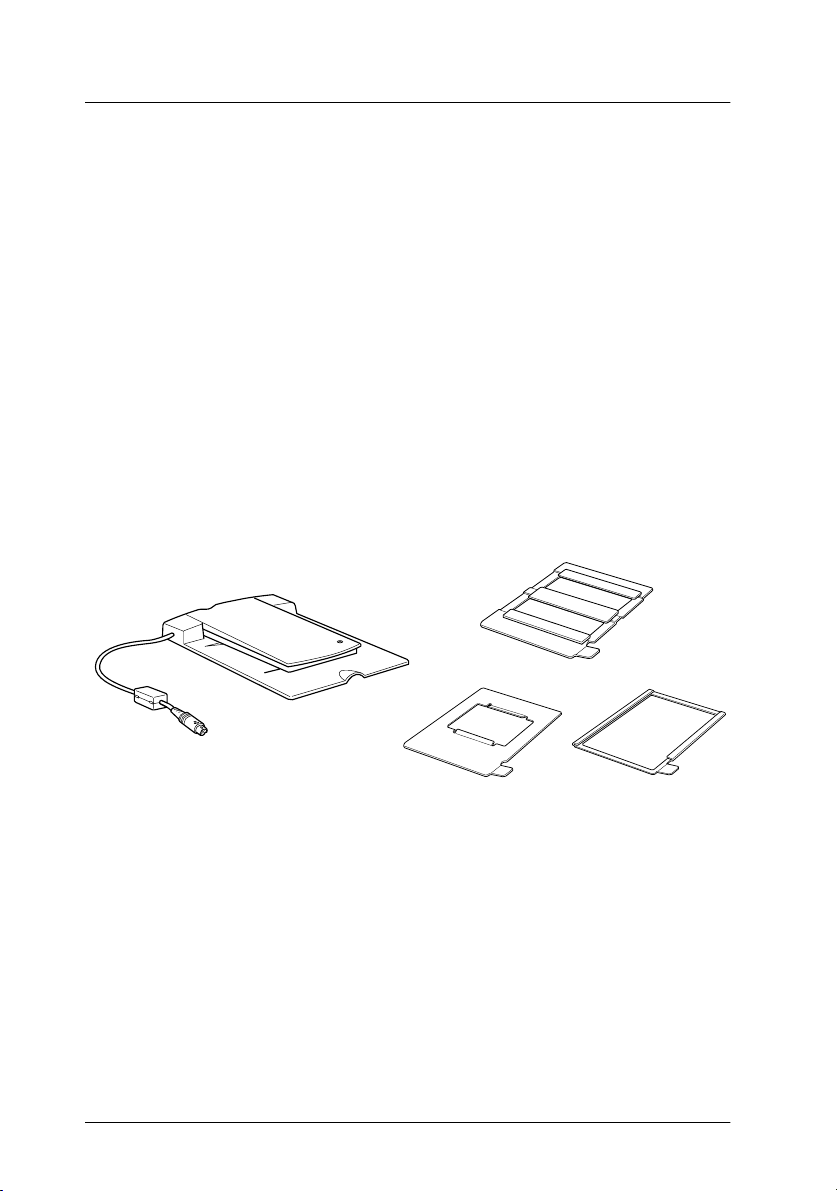

For the GT-7000 PHOTO
Film Adapter
1-2
Setting Up the Scanner
USB interface cable
( USB model only )
film holders for the Film
Adapter
Note:
The GT-7000 PHOTO comes with the Film Adapter which is also available as an option for GT-7000/GT-7000 USB.
Depending on the country of purchase, the power cord may come attached to the scanner. The shape of the AC plug also varies, so make sure the plug included is the correct shape for the electrical outlet in your country.

Scanner Parts

document cover
carriage (in the home position)
1
transportation lock
operate light start button
document table
operate button
Setting Up the Scanner
1-3
SCSI model
SCSI terminator switch SCSI ID rotary switch
3
4
2
5
1
6
0
9
7
8
SCSI interface connectors
USB model
option connector
AC inlet
1-4
USB interface connector
Setting Up the Scanner
option connector
AC inlet

Choosing a Place for the Scanner

Follow the guidelines below when selecting a location for your scanner:
Place the scanner on a flat, stable surface. The scanner will not
operate properly if it is on an angle.
Place the scanner close enough to the computer for the
interface cable to reach it easily.
Place the scanner near a wall outlet where the power cord can
be easily unplugged.
Note for French-speaking users:
Placez le scanner près d’une prise de courant où la fiche peut-être débranchée facilement.
Allow space behind the scanner for the cables, and space
above the scanner so that you can fully raise the document cover.
1
Setting Up the Scanner
1-5
480 mm
88 mm*
425 mm
287 mm
* When document cover is closed.
Keep the scanner away from high temperatures, humidity
100 mm or more
and excessive dirt or dust. Also avoid using or storing the scanner in places subject to rapid changes of temperature and humidity.
Keep the scanner away from direct sunlight and strong light
sources.
Avoid places subject to shocks and vibrations.
1-6
Setting Up the Scanner

Installing a SCSI Interface Board (Windows Only)

For GT-7000 or GT-7000 PHOTO model Users only.
Unless your PC already has a SCSI board installed, you need to install a SCSI board and SCSI software before installing the scanner driver and software applications.
If you have a Macintosh that has a SCSI interface or if you already have a SCSI board installed in your PC, go to the next section.
Note:
For additional information, see the installation guide that comes with your SCSI board.
1. Turn off the computer and any peripheral devices. Unplug any power cords, then disconnect all cables from the back panel of your computer.
2. Remove the cover from your computer.
Caution:
w
Static electricity can damage electronic components. Discharge static electricity by touching the metal frame of your computer before handling the interface board or any of the computer’s circuit boards.
1
3. Insert the interface board into an appropriate expansion slot, then secure it with the retaining screw.
4. Replace the computer cover and reconnect all cables.
Setting Up the Scanner
1-7

Releasing the Transportation Lock

Before connecting the scanner to a power source, you must releas e the transportation lock.
1. Place the scanner on a flat, stable surface with the back facing you.
2. Turn the transportation lock on the right side to the unlocked position using a coin or similar object, as shown below.
Note:
When you cannot turn the transportation lock because of excessive
resistance, turn the scanner on, then, after the operate light starts flashing red, turn the scanner off, and try again. See the next section to turn on the scanner.
Return the transportation lock to the locked position when
transporting the scanner.
1-8
Setting Up the Scanner

Plugging in the Scanner

1. Make sure that the scanner is turned off. The scanner is off when the surface of the front panel.
2. If the power cord is not attached to the scanner, connect it to the AC inlet on the back of the scanner, and plug the other end into a properly grounded electrical outlet.
operate
P
button is not pushed in beyond the
1
c
Caution:
It is not possible to change the scanner's voltage. If the label on the back of the scanner does not show the correct voltage for your country, contact your dealer. Do not plug in the power cord.
Setting Up the Scanner
1-9

Initialization

Before connecting the scanner to your computer, follow the steps below to make sure that the scanner is operating properly.
1. Open the document cover so you can see the operation of the scanner during initialization (startup).
2. Turn on the scanner by pressing the operate light starts flashing.
3. Make sure the fluorescent lamp on the carriage flashes, and the carriage moves slightly.
4. The operate completed initialization.
5. Turn off the scanner.
If the scanner does not work as described, make sure the power cord is firmly plugged in and that you have released the transportation lock, then try again.
light stays on, meaning the scanner has
operate
P
button. The
c
1-10
Caution:
Whenever you turn off the scanner, wait at least 10 seconds before turning it back on. Rapidly turning the scanner on and off can damage the scanner.
Setting Up the Scanner

Connecting the Scanner (SCSI) to Your Computer

For instructions on connecting your SCSI model scanner to your computer, read this section.

For PC users:

Unless your PC already has a SCSI board installed, you need to install one, along with SCSI driver software. Install the SCSI board according to the directions included with it. Also see “Installing a SCSI Interface Board” on page 1-7.
If your PC has a SCSI board up and running, connect the scanner as described in the next section.
Note:
You will need to install the SCSI driver that is normally included with Windows 95, 98, or NT (see your system documentation for instructions), or the driver described in the SCSI board installation documentation.

For Macintosh users:

Conventional Macintosh computers have built-in SCSI ports; therefore you do not need to install a SCSI board on a Macintosh. Follow the directions below to connect your scanner and computer.
1
Setting Up the Scanner
1-11

Understanding SCSI connections

Read the following sections to determine how to set up your SCSI devices and whether you need any optional SCSI cables.
Daisy Chain
The SCSI interface allows you to connect up to seven devices (such as a scanner, hard disk, CD-ROM, and so on) to the computer, in what is called a “daisy chain” arrangement. Only the first SCSI device in a daisy chain is connected to the computer; each of the other devices is connected to another SCSI device.
SCSI Cables
You may need to purchase SCSI cables before setting up your SCSI daisy chain. Be sure the SCSI cable connectors are suitable for your hardware, depending on the maker of your SCSI device and SCSI interface board.
SCSI ID and terminator
Each device has a SCSI ID number: the computer is usually number 7, and each of the other devices must have a different number between 0 and 6. Also, the first device and the last device in the chain (not including the computer) must have a terminator. No other device can have a terminator, or if a terminator does exist, it must be turned off or removed.
1-12
Setting Up the Scanner

Setting the SCSI ID number

The scanner's default SCSI ID number is 2.
2
3
1
4
0
5
9
6
8
7
1
The SCSI ID rotary switch is located at the rear of the scanner.
Setting Up the Scanner
1-13
If you add the scanner to a system in which one of your SCSI devices already has a SCSI ID of 2, change the ID number to an unused number using the rotary switch. See the table below as a guide.
ID Availability Description
0 Not available for Macintosh Used for hard disk
Not recommended for Windows
1 Not recommended Usually used for hard disk
2 Factory setting of the scanner
3 Not available if your Macintosh
4
5
6
7 Not available for Macintosh Always used for the Macintosh
May not be available for Windows
8,9 Not available Never selected
* Scanner will not work if selected.
Usually used for hard disk
has a built-in CD-ROM
itself
Usually used for the SCSI board
*
Caution:
c
Do not set the SCSI ID to an ID number that is already assigned to another device otherwise the computer, scanner, and other devices will not operate properly.
1-14
Setting Up the Scanner

Setting the terminator switch

The scanner has a built-in terminator, which allows SCSI devices to communicate properly with each other. You may need to change the terminator switch setting according to your computer system.
Note:
Do not use an external terminator.
ON
The terminator switch is located at the rear of the scanner.
Only the scanner is connected
1
terminator on
Setting Up the Scanner
1-15
The scanner is the last device in the daisy chain
(other SCSI device)
he scanner is in the middle of the daisy chain
terminator off
terminator on
(other SCSI device)

Connecting the scanner

Connect the scanner to your computer or to another SCSI device as follows:
Note:
The combination of 50-pin and 25-pin connectors you need varies depending on the maker of your SCSI device and SCSI interface board.
1. Make sure the scanner, computer, and all other SCSI devices are turned off and unplugged from the power source.
Caution:
Do not connect the scanner to the computer or other devices while they are turned on as damage may occur.
1-16
c
Setting Up the Scanner
2. Connect one end of the interface cable to one of the scanner SCSI connectors until the locks on both sides snap in.
Note:
To connect the scanner to a SCSI device other than the
computer, the length of cable in the daisy chain must not exceed 6 meters; otherwise the system may not work properly.
To connect the scanner to a PC using SCSI-2, the length of the
cable must not exceed 3 meters.
3. Connect the other end of the cable to the SCSI port of your computer or another SCSI device.
1
Note:
The SCSI port on the Macintosh is the larger port with the SCSI icon over it.
4. Plug in the power cords of your computer, scanner, and other external SCSI devices.
Note:
Before turning on your system, be sure to read “Power-on sequence” following.
Setting Up the Scanner
1-17

Power-on sequence

Keep the following in mind every time you turn on your computer and SCSI devices, including the scanner.
Be sure to turn on the SCSI device which is connected at the
farthest end of the daisy chain first, then the second farthest and so on, until finally your computer. If you attempt to use a SCSI device which has been turned on after the computer, it may not work properly, or the computer may not work properly.
For Windows 95 or 98 users:
The first time you turn on the computer after turning on the scanner, one of the following dialog boxes may appear.
1-18
Windows 95
Windows 98
If you see one of these, follow the installation instructions in Chapter 1 of your scanner software manual, then see “Power­off sequence” following.
Setting Up the Scanner

Power-off sequence

Keep the following in mind every time you turn off your computer and SCSI devices.
When you are finished using your system, turn off your
computer first, then the scanner and other SCSI devices in reverse order of the power-on sequence.
While using your computer, do not turn off any SCSI device
which has a terminator that is active (on).
Do not turn the scanner off and back on while using your
computer, otherwise the scanner may not work properly.
When the connection is complete, you need to install the scanner software. See Chapter 1 of your scanner software manual.
1
Setting Up the Scanner
1-19

Connecting the Scanner (USB) to Your Computer

Your PC must be preinstalled with Windows 98, and have a working USB port.
Note:
If you connect your scanner through more than one hub, your system may not work properly. In this case, try connecting the scanner directly to the computer’s USB port. Also, your system may not work properly if you use a USB cable other than that supplied by EPSON.

Understanding USB connections

USB Cables
USB cables enable you to connect or remove peripherals to and from your computer easily, without having to shut down and restart the system each time a peripheral is plugged in or unplugged. You do not have to set an ID number or a terminator.
Note:
Do not connect or disconnect USB cables when the scanner is in use.
USB cables have 2 different connectors at each end.
Type A connects to your computer.
Type B connects to your scanner.
1-20
Setting Up the Scanner
USB hub
You can also use a USB hub, allowing you to increase the number of USB ports and therefore connect several peripherals.

Connecting the scanner

To connect the scanner to your computer or USB hub:
1. Connect one end of the cable (Type B) to the USB port on the back of the scanner.
1
Setting Up the Scanner
1-21
2. Connect the other end of the cable (Type A) to the USB port on your computer, or USB hub.
Note:
USB cables enable you to connect the scanner whether your PC is
on or off. If you connect the scanner while your PC is on, the “Add New Hardware Wizard” dialog box will appear. When this happens, follow the instructions in Chapter 1 of your scanner software manual, then install the software.
Connect the USB cable to your PC, then install or start the scanner
software following the software manual. Do not connect or disconnect the USB cable while the scanner software is open.
1-22
Setting Up the Scanner
Chapter 2

Using Your Scanner

Lights and Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Placing a Document on the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Removing the Cover for Thick or Large Documents . . . . . . . . . . . 2-7
Sizing Up Your System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
RAM and hard disk size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Accelerator boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Video cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9
Monitors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
File compression software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-10
2
Using Your Scanner
2-1
This chapter shows you how the scanner operates. The basic procedure for scanning is as follows:
1. Turn on the scanner. (Keep in mind the 'Power-on sequence' on page 1-18.)
2. Place the document you want to scan on the document table. (This is described in detail on page 2-4.)
3. Run the scanner software and scan. (See your scanner software manual for details on scanning.)

Lights and Buttons

The scanner has one indicator light and two buttons.
2-2
Using Your Scanner

Light

Pattern Color Scanner Status
F
(Slowly
flashing)
O
F
(Rapidly flashing)
N
O
= on, N = off,

Buttons

Button Function
P
Operate Turns the scanner on and off.
]
S ta r t T h e ha r d w a r e sw i t c h to e x e c u t e sc a n n i ng a n d
Green Initializing or busy scanning.
Green Ready to scan images.
F
= flashing
Red or
Orange
N/A The scanner is turned off.
transfer the scanned image to assigned application software. To use this feature, you need to setup software. See EPSON Scan! II & EPSON TWAIN User's Guide for more details.
An error occurred. See Chater 4 Troubleshooting on page 4-9 for more information.
2
Using Your Scanner
2-3

Placing a Document on the Scanner

Before scanning a document, remember to respect the rights of copyright owners. Do not scan published text or images without first checking the copyright status.
1. Turn on the scanner by pressing the
operate light starts flashing.
operate light
operate button
operate
P
button. The
2. Turn on the computer and make sure that the scanner's operate
light is on, but has stopped flashing.
2-4
Using Your Scanner

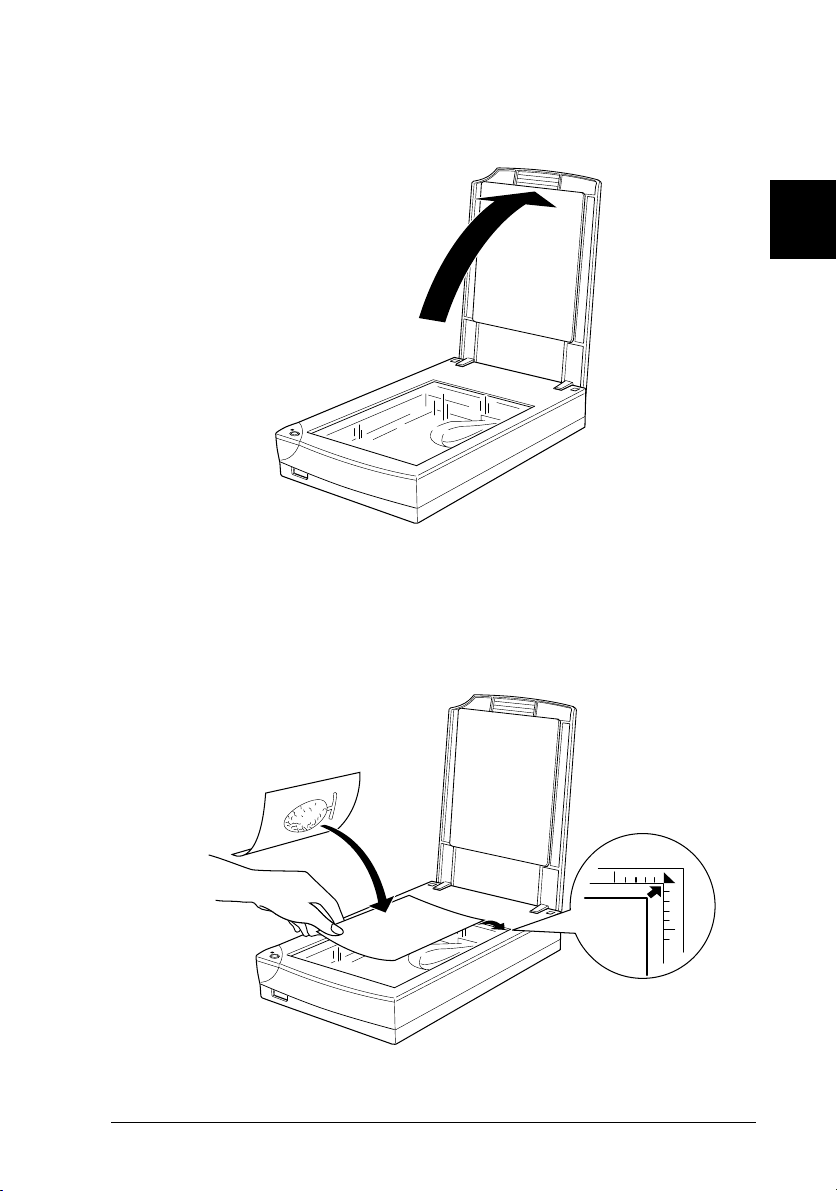

3. Open the document cover.
4. Place the document on the document table, with the side to be scanned facing down. Make sure that the document is carefully aligned.
2
corner of the document
Using Your Scanner
2-5
5. Close the document cover gently so that the document does not move.
Note:
Make sure the document is flat against the glass surface,
otherwise the image will appear fuzzy and out of focus. Also be sure to close the document cover to prevent interference from external light.
Always keep the document table clean. See “Cleaning the
Scanner” in Chapter 4.
Do not leave photographs on the document table for an extended
period of time as they may stick to the glass.
Do not place heavy objects on top of the scanner.
6. Start your scanner software, and follow scanning instructions in your scanner software manual.
2-6
Using Your Scanner

Removing the Cover for Thick or Large Documents

For thick materials or documents that are larger than the document table, remove the document cover.
Hold the back of the document cover and lift straight up.
Note:
When scanning with the cover removed, do not leave any area of the document table exposed to prevent interference from external light.
2
Using Your Scanner
2-7

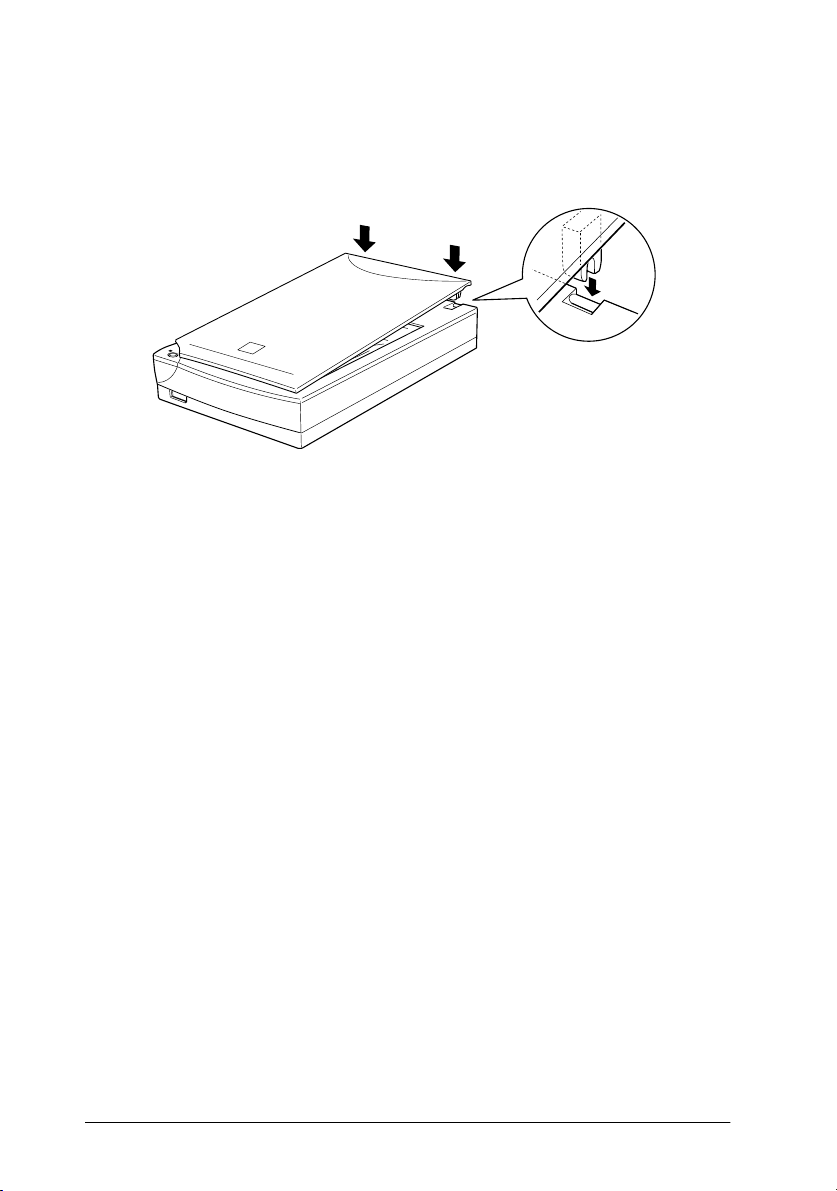

When you are finished scanning, reattach the document cover by pushing straight down on the back until it clicks into place.
Caution:
c
Make sure both of the cover's notches are directly above the clips on the scanner before pushing it down into place; otherwise damage may occur.
2-8
Using Your Scanner

Sizing Up Your System

Your scanner is sufficient for most scanning needs, but if you are not satisified with the quality of the images on your monitor or with the speed of image processing, read this section. While it does not contain specific recommendations, it describes various possibilities for improving your scanning system. For further information, seek advice from your dealer or an experienced scanner user.

RAM and hard disk size

Scanned images use much more memory than text files, so you may need more RAM (Random Access Memory) in your computer and a larger hard disk than you have used previously.

Accelerator boards

In addition to memory, processing speed is important because large files take longer to process than small ones. Therefore, you may want to add an accelerator board to your computer.
2

Video cards

A video card that is sufficient for text may not be good enough for displaying graphic images, especially in color. If all your scanned images look coarse on your monitor, you may want to upgrade your video card. You will need 24-bit color, also called true color or millions of colors, to make the highest quality image reproductions.
Using Your Scanner
2-9

Monitors

The resolution of your monitor affects the quality of the image you see. Consider a high resolution monitor if you do precise color work, but also be sure you have a high quality video card.

File compression software

Many different programs are available to make image files smaller for storage or transmission. For example, some compression software can store a 3MB image file on a 1.44MB floppy disk, and compress images and restore them with no loss of data or quality; others compress images more, but the restored file is not exactly the same as the original. The difference between the original and restored files is, however, almost unnoticeable.
2-10
Using Your Scanner
Chapter 3

Options

Using the Film Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Unpacking the Film Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Installing the Film Adapter. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Film holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Loading slides and film . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Scanning normal (reflective) documents . . . . . . . . . . . . . . . . 3-11
Using the Automatic Document Feeder. . . . . . . . . . . . . . . . . . . . . . 3-12
Unpacking the Automatic Document Feeder. . . . . . . . . . . . . 3-12
Installing the Automatic Document Feeder . . . . . . . . . . . . . . 3-13
Loading paper into your Automatic Document Feeder . . . . 3-15
Loading documents manually . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Document specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-18
3
Options
3-1

Using the Film Adapter

The Film Adapter (B81313✽) enables you to scan of negative film strips and slides simply by installing the unit on your scanner. The Film Adapter is compact so it can be attached or removed easily when you alternate scanning between transparent materials and normal reflective (paper) documents.

Unpacking the Film Adapter

When you first open the package, make sure that all the following items are included. If any items are missing or damaged, contact your EPSON dealer immediately. Do not throw away the package after unpacking the Film Adapter as it can be used again for storage when you are not scanning transparencies.
3-2
Film Adapter
film holders
Options

Installing the Film Adapter

Follow the steps below to install the Film Adapter on the scanner.
1. Make sure the scanner is turned off.
2. Remove the document cover from the scanner by lifting the back straight up. (See page 2-7)
3. Place the Film Adapter on the document table so that the hinges face the rear of the scanner and it fits on the table.
3
Options
3-3
4. Connect the Film Adapter connector to the scanner’s option connector.
5. Turn on the scanner.
6. Turn on the Film Adapter.
3-4
Options

Film holders

Three film holders are included with this unit. To scan film, see the instructions below.
Caution:
c
Note:
The base side of the film is the side which the film maker’s name and film ID numbers are shown.
35 mm negative or positive film
Insert a strip of film in the 35 mm film holder, base side facing down.
Hold the film at the edges, or else use gloves. Touching the film surface with bare hands can leave fingerprints or other traces on the film.
3
Options
3-5
120/220 (6 cm x 9 cm) film
Insert film in the 120/220 (6 cm x 9 cm) size film holder, base side facing down.
4 x 5 inches film
Insert film in the 4 × 5 inch film holder, base side facing down.
3-6
Options

Loading slides and film

You can scan slides and film strip in the 4 × 5 inch (101.6 × 127 mm) scanning area of the Film Adapter.
Note:
Wipe the inside of the Film Adapter cover, the scanner’s document
table, and the narrow window near the hinges before scanning transparencies.
3
You need to select
Document Source settings in EPSON TWAIN depending on the type of film (negative or positive) you are scanning. The scanner software automatically controls the operation of the Film Adapter.
Follow the steps below to load film or slides.
Caution:
c
1. Open the top of the Film Adapter, holding the base down.
Hold the film at the edges, or else use gloves. Touching the film surface with bare hands can leave fingerprints or other traces on the film.
TPU for Neg. Film
or
TPU for Pos. Film
in the
Options
3-7
2. Load the transparency to be scanned face down on the scanner’s document table in the window of the Film Adapter as shown below.
If you are scanning 35 mm strip film, use the 35 mm film
holder to set the film.
If you are scanning slides or transparencies which will not
fit in the film holders, place them directly on the document table.
3-8
Options
Note:
Place the film holder on the document table in alignment with the
upper left-hand corner of the Film Adapter.
When scanning 120/220 (6cm × 9cm) or similar film, use the film
holder as shown below.
If the film size is 4" × 5" or similar, use the film holder as shown
below.
3
Options
3-9
3. Close the unit.
Note:
Make sure the unit is completely closed, otherwise an option error
results and you cannot scan the document, nor attain proper colored images.
When previewing images on EPSON TWAIN of negatives scanned
using a film holder, the color may appear odd as the frame of the film holder is perceived as white, causing your scans to appear darker. To see the correct color, click and drag the mouse over an area, then click the zoom preview button.
You can move and adjust the position of 35mm film by sliding the
strips in the film holder so the frames you want to scan are positioned in the window.
To remove a film holder from the document table, slide it left or right
then take it out of the window.
3-10
Options
Leave the opening shown below uncovered, otherwise the colors in
your scans will be affected.
opening

Scanning normal (reflective) documents

3
When you return to scanning normal reflective documents, you can simply turn off the Film Adapter, then place documents between it and the document table. If you will not scan transparencies for a long time, you can remove the Film Adapter and store it in the original package.
Remove the Film Adapter in reverse order as described on page 3-3.
Note:
When scanning thin documents, you may see an impression of the underside of the Film Adapter in your scans. If so, change to using the document cover instead of the Film Adapter.
Options
3-11

Using the Automatic Document Feeder

The Automatic Document Feeder (B81314✽) allows you to automatically load multiple-page documents into your scanner. This document feeder is particularly useful for OCR (optical character recognition) scanning, or for creating an image database.

Unpacking the Automatic Document Feeder

When you unpack your Automatic Document Feeder, make sure you have all the parts shown below. If any items are missing or damaged, contact your EPSON dealer immediately.
paper supportAutomatic Document Feeder
3-12
spare paper path guide
Options

Installing the Automatic Document Feeder

Follow the steps below to install the Automatic Document Feeder on your EPSON scanner.
1. Make sure your scanner is turned off, and unplug the scanner’s power cord.
2. Remove your scanner’s document cover by lifting the back straight up. (See page 2-7)
3. Remove the protective materials from the Automatic Document Feeder.
4. Insert the hinges on the Automatic Document Feeder into the holes at the back of the scanner and close the Automatic Document Feeder.
3
Options
3-13
5. Attach the Automatic Document Feeder’s connector to the scanner’s option connector.
6. Attach the paper support to the Automatic Document Feeder.
Note:
After you install the Automatic Document Feeder, be sure to select Automatic Document Feeder (ADF) in the Document Source settings in EPSON TWAIN. See EPSON Scan! II & EPSON TWAIN User’s Guide for more information.
3-14
Options

Loading paper into your Automatic Document Feeder

Your Automatic Document Feeder can automatically load up to 20 sheets of the following paper sizes (based on a paper weight of 17 lbs and a stack thickness of 4.0 mm or less):
Checks 85 × 127 mm (3.3 × 5 inches)
B5 182 × 257 mm (7.17 × 10.1 inches)
A4 210 × 297 mm (8.27 × 11.69 inches)
Letter 215.9 × 279.4 mm (8.5 × 11 inches)
Legal 215.9 × 355.6 mm (8.5 × 14 inches)
Follow the steps below to load paper into the Automatic Document Feeder.
Note:
Make sure no documents or dust is on the document table when using the Automatic Document Feeder. Dust on the document table near the carriage home position may result in vertical lines on the scanned images.
1. Slide the right edge guide all the way to the right.
3
Options
3-15
2. Insert the paper stack into the Automatic Document Feeder until it meets resistance. Make sure that the side you want to scan is facing up. Then move the right edge guide so it is flush with the right edge of your paper.
Documents are output into the lower tray after scanning is finished.
Note:
In the following situations, see the respective pages for problem-solving information:
When paper is jammed, see page 4-19.
When a scanned image has unwanted lines, see page 4-16.
3-16
Options

Loading documents manually

You can load documents manually even when the Automatic Document Feeder is installed.
Lift the Automatic Document Feeder and place the document on the document table. Then lower the Automatic Document Feeder and scan the document.
Note:
Opening the Automatic Document Feeder or its cover while it is
operating results in an option error and paper feeding stops.
Always close the Automatic Document Feeder and its cover before
scanning. If you are scanning thick material or documents of more than 2 cm in height, the Automatic Document Feeder can be left in the upright position.
3
Be sure to select
EPSON TWAIN.
When scanning thin documents, you may see an impression of the
underside of the Automatic Document Feeder in your scans. If so, change to using the document cover instead of the Automatic Document Feeder.
Flatbed
in the Document Source settings in
Options
3-17

Document specifications

Size: Width 3.3 to 8.5 inches
(85 to 216 mm) Length 5 to 14 inches (127 to 356 mm)
Thickness: 0.07 to 0.16 mm
Weight: 58 to 122 g/m
Paper quality: High-quality bond paper
Document type: Documents printed with impact
printers, laser printers, or facsimile machines
Document conditions
Check the following before feeding a document:
Ink on the document is dry.
The document has no holes, is not ripped or wrinkled, and
has no articles attached to it.
2
3-18
The document has no staples or other objects attached that might damage the feeder mechanism.
The document has no folds closer than 5 mm from its edge.
The document is not a multipart form or bound.
The document has no rear carbon coating.
The document has no cut out areas.
Options
Other precautions
Do not feed photographic sheets or valuable original artwork into the Automatic Document Feeder as misfeeding a document may result in accidental wrinkling or damage.
When you are scanning high-quality color or halftone documents, it is recommended you open the Automatic Document Feeder and scan documents individually.
3
Options
3-19
3-20
Options
Chapter 4

Maintenance and Troubleshooting

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Cleaning the scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2
Replacing the fluorescent lamp . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Cleaning or replacing the paper path guide. . . . . . . . . . . . . . 4-3
Transporting the Scanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Error indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Operating problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Quality problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Clearing Jammed Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Changing the SCSI ID number or SCSI board. . . . . . . . . . . . . . . . . 4-22
4
Maintenance and Troubleshooting
4-1

Maintenance

Cleaning the scanner

To keep your scanner operating at its best, you should clean it periodically, as described below.
1. Unplug the power cord.
2. Clean the outer case with mild detergent and water.
3. If the glass of the document table gets dirty, clean it with a soft dry cloth. If the glass is stained with grease or some other hard-to-remove material, use a small amount of glass cleaner and a soft cloth to remove it. Wipe off all remaining liquid.
Be sure that there is no dust on the glass of the document table. Dust can cause white spots in your scanned image.
Caution:
w
Be careful not to scratch or damage the glass of the document
table, and do not use a hard or abrasive brush to clean it. A damaged glass surface can decrease the scanning quality.
4-2
Never use alcohol, thinner, or corrosive solvent to clean the
scanner. These chemicals can damage the scanner components as well as the case.
Be careful not to spill liquid into the scanner mechanism or
electronic components. This could permanently damage the mechanism and circuitry.
Do not spray lubricants inside the scanner.
Never open the scanner case.
Maintenance and Troubleshooting

Replacing the fluorescent lamp

The luminosity of the fluorescent lamp declines over time. If the lamp breaks or becomes too dim to operate normally, the scanner stops working and the operate
happens, the lamp assembly must be replaced. For details, contact your dealer.
Caution:
c

Cleaning or replacing the paper path guide

If you notice the quality of your scans have declined, or you simply want to keep the quality of your scans at their best, clean the Automatic Document Feeder paper path guide.
If the paper path guide gets badly scratched and cleaning the guide does not improve the quality of your scans, replace it with the spare one.
Follow the instructions below to remove, clean, and reattach the paper path guide.
Never open the case of the scanner. If you think repairs or adjustments are necessary, consult your dealer.
light rapidly flashes red. When this
4
Maintenance and Troubleshooting
4-3
Removing the paper path guide
1. Turn off the scanner.
2. Disconnect the cable for the Automatic Document Feeder, and take the Automatic Document Feeder off the scanner.
3. Take off the paper support.
4-4
Maintenance and Troubleshooting
4. Put the Automatic Document Feeder on the document table upside down.
5. Unclip the two white hooks to release the paper path guide. Pull the hooks out of the through holes.
6. Remove the paper path guide.
4
Maintenance and Troubleshooting
4-5
Cleaning the paper path guide
Gently wipe off dust from the transparent plastic sheet of the paper path guide with a soft dry cloth.
Caution:
c
Be careful not to scratch or damage the paper path guide.
Be careful not to touch the rollers or metal parts of the
Automatic Document Feeder, as damage may occur.
4-6
Maintenance and Troubleshooting
Attaching the paper path guide
1. Insert the transparent plastic sheet of the paper path guide into the paper path of the Automatic Document Feeder.
2. Insert the hooks into the rectangular through holes until they clip into place.
4
Maintenance and Troubleshooting
4-7

Transporting the Scanner

If you are transporting the scanner a significant distance or storing it for an extended period, follow the steps below to secure the carriage.
1. Turn on the scanner and wait until the carriage moves to the home position (position nearest the cover hinges). When the operate light turns green, turn off the scanner.
2. Turn the transportation lock to the locked position to secure the carriage.
Note:
If the scanner is broken, the carriage may not automatically return
to the home position. If it does not, raise the front of the scanner and hold it up until the carriage comes to rest in the home position. Then perform step 2 above.
If you are using the Film Adapter and it is switched on, the carriage
will not move to the home position. Remove the Film Adapter first, then perform the steps above.
4-8
Maintenance and Troubleshooting

Problems and Solutions

This section divides scanner problems into three categories:
Error indicator. . . . . . . . . . . . . . . . . . . . . . . page 4-9
Operating problems . . . . . . . . . . . . . . . . . . page 4-10
Quality problems . . . . . . . . . . . . . . . . . . . . page 4-12
See the table in “Error indicator” first. If this does not help you solve your problem, go to the category for the type of problem you have, then look for the problem description.
The online Color Guide also provides versatile tips and other information helpful for problem-solving.

Error indicator

4
If an error occurs, the scanner stops operating and the operate
light shows the type of error.
Pattern of light
F
(Rapidly flashing red)
Problem and solution
Cause 1: The interface setup is wrong, or the
scanner is not properly connected to the computer.
What to do 1: Check the interface connection. Then
turn the scanner off and back on to initialize the scanner again.
Cause 2: The transportation lock is not released, the
fluorescent lamp needs t o be replaced, or the scanner is broken.
What to do 2: Make sure that the transportation lock is in
the unlocked position; then turn the scanner off and then back on. If the scanner still does not operate properly, or if this error occurs repeatedly, consult your dealer.
Maintenance and Troubleshooting
4-9
F
(Rapidly flashing orange)
Cause 1: The cover of the optional Automatic
Document Feeder is open, or the release lever is pressed and paper feeding unit is slightly open.
O
= on, N = off,
What to do 1: Make sure that the cover of optional Auto
Cause 2: No paper is loaded, or paper is jammed in
What to do 2: Load paper in the Auto Document
F
= flashing
Document Feeder is closed and/or push the paper feeding unit down until it clicks into place.
the Auto Document Feeder.
Feeder, or turn the scanner off and remove the jammed paper from the Auto Document Feeder. See page 4-17 for details.

Operating problems

Problems you may have while using the scanner often involve the operation of your software and computer. Operation problems usually occur because of:
Incorrect setup of the interface (see Chapter 1).
Inappropriate selection of the scanner functions (see your
software manual).
4-10
Incorrect setup of your computer or software (see Chapter 1 in this guide or the software manual).
Incorrect operation of your software (see your software manual).
Maintenance and Troubleshooting
Also see the documentation that came with your computer and printer for possible solutions.
The
Operate
Cause What to do
The scanner is off. Press the P
The scanner is not connected correctly.
light does not come on.
on the scanner.
Make sure the power cord is connected to the scanner and plugged into a power outlet.
The scanner does not scan.
Cause What to do
The scanner is not ready to scan.
Interface port or software settings are incorrect.
For SCSI model users :
SCSI ID or terminator is incorrect .
Wait until the (ready for scanning).
Make sure your interface port and software settings are corrrect. Also make sure that your computer’s interface board in installed properly.
Make sure the scanner’s SCSI ID and terminator are set correctly. See "Connecting the Scanner (SCSI) to Your Computer" on page 1-11.
OPERATE
READY
button to turn
4
light is green
Interrupt settings are conflicting with your SCSI board.
If you have other expansion boards in your computer, make sure that their interrupt settings are interfering with your SCSI board. See your computer’s documentation for details.
Maintenance and Troubleshooting
4-11
For USB model users :
More than one hub is in use, or the cable is unsuitable.
Try connecting the scanner directly to the computer’s USB port, or
EPSON USB cable .
The scanner software does not work properly.
Cause What to do
use an
Software is not installed properly.
Computer system doesn’t meet the requirements.
Not enough memory is available.
Make sure your software is installed correctly.
Make sure your computer meets the memory and other system requirements specified for the software you are using.
Make sure the computer has enough memory for your software. If the computer does not have enough memory available, see your software and computer documentation for details.

Quality problems

The entire image is distorted or blurred.
Cause What to do
Document is not placed correctly.
Make sure the document is flat against the document table.
Document was moved. Make sure you do not accidentally
move the document during scanning.
4-12
Maintenance and Troubleshooting
Scanner orientation is unsuitable.
Make sure the scanner is on a flat, stable surface.
Part of the image is distorted or blurred.
Cause What to do
The document condition is poor or the document was placed incorrectly.
Make sure the document is uniformly flat against the document table. A document that is wrinkled or warped may not scan well.
Caution:
c
Do not place heavy objects on the document table.
Edges of the document are not scanned.
Cause What to do
The document size exceeds the readable scanning area.
Position the document so the area you want to scan is within the edge guide limits of the document table.
Colors are patchy or distored at the edges of the image.
Cause What to do
The document is too thick or warped, or there is too much outside light.
A document that is very thick or warped at the edges can cause discoloration. Cover the edges of the document with paper to block outside light.
4
The document is not placed correctly.
M a ke s ur e t he d oc u me nt i s f l at a g ai n s t the document table.
Maintenance and Troubleshooting
4-13
The image is faint or out of focus.
Cause What to do
The document is not placed correctly.
Exposure setting is unsuitable.
Gamma setting is unsuitable.
Make sure the document is flat against the document table.
Adjust your software’s Exposure setting. See your software manual.
Adjust your software’s Gamma setting. See your software manual.
The image is too dark.
Cause What to do
Brightness is unsuitable. Check your software’s Brightness
setting. Check the brightness and contrast settings of your computer display. See your software manual.
Straight lines in the image come out jagged.
Cause What to do
Document is not placed correctly.
4-14
Maintenance and Troubleshooting
Make sure the document orientation is perfectly straight on the document table. Align vertical and horizontal lines with the scales at the top and side of the document table.
The image does not look the same as the original.
Cause What to do
Image settings are incorrect.
Color matching software is not sufficient, or not installed properly.
File format or image settings are unsuitable.
Try different image setting combinations on your scanner software.
Your software may not have sufficient color matching and color management features, or these components may not be installed correctly. See the documentation that comes with your software and computer.
If you are importing an image file, make sure the file format is one your software can read. Also, make sure the image settings of your software are appropriate for the type of image you want to scan.
A line of dots is always missing from the scanned image.
Cause What to do
The print head has malfunctioned.
Print head malfunction is indicated when a line is missing on printouts only. See your printer manual.
4
The scanner sensor has malfunctioned.
Scanner sensor malfunction is indicated when a line is missing on both screen images and printouts. Contact your dealer.
Maintenance and Troubleshooting
4-15
A line of dots always appears in the scanned image.
Paper path guide or document table is dusty or scratched.
If this happens on both your screen and printout, the paper path guide of the Auto Document Feeder or the document table may be dusty or scratched. Clean the paper path guide as described on page 4-6, or clean the document table. If the problem still exists the guide may be scratched and require replacement.
When using halftoning, textured patterns of dots appear inside particular areas of the image.
Cause What to do
Normal scanning. This condition is normal. The scanner
automatically mimimizes the problem if
Quality & de-screening
in the Image Type dialog box.
is selected
Colors in the image look odd.
Cause What to do
Image Type Destination
incorrect.
Opening on the document table is covered, or Film Adapter was not closed during scanning.
4-16
and
settings are
Maintenance and Troubleshooting
Make sure the EPSON TWAIN
Image Type
settings are correct.
When using the Film adapter, make sure the opening near the hinges on the document table is uncovered, or the Film Adapter is closed when scanning.
and
Destination
Colors on your monitor are different from those in the original image.
Cause What to do
Software image settings need adjustment.
Color matching and color management capabilities of your system are insufficient.
Normal scanning. Exact color matching is very difficult.
Check the image settings of your scanner software, especially data format (bits, pixel, color), gamma correction, and color correction. Try different combinations of these settings.
Check the color matching and color management capabilities of your computer, display adapter, and software. Some computers can change the color palette to adjust the colors on your screen. See your software and hardware manuals for details.
Check your software and monitor documentation for information on color matching and calibration. Also see your
Color Guide
.
Printed colors are different from those in the original image.
4
Cause What to do
Normal scanning. Exact color matching is very difficult.
Check your software or contact your printer company for information on color matching and calibration.
Maintenance and Troubleshooting
4-17
The printed image is larger or smaller than the original.
Cause What to do
Printed size was judged using the monitor image.
The image size settings of your software determine the size of the printed image. Do not use the size of the monitor image to judge the printed size.
Scanned images cannot be printed or come out garbled when printed.
Cause What to do
Printer is not connected or set up properly, or maintenance is necessary.
Software is not installed properly.
Make sure your printer is properly connected to the computer, correctly set up, and maintained. See your printer manual for details.
Check that your software in properly installed and set up for your printer. See your software manual.
The colors of negative film preview images look strange.
Cause What to do
Document Source setting is incorrect.
4-18
Maintenance and Troubleshooting
Make sure the EPSON TWAIN
Document Source Neg. Film
.
setting is
TPU for
Using the film holder frame.
The dark area around the film, such as the frame of the film holder, is perceived as white, which alters the exposure of the scanning area and causes scans to appear darker. See the correct color by clicking and dragging the mouse over an area, and then clicking the zoom preview button.
4
Maintenance and Troubleshooting
4-19

Clearing Jammed Paper

To clear jammed paper in the optional Automatic Document Feeder, follow the steps below:
1. Turn off the scanner.
2. Push down the release lever to slightly raise the feeder mechanism and release the paper.
3. Then slowly pull the jammed paper out of the feeder mechanism. (Be careful not to pull too hard; the paper may tear, making it more difficult to remove.)
4-20
Maintenance and Troubleshooting
4. If paper is still jammed inside the mechanism, open the cover to remove it.
5. After removing jammed paper, make sure that the cover is closed, and the feeder mechanism is clicked down into place.
4
Maintenance and Troubleshooting
4-21

Changing the SCSI ID number or SCSI board

If you are using your scanner with Windows 98 and you want to change the scanner’s SCSI ID number or replace the SCSI board with a new one, follow the steps below.
1. Double-click the Scanners and Cameras icon in the Control
Panel.
2. Select your scanner in the installed devices list, then click
4-22
Remove
Maintenance and Troubleshooting
.
3. Click OK and close the dialog box.
4. Shut down Windows 98 and turn off your PC and scanner.
5. Change the SCSI ID number (see page 1-13), or replace the SCSI board (see page 1-7).
6. Turn on your scanner and then your PC.
7. Follow the instructions on the screen.
4
Maintenance and Troubleshooting
4-23
4-24
Maintenance and Troubleshooting
Appendix A
Technical Specifications
Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
Safety Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
CE marking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
SCSI Interface (SCSI model only) . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
USB Interface (USB model only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
Initialization Methods. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-8
Automatic Document Feeder. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-9
Film Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-10
A
Technical Specifications
A-1

Scanning

Scanner type: Flatbed, color
Photoelectric device: Color CCD line sensor
Effective pixels: 5100 × 7020 pixels at 600 dpi, 100%
Document size: 216 mm × 297 mm (8.5 inches × 11.7 inches
A4 or US letter size (The reading area can be specified from your software.)
Scanning resolution: 600 dpi (main scan)
2400 dpi with Micro Step (sub scan)
Output resolution: 50 dpi to 9600 dpi
(50 to 4800 dpi in 1 dpi increments, 7200 dpi, and 9600 dpi. 7200 dpi and 9600 dpi performed with zoom function)
Color separation: RGB color filters on CCD
Reading sequence:
Monochrome One-pass scanning
Color page sequence Three-pass scanning (R, G, B)
Color byte sequence One-pass scanning (R, G, B)
Color line sequence One-pass scanning (R, G, B)
Zoom: 50% to 200% in 1% increments
Image data: 12 bits per pixel per color internal
8 bits per pixel per color external
Brightness: 7 levels
Line Art settings: Fixed threshold
Text Enhancement Technology (enable/disable selectable)
A-2
Technical Specifications
Halftoning process: AAS (Auto Area Segmentation)
Enable/disable selectable 3 halftoning modes (A, B, and C) and 4 dither patterns (A, B, C, and D) for bi-level and quad-level data (2 downloadable dither patterns)
Gamma correction: 2 types for CRT display
3 types for printer 1 type for user-defined
Color correction: 1 type for CRT display
3 types for printer output (available in color
byte sequence mode and color line sequence
mode) 1 type for user-defined
Interface: SCSI (50 pin half pitch connectors) or
USB (Type B Receptable Connector)
Light source: White cold cathode fluorescent lamp
Reliability: 30,000 cycles of carriage movements
(main unit MCBF)
Dimensions: Width: 287 mm (11.3 inches)
Depth: 425 mm (16.7 inches) Height: 88 mm (3.4 inches)
Weight: Approx. 4.5 kg (9.9 lb)
A
Technical Specifications
A-3

Electrical

100−120 V model 220−240 V model
Input voltage range AC 90 to 132 V AC 198 to 264 V
Rated frequency 50 to 60 Hz
Input frequency 49.5 to 60.5 Hz
Rated current 0.5 A 0.3 A
Power consumption Approx. 20W
Note:
Check the label on the back of the scanner for voltage information.

Environmental

Temperature:
Operation 5° C to 35° C (41° F to 95° F)
10° C to 32° C (50° F to 89° F) when using the ADF
Storage –25° C to 60° C (–13° F to 140° F)
Humidity:
Operation 10% to 80%, without condensation
20% to 80%, without condensation when using the ADF
Storage 10% to 85%, without condensation
Operating conditions: Ordinary office or home conditions.
Extreme dust should be avoided. Operation under direct sunlight or near a strong light source should be avoided.
Note:
Specifications are subject to change without notice.
A-4
Technical Specifications

Safety Approvals

120V model:
Safety standards UL 1950 with D3
EMC FCC part 15 Subpart B Class B
230V model:
Safety standards EN 60950
EMC EN 55022 (CISPR Pub 22) Class B

CE marking

230 V model:
Low Voltage Directive 73/23/EEC EN 60950 EMC Directive 89/336/EEC EN 55022 Class B
CSA C22.2 No. 950
CSA C108.8 Class B
AS/NZS 3548 Class B
A
EN 61000-3-2 EN 61000-3-3 EN 50082-1 IEC 801-2 IEC 801-3 IEC 801-4
Technical Specifications
A-5

SCSI Interface

Interface type: ANSI X3T9.2/375R Revision 10L (SCSI 2)
Functions: BUS FREE phase
ARBITRATION phase SELECTION/RESELECTION phase COMMAND phase
(Logical Unit Number is fixed to 0 and
command link function is not supported.)
DATA phase
Data in phase
Data out phase STATUS phase MESSAGE phase
MESSAGE IN phase
MESSAGE OUT phase ATTENTION condition RESET condition
Logic level: TTL compatible
Electrical standard: ANSI X3T9.2/375R Revision 10L (SCSI 2)
ID Setting: Selectable from 0 to 7
Terminator: Internal terminator selectable (enable/disable)
Connector type: Two half pitch 50-pin connectors
Connector pin arrangement:
A-6
Technical Specifications

USB Interface

Interface type: Universal Serial Bus Specification Revision 1.0
Configuration:
Element
Device
Configuration Characteristics : Self-powered
Interface
Endpoint 1
Endpoint 2
String Descriptor
Description
Full Speed mode (12Mbit/s) Class : Vendor-specific Vendor ID : 0x04B8 (Seiko Epson Corp.) Product ID : 0x0101
Remote wake up feature: Not supported Maximum power consumption from VBUS : 2mA (5V)
No alternate setting Number of endpoints used by this interface (excluding endpoint 0) : 2 Class : Vendor specific
Bulk IN transfer Maximum data transfer size : 64 byte
Bulk OUT transfer Maximum data transfer size: 64 byte
Language ID : US English 1 : iManufacturer: "EPSON" 2 : iProduct: "Scanner GT-7000" or "Perfection636"
Electrical standard: Full Speed mode(12Mbit/s) of Universal Serial Bus
Serial Bus Specification Revision 1.0.
Connector type: One receptacle (Series B)
Connector pin arrangement:
A
Technical Specifications
A-7

Initialization Methods

The scanner can be initialized (returned to a fixed set of conditions) in the following ways:
SCSI model
Hardware initialization * The scanner is turned on.
Software initialization * Software sends the ESC @ (initialize the scanner)
* The scanner receives a SCSI Reset signal from the SCSI interface.
command. * The scanner receives a SCSI Bus Device Message.
USB model
Hardware initialization * The scanner is turned on.
Software initialization * Software sends the ESC @ (initialize the scanner)
* The USB cable is unplugged from the USB port on the scanner.
command. * The scanner receives a Bus Reset from the USB interface.
A-8
Technical Specifications

Automatic Document Feeder

General specifications:
Paper supply: Face up load Paper out: Face down eject Paper setting quantity: 20pcs (55g paper, maximum total thickness
u n d e r 4 m m )
Electrical specifications:
Input voltage: DC 21.6 to 26.4 V
DC 4.5 to 5.5 V
Input Current: 24V: 0.8 A
5V: 0.2A
Environmental conditions:
Temperature Operation: 10° C to 32° C (50° F to 90° F) Storage: –20° C to 60° C (–4° F to 140° F)
Humidity Operation: 20% to 80%, without condensation Storage: 10% to 85%, without condensation
Reliability: 20,000 sheets (Load/Eject MCBF)
10,000 sheets for Tranparency Film (Load/Eject MCBF)
12,000 cycle of movements (Hinge MCBF)
Dimentions: Width: 319 mm (12.6 inches)
Depth: 451 mm (17.8 inches) Height: 137 mm (5.3 inches)
W e i g h t : A p p r o x . 2 . 2 k g ( 4 . 9 l b )
A
Technical Specifications
A-9

Film Adapter

Electrical Specifications:
Supplied Voltage:DC 21.6 to 26.4 V Rated current: 0.5A
Environmental Conditions:
Temperature Operation: 5° C to 35° C (41° F to 95° F) Storage: –25° C to 60° C (–13° F to 140° F)
Humidity Operation: 10% to 80%, without condensation Storage: 10% to 85%, without condensation
Reliability:
Light Source: 10,000 hours for light source MCBF
Document:
Transparencies up to 4 x 5 inches film
35 mm strip film 35mm slide 120/220 size (6cm x 9cm) strip film 4 x 5 inches film
Manuscript: Up to 4 x 5 inches film size
Readable area: 93 x 118 mm
Dimensions: Width: 222 mm (8.7 inches)
Depth: 305 mm (12.0 inches) Height: 36 mm (1.4 inches)
Weight: Approx. 700g ( 1.5 lb)
A-10
Technical Specifications
Loading...
