Reservoir
s really
Continuous Ink Supply System
for
Epson Stylus C43
Installation Instruction
For AT Prefilled Version
With Auto Reset Chips
This Version of the Continuous Ink Flow System comes with ink
Cartridges and Auto Reset Chips. You just need to fill the
bottles and print! The whole operation is very easy. It’
an effective tool to save your money.
CIS for Epson Stylus C43
Thank you for purchasing AT Continuous Ink Supply System. We appreciate
your support and will try our best to make your experience with our products a
pleasant one. Printing has been a different experience ever since you installed
AT Continuous Ink Supply system on your own printer. Just imagining being able
to print without regard to the ink level in those expensive little cartridges.
Please take your time installing AT Continuous Ink Supply system. Do not
remove your old cartridge until you have the AT CIS system primed and ready to
install (to prevent the drying of heads). In addition, make sure you are getting
perfect nozzle checks before installing the AT CIS system. The AT CIS system
won’t be able to work properly if the nozzles are previously clogged.
Most people get a perfect nozzle check the first time after installing the AT
Continuous Ink Supply system; others may need to run two or three cleaning
cycles or let the printer sit for a while before they get the perfect results.
1、General Guide:
1) Components
A、CIS system 1 set B、 Air filters 4pcs C、Support Arm 1 set
D、Refill Kit 4pcs E、Instruction CD 1pc
2) Opening box inspection
a、Check whether all the accessories are ready.
、
Check whether there's leakage of CIS System, whether some tubes have been
b
separated from CISS. If there is, please kindly to contact the local dealer.
、
Check whether there is air space in the tube. If the length of air space is more than 20cm,
c
please clean the printer head for 2 or 3 times before printing.
2、Printer testing:
1) Check whether the printer is in normal condition, like mechanical status, lubrication
status etc.
2) Print testing lines to ensure the printing head is good condition.
3) Print pictures to see whether the printing image is ok.
3、Installation Procedures:
1) First step
press the ink cartridge replace button to make the small cart button Draw out the electrical
Put the CISS on the right side
of the printer. In the meantime Remove from the air hole as above Place the air filters on
place all the tubes at correct picture shown.
position.
2) Second step: Remove out the original cartridges
move to the position which Source
ready to change the ink
cartridges
3) The third step: Place the Cartridges in
Remove out the original cartridges then put down the inner at last cover it suitably
cartridges in as show in
the picture
(4)、The fourth step : Fix up the support arm
Rip the label Stick the Support arm at 7.5cm distance Rip the label
from the inner side of the printer, Rip the on the balance arm
Stick it on the right side of the printer, but need to keep it in the same horizontal line as show in the picture
Fix the balance arm stick on the support arm as show on the picture, Rip the label on the shortest arm ,And
(5)、The fifth step: Installing tubes
clip the tubes orderly on the arm, please kindly to see the above picture for reference.
(6)、The sixth step : Adjust the tubes which guide the ink
Adjust the tube length and move the cartridge car. Insure there will no block and collision when the tubes
moving with cartridge car .Insure there's plenty length of tube to make the cartridge cart can thoroughly
move to the right side.
The tube is excessive long, it The tube is twist ,it is not ok. In this situation ,it is ok
is not ok.
(7)、The seventh step
If it show this breaks, please clean
Insert the electrical source Power on the printer to check
line suitably whether the printer works well
(8)、The eighth step: Checking the printing head
OK
Everything is in normal
You can work your printer
Show breaks
the printing head
Enter this item
If there show breaks, please clean your printing head. It is possible that the wispy air
have entered into the printing head. If it is still show little breaks specially show in
one color, it no need to repeatedly continue to clean. Just keep the printer silent for
about one hour, it may disappear. If after testing, it still abnormal, please kindly to
contact with local dealer.
4、Reset Procedure:
If the indicator light show flashing when printing .it tell you that you need to change the cartridges, the
please power off the printer for about 1 minutes and turn on again, this time it will show full on the computer,
then it can work in good condition.
5、Refill Ink

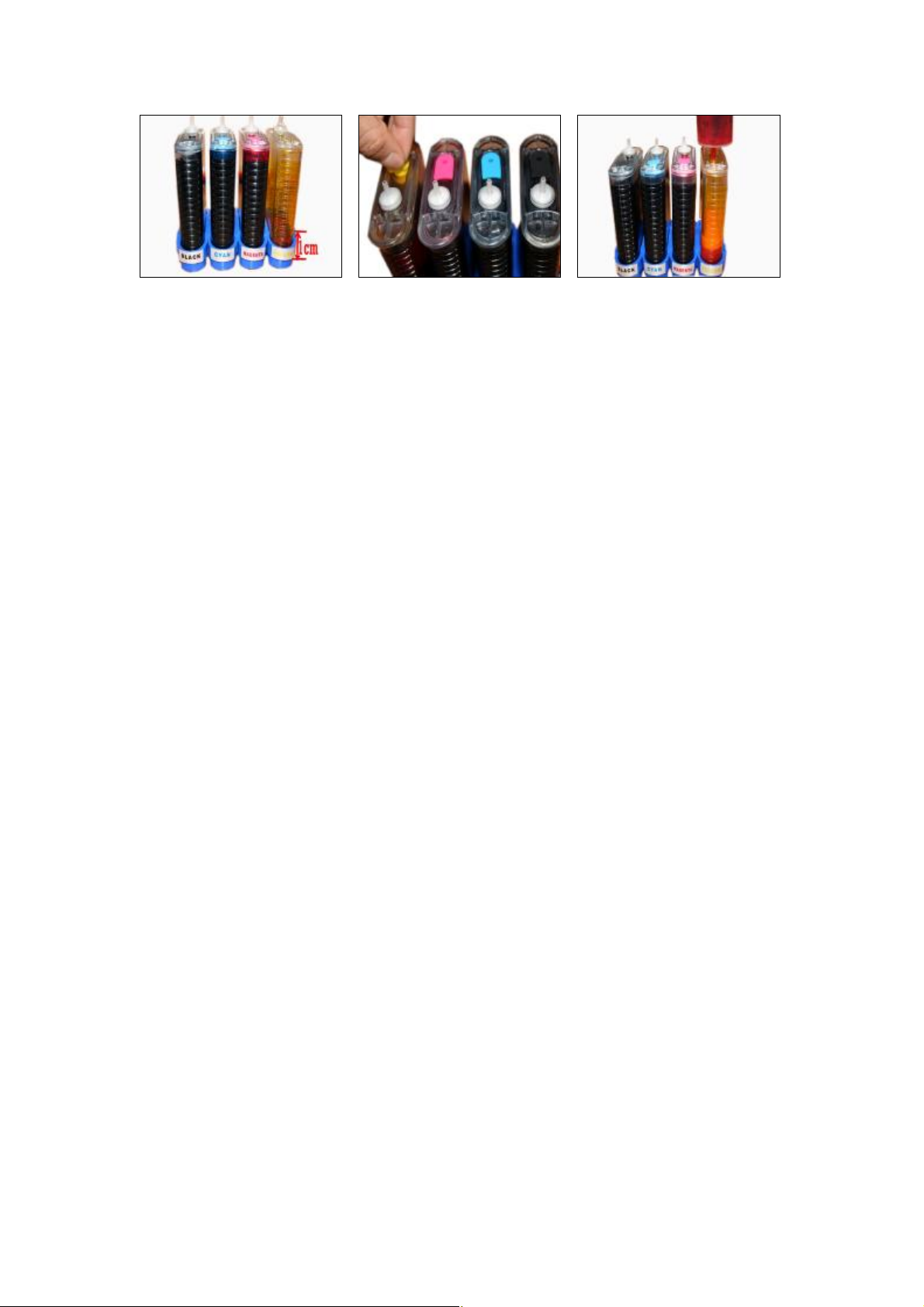

Please pay attention to the ink level in the reservoirs; if the ink level is below 1CM as
the above picture shown, please use refill kits to fill ink into Reservoir bottles. Carefully pull
out the rubber plugs from the refill holes.(there is possibility of ink spattering. Be careful!)
Refill ink according to the color in short supply. Then put the rubber back. (Please keep the
printer and the reservoir at the same horizontal line during the process of refilling ink.)
6、Attention for maintenance:
Take out the CISS including the inner cartridges and other components. Then
remove support arm from printer, and place the original cartridges in. Please
inquire local dealer before sending to maintenance.
7.Notice:
1. Please don’t take out cartridge at random after installing the CIS system.
Keep the reservoir bottles on the same level with the printer.
2. Try to keep at least 1/2 inch of ink in the bottles, as you don’t want to run out
of ink and draw air into the cartridge.
3. Don’t place the Reservoir Bottles higher or lower much than the printer.
4. To be used in a dry place between 15 and 35 degree. Avoid exposure to direct
sunlight.
5. Don’t put the continuous ink supply systems reversed or leaning during the
shipment. Please make sure all the ink filling holes and Ventilation holes are
closed tightly during the transportation. Otherwise, the ink shall leak out.
6. Don’t sway the cartridge frequently. It may cause ink leakage.
7. Don’t pull out the connector of cartridge and don’t tear off adhesive tape at the
bottom of cartridge.
8.Warning:
1. Not drinkable; keep it out reach of children.
2. Avoid exposure to direct sunshine and don’t keep it in high or freezing
temperature.
3. Avoid collision and fallen down.
