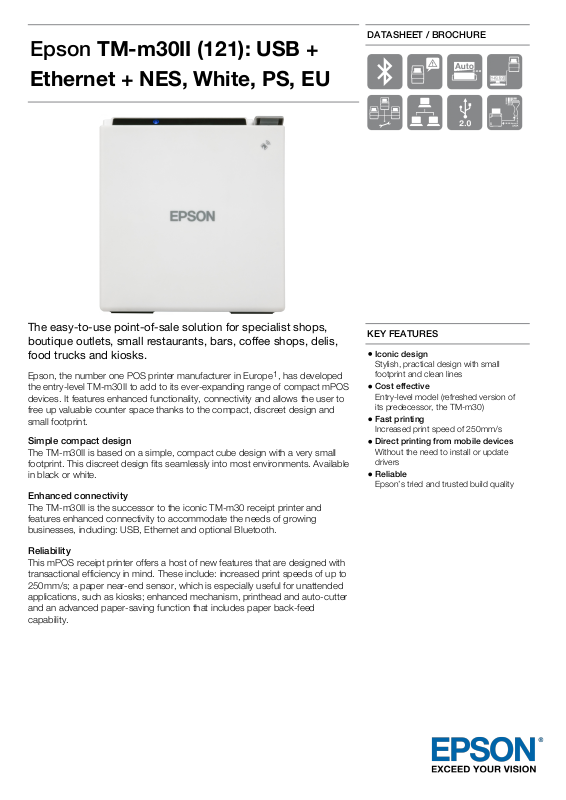

Epson C31CJ27121 Brochure
Epson TM-m30II (121): USB +
Ethernet + NES, White, PS, EU
DATASHEET / BROCHURE
The easy-to-use point-of-sale solution for specialist shops,
boutique outlets, small restaurants, bars, coffee shops, delis,
food trucks and kiosks.
Epson, the number one POS printer manufacturer in Europe1, has developed
the entry-level TM-m30II to add to its ever-expanding range of compact mPOS
devices. It features enhanced functionality, connectivity and allows the user to
free up valuable counter space thanks to the compact, discreet design and
small footprint.
Simple compact design
The TM-m30II is based on a simple, compact cube design with a very small
footprint. This discreet design fits seamlessly into most environments. Available
in black or white.
Enhanced connectivity
The TM-m30II is the successor to the iconic TM-m30 receipt printer and
features enhanced connectivity to accommodate the needs of growing
businesses, including: USB, Ethernet and optional Bluetooth.
Reliability
This mPOS receipt printer offers a host of new features that are designed with
transactional efficiency in mind. These include: increased print speeds of up to
250mm/s; a paper near-end sensor, which is especially useful for unattended
applications, such as kiosks; enhanced mechanism, printhead and auto-cutter
and an advanced paper-saving function that includes paper back-feed
capability.
KEY FEATURES
Iconic design
Stylish, practical design with small
footprint and clean lines
Cost effective
Entry-level model (refreshed version of
its predecessor, the TM-m30)
Fast printing
Increased print speed of 250mm/s
Direct printing from mobile devices
Without the need to install or update
drivers
Reliable
Epson’s tried and trusted build quality
PRODUCT SPECIFICATIONS
Print speed 200 mm/sec
PAPER
Paper size 57.50 ± 0.50 (W) mm x dia 18.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm,
79.50 ± 0.50 (W) mm x dia 18.00 mm,
79.50 ± 0.50 (W) mm x dia 83.00 mm
FONTS & STYLES
Print Speed receipt 200 mm/sec
Print Speed 250 mm/sec
Printing Font ANK
Printing Font Receipt ANK
Character set 95 Alphanumeric, 18 set International, 128 x 43 Graphic
Dot density 203 DPI x 203 DPI
Printing Characters Text (incl. Euro symbol), Graphics, Barcode
INTERFACES
Interfaces Ethernet interface (100 Base-TX / 10 Base-T), USB 2.0 Type B, USB 2.0 Type A, Drawer kick-
out, USB 1.1 Type B
POWER
Power Supply AC adapter, C, EURO AC cable
GENERAL
Product dimensions 127 x 127 x 127 mm (Width x Depth x Height)
Product weight 1.3 kg
Colour White
Noise Level Operation: 55 dB (A)
Installation horizontally, vertically, wall hanging
DATA BUFFER
Data Buffer 12 kB
OTHER
Warranty 24 months Carry in
Optional warranty extension available
Epson TM-m30II (121): USB +
Ethernet + NES, White, PS, EU
WHAT'S IN THE BOX
AC cable
Roll paper
Main unit
Paper spacer
Power switch cover
Setup guide
Warranty document
AC adapter, C1
Cable fixation saddle
OPTIONAL ACCESSORIES
Back Plate Cover, White
C32C881020
OT-BZ20-634: Optional External Buzzer
C32C890634
Tablet Stand, Black
7110080
Wall Hanging Bracket
C32C881017
Epson OT-WL06-323: Wireless LAN dongle
2.4/5GHz WE/CE
C32C891323
LOGISTICS INFORMATION
SKU C31CJ27121
EAN code 8715946684789
Country of Origin China
For more information please contact:
Home users: 0343 90 37766
Business users*: 0871 42 37766
Republic of Ireland: 01 436 7742
Or visit us at https://www.epson.co.uk/contactus
* 10p per minute plus network extras.
Trademarks and registered trademarks are the property of Seiko Epson Corporation or their respective owners.
Product information is subject to change without prior notice.
Last extracted: 2020-06-29
Web: www.epson.co.uk
www.epson.ie
1. Number one POS printer manufacturer based on
shipments for FY18 (IDC 2019)
