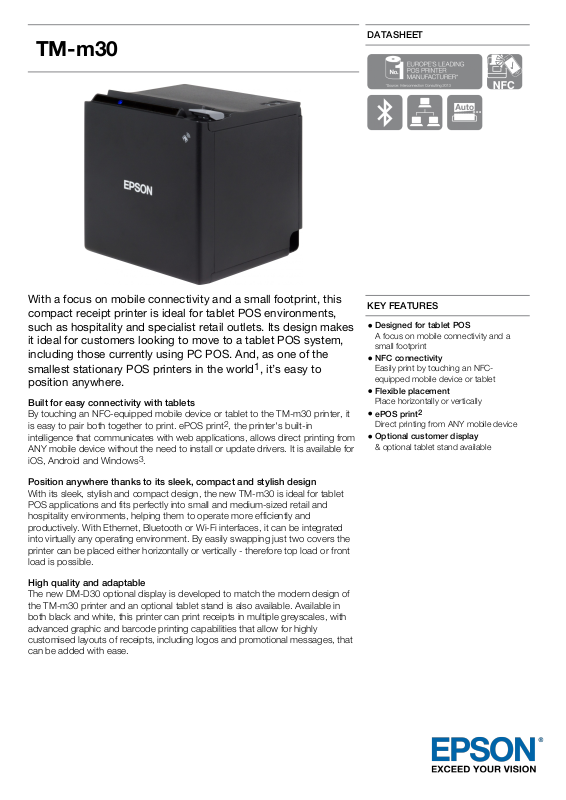

Epson C31CE95112A0 Product Data Sheet

TM-m30

DATASHEET

With a focus on mobile connectivity and a small footprint, this
compact receipt printer is ideal for tablet POS environments,
such as hospitality and specialist retail outlets. Its design makes
it ideal for customers looking to move to a tablet POS system,
including those currently using PC POS. And, as one of the
smallest stationary POS printers in the world1, it’s easy to
position anywhere.

Built for easy connectivity with tablets

By touching an NFC-equipped mobile device or tablet to the TM-m30 printer, it
is easy to pair both together to print. ePOS print2, the printer's built-in
intelligence that communicates with web applications, allows direct printing from
ANY mobile device without the need to install or update drivers. It is available for
iOS, Android and Windows3.

Position anywhere thanks to its sleek, compact and stylish design

With its sleek, stylish and compact design, the new TM-m30 is ideal for tablet
POS applications and fits perfectly into small and medium-sized retail and
hospitality environments, helping them to operate more efficiently and
productively. With Ethernet, Bluetooth or Wi-Fi interfaces, it can be integrated
into virtually any operating environment. By easily swapping just two covers the
printer can be placed either horizontally or vertically - therefore top load or front
load is possible.

KEY FEATURES

Designed for tablet POS

A focus on mobile connectivity and a
small footprint

NFC connectivity

Easily print by touching an NFC­equipped mobile device or tablet

Flexible placement

Place horizontally or vertically

ePOS print

Direct printing from ANY mobile device

Optional customer display

& optional tablet stand available

2

High quality and adaptable

The new DM-D30 optional display is developed to match the modern design of
the TM-m30 printer and an optional tablet stand is also available. Available in
both black and white, this printer can print receipts in multiple greyscales, with
advanced graphic and barcode printing capabilities that allow for highly
customised layouts of receipts, including logos and promotional messages, that
can be added with ease.

PRODUCT SPECIFICATIONS

Print speed 200 mm/sec

FONTS & STYLES

Print Speed receipt 200 mm/sec
Print Speed 200 mm/sec
Printing Font ANK
Printing Font Receipt ANK
Character set 95 Alphanumeric, 18 set International, 128 x 43 Graphic
Dot density 203 dpi x 203 dpi
Printing Characters Text (incl. Euro symbol), Graphics, Barcode

INTERFACES

Interfaces USB 2.0 Type B, Ethernet interface (100 Base-TX / 10 Base-T), Bluetooth, USB 2.0 Type A,

Drawer kick-out

POWER

Power Supply AC adapter, C, UK AC cable

GENERAL

Product dimensions 127 x 127 x 127 mm (Width x Depth x Height)
Product weight 1.3 kg
Colour Black
Noise Level Operation: 55 dB (A)
Installation horizontally, vertically, wall hanging
Interface connectors D.K.D. function
Humidity Operation 10% - 90%, Storage 10% - 90%
Temperature Operation 5° C - 45° C, Storage -20° C - 60° C

DATA BUFFER

Data Buffer 12 kB

OTHER FEATURES

NFC Near Field Communication available
Cutter Partial Cut
Sensors Paper End Sensor, Paper sensor

OTHER

Warranty 24 months Carry in

TM-m30

WHAT'S IN THE BOX

AC adapter, C1
AC cable
Roll paper
Warranty document
Main unit
Paper spacer
Power switch cover
Setup guide
Cable fixation saddle

OPTIONAL ACCESSORIES

Epson OT-BZ20-634:OPTIONAL EXTERNAL
BUZZER for T20/II, T70II and T88V

C32C890634
Epson Connector Cover for TM-m30 Black
C32C881021
Epson Wall Hanging Bracket for TM-m30
C32C881017

LOGISTICS INFORMATION

SKU C31CE95112A0

EAN code 8715946609140

Dimensions Single Carton 500 x 400 x 255 mm

Carton Weight 8.3 Kg

Country of Origin China

For more information please contact:
Telephone: [phone] (UK)+

01 436 7742 (Republic of Ireland)
E-mail: [e-mail]
Chat: etalk.epson-europe.com
Fax: [phone]
+ Local call rate.

Trademarks and registered trademarks are the property of Seiko Epson Corporation or their respective owners.
Product information is subject to change without prior notice.

Web: www.epson.co.uk
www.epson.ie

1. As compared in August 2015. Dimensions of comparable
products taken from manufacturers' websites. 2. Patent
pending. 3. Windows compatibility available from January

2016.
