Epson C11CH17402 User Manual

User's Guide
NPD5907-00 EN
User's Guide

Copyright

Copyright
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information herein. information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.
Neither Seiko Epson Corporation nor its aliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.
Seiko Epson Corporation and its aliates shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.
e
Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Epson Approved Products by Seiko Epson Corporation.
© 2017 Seiko Epson Corporation
contents of this manual and the
e
specications
of this product are subject to change without notice.
2
User's Guide

Trademarks

Trademarks
EPSON® is a registered trademark, and EPSON EXCEED YOUR VISION or EXCEED YOUR VISION is a
trademark of Seiko Epson Corporation.
PRINT Image Matching™ and the PRINT Image Matching logo are trademarks of Seiko Epson Corporation.
Copyright © 2001 Seiko Epson Corporation. All rights reserved.
Epson Scan 2 soware is based in part on the work of the Independent JPEG Group.
libti
Copyright © 1988-1997 Sam
Copyright © 1991-1997 Silicon Graphics, Inc.
Permission to use, copy, modify, distribute, and sell this soware and its documentation for any purpose is hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the soware and related documentation, and (ii) the names of Sam Leer and Silicon Graphics may not be used in any advertising or publicity relating to the soware without the specic, prior written permission of Sam Leer and Silicon Graphics.
THE SOFTWARE IS PROVIDED "AS-IS" AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.
Leer
Microso
Apple, Macintosh, Mac OS, OS X, Bonjour, Safari, iPad, iPhone, iPod touch, and iTunes are trademarks of Apple
Inc., registered in the U.S. and other countries.
Google Cloud Print, Chrome, Chrome OS, and Android are trademarks of Google Inc.
QR Code is a registered trademark of DENSO WAVE INCORPORATED in Japan and other countries.
Adobe and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
Intel
General Notice: Other product names used herein are for identication purposes only and may be trademarks
of their respective owners. Epson disclaims any and all rights in those marks.
, Windows®, and Windows Vista® are registered trademarks of Microso Corporation.
®
is a registered trademark of Intel Corporation.
®
3
User's Guide

Contents

Contents
Copyright
Trademarks
About This Manual
Introduction to the Manuals...................7
Using the Manual to Search for Information. . . . . . . 7
Marks and Symbols.........................8
Descriptions Used in this Manual...............9
Operating System References..................9
Important Instructions
Safety Instructions.........................10
Printer Advisories and Warnings.............. 10
Advisories and Warnings for Setting Up/
Using the Printer........................11
Advisories and Warnings for Using the
Printer with a Wireless Connection...........12
Protecting Your Personal Information...........12
Printer Basics
Part Names and Functions...................13
Control Panel............................ 15
Network Settings
Network Connection Types.................. 17
Wi-Fi Connection....................... 17
Wi-Fi Direct (Simple AP) Connection.........17
Connecting to a Computer...................18
Connecting to a Smart Device................ 19
Making Wi-Fi Settings from the Printer..........19
Making Wi-Fi Settings by Push Button Setup. . . . 20
Making Wi-Fi Settings by PIN Code Setup
(WPS)................................21
Making Wi-Fi Direct (Simple AP)
Connection Settings......................21
Checking the Network Connection Status........23
Checking the Network Status Using Network
Light.................................23
Printing a Network Connection Report........23
Printing a Network Status Sheet.............29
Replacing or Adding New Access Points.........30
Changing the Connection Method to a Computer. . 30
Restoring the Network Settings from the
Control Panel............................ 31
Loading Paper
Paper Handling Precautions..................32
Available Paper and Capacities................33
List of Paper Types.......................34
Loading Paper in the Rear Paper Feed...........34
Placing Originals on the Scanner Glass
Placing Multiple Photos for Scanning at the
Same Time...............................39
Printing
Printing from a Computer...................40
Printing Basics - Windows.................40
Printing Basics - Mac OS.................. 41
Printing on 2-Sides (for Windows only). . . . . . . .44
Printing Several Pages on One Sheet..........45
Printing to Fit the Paper Size................46
Printing Multiple Files Together (for
Windows Only).........................48
Printing One Image on Multiple Sheets to
Create a Poster (for Windows Only).......... 49
Printing Using Advanced Features........... 55
Printing Photos Using Epson Easy Photo Print. . 57
Printing from Smart Devices................. 58
Using Epson iPrint.......................58
Canceling Printing.........................59
Canceling Printing - Printer Button...........60
Canceling Printing - Windows.............. 60
Canceling Printing - Mac OS............... 60
Copying
Copying Basics........................... 61
Making Multiple Copies.....................61
Scanning
Scanning from the Control Panel.............. 62
Scanning from a Computer...................62
Scanning Using Epson Scan 2...............62
Scanning from Smart Devices.................69
4
User's Guide
Contents
Installing Epson iPrint....................69
Scanning Using Epson iPrint............... 69
Replacing Ink Cartridges
Checking the Ink Levels.....................71
Checking the Ink Levels - Windows...........71
Checking the Ink Levels - Mac OS............71
Ink Cartridge Codes........................71
Ink Cartridge Handling Precautions............72

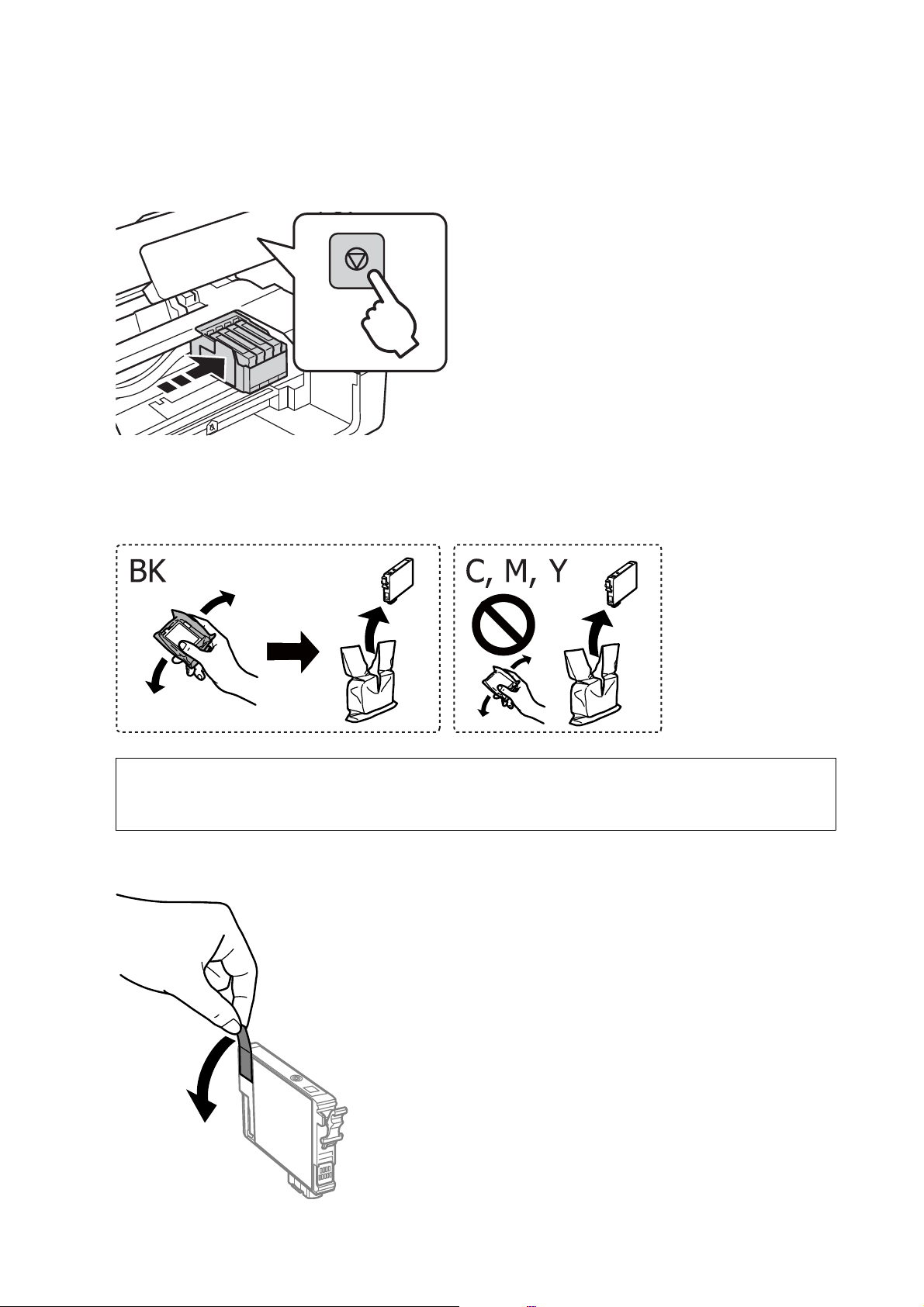

Replacing Ink Cartridges (When Ink Light is On
or Flashing)..............................74
Replacing Ink Cartridges (When Ink Light is O). . 78
Temporarily Printing with Black Ink............82
Temporarily Printing with Black Ink - Windows. 83 Temporarily Printing with Black Ink - Mac OS. . .84
Conserving Black Ink when the Black Ink Is
Low (for Windows Only)....................85
Maintaining the Printer
Checking and Cleaning the Print Head..........86
Checking and Cleaning the Print Head -
Printer Buttons......................... 86
Checking and Cleaning the Print Head -
Windows..............................87
Checking and Cleaning the Print Head - Mac
OS...................................87
Aligning the Print Head.....................88
Aligning the Print Head - Windows...........88
Aligning the Print Head - Mac OS............88
Cleaning the Paper Path.....................89
Cleaning the Scanner Glass...................89
Cleaning the Translucent Film................90
Saving Power.............................92
Saving Power - Windows..................92
Saving Power - Mac OS................... 92
Network Service and Software Information
Epson Connect Service......................94
Web Cong..............................94
Running Web Cong on a Web Browser. . . . . . . 95
Running Web
Running Web Cong on Mac OS............ 95
Windows Printer Driver.....................96
Guide to Windows Printer Driver............97
on Windows........... 95
Cong
Making Operation Settings for the Windows
Printer Driver..........................99
Mac OS Printer Driver......................99
Guide to Mac OS Printer Driver............100
Making Operation Settings for the Mac OS
Printer Driver......................... 102
Epson Scan 2 (Scanner Driver)...............102
Epson Event Manager......................103
Epson Easy Photo Print....................103
E-Web Print (for Windows Only)............. 104
Easy Photo Scan..........................104
EPSON
Uninstalling Applications...................105
Installing Applications.....................107
Updating Applications and Firmware.......... 107
Soware
Uninstalling Applications - Windows.........105
Uninstalling Applications - Mac OS..........106
Updater...................105
Solving Problems
Checking the Printer Status..................108
Checking the Error Indicators on the Printer. . . 108
Checking the Printer Status - Windows.......109
Checking the Printer Status - Mac OS........110
Removing Jammed Paper...................110
Removing Jammed Paper from the Rear
Paper Feed............................111
Removing Jammed Paper from the Output Tray 111 Removing Jammed Paper from Inside the
Printer...............................111
Paper Does Not Feed Correctly...............113
Paper Jams............................113
Paper Feeds at a Slant....................114
Several Sheets of Paper are Fed at a Time. . . . . . 114
Power and Control Panel Problems............114
Power Does Not Turn On.................114
Power Does Not Turn O.................114
Cannot Print from a Computer...............114
Checking the Connection (USB)............114
Checking the Connection (Network).........115
Checking the Soware and Data. . . . . . . . . . . . 116
Checking the Printer Status from the
Computer (Windows)....................118
Checking the Printer Status from the
Computer (Mac OS).....................118
When You Cannot Make Network Settings......119
Cannot Connect from Devices Even ough
Network Settings are No Problems.......... 119
5
User's Guide
Contents
When You Cannot Connect Using Wi-Fi
Direct (Simple AP) Connection............ 121
Checking the SSID Connected to the Printer. . . 122
Checking the SSID for the Computer.........123
Printout Problems........................124
Printout is Scued or Color is Missing........124
Banding or Unexpected Colors Appear.......124
Colored Banding Appears at Intervals of
Approximately 2.5 cm....................124
Blurry Prints, Vertical Banding, or
Misalignment..........................125
Print Quality is Poor.....................125
Paper Is Smeared or Scued...............126
Printed Photos are Sticky.................127
Images or Photos are Printed in Unexpected
Colors...............................127
Colors Dier from What You See on the
Display..............................127
Cannot Print Without Margins.............127
Edges of the Image are Cropped During
Borderless Printing......................128
e Position, Size, or Margins of the Printout
Are Incorrect..........................128
Printed Characters Are Incorrect or Garbled. . . 128
e Printed Image Is Inverted..............129
Mosaic-Like Patterns in the Prints...........129
Uneven Colors, Smears, Dots, or Straight
Lines Appear in the Copied Image...........129
Moiré (Cross-Hatch) Patterns Appear in the
Copied Image......................... 129
An Image of the Reverse Side of the Original
Appears in the Copied Image.............. 129
e Printout Problem Could Not be Cleared. . . 129
Other Printing Problems................... 130
Printing Is Too Slow.....................130
Printing Slows Down Dramatically During
Continuous Printing.....................130
Cannot Start Scanning.....................130
Cannot Start Scanning when Using the
Control Panel..........................131
Scanned Image Problems...................131
Uneven Colors, Dirt, Spots, and so on Appear
when Scanning from the Scanner Glass.......131
Image Quality Is Rough...............132
e Oset Appears in the Background of Images. . . 132
Text is Blurred.........................132
Moiré Patterns (Web-Like Shadows) Appear. . . 133 Cannot Scan the Correct Area on the
Scanner Glass..........................133
Cannot Preview in
umbnail
............. 133
Text is Not Recognized Correctly when
Saving as a Searchable PDF................134
Cannot Solve Problems in the Scanned Image. . 134
Other Scanning Problems...................135
Scanning Is Too Slow....................135
Scanning Stops when Scanning to PDF/
Multi-TIFF........................... 135
Other Problems..........................135
Slight Electric Shock when Touching the
Printer...............................135
Operation Sounds Are Loud...............135
Application Is Blocked by a Firewall (for
Windows Only)........................136
Appendix
Te ch n i ca l
Printer Specications....................137
Scanner Specications...................138
Interface Specications...................138
Network Function List...................139
Wi-Fi Specications.....................139
Security Protocol.......................140
Supported ird Party Services.............140
Dimensions...........................140
Electrical Specications.................. 140
Environmental Specications..............141
System Requirements....................141
Regulatory Information....................141
Standards and Approvals for European Model. . 141
Restrictions on Copying..................142
Transporting the Printer....................142
Where to Get Help........................144
Technical Support Web Site................144
Contacting Epson Support................144
Specications
....................137
6
User's Guide

About This Manual

About This Manual

Introduction to the Manuals

e following manuals are supplied with your Epson printer. As well as the manuals, see the help included in the various Epson soware applications.
Start Here (paper manual)
Provides you with information on setting up the printer, installing the soware, using the printer, solving problems, and so on.
User's Guide (digital manual)
is manual. Provides overall information and instructions on using the printer, on network settings when using the printer on a network, and on solving problems.
You can obtain the latest versions of the above manuals with the following methods.
Paper manual
Visit the Epson Europe support website at http://www.epson.eu/Support, or the Epson worldwide support website at http://support.epson.net/.
Digital manual
Start EPSON Soware Updater on your computer. EPSON Soware Updater checks for available updates of Epson soware applications and the digital manuals, and allows you to download the latest ones.
Related Information
“EPSON
&
Soware
Updater” on page 105

Using the Manual to Search for Information

e PDF manual allows you to search for information you are looking for by keyword, or jump directly to specic sections using the bookmarks. You can also print only the pages you need. is section explains how to use a PDF manual that has been opened in Adobe Reader X on your computer.
Searching by keyword
Click Edit > Advanced Search. Enter the keyword (text) for information you want to and then click Search. Hits are displayed as a list. Click one of the displayed hits to jump to that page.
7
in the search window,
nd
User's Guide
About This Manual
Jumping directly from bookmarks
Click a title to jump to that page. Click + or > to view the lower level titles in that section. To return to the previous page, perform the following operation on your keyboard.
Wi n d o w s : Ho ld down Alt, and then press ←.
Mac OS: Hold down the command key, and then press ←.
Printing only the pages you need
You can extract and print only the pages you need. Click Print in the File menu, and then specify the pages you want to print in Pages in Pages to Print.
To specify a series of pages, enter a hyphen between the start page and the end page.
Example: 20-25
To specify pages that are not in series, divide the pages with commas.
Example: 5, 10, 15

Marks and Symbols

Caution:
!
Instructions that must be followed carefully to avoid bodily injury.
Important:
c
Instructions that must be observed to avoid damage to your equipment.
Note:
Provides complementary and reference information.
&
Related Information
8
User's Guide
About This Manual
Links to related sections.

Descriptions Used in this Manual

Screenshots of the printer driver and the Epson Scan 2 (scanner driver) screens are from Windows 10 or macOS
High Sierra. e content displayed on the screens varies depending on the model and situation.
Illustrations of the printer used in this manual are examples only. Although there may be slight
depending on the model, the method of operation is the same.
dierences

Operating System References

Windows
In this manual, terms such as "Windows 10", "Windows 8.1", "Windows 8", "Windows 7", "Windows Vista", and "Windows XP" refer to the following operating systems. Additionally, "Windows" is used to refer to all versions.
Microso
Microso
Microso
Microso
Microso
Microso
Microso
Mac OS
Wi n d o w s® 10 operating system
®
Wi n d o w s® 8.1 operating system
®
Wi n d o w s® 8 operating system
®
Wi n d o w s® 7 operating system
®
Wi n d o w s Vis ta® operating system
®
Wi n d o w s® XP operating system
®
Wi n d o w s® XP Professional x64 Edition operating system
®
In this manual, "Mac OS" is used to refer to macOS High Sierra, macOS Sierra, OS X El Capitan, OS X Yosemite, OS X Mavericks, OS X Mountain Lion, Mac OS X v10.7.x, and Mac OS X v10.6.8.
9
User's Guide

Important Instructions

Important Instructions

Safety Instructions

Read and follow these instructions to ensure safe use of this printer. Make sure you keep this manual for future reference. Also, be sure to follow all warnings and instructions marked on the printer.
Some of the symbols used on your printer are to ensure safety and proper use of the printer. Visit the following
Web site to learn the meaning of the symbols.
http://support.epson.net/symbols
Use only the power cord supplied with the printer and do not use the cord with any other equipment. Use of
other cords with this printer or the use of the supplied power cord with other equipment may result in re or electric shock.
Be sure your AC power cord meets the relevant local safety standard.
Never disassemble, modify, or attempt to repair the power cord, plug, printer unit, scanner unit, or options by
yourself, except as specically explained in the printer's manuals.
Unplug the printer and refer servicing to qualied service personnel under the following conditions:
e power cord or plug is damaged; liquid has entered the printer; the printer has been dropped or the casing damaged; the printer does not operate normally or exhibits a distinct change in performance. Do not adjust controls that are not covered by the operating instructions.
Place the printer near a wall outlet where the plug can be easily unplugged.
Do not place or store the printer outdoors, near excessive dirt or dust, water, heat sources, or in locations
subject to shocks, vibrations, high temperature or humidity.
Take care not to spill liquid on the printer and not to handle the printer with wet hands.
Keep the printer at least 22 cm away from cardiac pacemakers. Radio waves from this printer may adversely
aect the operation of cardiac pacemakers.
Be careful when you handle used ink cartridges, as there may be some ink around the ink supply port.
If ink gets on your skin, wash the area thoroughly with soap and water.
If ink gets into your eyes, ush them immediately with water. If discomfort or vision problems continue aer
a thorough
If ink gets into your mouth, see a doctor right away.
Do not disassemble the ink cartridge; otherwise ink may get into your eyes or on your skin.
ushing,
see a doctor immediately.
Do not shake ink cartridges too vigorously and do not drop them. Also, be careful not to squeeze them or tear
their labels. Doing so may cause ink leakage.
Keep ink cartridges out of the reach of children.

Printer Advisories and Warnings

Read and follow these instructions to avoid damaging the printer or your property. Make sure you keep this manual for future reference.
10
User's Guide
Important Instructions

Advisories and Warnings for Setting Up/Using the Printer

Do not block or cover the vents and openings in the printer.
Use only the type of power source indicated on the printer's label.
Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and o.
Avoid electrical outlets controlled by wall switches or automatic timers.
Keep the entire computer system away from potential sources of electromagnetic interference, such as
loudspeakers or the base units of cordless telephones.
e power-supply cords should be placed to avoid abrasions, cuts, fraying, crimping, and kinking. Do not place
objects on top of the power-supply cords and do not allow the power-supply cords to be stepped on or run over. Be particularly careful to keep all the power-supply cords straight at the ends and the points where they enter and leave the transformer.
If you use an extension cord with the printer, make sure that the total ampere rating of the devices plugged into
the extension cord does not exceed the cord's ampere rating. Also, make sure that the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.
If you plan to use the printer in Germany, the building installation must be protected by a 10 or 16 amp circuit
breaker to provide adequate short-circuit protection and over-current protection for the printer.
When connecting the printer to a computer or other device with a cable, ensure the correct orientation of the
connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.
Place the printer on a
will not operate properly if it is tilted at an angle.
When storing or transporting the printer, avoid tilting it, placing it vertically, or turning it upside down;
otherwise ink may leak.
Allow space above the printer so that you can fully raise the document cover.
Leave enough space in front of the printer for the paper to be fully ejected.
Avoid places subject to rapid changes in temperature and humidity. Also, keep the printer away from direct
sunlight, strong light, or heat sources.
Do not insert objects through the slots in the printer.
Do not put your hand inside the printer during printing.
Do not touch the white at cable inside the printer.
Do not use aerosol products that contain
Do not move the print head by hand; otherwise, you may damage the printer.
stable surface that extends beyond the base of the printer in all directions. e printer
at,
ammable
gases inside or around the printer. Doing so may cause
re.
Be careful not to trap your ngers when closing the scanner unit.
Do not press too hard on the scanner glass when placing the originals.
Always turn the printer o using the
P
until the
Before transporting the printer, make sure that the print head is in the home (far right) position and the ink
cartridges are in place.
If you are not going to use the printer for a long period, be sure to unplug the power cord from the electrical
outlet.
light stops
ashing.
P
button. Do not unplug the printer or turn o the power at the outlet
11
User's Guide
Important Instructions

Advisories and Warnings for Using the Printer with a Wireless Connection

Radio waves from this printer may negatively aect the operation of medical electronic equipment, causing
them to malfunction. When using this printer inside medical facilities or near medical equipment, follow directions from the authorized personnel representing the medical facilities, and follow all posted warnings and directions on the medical equipment.
Radio waves from this printer may negatively
automatic doors or re alarms, and could lead to accidents due to malfunction. When using this printer near automatically controlled devices, follow all posted warnings and directions on these devices.
the operation of automatically controlled devices such as
aect

Protecting Your Personal Information

If you give the printer to someone else or dispose of it, erase the network settings stored in the printer's memory by
turning on the printer with the
button while holding down the button on the control panel.
12
User's Guide

Printer Basics

Printer Basics

Part Names and Functions

Edge guide Feeds the paper straight into the printer. Slide to the
A
edges of the paper.
Rear paper feed Loads paper.
B
Paper support Supports loaded paper.
C
Feeder guard Prevents foreign substance from entering the printer.
D
Usually keep this guard closed.
Output tray Holds the ejected paper.
E
Control panel Operates the printer.
F
Scanner unit support Supports the scanner unit.
A
13
User's Guide
Ink cartridge holder Install the ink cartridges. Ink is ejected from the print
B
Printer Basics
head nozzles underneath.
C
A
Document cover Blocks external light while scanning.
A
Scanner glass Place the originals.
B
Scanner unit Scans placed originals. Open when replacing ink
C
B
cartridges or removing jammed paper inside the printer.
A
AC inlet Connects the power cord.
A
USB port Connects a USB cable to connect with a computer.
B
B
14
User's Guide

Control Panel

AB G
C
D
Printer Basics
EF
A
B
C
D
H
The left and right lights indicate the network status.
(Green light - left): Turns on while the printer is connected to a wireless (Wi-Fi) network,
or ashes while communicating.
(Orange light - right): Turns on while the printer is connected to a wireless (Wi-Fi)
network in Wi-Fi Direct (Simple AP) mode, or ashes while communicating.
The lights
Turns the printer on or o.
Do not turn o while the power light is ashing (while the printer is operating or processing data).
Unplug the power cord when the power light is
When a network error occurs, pressing this button cancels the error. Hold this button down for more than three seconds to perform Wi-Fi auto setup using the WPS push button.
Prints a network connection report allowing you to determine the causes of any problems you may have using the printer on a network. If you need more detailed network settings and connection status, hold this button down for at least 10 seconds to print a network status sheet.
alternately or simultaneously while initializing or making network settings.
ash
I
o.
E
F
G
H
I
Starts monochrome copying on A4 size plain paper. To increase the number of copies (by up to 20 copies), press this button within one second intervals.
Starts color copying on A4 size plain paper. To increase the number of copies (by up to 20 copies), press this button within one second intervals.
Stops the current operation.
Hold this button down for three seconds until the
When the ashes or turns o, hold this button down for six seconds until the ink cartridge holder starts moving to replace the cartridge.
Turns on or ashes when paper is out or a paper jam occurs.
Turns on when an ink cartridge error occurs, such as the ink cartridge needs to be replaced. Flashes when the ink is low.
B
light turns on, press this button to replace the ink cartridges. When the B light
Additional functions are available with dierent combinations of buttons.
P
button ashes to run print head cleaning.
15
User's Guide
Printer Basics
+ Press and buttons simultaneously to run software on a USB-connected computer
and scan as a PDF le.
+
+ While holding down the button, press the button until the light and the
+ Turn the printer on while holding down the button to restore the default network settings.
+
While holding down the button, press the button until the light and the light ash alternately to start PIN Code Setup (WPS).
light
When the network settings are restored, the printer turns on and the network status lights ash orange and green.
Turn the printer on while holding down the y button to print the nozzle check pattern.
alternately to start Wi-Fi Direct (Simple AP) setup.
ash
Related Information
& “Checking the Error Indicators on the Printer” on page 108 & “Making Wi-Fi Settings by PIN Code Setup (WPS)” on page 21 & “Restoring the Network Settings from the Control Panel” on page 31
16
User's Guide

Network Settings

Network Settings

Network Connection Types

You can use the following connection methods.

Wi-Fi Connection

Connect the printer and the computer or smart device to the access point. is is the typical connection method for home or oce networks where computers are connected by Wi-Fi through the access point.
Related Information
& “Connecting to a Computer” on page 18 & “Connecting to a Smart Device” on page 19 & “Making Wi-Fi Settings from the Printer” on page 19

Wi-Fi Direct (Simple AP) Connection

Use this connection method when you are not using Wi-Fi at home or at the oce, or when you want to connect the printer and the computer or smart device directly. In this mode, the printer acts as an access point and you can connect up to four devices to the printer without having to use a standard access point. However, devices directly connected to the printer cannot communicate with each other through the printer.
17
User's Guide
Network Settings
Note:
Wi-Fi Direct (Simple AP) connection is a connection method designed to replace Ad Hoc mode.
e printer can be connected by Wi-Fi and Wi-Fi Direct (Simple AP) connection simultaneously. However, if you start a network connection in Wi-Fi Direct (Simple AP) connection when the printer is connected by Wi-Fi, the Wi-Fi is temporarily disconnected.
Related Information
& “Making Wi-Fi Direct (Simple AP) Connection Settings” on page 21

Connecting to a Computer

We recommend using the installer to connect the printer to a computer. You can run the installer using one of the following methods.
Setting up from the website
Access the following website, and then enter the product name. Go to Setup, and then start setting up.
http://epson.sn
Setting up using the
with disc drives.)
Insert the soware disc into the computer, and then follow the on-screen instructions.
Selecting the Connection Methods
Follow the on-screen instructions until the following screen is displayed, and then select the connection method of the printer to the computer.
soware
disc (only for the models that come with a
soware
disc and users with computers
18
User's Guide
Select the connection type and then click Next.
Network Settings
Follow the on-screen instructions.

Connecting to a Smart Device

You can use the printer from a smart device when you connect the printer to the same Wi-Fi network (SSID) as the smart device. To use the printer from a smart device, set up from the following website. Access to the website from the smart device that you want to connect to the printer.
http://epson.sn > Setup
Note:
If you want to connect a computer and a smart device to the printer at the same time, we recommend connecting the computer
rst.

Making Wi-Fi Settings from the Printer

You can make network settings from the printer's control panel in several ways. Choose the connection method that matches the environment and conditions that you are using.
If the access point supports WPS, you can make settings by using push button setup.
connecting the printer to the network, connect to the printer from the device that you want to use (computer,
Aer smart device, tablet, and so on.)
Make advanced network settings to use a static IP address.
Related Information
& “Making Wi-Fi Settings by Push Button Setup” on page 20 & “Making Wi-Fi Settings by PIN Code Setup (WPS)” on page 21
19
User's Guide
Network Settings
& “Making Wi-Fi Direct (Simple AP) Connection Settings” on page 21

Making Wi-Fi Settings by Push Button Setup

You can automatically set up a Wi-Fi network by pressing a button on the access point. If the following conditions are met, you can set up by using this method.
e access point is compatible with WPS (Wi-Fi Protected Setup).
e current Wi-Fi connection was established by pressing a button on the access point.
Note:
If you cannot nd the button or you are setting up using the soware, see the documentation provided with the access point.
1. Hold down the [WPS] button on the access point until the security light
If you do not know where the [WPS] button is, or there are no buttons on the access point, see the documentation provided with your access point for details.
2. Press the seconds).
e connection setting will start. When a connection is established, the
button on the printer until the light and the light
ashes.
alternately (approximately 3
ash
light turns on.
Note:
e printer is in a connection error status when the printer error by pressing the again. If it still does not work, print a network connection report and check the solution.
Related Information
& “Checking the Network Connection Status” on page 23
button on the printer, reboot the access point, place it close to the printer and try
light and the light ash simultaneously. Aer clearing the
20
User's Guide
Network Settings
& “When You Cannot Make Network Settings” on page 119

Making Wi-Fi Settings by PIN Code Setup (WPS)

You can connect to an access point by using a PIN code that is printed on the network status sheet. You can use this method to set up if an access point is capable of WPS (Wi-Fi Protected Setup). Use a computer to enter a PIN code into the access point.
1. Load papers.
2. Hold down the
e network status sheet is printed.
Note:
If you release the is not printed on this report.
3. While holding down the button, press the button until the light and the light ash alternately.
4. Use your computer to enter the PIN code (an eight digit number) printed on [WPS-PIN Code] column of the network status sheet into the access point within two minutes.
When a connection is established, the
Note:
See the documentation provided with your access point for details on entering a PIN code.
e printer is in a connection error status when the
the printer error by pressing the try again. If it still does not work, print a network connection report and check the solution.
button on the printer for at least 10 seconds.
button within 10 seconds, a network connection report is printed. Note that PIN code information
light turns on.
light and the light ash simultaneously. Aer clearing
button on the printer, reboot the access point, place it close to the printer and
Related Information
& “Printing a Network Status Sheet” on page 29 & “Checking the Network Connection Status” on page 23 & “When You Cannot Make Network Settings” on page 119

Making Wi-Fi Direct (Simple AP) Connection Settings

is method allows you to connect the printer directly to devices without an access point. e printer acts as an access point.
21
User's Guide
Network Settings
Important:
c
When you connect from a computer or smart device to the printer using the Wi-Fi Direct (Simple AP) connection, the printer is connected to the same Wi-Fi network (SSID) as the computer or smart device and the communication is established between them. Since the computer or smart device is automatically connected to the other connectable Wi-Fi network if the printer is turned o, it is not connected to the previous Wi-Fi network again if the printer is turned on. Connect to the printer's SSID for Wi-Fi Direct (Simple AP) connection from the computer or smart device again. If you do not want to connect every time you turn the printer on or o, we recommend using Wi-Fi network by connecting the printer to an access point.
1. While holding down the button, press the button until the light and the light ash alternately.
Wait until the process ends.
When a connection is established, the
2. Load papers.
3.
Hold down the
e network status sheet is printed. You can check the SSID and Password for Wi-Fi Direct (Simple AP) on this sheet.
Note:
If you release the Password for Wi-Fi Direct (Simple AP) are not printed on this report.
4. On the computer's network connection screen or the smart device's Wi-Fi screen, select the same SSID shown on the network status sheet to connect.
button on the printer for at least 10 seconds.
button within 10 seconds, a network connection report is printed. Note that the SSID and
light turns on.
5. Enter the password printed on the network status sheet into the computer or smart device.
You can conrm the status of Wi-Fi Direct on the network status sheet.
22
User's Guide
Network Settings
Note: When you connect from a smart device using Wi-Fi Direct connection (for Android)
When you are using an Android device and connect to the printer using Wi-Fi Direct, the simultaneously on the printer.
Press the
Press the
See Tips on the following website for more details.
http://epson.sn > Support
Related Information
& “Printing a Network Status Sheet” on page 29 & “Checking the Network Status Using Network Light” on page 23 & “When You Cannot Connect Using Wi-Fi Direct (Simple AP) Connection” on page 121
button to allow the connection request.
button if you want to reject the connection request.
light and light ash

Checking the Network Connection Status

Checking the Network Status Using Network Light

You can check the network connection status using the network light on the printer’s control panel.
Related Information
& “Control Panel” on page 15

Printing a Network Connection Report

You can print a network connection report to check the status between the printer and the access point.
1. Load papers.
2. Press the
e network connection report is printed.
Related Information
& “Messages and Solutions on the Network Connection Report” on page 24
button.
23
User's Guide
Network Settings
Messages and Solutions on the Network Connection Report
Check the messages and error codes on the network connection report, and then follow the solutions.
a. Error code
b. Messages on the Network Environment
Related Information
& “E-1” on page 25 & “E-2, E-3, E-7” on page 25 & “E-5” on page 26 & “E-6” on page 26 & “E-8” on page 27 & “E-9” on page 27
“E-10” on page 27
&
“E-11” on page 28
&
“E-12” on page 28
&
“E-13” on page 29
&
“Message on the Network Environment” on page 29
&
24
User's Guide
Network Settings
E-1
Message:
Conrm that the network cable is connected and network devices such as hub, router, or access point are turned on.
Solutions:
Make sure the Ethernet cable is securely connected to your printer and to your hub or other network device.
Make sure your hub or other network device is turned on.
If you want to connect the printer by Wi-Fi, make Wi-Fi settings for the printer again because it is disabled.
E-2, E-3, E-7
Message:
No wireless network names (SSID) found. Conrm that the router/access point is turned on and the wireless network (SSID) is set up correctly. Contact your network administrator for assistance.
No wireless network names (SSID) found. connect is set up correctly. Contact your network administrator for assistance.
Entered security key/password does not match the one set for your router/access point. Conrm security key/ password. Contact your network administrator for assistance.
Solutions:
Make sure your access point is turned on.
Conrm that your computer or device is connected correctly to the access point.
Turn o the access point. Wait for about 10 seconds, and then turn it on.
Place the printer closer to your access point and remove any obstacles between them.
If you have entered the SSID manually, check if it is correct. Check the SSID from the Network Status part on
the network connection report.
If an access point has multiple SSIDs, select the SSID that is displayed. When the SSID is using a non-compliant
frequency, the printer does not display them.
If you are using push button setup to establish a network connection, make sure your access point supports
WPS. You cannot use push button setup if your access point does not support WPS.
Makes sure your SSID uses only ASCII characters (alphanumeric characters and symbols). e printer cannot
display an SSID that contains non-ASCII characters.
Conrm
that the wireless network name (SSID) of the PC you wish to
Makes sure you know your SSID and password before connecting to the access point. If you are using an access
point with its default settings, the SSID and password are located on a label on the access point. If you do not know your SSID and password, contact the person who set up the access point, or see the documentation provided with the access point.
If you are connecting to an SSID generated from a tethering smart device, check for the SSID and password in
the documentation provided with the smart device.
25
User's Guide
Network Settings
If your Wi-Fi connection suddenly disconnects, check for the conditions below. If any of these conditions are
applicable, reset your network settings by downloading and running the
soware
from the following website.
http://epson.sn > Setup
Another smart device was added to the network using push button setup.
e Wi-Fi network was set up using any method other than push button setup.
E-5
Message:
Security mode (e.g. WEP, WPA) does not match the current setting of the printer. Conrm security mode. Contact your network administrator for assistance.
Solutions:
Make sure the access point's security type is set to one of the following. If it is not, change the security type on the access point, and then reset the printer's network settings.
WEP-64 bit (40 bit)
WEP-128 bit (104 bit)
WPA PSK (TKIP/AES)
WPA2 PSK (TKIP/AES)
*
*
WPA (TKIP/AES)
WPA2 (TKIP/AES)
* WPA PSK is also known as WPA Personal. WPA2 PSK is also known as WPA2 Personal.
E-6
Message:
MAC address of your printer may be ltered. Check whether your router/access point has restrictions such as MAC address ltering. See the documentation of the router/access point or contact your network administrator for assistance.
Solutions:
Check if MAC address ltering is disabled. If it is enabled, register the printer's MAC address so that it is not
ltered. address from the Network Status part on the network connection report.
See the documentation provided with the access point for details. You can check the printer's MAC
If your access point is using shared authentication with WEP security, make sure the authentication key and
index are correct.
If the number of connectable devices on the access point is less than the number of network devices that you
want to connect, make settings on the access point to increase the number of connectable devices. See the documentation provided with the access point to make settings.
26
User's Guide
Network Settings
E-8
Message:
Incorrect IP address is assigned to the printer. Conrm IP address setup of the network device (hub, router, or access point). Contact your network administrator for assistance.
Solutions:
Enable DHCP on the access point if the printer’s Obtain IP Address setting is set to Auto.
If the printer’s Obtain IP Address setting is set to Manual, the IP address you manually set is invalid due to out
of range (for example: 0.0.0.0). Set a valid IP address from the printer’s control panel or by using Web Cong.
E-9
Message:
Conrm the connection and network setup of the PC or other device. Connection using the EpsonNet Setup is available. Contact your network administrator for assistance.
Solutions:
Check the following.
Devices are turned on.
You can access the Internet and other computers or network devices on the same network from the devices you
want to connect to the printer.
If still does not connect your printer and network devices aer conrming the above, turn o the access point. Wait for about 10 seconds, and then turn it on. en reset your network settings by downloading and running the installer from the following website.
http://epson.sn > Setup
E-10
Message:
Conrm Contact your network administrator for assistance.
IP address, subnet mask, and default gateway setup. Connection using the EpsonNet Setup is available.
Solutions:
Check the following.
Other devices on the network are turned on.
Network addresses (IP address, subnet mask, and default gateway) are correct if you have set the printer's
Obtain IP Address to Manual.
Reset the network address if they are incorrect. You can check the IP address, subnet mask, and default gateway from the Network Status part on the network connection report.
If DHCP is enabled, change the printer’s Obtain IP Address setting to Auto. If you want to set the IP address manually, check the printer's IP address from the Network Status part on the network connection report, and then select Manual on the network settings screen. Set the subnet mask to [255.255.255.0].
27
User's Guide
Network Settings
If still does not connect your printer and network devices, turn o the access point. Wait for about 10 seconds, and then turn it on.
E-11
Message:
Setup is incomplete. Conrm default gateway setup. Connection using the EpsonNet Setup is available. Contact your network administrator for assistance.
Solutions:
Check the following.
e default gateway address is correct if you set the printer's TCP/IP Setup setting to Manual.
device that is set as the default gateway is turned on.
e
Set the correct default gateway address. You can check the default gateway address from the Network Status part on the network connection report.
E-12
Message:
Conrm the following -Entered security key/password is correct -Index of the security key/password is set to the rst number -IP address, subnet mask, or default gateway setup is correct Contact your network administrator for assistance.
Solutions:
Check the following.
Other devices on the network are turned on.
e network addresses (IP address, subnet mask, and default gateway) are correct if you are entering them
manually.
e network addresses for other devices (subnet mask and default gateway) are the same.
IP address does not
e
If still does not connect your printer and network devices aer conrming the above, try the following.
conict
with other devices.
Turn o the access point. Wait for about 10 seconds, and then turn it on.
Make network settings again using the installer. You can run it from the following website.
http://epson.sn > Setup
You can register several passwords on an access point that uses WEP security type. If several passwords are
registered, check if the
registered password is set on the printer.
rst
28
User's Guide
Network Settings
E-13
Message:
Conrm the following -Entered security key/password is correct -Index of the security key/password is set to the
number -Connection and network setup of the PC or other device is correct Contact your network
rst administrator for assistance.
Solutions:
Check the following.
Network devices such as an access point, hub, and router are turned on.
e TCP/IP Setup for network devices has not been set up manually. (If the printer's TCP/IP Setup is set
automatically while the TCP/IP Setup for other network devices is performed manually, the printer's network may dier from the network for other devices.)
If it still does not work aer checking the above, try the following.
Turn o the access point. Wait for about 10 seconds, and then turn it on.
Make network settings on the computer that is on the same network as the printer using the installer. You can
run it from the following website.
http://epson.sn > Setup
You can register several passwords on an access point that uses the WEP security type. If several passwords are
registered, check if the rst registered password is set on the printer.
Message on the Network Environment
Message Solution
*Multiple network names (SSID) that match your entered network name (SSID) have been detected. name (SSID).
The Wi-Fi environment needs to be improved. Turn the wireless router o and then turn it on. If the connection does not improve, see the documentation for the wireless router.
*No more devices can be connected. Disconnect one of the connected devices if you want to add another one.
Conrm
network
The same SSID may be set on several access points. Check the settings on the access points, and change the SSID.
After moving the printer closer to the access point and removing any obstacles between them, turn o the access point. Wait for about 10 seconds, and then turn it on. If it still does not connect, see the documentation supplied with the access point.
Computer and smart devices that can be connected simultaneously are connected in full in the Wi-Fi Direct (Simple AP) connection. To add another computer or smart device, disconnect one of the connected devices rst. You can simultaneously and the number of connected devices by checking the network status sheet or the printer's control panel.
the number of wireless devices which can be connected
conrm

Printing a Network Status Sheet

You can check the detailed network information by printing it.
1. Load papers.
29
User's Guide
Network Settings
2. Hold down the button on the printer's control panel for at least 10 seconds.
e network status sheet is printed.
Note:
If you release the
button within 10 seconds, a network connection report is printed.

Replacing or Adding New Access Points

If the SSID changes due to the replacement of an access point, or an access point is added and a new network environment is established, re-set the Wi-Fi settings.
Related Information
& “Changing the Connection Method to a Computer” on page 30

Changing the Connection Method to a Computer

Using the installer and re-set up in a dierent connection method.
Setting up from the website
Access the following website, and then enter the product name. Go to Setup, and then start setting up.
http://epson.sn
Setting up using the soware disc (only for the models that come with a soware disc and users with computers
with disc drives.)
Insert the
soware
disc into the computer, and then follow the on-screen instructions.
Selecting Change the Connection Methods
Follow the on-screen instructions until the following screen is displayed.
30
User's Guide
Network Settings
Select Change or re-set the connection method on the Select Soware Installation screen, and then click Next.

Restoring the Network Settings from the Control Panel

You can restore all network settings to their defaults.
1.
Turn the print e r o.
2. While holding down the
Restoration is complete when the
button, press the button until the light and the light ash alternately.
light and the light are o.
31
User's Guide

Loading Paper

Loading Paper

Paper Handling Precautions

Read the instruction sheets supplied with the paper.
Fan and align the edges of the paper before loading. Do not fan or curl photo paper. Doing so may damage the
printable side.
If the paper is curled, atten it or curl it slightly in the opposite direction before loading. Printing on curled
paper may cause paper jams and smears on the printout.
Do not use paper that is wavy, torn, cut, folded, damp, too thick, too thin, or paper that has stickers stuck to it.
Using these types of paper causes paper jams and smears on the printout.
Fan and align the edges of the envelopes before loading. When the stacked envelopes are pued up with air,
press them down to atten them before loading.
Do not use envelopes that are curled or folded. Using these envelopes causes paper jams and smears on the
printout.
Do not use envelopes with adhesive surfaces on the aps or window envelopes.
Avoid using envelopes that are too thin, as they may curl during printing.
Related Information
& “Printer Specications” on page 137
32
User's Guide
Loading Paper

Available Paper and Capacities

Epson recommends using genuine Epson paper to ensure high-quality printouts. e only paper size and paper type available for printing from the control panel are A4 size and plain paper.
Genuine Epson Paper
Media Name Size Loading
Capacity (Sheets)
Epson Bright White Ink Jet Paper
Epson Ultra Glossy Photo Paper
Epson Premium Glossy Photo Paper
Epson Premium Semigloss Photo Paper
Epson Photo Paper Glossy A4, 13×18 cm (5×7 in.),
Epson Matte Paper­Heavyweight
Epson Photo Quality Ink Jet Paper
* For manual 2-sided printing, you can load up to 15 sheets for paper with one side already printed.
A4
A4, 13×18 cm (5×7 in.), 10×15 cm (4×6 in.)
A4, 13×18 cm (5×7 in.), 16:9 wide size (102 x 181 mm), 10×15 cm (4×6 in.)
A4, 10×15 cm (4×6 in.) 10
10×15 cm (4×6 in.)
A4 20
A4 40
*
40
10
10
10
Manual 2­Sided Printing
Borderless Printing
Note:
e availability of paper varies by location. For the latest information on paper available in your area, contact Epson support.
Commercially Available Paper
Media Name Size Loading
Capacity (Number of sheets)
Plain paper
Envelope Envelope #10, Envelope DL,
*1
Letter, A4, B5, A5, A6 Up to the line
indicated by the triangle symbol on the edge
*2
guide.
Legal 1
User Dened
5––
Envelope C6
Manual 2­Sided Printing
Borderless Printing
33
User's Guide
Loading Paper
*1 The loading capacity for pre-punched paper is one sheet.
*2 For manual 2-sided printing, you can load up to 15 sheets for paper with one side already printed.
Related Information
& “Technical Support Web Site” on page 144

List of Paper Types

To obtain optimum printing results, select the paper type that suits the paper.
Media Name
Epson Bright White Ink Jet Paper
Epson Ultra Glossy Photo Paper
Epson Premium Glossy Photo Paper
Epson Premium Semigloss Photo Paper
Epson Photo Paper Glossy
Epson Matte Paper-Heavyweight
Epson Photo Quality Ink Jet Paper
Plain paper
Envelope Envelope
*1 These paper types are compatible with Exif Print and PRINT Image Matching when printed by the printer driver. For more
information, see the documentation that came with the Exif Print or PRINT Image Matching compatible digital camera.
*2 For smart devices, these media types can be selected when printing using Epson iPrint.
*1
*1
*1
*1
*1
*1
*1
*1
Media Type
Plain paper
Epson Ultra Glossy
Epson Premium Glossy
Epson Premium Semigloss
Photo Paper Glossy
Epson Matte
Epson Matte
Plain paper
*2

Loading Paper in the Rear Paper Feed

1. Open the feeder guard, extend the paper support, and then tilt it backwards.
34
User's Guide
Loading Paper
2. Slide the edge guide to the le.
3.
Load paper vertically along the right side of the rear paper feed with the printable side facing up.
Important:
c
Do not load more than the maximum number of sheets specied for the paper. For plain paper, do not load above the line indicated by the triangle symbol on the edge guide.
Envelopes
35
User's Guide
Loading Paper
Pre-punched paper
Note:
Load a single sheet of paper without binding holes at the top or the bottom.
Adjust the print position of your le to avoid printing over the holes.
4. Slide the edge guide to the edge of the paper, and then close the feeder guard.
5. Slide out the output tray.
Note:
Return the remaining paper to its package. If you leave it in the printer, the paper may curl or the print quality may decline.
Related Information
“Paper Handling Precautions” on page 32
&
36
User's Guide
& “Available Paper and Capacities” on page 33
Loading Paper
37
User's Guide

Placing Originals on the Scanner Glass

Placing Originals on the Scanner Glass
Important:
c
When placing bulky originals such as books, prevent exterior light from shining directly onto the scanner glass.
1. Open the document cover.
2. Remove any dust or stains on the scanner glass.
3. Place the original face-down and slide it to the corner mark.
Note:
A range of 1.5 mm from the bottom edge and right edge of the scanner glass is not scanned.
4. Close the cover gently.
Important:
c
Do not apply too much force to the scanner glass or the document cover. Otherwise, they may be damaged.
5.
Remove the originals aer scanning.
Note:
If you leave the originals on the scanner glass for a long time, they may stick to the surface of the glass.
38
User's Guide
Placing Originals on the Scanner Glass

Placing Multiple Photos for Scanning at the Same Tim e

You can scan multiple photos at the same time and save each image, using Photo Mode in Epson Scan 2. Place the photos 4.5 mm away from the horizontal and vertical edges of the scanner glass, and place them at least 20 mm apart from each other. e photos should be larger than 15×15 mm.
Note:
Enable the
umbnail
check box at the top of the preview window.
39
User's Guide

Printing

Printing

Printing from a Computer

Printing Basics - Windows

Note:
See the online help for explanations of the setting items. Right-click an item, and then click Help.
Operations
1. Load paper in the printer.
2. Open the le you want to print.
3. Select Print or Print Setup from the File menu.
4.
Select your printer.
5. Select Preferences or Properties to access the printer driver window.
depending on the application. See the application's help for details.
dier
6. Make the following settings.
Document Size: Select the paper size you loaded in the printer.
40
User's Guide
Printing
Borderless: Select to print with no margins around the image.
In borderless printing, the print data is enlarged slightly more than the paper size so that no margins are printed around the edges of the paper. Click Settings to select the amount of enlargement.
Orientation: Select the orientation you set in the application.
Paper Type: Select the type of paper you loaded.
Quality: Select the print quality.
Selecting High provides higher quality printing, but the printing speed may be slower.
Color: Select Grayscale when you want to print in black or shades of gray.
Note: When printing on envelopes, select Landscape as the Orientation setting.
7. Click OK to close the printer driver window.
8. Click Print.
Related Information
& “Available Paper and Capacities” on page 33 & “Loading Paper in the Rear Paper Feed” on page 34 & “Guide to Windows Printer Driver” on page 97 & “List of Paper Types” on page 34

Printing Basics - Mac OS

Note:
Explanations in the section use TextEdit as an example. Operations and screens dier depending on the application. See the application's help for details.
1.
Load paper in the printer.
2. Open the
you want to print.
le
41
User's Guide
Printing
3. Select Print from the File menu or another command to access the print dialog.
d
If necessary, click Show Details or
to expand the print window.
4. Make the following settings.
Printer: Select your printer.
Presets: Select when you want to use the registered settings.
Paper Size: Select the paper size you loaded in the printer.
When printing with no margins, select a "borderless" paper size.
Orientation: Select the orientation you set in the application.
Note:
If the above setting menus are not displayed, close the print window, select Page Setup from the File menu, and then
make settings.
When printing on envelopes, select landscape orientation.
42
User's Guide
5. Select Print Settings from the pop-up menu.
Printing
Note:
On OS X Mountain Lion or later, if the Print Settings menu is not displayed, the Epson printer driver has not been installed correctly.
Select System Preferences from the printer, and then add the printer again. See the following to add a printer.
http://epson.sn
menu > Printers & Scanners (or Print & Scan, Print & Fax), remove the
6. Make the following settings.
Media Type: Select the type of paper you loaded.
Print Quality: Select the print quality.
Selecting Fine provides higher quality printing, but the printing speed may be slower.
Expansion: Available when selecting a borderless paper size.
In borderless printing, the print data is enlarged slightly more than the paper size so that no margins are printed around the edges of the paper. Select the amount of enlargement.
Grayscale: Select to print in black or shades of gray.
7.
Click Print.
Related Information
& “Available Paper and Capacities” on page 33 & “Loading Paper in the Rear Paper Feed” on page 34
43
User's Guide
Printing
& “Guide to Mac OS Printer Driver” on page 100 & “List of Paper Types” on page 34

Printing on 2-Sides (for Windows only)

e printer driver prints automatically separating even pages and odd pages. When the printer has nished printing the odd pages, ip the paper over following the instructions to print the even pages. You can also print a booklet that can be created by folding the printout.
Note:
is feature is not available for borderless printing.
If you do not use paper that is suitable for 2-sided printing, the print quality may decline and paper jams may occur.
Depending on the paper and the data, ink may bleed through to the other side of the paper.
If EPSON Status Monitor 3 is disabled, access the printer driver, click Extended Settings on the Maintenance tab, and
then select Enable EPSON Status Monitor 3.
2-sided printing may not be available when the printer is accessed over a network or is used as a shared printer.
1. Load paper in the printer.
2.
Open the le you want to print.
3. Access the printer driver window.
4. Select Manual (Long-edge binding) or Manual (Short-edge binding) from 2-Sided Printing on the Main tab.
5. Click Settings, make the appropriate settings, and then click OK.
Note: To print as a booklet, select Booklet.
6. Set the other items on the Main and More Options tabs as necessary, and then click OK.
7. Click Print.
When the rst side has nished printing, a pop-up window is displayed on the computer. Follow the on-screen instructions.
44
User's Guide
Printing
Related Information
& “Available Paper and Capacities” on page 33 & “Loading Paper in the Rear Paper Feed” on page 34 & “Printing Basics - Windows” on page 40

Printing Several Pages on One Sheet

You can print two or four pages of data on a single sheet of paper.
Printing Several Pages on One Sheet - Windows
Note:
is feature is not available for borderless printing.
1. Load paper in the printer.
2.
Open the le you want to print.
3. Access the printer driver window.
4. Select 2-Up or 4-Up as the Multi-Page setting on the Main tab.
5. Click Page Order, make the appropriate settings, and then click OK to close the window.
6. Set the other items on the Main and More Options tabs as necessary, and then click OK.
7. Click Print.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Printing Basics - Windows” on page 40
45
User's Guide
Printing
Printing Several Pages on One Sheet - Mac OS
1. Load paper in the printer.
2. Open the
3. Access the print dialog.
4. Select Layout from the pop-up menu.
5.
Set the number of pages in Pages per Sheet, the Layout Direction (page order), and Border.
6. Set the other items as necessary.
7. Click Print.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Printing Basics - Mac OS” on page 41
you want to print.
le

Printing to Fit the Paper Size

You can print to t the paper size you loaded in the printer.
Printing to Fit the Paper Size - Windows
Note:
is feature is not available for borderless printing.
1. Load paper in the printer.
2. Open the le you want to print.
3. Access the printer driver window.
4. Make the following settings on the More Options tab.
Document Size: Select the paper size you set in the application.
46
User's Guide
Printing
Output Paper: Select the paper size you loaded in the printer.
Fit to Page is selected automatically.
Note: If you want to print a reduced image at the center of the page, select Center.
5. Set the other items on the Main and More Options tabs as necessary, and then click OK.
6. Click Print.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Printing Basics - Windows” on page 40
Printing to Fit the Paper Size - Mac OS
1. Load paper in the printer.
2. Open the le you want to print.
3. Access the print dialog.
4. Select the size of the paper you set in the application as the Paper Size setting.
5.
Select Paper Handling from the pop-up menu.
6. Select Scale to t paper size.
7. Select the paper size you loaded in the printer as the Destination Paper Size setting.
8. Set the other items as necessary.
9. Click Print.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Printing Basics - Mac OS” on page 41
47
User's Guide
Printing

Printing Multiple Files Together (for Windows Only)

Job Arranger Lite allows you to combine several print job. You can specify the print settings for combined les, such as layout, print order, and orientation.
1.
Load paper in the printer.
2. Open the le you want to print.
3. Access the printer driver window.
4.
Select Job Arranger Lite on the Main tab.
5. Click OK to close the printer driver window.
6. Click Print.
created by
les
dierent
applications and print them as a single
e Job Arranger Lite window is displayed and the print job is added to the Print Project.
7. With the Job Arranger Lite window opened, open the le that you want to combine with the current le, and then repeat steps 3 to 6.
Note: If you close the Job Arranger Lite window, the unsaved Print Project is deleted. To print later, select Save from the
File menu.
To open a Print Project saved in Job Arranger Lite, click Job Arranger Lite on the printer driver's Maintenance
tab. Next, select Open from the File menu to select the le. e extension of the saved les is "ecl".
8. Select the Layout and Edit menus in Job Arranger Lite to edit the Print Project as necessary. See the help of Job Arranger Lite for details.
9. Select Print from the File menu.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Printing Basics - Windows” on page 40
48
User's Guide
Printing

Printing One Image on Multiple Sheets to Create a Poster (for Windows Only)

is feature allows you to print one image on multiple sheets of paper. You can create a larger poster by taping them together.
Note:
is feature is not available for borderless printing.
Load paper in the printer.
1.
2. Open the
3. Access the printer driver window.
4. Select 2x1 Poster, 2x2 Poster, 3x3 Poster, or 4x4 Poster from Multi-Page on the Main tab.
5. Click Settings, make the appropriate settings, and then click OK.
Note: Print Cutting Guides allows you to print a cutting guide.
6. Set the other items on the Main and More Options tabs as necessary, and then click OK.
7.
Click Print.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Printing Basics - Windows” on page 40
you want to print.
le
49
User's Guide
Printing
Making Posters Using Overlapping Alignment Marks
Here is an example of how to make a poster when 2x2 Poster is selected, and Overlapping Alignment Marks is selected in Print Cutting Guides.
1. Prepare Sheet 1 and Sheet 2. Cut o the margins of Sheet 1 along the vertical blue line through the center of the top and bottom cross marks.
50
User's Guide
Printing
2. Place the edge of Sheet 1 on top of Sheet 2 and align the cross marks, then temporarily tape the two sheets together from the back.
3.
Cut the taped sheets in two along the vertical red line through the alignment markers (this time, the line to the le of the cross marks).
51
User's Guide
Printing
4. Tape the sheets together from the back.
5. Repeat steps 1 to 4 to tape Sheet 3 and Sheet 4 together.
6. Cut o the margins of Sheet 1 and Sheet 2 along the horizontal blue line through the center of the le and right side cross marks.
52
User's Guide
Printing
7. Place the edge of Sheet 1 and Sheet 2 on top of Sheet 3 and Sheet 4 and align the cross marks, and then temporarily tape them together from the back.
53
User's Guide
Printing
8. Cut the taped sheets in two along the horizontal red line through the alignment markers (this time, the line above the cross marks).
9. Tape the sheets together from the back.
54
User's Guide
Printing
10. Cut o the remaining margins along the outer guide.

Printing Using Advanced Features

is section introduces a variety of additional layout and printing features available on the printer driver.
Related Information
“Windows Printer Driver” on page 96
&
“Mac OS Printer Driver” on page 99
&
Adding a Printing Preset to Print Easily
If you create your own preset of frequently used print settings on the printer driver, you can print easily by selecting the preset from the list.
55
User's Guide
Printing
Windows
To add your own preset, set items such as the Document Size and Paper Type on the Main or More Options tab, and then click Add/Remove Presets in Printing Presets.
Note:
To delete an added preset, click Add/Remove Presets, select the preset name you want to delete from the list, and then delete it.
Mac OS
Access the print dialog. To add your own preset, set items such as the Paper Size and Media Type, and then save the current settings as the preset in the Presets setting.
Note:
To delete an added preset, click Presets > Show Presets, select the preset name you want to delete from the list, and then delete it.
Printing a Reduced or Enlarged Document
You can reduce or enlarge the size of a document by a specic percentage.
Windows
Note:
is feature is not available for borderless printing.
Set the Document Size on the More Options tab. Select Reduce/Enlarge Document, Zoom to, and then enter a percentage.
Mac OS
Note:
Operations dier depending on the application. See the application's help for details.
Select Page Setup (or Print) from the File menu. Select the printer from Format For, select the paper size, and then enter a percentage in Scale. Close the window, and then print following the basic printing instructions.
Adjusting the Print Color
You can adjust the colors used in the print job.
PhotoEnhance produces sharper images and more vivid colors by automatically adjusting the contrast, saturation, and brightness of the original image data.
Note:
ese adjustments are not applied to the original data.
PhotoEnhance adjusts the color by analyzing the location of the subject.
the subject by reducing, enlarging, cropping, or rotating the image, the color may change unexpectedly. Selecting the borderless setting also changes the location of the subject resulting in changes in color. If the image is out of focus, the tone may be unnatural. If the color is changed or becomes unnatural, print in a mode other than PhotoEnhance.
erefore,
if you have changed the location of
Windows
Select the method of color correction from Color Correction on the More Options tab.
56
User's Guide
Printing
If you select Automatic, the colors are automatically adjusted to match the paper type and print quality settings. If you select Custom and click Advanced, you can make your own settings.
Mac OS
Access the print dialog. Select Color Matching from the pop-up menu, and then select EPSON Color Controls. Select Color Options from the pop-up menu, and then select one of the available options. Click the arrow next to Advanced Settings and make the appropriate settings.
Printing a Watermark (for Windows Only)
You can print a watermark such as "Condential" on your printouts. You can also add your own watermark.
Note:
is feature is not available with borderless printing.
Click Watermark Features on the More Options tab, and then select a watermark. Click Settings to change details such as the density and position of the watermark.
Printing a Header and Footer (for Windows Only)
You can print information such as a user name and printing date as headers or footers.
Click Watermark Features in the More Options tab, and then select Header/Footer. Click Settings and select necessary items from the drop-down list.

Printing Photos Using Epson Easy Photo Print

Epson Easy Photo Print lets you lay out and print photos easily on various types of paper. See the application's help for details.
Note:
By printing on genuine Epson photo paper, the ink quality is maximized and the printouts are vivid and clear.
To perform borderless printing using a commercially available application, make the following settings.
Create the image data to fully t the paper size and if a margin setting is available in the application you are
using, set the margin to 0 mm.
Enable the borderless printing setting in the printer driver.
Related Information
& “Epson Easy Photo Print” on page 103 & “Installing Applications” on page 107
57
User's Guide
Printing

Printing from Smart Devices

Using Epson iPrint

Epson iPrint is an application that allows you to print photos, documents, and web pages from a smart device such as a smartphone or tablet. You can use local print, printing from a smart device that is connected to the same wireless network as your printer, or remote print, printing from a remote location over the Internet. To use remote print, register your printer in the Epson Connect service.
Related Information
& “Epson Connect Service” on page 94
Installing Epson iPrint
You can install Epson iPrint on your smart device from the following URL or QR code.
http://ipr.to/a
Printing Using Epson iPrint
Start Epson iPrint from your smart device and select the item you want to use from the home screen.
58
User's Guide
Printing
e following screens are subject to change without notice. e contents may vary depending on the product.
A
B
C
D
E
F
G
Home screen displayed when the application is started.
Displays information on how to setup the printer and a FAQ.
Displays the screen where you can select the printer and make printer settings. Once you have selected the printer, you do not need to select it again from the next time.
Select what you want to print such as photos and documents.
Displays the screen to make print settings such as paper size and paper type.
Displays photos and documents you selected.
Starts printing.
Note:
To print from the document menu using iPhone, iPad, and iPod touch running iOS, start Epson iPrint aer transferring the document you want to print using the le sharing function in iTunes.

Canceling Printing

Note:
In Windows, you cannot cancel a print job from the computer once it has been completely sent to the printer. In this case,
cancel the print job by using the printer's control panel.
When printing several pages from Mac OS, you cannot cancel all of the jobs by using the control panel. In this case, cancel
the print job from the computer.
If you have sent a print job from Mac OS X v10.6.8 through the network, you may not be able to cancel printing from the
computer. In this case, cancel the print job by using the printer's control panel.
59
User's Guide
Printing

Canceling Printing - Printer Button

Press the y button to cancel the print job in progress.

Canceling Printing - Windows

1. Access the printer driver window.
2. Select the Maintenance tab.
3. Click Print Queue.
4. Right-click on the job you want to cancel and then select Cancel.
Related Information
& “Windows Printer Driver” on page 96

Canceling Printing - Mac OS

1.
Click the printer icon in the Dock.
2. Select the job you want to cancel.
3. Cancel the job.
OS X Mountain Lion or later
Click
Mac OS X v10.6.8 to v10.7.x
Click Delete.
next to the progress meter.
60
User's Guide

Copying

Copying

Copying Basics

You can copy on A4-size paper at the same magnication. Margins with a width of 3 mm appear around the edges of the paper regardless of whether or not the original has margins around the edges of the paper. When copying originals smaller than A4-size, margins will be wider than 3 mm depending on the position where you place the original.
Load A4-size paper in the printer.
1.
2. Place the originals.
3. Press the
Note:
e color, size, and border of the copied image are slightly dierent from the original.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Placing Originals on the Scanner Glass” on page 38
or button.

Making Multiple Copies

You can make multiple copies at a time. You can specify up to 20 copies. Margins with a width of 3 mm appear around the edges of the paper.
1. Load the same number of sheets of A4-size paper as the number of copies you want to copy.
2. Place the originals.
3. Press the
or button the same number of times as the number of copies you want to make. For
example, if you want to make 10 copies in color, press the button 10 times.
Note:
Press the button within one second to change the number of copies. If the button is pressed aer one second, the number of copies is set and copying starts.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Placing Originals on the Scanner Glass” on page 38
61
User's Guide

Scanning

Scanning

Scanning from the Control Panel

You can save the scanned image in PDF format to a computer which is connected to the printer with a USB cable.
Important:
c
Make sure you have installed Epson Scan 2 and Epson Event Manager on your computer before using this feature.
1. Place the originals.
2. Press the
Note:
You can change the scan settings such as the scanning size, folder to save, or save format, by using Epson Event
Manager.
e color, size, and border of the scanned image will not be exactly the same as the original.
Related Information
& “Placing Originals on the Scanner Glass” on page 38 & “Epson Event Manager” on page 103
button and the button simultaneously.

Scanning from a Computer

Scanning Using Epson Scan 2

You can scan by using the scanner driver "Epson Scan 2". See the Epson Scan 2 help for an explanation of each setting item.
Related Information
& “Epson Scan 2 (Scanner Driver)” on page 102
Scanning Documents (Document Mode)
Using Document Mode in Epson Scan 2, you can scan originals using detailed settings that are suitable for text documents.
1. Place the originals.
2. Start Epson Scan 2.
3. Select Document Mode from the Mode list.
62
User's Guide
Scanning
4. Make the following settings on the Main Settings tab.
Document Size: Select the size of the original you placed.
/ (Original orientation) buttons: Select the set orientation of the original you placed.
Depending on the size of the original, this item may be set automatically and cannot be changed.
Image Type: Select the color for saving the scanned image.
Resolution: Select the resolution.
Note:
e Document Source setting is xed as Scanner Glass. You cannot change this setting.
If you set Add or edit pages aer scanning, you can scan additional originals aer scanning the original. In
addition, if you set the Image Format as PDF or Multi-TIFF, you can save the scanned images as one le.
5. Make other scan settings if necessary.
You can preview the scanned image by clicking the Preview button. e preview window opens, and the
previewed image is displayed.
63
User's Guide
Scanning
On the Advanced Settings tab, you can make detailed image adjustment settings that are suitable for text
documents, such as the following.
Remove Background: Remove the background of the originals.
Text Enhancement: You can make blurred letters in the original clear and sharp.
Auto Area Segmentation: You can make letters clear and images smooth when performing black and
white scanning for a document that contains images.
Color Enhance: You can enhance the color specied for the scanned image, and then save it in grayscale
or black and white.
Brightness: You can adjust the brightness for the scanned image.
Contrast: You can adjust the contrast for the scanned image.
Gamma: You can adjust the gamma (brightness of the intermediate range) for the scanned image.
reshold
: You can adjust the border for monochrome binary (black and white).
Unsharp Mask: You can enhance and sharpen the outlines of the image.
Descreening: You can remove moiré patterns (web-like shadows) that appear when scanning printed
papers such as a magazine.
Edge Fill: You can remove the shadow created around the scanned image.
Dual Image Output (Windows Only): You can scan once and save two images with dierent output
settings at the same time.
Note:
e items may not be available depending on other settings you made.
64
User's Guide
6. Set the le saving settings.
Scanning
Image Format: Select the save format from the list.
You can make detailed settings for each save format except BITMAP and PNG. Select Options from the list aer selecting the save format.
File Name:
You can change settings for the le name by selecting Settings from the list.
Folder: Select the save folder for the scanned image from the list.
You can select another folder or create a new folder by selecting Select from the list.
7. Click Scan.
Related Information
& “Placing Originals on the Scanner Glass” on page 38
Conrm
the save
name displayed.
le
Scanning Photos or Pictures (Photo Mode)
Using Photo Mode in Epson Scan 2, you can scan originals with wide variety of image adjustment features that are suitable for photos or pictures.
1. Place the originals.
By placing multiple originals on the scanner glass, you can scan them all at the same time. Make sure there is a gap of at least 20 mm between the originals.
65
User's Guide
Scanning
2. Start Epson Scan 2.
3. Select Photo Mode from the Mode list.
4. Make the following settings on the Main Settings tab.
Image Type: Select the color for saving the scanned image.
Resolution: Select the resolution.
Note:
Document Source setting is
e (Reective means originals which are not transparent, for example ordinary papers or photos.) You cannot change these settings.
as Scanner Glass, and the Document Type setting is
xed
xed
as
Reective
.
66
User's Guide
Scanning
5. Click Preview.
e preview window opens, and the previewed images are displayed as thumbnails.
Note:
To preview the entire scanned area, clear the
6.
Conrm the preview, and make image adjustment settings on the Advanced Settings tab if necessary.
umbnail
check box at the top of the preview widow.
67
User's Guide
Scanning
You can adjust the scanned image using detailed settings that are suitable for photos or pictures, such as the following.
Brightness: You can adjust the brightness for the scanned image.
Contrast: You can adjust the contrast for the scanned image.
Saturation: You can adjust the saturation (color vividness) for the scanned image.
Unsharp Mask: You can enhance and sharpen the outlines of the scanned image.
Color Restoration: You can correct images that have faded to return them to their original colors.
Backlight Correction: You can lighten scanned images that are dark due to backlight.
Descreening: You can remove moiré patterns (web-like shadows) that appear when scanning printed papers
such as a magazine.
Dust Removal: You can remove dust on the scanned image.
Note:
e items may not be available depending on other settings you made.
Depending on the original, the scanned image may not be adjusted correctly.
When multiple thumbnails are created, you can adjust the image quality for each thumbnail. Depending on the
adjustment items, you can adjust the quality of scanned images all together by selecting multiple thumbnails.
7. Set the le saving settings.
Image Format: Select the save format from the list.
You can make detailed settings for each save format except BITMAP and PNG. Select Options from the list aer selecting the save format.
File Name: Conrm the save le name displayed.
You can change settings for the le name by selecting Settings from the list.
68
User's Guide
Scanning
Folder: Select the save folder for the scanned image from the list.
You can select another folder or create a new folder by selecting Select from the list.
8. Click Scan.
Related Information
&
“Placing Originals on the Scanner Glass” on page 38
& “Placing Multiple Photos for Scanning at the Same Time” on page 39

Scanning from Smart Devices

Epson iPrint is an application that allows you to scan photos and documents from a smart device, such as a smartphone or tablet, that is connected to the same wireless network as your printer. You can save the scanned data on a smart device or to Cloud services, send it by email, or print it.

Installing Epson iPrint

You can install Epson iPrint on your smart device from the following URL or QR code.
http://ipr.to/a

Scanning Using Epson iPrint

Start Epson iPrint from your smart device and select the item you want to use from the home screen.
69
User's Guide
Scanning
e following screens are subject to change without notice.
A
B
C
D
E
F
G
H
I
J
Home screen displayed when the application is started.
Displays information on how to setup the printer and a FAQ.
Displays the screen where you can select the printer and make printer settings. Once you have selected the printer, you do not need to select it again from the next time.
Displays the scanning screen.
Displays the screen where you can make scan settings such as resolution.
Displays scanned images.
Starts scanning.
Displays the screen where you can save scanned data to a smart device or Cloud services.
Displays the screen where you can send scanned data by email.
Displays the screen where you can print scanned data.
70
User's Guide

Replacing Ink Cartridges

Replacing Ink Cartridges

Checking the Ink Levels

You can check the approximate ink levels from the computer.

Checking the Ink Levels - Windows

1. Access the printer driver window.
2. Click Ink Levels on the Main tab.
Note:
If EPSON Status Monitor 3 is disabled, the ink levels are not displayed. Click Extended Settings on the Maintenance tab, and then select Enable EPSON Status Monitor 3.
Related Information
“Windows Printer Driver” on page 96
&

Checking the Ink Levels - Mac OS

1.
Select System Preferences from the then select the printer.
2.
Click Options & Supplies > Utility > Open Printer Utility.
3.
Click EPSON Status Monitor.
menu > Printers & Scanners (or Print & Scan, Print & Fax), and

Ink Cartridge Codes

Epson recommends the use of genuine Epson ink cartridges. Epson cannot guarantee the quality or reliability of non-genuine ink. e use of non-genuine ink may cause damage that is not covered by Epson’s warranties, and under certain circumstances, may cause erratic printer behavior. Information about non-genuine ink levels may not be displayed.
following are the codes for genuine Epson ink cartridges.
e
Icon BK: Black C: Cyan M: Magenta Y: Yellow
Strawberry
29
29XL
29
*
29XL
*
29
29XL
29
*
29XL
*
71
User's Guide
Replacing Ink Cartridges
* "XL" indicates a large cartridge.
Note:
Not all cartridges are available in all regions.
Ink cartridge codes may vary by location. For the correct codes in your area, contact Epson support.
For users in Europe, visit the following website for information on Epson's ink cartridge yields.
http://www.epson.eu/pageyield
Related Information
& “Technical Support Web Site” on page 144

Ink Cartridge Handling Precautions

Read the following instructions before replacing ink cartridges.
Handling precautions
Store ink cartridges at normal room temperature and keep them away from direct sunlight.
Epson recommends using the ink cartridge before the date printed on the package.
For best results, use up ink cartridge within six months of opening the package.
For best results, store ink cartridge packages with their bottom down.
Aer bringing an ink cartridge inside from a cold storage site, allow it to warm up at room temperature for at
least three hours before using it.
Do not open the ink cartridge package until you are ready to install it in the printer. e cartridge is vacuum
packed to maintain its reliability. If you leave a cartridge unpacked for a long time before using it, normal printing may not be possible.
Be careful not to break the hooks on the side of the ink cartridge when you remove it from the package.
You must remove the yellow tape from the cartridge before installing it; otherwise, print quality may decline or
you may not be able to print. Do not remove or tear the label on the cartridge; this can cause leakage.
72
User's Guide
Replacing Ink Cartridges
Do not remove the transparent seal from the bottom of the cartridge; otherwise, the cartridge may become
unusable.
Do not touch the sections shown in the illustration. Doing so may prevent normal operation and printing.
Install all ink cartridges; otherwise you cannot print.
Do not replace ink cartridges with the power o. Do not move the print head by hand; otherwise, you may
damage the printer.
Aer installing the ink cartridge, the power light continues to ash while the printer is charging ink. Do not
turn o the printer during ink charging. If the ink charging is incomplete, you may not be able to print.
Do not leave the printer with the ink cartridges removed or do not turn o the printer during cartridge
replacement. Otherwise, ink remaining in the print head nozzles will dry out and you may not be able to print.
If you need to remove an ink cartridge temporarily, make sure you protect the ink supply area from dirt and
dust. Store the ink cartridge in the same environment as the printer, with the ink supply port facing down or sideways. Do not store ink cartridges with the ink supply port facing up. Because the ink supply port is equipped with a valve designed to contain the release of excess ink, there is no need to supply your own covers or plugs.
Removed ink cartridges may have ink around the ink supply port, so be careful not to get any ink on the
surrounding area when removing the cartridges.
is printer uses ink cartridges equipped with a green chip that monitors information such as the amount of
remaining ink for each cartridge. expended, you can still use the cartridge aer reinserting it back into the printer. However, when reinserting a cartridge, some ink may be consumed to guarantee printer performance.
For maximum ink eciency, only remove an ink cartridge when you are ready to replace it. Ink cartridges with
low ink status may not be used when reinserted.
means that even if the cartridge is removed from the printer before it is
is
73
User's Guide
Replacing Ink Cartridges
To ensure you receive premium print quality and to help protect your print head, a variable ink safety reserve
remains in the cartridge when your printer indicates to replace the cartridge. e yields quoted for you do not include this reserve.
Although the ink cartridges may contain recycled materials, this does not
performance.
Specications and appearance of the ink cartridge are subject to change without prior notice for improvement.
Do not disassemble or remodel the ink cartridge, otherwise you may not be able to print normally.
You cannot use the cartridges that came with the printer for the replacement.
Quoted yields may vary depending on the images that you are printing, the paper type that you are using, the
frequency of your prints and environmental conditions such as temperature.
Ink consumption
To maintain optimum print head performance, some ink is consumed from all cartridges during maintenance
operations such as print head cleaning. Ink may also be consumed when you turn on the printer.
When printing in monochrome or grayscale, color inks instead of black ink may be used depending on the
paper type or print quality settings. is is because a mixture of color inks is used to create black.
ink in the ink cartridges supplied with your printer is partly used during initial setup. In order to produce
e high quality printouts, the print head in your printer will be fully charged with ink. is one-o process consumes a quantity of ink and therefore these cartridges may print fewer pages compared to subsequent ink cartridges.
printer function or
aect

Replacing Ink Cartridges (When Ink Light is On or Flashing)

Caution:
!
Be careful not to trap your hand or ngers when opening or closing the scanner unit. Otherwise you may be injured.
Note:
You can continue printing while the
If you replace the ink cartridges while copying, the originals may move out of place. Press the
replace the originals.
B
(ink) light is ashing. However, prepare new ink cartridges as soon as possible.
y
button to cancel and
74
User's Guide
Replacing Ink Cartridges
1. Open the scanner unit with the document cover closed.
2. Operate the printer's buttons to move the ink cartridge holder.
Note:
Replace the cartridge that stops at the
icon every time you press the y button.
icon. If there are more expended ink cartridges, the cartridge moves to the
If the B light is on (one or more ink cartridges are expended)
y
Press the position. Go to the next step.
If the
Hold the in this position. Go to the next step.
Note:
To cancel ink cartridge replacement, keep the ink cartridges installed and turn o the printer.
button. e ink cartridge holder moves to the icon. You cannot replace cartridges in this
B
light ashes (one or more ink cartridges are running low)
y
button down until the ink cartridge holder moves to the icon. You cannot replace cartridges
75
User's Guide
Replacing Ink Cartridges
3. Press the y button again.
e ink cartridge holder moves to the replacement position.
4. When replacing the black ink cartridge, gently shake the new black ink cartridge four or ve times and then remove it from its package. When replacing other color cartridges, remove the new color cartridges from their package without shaking.
Important:
c
Do not shake cartridges
5. Remove only the yellow tape.
opening the package, as they may leak.
aer
76
User's Guide
Important:
c
Do not touch the sections shown in the illustration. Doing so may prevent normal operation and printing.
Replacing Ink Cartridges
6. Squeeze the tab on the ink cartridge and pull it straight up. If you cannot remove the ink cartridge, pull it rmly.
7.
Insert the new ink cartridge, and then press it down rmly.
77
User's Guide
8. Close the scanner unit.
Replacing Ink Cartridges
9. Press the y button.
Ink charging starts.
Important:
c
Aer installing the ink cartridge, the power light continues to ash while the printer is charging ink. Do not turn o the printer during ink charging. Charging takes approximately two minutes. If the ink charging is incomplete, you may not be able to print.
Note:
If the
B
light does not turn o, try removing and reinserting the ink cartridge.
Related Information
& “Ink Cartridge Codes” on page 71 & “Ink Cartridge Handling Precautions” on page 72
Replacing Ink Cartridges (When Ink Light is O)
You can replace cartridges even if there is still ink in the cartridge.
Caution:
!
Be careful not to trap your hand or
when opening or closing the scanner unit. Otherwise you may be injured.
ngers
78
User's Guide
Replacing Ink Cartridges
1. Open the scanner unit with the document cover closed.
2. Hold down the y button until the ink cartridge holder starts moving.
ink cartridge holder moves to the replacement position.
e
Note:
To cancel ink cartridge replacement, keep the ink cartridges installed and turn o the printer.
3. When replacing the black ink cartridge, gently shake the new black ink cartridge four or ve times and then remove it from its package. When replacing other color cartridges, remove the new color cartridges from their package without shaking.
79
User's Guide
Important:
c
Do not shake cartridges aer opening the package, as they may leak.
4. Remove only the yellow tape.
Replacing Ink Cartridges
Important:
c
Do not touch the sections shown in the illustration. Doing so may prevent normal operation and printing.
80
User's Guide
Replacing Ink Cartridges
5. Squeeze the tab on the ink cartridge and pull it straight up. If you cannot remove the ink cartridge, pull it rmly
6.
Insert the new ink cartridge, and then press it down rmly.
7.
Close the scanner unit.
8.
Press the
Ink charging starts.
y
button.
81
User's Guide
Replacing Ink Cartridges
Important:
c
Aer installing the ink cartridge, the power light continues to ash while the printer is charging ink. Do not turn o the printer during ink charging. Charging takes approximately two minutes. If the ink charging is incomplete, you may not be able to print.
Note:
If the
B
light does not turn o, try removing and reinserting the ink cartridge.
Related Information
“Ink Cartridge Codes” on page 71
&
“Ink Cartridge Handling Precautions” on page 72
&

Temporarily Printing with Black Ink

When color ink is expended and black ink still remains when printing from a computer, you can use the following settings to continue printing for a short time using only black ink.
Type of paper: plain papers, Envelope
Color: Grayscale
Borderless: Not selected
EPSON Status Monitor 3: Enabled (for Windows only)
Because this feature is only available for approximately ve days, replace the expended ink cartridge as soon as possible.
Note:
If EPSON Status Monitor 3 is disabled, access the printer driver, click Extended Settings on the Maintenance tab, and
then select Enable EPSON Status Monitor 3.
e available period varies depending on the usage conditions.
82
User's Guide
Replacing Ink Cartridges

Temporarily Printing with Black Ink - Windows

1. When the following window is displayed, cancel printing.
Note:
If you cannot cancel printing from the computer, cancel using the printer's control panel.
2. Access the printer driver window.
3. Clear Borderless on the Main tab.
4. Select plain papers or Envelope as the Paper Type setting on the Main tab.
83
User's Guide
Replacing Ink Cartridges
5. Select Grayscale.
6. Set the other items on the Main and More Options tabs as necessary, and then click OK.
7.
Click Print.
8. Click Print in Black in the window displayed.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Printing Basics - Windows” on page 40

Temporarily Printing with Black Ink - Mac OS

Note: To use this feature through a network, connect with Bonjour.
1. Click the printer icon in the Dock.
2. Cancel the job.
Note:
If you cannot cancel printing from the computer, cancel using the printer's control panel.
3.
Select System Preferences from the then select the printer. Click Options & Supplies > Options (or Driver).
4. Select On as the Permit temporary black printing setting.
5. Access the print dialog.
6. Select Print Settings from the pop-up menu.
7.
Select any paper size except for a borderless size as the Paper Size setting.
8.
Select plain papers or Envelope as the Media Type setting.
9. Select Grayscale.
10. Set the other items as necessary.
menu > Printers & Scanners (or Print & Scan, Print & Fax), and
11. Click Print.
Related Information
& “Canceling Printing” on page 59 & “Loading Paper in the Rear Paper Feed” on page 34 & “Printing Basics - Mac OS” on page 41
84
User's Guide
Replacing Ink Cartridges

Conserving Black Ink when the Black Ink Is Low (for Windows Only)

When black ink is running low and there is enough color ink remaining, you can use a mixture of color inks to create black. You can continue printing while preparing a replacement black ink cartridge.
is feature is only available when you select the following settings in the printer driver.
Paper Type: plain papers
Quality: Standard
EPSON Status Monitor 3: Enabled
Note:
If EPSON Status Monitor 3 is disabled, access the printer driver, click Extended Settings on the Maintenance tab, and
then select Enable EPSON Status Monitor 3.
Composite black looks slightly dierent from pure black. In addition, the print speed is reduced.
To maintain the quality of the print head, black ink is also consumed.
Options Description
Yes Select to use a mixture of color inks to create black. This window is displayed the next time
you print a similar job.
No Select to continue using the remaining black ink. This window is displayed the next time
you print a similar job.
Disable this feature Select to continue using the remaining black ink. This window is not displayed until you
replace the black ink cartridge and it runs low again.
85
User's Guide

Maintaining the Printer

Maintaining the Printer

Checking and Cleaning the Print Head

If the nozzles are clogged, the printouts become faint, there is visible banding, or unexpected colors appear. When print quality has declined, use the nozzle check feature and check if the nozzles are clogged. If the nozzles are clogged, clean the print head.
Important:
c
Do not open the scanner unit or turn o the printer during head cleaning. If the head cleaning is incomplete, you
may not be able to print.
Because print head cleaning uses some ink, clean the print head only if quality declines.
When ink is low, you may not be able to clean the print head. Replace the ink cartridge rst.
If print quality has not improved aer repeating nozzle check and head cleaning about four times, wait for at
least six hours without printing, and then run the nozzle check again and repeat the head cleaning if necessary. We recommend to turn o the printer. If print quality has still not improved, contact Epson support.
To prevent the print head from drying out, do not unplug the printer while the power is on.

Checking and Cleaning the Print Head - Printer Buttons

1.
Load A4-size plain paper in the printer.
2. Press the
3. Turn the printer on while holding the ashes.
e nozzle check pattern is printed.
Note:
It may take some time to start printing the nozzle check pattern.
P
button to turn o the printer.
y
button down, and then release the buttons when the power light
86
User's Guide
Maintaining the Printer
4. Examine the printed pattern. If there are broken lines or missing segments as shown in the "NG" pattern, the print head nozzles may be clogged. Go to the next step. If you cannot see any broken lines or missing segments as in the following "OK" pattern, the nozzles are not clogged. Print head cleaning is not necessary.
5. Hold the y button down for three seconds until the power light starts
Print head cleaning starts.
Note:
It may take some time to start print head cleaning.
6. When the power light stops ashing, print a nozzle check pattern again. Repeat cleaning and printing the pattern until all lines are printed completely.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34
ashing.

Checking and Cleaning the Print Head - Windows

1.
Load A4-size plain paper in the printer.
2. Access the printer driver window.
3. Click Nozzle Check on the Maintenance tab.
4.
Follow the on-screen instructions.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Windows Printer Driver” on page 96

Checking and Cleaning the Print Head - Mac OS

1. Load A4-size plain paper in the printer.
87
User's Guide
Maintaining the Printer
2. Select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then select the printer.
3. Click Options & Supplies > Utility > Open Printer Utility.
4. Click Nozzle Check.
5. Follow the on-screen instructions.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34

Aligning the Print Head

If you notice a misalignment of vertical lines or blurred images, align the print head.

Aligning the Print Head - Windows

1. Load A4-size plain paper in the printer.
2. Access the printer driver window.
3. Click Print Head Alignment on the Maintenance tab.
4. Follow the on-screen instructions.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34 & “Windows Printer Driver” on page 96

Aligning the Print Head - Mac OS

1. Load A4-size plain paper in the printer.
2. Select System Preferences from the then select the printer.
3. Click Options & Supplies > Utility > Open Printer Utility.
4. Click Print Head Alignment.
5. Follow the on-screen instructions.
Related Information
& “Loading Paper in the Rear Paper Feed” on page 34
menu > Printers & Scanners (or Print & Scan, Print & Fax), and
88
User's Guide
Maintaining the Printer

Cleaning the Paper Path

When the printouts are smeared or
Important:
scued,
clean the roller inside.
c
Do not use tissue paper to clean the inside of the printer. e print head nozzles may be clogged with lint.
1. Make sure there is no dust or stains on the scanner glass and the document cover.
2. Load A4-size plain paper in the printer.
3. Start copying without placing an original on the scanner glass.
e paper is ejected from the printer.
4. Repeat this procedure until the paper is not smeared with ink.
Related Information
& “Copying Basics” on page 61

Cleaning the Scanner Glass

When the copies or scanned images are smeared, clean the scanner glass.
Important:
c
Never use alcohol or thinner to clean the printer. ese chemicals can damage the printer.
1. Open the document cover.
89
User's Guide
Maintaining the Printer
2. Use a so, dry, clean cloth to clean the surface of the scanner glass.
Important:
c
If the glass surface is stained with grease or some other hard-to-remove material, use a small amount of
glass cleaner and a so cloth to remove it. Wipe o all remaining liquid.
Do not press the glass surface too hard.
Be careful not to scratch or damage the surface of the glass. A damaged glass surface can decrease the scan
quality.

Cleaning the Translucent Film

When the printout is not improved aer aligning the print head or cleaning the paper path, the translucent lm inside the printer may be smeared.
Items required:
Cotton swabs (several)
Water with a few drops of detergent (2 to 3 drops of detergent in 1/4 cup of tap water)
Light for checking smears
Important:
c
Do not use cleaning liquid other than water with a few drops of detergent.
1. Turn o the printer by pressing the P button.
2. Open the scanner unit.
90
User's Guide
Maintaining the Printer
3. Check if the translucent lm is smeared. Smears are easier to see if you use a light.
If there are smears (such as
marks or grease) on the translucent
nger
(A), go to the next step.
lm
A: Translucent
B: Rail
Important:
lm
c
Be careful not to touch the rail (B). Otherwise, you may not be able to print. Do not wipe o the grease on the rail, because this is necessary for operations.
4. Moisten a cotton swab with the water with a few drops of detergent so that it is not dripping water, and then wipe the smeared part.
91
User's Guide
Maintaining the Printer
Important:
c
Wife o the smear gently. If you press the cotton swab too hard to the lm, the springs of the lm may be dislocated and the printer may be damaged.
5. Use a new dry cotton swab to wipe the lm.
Important:
c
Do not leave any bers on the lm.
Note:
To prevent the smear from spreading, frequently replace the cotton swab with a new one.
6. Repeat steps 4 and 5 until the lm is not smeared.
7. Visually check that the lm is not smeared.

Saving Power

e printer enters sleep mode or turns o automatically if no operations are performed for a set period. You can adjust the time before power management is applied. Any increase will aect the product's energy eciency. Please consider the environment before making any change.

Saving Power - Windows

1. Access the printer driver window.
2. Click Printer and Option Information on the Maintenance tab.
3. Select the time period before the printer enters sleep mode as the Sleep Timer setting, and click Send. To make the printer turn o automatically, select the time period as the Power O Timer setting, and click Send.
4. Click OK.
Related Information
& “Windows Printer Driver” on page 96

Saving Power - Mac OS

1.
Select System Preferences from the then select the printer.
2. Click Options & Supplies > Utility > Open Printer Utility.
3.
Click Printer Settings.
menu > Printers & Scanners (or Print & Scan, Print & Fax), and
92
User's Guide
Maintaining the Printer
4. Select the time period before the printer enters sleep mode as the Sleep Timer setting, and click Apply. To make the printer turn o automatically, select the time period as the Power O Timer setting, and click Apply.
93
User's Guide

Network Service and Software Information

Network Service and Software Information
is section introduces the network services and soware products available for your printer from the Epson website or the supplied soware disc.

Epson Connect Service

By using Epson Connect service available on the Internet, you can print from your smartphone, tablet PC, or laptop, anytime and practically anywhere.
e features available on the Internet are as follows.
Email Print Epson iPrint remote print Scan to Cloud Remote Print Driver
✓✓ –
See the Epson Connect portal website for details.
https://www.epsonconnect.com/
http://www.epsonconnect.eu (Europe only)
Web Cong
We b smart device. You can conrm the printer status or change the network service and printer settings. To use the Web Cong, connect the printer and the computer or device to the same network.
Note:
e following browsers are supported.
Windows XP or later
is an application that runs in a web browser, such as Internet Explorer and Safari, on a computer or
Cong
OS Browser
Internet Explorer 8 or later, Firefox
*
, Chrome
*
Mac OS X v10.6.8 or later
*
iOS
Android 2.3 or later Default browser
Chrome OS
*Use the latest version.
*
*
Safari
, Firefox*, Chrome
*
Safari
Default browser
94
*
User's Guide
Network Service and Software Information
Running Web Cong on a Web Browser
1. Check the printer's IP address.
Hold down the printer's IP address.
2.
Launch a Web browser from a computer or smart device, and then enter the printer's IP address.
Format:
IPv4: http://the printer's IP address/
IPv6: http://[the printer's IP address]/
Examples:
IPv4: http://192.168.100.201/
IPv6: http://[2001:db8::1000:1]/
Note:
Using the smart device, you can also run Web Cong from the maintenance screen of Epson iPrint.
Related Information
& “Printing Using Epson iPrint” on page 58
button for at least 10 seconds to print the network status sheet, and then check the
Running Web Cong on Windows
When connecting a computer to the printer using WSD, follow the steps below to run Web Cong.
1. Access the devices and printers screen in Windows.
Wi ndows 10
Right-click the start button or press and hold it, and then select Control Panel > Vie w dev i ces a n d printe r s in Hardware and Sound.
Windows 8.1/Windows 8
Select Desktop > Settings > Control Panel > View d e vi c e s and p r in ters in Hardware and Sound (or Hardware).
Wi ndows 7
Click the start button, and select Control Panel > Vi e w de v ice s a nd pri n t e rs in Hardware and Sound.
Wi ndows Vista
Click the start button, and select Control Panel > Printers in Hardware and Sound.
2. Right-click on your printer and select Properties.
3. Select the We b Service tab and click the URL.
Running Web Cong on Mac OS
1. Select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then select the printer.
95
User's Guide
Network Service and Software Information
2. Click Options & Supplies> Show Printer Webpage.

Windows Printer Driver

e printer driver controls the printer according to the commands from an application. Making settings on the printer driver provides the best printing results. You can also check the status of the printer or keep it in top operating condition using the printer driver utility.
Note: You can change the language of the printer driver. Select the language you want to use from the Language setting on the Maintenance tab.
Accessing the printer driver from applications
To make settings that apply only to the application you are using, access from that application.
Select Print or Print Setup from the File menu. Select your printer, and then click Preferences or Properties.
Note:
Operations dier depending on the application. See the application's help for details.
Accessing the printer driver from the control panel
To make settings that apply to all of the applications, access from the control panel.
Wi n d o w s 1 0
Right-click the start button or press and hold it, and then select Control Panel > Vi e w de v ices a n d p rint e r s in Hardware and Sound. Right-click on your printer, or press and hold it and then select Printing preferences.
Windows 8.1/Windows 8
Select Desktop > Settings > Control Panel > Vi e w de v i ces a n d p rint e r s in Hardware and Sound. Right-click on your printer, or press and hold it and then select Printing preferences.
Wi n d o w s 7
Click the start button, and select Control Panel > Vi e w de v ice s a nd pri n t e rs in Hardware and Sound. Right- click on your printer and select Printing preferences.
Windows Vista
Click the start button, and select Control Panel > Printers in Hardware and Sound. Right-click on your printer and select Select printing preferences.
Wi n d o w s X P
Click the start button, and select Control Panel > Printers and Other Hardware > Printers and Faxes. Right- click on your printer and select Printing preferences.
Accessing the printer driver from the printer icon on the task bar
e printer icon on the desktop task bar is a shortcut icon allowing you to quickly access the printer driver.
If you click the printer icon and select Printer Settings, you can access the same printer settings window as the one displayed from the control panel. If you double-click this icon, you can check the status of the printer.
Note: If the printer icon is not displayed on the task bar, access the printer driver window, click Monitoring Preferences on the Maintenance tab, and then select Register the shortcut icon to the taskbar.
96
User's Guide
Network Service and Software Information
Starting the utility
Access the printer driver window. Click the Maintenance tab.

Guide to Windows Printer Driver

Help is available in the printer driver for Windows. To view explanations of the setting items, right-click on each item, and then click Help.
Main Tab
You can make basic settings for printing, such as paper type or paper size.
You can also make settings for printing both sides of the paper or printing multiple pages on one sheet.
97
User's Guide
Network Service and Software Information
More Options Tab
You can select additional layout and printing options such as changing the size of a printout or making color corrections.
98
User's Guide
Network Service and Software Information
Maintenance Tab
You can run maintenance features such as nozzle check and print head cleaning, and by starting EPSON Status Monitor 3, you can check printer status and error information.

Making Operation Settings for the Windows Printer Driver

You can make settings such as enabling EPSON Status Monitor 3.
1.
Access the printer driver window.
2.
Click Extended Settings on the Maintenance tab.
3. Make the appropriate settings, and then click OK.
See the online help for explanations of the setting items.
Related Information
& “Windows Printer Driver” on page 96

Mac OS Printer Driver

e printer driver controls the printer according to the commands from an application. Making settings on the printer driver provides the best printing results. You can also check the status of the printer or keep it in top operating condition using the printer driver utility.
99
User's Guide
Network Service and Software Information
Accessing the printer driver from applications
Click Page Setup or Print on the File menu of your application. If necessary, click Show Details (or
d
) to expand
the print window.
Note:
Depending on the application being used, Page Setup may not be displayed in the File menu, and the operations for displaying the print screen may dier. See the application's help for details.
Starting the utility
Select System Preferences from the
menu > Printers & Scanners (or Print & Scan, Print & Fax), and then
select the printer. Click Options & Supplies > Utility > Open Printer Utility.

Guide to Mac OS Printer Driver

Print dialog
Switch the pop-up menu on the center of the screen to show more items.
Pop-up Menu Descriptions
Layout You can select a layout for printing several pages on one sheet or select to print a border.
Color Matching You can adjust the colors.
Paper Handling You can reduce or enlarge the size of the print job to automatically t the paper size you
loaded.
Cover Page
Print Settings You can make the basic print settings such as paper type and print quality.
You can select a cover for your documents. Select Cover Page Type to set the contents to be printed on the cover.
