Epson C11CE42301A0 User Manual

User's Guide

CMP0044-00 EN

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Copyrights and Trademarks

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. The information contained herein is designed only for use with this Epson printer. Epson is not responsible for any use of this information as applied to other printers.

Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.

Seiko Epson Corporation shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Epson Approved Products by Seiko Epson Corporation.

, Epson UltraChrome®, EPSON EXCEED YOUR VISION, EXCEED YOUR VISION and their logos are registered trademarks or trademarks of

EPSON

Seiko Epson Corporation.

Microsoft

Apple

Intel

PowerPC

Adobe States and/or other countries.

General Notice: Other product names used herein are for identification purposes only and may be trademarks of their respective owners. Epson disclaims any and all rights in those marks.

, Windows®, Windows Vista® and PowerPoint® are registered trademarks of Microsoft Corporation.

, Macintosh®, and Mac OS® are registered trademarks of Apple Inc.

is a registered trademark of Intel Corporation.

is a registered trademark of International Business Machines Corporation.

, Photoshop®, Lightroom®, and Adobe® RGB (1998) are either registered trademarks or trademarks of Adobe Systems Incorporated in the United

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Contents

Copyrights and Trademarks

Introduction

Important Safety Instructions................. 6

The symbols on the product ................ 6

When choosing a place for this product. . . . . . . . 6

When setting up this product............... 6

When using this product................... 7

When handling the ink cartridges............ 7

Note on this Guide......................... 7

Meaning of Symbols...................... 7

Illustrations............................ 7

Operating System Versions................. 7

Printer Parts.............................. 9

Front................................. 9

Back................................. 10

Roll paper adapter....................... 12

Control panel.......................... 12

Screen View........................... 14

Features................................ 16

Realizing High Resolution................. 16

Superior Ease of Use..................... 17

Various Options........................ 17

Notes on Usage and Storage.................. 18

Installation space....................... 18

Notes when using the printer............... 18

Notes when not using the printer............ 19

Notes on handling ink cartridges............ 19

Notes on handling paper.................. 20

Introducing the Software.................... 22

Software on the Disc..................... 22

Software on the Website.................. 25

Remote Manager........................ 26

Starting and Closing Software................ 26

Starting.............................. 26

Closing............................... 26

Uninstalling Software...................... 27

Windows............................. 27

Mac OS X............................. 27

Basic Operations

Loading and Removing the Roll Paper.......... 28

Loading Roll Paper...................... 28

Cutting the roll paper.................... 31

Removing Roll Paper..................... 32

Loading and Removing Cut Sheets............. 34

Loading Cut Sheets A3 Size or Larger and

Poster Board........................... 34

Loading Cut Sheets Smaller than A3 Size...... 36

Removing Cut Sheets.................... 36

Checking and Setting the Paper Type........... 37

Checking the Paper Type.................. 37

Paper Type Settings...................... 38

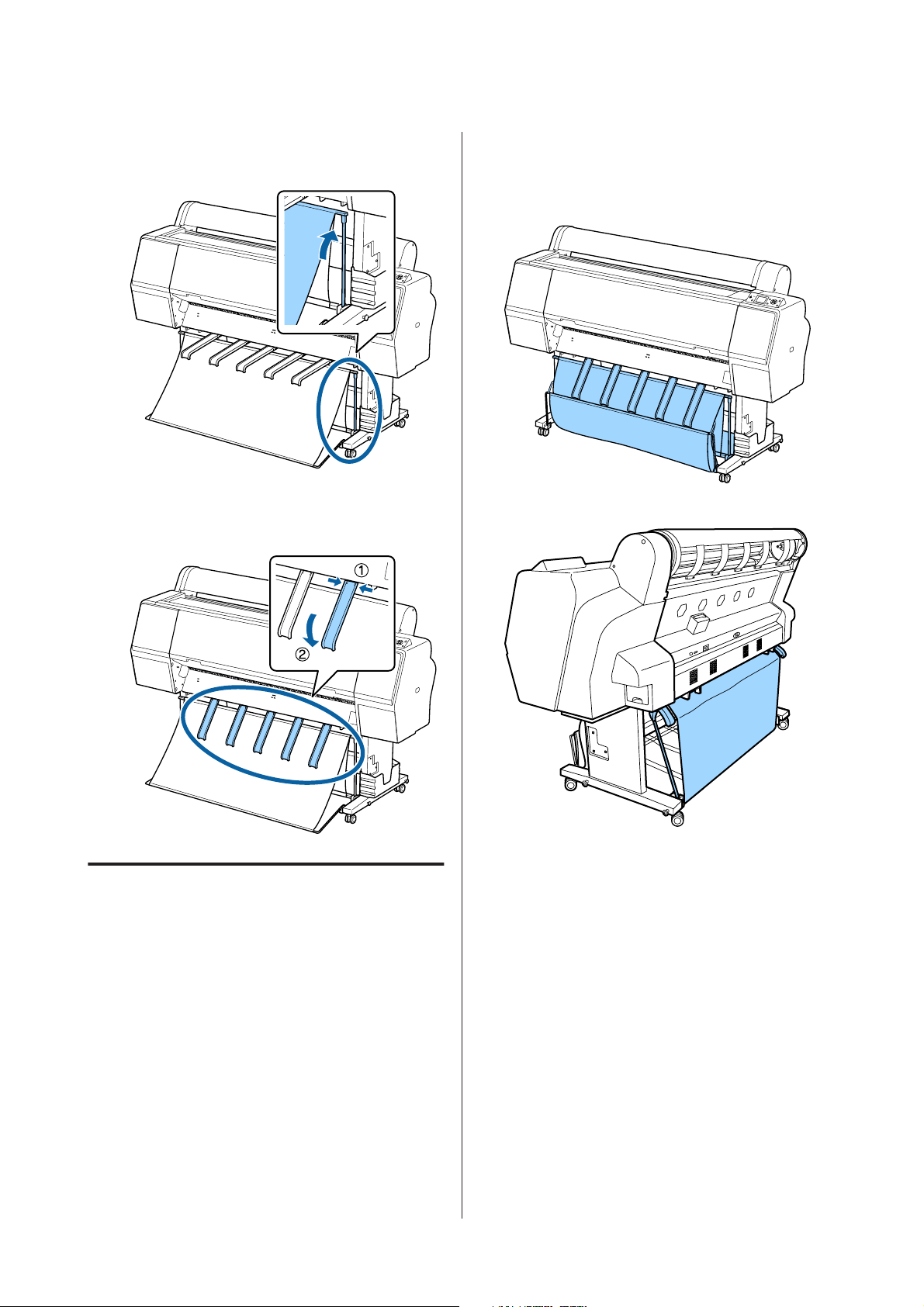

Using the Paper Basket..................... 39

Ejecting Paper to the Rear................. 39

Ejecting Paper to the Front................ 41

Storing............................... 42

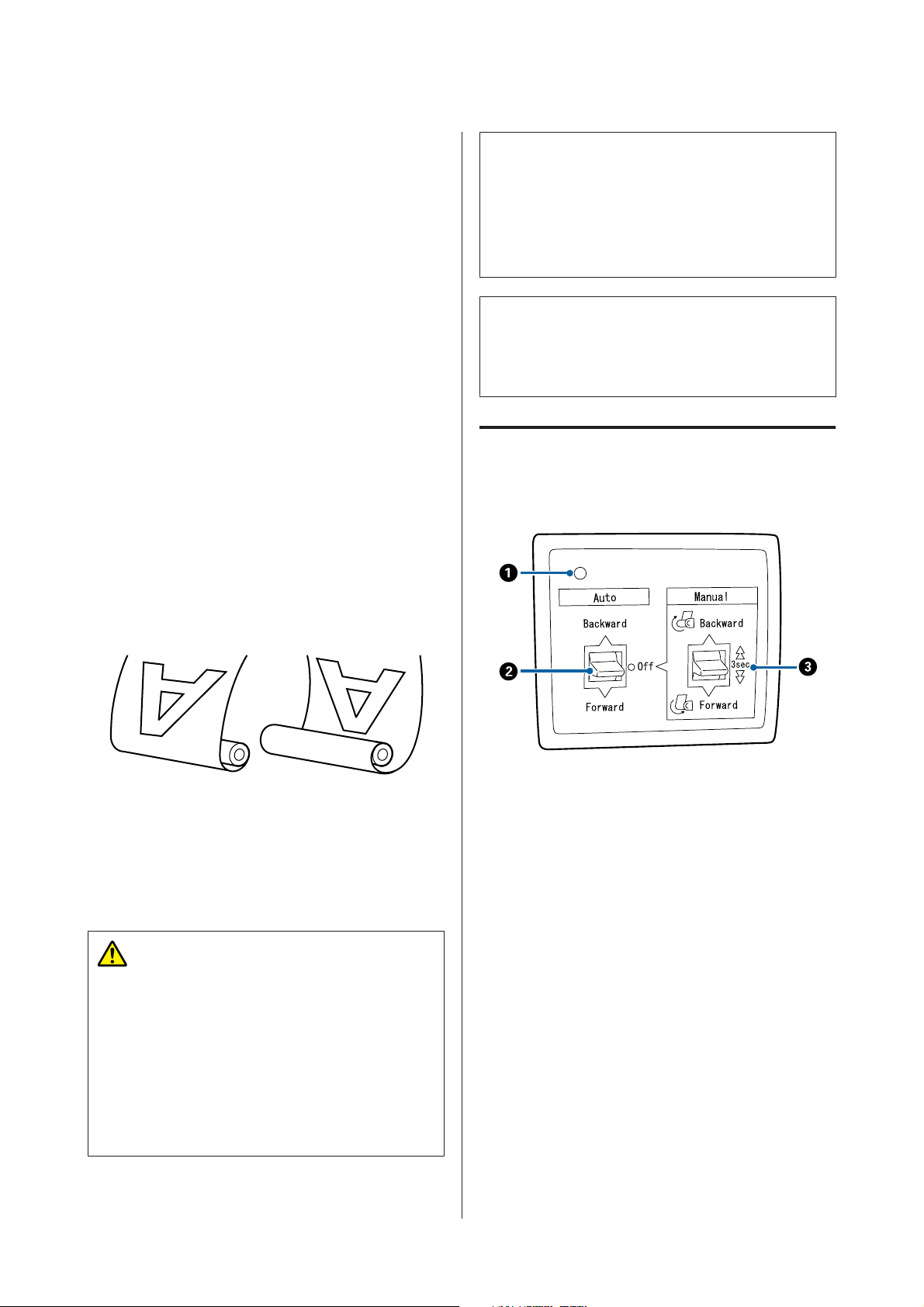

Using the Auto Take-up Reel Unit (SC-P9000

Series/SC-P8000 Series Only)................. 43

Using the Control Panel.................. 43

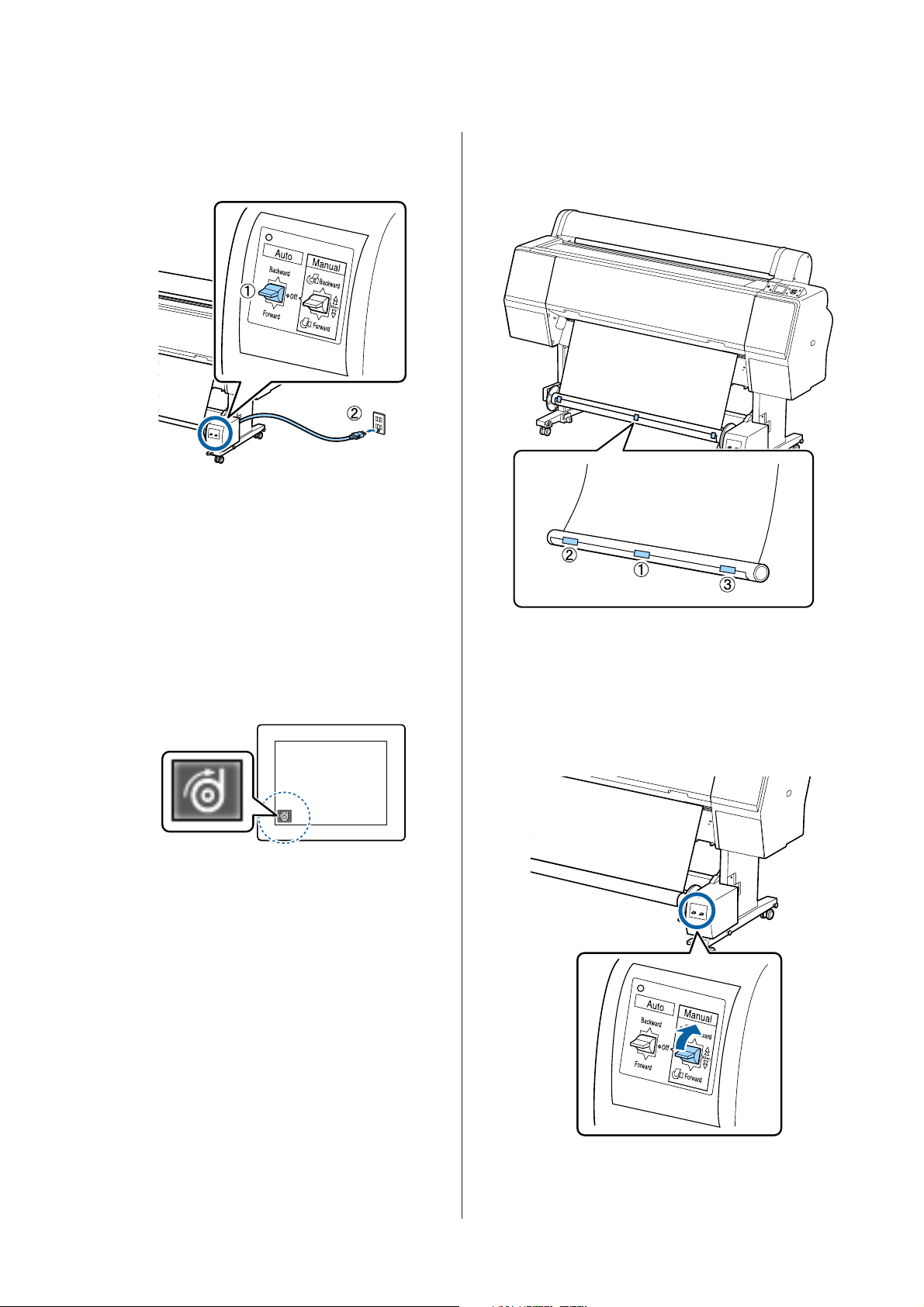

Attaching the Paper...................... 44

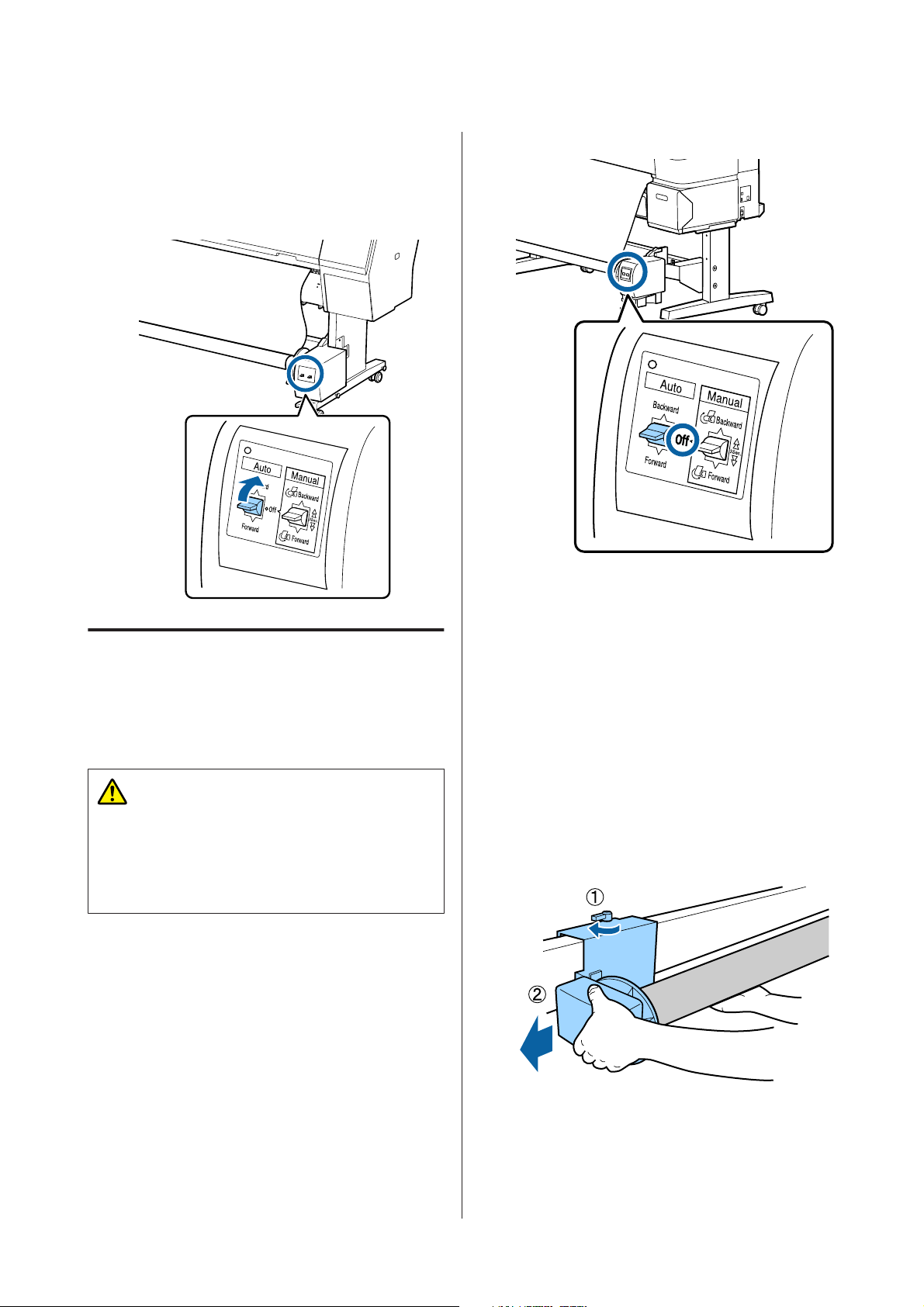

Removing Paper from the Auto Take-up Reel

Unit................................. 47

Basic Printing Methods..................... 48

Printing (Windows)..................... 48

Printing (Mac OS X)..................... 49

Canceling Printing (Windows)............. 51

Canceling Printing (Mac OS X)............. 52

Canceling Printing (from the Printer)........ 52

Printable area............................ 52

Roll Paper Printable Area................. 52

Cut Sheets Printable Area................. 53

Changing the Type of Black Ink............... 54

Switching Automatically.................. 54

Switching Manually...................... 55

Turning Off the Power Using Power Off Timer

...................................... 56

Using the Optional Hard Disk Unit

Function Summary........................ 57

Extended functions...................... 57

Print Job Management................... 57

Data on a Hard Disk..................... 58

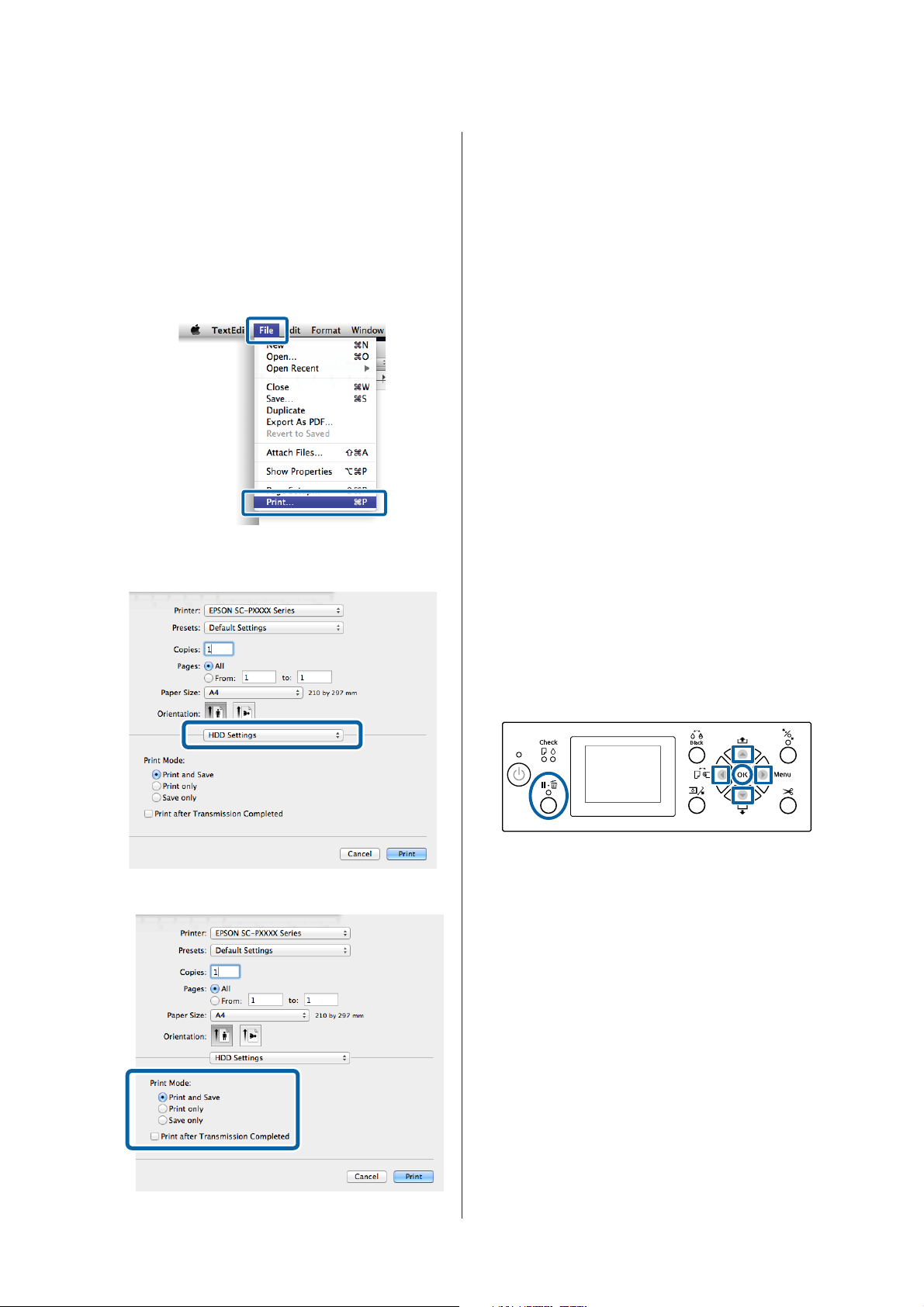

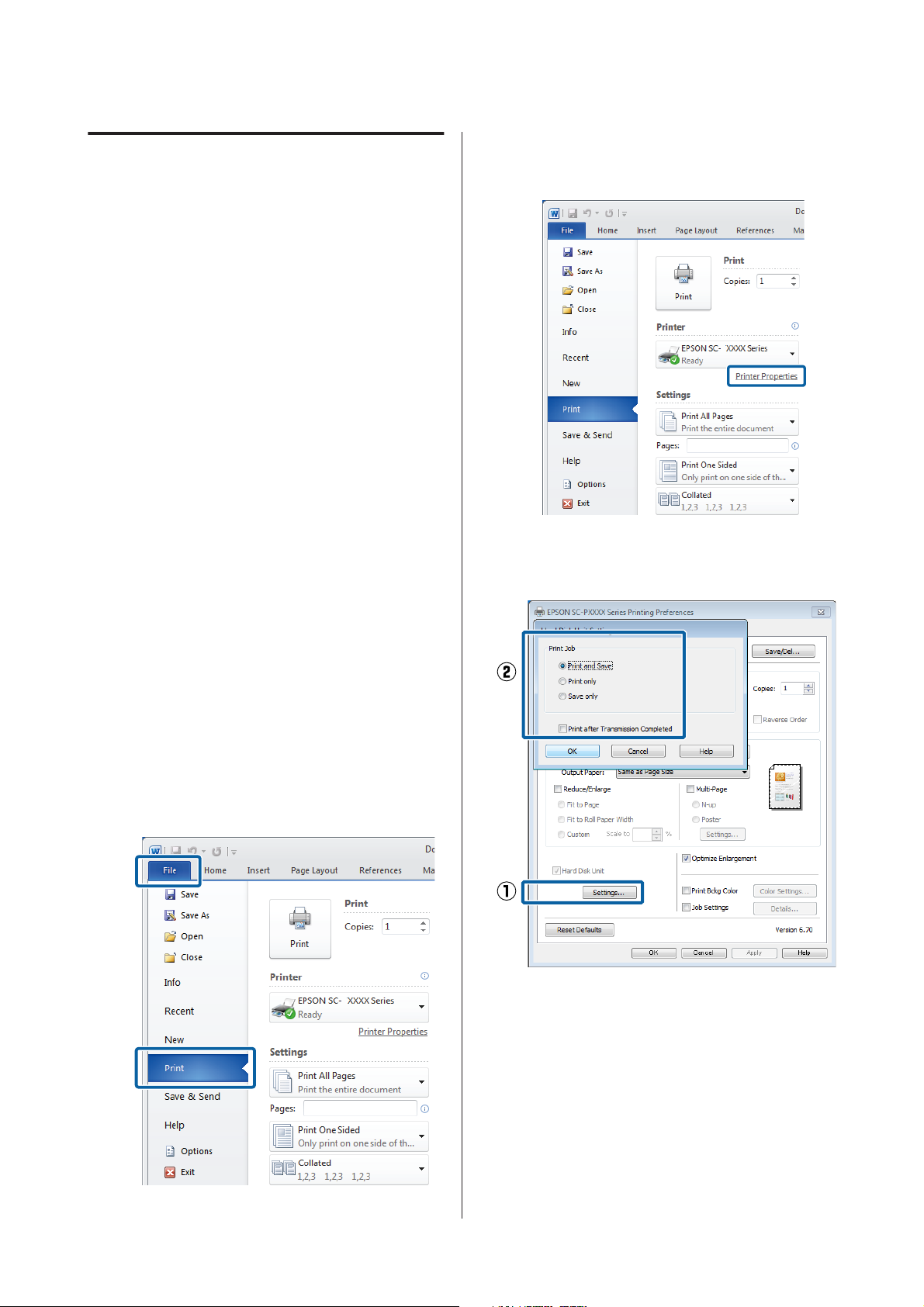

Saving Print Jobs.......................... 58

Viewing and Printing Saved Print Jobs.......... 59

Using the Printer Driver(Windows)

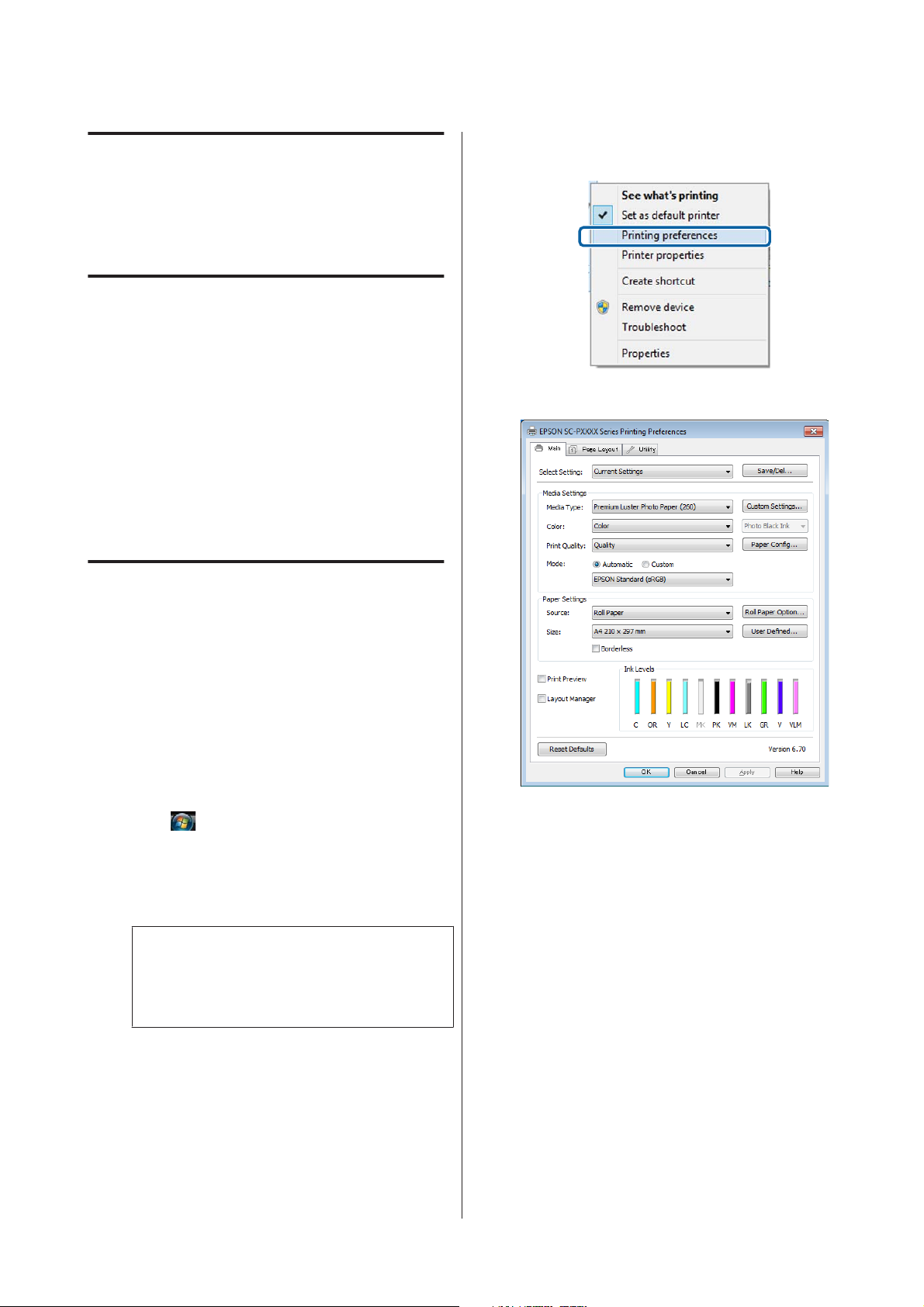

Displaying the Settings Screen................ 61

With the Start button.................... 61

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Contents

Displaying Help.......................... 62

Click the Help Button to Display............ 62

Right-click on the item you want to check and

display............................... 62

Customizing the Printer Driver............... 63

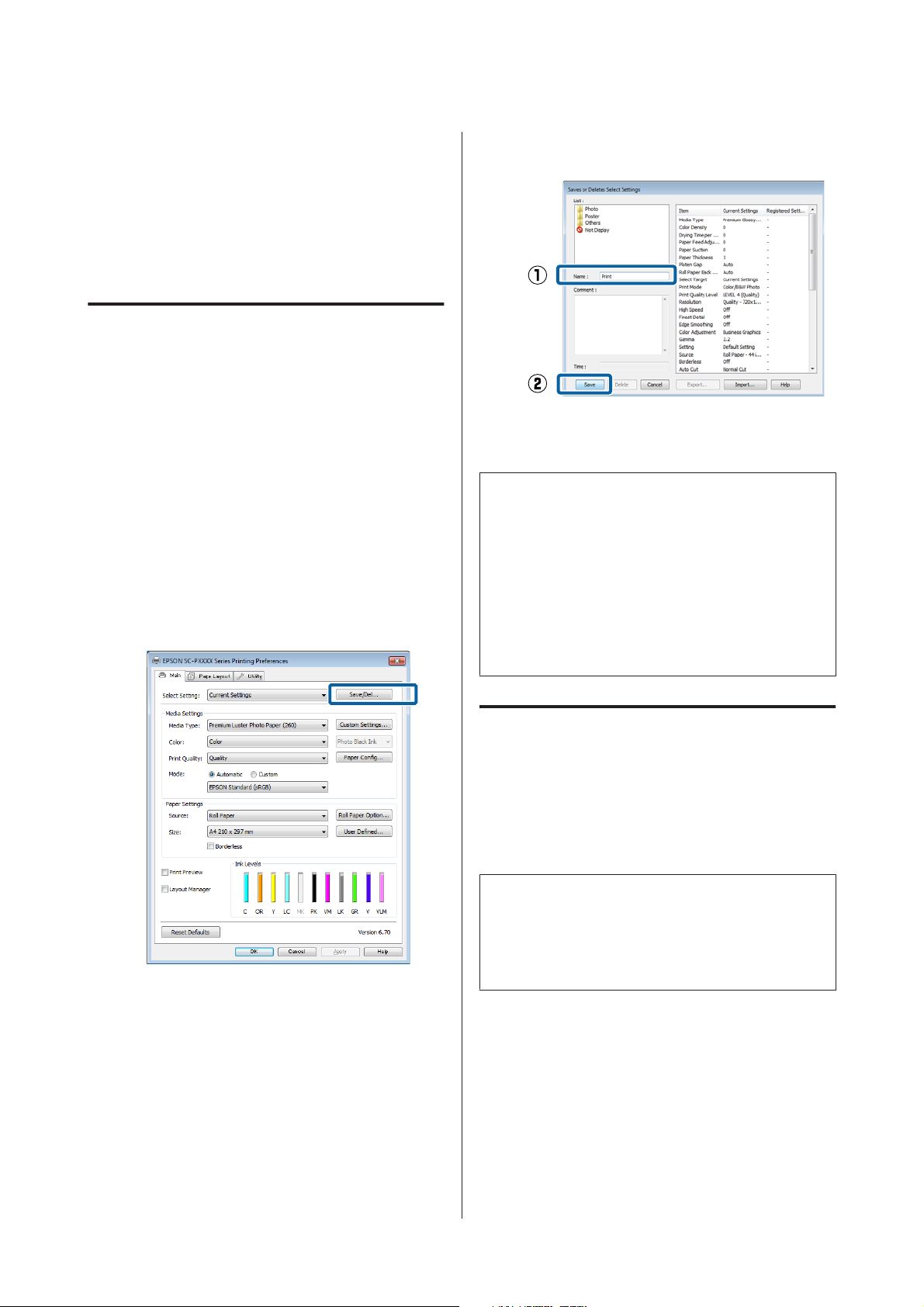

Saving various settings as your Select Settings

.................................... 63

Adding a Paper Type .................... 63

Rearranging display items................. 65

Summary of the Utility Tab.................. 66

Using the Printer Driver(Mac OS X)

Displaying the Settings Screen................ 68

Displaying Help.......................... 68

Using Presets............................ 68

Saving to Presets........................ 68

Deleting from Presets.................... 69

Using Epson Printer Utility 4................. 69

Starting Epson Printer Utility 4............. 69

Epson Printer Utility 4 Functions............ 69

Printing Varieties

Auto Color Adjustment by PhotoEnhance

(Windows Only).......................... 71

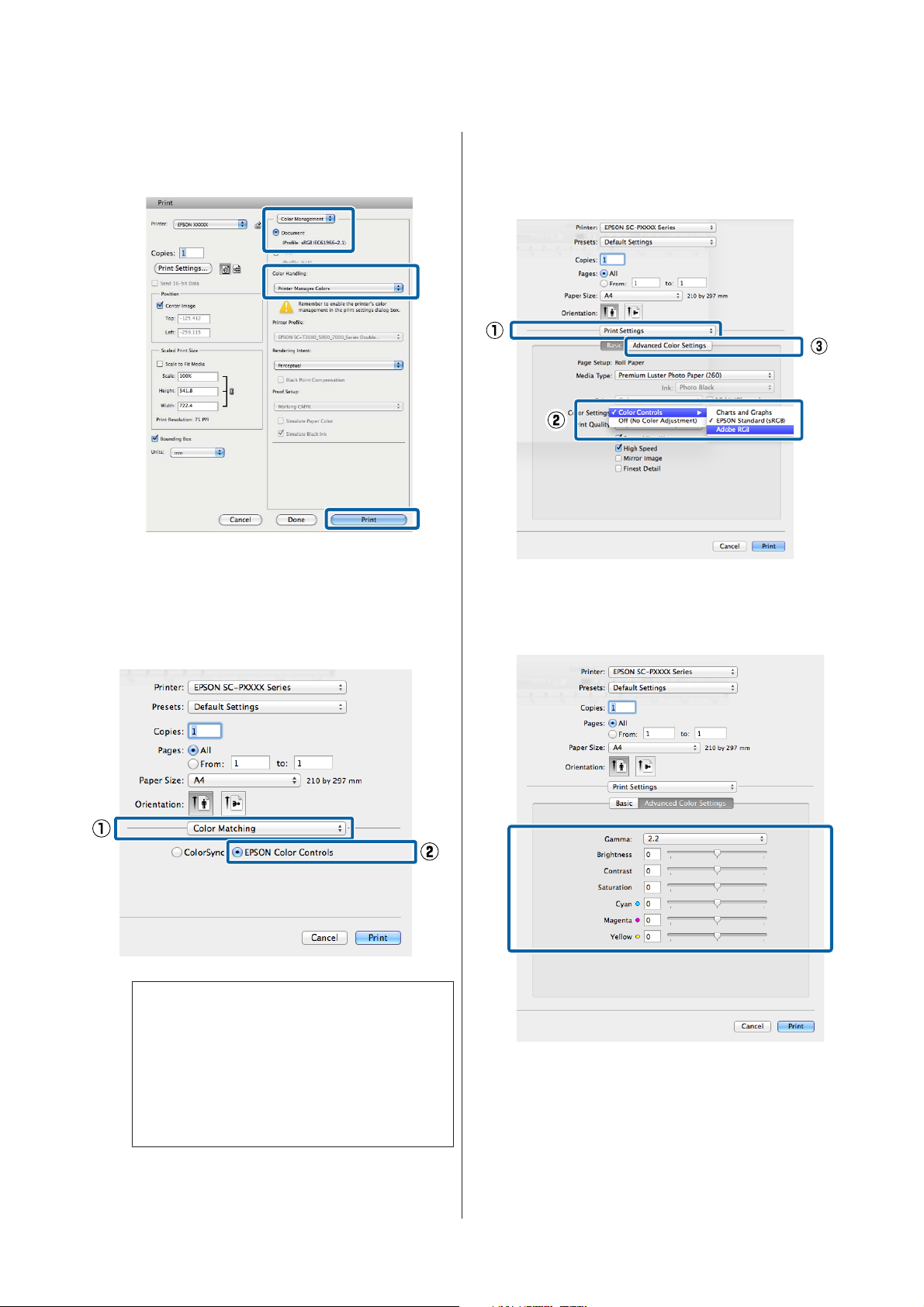

Correct color and print..................... 72

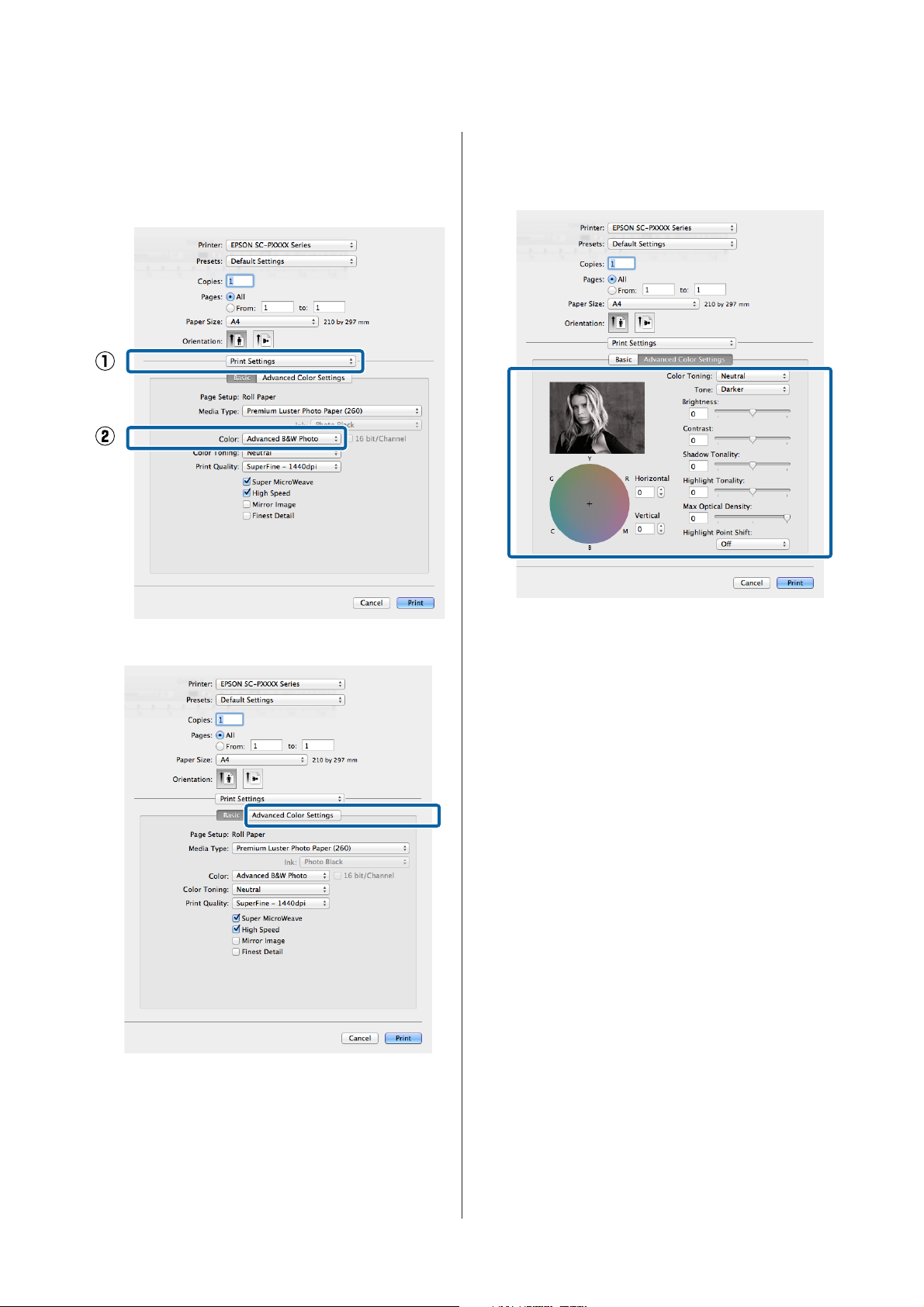

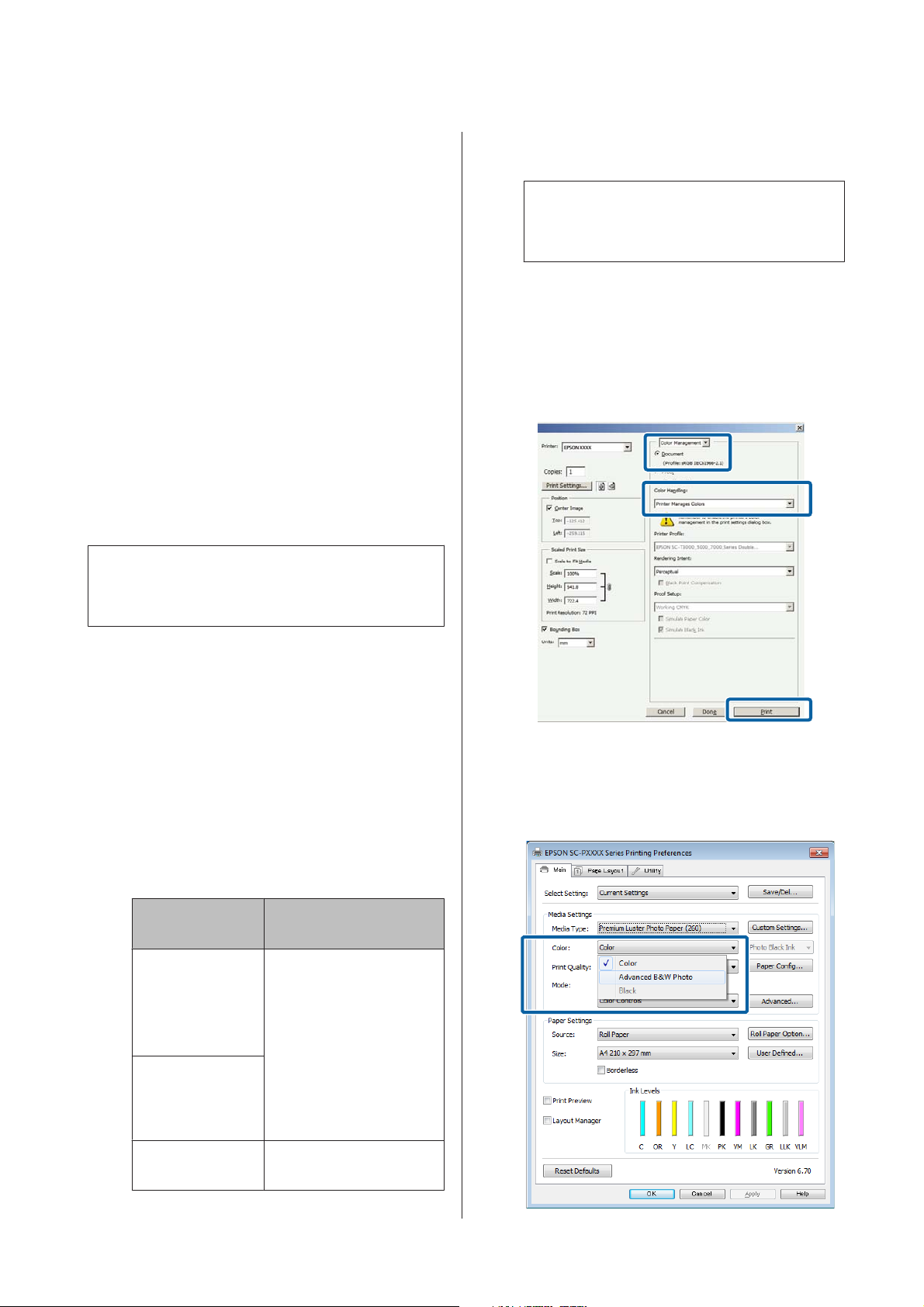

Printing Black and White Photos.............. 75

Borderless Printing........................ 78

Types of Borderless Printing Methods........ 78

Supported Paper........................ 78

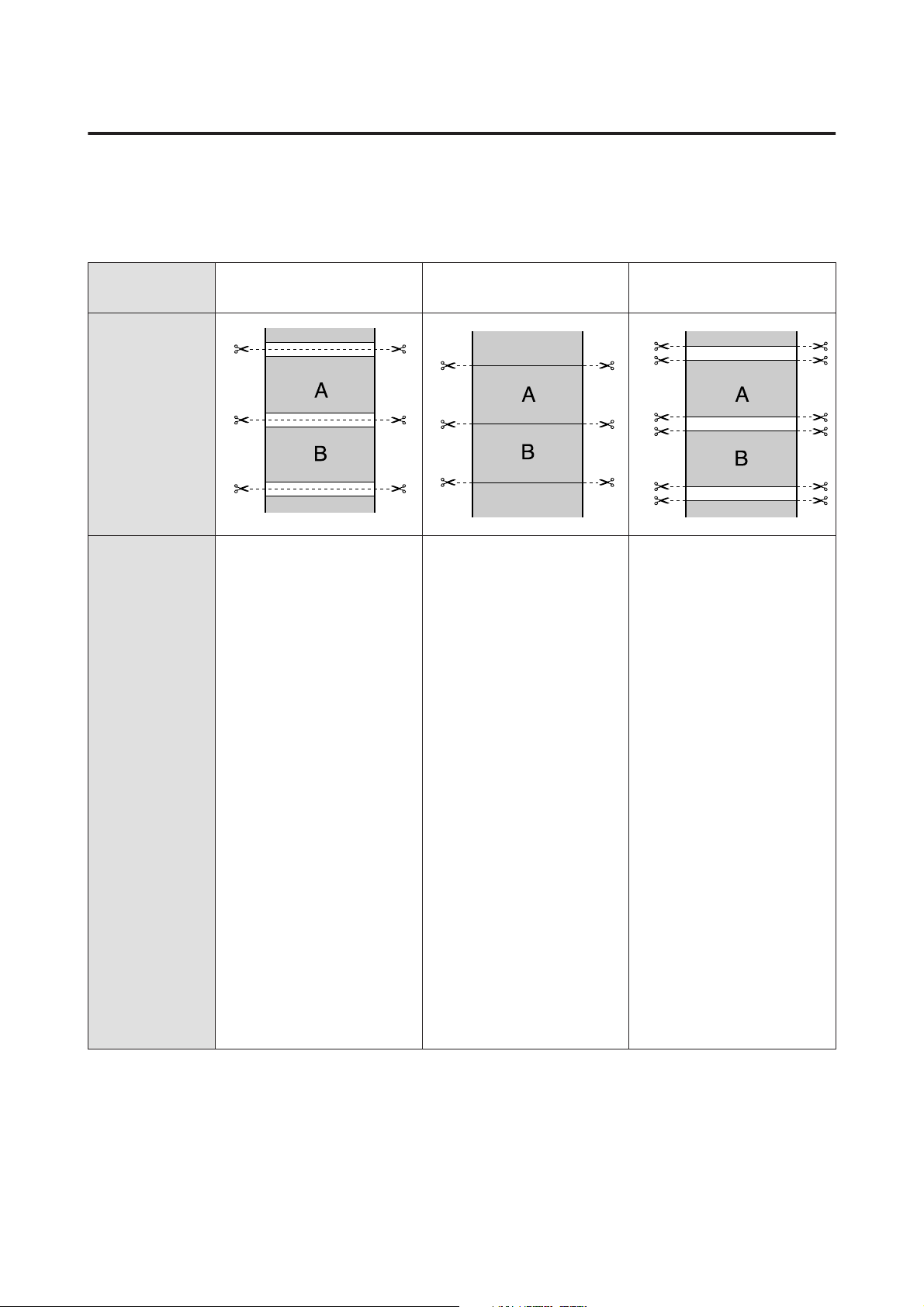

About Roll Paper Cutting................. 79

Setting Procedures for Printing............. 80

Enlarged/Reduced Printing.................. 82

Fit to Page/Scale to fit paper size............ 83

Fit to Roll Paper Width(Windows Only)...... 84

Custom Scale Setting..................... 84

Multi-Page Printing....................... 86

Poster Printing (Enlarge to cover several sheets

and print - Windows only).................. 88

Setting Procedures for Printing............. 88

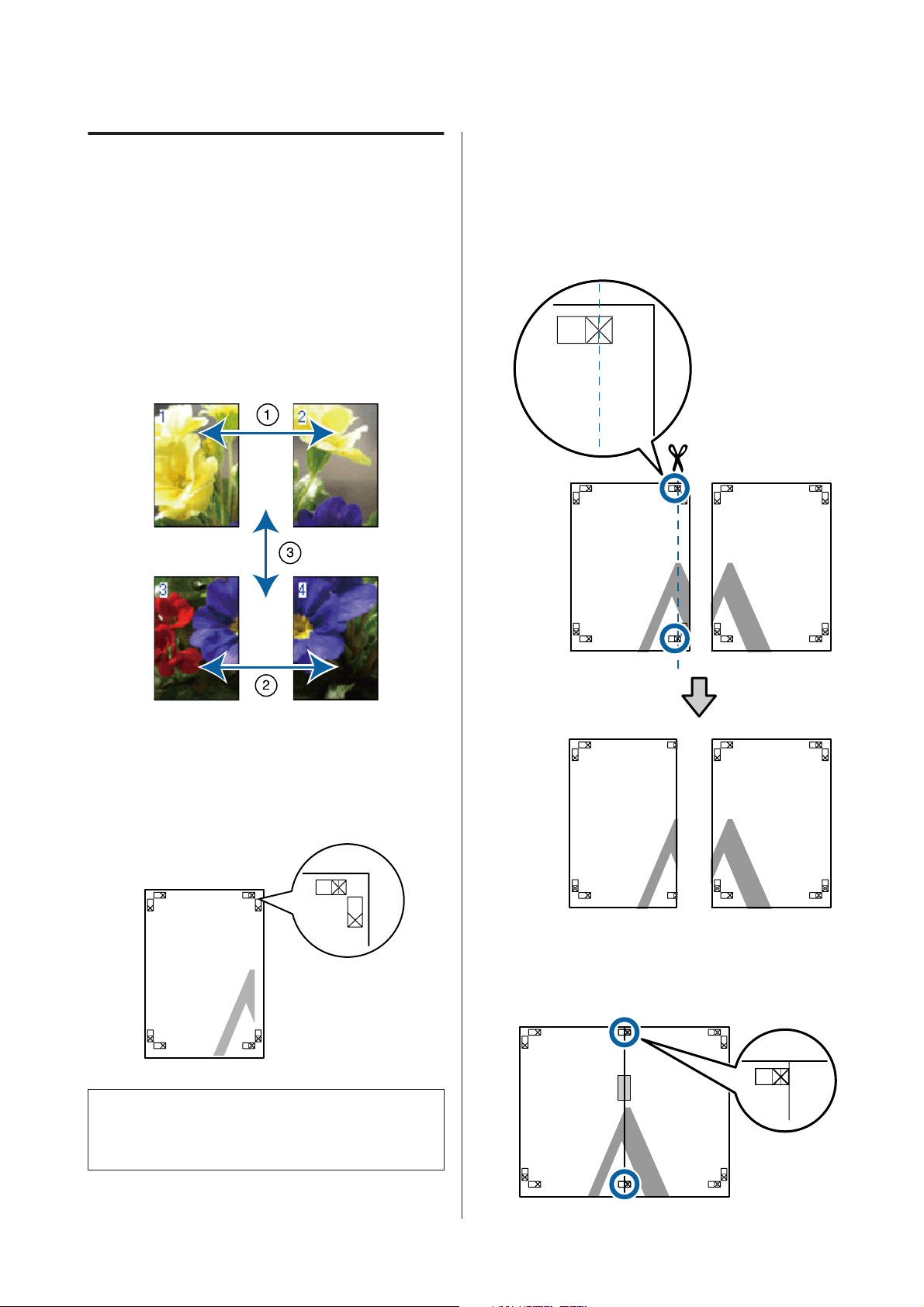

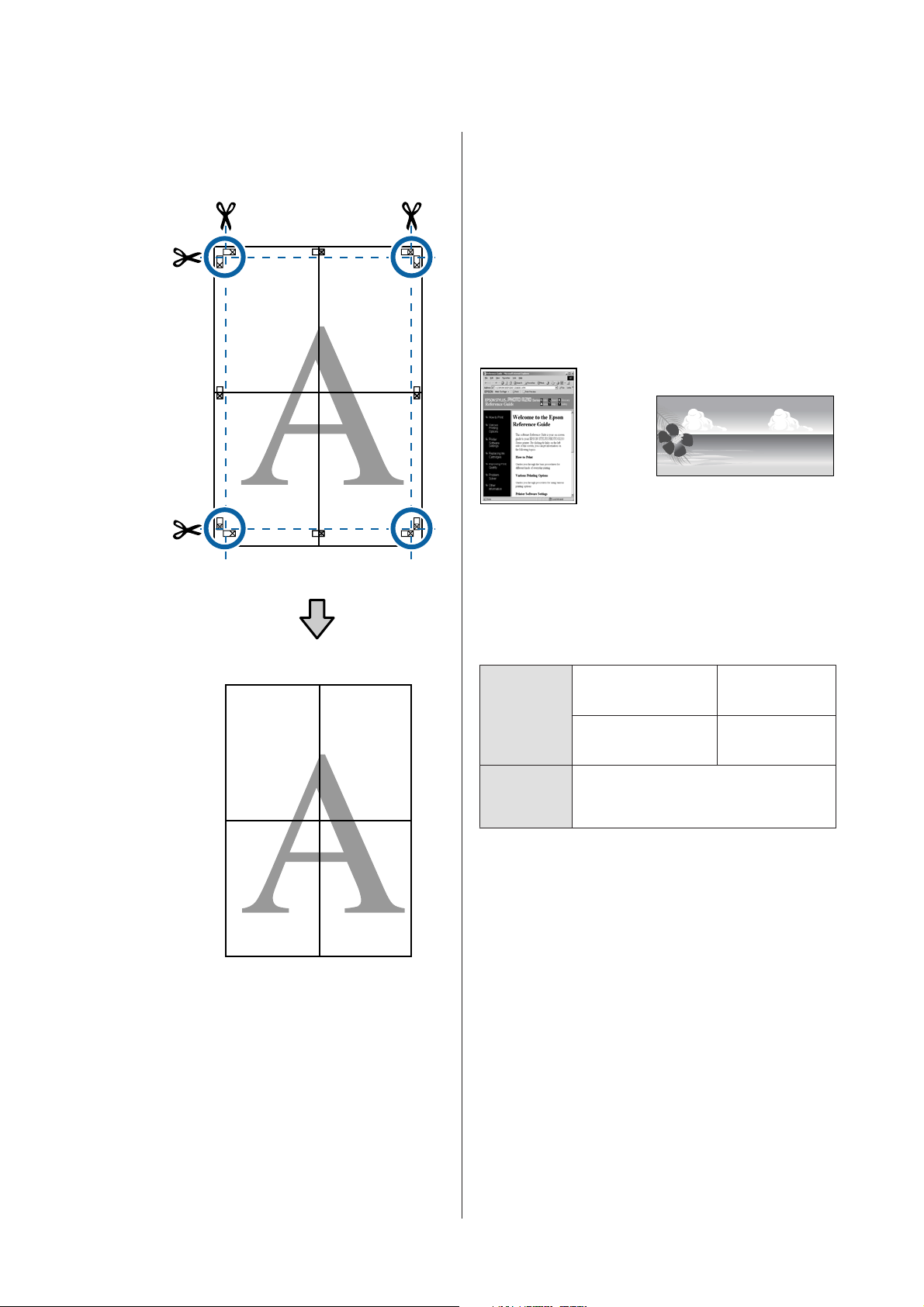

Joining the output paper together........... 90

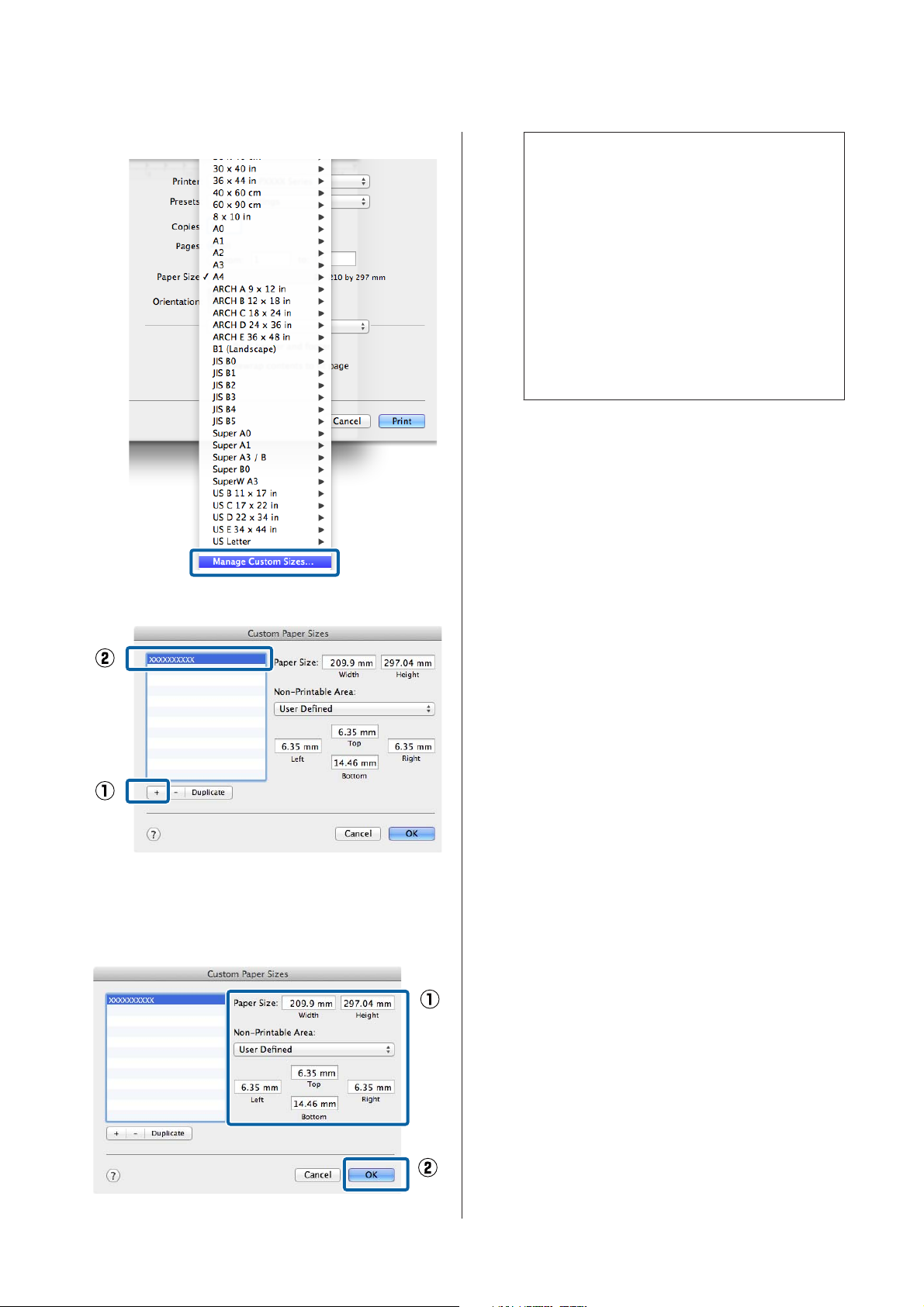

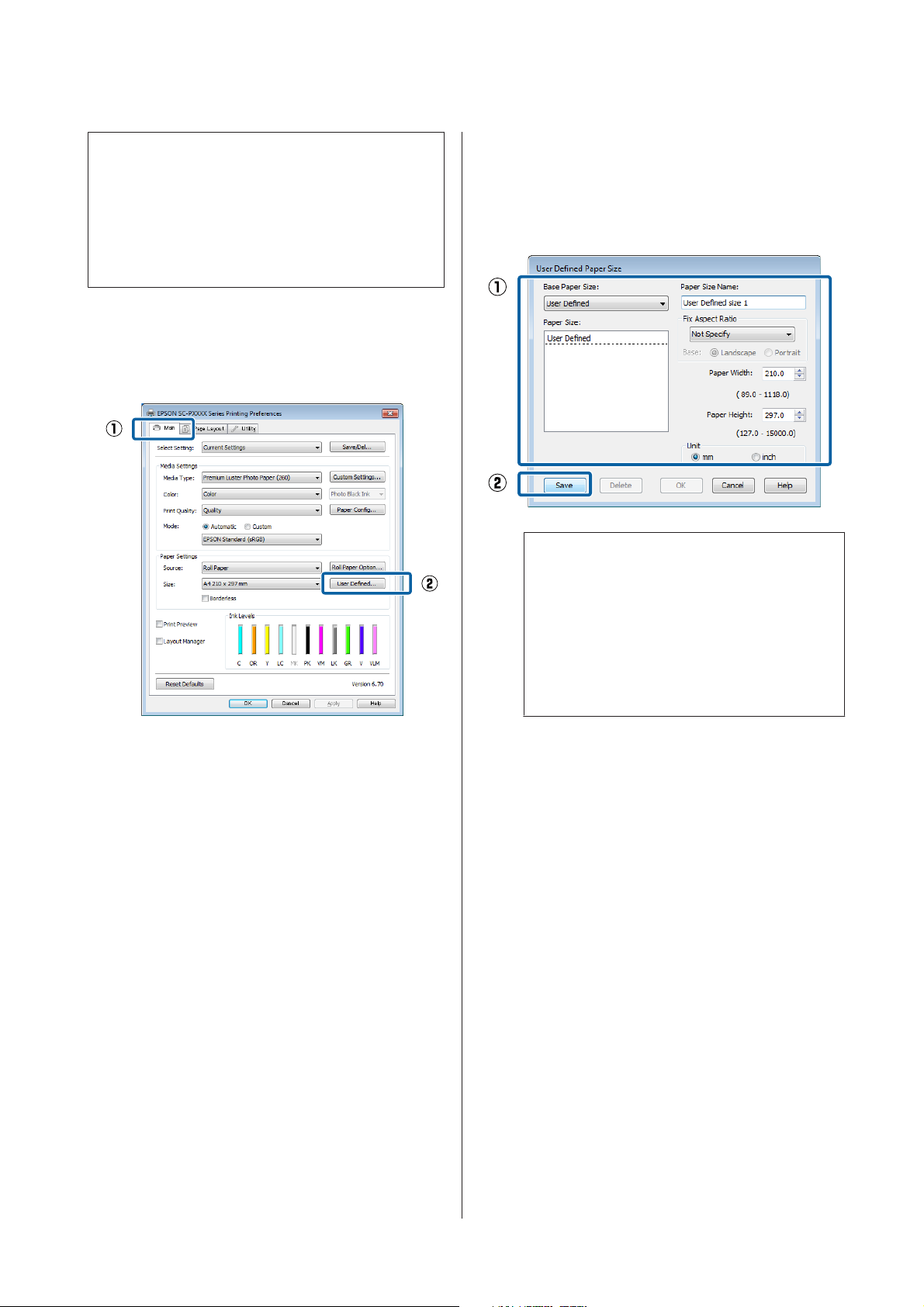

Printing at Non-Standard Sizes............... 93

Banner printing (on roll paper)............... 96

Layout Manager(Windows Only).............. 98

Setting Procedures for Printing............. 98

Saving and Recalling Settings.............. 100

Color Management Printing

About Color Management.................. 101

Color Management Print Settings............ 101

Setting profiles........................ 102

Setting color management with the applications

..................................... 102

Setting color management with the printer driver

..................................... 104

Color management printing by Host ICM

(Windows)........................... 104

Color management printing by ColorSync

(Mac OS X)........................... 105

Color management printing by Driver

ICM(Windows Only)................... 105

Using the Control Panel Menu

Menu Operations........................ 108

Menu List.............................. 109

Maintenance menu..................... 109

Print Queues menu..................... 109

Paper menu.......................... 110

Printer Setup Menu..................... 111

Printer Status Menu.................... 111

Option Setup Menu..................... 112

Network Setup Menu................... 112

Preferences Menu...................... 113

Administrator Menu.................... 113

Menu Descriptions....................... 114

Maintenance.......................... 114

Print Queues.......................... 115

Paper............................... 116

Printer Setup.......................... 120

Printer Status......................... 121

Option Setup......................... 122

Network Setup........................ 122

Preferences........................... 123

Administrator Menu.................... 123

Maintenance

Print Head Maintenance................... 125

Maintenance Operations................. 125

Checking for clogged nozzles.............. 126

Cleaning the print head.................. 127

Adjusting print misalignments (Head

Alignment)........................... 129

Replacing Consumables.................... 133

Replacing Ink Cartridges................. 133

Replacing Maintenance Boxes............. 134

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Contents

Replacing the Cutter.................... 135

Cleaning the Printer...................... 137

Cleaning the outside.................... 137

Cleaning the inside..................... 137

Problem Solver

What to do When a Message is Displayed. . . . . . . 139

SpectroProofer Error...................... 142

When a Maintenance Call/Service Call Occurs. . . 143

Troubleshooting......................... 145

You cannot print (because the printer does not

work)............................... 145

The printer sounds like it is printing, but

nothing prints......................... 147

The prints are not what you expected........ 147

Feeding or ejecting problems.............. 150

Others.............................. 153

Appendix

Options and Consumable Products........... 156

Epson Special Media.................... 156

Ink cartridges......................... 156

Others.............................. 158

Supported Media......................... 159

Epson Special Media Table............... 159

Supported Commercially Available Paper..... 176

Before Printing on Commercially Available

Paper............................... 178

Notes When Moving or Transporting the Printer

..................................... 179

Notes When Moving the Printer........... 179

Notes on Transporting.................. 179

Notes when reusing the printer............ 180

System Requirements..................... 181

System Requirements of the Printer Driver. . . . 181

Specifications Table....................... 182

Standards and Approvals................. 183

Help for Users in Vietnam................ 187

Help for Users in Indonesia............... 187

Help for Users in Hong Kong.............. 188

Help for Users in Malaysia................ 188

Help for Users in India.................. 188

Help for Users in the Philippines........... 189

Software License Terms

OPEN SOURCE SOFTWARE LICENSE....... 190

Bonjour............................. 191

Other Software Licenses................... 196

Info-ZIP copyright and license............. 196

Where To Get Help

Technical Support Web Site................. 185

Contacting Epson Support.................. 185

Before Contacting Epson................. 185

Help for Users in North America........... 186

Help for Users in Europe................. 186

Help for Users in Australia............... 186

Help for Users in Singapore............... 187

Help for Users in Thailand................ 187

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

❏ Do not insert objects through the slots. Take care

Introduction

Important Safety

not to spill liquid on this product.

❏ This product’s power cord is for use with this

product only. Use with other equipment may result in fire or electric shock.

Instructions

Read all of these instructions before using the printer. Also be sure to follow all warnings and instructions marked on the printer.

The symbols on the product

The symbols on this Epson product are used in order to ensure safety and proper use of the product and to prevent danger to customers and other persons, and property damage.

The symbols indicate the meaning below. Be sure that you completely understand the meaning of symbols on this product before using it.

Stand-by

When choosing a place for this product

❏ Place this product on a flat, stable surface that is

larger than this product. This product will not operate properly if it is tilted or at an angle.

❏ Avoid places subject to rapid changes in

temperature and humidity. Also keep it away from direct sunlight, strong light, or heat sources.

❏ Avoid places subject to shocks and vibrations.

❏ Keep this product away from dusty areas.

❏ Place this product near a wall outlet where the plug

can be easily unplugged.

When setting up this product

❏ Do not block or cover the openings in this product’s

cabinet.

❏ Connect all equipment to properly grounded

power outlets. Avoid using outlets on the same circuit as copiers or air control systems that regularly switch on and off.

❏ Avoid electrical outlets controlled by wall switches

or automatic timers.

❏ Keep the entire computer system away from

potential sources of electromagnetic interference, such as loudspeakers or the base units of cordless telephones.

❏ Use only the type of power source indicated on the

product’s label.

❏ Use only the power cord that comes with this

product. Use of another cord may result in fire or electric shock.

❏ Do not use a damaged or frayed power cord.

❏ If you use an extension cord with this product,

make sure the total ampere rating of the devices plugged into the extension cord does not exceed the cord’s ampere rating. Also, make sure the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet’s ampere rating.

❏ Do not attempt to service this product yourself.

❏ Unplug this product and refer servicing to qualified

service personnel under the following conditions: The power cord or plug is damaged; liquid has entered the product; the product has been dropped or the cabinet damaged; the product does not operate normally or exhibits a distinct change in performance.

❏ If you plan to use the printer in Germany, observe

the following: To provide adequate short-circuit protection and over-current protection for this printer, the building installation must be protected by a 10 or 16 amp circuit breaker.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

❏ If damage occurs to the plug, replace the cord set or

consult a qualified electrician. If there are fuses in the plug, make sure you replace them with fuses of the correct size and rating.

When using this product

❏ Do not put your hand inside this product or touch

the ink cartridges during printing.

❏ Do not move the print heads by hand; otherwise

you may damage this product.

❏ Always turn the product off using the Power button

on the control panel. When this button is pressed, the Power light flashes briefly then goes off. Do not unplug the power cord or turn off the product until the Power light stops flashing.

When handling the ink cartridges

❏ If you remove an ink cartridge for later use, protect

the ink supply area from dirt and dust, and store it in the same environment as this product. Note that there is a valve in the ink supply port, making covers or plugs unnecessary, but care is needed to prevent the ink from staining items that the cartridge touches. Do not touch the ink supply port or surrounding area.

Note on this Guide

Meaning of Symbols

Warning:

Caution:

Warnings must be followed to avoid serious bodily injury.

Cautions must be followed to avoid damage to this product or bodily injury.

❏ Keep ink cartridges out of the reach of children and

do not drink.

❏ If ink gets on your skin, wash it off with soap and

water. If it gets in your eyes, flush them immediately with water.

❏ Before installing the new ink cartridge in the

printer, shake it back and forth horizontally in five centimeter movements about 15 times within five seconds.

❏ Use the ink cartridge before the date printed on its

package.

❏ Use up the ink cartridge within six months of

installation for best results.

❏ Do not dismantle the ink cartridges or try to refill

them. This could damage the print head.

❏ Do not touch the IC chip on the side of the cart ridge.

This may affect normal operation and printing.

Important:

Note:

Important contains important information on the operation of this product.

Notes contain useful or additional information on the operation of this product.

Illustrations

Unless otherwise noted, the illustrations in this documentation show the SC-P9000 Series.

Unless otherwise noted, the computer screenshots show the violet inkset being used with the SC-P9000 Series.

Operating System Versions

❏ The IC chip on this ink cartridge retains a variety of

cartridge-related information, such as the ink cartridge status, so that the cartridge may be removed and reinserted freely. However, each time the cartridge is inserted, some ink is consumed because the printer automatically performs a reliability check.

In this documentation, the following abbreviations are used.

Windows refers to Windows 8.1, 8, 7, Vista and XP.

❏ Windows 8.1 refers to Windows 8.1, Windows 8.1

Pro, and Windows 8.1 Enterprise.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

❏ Windows 8 refers to Windows 8, Windows 8 Pro,

and Windows 8 Enterprise.

❏ Windows 7 refers to Windows 7 Home Basic,

Windows 7 Home Premium, Windows 7 Professional, and Windows 7 Ultimate.

❏ Windows Vista refers to Windows Vista Home

Basic Edition, Windows Vista Home Premium Edition, Windows Vista Business Edition, Windows Vista Enterprise Edition, and Windows Vista Ultimate Edition.

❏ Windows XP refers to Windows XP Home Edition,

Windows XP Professional x64 Edition, and Windows XP Professional.

❏ Windows Server 2012 refers to Windows Server

2012 Essentials Edition, Server 2012 standard Edition.

❏ Windows Server 2008 refers to Windows Server

2008 Standard Edition and Windows Server 2008 Enterprise Edition.

❏ Windows Server 2008 x64 refers to Windows Server

2008 x64 Standard Edition, Windows Server 2008 x64 Enterprise Edition, Windows Server 2008 R2 Standard Edition, and Windows Server 2008 R2 Enterprise Edition.

❏ Windows Server 2003 refers to Windows Server

2003 Standard Edition and Windows Server 2003 Enterprise Edition.

❏ Windows Server 2003 x64 refers to Windows Server

2003 x64 Standard Edition and Windows Server 2003 x64 Enterprise Edition.

Mac OS X

In this manual, "Mac OS X" is used to refer to "OS X Yosemite", "OS X Mavericks", "OS X Mountain Lion", "OS X Lion", and "Mac OS X v10.6.8".

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Printer Parts

Front

A Front cover

Open this cover when cleaning the printer or clearing jams.

B Ink covers (on the left and right)

Open when installing ink cartridges. Press the button on the control panel to open by 5 mm.

U “Replacing Ink Cartridges” on page 133

C Paper basket

Output from the printer collects in this basket, keeping the media clean and free of creases.

U “Using the Paper Basket” on page 39

D Casters

There are two casters on each leg. The casters are normally kept locked once the printer is in place.

E Paper support

Use this to control the paper eject direction for the roll paper.

F Manual box

Holds the manual for the printer. This can be installed on the left or on the right.

G Control panel

U “Control panel” on page 12

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

H Paper feed slot

Insert the paper into this slot.

U “Loading and Removing the Roll Paper” on page 28

U “Loading and Removing Cut Sheets” on page 34

I Roll paper cover

Open to load roll paper.

J Adapter holder

The roll paper adapter is placed in this holder when loading the roll paper.

Back

A Maintenance Box

Absorbs waste ink. The SC-P9000 Series/SC-P8000 Series has one on the left and one on the right, and the SC-P7000 Series/SC-P6000 Series has one on the right.

U “Replacing Maintenance Boxes” on page 134

B USB port

Connects the USB cable.

C Option port

Connects the optional SpectroProofer mounter or Auto Take-up Reel Unit (for the SC-P9000 Series/SC-P8000 Series only).

D LAN port

Connects the LAN cable.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

E Data light

The network connection status and data reception are indicated by a lit or flashing light.

On : Connected.

Flashing : Receiving data.

F Status light

The color indicates the network transmission speed.

Off : 10Base-T

Red : 100Base-TX

Green : 1000Base-T

G AC inlet

Connect the supplied power cable here.

H Option slot

Connects the optional hard disk unit.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Roll paper adapter

Use the supplied roll paper adapter when loading roll paper onto the printer.

U “Loading and Removing the Roll Paper” on

page 28

A Size lever

Control panel

A Power light

The printer’s operational status is indicated by a lit or flashing light

On : The power is on.

Flashing : The printer is receiving data or cleaning the

print head or performing other operations in the course of being shut down.

Off : The power is off.

Position according to the size of the roll core.

B Adapter lock lever

Lift to unlock, lower to lock. Unlock when attaching roll paper to the adapter, lock once the roll is attached.

Power button P

Turns the printer on or off.

C Pause/Cancel button W

❏ The printer enters pause status if this is pressed while

printing. To release the pause status, press the W button again, or select Pause Cancel on the screen and then press the Z button. To cancel print jobs being processed, select Job Cancel on the screen and then press the Z button.

❏ Pressing this button while a menu is displayed closes

the menu and returns the printer to ready status.

D Pause light

Indicates whether or not the printer is ready.

On : Cannot print. (The printer is paused, a job

is being canceled, a menu is displayed, an error has occurred, and so on.)

Off : Ready to print.

E Screen

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Displays the printer's status, menus, error messages, and so on.

U “Screen View” on page 14

U “What to do When a Message is Displayed” on

page 139

F Open ink cover button

Press to open the ink cover when replacing the ink cartridges and so on. When you select the ink cover you want to open, the ink cover opens approximately 5 mm when you press the Z button. Button operations are disabled while printing or cleaning.

Paper source button l

❏ If this is pressed before loading paper, the Paper

Source screen is displayed, and you can select roll paper or cut sheets.

❏ If this is pressed while a menu is displayed, you are

returned to the previous menu.

It is used to manually cut roll paper using the built-in cutter.

U “Manual cut method” on page 32

K Load paper button Y

❏ Locks or releases the pressure roller. When you want to

load paper, press once to release the lock, and then adjust the paper to the loading position. Pr ess again to feed the paper and the printer is ready to print.

❏ If this is pressed when Remaining Setup is set to On in

the Paper menu, a barcode is printed on the edge of the roll paper, and the pressure roller is released.

L Load paper light

The status of the pressure roller is indicated by whether the light is on or off.

On : The pressure roller is released. When the

light is on, printing cannot be performed.

Off : The pressure roller is locked.

Paper feed button u/d

❏ When roll paper is loaded, press the d button to feed

the roll paper. Press the u button to rewind. Keep the

d button pressed to feed the paper up to 3 m. Keep the u button pressed to rewind the paper up to 20 cm.

❏ If this is pressed while pressure roller is released, you

can adjust the strength of the paper suction for the loading path in three stages.

❏ If you press d when the thickness of the loaded cut

sheets is less than 0.5 mm, the paper is fed and the printer is ready to print. U “Loading and Removing Cut Sheets” on

page 34

❏ Press d to eject paper when cut sheets are loaded.

U “Removing Cut Sheets” on page 36

❏ Press to select menu items and parameter when a

menu is displayed.

Menu button r

❏ If this is pressed when the printer's menu can be

changed (the printer is ready to print or there is no paper), the Settings menu is displayed. U “Using the Control Panel Menu” on page 108

M OK button

❏ If this is pressed while a parameter is selected from the

Menu, the parameter is set or executed.

❏ If this is pressed when no paper is loaded, the Paper

Loading Method menu is displayed. When the paper type is selected, you can check the loading method.

❏ If this is pressed while drying ink or a color chart, drying

is canceled.

N Change black ink button

❏ Changes the type of black ink.

U “Changing the Type of Black Ink” on page 54

❏ If this is pressed when the paper setting name or the

password entry screen is displayed, you can change the type of letters.

O Ink check light

❏ If this is pressed while a menu is displayed, you are

taken to the next menu.

J Paper cut button X

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

The ink status is indicated by a lit or flashing light.

On : Indicates errors such as an installed ink

cartridge is expended, an ink cartridge is not installed, or a wrong ink cartridge is installed. Check the contents of the error on the control panel's screen.

Flashing : The ink is low. We recommend

replacing the ink cartridge as soon as possible because the ink may be expended while printing.

Off : No error.

P Paper check light

The paper status is indicated by a lit or flashing light.

On : Indicates an error such as there is no

paper or that the paper differs to the paper setting. Check the contents of the error on the control panel's screen.

Flashing : Indicates an error such as a paper jam or

that the paper has skewed. Check the contents of the error on the control panel's screen.

Off : No error.

Screen View

1. Messages

Displays the printer's status, operations, and error messages. U “What to do When a Message is Displayed” on

page 139

U “Using the Control Panel Menu” on page 108

2. Paper Source

The settings for Paper Source (roll paper or cut sheets) and Auto Cut for roll paper are indicated by the icons in the following table. The paper name selected in Paper Type is displayed on the right of the icon. When Custom Paper is selected, a number is displayed on the paper icon. U “Paper” on page 116

Icon Explanation

Prints on roll paper. The paper is cut automatically after printing one page.

Prints on roll paper. Auto cut is not performed.

Prints on cut sheets.

3. Platen Gap

Displays the Platen Gap settings.

U “Custom Paper Setting” on page 117 U “Printer Setup” on page 120

Icon Explanation

Standard is selected

Narrow is selected

Wide is selected

Wider is selected

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Icon Explanation

Widest is selected

4.Roll Paper Margin

Displays the value set for Roll Paper Margin.

❏ Auto: Standard is set

❏ 15mm: Top15mm/Bottom15mm is set

❏ 35/15mm: Top35mm/Bottom15mm is set

❏ 150/15mm: Top150mm/Bottom15mm is set

❏ 3mm: 3mm is set

❏ 15mm: 15mm is set

U “Paper” on page 116

5. Approximate amount of ink remaining for each color

Displays the amount of ink remaining for each color.

SC-P8000 Series/SC-P6000 Series

LC Light Cyan

MK Matte Black

PK Photo Black

VM Vivid Magenta

LK Light Black

LLK Light Light Black

VLM Vivid Light Magenta

Ink remaining (using Cyan as an example)

Icon Ink Remaining in Cartridge

No error. The height of the indicator changes with the level of ink remaining.

Ink is low. You need to prepare a new ink cartridge.

Ink codes

SC-P9000 Series/SC-P7000 Series

CCyan

OR Orange

YYellow

LC Light Cyan

MK Matte Black

PK Photo Black

VM Vivid Magenta

LK Light Black

GR Green

LLK/V

VLM Vivid Light Magenta

* The display differs depending on the inksets being used.

Light Light Black/Violet

Ink cartridge is expended; replace with a new ink cartridge.

An error occurred. Check the message on the screen, and clear the error.

6. Usage status of optional item

Displays the availability of optional item.

Nothing is displayed when the item is not connected.

Auto take-up reel unit

* Only SC-P9000 Series/SC-P8000 Series are supported

Icon Status

Available

Not Available

SC-P8000 Series/SC-P6000 Series

CCyan

YYellow

SpectroProofer Mounter 24"/44"

Icon Status

Available

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Icon Status

Not Available

Hard disk unit

Icon Status

Available

Communicating

Not Available

7. Usage status of black ink

Displays the selected black ink.

8. Approximate space in Maintenance Box

Displays the approximate amount of space in the Maintenance Box.

For the SC-P9000 Series/SC-P8000 Series there are two icons, and for the SC-P7000 Series/SC-P6000 Series there is one icon.

Icon Space in Maintenance Box

No error. The height of the indicator corresponds to the amount of space.

The Maintenance Box is nearing the end of its service life. You need to prepare a new Maintenance Box.

Maintenance Box is at the end of its service life. Replace the Maintenance Box with a new one.

Features

The main features of this printer are described below.

Realizing High Resolution

The newly developed ink technology provides high definition for photo, fine art, and proofing paper.

Pigmented inks with superior resistance

Pigment inks maintain more beautiful and more vibrant prints over a long period of time with their high light fastness. They are also extremely fade-resistant and can be safely displayed in direct sunlight. Additionally, the high water and ozone resistance is not only ideal for photo printing, but also allows for store displays and banners, outdoor displays of posters and so on. When you are printing for outdoor use, use lamination processing.

Two types of black ink with maximum black density (Dmax)

By automatically switching to suit the paper type being used, the two types of black ink provided are Photo Black which realizes a smooth, professional finish on glossy paper, and Matte Black which increases black optical density using matte paper. The maximum density (Dmax) improves on previous black inks and brings out delicate tone differences in gradations.

U “Changing the Type of Black Ink” on page 54

9. Roll paper remaining

When Remaining Setup is set to On in the Paper menu, the amount of roll paper remaining is displayed. When the length remaining falls below the value set in Set Alert Length, a that the printer is nearing the end of the roll.

U “Paper” on page 116

appears above the icon to warn you

Multi-colored ink variation

Chooses between two sets of 10 color inks to suit your use (SC-P9000 Series/SC-P7000 Series)

The following shows the two types of ink sets available for Epson UltraChrome HDX (SC-P9000 Series/ SC-P7000 Series). The ink set cannot be changed once it has begun to be used.

❏ Light Light Black inkset ideal for gradations

Three types of black ink density, Photo Black, Light Black and Light Light Black, allows you to bring out

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

delicate tone differences in black-and-white images. In addition, the other seven colors, including Orange and Green, realize superior color reproduction creating bright and vivid images in green to yellow and yellow to red.

❏ Violet inkset providing a wide range of color

reproduction As well as Orange and Green, this set comes with eight color inks including the newly developed Violet. By realizing superior color reproduction creating bright and vivid images in green to yellow and yellow to red, as well as deep shades of blue, we have achieved the industry's best PANTONE cover ratio.

Basic eight color inks including three types of black (SC-P8000 Series/SC-P6000 Series)

The Epson UltraChrome HD (SC-P8000 Series/ SC-P6000 Series) ink realizes delicate tone differences in black-and-white images using three types of black ink density, Photo Black, Light Black, and Light Light Black, in addition to five basic color inks for photo and proofing.

Superior Ease of Use

Adjust all prints with one calibration

By saving the calibration data to the printer, you do not need to perform calibration for every paper type or mode. Also, you do not need to make individual calibrations when sharing the printer with multiple users.

Perform color management for multiple printers

You can perform color management for multiple printers that are the same model and use the same inkset.

See the Epson Color Calibration Utility manual for details.

Improved energy efficiency with sleep mode and Power Off Timer

When no print jobs are being handled, or when no operation has been performed for some time, the printer enters sleep mode to reduce power consumption. Furthermore, if the Power Off Timer function is enabled, the printer can automatically switch off to avoid wasting electricity. This function works if no print jobs are received and no operations are carried out on the control panel while the printer is not in an error status for a specified duration of time.

Spindle-free roll paper adapter makes loading roll paper a snap

The lack of a spindle makes it possible to load and remove roll paper even in environments where space is at a premium. To load roll paper, simply place it on the top of the printer and attach roll paper adapters to both ends.

U “Loading Roll Paper” on page 28

Improved color adjustment function (Epson Color Calibration Utility)

The Epson Color Calibration Utility software provided on the software disc supplied allows you to easily perform color calibration using the printer's built-in sensors. You do not need to purchase an optional or commercially available color measurement device.

U “Turning Off the Power Using Power Off Timer” on

page 56

Various Options

Optimized printing (Hard disk unit)

When the hard disk unit is installed, print jobs can be saved, queued, and reprinted. Saved print jobs can also be printed from the printer's control panel. This reduces the time from starting your computer and printing from an application, as well as allowing you to reprint quickly.

U “Using the Optional Hard Disk Unit” on

page 57

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Automatic color management (SpectroProofer mounter)

With the SpectroProofer Mounter 24"/44" installed, you can perform printing, drying, and color measurement operations in sequence on roll paper. Another optional color measurement device ILS30EP can be used for a variety of color measurement conditions including the new M1 standard. (Supports M0/M1/M2)

Also, the 44" model is up to two times faster than conventional models, provides more accurate readings with the addition of a function to prevent misaligned measurement position, and realizes savings by reducing the amount of paper used to print charts by half of the conventional model ratio.

To use this you need commercially available RIP software.

Efficient continuous printing on roll paper (Auto take-up reel unit)

Notes on Usage and Storage

Installation space

Make sure that you secure a space of at least 300 mm around the entire printer, clear of any other objects, so that paper ejection and consumable replacement are not obstructed.

See the “Specifications Table” for the external dimensions of the printer.

U “Specifications Table” on page 182

When using the optional auto take-up reel unit with the SC-P9000 Series/SC-P8000 Series, roll paper can be automatically wound up after printing for efficient continuous printing.

U “Using the Auto Take-up Reel Unit (SC-P9000

Series/SC-P8000 Series Only)” on page 43

Notes when using the printer

Note the following points when using this printer to avoid breakdowns, malfunctions, and print quality decline.

❏ When using the printer, observe the operating

temperature and humidity range described in the "Specifications Table". U “Specifications Table” on page 182 Even when the conditions above are met, you may not be able to print properly if the environmental conditions are not suitable for the paper. Be sure to use the printer in an environment where the paper's requirements are met. For more details, see the documentation supplied with the paper. Also, when operating in dry areas, air conditioned environment, or under direct sunlight, maintain the appropriate humidity.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

❏ Do not install the printer next to heat sources or

directly in the path of air from a ventilator or air conditioner. Failure to observe this precaution could result in the print head nozzles drying and clogging.

❏ The print head may not be capped (i.e., may not

move to the right-hand side) if an error occurs and the printer is turned off without first resolving the error. Capping is a function for automatically covering the print head with a cap (lid) to prevent the print head from drying out. In this case, turn on the power and wait a while until capping is performed automatically.

❏ When the power is on, do not remove the power

plug or cut the power at the breaker. The print head may not be capped properly. In this case, t urn on the power and wait a while until capping is performed automatically.

❏ Even when the printer is not in use, some ink will be

consumed by head cleaning and other maintenance operations needed to keep the print head in good condition.

❏ To prevent the accumulation of dust and other

foreign matter in the printer, close all covers before placing it in storage. If the printer will be not be used for an extended period, protect it with an anti-static cloth or other cover. The print head nozzles are very small, and they can become clogged easily if fine dust gets on the print head, and you may not be able to print properly.

❏ When turned on after an extended period of disuse,

the printer may automatically perform head cleaning to ensure print quality. U “Timer Cleaning” on page 125

Notes on handling ink cartridges

Note the following points when handling ink cartridges to maintain good print quality.

❏ The supplied ink cartridges and Maintenance Box

are for use during the initial charging. The supplied ink cartridges and Maintenance Box will be require replacement relatively quickly.

Notes when not using the printer

If you are not using it, note the following points when storing the printer. If it is not stored correctly, you may not be able to print properly the next time it is used.

❏ If you do not print for a long time, the print head

nozzles may become clogged. We recommend that you print once a week to prevent the print head from clogging.

❏ The roller may leave an impression on paper that is

left in the printer. This can also cause wavy or curled paper resulting in paper feeding problems or the print head could be scratched. Remove any paper when storing.

❏ Store the printer after confirming that the print

head has been capped (the print head is positioned at the far right). If the print head is left uncapped for a long time, the print quality may decline.

Note:

If the print head is not capped, turn the printer on, and then turn it off.

❏ We recommend that ink cartridges be stored at

room temperature out of direct sunlight and used before the expiry date printed on the packaging.

❏ For optimum print quality, we recommend using

up ink within six months after installing in the printer.

❏ Ink cartridges that have been stored at low

temperatures for an extended period should be allowed to return to room temperature over a period of four hours.

❏ Do not touch the IC chips on the ink cartridges. You

may not be able to print properly.

❏ Install all ink cartridges into each slot. You cannot

print if any of the slots are empty.

❏ Do not leave the printer without ink cartridges

installed. The ink in the printer may dry, preventing it from printing as expected. Leave ink cartridges in all slots even while you do not use the printer.

❏ The ink level and other data are stored in the IC

chip, allowing cartridges to be used after being removed and replaced.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

❏ To avoid getting dirt on the ink supply port, store

the removed ink cartridge properly. The ink supply port has a valve in it so it does not need to be capped.

❏ Removed ink cartridges may have ink around the

ink supply port, so be careful not to get any ink on the surrounding area when removing the cartridges.

❏ To maintain the quality of the print head, this

printer stops printing before ink cartridges are completely expended.

❏ Although the ink cartridges may contain recycled

materials, this does not affect printer function or performance.

❏ Do not dismantle or remodel ink cartridges. You

may not be able to print properly.

❏ Do not drop or knock ink cartridges against hard

objects; otherwise, the ink may leak.

❏ Do not throw away the paper packaging as you can

use it for storing the paper.

❏ Avoid locations that are subject to direct sunlight,

excessive heat, or humidity.

❏ Keep cut sheets in their original package after

opening, and keep them in a flat place.

❏ Remove roll paper that is not in use from the

printer. Rewind it correctly and then store it in the original packaging that came with the roll paper. If you leave the roll paper in the printer for a long time, its quality may decline.

Notes on handling printed paper

To maintain long lasting, high quality print results, note the following points.

❏ Do not rub or scratch the printed surface. If they are

rubbed or scratched, the ink may peel off.

Notes on handling paper

Note the following points when handling and storing the paper. If the paper is not in good condition, print quality may decline.

Check the documentation supplied with each paper.

Notes on Handling

❏ Use Epson special media under normal room

conditions (temperature: 15 to 25˚C, humidity: 40 to 60%).

❏ Do not fold the paper or scratch the surface of the

paper.

❏ Avoid touching the printable surface of the paper

with your bare hands. Moisture and oils from your hands can affect print quality.

❏ Handle paper by the edges. We recommend

wearing cotton gloves.

❏ Do not touch the printed surface; Failure to observe

this precaution may cause ink to rub off.

❏ Make sure the print outs are completely dry before

folding of stacking; otherwise, the color may change where they touch (leaves a mark). These marks will disappear if they are separated immediately and dried; however, they will remain if not separated.

❏ If you put the print outs in an album before they are

completely dry, they may be blurred.

❏ Do not use a dryer to dry the print outs.

❏ Avoid direct sunlight.

❏ Prevent color distortion while displaying or storing

the print outs by following the instructions in the paper's documentation.

❏ Changes in temperature and humidity may cause

paper to become wavy or curled. Be careful not to scratch or soil the paper, and flatten it before loading it in the printer.

❏ Do not wet the paper.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Note:

Typically, print outs and photos fade over time (color distortion) due to the effects of light and various constituents in the air. This also applies to Epson special media. However, with the correct storage method, the degree of color distortion can be minimized.

❏ See the documentation supplied with Epson special

media for detailed information on handling the paper after printing.

❏ The colors of photos, posters, and other printed

materials appear different under different lighting conditions (light sources

). The colors of print outs from this printer may also appear different under different light sources. * Light sources include sunlight, fluorescent light, incandescent light, and other types.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Introducing the Software

As well as the printer driver, a variety of software packages are also provided such as Network easy configuration and plug-in software to add functionality to commercially available packages. You can install the software from the software disc supplied, or by downloading from the Epson website.

U “Software on the Disc” on page 22

U “Software on the Website” on page 25

There is also software that can be used over a network through a web browser without having to install it.

U “Remote Manager” on page 26

Software on the Disc

The supplied Software Disc contains the following software. For details on using the software, see the PDF manuals or the on-line help for the software in question.

Note:

You can upgrade the software supplied. Check for the latest versions on the Epson website.

http://www.epson.com

Software Name Explanation

Printer Driver The printer driver is required when using the printer. Follow the step s in the "Setup Guide"

to install.

U “Summary of the Printer Driver” on page 23

Epson Network Utilities When a network connection is setup using the "Setup Guide", network related modules

are installed.

See the "Network Guide" (PDF).

EpsonNet Config With this software, you can configure various network settings for the printer from your

computer. This is useful as it allows you to enter addresses and names using the keyboard.

Installation U “Installing individually” on page 24

EPSON LFP Remote Panel 2 Software for registering custom paper from a computer.

Installation U “Installing individually” on page 24

Epson Color Calibration Utility Software that performs calibrations using the printer's built-in sensors.

Installation U “Installing individually” on page 24

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Summary of the Printer Driver

The main functions of the printer driver are described below.

❏ Converts print data received from applications into

printable data and sends it to the printer.

❏ S et ti n g s s u c h a s do c u me n t size and print quality can

be adjusted from the settings dialogs.

Windows

Mac OS X

❏ Allows you to execute printer maintenance

functions to maintain print quality, check the printer's status, and so on.

Windows

You can save these settings and easily import or export these saved settings. U “Customizing the Printer Driver” on

page 63

You can easily import or export printer driver settings. U “Summary of the Utility Tab” on page 66

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Mac OS X

Installing individually

Insert the software disc into the disk drive, and then follow the on-screen instructions.

Clear the checkboxes for any software that has already been installed.

Follow the on-screen instructions to install.

See the following for instructions on starting and closing the software.

U “Starting and Closing Software” on page 26

The screens displayed differ according to the operating system being used as shown below.

Windows

Click Information for Manuals and Applications.

Check the folder containing the necessary software, and install.

Mac OS X

Select the necessary software, and then click Install.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Software on the Website

Aside from the software supplied on the software disc, the latest software versions for this printer can also be found on the Epson website. Download as required.

http://www.epson.com

Note:

Depending on your country or region, you may not be able to download software from the website.

For more details, contact your dealer or Epson Support.

For details on using the software, see the PDF manuals or the on-line help for the software in question.

See the following for instructions on starting and closing the software.

U “Starting and Closing Software” on page 26

Software Name Explanation

LFP Print Plug-In for Office

LFP HDD Utility

Epson Print Layout This is a plug-in for Adobe Photoshop and Adobe Lightroom.

LFP Accounting Tool

CopyFactory

Plug-in software for Microsoft Office applications (Word, Excel, and PowerPoint). Installing this plug-in displays a ribbon in Office applications that gives quick access to horizontal and vertical banner printing and enlarged printing.

Before installing the plug-in, check the following.

❏ Office applications are installed.

❏ Office applications are not running.

The Utility can be used to manage print jobs stored on the optional hard disk unit. Use this when connecting the printer directly to the computer using a USB cable.

❏ By operating with Adobe Photoshop and Adobe Lightroom, you can easily perform

color management.

❏ You can check the adjusted image for black-and-white photographs on the screen.

❏ You can save your preferred paper type and size and load them easily.

❏ You can easily layout and print photos.

This software provides total cost calculations for printed paper, job information, and so on.

This software allows you to make enlarged copies using an Epson scanner. Check for supported scanners on the Epson website.

* Windows only

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Remote Manager

This software allows you to operate the printer from a computer over a network using the printer's built-in network interface. You can check the printer's status and configure network settings, in addition to managing the print jobs stored on the optional hard disk unit. You can perform the following operations for print jobs stored on the hard disk unit.

❏ Cancel individual print queue

❏ Cancel individual hold queue

❏ Resume hold queue

Starting from the menu

❏ Windows 8.1/Windows 8

Enter the software name in the search charm, and then select the icon displayed.

❏ Other than Windows 8.1/Windows 8

Click the Start button, click the installed software name from All Programs (or Programs) or in the EPSON folder, and then select the software you want to start.

❏ Mac OS X

Click the installed software name from Applications or the EPSON folder, and then select the software you want to start.

Click the icon on the desktop taskbar (Windows only)

Click the icon and select the software you want to start from the menu displayed.

Closing

Starting

Enter the printer's IP address in a computer web browser.

For more information, see the online help for Remote Manager.

Starting and Closing Software

Starting

The application can be closed using one of the following methods.

❏ Click the button (Exit, Close,

❏ Select Exit from the toolbar menu.

, and so on).

You can start by using any of the following methods.

Double-click the shortcut icon on the desktop

Depending on the software being used, a shortcut icon may not be created during installation.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Introduction

Uninstalling Software

Windows

Important:

❏ You must log in with an Administrators group.

❏ In Windows 7/Windows Vista, if an

Administrator password or confirmation is requested, enter the password and then continue with the operation.

Turn off the printer, and unplug the interface

cable.

Go to the Control Panel and click Uninstall a

program from the Programs category.

Select the target printer icon, and then click OK.

Follow the on-screen instructions to continue.

When the delete confirmation message appears, click Yes.

Restart the computer if you are reinstalling the printer driver.

Mac OS X

Select the software you want to remove and then

click Uninstall/Change (or Change/Remove/ Add or remove).

You can remove EPSON Status Monitor 3 and the printer driver by selecting EPSON SC-XXXXX Printer Uninstall.

Select EPSON LFP Remote Panel 2 to remove EPSON LFP Remote Panel 2.

When reinstalling or upgrading the printer driver or other software, follow the steps below to uninstall the target software first.

Printer Driver

Use the "Uninstaller".

Downloading the Uninstaller

Download the Uninstaller from the Epson website.

http://www.epson.com/

Using the Uninstaller

Follow the instructions on the Epson website.

Other software

Drag and drop folder with the software name from the Applications folder into Trash to delete.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Open the roll paper cover.

Basic Operations

Loading and Removing the Roll Paper

Lower the lock lever for the adapter holder to

release the lock.

Loading Roll Paper

Load roll paper after attaching the supplied roll paper adapters.

Important:

Insert the paper just before printing. The roller may leave an impression on paper that is left in the printer.

Note:

❏ The paper that can be used in the printer is detailed

in the following section. U “Supported Media” on page 159

❏ When paper has not been loaded in the printer, press

the Z button to check the loading methods.

Buttons that are used in the following settings

Turn on the printer by pressing the P button.

Press the l button, and then select Roll Paper

from the Paper Source menu.

To automatically cut after printing, select Roll

Paper / Cut. If you do not want to cut, select Roll Paper / No Cut.

Move the adapter holder to the left.

When moving the adapter holder, make sure you use the handle.

Place the roll paper on top of the printer.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Adjust the size of the roll paper adapters to the

size of the roll core.

Change the size of both of the roll paper adapters so that they are the same size.

3-inch core 2-inch core

Attach the roll paper adapters to both ends of the

roll paper, and then lower the lock levers on the left and right to lock them in place.

Make sure you insert the adapters fully before locking them.

Push the roll paper to the right until it touches the

roll paper loading guide.

Raise the adapter lock lever to release the lock on

each of the two roll paper adapters.

Move the adapter holder so that the u on the

adapter holder and the left roll paper adapter are aligned.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Roll the roll paper slowly into the roll paper

holder.

Grip the handle on the adapter holder and sl ide to

the right until it is fully inserted to the holder shaft.

Make sure that both ends of the roll paper are seated securely to the adapters.

Raise the lock levers on the adapter holders to

lock them in place.

Insert the leading edge of the roll paper into the

paper feed slot, and then feed the roll paper by hand until the leading edge comes out from below the front cover.

If the leading edge of the roll paper does not appear, use the u or d button to adjust the Paper Suction.

With both hands, pull the roll paper until the

leading edge of the paper is in the center of the stand (the position of the label shown in the illustration).

Make sure that the roll paper is free of slack and the end is not folded.

Press the Y button on the control panel.

The pressure roller is released.

Close the roll paper cover.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Press the Y button.

After a few seconds, the paper moves to the starting print position.

When you press the W button, operations start immediately.

Note:

Pressing the X button within three seconds of pressing the Y button cuts off the leading edge of the roll paper. This is useful if the leading edge is not already cut straight across or is not clean.

Check the media type.

U “Checking and Setting the Paper Type” on

page 37

Cutting the roll paper

The printer is equipped with a built-in cutter. You can cut roll paper after printing by using one of the following methods.

Important:

The commercially available media types, such as those shown below, may not be cut cleanly by the built-in cutter. Furthermore, cutting the following media types may damage or reduce the lifetime of the built-in cutter.

❏ Fine art paper

❏ Canvas

❏ Vinyl

❏ Matte poster board

❏ Adhesive paper

❏ Banner media

Cut these media types with commercially available scissors or a cutter in the following manner:

With the front cover closed, hold down the d button on the control panel while viewing the inside of the printer until the cutting position emerges from below the front cover. Cut the paper using scissors or a third-party cutter.

❏ Auto Cut:

The cutter cuts automatically at a determined position each time a page is printed in accordance with the setting of the printer driver or control panel menu.

❏ Manual cut:

The cutting position is specified on the control panel, and then the roll paper is cut. A cutline is printed for manual cutting and can be used as a guide when cutting paper using the built-in cutter.

Setting Auto Cut

You can specify the method either on the control panel or the printer driver. Note, however, that the setting selected with the printer driver takes priority when the printer driver is used.

Note:

❏ Disable the auto cut settings in the printer and the

printer driver when using the optional auto take-up reel unit.

❏ It may take a while to cut the roll paper.

Setting on the computer

Set Auto Cut from the Roll Paper Option in the printer driver's Properties (or Printing preferences) screen.

Setting from the printer

Press the l button and select auto cut on the Paper Source screen.

U “Control panel” on page 12

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Note: You can also select this from Paper - Roll Paper Setup Auto Cut.

U “Paper menu” on page 110

Manual cut method

When Off is selected in the printer driver or Off is selected for Auto Cut in the control panel, the paper can be cut in any location after printing as described below.

Buttons that are used in the following settings

Press the X button.

A confirmation screen is displayed. Press the Z button to cut using the built-in cutter.

Press the l button to return to the previous menu.

Removing Roll Paper

This section describes how to remove and store roll paper after printing. The pressure roller may leave impressions on paper that is left in the printer.

Buttons that are used in the following settings

With the front cover closed, hold down the d

button on the control panel while viewing the inside of the printer until the cutting position reaches the position of the label.

Note:

To cut the paper using the built-in cutter, the distance from the cutting position to the edge of the paper needs to be 60 to 127 mm. The necessary length differs depending on the paper type and cannot be changed. If the necessary length has not been reached, paper is fed automatically leaving a margin. Use a commercially available cutter to remove the unnecessary margin.

Make sure the printer is on.

Open the roll paper cover.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Press the Y button on the control panel to

release the pressure roller.

The roll paper is automatically rewound if the printer state is after the paper cut but in the READY state. When Remaining Setup is set to On, the paper is rewound after printing the paper information. The paper is not rewound when using the optional auto take-up reel unit. If the paper is not rewound automatically, you need to rewind manually.

Lower the lock lever for the adapter holder to

release the lock.

Note:

When removing the roll paper, you can use the optional roll paper belt to prevent the roll paper from unwinding.

Move the adapter holder to the left.

When moving the adapter holder, make sure you use the handle.

Roll over the paper roll to the front side to place it

on the top of the printer.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Raise the adapter lock levers to release the locks,

and remove the roll paper adapters from the roll paper.

After rewinding the roll paper carefully, store it in the original package.

Close the roll paper cover.

Loading and Removing Cut Sheets

The loading method for cut sheets differs from paper that is A3 size or larger, poster board (paper that is thicker than 0.5 mm), and other paper.

U “Loading Cut Sheets A3 Size or Larger and Poster

Board” on page 34

U “Loading Cut Sheets Smaller than A3 Size” on

page 36

Important:

If the paper is wavy or curled, flatten the paper before loading it in the printer, or use new paper. If wavy or curled paper is loaded, this printer may not be able to recognize the paper size, feed the paper, or print correctly.

We recommend that you return the paper to its original package and store it flat, and take it out of the package just before you use it.

When continuing printing, press the Y button on the control panel.

Loading Cut Sheets A3 Size or Larger and Poster Board

Important:

❏ Insert the paper just before printing. The roller

may leave an impression on paper that is left in the printer.

❏ When roll paper is loaded, rewind the roll paper

before loading the cut sheets. U “Removing Roll Paper” on page 32

Note:

❏ The paper that can be used in the printer is detailed

in the following section. U “Supported Media” on page 159

❏ When paper has not been loaded in the printer, press

the Z button to check the loading methods.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Buttons that are used in the following settings

Turn on the printer by pressing the P button.

Press the l button, and then select Cut Sheet

from the Paper Source menu.

Close the roll paper cover.

Press the Y button.

The pressure roller is released.

Note:

For Epson Color Calibration Utility color charts, insert the page from the top with the printed side facing up.

Position the trailing and right edges of the paper

as shown by the loading mark.

If it is ha rd to po si ti on th ic k p ap er , u se th e u or d buttons to adjust the suction strength.

Insert the paper until the trailing edge is below

the loading mark on the roll paper cover.

Normally, the paper should be loaded vertically.

On the SC-P9000 Series/SC-P8000 Series, poster board that is over 762 mm long can be inserted horizontally.

Press the Y button.

The paper moves to the starting print position.

Check the media type.

U “Checking and Setting the Paper Type” on

page 37

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Loading Cut Sheets Smaller than A3 Size

Important:

❏ Insert the paper just before printing. The rollers

may leave impressions on paper that is left in the printer.

❏ When roll paper is loaded, rewind the roll paper

before loading the cut sheets. U “Removing Roll Paper” on page 32

Note:

❏ The paper that can be used in the printer is detailed

in the following section. U “Supported Media” on page 159

For paper smaller than A4 size, insert by keeping the right edge aligned with the additional line below the paper feed slot.

❏ When paper has not been loaded in the printer, press

the Z button to check the loading methods.

Buttons that are used in the following settings

Turn on the printer by pressing the P button.

Press the l button, and then select Cut Sheet

from the Paper Source menu.

Close the roll paper cover.

Press the d button. is displayed on the screen.

Press the d button.

The paper moves to the starting print position.

Check the media type.

U “Checking and Setting the Paper Type” on

page 37

Removing Cut Sheets

Buttons that are used in the following settings

Insert the paper into the printer, keeping its right

edge aligned with the loading mark on the roll paper cover.

Important:

Load cut sheets vertically.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Check the message displayed on the control

panel's screen.

When Ready is displayed

Press the d button, and then feed the paper to the ejection position.

Other messages

Proceed to Step 2.

Important:

Do not press the buttons when the power light or the pause light are flashing.

Press the d button to take the paper.

Checking and Setting the Paper Type

Before you start printing, check the paper loaded in the printer on the control panel's screen, and if it differs, make settings again. If you print using settings that do not match the paper type, you may not obtain optimum print results for the paper type.

Checking the Paper Type

One of the following screens is displayed.

Information

Selected Paper Type:

Keep Settings Above

Change Settings

Proceed

Important:

Ejected paper may drop down. Make sure the leading edge of the paper is not damaged if it does drop.

❏ Information screen

This is displayed when loading roll paper that does not have a printed barcode, or when loading cut sheets. Follow the steps below and then make settings. U “Paper Type Settings” on page 38

❏ Ready Screen

This is displayed when loading roll paper that has a printed barcode. The barcode is read automatically, and the paper type and amount remaining are displayed. You can start printing quickly.

Note: When Roll Paper Remaining - Remaining Setup is set to On from the Paper menu, a barcode is printed

automatically on the edge of the paper when the roll paper is removed. The barcode is automatically read and settings adjusted the next time the paper is used, improving efficiency when multiple rolls of paper are used.

U “Paper” on page 116

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Paper Type Settings

Buttons that are used in the following settings

Check the content displayed on the screen.

Information

Selected Paper Type:

Keep Settings Above

Check that Ready is displayed on the screen.

When printing immediately

Send the print data from the computer.

When using commercially available paper for the first time

Make custom paper settings.

U “Before Printing on Commercially Available

Paper” on page 178

Note:

When printing using the printer driver and the paper settings on the printer and the printer driver do not match, the following occurs.

❏ When genuine Epson media is loaded in the printer:

The printer driver settings are used.

❏ When custom paper is loaded in the printer:

The printer settings are used.

Change Settings

Proceed

When changing settings and printing

Use the d/u buttons to select Change Settings, and then press the Z button. Next, proceed to Step 2.

When printing using the current settings With Keep Settings Above selected, press the

Z button, and then proceed to Step 4.

When using commercially available paper for the first time

You need to register custom paper information. With Keep Settings Above selected, press the Z button, and then proceed to Step 4.

Select the Paper Type, and then press the Z

button.

Select the media name, and then press the Z

button.

When Remaining Setup is set to On, use the d/

u buttons to set the roll paper length to 5.0 to 99.5 m, and then press the Z button.

You can set in increments of 0.5 m.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Using the Paper Basket

Using the paper basket allows you to print smoothly by preventing the paper from getting dirty or wrinkled. Paper basket usage differs depending on the paper specifications.

Ejecting paper to the rear (for normal printing)

Ejected paper is collected in the paper basket.

This is available for roll paper or cut sheets that meet the following specifications.

SC-P9000 Series/ SC-P8000 Series

Thickness Less than 0.5 mm Less than 0.5 mm

Paper Length

Important:

Less than 1580 mm Less than 914.4 mm

Normally the capacity of the paper basket should be one sheet at a time.

SC-P7000 Series/ SC-P6000 Series

Ejecting paper to the front of the printer (for banner printing and printing on thick paper)

When performing banner printing on roll paper or printing on thick cut sheets, eject paper to the front of the printer.

This is available for roll paper or cut sheets that meet the following specifications.

SC-P9000 Series/ SC-P8000 Series

Thickness 0.5mm or more 0.5mm or more

Paper Length

1580mm or more 914.4mm or more

SC-P7000 Series/ SC-P6000 Series

When collecting more than one sheet of paper at a time, the gap between the paper support and the paper basket is reduced, and the paper may not be ejected correctly.

See the following for the paper ejection method to the rear of the printer.

See the following for the paper ejection method from the front of the printer.

U “Ejecting Paper to the Front” on page 41

Ejecting Paper to the Rear

This section explains how to switch the paper basket from the stored state to the ready state.

U “Ejecting Paper to the Rear” on page 39

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Raise the paper supports to the horizontal

position.

Lower the paper basket at the front until it is level

with the floor.

Carefully raise the basket at the front by one level.

When the cloth touches the floor, secure using the hook and loop fastener tape as shown in the illustration.

Lower the paper supports while pressing the left

and the right sides until the supports are vertical as shown in the illustration.

Important:

If image quality is smudged in Doubleweight Matte Paper or Enhanced Matte Paper, raise all paper supports by one level.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Note:

For Enhanced Matte Paper, when the front basket is level with the floor the basket can hold multiple, continuous print outs. However, the image quality may be smudged, damaged, or soiled.

For the SC-P9000 Series/SC-P8000 Series, proceed to Step 5.

When the paper length is 1,189 mm (A1 length) or more

Lay the basket straight out.

Ejecting Paper to the Front

This section explains how to switch the paper basket from the stored state to the ready state.

Raise the paper supports to the horizontal

position.

For the SC-P7000 Series/SC-P6000 Series, this completes this section.

Switch the position of the basket at the rear

according to the length of the print outs.

When the paper length is 1,189 mm (A1 length) or less

Raise the basket so that it is straight up.

Remove the hook and loop fastener tape.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Raise the front basket so that is vertical.

Make sure the cloth is pulled tight.

Lower the paper supports while pressing left and

right as shown in the illustration until they touch the cloth.

Front

Place the paper supports in the position shown in the illustration to prevent the front paper basket from falling to the floor and getting soiled.

Back

Storing

Store the paper basket before loading paper or moving the printer.

When storing, perform each ejection procedure in reverse, and store the front and rear paper baskets vertically as shown in the illustration.

U “Ejecting Paper to the Rear” on page 39

U “Ejecting Paper to the Front” on page 41

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Using the Auto Take-up Reel Unit (SC-P9000 Series/SC-P8000 Series Only)

The optional auto take-up reel unit automatically takes up paper as it is printed. It improves efficiency for banners or large jobs involving continuous printing on roll paper.

The auto take-up reel unit for this printer can take up paper in either of the directions shown below. Some types of paper may not support one or the other of these directions or may place restrictions on the take-up direction.

See the following section for information on take-up support and take-up direction.

U “Epson Special Media Table” on page 159

Important:

Confirm that the end of the roll is cut straight across. The unit will not function as expected if the end of the roll is wavy or curved.

U “Manual cut method” on page 32

Note:

For information on installing the auto take-up reel unit, see the documentation supplied with the auto take-up reel unit.

Using the Control Panel

This section describes how to use the control panel for the auto take-up reel unit.

Printed side out Printed side in

Taking-up with printed side out places the printed surface on the outside of the roll.

Taking-up with printed side in places the printed surface on the inside of the roll.

Caution:

❏ Fix the roll core for the auto take-up reel unit in

place as described in the documentation. Dropping the roll core could cause injury.

❏ Be careful that your hands, hair, or other

objects do not get caught in the moving parts of the auto take-up reel unit. Failure to observe this precaution could result in injury.

A Power lamp

Displays the status of the auto take-up reel unit.

On : The auto take-up reel unit is

ready for use.

Flickering : The auto take-up reel unit is in

use.

Blinking : The auto take-up reel unit is in

power-saving mode.

Intermittent blinking

Off : The power is off.

B Auto switch

Selects the auto take-up direction.

: An error has occurred.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Backward : The roll is taken up with the printable

side in.

Forward : The roll is taken up with the printable

side out.

Off : The auto take-up reel unit does not

take up paper.

Buttons that are used in the following settings

C Manual switch

Selects the manual take-up direction.

The selected option takes effect when the Auto switch is in the Off position.

Backward : The roll is taken up with the printable

side in.

The speed will increase after the button is pressed for more than three seconds.

Forward : The roll is taken up with the printable

side out.

The speed will increase after the button is pressed for more than three seconds.

Attaching the Paper

This section describes how to attach roll paper to the auto take-up reel unit roll core.

The procedure varies with the take-up direction.

Set the auto take-up reel unit Auto switch to Off.

Plug the power cord into an outlet and confirm that the power lamp lights.

Press the P button to turn on the printer.

Check that the roll paper is correctly loaded in the

printer.

Check that the auto take-up reel unit icon is

displayed on the printer's screen.

Important:

Before proceeding, select Off for Auto Cut. Using the auto take-up reel unit when On is se le ct ed wi ll ca us e errors.

U “Cutting the roll paper” on page 31

Taking Up the Paper Printable Side Out

For information on installing the roll core, see the Setup Guide for the optional auto take-up reel unit.

If the icon is not displayed, check that the auto take-up reel unit is connected correctly and is turned on.

Press the l button on the printer, and then select

Roll Paper from the Paper Source menu.

Keep the d button on the printer pressed until

the end of the roll reaches the roll core.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Tape the end to the roll core.

Place tape (available from third-party suppliers) at the center and then at the left and right ends.

Note:

The tensioner supplied with the auto take-up reel unit is used with some types of paper. Slacken the paper and insert the tensioner near the center of the paper as shown. See the following section for information on paper that requires the tensioner.

U “Epson Special Media Table” on page 159

Set the auto take-up reel unit Auto switch to

Forward.

Keep the d button in the printer pressed until

you have fed enough paper for about three wraps around the roll core.

Keep the Manual switch on the auto take-up reel

unit pressed to Forward to wrap the paper three times around the core.

Taking Up the Paper Printable Side In

For information on installing the roll core, see the Setup Guide for the optional auto take-up reel unit.

Buttons that are used in the following settings

After wrapping the paper around the core, ensure that paper around the core is sufficiently loose.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Set the auto take-up reel unit Auto switch to Off.

Plug the power cord into an outlet and confirm that the power lamp lights.

Press the P button to turn on the printer.

Check that the roll paper is correctly loaded in the

printer.

Tape the end to the roll core.

Place tape (available from third-party suppliers) at the center and then at the left and right ends.

Check that the auto take-up reel unit icon is

displayed on the printer's screen.

If the icon is not displayed, check that the auto take-up reel unit is connected correctly and is turned on.

Press the l button on the printer, and then select

Roll Paper from the Paper Source menu.

Keep the d button on the printer pressed until

the end of the roll reaches the roll core.

Keep the d button in the printer pressed until

you have fed enough paper for about three wraps around the roll core.

Keep the Manual switch on the auto take-up reel

unit pressed to Backward to wrap the paper three times around the core.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

After wrapping the paper around the core, ensure that paper around the core is sufficiently loose.

Set the Auto switch to Backward.

Set the auto take-up reel unit Auto switch to Off.

Cut the paper and take it up until it is all on the

auto take-up reel unit roll core.

Removing Paper from the Auto Take-up Reel Unit

This section describes how to remove paper from the auto take-up reel unit.

Caution:

Removing paper from the auto take-up reel unit requires two workers, one on each end of the roll.

A single worker working by his or herself could drop the roll, resulting in injury.

U “Manual cut method” on page 32

After cutting the paper, support the end to prevent the printed surface touching the floor; continue to support the paper until it is all taken up. Keep the Manual switch pressed in the take-up direction (either Forward or Backward).

Unlock the movable unit and remove it from the

roll core.

When removing the movable unit, support the ro ll core with o ne hand to prev ent it falling t o the floor.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Remove the roll core from the auto take-up reel

unit.

Basic Printing Methods

This section explains how to print and how to cancel printing.

Printing (Windows)

Make print settings such as paper size and paper source from the connected computer and then print.

Turn on the printer, and load the paper.

U “Loading and Removing the Roll Paper” on

page 28

U “Loading and Removing Cut Sheets” on

page 34

When you have created the data, click Print in

the File menu.

Make sure your printer is selected, and then click

Preferences or Properties to display the settings screen.

XX-XXXXX Series

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Select the Media Type, Color, Print Quality,

Mode, and Source according to the paper loaded in the printer.

Make sure you select the same Size as you set in

the application.

After making the settings, click OK.

The progress bar is displayed, and printing starts.

Screen while printing

The following screen is displayed when you start printing, and the progress bar (the computer's processing status) is displayed. On this screen you can check the remaining ink level, product numbers for the ink cartridges, and so on.

An error message is displayed if an error occurs or an ink cartridge needs replacing while printing.

When settings are complete, click Print.

XX-XXXXX Series

Printing (Mac OS X)

Make print settings such as paper size and paper source from the connected computer and then print.

Turn on the printer, and load the paper.

U “Loading and Removing the Roll Paper” on

page 28

U “Loading and Removing Cut Sheets” on

page 34

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

When you have created the data, from the File

menu of the application, click Print and so on.

Click Show Details at the bottom of the screen.

Check that this printer is selected, and then set

the paper size.

Select the paper size, borderless printing options, and paper source in the Paper Size menu.

Select Print Settings from the list, and then set

each item.

For Mac OS X v10.6.8, click the arrow ( ) on the right of the printer name to make settings on the Page Setup screen.

Note:

If page settings are not displayed in the print dialog, click the "page settings" option (e.g., Page Setup) in the File menu.

Set the Media Type, Color, Print Quality, and other settings according to the type of paper loaded in the printer. Normally, you can print correctly just by setting items in the Print Settings screen.

When settings are complete, click Print.

The printer icon is displayed in the Dock while printing. Click the printer icon to display the status. You can check the progress of the current print job and the printer status information. You can also cancel a print job.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Also, if an error occurs while printing, a notification message is displayed.

Canceling Printing (Windows)

When the computer has finished sending data to the printer, you cannot cancel the print job from the computer. Cancel on the printer.

U “Canceling Printing (from the Printer)” on

page 52

When the progress bar is displayed

Click Cancel.

When the progress bar is not displayed

Click the printer icon on the Taskbar.

Whether or not an icon is displayed depends on the settings selected for Windows.

Select the job you want to cancel, and then select

Cancel from the Document menu.

To cancel all jobs, click Cancel All Documents in the Printer menu.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

If the job has been sent to the printer, print data is not displayed on the above screen.

Canceling Printing (Mac OS X)

When the computer has finished sending data to the printer, you cannot cancel the print job from the computer. Cancel on the printer.

U “Canceling Printing (from the Printer)” on

page 52

Click the printer icon in the Dock.

Select the job you want to cancel, and then click

Delete.

Printable area

This section describes the printable areas for the printer.

If the margin set in an application is larger than the following setting values, sections beyond the specified margins are not printed. For example, if 15 mm is selected for the left and right margins in the printer menus and the document fills the page, the 15 mm at the left and right sides of the page will not be printed.

Roll Paper Printable Area

The gray area in the illustration below shows the printable area.

The arrow in the illustration indicates the direction of the ejected paper.

If the job has been sent to the printer, print data is not displayed on the above screen.

Canceling Printing (from the Printer)

Press the W button, select Job Cancel on the screen, and then press the Z button.

The print job is canceled even in the middle of printing. It may take a while before the printer returns to ready status after canceling a job.

Note:

Note: You cannot delete print jobs which are in the print queue on the computer using the above operation. See "Canceling Printing (Windows)" or "Canceling Printing (Mac OS X)" in the previous section for information on deleting print jobs from the print queue.

*1 SC-P9000 Series/SC-P8000 Series

*2 SC-P7000 Series/SC-P6000 Series

Selecting Roll Paper (Banner) from Source in the printer driver sets the top and bottom margins of the paper to 0 mm.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

*4 The printer driver supports the following

maximum paper lengths.

Windows: 15 m (590.6 inch)

Mac OS X: 15 m 24 cm (600 inch)

When printing on paper longer than this, you need commercially available banner printing software. In this situation, select Roll Paper (Banner) from Source in the printer driver.

A to D in the illustration indicates the margins at the

top, bottom, left, and right.

For borderless printing, the following values are set to 0 mm.

❏ Left and right borderless printing: B, D

❏ Borderless printing on all sides: A, B, C, D

Roll Paper Margin Parameter

15mm A,B,C,D=15mm

When Normal is selected, the value for A is 20 mm

Margin Values

for the following paper.

Premium Glossy Photo Paper (250)/Premium Semigloss Photo Paper (250)/Premium Luster Photo Paper (260)/Premium Semimatte Photo Paper (260)

Also, when using Enhanced Adhesive Synthetic Paper, the value for A is 100 mm.

Important:

❏ Printing is distorted when the trailing edge of

the roll paper comes off the core. Make sure the trailing edge does not come inside the printing area.

Margins in other situations depends on the option selected for Roll Paper Margin in the menus, as shown in the table below.

Roll Paper Margin SettingsU “Paper” on page 116

indicates factory default settings.

Roll Paper Margin Parameter

Normal

Top15mm/Bottom15mm A,C=15mm

Top35mm/Bottom15mm A=35 mm

Margin Values

A,C=15 mm

B,D=3 mm

C=15mm

B,D=3 mm

❏ The print size does not change even when the

margins are changed.

Cut Sheets Printable Area

The gray area in the illustration below shows the printable area. The arrow in the illustration indicates the direction of the ejected paper.

When printing borderless on the left and right, the left and right margins are 0 mm.

Top150mm/Bottom15mm A=150mm

C=15mm

B,D=3 mm

3mm A,B,C,D=3 mm

*1 SC-P9000 Series/SC-P8000 Series

*2 SC-P7000 Series/SC-P6000 Series

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

*3 15.5 mm when printing Enhanced Matte Poster

Board

Changing the Type of Black Ink

This printer allows you to set both photo black ink and matte black ink and switch between them depending on the paper type.

Photo Black ink reduces the grainy feeling of photo papers giving them a smooth, professional finish. Matte Black ink significantly increases black optical density when printing on matte type papers.

See the following section to select a suitable black ink for the media type.

U “Epson Special Media Table” on page 159

Note:

If there is not enough ink remaining for the switch, you will need to replace the cartridge. It may be possible to print with ink cartridges that could not be used for a black ink switch.

Switching Automatically

You can switch black inks and print from the printer driver.

Set Auto Black Ink Change to On from the Printer Setup menu in advance.

U “Printer Setup” on page 120

Display the printer driver's Main screen.

U “Printing (Windows)” on page 48

U “Printing (Mac OS X)” on page 49

Select the paper type from the Media Type menu.

Depending on the media type you select, black ink is switched automatically during printing.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Windows

Mac OS X

XX-XXXXX

Switching Manually

Change from the control panel.

Buttons that are used in the following settings

Turn on the printer by pressing the P button.

Press the button.

Follow the on-screen instructions.

Note:

❏ The black ink type that can be used for printing

varies depending on the media type.

❏ You can select the type of black ink from the

printer driver when the media type selected supports both photo black and matte black. U “Supported Media” on page 159

❏ If the printer status cannot be acquired, the

black ink type may change automatically.

Check other settings, and then start printing.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Basic Operations

Turning Off the Power Using Power Off Timer

The printer offers the following two power management options.

Sleep mode

The printer enters sleep mode when there are no errors, no print jobs being received, and no control panel or other operations performed. When the printer enters sleep mode, the control panel's screen turns off and the internal motors and other parts switch off to consume less power.

Sleep mode is cleared if a print job is received or a button on the control panel is pressed.

The delay before the printer enters sleep mode can be selected from values between 5 and 210 minutes. At default settings, the printer enters sleep mode if no operations are performed for 15 minutes. The delay can be changed from the Preferences menu.

About Power Management

You can adjust the time before Power Management is applied. Any increase will affect the printer’s energy efficiency. Please consider the environment before making any change.

U “Preferences” on page 123

Note:

When the printer enters sleep mode, the control panel's screen goes blank as if the power has been turned off, but the P light remains lit.

Power Off Timer

The printer is equipped with a Power Off Timer option that automatically turns the printer off if no errors occur, no print jobs are received, and no control panel or other operations are performed for a set period of time. The delay before the printer turns off automatically can be selected from values between 1 and 24 hours in increments of 1 hour.

The default setting is 8 hours.

The printer turns off automatically if no errors occur, no print jobs are received, and no operations on the panel or other operations are performed for eight hours or longer.

Power Off Timer settings can be adjusted from the Preferences menu.

U “Preferences” on page 123

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Optional Hard Disk Unit

Function Summary

When an optional hard disk unit (from now on, hard disk) is installed, you can save print jobs and then reprint them.

Extended functions

Print jobs can be viewed and managed as described below.

Viewing Print Jobs

When there are multiple print jobs with some in the queue, the following information can be displayed.

Note: Held print jobs can be saved if On is selected for Store Held Job in the control panel Printer Setup menu.

The factory default setting is Off.

U “Printer Setup” on page 120

Viewing and Printing Stored Jobs

Print jobs can be stored on the hard disk and printed at a later date.

Print jobs selected for printing at a later date can be printed directly on the hard disk without increasing the load on your computer.

Print jobs are saved using the printer driver.

U “Saving Print Jobs” on page 58

Note:

Jobs printed with the following applications are always saved to the hard disk.

❏ Estimated print start time

❏ Estimated print time

Viewing and Resuming Held Print Jobs

If the source or other settings selected with the printer differ from the settings specified in the print job, an error will occur and printing will be suspended.

When an error occurs, printing cannot be restarted until the printer has been readied by, for example, replacing the paper.

However, the following types of print job can be held temporarily on the hard disk.

Therefore, after printing all the jobs that can be printed with the current paper, you can replace the paper with the media specified in the held print jobs and resume printing, making your work more efficient.

❏ Print jobs that specify sources that differ from that

selected with the printer

❏ Print jobs that specify paper types that differ from

that selected with the printer

❏ LFP Print Plug-In for Office

❏ EPSON CopyFactory5

❏ Epson Color Calibration Utility

Print Job Management

From the Print Job menu of the Control Panel

Detailed procedureU “Viewing and Printing Saved

Print Jobs” on page 59

From Remote Manager

When the printer and the computer on which the hard disk is installed are connected over a network, use Remote Manager.

U “Remote Manager” on page 26

From LFP HDD Utility (Windows only)

When the printer and the computer on which the hard disk is installed are connected by USB, you can also perform operations from the HDD utility. You can download the software from the Epson home page.

U “Software on the Website” on page 25

❏ Print jobs that specify output paper sizes (widths)

that are larger than that selected with the printer

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Optional Hard Disk Unit

Data on a Hard Disk

Data on a hard disk cannot be copied to a computer or other device. Even when print jobs have been stored on the hard disk, save the original data on a computer.

Data on a hard disk may be lost or corrupted in the following situations.

❏ When the disk is affected by static electricity or

electrical noise

❏ When the disk has been used incorrectly

❏ After a malfunction or repair

❏ When the disk was damaged by a natural disaster

We take no responsibility for any data loss, data corruption, or other problems due to any cause, even including those listed above and within the warranty period. Be aware that we are also not responsible for the recovery of lost or corrupted data.

After confirming that the printer is selected, click

Printer properties or Properties to display printer settings.

On the Page Layout screen, click the Settings

button from Hard Disk Unit, and then select Print Job.

Saving Print Jobs

This section describes the printer driver settings used to save print jobs.

Settings on Windows

When you have created the data, click Print in

the File menu.

Print operations differ depending on the selected content as shown below.

❏ Print and Save:

Saves the job to the hard disk at the same time as printing. When Print after Transmission Completed is selected, printing starts after the print job has been saved to the hard disk unit.

❏ Print only:

Prints the job without saving to the hard disk.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Optional Hard Disk Unit

❏ Save only:

Saves the job without printing.

Next, print the document normally.

Making Settings for Mac OS X

When you have created the data, from the File

menu of the application, click Print and so on.

After clicking Print, the operations differ depending on the selected content as shown below.

❏ Print and Save:

Saves the job to the hard disk at the same time as printing. When Print after Transmission Completed is selected, printing starts after the print job has been saved to the hard disk unit.

❏ Print only:

Prints the job without saving to the hard disk.

❏ Save only:

Saves the job without printing.

Next, print the document normally.

Check that the printer is selected, and then select

HDD Settings from the list.

Select Print Mode.

Viewing and Printing Saved Print Jobs

This section describes how to view and print saved jobs from the control panel.

Buttons that are used in the following settings

Confirm that the printer is ready and press the r

button.

The settings menu will be displayed.

Press the d button, and then the r button.

The Print Job menu will be displayed.

Press the d/u buttons to select Saved Job Queue

and press the Z button.

The names of stored print jobs are displayed.

Press the d/u buttons to select the desired job

and press the Z button.

Information on the selected job will be displayed.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Optional Hard Disk Unit

To exit without printing the job, press the W button after viewing job data.

To print the job, proceed to Step 5.

Press the Z button.

The File Options is displayed.

Press the d/u buttons to select Print File or

Delete, and then press the r button.

When Delete is selected, a confirmation screen appears. Press the Z button to delete the job.

When Print File is selected, proceed to Step 7.

Press the d/u buttons, enter the number of

copies, and then press the Z button.

Printing starts.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Windows)

Right-click your printer icon, and click Printing

Using the Printer

preferences.

Driver (Windows)

Displaying the Settings Screen

The printer driver setting screen is displayed.

You can access the printer driver in the following ways:

❏ From Windows applications

U “Printing (Windows)” on page 48

❏ With the Start button

With the Start button

Follow the steps below when specifying common settings among applications or performing printer maintenance, such as Nozzle Check or Head Cleaning.

On the Control Panel click Hardware and

Sound and then View devices and printers.

For Windows 7 Click Start and then Devices and Printers.

For Windows Vista

Click

Sound, and then Printer.

For Windows XP Click Start, Control Panel, Printers and Other Hardware, and then Printers and Faxes.

Note: If your Windows XP Control Panel is in Classic View, click Start, Control Panel, and then Printers and Faxes.

, Control Panel, Hardware and

Make the necessary settings. These settings become the default settings of the printer driver.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Windows)

Displaying Help

You can access the printer driver help in the following ways:

❏ Click Help

❏ Right-click on the item you want to check and

display

Click the Help Button to Display

By displaying help, you can use the contents page or keyword search to read the help.

Right-click on the item you want to check and display

Right-click the item, and then click Help.

Note:

In Windows XP, click the help item you want to view.

on the title bar, and then click

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Windows)

Customizing the Printer Driver

You can save the settings or change the display items as you prefer.

Saving various settings as your Select Settings

You can save all printer driver settings as a Select Setting. Additionally, in Select Setting the recommended settings for a variety of uses are already available.

This allows you to easily load settings that have been stored in Select Settings, and repeatedly print using exactly the same settings.

Set each item for the Main screen and the Page

Layout screen that you want to save as your Select Settings.

When you enter a name in Name and click Save,

the settings are saved in Settings List.

You can load the settings you have saved from Select Setting on the Main screen.

Note:

❏ You can save up to 100 settings.

❏ Select the settings you want to save, and then click

Export to save them to a file. You can share the settings by clicking Import to import the saved file on another computer.

Click Save/Del in the Main or Page Layout tab.

❏ Select the settings you want to delete, and then click

Delete.

Adding a Paper Type

This section explains how to register new paper information (Paper Configuration) for Print Quality and Paper Settings (Custom Settings). When settings have been registered, they are displayed in Media Type on the printer settings screen and can be selected.

Important:

When using commercially available paper in Epson Color Calibration Utility, make sure you register the paper information.

Display the printer driver's Main screen.

U “Printing (Windows)” on page 48

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Windows)

Click Paper Configuration.

Adjust settings for the new custom media and

click OK.

Click Custom Settings.

When you enter a name in Name and click Save,

the settings are saved in Settings List.

You can select saved settings from Media Type on the Main screen.

Note:

❏ You can save up to 100 settings.

❏ Select the settings you want to save, and then click

Export to save them to a file. You can share the settings by clicking Import to import the saved file on another computer.

❏ Select the settings you want to delete, and then click

Delete.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Windows)

Rearranging display items

To display frequently used items right away, you can arrange Select Setting, Media Type, and Paper Size as follows.

❏ Hide unnecessary items.

❏ Rearrange in an order of most frequent use.

❏ Arrange in groups (folders).

Go to the Utility tab and click Menu

Arrangement.

Order or group items in the List box.

❏ You can move and order items by dragging and

dropping.

❏ To add a new group (folder), click Add

Group.

❏ To delete a group (folder), click Delete

Group.

❏ Drag and drop unnecessary items to Not

Display.

Select Edit Item.

Note:

When Delete Group is performed, the group (folder) is deleted, however the settings in the deleted group (folder) remain. You also need to delete individually from Settings List in the save location.

Click Save.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Windows)

Summary of the Utility Tab

You can perform the following maintenance functions from the printer driver's Utility tab.

EPSON Status Monitor 3

You can check the printer's status, such as the remaining ink level and error messages, on the computer's screen.

Monitoring Preferences

You can select the error notifications displayed on the EPSON Status Monitor 3 screen, or register a shortcut for the Utility icon to the Taskbar.

Note: If you select the Shortcut Icon on the Monitoring Preferences screen, the Utility shortcut icon is displayed

on the Windows Taskbar.

Nozzle Check

This function prints a nozzle check pattern to check if the print head nozzles are clogged.

If you see banding or gaps in the print outs, perform head cleaning to clear any clogged nozzles.

U “Checking for clogged nozzles” on page 126

Head Cleaning

If you see banding or gaps in the print outs, perform head cleaning. Cleans the surface of the print head to improve the print quality.

U “Cleaning the print head” on page 127

Print Head Alignment

If the print results appear grainy or out of focus, perform Print Head Alignment. The Print Head Alignment function corrects print head gaps.

U “Adjusting print misalignments (Head

Alignment)” on page 126

By right-clicking the icon, you can display the following menu and perform maintenance functions.

EPSON Status Monitor 3 starts when the printer name is clicked from the displayed menu.

Print Queue

You can display the list of all waiting jobs.

On the Print Queue screen, you can view information on the data waiting to be printed, delete and reprint these jobs.

Printer and Option Information (SC-P9000 Series/ SC-P7000 Series only)

Displays the inkset information. These settings should not normally be changed.

If you cannot acquire inkset information automatically, select an inkset according to the ink type that is installed in the printer.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Windows)

Speed and Progress

You can set various functions for printer driver basic operations.

Menu Arrangement

You can arrange the display items of Select Setting, Media Type, and Paper Size. For example, you can

reorder them by frequency of access.

U “Rearranging display items” on page 65

Export or Import

You can export or import the printer driver settings. This function is useful when you want to make the same printer driver settings on multiple computers.

EPSON LFP Remote Panel 2

You can configure custom paper settings and other settings. For details, see the EPSON LFP Remote Panel 2 help.

Epson Color Calibration Utility

Start Epson Color Calibration Utility and perform calibration. See the Epson Color Calibration Utility manual for details.

Note:

If EPSON LFP Remote Panel 2 and Epson Color Calibration Utility are grayed out, the applications are not installed on the computer being used.

You can download the latest applications from the Epson website.

U “Software on the Website” on page 25

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Mac OS X)

Using the Printer Driver (Mac OS X)

Displaying the Settings Screen

The display method of the printer driver setting screen may differ depending on the application or the OS version.

U “Printing (Mac OS X)” on page 49

Displaying Help

Saving to Presets

Set each item in Paper Size and Print Settings that

you want to save to the preset.

When registering commercially available paper as custom paper

Select Paper Configuration from the list, and then make settings according to the paper you want to register. See the printer driver help for more details on each setting item.

Click in the printer driver setting screen to display Help.

Using Presets

You can enter a name in Presets and save the settings for frequently used setting information (items in Paper Size or Print Settings), and setting information for commercially available paper.

This allows you to easily load settings and repeatedly print using exactly the same settings.

Click Save Current Settings as Preset… from

Presets.

Enter a name, and then click OK.

Note:

Settings saved in Presets can also be selected from Epson Color Calibration Utility. When using commercially available paper in Epson Color Calibration Utility, we recommend saving settings in Presets.

Note: When All printers is selected from Preset Available For, you can select the saved Preset from

all printer drivers installed on your computer.

The settings are saved to Presets.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Mac OS X)

You can then select the settings you saved from Presets.

Deleting from Presets

On the Print screen, select Show Presets... from

Presets.

Select the setting you want to delete, click Delete,

and then click OK.

Using Epson Printer Utility 4

You can perform maintenance tasks such as Nozzle Check or Head Cleaning by using Epson Printer Utility

4. This utility is installed automatically when you install the printer driver.

Starting Epson Printer Utility 4

Click the Apple menu - System Preferences -

Printers & Scanners (or Print & Fax).

Select the printer and click Options & Supplies >

Utility > Open Printer Utility.

Epson Printer Utility 4 Functions

You can perform the following maintenance functions from Epson Printer Utility 4.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Using the Printer Driver(Mac OS X)

EPSON Status Monitor

You can check the printer's status, such as the remaining ink level and error messages, on the computer's screen.

Nozzle Check

This function prints a nozzle check pattern to check if the print head nozzles are clogged.

Note:

If EPSON LFP Remote Panel 2 is grayed out, the application is not installed on the computer being used.

You can download the latest applications from the Epson website.

U “Software on the Website” on page 25

If you see banding or gaps in the print outs, perform head cleaning to clear any clogged nozzles.

U “Checking for clogged nozzles” on page 126

Head Cleaning

If you see banding or gaps in the print outs, perform head cleaning. Cleans the surface of the print head to improve the print quality.

U “Cleaning the print head” on page 127

Print Head Alignment

Perform print head alignment if the print results appear grainy or blurred. The Print Head Alignment function corrects print head gaps.

U “Adjusting print misalignments (Head

Alignment)” on page 126

EPSON LFP Remote Panel 2

You can configure custom paper settings and other settings. For details, see the EPSON LFP Remote Panel 2 help.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

In other applications, set No Color

Printing Varieties

Auto Color Adjustment by

Management.

Note:

For information on supported platforms, see the website for the application in question.

PhotoEnhance (Windows Only)

The printer driver for this printer comes with the Epson proprietary function PhotoEnhance that makes the most efficient use of the color reproduction area, corrects image data to improve colors before printing.

By using PhotoEnhance, you can correct photo colors to match the subject types such as people, scenery, or night view. You can print color data in sepia or black and white. Colors are automatically corrected simply by selecting the print mode.

Note:

It is recommended that you use images with a color space of sRGB.

When using applications featuring a color

management function, specify how to adjust colors from these applications.

When using applications without a color management function, start from step 2.

Setting example for Adobe Photoshop CS5

Open the Print screen.

Select Color Management and then Document. Select Printer Manages Colors as the Color Handling setting, and then click Print.

Display the printer driver's Main screen.

U “Printing (Windows)” on page 48

Depending on the type of the application, make the settings following the table below.

Adobe Photoshop CS3 or later Adobe Photoshop Elements 6.0 or later Adobe Photoshop Lightroom 1 or later

OS Color Management

Settings

Windows 8.1,

Windows 8,

Windows 7,

Windows Vista

Windows XP (Service Pack 2 or later and .NET 3.0 or later)

Windows XP (other than the above)

Printer Manages Colors

No Color Management

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Select Custom Settings from Color Mode, and

then select PhotoEnhance.

To make more detailed adjustments, click Advanced, and then proceed to Step 4.

On the PhotoEnhance screen, you can set effects

to apply to the print data.

See the printer driver help for more details on each item.

Correct color and print

The printer driver automatically and internally corrects colors to match the color space. You can select from the following color correction modes.

❏ EPSON Standard (sRGB)

Optimizes the sRGB space and corrects the color.

❏ Adobe RGB

Adobe RGB Optimizes the sRGB space and corrects the color.

Note that if you click Advanced when one of the above color processing options is selected, you can fine-tune Gamma, Brightness, Contrast, Saturation, and color balance for the selected option.

Use this option when the application in use does not have a color correction function.

Making Settings in Windows

When using applications featuring a color

management function, specify how to adjust colors from these applications.

When using applications without a color management function, start from step 2.

Check other settings, and then start printing.

Depending on the type of the application, make the settings following the table below.

Adobe Photoshop CS3 or later Adobe Photoshop Elements 6.0 or later Adobe Photoshop Lightroom 1 or later

OS Color Management

Settings

Windows 8.1,

Windows 8,

Windows 7,

Windows Vista

Windows XP (Service Pack 2 or later and .NET 3.0 or later)

Windows XP (other than the above)

In other applications, set No Color Management.

Printer Manages Colors

No Color Management

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Note:

For information on supported platforms, see the website for the application in question.

Setting example for Adobe Photoshop CS5

Open the Print screen.

Select Color Management and then Document. Select Printer Manages Colors as the Color Handling setting, and then click Print.

Make the necessary settings.

See the printer driver help for more details on each item.

Note:

You can adjust the correction value by checking the sample image on the left side of the screen. You can also use the color circle to fine-tune the color balance.

Display the printer driver's Main screen.

U “Printing (Windows)” on page 48

Select Custom Settings from Color Mode, and

then select Color Controls.

To make more detailed adjustments, click Advanced, and then proceed to Step 4.

Check other settings, and then start printing.

Making Settings for Mac OS X

When using applications featuring a color

management function, specify how to adjust colors from these applications.

When using applications without a color management function, start from step 2.

When using the following applications, select the Printer Manages Colors color management option.

Adobe Photoshop CS3 or later Adobe Photoshop Elements 6 or later Adobe Photoshop Lightroom 1 or later

In other applications, set No Color Management.

Note:

For information on supported platforms, see the website for the application in question.

Setting example for Adobe Photoshop CS5

Open the Print screen.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Select Color Management and then Document. Select Printer Manages Colors as the Color Handling setting, and then click Print.

Display the Print screen.

U “Printing (Mac OS X)” on page 49

Select Color Matching from the list, and then

click EPSON Color Controls.

Select Print Settings from the list, and then select

Color Controls as the Color Settings setting. When adjusting the parameters manually, click Advanced Color Settings.

Make the necessary settings.

See the printer driver help for more details on each item.

Note: EPSON Color Controls will not be available in the

following applications if Step 1 is omitted.

❏ Adobe Photoshop CS3 or later

❏ Adobe Photoshop Lightroom 1 or later

❏ Adobe Photoshop Elements 6 or later

Check other settings, and then start printing.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Printing Black and White Photos

You can print black and white photos with rich gradation by adjusting the image data color by the printer driver. You can correct image data when printing without processing the data from applications. The original data is not affected.

You cannot select Advanced B&W Photo in the following instances. When printing in black and white, select Black (Windows) or Grayscale (Mac OS X).

❏ When using the Violet inkset for the SC-P9000

Series/SC-P7000 Series

❏ When using Singleweight Matte Paper, Photo

Quality Ink Jet Paper, or Plain Paper

Note:

It is recommended that you use images with a color space of sRGB.

In other applications, set No Color Management.

Note:

For information on supported platforms, see the website for the application in question.

Setting example for Adobe Photoshop CS5

Open the Print screen.

Select Color Management and then Document. Select Printer Manages Colors or No Color Management as the Color Handling setting, and then click Print.

Making Settings in Windows

When using applications featuring a color

management function, specify how to adjust colors from these applications.

When using applications without a color management function, start from step 2.

Depending on the type of the application, make the settings following the table below.

Adobe Photoshop CS3 or later Adobe Photoshop Elements 6.0 or later Adobe Photoshop Lightroom 1 or later

OS Color Management

Settings

Windows 8.1,

Windows 8,

Windows 7,

Windows Vista

Windows XP (Service Pack 2 or later and .NET 3.0 or later)

Printer Manages Colors

Display the printer driver's Main screen.

U “Printing (Windows)” on page 48

Select Color from Advanced B&W Photo.

Windows XP (other than the above)

No Color Management

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

To make detailed adjustments, proceed to Step 4. If you do not want to make adjustments, proceed to Step 6.

Select Custom Settings from Color Mode, and

then click Advanced.

Making Settings for Mac OS X

When using applications featuring a color

management function, specify how to adjust colors from these applications.

When using the following applications, select the Printer Manages Colors color management option.

Adobe Photoshop CS3 or later Adobe Photoshop Elements 6 or later Adobe Photoshop Lightroom 1 or later

In other applications, set No Color Management.

Note:

For information on supported platforms, see the website for the application in question.

Make the necessary settings.

See the printer driver help for more details on each item.

Setting example for Adobe Photoshop CS5

Open the Print screen.

Select Color Management and then Document. Select Printer Manages Colors as the Color Handling setting, and then click Print.

Check other settings, and then start printing.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Display the Print screen, select Print Settings

from the list, and then select Advanced B&W Photo as the Color.

U “Printing (Mac OS X)” on page 49

Make the necessary settings.

See the printer driver help for more details on each item.

Click Advanced Color Settings.

Check other settings, and then start printing.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Borderless Printing

You can print your data without margins on the paper.

The types of borderless printing you can choose vary as shown below depending on the media type.

❏ Retain Size

Roll Paper: No margins for all edges, no margins for the left and right

Cut Sheets: No margins for the left and right only

(Borderless printing is not available with poster board.)

When printing borderless for all edges, you can also configure the cutting operation.

U “About Roll Paper Cutting” on page 79

When performing left and right borderless printing, margins appear on the top and bottom of the paper.

Top and bottom margin values U “Printable area” on

page 52

Create the print data larger than the paper size in the applications to produce borderless output. The printer driver does not enlarge the image data. Use sett ing s s uch as P age Set up in the applications to set the size of the image data as follows.

- Create print data larger than its actual print size by 3 mm on the left and right (6 mm in total).

- If the application has margin settings, set the margins to 0 mm.

- Make the image data as large as the paper size.

Select this setting if you want to avoid image enlargement by the printer driver.

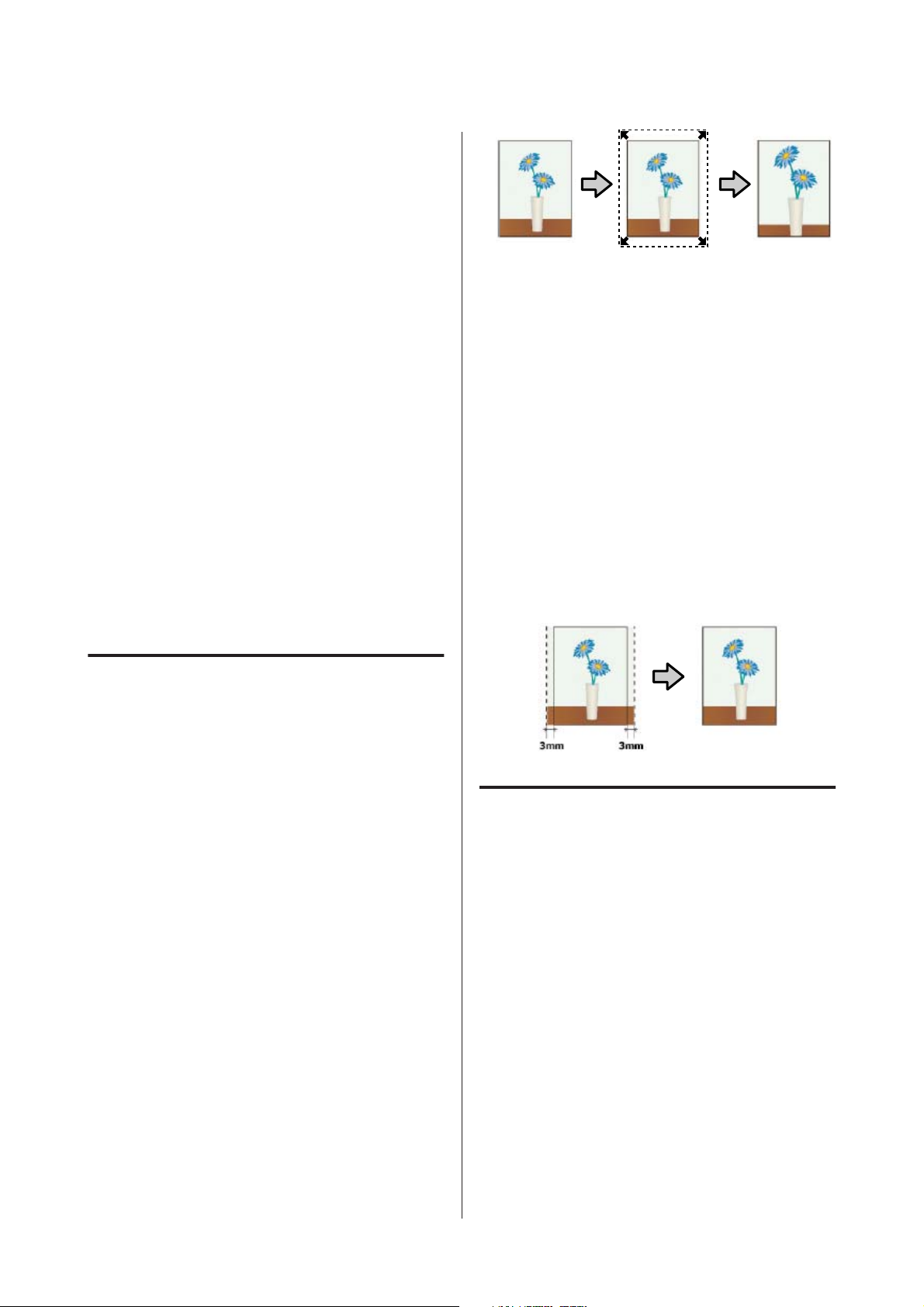

Types of Borderless Printing Methods

You can perform borderless printing using the following two methods.

❏ Auto Expand

The printer driver enlarges the print data to a size slightly larger than the paper size and prints the enlarged image. The sections which are beyond the paper edges are not printed; therefore, resulting in borderless printing. Use settings such as Page Setup in the applications to set the size of the image data as follows.

- Match the paper size and page setting for the print data.

- If the application has margin settings, set the margins to 0 mm.

- Make the image data as large as the paper size.

Supported Paper

Depending on the media type or size, the print quality may decline or borderless printing cannot be selected.

U “Epson Special Media Table” on page 159

U “Supported Commercially Available Paper” on

page 176

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

About Roll Paper Cutting

When performing borderless printing on roll paper, you can specify whether it is left and right borderless printing or all edges borderless printing, and how to cut the paper in the printer driver's Roll Paper Option. The cutting operation for each value is shown in the following chart.

Printer driver

settings

Cutting Operation

Explanation

Normal Cut Single Cut Double Cut

The default printer driver setting is Normal Cut.

❏ The top area may become

slightly uneven depending on the image since the print operation stops while cutting the top edge of the roll paper.

❏ If the cut position is

misaligned slightly, small parts of the image may be shown on the top or bottom of the adjacent pages. If this occurs, perform Adjust Cut Position. U “Maintenance” on

page 114

❏ When you print one page

only or print one page multiple times, the operation is the same as that for Double Cut. When continuously printing multiple sheets, the printer cuts 1 mm inside on the top edge of the first page and the bottom edge of the subsequent pages to avoid showing margins.

❏ The top area may become

slightly uneven depending on the image since the print operation stops while cutting the top edge of the roll paper.

❏ The printed paper is

approximately 2 mm shorter than the specified size since the printer cuts the paper inside the image to avoid showing top and bottom margins.

❏ After cutting the bottom

edge of the previous page, the printer feeds the paper, and then cuts the top edge of the following page. Although this produces 60 to 127 mm cut-off pieces, the cut is more accurate.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Setting Procedures for Printing

Making Settings in Windows

When the printer driver's Main screen is

displayed, you can configure various settings required for printing such as Media Type, Source, Size.

U “Printing (Windows)” on page 48

Select Auto Expand or Retain Size as the

Method of Enlargement.

If you select Auto Expand, set how much of the image goes beyond the edge of the paper as shown below.

Max : 3 mm for left and 5 mm for right (the

image shifts 1 mm to the right)

Normal : 3 mm for left and right

Min : 1.5mm for left and right

Select Borderless, and then click Expansion.

You can not choose the expansion amount when

Roll Paper or Roll Paper (Banner) is selected for Source.

Note:

Moving the slider towards Min decreases the image enlargement ratio. Therefore, some margins may appear at the edges of the paper depending on the paper and printing environment.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

When using roll paper, click Roll Paper Option,

and then set Auto Cut option.

U “About Roll Paper Cutting” on page 79

Where XXXX is the actual paper size, such as A4.

Note:

If page setting options are not available in the application's print dialog, display the page settings dialog.

Check other settings, and then start printing.

Making Settings for Mac OS X

Open the Print screen and select the paper size

from the Paper Size option, and then select a borderless printing method.

U “Printing (Mac OS X)” on page 49

The selections for borderless printing methods are displayed as shown below.

xxxx (Roll Paper - Borderless, Auto Expand)

xxxx (Roll Paper - Borderless, Retain Size)

Select Page Layout Settings from the list, and

then set Roll Paper Option or Expansion.

See the following for more details on Auto Cut from Roll Paper Option.

U “About Roll Paper Cutting” on page 79

Expansion is only available when Auto Expand is selected from Paper Size. The following shows the values for each item.

Max : 3 mm for left and 5 mm for right (the

image shifts 1 mm to the right)

Normal : 3 mm for left and right

Min : 1.5mm for left and right

xxxx (Sheet - Borderless, Auto Expand)

xxxx (Sheet - Borderless, Retain Size)

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Enlarged/Reduced Printing

You can enlarge or reduce the size of your data. There are three setting methods.

❏ Fit to Page printing

Automatically enlarges or reduces the image size to fit the paper size.

Note:

Moving the slider towards Min decreases the image enlargement ratio. Therefore, some margins may appear at the edges of the paper depending on the paper and printing environment.

Check other settings, and then start printing.

❏ Fit to Roll Paper Width (Windows only)

Automatically enlarges or reduces the image size to fit the roll paper width.

❏ Custom

You can specify the enlargement or reduction ratio. Use this method for a non-standard paper size.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Fit to Page/Scale to fit paper size

Making Settings in Windows

When the printer driver's Page Layout screen is

displayed, set the same paper size as the data's paper size in Page Size or Paper Size.

U “Printing (Windows)” on page 48

Making Settings for Mac OS X

Open the Print screen, select Paper Handling

from the list, and then check Scale to fit paper size.

U “Printing (Mac OS X)” on page 49

Select the size of the paper loaded in the printer as

the Destination Paper Size.

Select the size of the paper loaded in the printer

from the Output Paper list.

Fit to Page is selected as Reduce/Enlarge.

Note:

When performing enlarged printing, clear the Scale down only check box.

Check other settings, and then start printing.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Fit to Roll Paper Width (Windows Only)

Display the printer driver Main tab and select

Roll Paper for Source.

U “Printing (Windows)” on page 48

Display the Page Layout tab and choose a Page

Size that matches the page size used in the document size.

Select Fit to Roll Paper Width.

Select the width of the roll paper loaded in the

printer from the Roll Width list.

Select the size of the paper loaded in the printer

from the Output Paper list.

Fit to Page is selected as Reduce/Enlarge.

Check other settings, and then start printing.

Custom Scale Setting

Making Settings in Windows

When the printer driver's Page Layout screen is

displayed, set the same paper size as the data's paper size in Page Size or Paper Size.

U “Printing (Windows)” on page 48

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Select the size of the paper loaded in the printer

from the Output Paper list.

Fit to Page is selected as Reduce/Enlarge.

Select Custom, and then set the Scale to value.

Enter a value directly or click the arrows to the right of the scale box to set the value.

Select the scale within a range of 10 to 650 %.

Making Settings for Mac OS X

When the Print screen is displayed, select the size

of the paper loaded in the printer from the Paper Size list.

U “Printing (Mac OS X)” on page 49

Check other settings, and then start printing.

Click Scale, and then enter the scale.

If the Print screen in the application you are using does not have an input item for the scale that you want to use, display the Page Setup screen and make settings.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

U “Printing (Mac OS X)” on page 49

Multi-Page Printing

You can print multiple pages of your document on one sheet of paper.

If you print continuous data prepared at A4 size, it is printed as shown below.

Note:

❏ In Windows, you cannot use the Multi-Page

printing function when performing borderless printing.

❏ In Windows, you can use the reduce/enlarge

function (Fit to Page) to print the data on different sizes of paper. U “Enlarged/Reduced Printing” on page 82

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Making Settings in Windows

When the printer driver's Page Layout screen is

displayed, select the Multi-Page check box, select N-up, and then click Settings.

U “Printing (Windows)” on page 48

Making Settings for Mac OS X

When the Print screen is displayed, select Layout

from the list, and then specify the number of pages per sheet and so on.

U “Printing (Mac OS X)” on page 49

In the Print Layout screen, specify the number of

pages per sheet and the page order.

If the Print page frames check box is selected, page frames are printed on each page.

Check other settings, and then start printing.

Note:

You can print frames around arranged pages using the Border function.

Check other settings, and then start printing.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Poster Printing (Enlarge to cover several sheets and print - Windows only)

The poster printing function automatically enlarges and divides the print data. You can join the printed sheets to create a large poster or calendar. Poster printing is available up to 16-fold (four sheets by four sheets) of normal printing size. There are two ways to print posters.

❏ Borderless poster printing

This automatically enlarges and divides the print data and prints without margins. You can make a poster just by joining the output paper together. To perform borderless printing, the data is expanded so that it extends slightly over the paper size. Enlarged areas that exceed the paper are not printed. Therefore, the image may misalign at the joins. To join the pages precisely, perform the following poster printing with margins.

Setting Procedures for Printing

Prepare the print data using applications.

The printer driver automatically enlarges the image data when printing.

When the printer driver's Page Layout screen is

displayed, select the Multi-Page check box, select Poster, and then click Settings.

U “Printing (Windows)” on page 48

❏ Poster printing with margins

This automatically enlarges and divides the print data and prints with margins. You need to cut the margins and then join the output paper together to make a poster. Although the final size is slightly smaller since you have to cut off the margins, the image joins fit precisely.

In the Poster Settings screen, select the number

of pages you want in the poster.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Select borderless poster printing or poster

printing with margins, and then select any pages that you do not want to print.

When borderless is selected: Select Borderless Poster Print.

When with margins is selected: Clear Borderless Poster Print.

Note:

Regarding the size after joining together:

Note:

If Borderless Poster Print is grayed out, the selected paper or the size does not support borderless printing.

U “Epson Special Media Table” on page 159

U “Supported Commercially Available Paper”

on page 176

When Borderless Poster Print is cleared and printing with margins is selected, the Print Cutting Guides items are displayed.

The finished size is the same whether or not Trim

Lines is selected. However, if Overlapping Alignment Marks is selected, the finished size is

smaller with an overlap.

Check other settings, and then start printing.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Joining the output paper together

The steps for joining the output paper together differ between borderless poster printing and poster printing with margins.

Borderless poster printing

This section describes how to join four printed pages together. Check and match the printed pages, and join them in the order indicated below using an adhesive tape on the back of the sheets.

The following section describes how to join four printed pages together.

Ready the two top sheets and trim the excess

from the left sheet by cutting along the line joining the two join guides (the centers of the X marks).

Poster printing with margins

If Overlapping Alignment Marks is selected, join guides (indicated by the lines drawn through and around the X marks in the illustration below) will be printed on each sheet.

Note:

The alignment marks are black for black-and-white printing.

Lay the upper left sheet on top of upper right

sheet. Lineup the X marks as shown in the illustration below, and temporarily fasten them using an adhesive tape on the back.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

With the two sheets overlapping, trim the excess

by cutting along the line joining the two cut guides (the lines to the left of the X marks).

Trim the bottom from the upper sheets by

cutting along the line joining the two guides (the lines above the X marks).

Lay the upper sheet on top of the lower sheet.

Lineup the X marks as shown in the illustration below, and temporarily fasten them using an adhesive tape on the back.

Rejoin the two sheets.

Use an adhesive tape to stick the backs of the sheets together.

Repeat Steps 1 to 4 for the lower sheets.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

With the two sheets overlapping, trim the excess

by cutting along the line joining the two cut guides (the lines above the X marks).

Join the upper and lower sheets together.

Use an adhesive tape to stick the backs of the sheets together.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

After joining all the sheets, trim off the borders by

cutting along the cut guides (outside the X marks).

Printing at Non-Standard Sizes

Before printing at non-standard sizes, including vertical or horizontal banners and documents with equal sides, save the desired paper size in the printer driver. Once they have been saved in the printer driver, custom sizes can be selected in the application Page Setup and other print dialogs.

Supported paper sizes

The following table shows the paper sizes that can be set in the printer driver. See the following for paper sizes supported by the printer.

U “Printable area” on page 52

Paper Width

Paper Height

SC-P9000 Series/ SC-P8000 Series

SC-P7000 Series/ SC-P6000 Series

Windows: 127

Mac OS X: 127

to 15000 mm

to 15240 mm

to 1118 mm

to 610 mm

*1 The smallest size supported by the printer is 182

mm wide by 254 mm long. If a smaller size is entered in the printer driver as a Custom Paper Size, the document will print with wider-than-expected margins, which must be trimmed.

For Mac OS X Custom Paper Sizes, although you can specify a large paper size which cannot be loaded on this printer, it will not be printed properly.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Important:

When using commercially available software, the possible output sizes are restricted. If you are using applications that support banner printing, you can set a longer paper length. See the application's manual for details.

Making Settings in Windows

When the printer driver's Main screen is

displayed, click User Defined.

U “Printing (Windows)” on page 48

❏ If the length and width ratio is the same as a

defined paper size, select the defined paper size from Fix Aspect Ratio and select either Landscape or Portrait for the Base. In this case, you can only adjust either the paper width or paper height.

Note:

❏ To change the paper size you saved, select the

paper size name from the list on the left.

In the User Defined Paper Size screen, set the

paper size you want to use, and then click Save.

❏ You can enter up to 24 single-byte characters

for the Paper Size Name.

❏ The length and width values for a pre-defined

size close to the desired custom size can be displayed by selecting the appropriate option in the Base Paper Size menu.

❏ To delete the user-defined size you saved,

select the paper size name from the list on the left, and then click Delete.

❏ You can save up to 100 paper sizes.

Click OK.

You can now select the new paper size from the Size menu in the Main tab.

You can now print as normal.

Making Settings for Mac OS X

When the Print screen is displayed, select

Manage Custom Sizes from the Paper Size list.

If page setting options are not available in the application's print dialog, display the page settings dialog.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

U “Printing (Mac OS X)” on page 49

Note:

❏ To edit a saved custom size, choose its name

from the list on the left.

❏ To copy a saved custom size, select the size in

the list on the left and click Duplicate.

❏ To delete a saved custom size, select it in the list

on the left and click -.

❏ The custom paper size setting differs

depending on the operating system version. See your operating system's documentation for details.

Click OK.

You can select the paper size you saved from the Paper Size pop-up menu.

You can now print as normal.

Click +, and then enter the paper size name.

Enter the Width, Height for the Paper Size,

enter the margins, and then click OK.

You can set the page size and printer margins depending on the printing method.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Banner printing (on roll paper)

You can print banners and panoramic pictures if you create and set print data for banner printing in your application.

Making Settings in Windows

In the printer driver's Main screen, select Media

Type.

U “Printing (Windows)” on page 48

There are two ways to print a banner.

Printer Driver Source Supported Applications

Roll Paper Document preparation

software, image editing software, and so on

Roll paper (Banner) Applications that support

banner printing

* Create print data at a size supported by the given

application while maintaining the printing length and width ratio.

See the following for available paper sizes.

U “Printing at Non-Standard Sizes” on page 93

Select Roll Paper or Roll Paper (Banner) from

the Source list.

Note:

❏ You can only use Roll Paper (Banner) for

applications that support banner printing.

❏ Selecting Roll Paper (Banner) sets the top and

bottom margins of the paper to 0 mm.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Click User Defined and match the paper size to

the size of the data if necessary.

Note:

If you are using applications that support banner printing, you do not need to set User Defined

Paper Size if you select Roll Paper (Banner) as the Source.

On the Page Layout screen make sure the

Optimize Enlargement check box is selected.

U “Printing (Mac OS X)” on page 49

Check other settings, and then start printing.

Making Settings for Mac OS X

When the Print screen is displayed, select the size

of the data created with the application in Paper Size.

If page setting options are not available in the application's print dialog, display the page settings dialog.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Layout Manager (Windows Only)

The Layout Manager function allows you to place multiple pieces of print data created in different applications on the paper freely and print them at once.

You can create a poster or display material by placing multiple pieces of print data where you like. Also, Layout Manager allows you to use paper effectively.

Placing the same data

Placing data freely

The following is a layout example.

Placing multiple data items

Placing data on roll paper

Setting Procedures for Printing

Check that the printer is connected and ready to

print.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Open the file you want to print in your

application.

Select Layout Manager in the Main tab of the

printer driver and choose an option for Size that matches the size of the document created in the application.

U “Printing (Windows)” on page 48

The overall size and placement of the objects can be changed using the Preferences and Arrangement options in the File menu.

See the Layout Manager screen help for more details on each function.

Note: The option selected for Size is the size used in the Layout Manager. The actual printing paper size is

set in the screen in Step 7.

Click OK. When printing with an application,

the Layout Manager screen opens.

The print data is not printed, but one page is placed on the paper of the Layout Manager screen as one object.

Leave the Layout Manager screen open and

repeat steps 2 to 4 to arrange the next pieces of data.

The objects are added to the Layout Manager screen.

Arrange the objects on the Layout Manager

screen.

Objects can be dragged to new positions and resized; in addition, they can be rearranged or rotated using the options in the Object menu.

SC-P9000 Series/SC-P7000 Series/SC-P8000 Series/SC-P6000 Series User's Guide

Printing Varieties

Click File - Properties, and make print settings

on the printer driver screen.

Saving

On the Layout Manager screen, click File menu

and then Save as.

Enter the file name, select the location, and then

click Save.

Close the Layout Manager screen.

Opening saved files

Right-click the utility icon ( ) in the Windows

taskbar and select Layout Manager from the menu that appears.

The Layout Manager screen is displayed.

If the Utility shortcut icon is not displayed on the Windows TaskbarU “Summary of the Utility

Tab” on page 66

On the Layout Manager screen, click File menu

and then Open.

Set Media Type, Source, Size or Roll Width, and so on.

Click the File menu on the Layout Manager

screen, and then click Print.

Printing starts.

Select the location and open the required file.

Saving and Recalling Settings
