User's Guide

Contents

Trademarks

About This Manual

Introduction to the Manuals..................10

Marks and Symbols........................10

Descriptions Used in this Manual..............11

Operating System References.................11

Important Instructions

Safety Instructions.........................12

Printer Advisories and Warnings.............. 13

Advisories and Warnings for Setting Up/

Using the Printer........................13

Advisories and Warnings for Using the

Printer with a Wireless Connection...........14

Advisories and Warnings for Using the

Touchscreen........................... 14

Protecting Your Personal Information...........14

Administrator Settings

Locking the Printer Settings Using an

Administrator's Password....................15

Unlocking the Printer Settings................ 15

User Feature Restrictions....................15

Printer Basics

Part Names and Functions...................17

Control Panel............................ 20

Buttons and Lights.......................20

Icons Displayed on the LCD Screen...........21

Icons Displayed on the Soware Keyboard of

the LCD Screen.........................22

Menu Options............................23

Copy Mode............................23

Scan Mode.............................24

Fax Mode............................. 26

Memory Device Mode....................27

Setup Mode............................28

Contacts Mode......................... 37

Presets Mode...........................38

Status Menu............................38

Loading Paper

Paper Handling Precautions..................39

Available Paper and Capacities................40

List of Paper Types.......................42

Loading Paper in the Paper Cassette............43

Loading Paper in the Rear Paper Feed...........45

Placing Originals

Available Originals for the ADF...............48

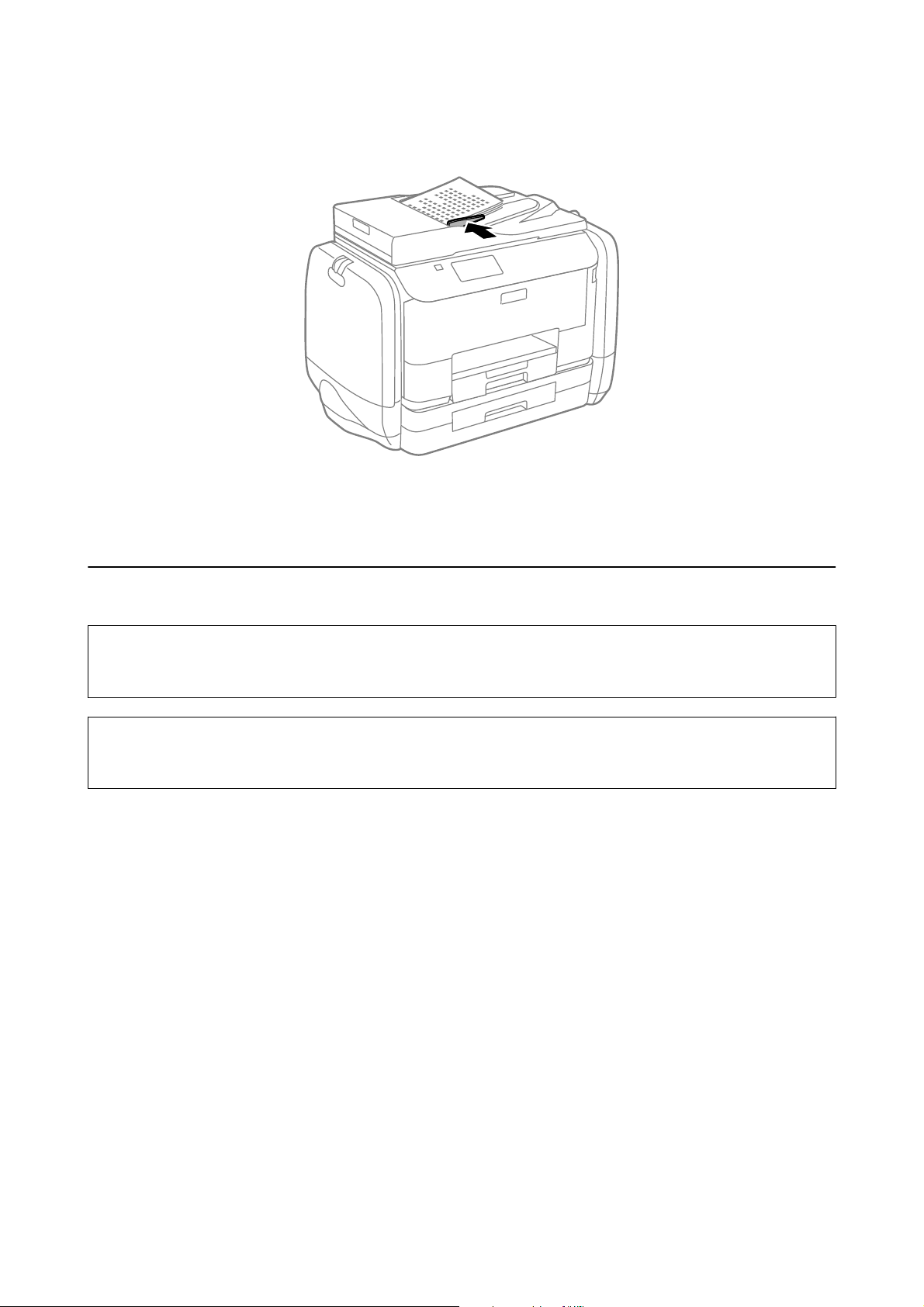

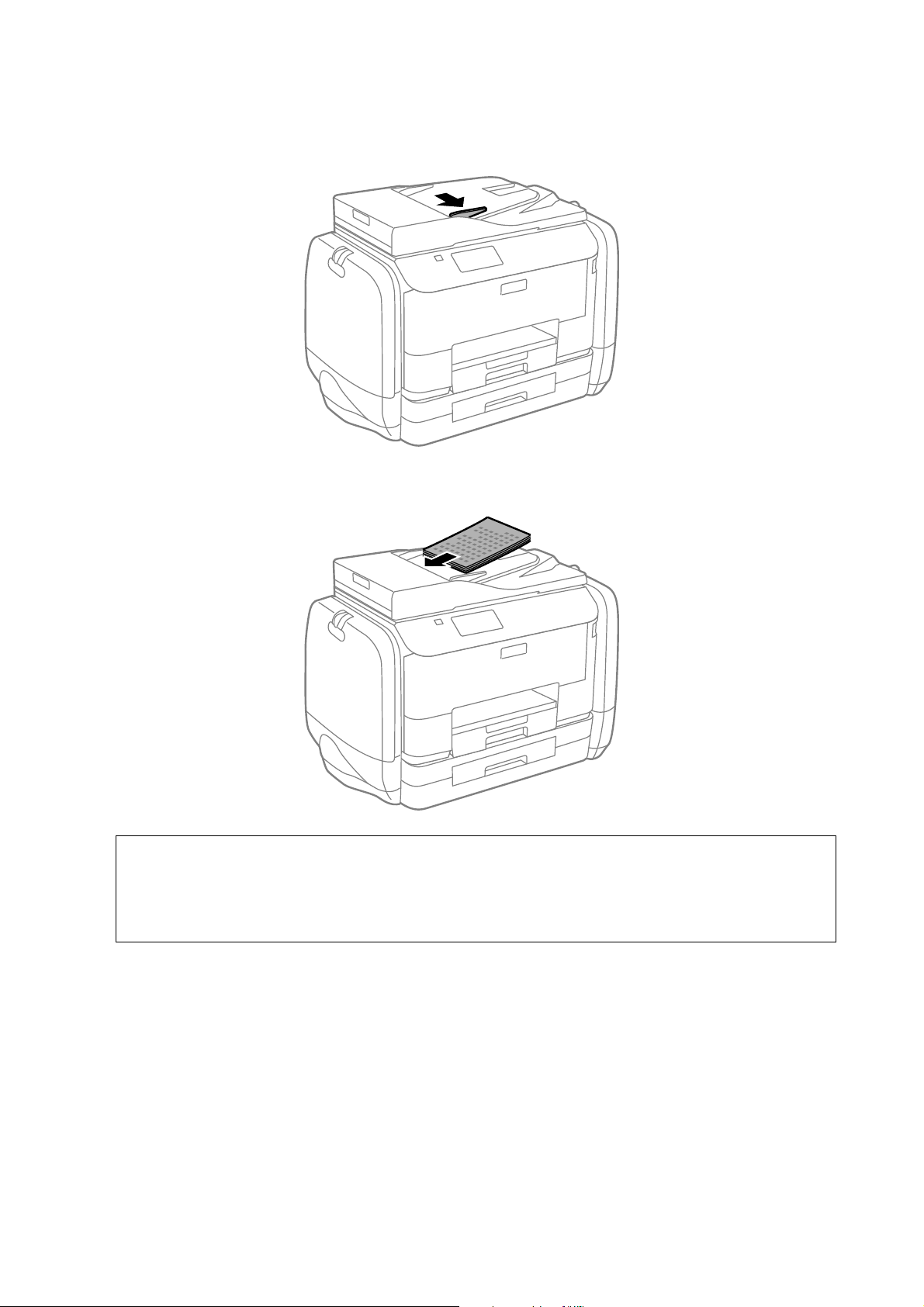

Placing Originals on the ADF.................48

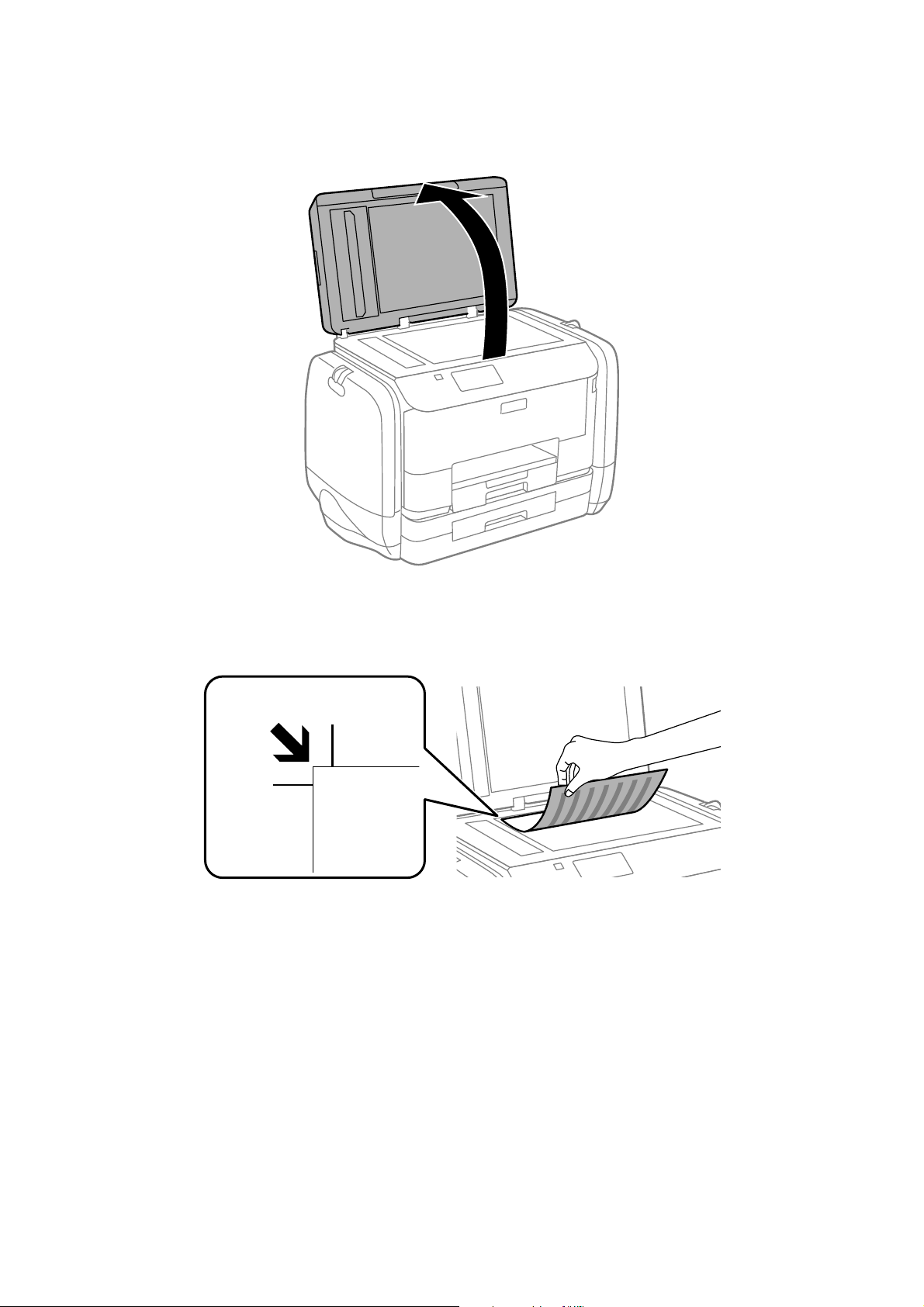

Placing Originals on the Scanner Glass. . . . . . . . . . 50

Managing Contacts

Registering Contacts....................... 52

Registering Grouped Contacts................52

Registration and Backup of Contacts Using a

Computer...............................53

Printing

Printing from the Control Panel...............54

Printing from a Computer...................54

Authenticating Users in the Printer Driver when User Feature Restriction Is Enabled (for

Windows Only).........................54

Printing Basics - Windows.................55

Printing Basics - Mac OS X.................56

Printing on 2-Sides.......................58

Printing Several Pages on One Sheet..........61

Printing to Fit the Paper Size................62

Printing Multiple Files Together (for

Windows Only).........................63

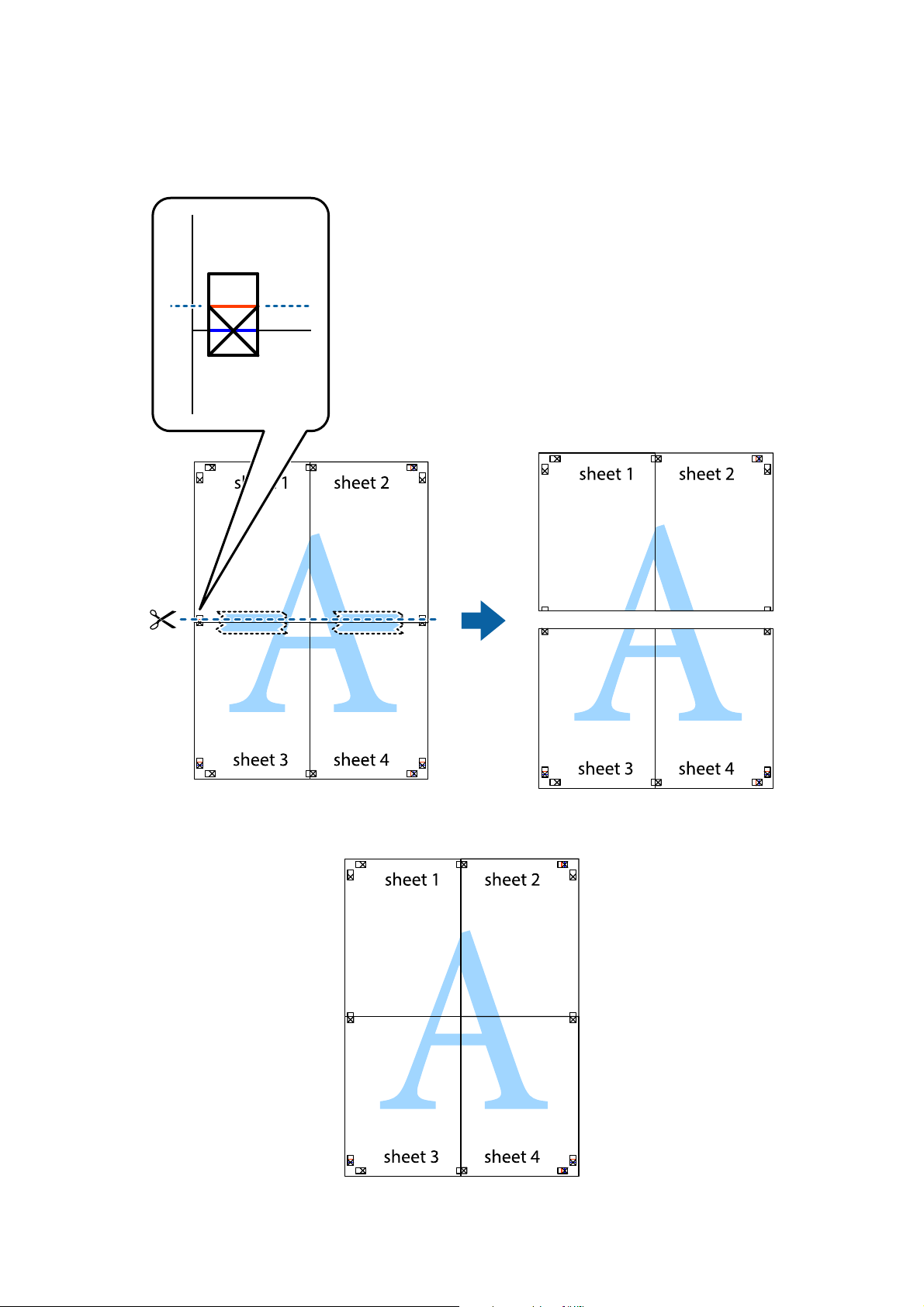

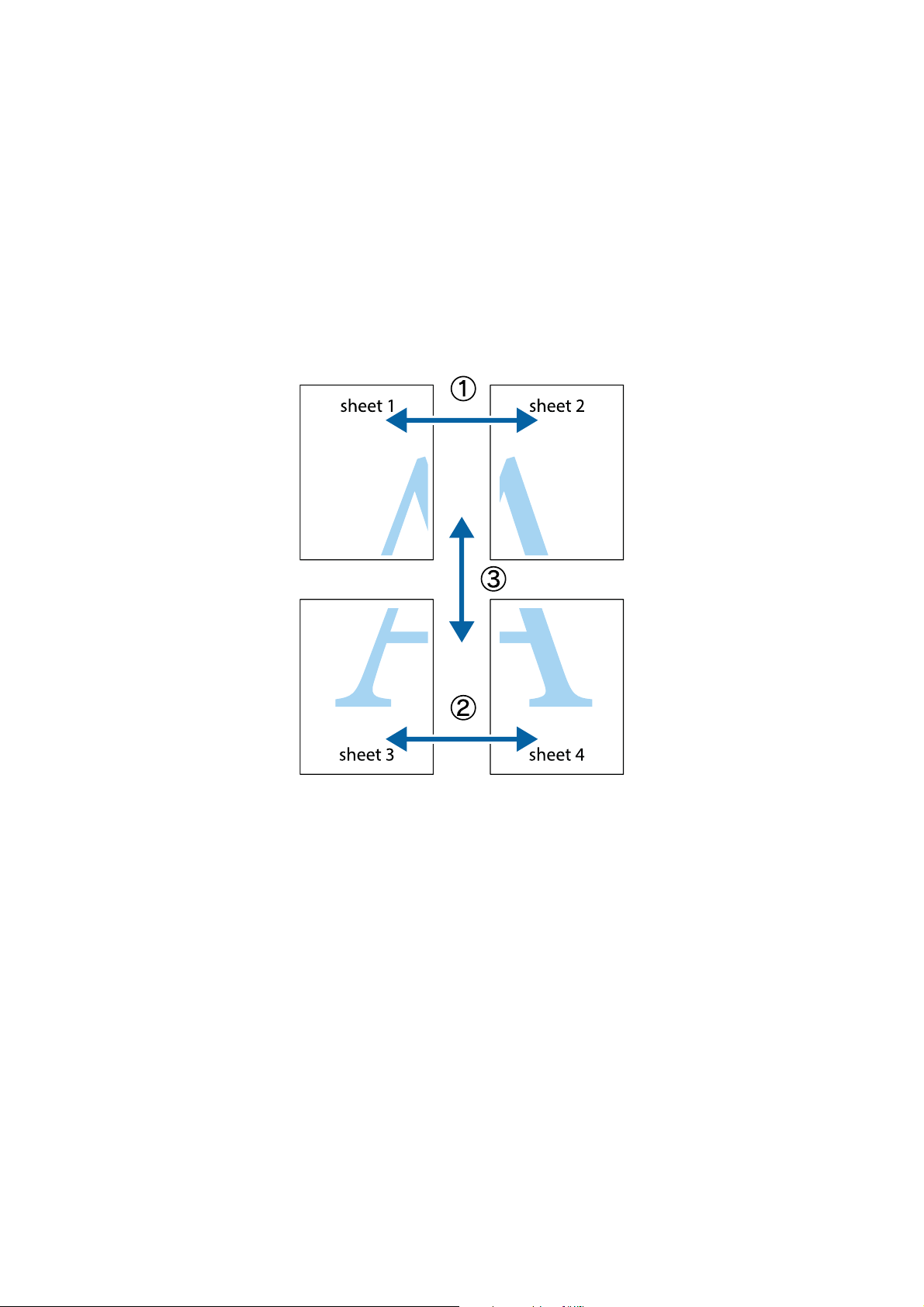

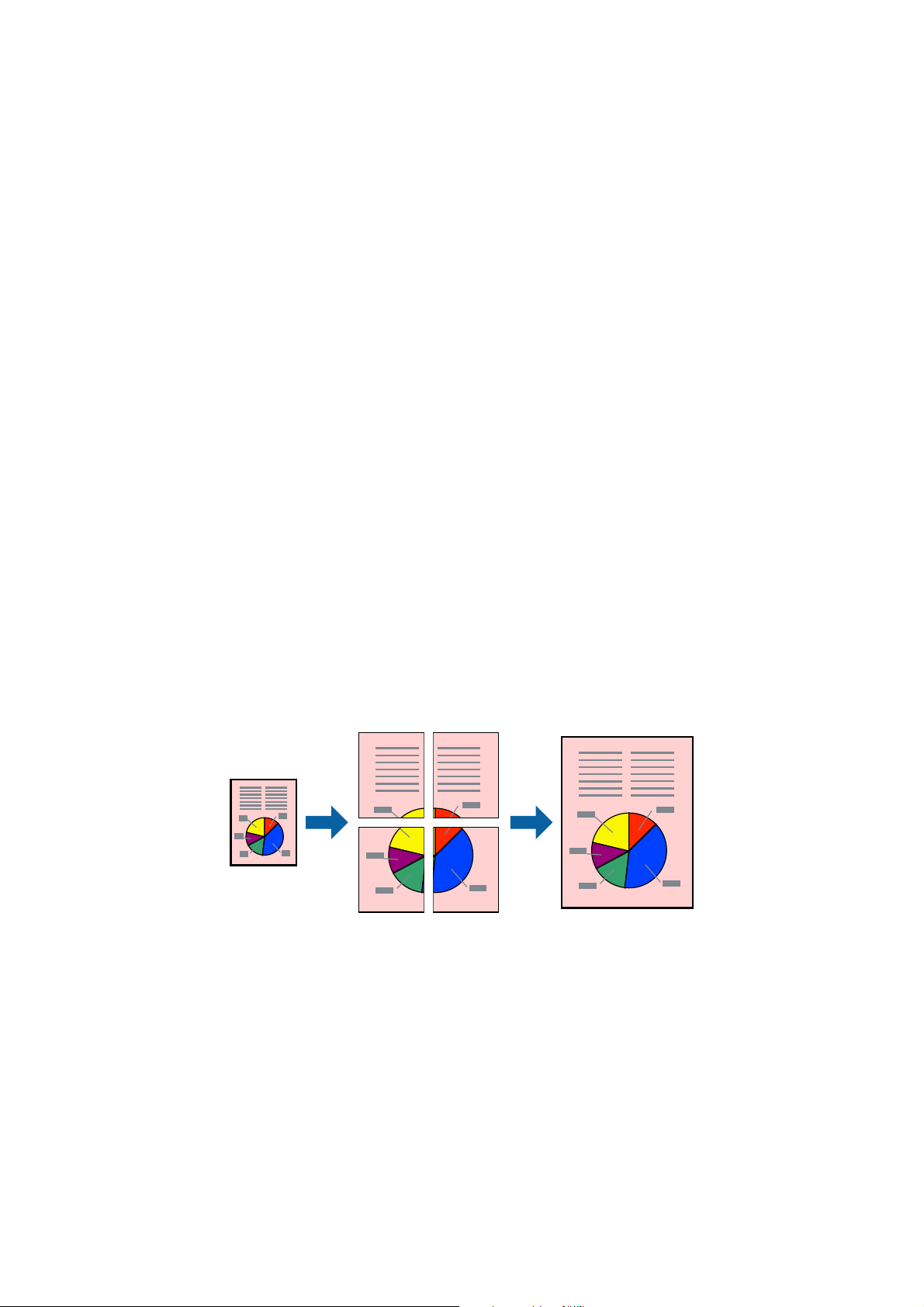

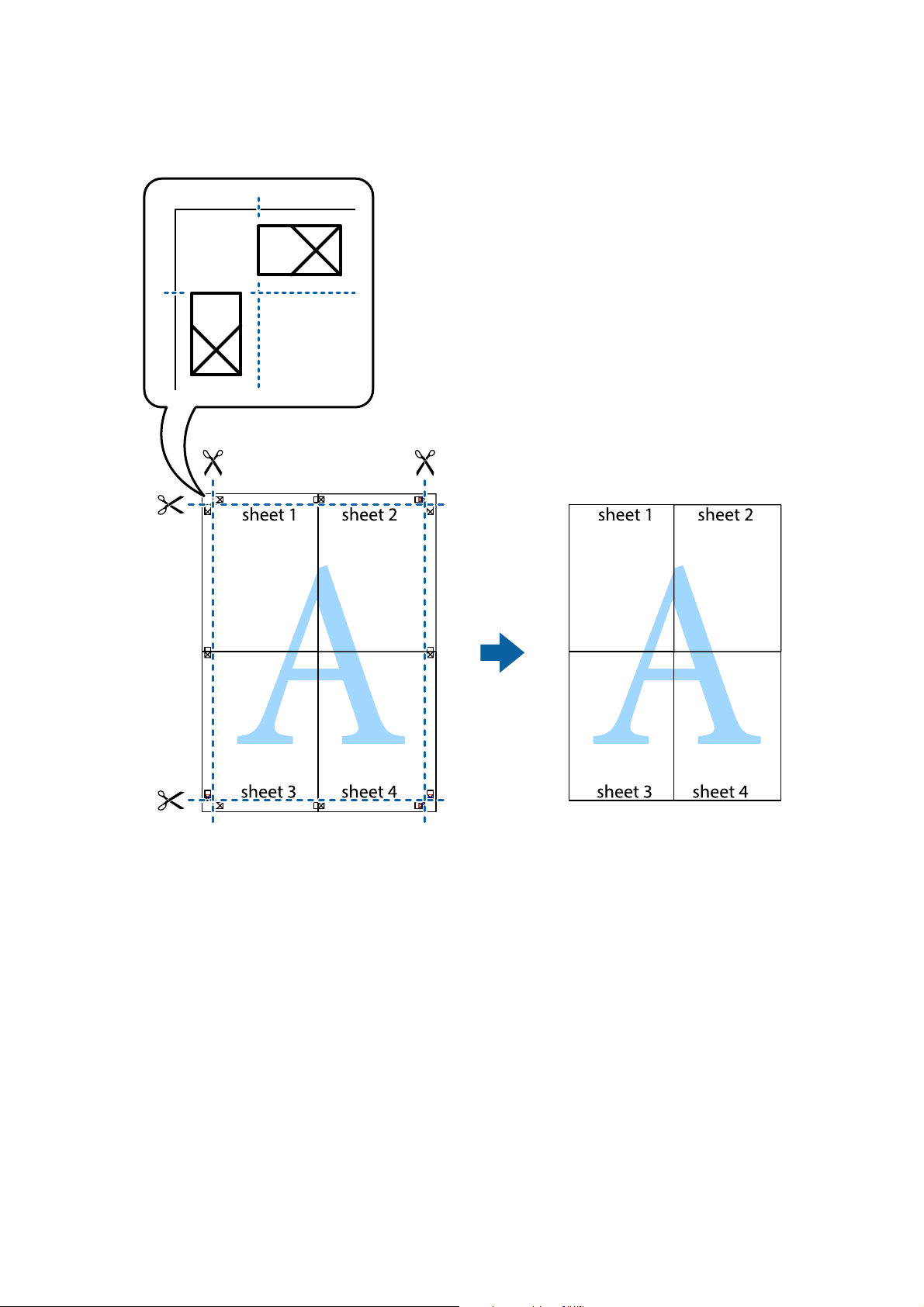

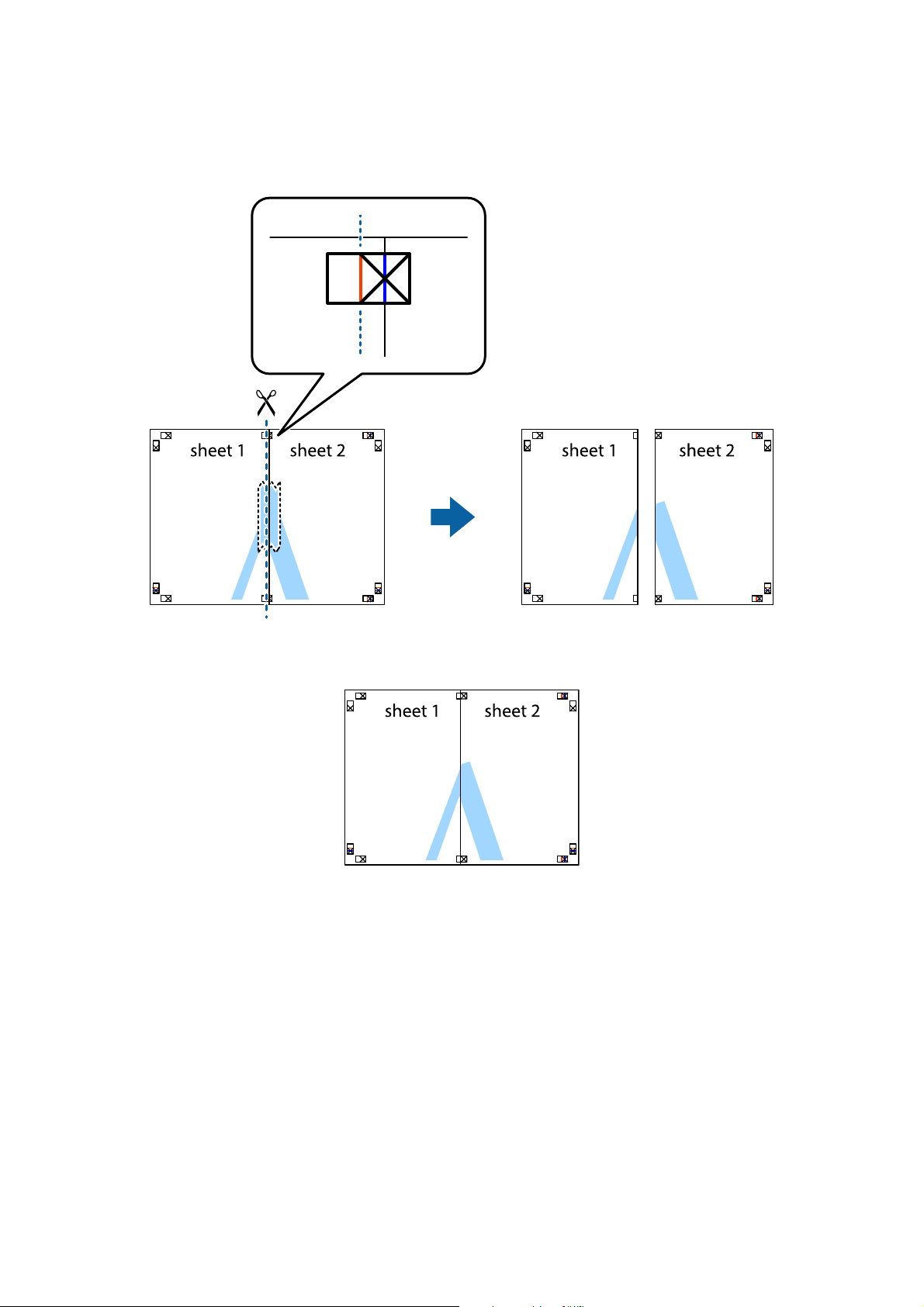

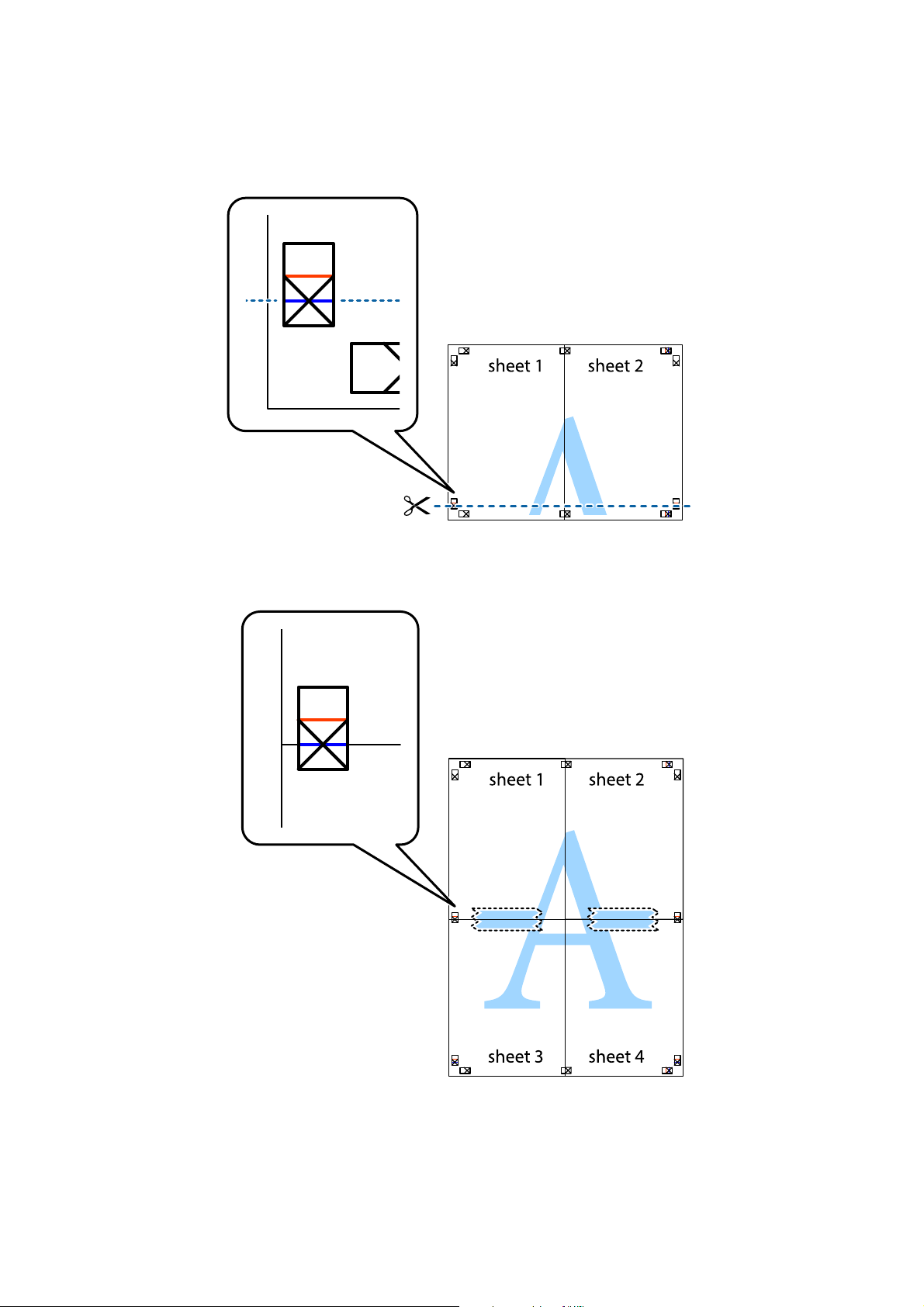

Enlarged Printing and Making Posters (for

Windows Only).........................64

Printing Using Advanced Features........... 70

Printing Using a PostScript Printer Driver........72

Printing Using a PostScript Printer Driver -

Windows..............................72

Printing Using a PostScript Printer Driver -

Mac OS X.............................74

Setting Items for the PostScript Printer Driver. . . 77

Printing from Smart Devices................. 77

Using Epson iPrint.......................77

Using AirPrint..........................79

Canceling Printing.........................79

User's Guide

Contents

Canceling Printing - Printer Button...........79

Canceling Printing - Status Menu............79

Canceling Printing - Windows.............. 80

Canceling Printing - Mac OS X..............80

Copying

Scanning

Scanning Using the Control Panel..............82

Scanning to an Email.....................82

Scanning to a Network Folder or FTP Server. . . . 83

Scanning to a Memory Device.............. 83

Scanning to the Cloud....................84

Scanning Using Document Capture Pro (for

Windows Only).........................84

Scanning to a Computer (WSD).............85

Scanning from a Computer...................85

Authenticating Users when Using Access

Control in EPSON Scan (for Windows Only). . . . 85

Scanning in

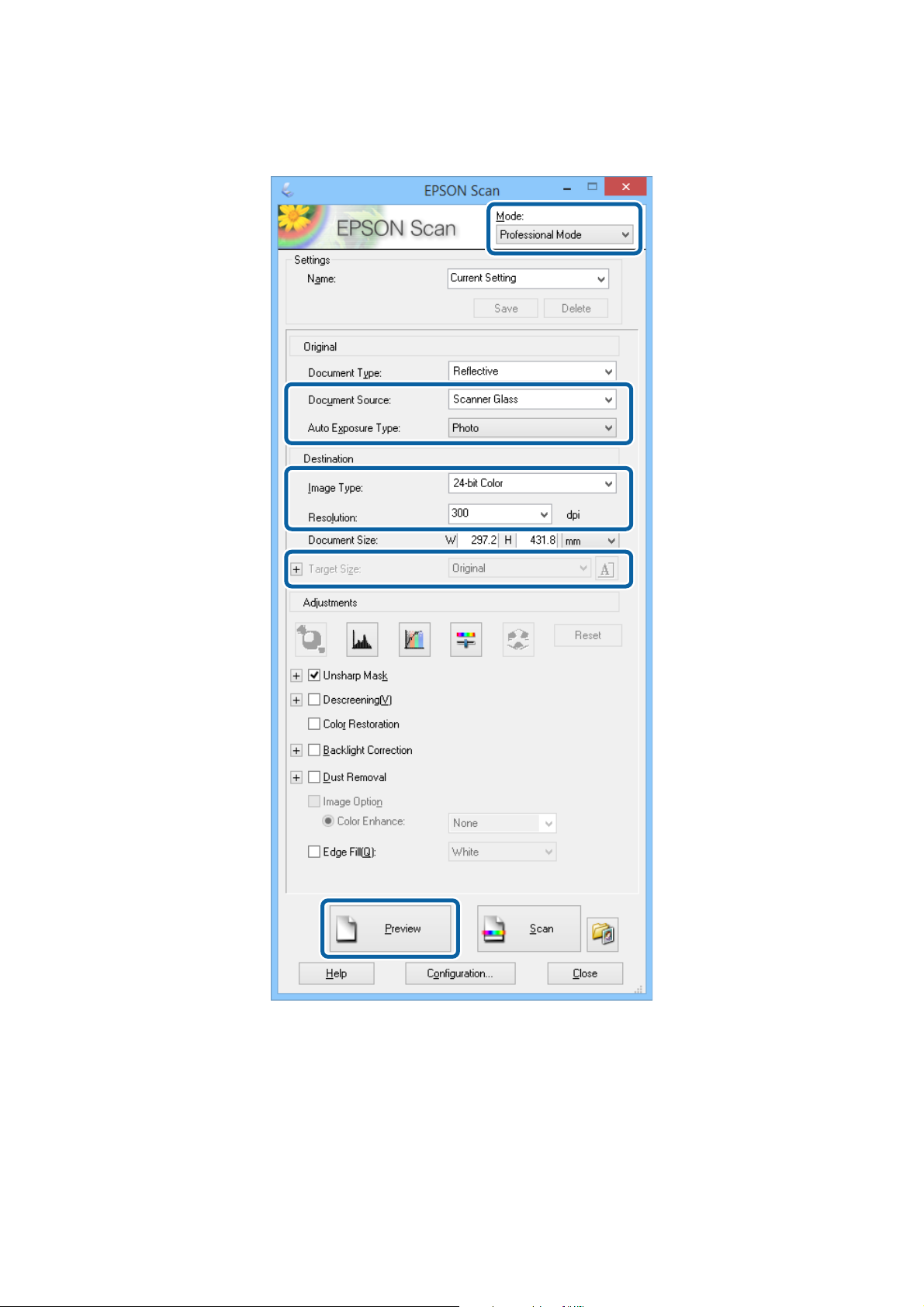

Scanning in Professional Mode..............87

Scanning from Smart Devices.................89

Mode.................. 86

Oce

Faxing

Setting Up a Fax...........................91

Connecting to a Phone Line................91

Making Basic Fax Settings................. 94

Sending Faxes............................97

Basic Fax Sending Operations...............97

Various Ways of Sending Faxes..............99

Receiving Faxes..........................102

Setting Receiving Mode..................102

Various Ways of Receiving Faxes............103

Saving and Forwarding Received Faxes. . . . . . . 105

Using Other Faxing Features.................109

Printing Fax Report and List...............109

Setting Security for Faxing................ 110

Checking Fax Jobs......................111

Replacing Ink Supply Units and Other Consumables

Checking the Status of the Remaining Ink and

the Maintenance Box......................113

Checking the Status of the Remaining Ink

and the Maintenance Box - Control Panel. . . . . 113

Checking the Status of the Remaining Ink

and the Maintenance Box - Windows.........113

Checking the Status of the Remaining Ink

and the Maintenance Box - Mac OS X........113

Ink Supply Unit Codes.....................114

Ink Supply Unit Handling Precautions..........114

Replacing Ink Supply Units..................116

Maintenance Box Code.....................119

Maintenance Box Handling Precautions........ 120

Replacing a Maintenance Box................120

Temporarily Printing with Black Ink...........121

Temporarily Printing with Black Ink - Windows 122 Temporarily Printing with Black Ink -

Mac OS X............................ 123

Conserving Black Ink when the Black Ink Is

Low (for Windows Only)................... 124

Improving Print and Scan Quality

Checking and Cleaning the Print Head.........125

Checking and Cleaning the Print Head -

Control Panel..........................125

Checking and Cleaning the Print Head -

Windows.............................126

Checking and Cleaning the Print Head -

Mac OS X............................ 126

Running Power Ink Flushing...............126

Aligning the Print Head....................127

Aligning the Print Head - Control Panel. . . . . . 127

Aligning the Print Head - Windows..........128

Aligning the Print Head - Mac OS X.........128

Improving Horizontal Streaks................129

Cleaning the Paper Path for Ink Smears.........129

Cleaning the Paper Path for Paper Feeding

Problems...............................129

Cleaning the ADF........................ 130

Cleaning the Scanner Glass..................132

Applications and Network Service Information

Epson Connect Service.....................134

We b

Running Web Cong on a Web Browser. . . . . . 134

Running Web Running Web

Necessary Applications.....................136

Windows Printer Driver..................136

Mac OS X Printer Driver................. 137

EPSON Scan (Scanner Driver).............138

Document Capture Pro (for Windows Only). . . 139

.............................134

Cong

on Windows.......... 135

Cong

on Mac OS X..........135

Cong

User's Guide

Contents

PC-FAX Driver (Fax Driver)...............139

FAX Utility........................... 140

E-Web Print (for Windows Only)...........140

EPSON Soware Updater.................141

EpsonNet Cong.......................141

Uninstalling Applications...................141

Uninstalling Applications - Windows.........141

Uninstalling Applications - Mac OS X........142

Installing Applications.....................143

Installing a PostScript Printer Driver.........143

Installing the Epson Universal Printer Driver

(for Windows Only).....................146

Updating Applications and Firmware.......... 146

Solving Problems

Checking the Printer Status..................148

Checking Messages on the LCD Screen. . . . . . . 148

Error Code on the Status Menu.............149

Checking the Printer Status - Windows.......154

Checking Printer Status - Mac OS X......... 154

Removing Jammed Paper...................154

Removing Jammed Paper from the Front Cover 154 Removing Jammed Paper from the Rear

Paper Feed. . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Removing Jammed Paper from the Paper

Cassette..............................156

Removing Jammed Paper from Rear Cover. . . . 157

Removing Jammed Paper from the ADF......158

Paper Does Not Feed Correctly. . . . . . . . . . . . . . . 160

Original Does Not Feed in the ADF. . . . . . . . . .161

Power and Control Panel Problems............161

Power Does Not Turn On.................161

Power Does Not Turn O.................161

LCD Screen Gets Dark...................161

Printer Does Not Print.....................161

Printout Problems........................162

Print Quality Is Poor.................... 162

Copy Quality Is Poor....................164

An Image of the Reverse Side of the Original

Appears in the Copied Image.............. 164

e Position, Size, or Margins of the Printout

Are Incorrect..........................164

Paper Is Smeared or Scued...............165

Printed Characters Are Incorrect or Garbled. . . 165

Printed Image Is Inverted..............166

e

Printout Problem Could Not be Cleared. . . 166

e

Printing Is Too Slow.......................166

PostScript Printer Driver Problems............167

Printer Does Not Print While Using

PostScript Printer Driver................. 167

Printer Does Not Print Correctly While

Using PostScript Printer Driver.............167

Print Quality Is Poor While Using PostScript

Printer Driver......................... 167

Printing Is Too Slow While Using PostScript

Printer Driver......................... 167

Cannot Start Scanning.....................167

Scanned Image Problems...................168

Scan Quality Is Poor.....................168

Characters Are Blurred...................169

An Image of the Reverse Side of the Original

Appears in the Scanned Image............. 169

Moiré (Cross-Hatch) Patterns Appear in the

Scanned Image.........................169

Scanning Area or Direction Is Not Correct. . . . 170

e Scanned Image Problem Could Not be

Cleared..............................170

Other Scanning Problems...................170

umbnail Preview Does Not Work Properly. . .170

Scanning Is Too Slow....................171

Scanning Stops when Scanning to PDF/

Multi-TIFF........................... 171

Problems when Sending and Receiving Faxes. . . . .171

Cannot Send or Receive Faxes..............171

Cannot Send Faxes......................172

Cannot Send Faxes to a Specic Recipient. . . . . 173

Cannot Send Faxes at a

Cannot Receive Faxes....................173

Memory Full Error Occurs................174

Sent Fax Quality Is Poor..................174

Faxes Are Sent at the Wrong Size............175

Received Fax Quality Is Poor...............175

Received Faxes Are Not Printed............ 175

Other Faxing Problems.....................175

Cannot Make Calls on the Connected

Telephone............................175

Answering Machine Cannot Answer Voice

Calls................................176

Sender's Fax Number Not Displayed on

Received Faxes or the Number Is Wrong. . . . . . 176

Cannot Forward Received Documents to

Email Addresses........................176

Other Problems..........................176

Slight Electric Shock when Touching the

Printer...............................176

Operation Sounds Are Loud...............176

e Date and Time Are Incorrect........... 177

Memory Device Is not Recognized.......... 177

Cannot Save Data to a Memory Device.......177

Specied

Time....... 173

User's Guide

Contents

Forgot Your Password....................177

Application Is Blocked by a Firewall (for

Windows Only)........................177

Appendix

Technical Specications....................178

Printer Scanner

Interface Specications...................179

Fax Specications.......................179

Wi - F i Ethernet

Security Protocol.......................180

Supported ird Party Services.............181

External USB Device Supported Data

Dimensions...........................182

Electrical Specications..................182

Environmental

System Requirements....................183

Font Information.........................184

Available Fonts for PostScript..............184

Available Fonts for PCL 5 (Bitstream)........185

Available Fonts for PCL 6 (Bitstream)........187

Available Fonts for PCL (URW)............ 188

List of Symbol Sets......................190

Regulatory Information....................198

Standards and Approvals................. 198

Restrictions on Copying..................199

Transporting the Printer....................199

Accessing an External USB Device From a

Computer..............................202

Using an Email Server..................... 203

Conguring an Email Server...............203

Email Server Setting Items................204

Checking an Email Server Connection....... 205

Where to Get Help........................205

Technical Support Web Site................205

Contacting Epson Support................205

Specications

....................178

................... 178

.....................180

...................180

Specications

..........181

..............181

..............183

User's Guide

About This Manual

Introduction to the Manuals

e latest versions of the following manuals are available from the Epson support website.

http://www.epson.eu/Support (Europe)

http://support.epson.net/ (outside Europe)

❏ Important Safety Instructions (paper manual)

Provides you with instructions to ensure the safe use of this printer. is manual may not be included depending on model and region.

❏ Start Here (paper manual)

Provides you with information on setting up the printer and installing the

soware.

❏ User's Guide (PDF manual)

is manual. Provides instructions on using the printer, replacing ink supply units, maintenance, and solving problems.

❏ Network Guide (PDF manual)

Provides information on network settings and solving problems when using the printer on a network.

❏ Administrator's Guide (PDF manual)

Provides network administrators with information on management and printer settings.

As well as the manuals above, check the various types of help information available from the printer itself or from the applications.

Marks and Symbols

Caution:

Instructions that must be followed carefully to avoid bodily injury.

Important:

Instructions that must be observed to avoid damage to your equipment.

Note:

Instructions containing useful tips and restrictions on printer operation.

Related Information

Links to related sections.

User's Guide

About This Manual

Descriptions Used in this Manual

❏ Screenshots of the printer driver and the EPSON Scan (scanner driver) screens are from Windows 8.1 or Mac

OS X v10.9.x. e content displayed on the screens varies depending on the model and situation.

❏ Illustrations of the printer used in this manual are examples only. Although there may be slight dierences

depending on the model, the method of operation is the same.

❏ Some of the menu items on the LCD screen vary depending on the model and settings.

Operating System References

Windows

In this manual, terms such as "Windows 8.1", "Windows 8", "Windows 7", "Windows Vista", "Windows XP", "Windows Server 2012 R2", "Windows Server 2012", "Windows Server 2008 R2", "Windows Server 2008", "Windows Server 2003 R2", and "Windows Server 2003" refer to the following operating systems. Additionally, "Windows" is used to refer to all versions.

❏ Microso

❏

Microso

❏ Microso

❏

Microso

❏ Microso

Mac OS X

In this manual, "Mac OS X v10.9.x" refers to "OS X Mavericks" and "Mac OS X v10.8.x" refers to "OS X Mountain Lion". Additionally, "Mac OS X" is used to refer to "Mac OS X v10.9.x", "Mac OS X v10.8.x", "Mac OS X v10.7.x", "Mac OS X v10.6.x", and "Mac OS X v10.5.8".

Wi n d o w s® 8.1 operating system

Wi n d o w s® 8 operating system

Wi n d o w s® 7 operating system

Wi n d o w s Vist a® operating system

Wi n d o w s® XP operating system

Wi n d o w s® XP Professional x64 Edition operating system

Wi n d o w s Se r ver® 2012 R2 operating system

Wi n d o w s Se r ver® 2012 operating system

Wi n d o w s Se r ver® 2008 R2 operating system

Wi n d o w s Se r ver® 2008 operating system

Wi n d o w s Se r ver® 2003 R2 operating system

Wi n d o w s Se r ver® 2003 operating system

User's Guide

Important Instructions

Safety Instructions

Read and follow these instructions to ensure safe use of this printer. Make sure you keep this manual for future reference. Also, be sure to follow all warnings and instructions marked on the printer.

❏ Use only the power cord supplied with the printer and do not use the cord with any other equipment. Use of

other cords with this printer or the use of the supplied power cord with other equipment may result in re or electric shock.

❏ Be sure your AC power cord meets the relevant local safety standard.

❏ Never disassemble, modify, or attempt to repair the power cord, plug, printer unit, scanner unit, or options by

yourself, except as specically explained in the printer's manuals.

❏ Unplug the printer and refer servicing to qualied service personnel under the following conditions:

e power cord or plug is damaged; liquid has entered the printer; the printer has been dropped or the casing damaged; the printer does not operate normally or exhibits a distinct change in performance. Do not adjust controls that are not covered by the operating instructions.

❏ Place the printer near a wall outlet where the plug can be easily unplugged.

❏ Do not place or store the printer outdoors, near excessive dirt or dust, water, heat sources, or in locations

subject to shocks, vibrations, high temperature or humidity.

❏ Take care not to spill liquid on the printer and not to handle the printer with wet hands.

❏ Keep the printer at least 22 cm away from cardiac pacemakers. Radio waves from this printer may adversely

aect the operation of cardiac pacemakers.

❏ If the LCD screen is damaged, contact your dealer. If the liquid crystal solution gets on your hands, wash them

thoroughly with soap and water. If the liquid crystal solution gets into your eyes, ush them immediately with water. If discomfort or vision problems remain

❏ Avoid using a telephone during an electrical storm. ere may be a remote risk of electric shock from lightning.

❏ Do not use a telephone to report a gas leak in the vicinity of the leak.

❏

printer is heavy and should not be

e more people should assume the correct positions as shown below.

or carried by less than two people. When

lied

a thorough

aer

ushing,

see a doctor immediately.

the printer, two or

liing

User's Guide

Important Instructions

❏ Be careful when you handle used ink supply units, as there may be some ink around the ink supply port.

❏ If ink gets on your skin, wash the area thoroughly with soap and water.

❏ If ink gets into your eyes, ush them immediately with water. If discomfort or vision problems continue aer

a thorough ushing, see a doctor immediately.

❏ If ink gets into your mouth, see a doctor right away.

❏ Do not disassemble the ink supply unit and the maintenance box; otherwise ink may get into your eyes or on

your skin.

❏ Do not shake ink supply units too vigorously; otherwise ink may leak from the ink supply units.

❏ Keep ink supply units and maintenance box out of the reach of children.

Printer Advisories and Warnings

Read and follow these instructions to avoid damaging the printer or your property. Make sure you keep this manual for future reference.

Advisories and Warnings for Setting Up/Using the Printer

❏ Do not block or cover the vents and openings in the printer.

❏ Use only the type of power source indicated on the printer's label.

❏ Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and

❏ Avoid electrical outlets controlled by wall switches or automatic timers.

❏ Keep the entire computer system away from potential sources of electromagnetic interference, such as

loudspeakers or the base units of cordless telephones.

❏ e power-supply cords should be placed to avoid abrasions, cuts, fraying, crimping, and kinking. Do not place

objects on top of the power-supply cords and do not allow the power-supply cords to be stepped on or run over. Be particularly careful to keep all the power-supply cords straight at the ends and the points where they enter and leave the transformer.

❏ If you use an extension cord with the printer, make sure that the total ampere rating of the devices plugged into

the extension cord does not exceed the cord's ampere rating. Also, make sure that the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.

❏ If you plan to use the printer in Germany, the building installation must be protected by a 10 or 16 amp circuit

breaker to provide adequate short-circuit protection and over-current protection for the printer.

❏ When connecting the printer to a computer or other device with a cable, ensure the correct orientation of the

connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.

o.

❏ Place the printer on a at, stable surface that extends beyond the base of the printer in all directions. e

printer will not operate properly if it is tilted at an angle.

❏ When storing or transporting the printer, avoid tilting it, placing it vertically, or turning it upside down;

otherwise ink may leak.

❏ Allow space above the printer so that you can fully raise the document cover.

❏ Leave enough space in front of the printer for the paper to be fully ejected.

❏ Avoid places subject to rapid changes in temperature and humidity. Also, keep the printer away from direct

sunlight, strong light, or heat sources.

User's Guide

Important Instructions

❏ Do not insert objects through the slots in the printer.

❏ Do not put your hand inside the printer during printing.

❏ Do not touch the white at cable inside the printer.

❏ Do not use aerosol products that contain ammable gases inside or around the printer. Doing so may cause

re.

❏ Do not move the print head by hand; otherwise, you may damage the printer.

❏ Be careful not to trap your ngers when closing the document cover.

❏ Do not press too hard on the scanner glass when placing the originals.

❏ Always turn the printer o using the

until the

❏ Before transporting the printer, make sure that the print head is in the home (far right) position, and the ink

supply units are removed.

❏ If you are not going to use the printer for a long period, be sure to unplug the power cord from the electrical

outlet.

light stops ashing.

button. Do not unplug the printer or turn o the power at the outlet

Advisories and Warnings for Using the Printer with a Wireless Connection

❏ Radio waves from this printer may negatively aect the operation of medical electronic equipment, causing

them to malfunction. When using this printer inside medical facilities or near medical equipment, follow directions from the authorized personnel representing the medical facilities, and follow all posted warnings and directions on the medical equipment.

❏ Radio waves from this printer may negatively

automatic doors or re alarms, and could lead to accidents due to malfunction. When using this printer near automatically controlled devices, follow all posted warnings and directions on these devices.

the operation of automatically controlled devices such as

aect

Advisories and Warnings for Using the Touchscreen

❏ e LCD screen may contain a few small bright or dark spots, and because of its features it may have an uneven

brightness. ese are normal and do not indicate that it is damaged in any way.

❏ Only use a dry, so cloth for cleaning. Do not use liquid or chemical cleaners.

❏ e exterior cover of the touchscreen could break if it receives a heavy impact. Contact your dealer if the panel

surface chips or cracks, and do not touch or attempt to remove the broken pieces.

❏ Press the touchscreen gently with your nger. Do not press force or operate with your nails.

❏ Do not use sharp objects such as ball point pens or sharp pencils to perform operations.

❏ Condensation inside the touchscreen due to abrupt changes in temperature or humidity may cause

performance to deteriorate.

Protecting Your Personal Information

When you give the printer to someone else or dispose of it, erase all the personal information stored in the printer's memory by selecting Setup > System Administration > Restore Default Settings > Clear All Data and Settings on the control panel.

User's Guide

Administrator Settings

Locking the Printer Settings Using an Administrator's Password

You can set an administrator's password to lock the printer settings so that they cannot be changed by other users. You can lock the following settings.

❏ System Administration

❏ Eco Mode

❏ Presets

❏ Contacts

You cannot change settings without entering the password. is password is also required when you make settings using Web Cong or EpsonNet Cong.

Important:

Do not forget the password. If you forget the password, contact Epson support.

1. Enter Setup from the home screen.

2. Select Admin Settings > Admin Password.

3. Select Register, and then enter a password.

4. Enter the password again.

5. Select Lock Setting, and then enable it.

Unlocking the Printer Settings

1. Enter Setup from the home screen.

2. Select Admin Settings.

Enter the administrator's password.

4. Select Lock Setting, and then disable it.

User Feature Restrictions

Note:

Mac OS X is not supported.

e administrator can restrict printer features for individual users. To use a restricted feature, the user has to enter an ID and password on the control panel. Use this feature to prevent misuse of the printer.

User's Guide

Administrator Settings

Use Web Cong to congure restriction settings on a computer. See the Administrator's Guide for more details.

Aer conguring settings on the computer, enable the user restriction feature on the printer. Select Setup > System Administration > Security Settings > Access Control from the home screen, and then enable it.

User's Guide

Printer Basics

Part Names and Functions

ADF (Automatic Document Feeder) cover Open when removing jammed originals in the ADF.

ADF edge guide Feeds originals straight into the printer. Slide to the

edge of the originals.

ADF input tray Feeds originals automatically.

ADF output tray Holds originals ejected from the ADF.

Ink cases Insert the ink supply units.

Paper cassette 1, Paper cassette 2 Loads paper.

Paper cassette cover Attach to paper cassette 2.

User's Guide

Printer Basics

Edge guides Feeds the paper straight into the printer. Slide to the

edges of the paper.

Paper support Supports loaded paper.

Feeder guard Prevents foreign substance from entering the printer.

Usually keep this guard closed.

Rear paper feed Loads paper.

Output tray Holds the ejected paper.

Edge guides Feeds the paper straight into the printer. Slide to the

edges of the paper.

Paper cassette Loads paper.

User's Guide

Printer Basics

Document cover Blocks external light while scanning.

Scanner glass Scans placed originals.

Control Panel Operates the printer.

External interface USB port Connects memory devices.

Print head Fires ink.

Front cover Open when removing jammed paper inside the printer.

Rear cover Open when replacing the maintenance box, or

removing jammed paper.

AC inlet Connects the power cord.

User's Guide

LINE port Connects a phone line.

EXT. port Connects external phone devices.

USB port Connects a USB cable.

LAN port Connects a LAN cable.

Service USB port USB port for future use.

Control Panel

Buttons and Lights

Printer Basics

Do not remove the sticker.

Turns the printer on or o.

Unplug the power cord when the power light is o.

Displays the home screen.

Pauses the current job and allows you to interrupt another job. Press this button again to restart a paused job.

Returns the current settings to their previous status.

Stops the current operation.

- Displays menus and messages. Touch the LCD screen to select a menu, and scroll by swiping.

Returns to the previous screen.

Displays the Status Menu. You can check the printer's status and job history.

The error light on the left ashes or turns on when an error occurs.

The data light on the right ashes when the printer is processing data. It turns on when there are queued jobs.

0 - 9

c Clears number settings such as the number of copies.

Enters numbers, characters, and symbols.

User's Guide

Printer Basics

Starts printing, copying, scanning, and faxing in black and white.

Starts printing, copying, scanning, and faxing in color.

Icons Displayed on the LCD Screen

e following icons are displayed on the LCD screen depending on the printer's status. Press the network icon to check the current network settings and make Wi-Fi settings.

Press this icon to view operating instructions such as how to load paper, and how to place originals.

Turns on when originals are placed in the ADF.

Turns on when ink is running low or the maintenance box is nearly full. Press the button, and then select Printer Information to check the status.

Turns on when ink is expended or the maintenance box is full. Press the button, and then select Printer Information to check the status.

Turns on when received documents that have not yet been read, printed, or saved, are stored in the product's memory.

Turns on while the printer is receiving or sending faxes.

Indicates fax memory usage.

Indicates that the fax memory is full.

Indicates the number of unprocessed or unread received faxes. This icon is displayed on the fax mode icon. When the number of faxes exceeds 10, the icon changes to 10+. For more details, see the section that describes the display when a received fax has not been processed.

Indicates that the printer is connecting to a wireless (Wi-Fi) or wired (Ethernet) network.

Turns on while the printer is connected to a wired (Ethernet) network.

Turns on while the printer is connected to a wireless (Wi-Fi) network. The number of bars indicates the signal strength of the connection. The more bars there are, the stronger the connection.

Indicates a problem with the printer's wireless (Wi-Fi) network connection, or that the printer is searching for a wireless (Wi-Fi) network connection.

User's Guide

Related Information

Printer Basics

Indicates that the printer is connected to a wireless (Wi-Fi) network in Ad Hoc mode.

Indicates that the printer is connected to a wireless (Wi-Fi) network in Wi-Fi Direct mode.

Indicates that the printer is connected to a wireless (Wi-Fi) network in Simple AP mode.

Indicates that the user restriction feature is enabled. Press this icon to log in to the printer. You need to enter a user name and password. Contact your printer administrator for login information.

Indicates that a user with access permission has logged in.

“Notication of Unprocessed Received Faxes” on page 111

“Memory Full Error Occurs” on page 174

Icons Displayed on the Software Keyboard of the LCD Screen

You can enter characters and symbols by using the

soware

network settings, and so on. e following icons are displayed on the soware keyboard screen.

Note:

Available icons vary depending on the setting item.

Switches between upper case and lower case.

Switches the character type.

123#: Enters numbers and symbols.

ABC: Enters letters.

ÁÄÂ: Enters special characters such as umlauts and accents.

keyboard screen when you register a contact, make

Changes the keyboard layout.

Enters a space.

Deletes a character to the left.

Enters a character.

Enters a hyphen (-) on the fax number entry screen.

User's Guide

Printer Basics

Menu Options

Copy Mode

Note:

❏ Available menus vary depending on the layout you selected.

❏ Press Settings to display hidden setting menus.

Menu Settings and Explanations

Number of copies Enter the number of copies.

Layout With Border Copies with a border around the edges.

2-up Copies multiple page originals onto one sheet.

4-up

When placing originals in the ADF, insert them into the feeder from the top or left edge.

Load vertical originals as shown below, and select Portrait from Document Orientation.

Load vertical originals as shown below, and select Landscape from Document Orientation.

ID Card Scans both sides of an ID card and copies onto one side of A4 size paper.

Document Size Select the size of your original.

Zoom Enlarges or reduces the original.

Select Auto Fit Page to t to the paper size of the selected paper source.

Paper Source Select the paper source that you want to use.

Feeds paper automatically using the Paper Setup settings made when you loaded the paper.

Select the paper size and paper type you loaded when Rear Paper Feed is selected.

2-Sided Select 2-sided layout.

Select a layout, press Advanced, and then select the binding position of your original and the paper.

Document Orientation

Quality Select the type of your original.

Density Set the density of your copies.

Select the orientation of your original.

Text: Provides faster printing, but the printouts may be faint.

Photo: Provides higher quality printing, but the printing speed may be slower.

User's Guide

Menu Settings and Explanations

Printer Basics

Layout Order

Remove Shadow Removes shadows that appear in the center of copies when copying a booklet or that appear around

Remove Punch Holes

Collate Copy Prints multiple copies of multiple originals collated in order and sorts them into sets.

Dry Time Select the drying time.

Advanced Settings Adjust image settings such as contrast and saturation.

Select the copy layout for multiple pages when you have selected 2-up or 4-up as the Layout setting.

copies when copying thick paper.

Removes the binding holes when copying.

Scan Mode

Menu Settings and Explanations

Contacts Select email addresses to send the scanned image from the contacts list.

Form at

Select the format in which to save the scanned image. When you select TIFF (Single Page) or TIFF (Multi Page), only monochrome scanning is available.

Menu Email Settings Subject: Enter a subject for the email.

Filename Prex: Enter a prex for the name of the le to be sent.

Basic Settings

Scan Report Prints a history that shows when and to which email address scanned les

See the list of menus in Settings.

have been sent.

Network Folder/FTP

Menu Settings and Explanations

Contacts Select a folder in which to save the scanned image from the contact list. You do not need to make

location settings when you have selected a folder from the contacts list.

Location Communication

Mode

Location Enter a folder path in which to save the scanned image.

User Name Enter a user name for the specied folder.

Password Enter a password for the specied folder.

Connection Mode Select the connection mode.

Select the communication mode.

Form at

Port Number Enter a port number.

Select the format in which to save the scanned image. When you select TIFF (Single Page), only monochrome scanning is available.

User's Guide

Menu Settings and Explanations

Printer Basics

Menu File Settings

Basic Settings

Scan Report Prints a history that shows when and to which folder the scanned les have

Enter a prex for the le name in Filename Prex.

See the list of menus in Settings.

been sent.

Memory Device

Menu Settings and Explanations

Form at

Settings

Select the format in which to save the scanned image. When you select TIFF (Multi Page), only monochrome scanning is available.

See the list of menus in Settings.

Cloud

Menu Settings and Explanations

Format Select the format in which to save the scanned image.

Settings

See the list of menus in Settings.

Document Capture Pro

is menu has no setting item.

Computer (WSD)

is menu has no setting item.

Settings

Note:

Available menus vary depending on the destination type, such as email or folder, and the format in which scanned images are saved.

Menu Settings and Explanations

Resolution Select the scanning resolution.

Scan Area Select the scan area.

Auto Cropping: Crops the white space around the text or image when scanning.

Max Area: Scans at the maximum scan area of the scanner glass or the ADF.

2-Sided

Scans both sides of the original. When performing 2-sided scanning, select Binding Direction and then select the binding position of the original.

Document Type Select the type of your original.

Density Select the contrast of the scanned image.

User's Guide

Menu Settings and Explanations

Printer Basics

Document Orientation

Compression Ratio Select how much to compress the scanned image.

PDF Settings

Attached File Max Size

Select the orientation of your original.

When you have selected PDF as the save format setting, use these settings to protect PDF les.

Document Open Password: Creates a PDF le that requires a password when opening.

Permissions Password: Creates a PDF

Select the maximum le size that can be attached to the email.

that requires a password when printing or editing.

le

Fax Mode

From the home screen, select Fax > Menu. You can access some of the setting menus directly from the Fax screen.

Menu Settings and Explanations

Fax Send Settings Resolution Select the resolution of the outgoing fax.

Select Photo for originals that contain both text and photo images.

Density Set the density of the outgoing fax.

Document Size (Glass)

ADF 2-Sided When sending a monochrome fax, both sides of the original placed in the

Direct Send See the pages that describe these features for more details.

Priority Send

Continuous Scan from ADF

Transmission Report

Send Fax Later See the pages that describe these features for more details.

Polling Receive

Polling Send

Store Fax Data

Select the size and orientation of the original you placed on the scanner glass.

ADF are scanned.

Prints a transmission report automatically after you send a fax. Select Print

on Error to print a report only when an error occurs.

User's Guide

Printer Basics

Menu Settings and Explanations

Fax Report Fax Settings List Prints the current fax settings.

Fax Log Prints a transmission report automatically after you send a fax. You can set to

print this report automatically using the following menu.

Setup > System Administration > Fax Settings > Output Settings > Fax Log Auto Print

Last Transmission Prints a report for the previous fax that was sent or received through polling.

Stored Fax Documents

Protocol Trace Prints a detailed report for the previous fax that was sent or received.

Prints a list of fax documents stored in the printer’s memory, such as unnished

jobs.

Related Information

& “Sending Many Pages of a Monochrome Document (Direct Send)” on page 101 & “Sending a Fax Preferentially (Priority Send)” on page 101 &

“Sending Dierent Size Documents Using ADF (Continuous Scan from ADF)” on page 102

“Sending Faxes at a Specied Time (Send Fax Later)” on page 100

“Receiving Faxes by Polling (Polling Receive)” on page 104

& “Sending Faxes on Demand (Polling Send)” on page 101 & “Storing a Fax Without Specifying a Recipient (Store Fax Data)” on page 100

Memory Device Mode

Note:

Memory device is a generic name for external USB devices such as USB ash drives.

File format

Menu Settings and Explanations

JPEG Select the le format of the le you want to print.

TIFF

PDF

Settings

Note:

Available menus vary depending on the selected le format.

Menu Settings and Explanations

Number of printouts

Enter the number of printouts.

User's Guide

Printer Basics

Menu Settings and Explanations

Settings Paper Source Select the paper source that you want to use.

Quality Select the print quality.

If you select Best, the printing speed may be slower.

Date Select the format of the date on the printouts.

Fit Frame Crops the top and bottom edges of the image to t in the selected paper size.

Turning this o causes margins to appear on the left and right side of the image.

Bidirectional Select which side to re ink when the print head moves. Turn this on under

normal usage.

Enabled: Prints when the print head moves in both directions.

Disabled: Prints only when the print head moves in one direction. Print quality improves, but the printing speed is slow.

2-Sided Select 2-sided layout.

Print Order Last Page on Top: Prints from the rst page of a le.

First Page on Top: Prints from the last page of a le.

Image Adjustments Enhance Select the image correction method.

On: Enhances the image automatically by using Epson's unique image analysis and image processing technology.

P.I.M.: Adjusts the image by using your camera's PRINT Image Matching or Exif Print information.

Fix Red-Eye Fixes red-eye in photos.

Corrections are not applied to the original le, only to the printouts.

Depending on the type of photo, parts of the image other than the eyes may be corrected.

Options Select Images

Select Group Select this menu to select another group.

Select All Images selects all of the images on the memory device.

Setup Mode

Menu Settings and Explanations

Ink Levels Displays the approximate levels of the ink and the maintenance box.

When an ! icon is displayed, the ink is running low or the maintenance box is nearly full.

When a x icon is displayed, the ink is expended or the maintenance box is full.

User's Guide

Menu Settings and Explanations

Printer Basics

Maintenance Print Head Nozzle

Check

Print Head Cleaning

Print Head Alignment

Improve Horizontal Streaks

Thick Paper Reduces ink smearing when printing. Enable this feature only when you see

Paper Guide Cleaning

Paper Setup Select the paper size and paper type you loaded in the paper source.

Print Status Sheet Conguration

Status Sheet

Prints a pattern to check if the print head nozzles are clogged.

Cleans clogged nozzles in the print head.

Adjusts the print head to improve print quality.

Run Vertical Alignment if your printouts look blurry.

Run Horizontal Alignment if your printouts contain horizontal banding at regular intervals.

Run Ruled Line Alignment if text and lines are misaligned.

Use this feature if your printouts contain horizontal banding after trying Print Head Cleaning and Horizontal Alignment.

This feature provides more accurate adjustment than Horizontal Alignment.

ink smearing on your printouts because it may lower the printing speed.

Use this feature to feed paper for cleaning when there are ink stains on the internal rollers or a paper feed problem has occurred.

Prints an information sheet showing the current printer status and settings.

Supply Status Sheet

Usage History Sheet

PS3 Status Sheet Prints an information sheet when you use this printer as a PostScript printer.

PS3 Font List Prints a list of fonts that are available for a PostScript printer.

PCL Font List Prints a list of fonts that are available for a PCL printer.

Network Status Wi-Fi/Network

Status

Wi-Fi Direct Status

Email Server Status Displays the current email server settings.

Epson Connect Status

Google Cloud Print Status

Prints an information sheet showing the status of consumables.

Prints an information sheet showing the usage history of the printer.

Displays or prints the current network settings.

Displays whether or not the printer is registered and connected to Epson Connect or Google Cloud Print service.

See the Epson Connect portal website for more details.

https://www.epsonconnect.com/

http://www.epsonconnect.eu (Europe only)

User's Guide

Printer Basics

Menu Settings and Explanations

Admin Settings These menus allow an administrator to register an administrator password to protect the printer

settings from being changed by other users.

Admin Password Set, change, or reset the administrator password.

If you forget the password, contact Epson support.

System Administration

Lock Setting

See the pages that describe these features for more details.

You need to enter an administrator password when you enter the System

Administration settings and when you change the settings of Eco Mode, Presets, and the contacts.

Related Information

“System Administration” on page 30

System Administration

Select Setup on the home screen, and then select System Administration.

Menu Settings and Explanations

Printer Settings

Common Settings LCD Brightness Adjust the brightness of the LCD screen.

See the list of menus in Printer Settings.

Sound Adjust the volume and select the type of audio.

Sleep Timer Select the time period before the printer enters sleep mode (energy saving

mode) when no operations are performed.

The LCD screen turns black when the set time passes.

Power O Timer You can adjust the time before power management is applied. Any increase

will before making any change.

Date/Time Settings Date/Time Enter the current date and time.

Daylight Saving Tim e

Time Dierence Enter the time dierence between your local time and

Country/Region Select the country or region.

Language Select the display language.

Operation Time Out

If this feature is enabled, the LCD screen returns to the home screen when no operations have been performed for about three minutes. This feature is automatically enabled when the user restriction feature is enabled.

the product’s energy

aect

eciency.

Select the summer time setting that applies to your area.

UTC (Coordinated Universal Time).

Please consider the environment

User's Guide

Menu Settings and Explanations

Printer Basics

Wi-Fi/Network Settings

Epson Connect Services

Wi-Fi/Network Status

Wi-Fi Setup Wi-Fi Setup Wizard See the Network Guide for more details.

Connection Check Checks the status of the network connection and prints the network

Advanced Setup See the Network Guide for more details.

You can suspend or resume the Epson Connect or Google Could Print service, or cancel using the services (restore the default settings).

Displays or prints the network settings and connection status.

Push Button Setup (WPS)

PIN Code Setup (WPS)

Wi-Fi Auto Connect

Disable Wi-Fi You may be able to resolve network problems by

disabling the Wi-Fi settings or making the Wi-Fi settings again. See the Network Guide for more details.

Wi-Fi Direct Setup See the Network Guide for more details.

connection check report. If there are any problems with the connection, see the check report to solve the problem.

Google Cloud Print Services

Copy Settings

Scan Settings

Fax Settings

Universal Print Settings

See the Epson Connect portal website for more details.

https://www.epsonconnect.com/

http://www.epsonconnect.eu (Europe only)

The settings made in the User Default Settings are displayed as the default settings in each mode. For details on the setting items, see the list of menus for each mode.

See the list of menus in Fax Settings.

These print settings are applied when printing from an external device without using the printer driver, or when printing from a PostScript printer driver or PCL printer driver.

Top Oset Adjust the top or left margin of the paper.

Left Oset

Top Oset in Back Adjust the top margin or left margin for the back of the page when

performing 2-sided printing.

Left Oset in Back

Check Paper Width Checks the paper width before the printer starts printing. This prevents

printing beyond the edges of the paper when the paper size setting is not correct, but the printing time may be little longer.

Dry Time Select the drying time when performing 2-sided printing.

Skip Blank Page Skips blank pages in the print data automatically.

PDL Print Conguration

See the list of menus in PDL Print Conguration.

User's Guide

Printer Basics

Menu Settings and Explanations

Security Settings Access Control Requires the administrator password to operate the printer.

Select whether or not to allow jobs that do not have the necessary authentication information.

Delete All Condential Jobs

Eco Mode The following Eco mode settings are available. When these settings are disabled, the settings made in

Common Settings are applied.

Congure Sleep Timer Select the time period before the printer enters sleep

Clear Internal Memory Data

Restore Default Settings

Deletes the print settings for a PostScript printer driver and a PCL printer driver.

Select Clear All to delete all of the data for a PostScript printer driver and a PCL printer driver that is saved in the printer's memory.

Resets the selected settings to their defaults.

Deletes all saved condential jobs.

mode (energy saving mode) when no operations are performed.

The LCD screen turns black when the set time passes.

LCD Brightness Adjust the brightness of the LCD screen.

2-Sided (Copy) Sets 2-sided copying as the default setting.

2-Sided (Memory Device)

Sets 2-sided printing as the default setting.

Related Information

& “Copy Mode” on page 23 & “Scan Mode” on page 24 & “Fax Settings” on page 33 &

“PDL Print Conguration” on page 36

Printer Settings

Select Setup > System Administration > Printer Settings from the home screen.

Menu Settings and Explanations

Paper Source Settings Rear Paper Feed Priority Feeds paper from the rear paper feed on a priority basis.

A4/Letter Auto Switching Feeds paper from the paper source set as A4 size when there is no

paper source set as Letter, or feeds from the paper source set as Letter size when there is no paper source set as A4.

Auto Select Settings Specify which paper source to feed from when using features such

as copying and faxing. When there are multiple paper sources available, paper is fed from the paper source with paper settings that match the copy or print job.

Error Notice Displays an error message when the paper size or type settings in

Paper Setup and the print settings do not match.

User's Guide

Printer Basics

Menu Settings and Explanations

USB I/F Timeout Setting Specify the length of time in seconds that must elapse before ending USB communication with a

computer after the printer receives a print job from a PostScript printer driver or PCL printer driver. If the job ending is not clearly dened from a PostScript printer driver or PCL printer driver, it can cause endless USB communication. When this occurs, the printer ends communication after the communication.

Printing Language Select the printing language for the USB interface or the network interface.

Auto Error Solver Select an action to perform when a 2-sided printing error or a memory full error occurs.

❏ 2-sided printing error

Enabled: If a 2-sided job is sent when there is no paper available that supports 2-sided printing, the printer displays an error message, and then automatically prints on only one side of the paper.

Disabled: The printer displays an error message and cancels printing.

❏ Memory full error

Enabled: If the printer's memory becomes full while printing, the printer displays an error message, and then prints only the part of the data that the printer could process.

Disabled: The printer displays an error message and cancels printing.

specied

time has elapsed. Enter 0 (zero) if you do not want to end

Memory Device Interface

PC Connection via USB Enables the printer which is connected to the computer over a USB connection. If this feature is

Memory Device Enables a memory device inserted in the printer. If this feature is

disabled, the printer does not recognize the inserted memory device.

File Sharing Select whether to give write access to the memory device from a

USB-connected computer or from a network-connected computer.

disabled, the computer does not recognize printers with a USB connection.

Fax Settings

Select Setup > System Administration > Fax Settings from the home screen.

Menu Settings and Explanations

User Default Settings

Send Settings Batch Send See the pages that describe these features for more details.

Receive Settings Receive Mode Select the receive mode.

The settings made in this menu become your default settings for sending faxes. For details on the setting items, see the list of menus in Fax mode.

Save Failure Data Saves documents that failed to be sent in the printer's memory. You can resend

the documents from the Status Menu.

DRD If you have subscribed to a distinctive ring service from your telephone company,

select the ring pattern to be used for incoming faxes (or select On).

Rings to Answer Select the number of rings that must occur before the printer automatically

receives a fax. Select "0" (zero) if you want to receive faxes with no ringing.

Remote Receive When you answer an incoming fax call on a phone connected to the printer, you

can start receiving the fax by entering the code using the phone.

User's Guide

Printer Basics

Menu Settings and Explanations

Output Settings Fax Output You can set to save received documents in the inbox, on a memory device, or on a

computer, or forward the documents.

Auto Reduction Reduces large received documents to t on the paper in the paper source.

Reducing may not always be possible depending on the received data. If this is turned o, large documents are printed at their original size on multiple sheets, or a blank second page may be ejected.

Auto Rotation Rotates automatically to print on A5 size paper when a landscape-oriented A5

size document is received and the paper source setting is set to A5. Prints on A4 size paper when this feature is disabled.

Collation Stack Prints received documents from the last page (print in descending order) so that

the printed documents are stacked in the correct page order. When the printer is running low on memory, this feature may not be available.

Print Suspend Tim e

Forwarding Report

Attach Image to Report

Fax Log Auto Print

Report Format

Turn this on and enter the Time to Stop and Time to Restart to stop printing documents received during the specied time period and save them in the memory instead. When the printer is running low on memory, this feature may not be available. You can check and print documents received during that time from the Status Menu. This feature can be used for noise prevention at night or to prevent condential documents from being disclosed while you are away.

Prints a report after forwarding a received document.

Prints a Transmission Report with an image of the rst page of the sent document.

On(Large Image): Prints the upper part of the page without reducing.

On(Small Image): Prints the entire page reducing it to t onto the report.

Prints the fax log automatically.

On(Every 30): Prints a log every time 30 fax jobs are completed.

On(Time): Prints the log at a specied time. However, if the number of fax jobs exceeds 30, the log is printed before the specied time.

Select a format for fax reports other than Protocol Trace. Select Detail to print with error codes.

User's Guide

Printer Basics

Menu Settings and Explanations

Basic Settings Fax Speed Select the fax transmission speed.

We recommend selecting Slow(9,600bps) when a communication error occurs frequently, when sending/receiving a fax to/from abroad, or when you are using an IP (VoIP) phone service.

ECM Automatically corrects errors in the fax transmission (Error Correction Mode),

mostly caused by telephone line noise. If this is disabled, you cannot send or receive documents in color.

Dial Tone Detection

Dial Mode Select the type of phone system to which you have connected the printer. When

Line Type Select the line type to which you have connected the printer. For more details, see

Header Enter your sender name and fax number. These appear as a header on outgoing

Security Settings Direct Dialing

Restrictions

Conrm Address List

Detects a dial tone before starting to dial.

If the printer is connected to a PBX (Private Branch Exchange) or digital phone line, the printer may fail to start dialing. In this situation, change the Line Type setting to PBX. If this does not work, disable this feature. However, disabling this feature may drop the rst digit of a fax number and send the fax to the wrong number.

set to Pulse, you can temporarily switch the dialing mode from pulse to tone by pressing Depending on the region, this setting may not be displayed.

the page that describes the settings for PBX.

faxes.

You can enter up to 40 characters for your name, and up to 20 digits for your fax number.

Enable this to prevent fax numbers from being entered manually allowing the operator to select recipients only from the contacts list or sent history. Select Enter Twice to require the operator to enter the fax number again when a number is entered manually.

Displays a recipient conrmation screen before starting the transmission.

("T" is entered) while entering numbers on the fax top screen.

Check Fax Connection

Fax Setting Wizard

Inbox Password Settings

Backup Data Auto Clear

Clear Backup Data

Checks if the printer is connected to the phone line and ready for fax transmission, and prints the check result on A4 size plain paper.

Select to make basic fax settings by following the on-screen instructions.

For more details, see the page that describes the settings for PBX.

Select to password protect the inbox to restrict users from viewing received faxes.

Select Change to change the password, and select Reset to cancel password protection. When changing or resetting the password, you need the current password.

Fax documents deleted by using the control panel disappear from the LCD screen, but their backups are temporarily stored in the memory. The following features delete backups.

Backup Data Auto Clear: Automatically deletes backups each time a sent or received document is deleted.

Clear Backup Data: Deletes all backups. Run this before you give the printer to someone else or dispose of it.

User's Guide

Printer Basics

Related Information

& “Fax Mode” on page 26 & “Saving and Forwarding Received Faxes” on page 105 & “Sending Multiple Faxes to the Same Recipient at Once (Batch Send)” on page 102 & “Making Basic Fax Settings” on page 94

PDL Print Conguration

Select Setup > System Administration > Universal Print Settings > PDL Print Conguration from the home screen.

Menu Settings and Explanations

Common Settings

Paper Size Select the paper size.

Paper Type Select the paper type.

Orientation Select the printing direction.

Quality Select the print quality.

Ink Save Mode Conserves ink by reducing the print density.

Print Order Last Page on Top: Prints from the rst page of a le.

First Page on Top: Prints from the last page of a le.

Number of Copies

Binding Margin Select the binding position.

Auto Paper Ejection

2-Sided Printing Performs 2-sided printing.

Set the number of copies.

Ejects paper automatically when printing is stopped during a print job.

User's Guide

Printer Basics

Menu Settings and Explanations

PCL Menu Font Source Resident: Select to use a preinstalled font on the printer.

Download: Select to use a font you have downloaded.

Font Number Select the default font number for the default font source. The available number

varies depending on the settings you made.

Pitch Set the default font pitch if the font is scalable and of xed-pitch. You can select from

0.44 to 99.99 cpi (characters per inch), in 0.01 increments.

This item may not appear depending on the font source or font number settings.

Height Set the default font height if the font is scalable and proportional. You can select

from 4.00 to 999.75 points, in 0.25 increments.

This item may not appear depending on the font source or font number settings.

Symbol Set Select the default symbol set. If the font that you selected in the font source and the

font number setting is not available in the new symbol set setting, the font source and the font number settings are automatically replaced with the default value, IBM- US.

Form Set the number of lines for the selected paper size and orientation. This also causes a

line spacing (VMI) change, and the new VMI value is stored in the printer. This means that later changes in the page size or orientation settings cause changes in the Form value based on the stored VMI.

CR Function Select the line feed command when printing with a driver from a specic operating

system.

LF Function

Paper Source Assign

PS3 Menu Error Sheet Prints a sheet showing the error status when any PostScript errors occur while

Coloration Select the color mode for PostScript printing.

Image Protect Disable this feature to lower the print quality automatically if the printer's memory

Binary Enable this feature when printing data that contains binary images.

Text Detection Converts the text le to a PostScript le when printing.

Set the assignment for the paper source select command. When 4 is selected, the commands are set as compatible with the HP LaserJet 4. When 4K is selected, the commands are set as compatible with the HP LaserJet 4000, 5000, and 8000. When 5S is selected, the commands are set as compatible with the HP LaserJet 5S.

printing and any errors occur while printing a PDF le.

becomes full.

The application may send the binary data even if the printer driver setting is set to ASCII, but you can print the data when this feature is enabled.

This feature is available when Printing Language is set to PS3.

PDF Page Size

Select the paper size when printing a PDF le. If Auto is selected, the paper size is determined based on the size of the rst page that is printed.

Contacts Mode

Menu Description

Menu Registers contacts and a contact group, or prints the contacts list.

User's Guide

Printer Basics

Menu Description

View Select whether to display all contacts or the contacts for each feature only.

LDAP allows you to search in the contacts registered in the LDAP server.

Presets Mode

You can register frequently used copy, fax, and scan settings as presets. To register a preset, select Presets from the home screen, select Add New, and then select the feature for which you want to register a contact. Make the necessary settings, press Save, and then enter a name for the preset.

To load a registered preset, select the preset from the list.

Press Preset on the screen of each feature. You can register the current address (except for address that have been entered directly and the contacts in the LDAP address list) and settings.

Menu Description

Menu Displays the details of registered presets, and allows you to change their names, edit, and delete.

Status Menu

Press the button on the control panel.

Menu Description

Printer Information Displays the status of the consumables and any errors that have occurred in the printer. Select the

error from the list to display the error massage.

Job Monitor Displays a list of ongoing jobs and jobs waiting to be processed. You can also cancel jobs.

Job History Displays the job history. If a job has failed, an error code is displayed in the history.

Job Storage

Condential Job Displays a list of jobs for which a password has been set. To print a job, select the job and enter the

Select Inbox to display the received faxes stored in the printer's memory.

password.

User's Guide

Loading Paper

Paper Handling Precautions

❏ Read the instruction sheets supplied with the paper.

❏ Fan and align the edges of the paper before loading. Do not fan or curl photo paper. Doing so may damage the

printable side.

❏ If the paper is curled, atten it or curl it slightly in the opposite direction before loading. Printing on curled

paper may cause paper jams and smears on the printout.

❏ Do not use paper that is wavy, torn, cut, folded, damp, too thick, too thin, or paper that has stickers stuck to it.

Using these types of paper causes paper jams and smears on the printout.

❏ Fan and align the edges of the envelopes before loading. When the stacked envelopes are

press them down to atten them before loading.

pued

up with air,

❏ Do not use envelopes that are curled or folded. Using these envelopes causes paper jams and smears on the

printout.

❏ Do not use envelopes with adhesive surfaces on the aps or window envelopes.

❏ Avoid using envelopes that are too thin, as they may curl during printing.

Related Information

& “Printer Specications” on page 178

User's Guide

Loading Paper

Available Paper and Capacities

Epson recommends using genuine Epson paper to ensure high-quality printouts.

Genuine Epson Paper

Note:

Genuine Epson paper is not available when printing with a PostScript printer driver and the Epson universal printer driver.

Media Name Size Loading Capacity (Sheets) 2-Sided Printing

Epson Bright White Ink Jet Paper

Epson Ultra Glossy Photo Paper

Epson Premium Glossy Photo Paper

Premium Semigloss Photo Paper

Epson Photo Paper Glossy

Epson Matte PaperHeavyweight

Epson Photo Quality Ink Jet Paper

Paper Cassette 1

A4 200 200 50

A4, 13 × 18 cm (5 × 7 in.), 10 × 15 cm (4 × 6 in.)

A4, 13 × 18 cm (5 × 7 in.), 16:9 wide size (102 × 181 mm), 10 × 15 cm (4 × 6 in.)

A4, 10 × 15 cm (4 × 6 in.)

A4, 13 × 18 cm (5 × 7 in.), 10 × 15 cm (4 × 6 in.)

A4 --20-

A4 --80-

Paper Cassette 2

Rear Paper Feed

Auto, Manual

*1 Only use the rear paper feed to print 2-sided print jobs manually. You can load up to 20 sheets for paper with one side

already printed.

*2 Load one sheet of paper at a time if the paper does not feed correctly or if the printout has uneven colors or smears.

Note:

❏ e availability of paper varies by location. For the latest information on paper available in your area, contact Epson

support.

❏ When printing on genuine Epson paper at a user dened size, only Standard or Normal print quality settings are

available. Although some printer drivers allow you to select a better print quality, the printouts are printed using Standard or Normal.

User's Guide

Loading Paper

Commercially Available Paper

Media Name Size Loading Capacity (Sheets or Envelopes) 2-Sided Printing

Plain paper

Copy paper

Letterhead

Recycled paper

Color paper

Preprinted paper

Paper Cassette 1

Legal

Letter, A4, B5

A5 Up to the line

Executive

User Dened (mm)

182 × 257 to 215.9 × 297

User Dened

Except for the above

Up to the line under the symbol inside the edge guide.

under the symbol inside the edge guide.

--80

--1Manual

Paper Cassette 2

-80

Rear Paper Feed

Manual

Auto, Manual

*1*2

Manual

Auto, Manual

*1*2

Thick paper Legal - - 1 Manual

Letter, A4, B5, A5, A6, Executive

User Dened (mm)

182 × 257 to 215.9 × 297

User Dened

Except for the above

Envelope Envelope #10,

Envelope DL, Envelope C6

Envelope C4--1-

*1 Only use the rear paper feed to print 2-sided print jobs manually.

*2 You can load up to 30 sheets for paper with one side already printed.

*3 You can load up to 5 sheets for paper with one side already printed.

--10

--1Manual

--10-

Manual

Related Information

& “Part Names and Functions” on page 17

User's Guide

Loading Paper

List of Paper Types

To obtain optimum printing results, select the paper type that suits the paper.

Media Name Media Type

Control Panel Printer Driver PostScript Printer

Driver

Copy paper, Plain paper

Epson Bright White Ink Jet Paper

Letterhead Letterhead Letterhead Letterhead Letterhead

Recycled paper Recycled Recycled Recycled Recycled

Color paper Color Color Color Color

Preprinted paper Preprinted Preprinted Preprinted Preprinted

Epson Ultra Glossy Photo Paper

Epson Premium Glossy Photo Paper

Epson Premium Semigloss Photo Paper

Epson Photo Paper Glossy

plain papers plain papers Plain Plain

Ultra Glossy Epson Ultra Glossy - -

Prem. Glossy Epson Premium

Glossy

Prem. Semigloss Epson Premium

Semigloss

Glossy Photo Paper Glossy - -

Epson Universal Printer Driver

Epson Matte PaperHeavyweight

Epson Photo Quality Ink Jet Paper

Thick paper Thick-Paper Thick-Paper Thick Thick

Envelope Envelope Envelope Envelope Envelope

Matte Epson Matte - -

User's Guide

Loading Paper

Loading Paper in the Paper Cassette

1. Check that the printer is not operating, and then pull out the paper cassette.

Note:

Remove the paper cassette cover from paper cassette 2.

2. Slide the edge guides to their maximum position.

Note:

When using paper larger than A4 size, extend the paper cassette.

User's Guide

Loading Paper

3. Slide the front edge guide to the paper size you want to use.

4. With the printable side facing down, load paper against the front edge guide.

Important:

❏ Make sure the paper does not extend beyond the

❏ Do not load more than the maximum number of sheets specied for the paper. For plain paper, do not load

above the line just under the

5. Slide the side edge guides to the edges of the paper.

6. Insert the paper cassette all the way.

Note:

For paper cassette 2, reattach the paper cassette cover before inserting.

symbol inside the edge guide.

symbol at the end of the paper cassette.

User's Guide

Loading Paper

7. On the control panel, set the size and type of the paper you loaded in the paper cassette.

Note: You can also display the paper size and paper type settings screen by selecting Setup > Paper Setup.

8. Slide out the output tray.

Related Information

& “Paper Handling Precautions” on page 39 & “Available Paper and Capacities” on page 40

Loading Paper in the Rear Paper Feed

1. Open the feeder guard and pull out the paper support.

2. Slide the edge guides.

User's Guide

Loading Paper

3. Load paper at the center of the rear paper feed with the printable side facing up.

Important:

❏ Do not load more than the maximum number of sheets

above the line just under the

❏ Load paper short edge rst. However, when you have set the long edge as the width of the user dened size,

load paper long edge rst.

symbol inside the edge guide.

specied

for the paper. For plain paper, do not load

❏ Envelope

❏ Pre-punched paper

Note:

You can use pre-punched paper under the following conditions. Automatic 2-sided printing is not available for prepunched paper.

❏ Loading capacity: One sheet

❏ Available size: A4, B5, A5, A6, Letter, Legal

❏ Binding holes: Do not load paper with the binding holes at the top or the bottom.

Adjust the print position of your le to avoid printing over the holes.

User's Guide

Loading Paper

4. Slide the edge guides to the edges of the paper.

5. On the control panel, select Setup > Paper Setup > Rear Paper Feed, and then set the size and type of the paper you loaded in the rear paper feed.

6. Slide out the output tray.

Note:

Return the remaining paper to its package. If you leave it in the printer, the paper may curl or the print quality may decline.

Related Information

& “Paper Handling Precautions” on page 39 & “Available Paper and Capacities” on page 40

User's Guide

Placing Originals

Place originals on the scanner glass or the ADF. Use the scanner glass for originals that the ADF does not support.

You can scan multiple originals and both sides of the originals at the same time with the ADF.

Available Originals for the ADF

Available Paper Sizes

Paper Type Plain paper

Paper Thickness (Weight of Paper) 64 to 95 g/m

Loading Capacity Except for Legal: 35 sheets or 3.5 mm

* Only single-sided scanning is supported.

To prevent paper jams, avoid placing the following originals in the ADF. For these types, use the scanner glass.

❏ Originals that are torn, folded, wrinkled, deteriorated, or curled

❏ Originals with binder holes

❏ Originals held together with tape, staples, paper clips etc.

❏ Originals that have stickers or labels stuck to them

❏ Originals that are cut irregularly or not right angled

❏ Originals that are bound

❏ OHPs, thermal transfer paper, or carbon backs

A4, A5

, B5, Legal*, Letter

Legal: 10 sheets

Placing Originals on the ADF

1. Align the edges of the originals.

User's Guide

2. Slide the ADF edge guide.

3. Place the originals face up in the ADF.

Placing Originals

Important:

❏ Do not load originals above the line just under the

❏ Do not add originals while scanning.

symbol inside the ADF edge guide.

User's Guide

Placing Originals

4. Slide the ADF edge guide to the edge of the originals.

Related Information

“Available Originals for the ADF” on page 48

Placing Originals on the Scanner Glass

Caution:

Be careful not to trap your

Important:

when closing the document cover. Otherwise you may be injured.

ngers

When placing bulky originals such as books, prevent exterior light from shining directly onto the scanner glass.

User's Guide

1. Open the document cover.

Placing Originals

2. Remove any dust or stains on the scanner glass.

3. Place the original face-down and slide it to the corner mark.

Note:

❏ A range of 1.5 mm from the edges of the scanner glass is not scanned.

❏ When originals are placed in the ADF and on the scanner glass, priority is given to the originals in the ADF.

4. Close the cover gently.

Note:

Remove the originals aer scanning or copying. If you leave the originals on the scanner glass for a long time, they may stick to the surface of the glass.

User's Guide

Managing Contacts

Registering a contacts list allows you to easily enter destinations. You can register up to 200 entries, and you can use the contacts list when you enter a fax number, enter a destination for attaching a scanned image to an email, and saving a scanned image to a network folder.

You can also register contacts in the LDAP server. See the Administrator's Guide to register contacts in the LDAP server.

Registering Contacts

Note:

Before registering contacts, make sure you have also congured the email server settings to use the email address.

1. Select Contacts from the home screen, the Scan mode, or the Fax mode.

2. Press Menu, and then select Add Entry.

Select the type of contact you want to register.

❏ Fax: Register a contact (fax number) to send a fax.

❏ Email: Register an email address to send a scanned image or forward a received fax.

❏ Network Folder/FTP: Register a network folder to save a scanned image or received fax.

Note:

is screen is displayed when you open the contacts list from the home screen.

4. Select the entry number that you want to register.

5. Make the necessary settings for each mode.

Note:

When entering a fax number, enter an external access code at the beginning of the fax number if your phone system is PBX and you need the access code to get an outside line. If the access code has been set in the Line Type setting, enter a hash (#) instead of the actual access code. To add a pause (pause for three seconds) during dialing, enter a hyphen by

pressing

6. Press Save.

Note:

❏ To edit or delete an entry, press the information icon on the right of the target entry, and then press Edit or Delete.

❏ You can register an address that is registered in the LDAP server in the local contacts list of the printer. Display an

entry, and then press Save.

Registering Grouped Contacts

Adding contacts to a group allows you to send a fax or send a scanned image by an email to multiple destinations at the same time.

1. Select Contacts from the home screen, the Scan mode, or the Fax mode.

User's Guide

Managing Contacts

2. Press Menu, and then select Add Group.

3. Select the type of group address you want to register.

❏ Fax: Register a contact (fax number) to send a fax.

❏ Email: Register an email address to send a scanned image or forward a received fax.

Note:

is screen is displayed when you open the contacts list from the home screen.

4. Select the entry number that you want to register.

5. Enter Name and Index Word, and then press Proceed.

Press the check box of the contacts that you want to register in the group.

Note:

❏ You can register up to 199 contacts.

❏ To deselect, press the check box of the contact again.

7. Press Save.

Note:

To edit or delete a grouped contact, press the information icon on the right of the target grouped contact, and then press Edit or Delete.

Registration and Backup of Contacts Using a Computer

You can register and backup contacts on the printer using EpsonNet details.

Contacts data may be lost due to a printer malfunction. We recommend that you make a backup of the data whenever you update the data. Epson shall not be responsible for the loss of any data, for backing up or recovering data and/or settings even during a warranty period.

Related Information

& “EpsonNet

Cong

” on page 141

. See the EpsonNet

Cong

help for

User's Guide

Printing

Printing from the Control Panel

You can print data stored on a memory device, such as a USB ash drive, directly.

1. Load paper in the printer.

2. Insert a memory device into the printer's external interface USB port.

3. Enter Memory Device from the home screen.

4. Select a le format.

Note:

If you have more than 999 images on your memory device, images are automatically divided into groups and the group selection screen is displayed. Select the group that contains the image you want to print. Images are sorted by the date they were taken. To select another group, select Options > Select Group.

5. Select the le you want to print.

6. Enter the number of printouts using the numeric keypad.

7. Press Settings, and then make print settings.

Note:

When you select JPEG as the

Press the

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “Part Names and Functions” on page 17 & “Memory Device Mode” on page 27

button, or swipe the screen horizontally to select the image.

button.

format, you can adjust the image. Press Adjustments. You can also add more images.

le

Printing from a Computer

If you cannot change some of the printer driver settings, they may have been restricted by the administrator. Contact your printer administrator for assistance.

Authenticating Users in the Printer Driver when User Feature Restriction Is Enabled (for Windows Only)

When the user feature restriction is enabled, a user ID and password are required to print. Register the user ID and password in the printer driver. If you do not know the password, contact your printer administrator.

User's Guide

Printing

1. Access the printer driver window.

2. Click Printer and Option Information on the Maintenance tab.

3. Select Save Access Control settings, click Settings, and then enter the user name and the password.

Related Information

& “Windows Printer Driver” on page 136

Printing Basics - Windows

Note:

❏ See the online help for explanations of the setting items. Right-click an item, and then click Help.

❏ Operations may dier depending on the application. See the application's help for details.

1. Load paper in the printer.

2. Open the le you want to print.

Select Print or Print Setup from the File menu.

4. Select your printer.

5. Select Preferences or Properties to access the printer driver window.

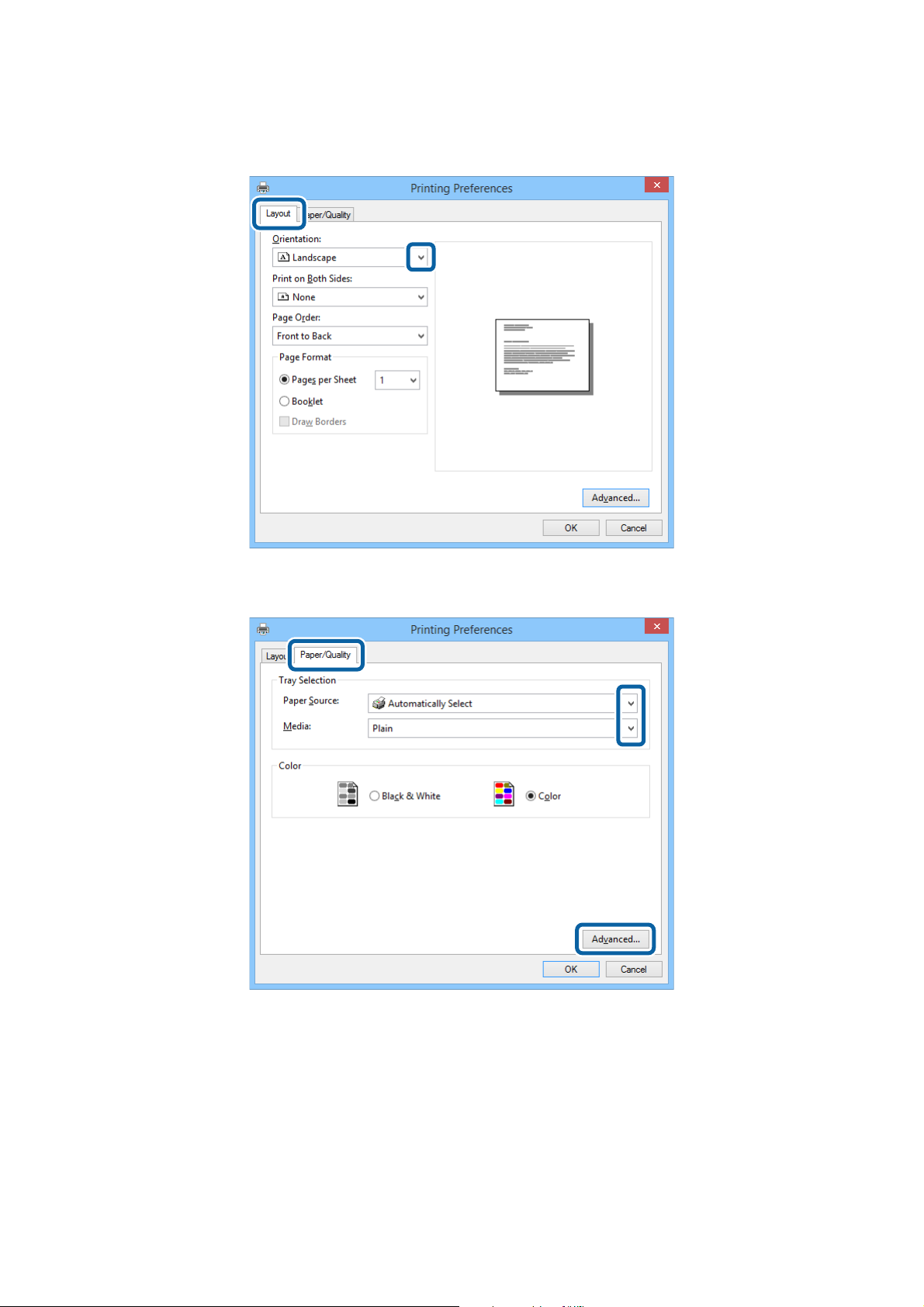

Make the following settings.

❏ Paper Source: Select the paper source in which you loaded the paper.

❏ Document Size: Select the paper size you set in the application.

User's Guide

Printing

❏ Orientation: Select the orientation you set in the application.

❏ Paper Type: Select the type of paper you loaded.

❏ Color: Select Grayscale when you want to print in black or shades of gray.

Note:

❏ If you are printing high-density data on plain paper, letterhead, or preprinted paper, select Standard-Vivid as the

Quality setting to make your printout vivid.

❏ When printing on envelopes, select Landscape as the Orientation setting.

7. Click OK to close the printer driver window.

8. Click Print.

Related Information

“Available Paper and Capacities” on page 40

“Loading Paper in the Paper Cassette” on page 43

& “Loading Paper in the Rear Paper Feed” on page 45 & “List of Paper Types” on page 42 & “Authenticating Users in the Printer Driver when User Feature Restriction Is Enabled (for Windows Only)” on

page 54

Printing Basics - Mac OS X

Note:

Operations dier depending on the application. See the application's help for details.

1. Load paper in the printer.

2. Open the le you want to print.

User's Guide

Printing

3. Select Print from the File menu or another command to access the print dialog.

If necessary, click Show Details or

to expand the print window.

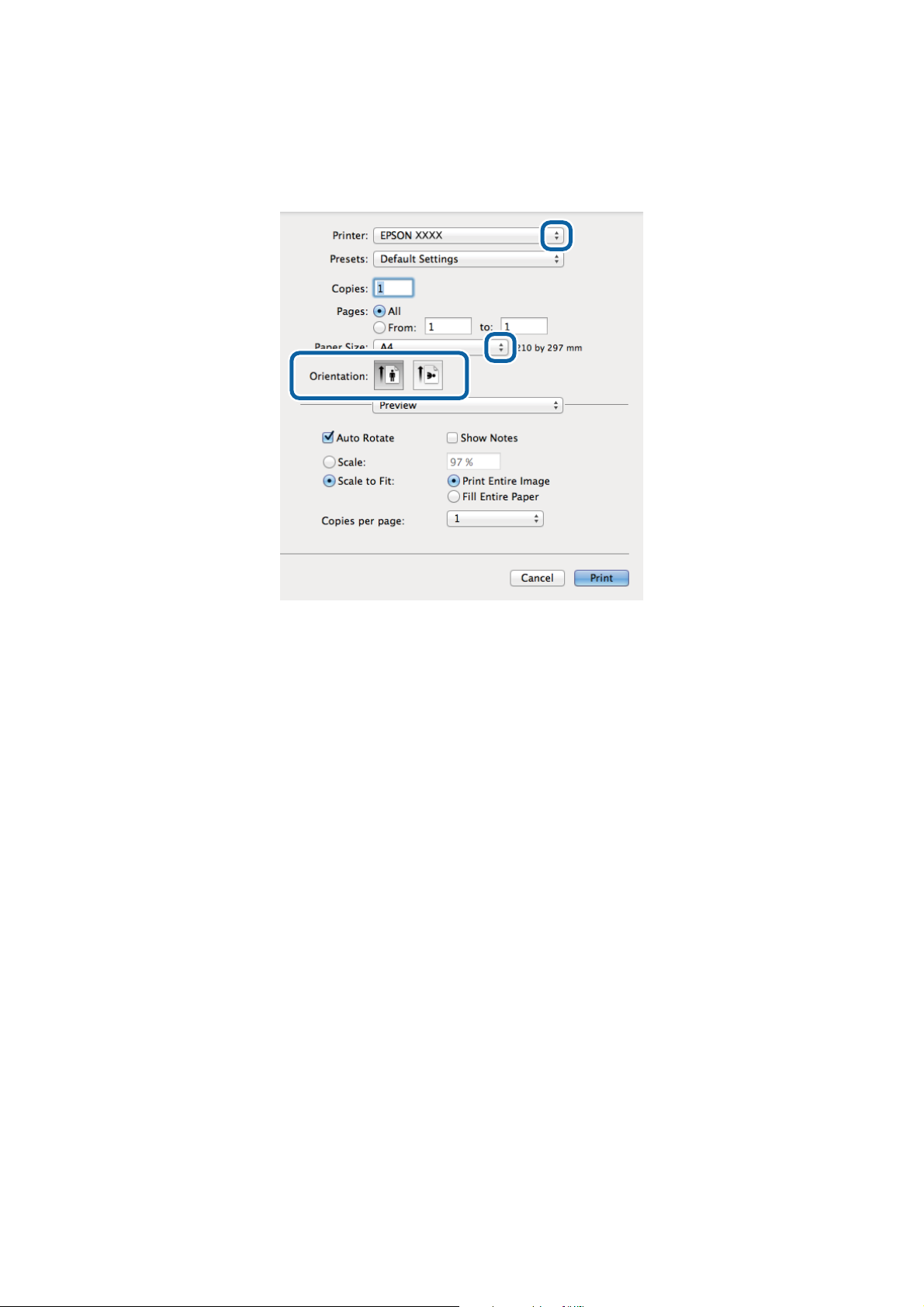

4. Make the following settings.

❏ Printer: Select your printer.

❏ Preset: Select when you want to use the registered settings.

❏ Paper Size: Select the paper size you set in the application.

❏ Orientation: Select the orientation you set in the application.

Note:

When printing on envelopes, select landscape orientation

User's Guide

5. Select Print Settings from the pop-up menu.

Printing

Note:

On Mac OS X v10.8.x or later, if the Print Settings menu is not displayed, the Epson printer driver has not been installed correctly.

Select System Preferences from the printer, and then add the printer again. See the following to add a printer.

http://epson.sn

6. Make the following settings.

❏ Paper Source: Select the paper source in which you loaded the paper.

❏ Media Type: Select the type of paper you loaded.

❏ Grayscale: Select to print in black or shades of gray.

7. Click Print.

Related Information

& “Available Paper and Capacities” on page 40 & “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “List of Paper Types” on page 42

menu > Printers & Scanners (or Print & Scan, Print & Fax), remove the

Printing on 2-Sides

You can use either of the following methods to print on both sides of the paper.

❏ Automatic 2-sided printing

User's Guide

Printing

❏ Manual 2-sided printing (for Windows only)

When the printer has nished printing the rst side, ip the paper over to print on the other side.

You can also print a booklet that can be created by folding the printout. (For Windows only)

Note:

❏ If you do not use paper that is suitable for 2-sided printing, the print quality may decline and paper jams may occur.

❏ Depending on the paper and the data, ink may bleed through to the other side of the paper.

Related Information

& “Available Paper and Capacities” on page 40

Printing on 2-Sides - Windows

Note:

❏ Manual 2-sided printing is available when EPSON Status Monitor 3 is enabled. If EPSON Status Monitor 3 is disabled,

access the printer driver, click Extended Settings on the Maintenance tab, and then select Enable EPSON Status Monitor 3.

❏ Manual 2-sided printing may not be available when the printer is accessed over a network or is used as a shared printer.

1. Load paper in the printer.

2. Open the le you want to print.

3. Access the printer driver window.

4. Select Auto (Long-edge binding), Auto (Short-edge binding), Manual (Long-edge binding), or Manual (Short-edge binding) from 2-Sided Printing on the Main tab.

5. Click Settings, make the appropriate settings, and then click OK.

Note: To print a folded booklet, select Booklet.

6. Click Print Density, select the document type from Select Document Type, and then click OK.

e printer driver automatically sets the Adjustments options for that document type.

User's Guide

Printing

Note: ❏ Printing may be slow depending on the combination of options selected for Select Document Type in the Print

Density Adjustment window and for Quality on the Main tab.

❏ For manual 2-sided printing, the Print Density Adjustment setting is not available.

7. Set the other items on the Main and More Options tabs as necessary, and then click OK.

8. Click Print.

For manual 2-sided printing, when the rst side has nished printing, a pop-up window is displayed on the computer. Follow the on-screen instructions.

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “Printing Basics - Windows” on page 55

Printing on 2-Sides - Mac OS X

Load paper in the printer.

2. Open the le you want to print.

3. Access the print dialog.

4. Select Two-sided Printing Settings from the pop-up menu.

5. Select the bindings and Document Type.

Note:

❏ Printing may be slow depending on the Document Type setting.

❏ If you are printing high-density data such as photos or graphs, select Text & Gr aphics or Tex t & P h otos as th e

Document Type setting. If scung occurs or the image bleeds through to the reverse side, adjust the print density and ink drying time by clicking the arrow mark next to Adjustments.

6. Set the other items as necessary.

Click Print.

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “Printing Basics - Mac OS X” on page 56

User's Guide

Printing

Printing Several Pages on One Sheet

You can print two or four pages of data on a single sheet of paper.

Printing Several Pages on One Sheet - Windows

1. Load paper in the printer.

2. Open the

3. Access the printer driver window.

4. Select 2-Up or 4-Up as the Multi-Page setting on the Main tab.

5. Click Page Order, make the appropriate settings, and then click OK to close the window.

6. Set the other items on the Main and More Options tabs as necessary, and then click OK.

7. Click Print.

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “Printing Basics - Windows” on page 55

you want to print.

le

Printing Several Pages on One Sheet - Mac OS X

1. Load paper in the printer.

2. Open the le you want to print.

Access the print dialog.

4. Select Layout from the pop-up menu.

User's Guide

Printing

5. Set the number of pages in Pages per Sheet, the Layout Direction (page order), and Border.

6. Set the other items as necessary.

7. Click Print.

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “Printing Basics - Mac OS X” on page 56

Printing to Fit the Paper Size

You can print to t the paper size you loaded in the printer.

Printing to Fit the Paper Size - Windows

Load paper in the printer.

2. Open the le you want to print.

3. Access the printer driver window.

Make the following settings on the More Options tab.

❏ Document Size: Select the paper size you set in the application.

❏ Output Paper: Select the paper size you loaded in the printer.

Fit to Page is selected automatically.

Note: If you want to print a reduced image at the center of the page, select Center.

Set the other items on the Main and More Options tabs as necessary, and then click OK.

6. Click Print.

Related Information

& “Loading Paper in the Paper Cassette” on page 43

User's Guide

Printing

& “Loading Paper in the Rear Paper Feed” on page 45 & “Printing Basics - Windows” on page 55

Printing to Fit the Paper Size - Mac OS X

1. Load paper in the printer.

2. Open the le you want to print.

3. Access the print dialog.

Select the size of the paper you set in the application as the Paper Size setting.

5. Select Paper Handling from the pop-up menu.

6. Select Scale to t paper size.

7. Select the paper size you loaded in the printer as the Destination Paper Size setting.

8. Set the other items as necessary.

9. Click Print.

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “Printing Basics - Mac OS X” on page 56

Printing Multiple Files Together (for Windows Only)

Job Arranger Lite allows you to combine several les created by dierent applications and print them as a single print job. You can specify the print settings for combined

such as layout, print order, and orientation.

les,

Note:

To op e n a Print Project saved in Job Arranger Lite, click Job Arranger Lite on the printer driver's Maintenance tab. Next, select Open from the File menu to select the le. e extension of the saved les is "ecl".

1. Load paper in the printer.

2. Open the le you want to print.

3. Access the printer driver window.

User's Guide

Printing

4. Select Job Arranger Lite on the Main tab.

5. Click OK to close the printer driver window.

Click Print.

e Job Arranger Lite window is displayed and the print job is added to the Print Project.

7. With the Job Arranger Lite window opened, open the le that you want to combine with the current le, and then repeat steps 3 to 6.

Note:

If you close the Job Arranger Lite window, the unsaved Print Project is deleted. To print later, select Save from the File menu.

8. Select the Layout and Edit menus in Job Arranger Lite to edit the Print Project as necessary.

9. Select Print from the File menu.

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “Printing Basics - Windows” on page 55

Enlarged Printing and Making Posters (for Windows Only)

You can print one image on multiple sheets of paper to create a larger poster. You can print alignment marks that help you stick the sheets together.

1. Load paper in the printer.

2. Open the le you want to print.

3. Access the printer driver window.

4. Select 2x1 Poster, 2x2 Poster, 3x3 Poster, or 4x4 Poster from Multi-Page on the Main tab.

5. Click Settings, make the appropriate settings, and then click OK.

Set the other items on the Main and More Options tabs as necessary, and then click OK.

7. Click Print.

User's Guide

Printing

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “Printing Basics - Windows” on page 55

Making Posters Using Overlapping Alignment Marks

Here is an example of how to make a poster when 2x2 Poster is selected, and Overlapping Alignment Marks is selected in Print Cutting Guides.

User's Guide

Printing

1. Prepare Sheet 1 and Sheet 2. Cut o the margins of Sheet 1 along the vertical blue line through the center of the top and bottom cross marks.

2. Place the edge of Sheet 1 on top of Sheet 2 and align the cross marks, then temporarily tape the two sheets together from the back.

User's Guide

Printing

3. Cut the taped sheets in two along the vertical red line through the alignment markers (this time, the line to the

of the cross marks).

le

4. Tape the sheets together from the back.

5. Repeat steps 1 to 4 to tape Sheet 3 and Sheet 4 together.

User's Guide

Printing

6. Cut o the margins of Sheet 1 and Sheet 2 along the horizontal blue line through the center of the le and right side cross marks.

7. Place the edge of Sheet 1 and Sheet 2 on top of Sheet 3 and Sheet 4 and align the cross marks, and then temporarily tape them together from the back.

User's Guide

Printing

8. Cut the taped sheets in two along the horizontal red line through the alignment markers (this time, the line above the cross marks).

9. Tape the sheets together from the back.

User's Guide

Printing

10. Cut o the remaining margins along the outer guide.

Printing Using Advanced Features

is section introduces a variety of additional layout and printing features available on the printer driver.

Related Information

& “Windows Printer Driver” on page 136 & “Mac OS X Printer Driver” on page 137

Adding a Printing Preset

If you create your own preset of frequently used print settings on the printer driver, you can print easily by selecting the preset from the list.

User's Guide

Printing

Windows

To add your own preset, set items such as the Document Size and Paper Type on the Main or More Options tab, and then click Add/Remove Presets in Printing Presets.

Mac OS X

Access the print dialog. To add your own preset, set items such as the Paper Size and Media Type, and then save the current settings as the preset in the Presets setting.

Printing a Reduced or Enlarged Document

You can reduce or enlarge the size of a document by a specic percentage.

Windows

Set the Document Size on the More Options tab. Select Reduce/Enlarge Document, Zoom to, and then enter a percentage.

Mac OS X

Select Page Setup from the File menu. Select the settings for Format For and Paper Size, and then enter a percentage in Scale. Close the window, and then print following the basic printing instructions.

Related Information

& “Printing Basics - Mac OS X” on page 56

Adjusting the Print Color

You can adjust the colors used in the print job.

PhotoEnhance produces sharper images and more vivid colors by automatically adjusting the contrast, saturation, and brightness of the original image data.

Note:

❏ ese adjustments are not applied to the original data.

❏ PhotoEnhance adjusts the color by analyzing the location of the subject.

the subject by reducing, enlarging, cropping, or rotating the image, the color may change unexpectedly. If the image is out of focus, the tone may be unnatural. If the color is changed or becomes unnatural, print in a mode other than PhotoEnhance.

Windows

erefore,

if you have changed the location of

Select Custom as the Color Correction setting on the More Options tab. Click Advanced, select the Color Management setting, and then make appropriate settings.

Mac OS X

Access the print dialog. Select Color Matching from the pop-up menu, and then select EPSON Color Controls. Select Color Options from the pop-up menu, and then select one of the available options. Click the arrow next to Advanced Settings and make the appropriate settings.

User's Guide

Printing

Printing an Anti-Copy Pattern (for Windows Only)

You can print documents with invisible letters such as "Copy". ese letters appear when the document is photocopied so that the copies can be distinguished from the original. You can also add your own anti-copy pattern.

Note:

is feature is only available when the following settings are selected.

❏ Paper Type: plain papers

❏ Quality: Standard

❏ Auto 2-sided printing: Disabled

❏ Color Correction: Automatic

Click Watermark Features on the More Options tab, and then select an anti-copy pattern. Click Settings to change details such as the size and density.

Printing a Watermark (for Windows Only)

You can print a watermark such as "Condential" on your printouts. You can also add your own watermark.

Click Watermark Features on the More Options tab, and then select a watermark. Click Settings to change details such as the color and position of the watermark.

Printing a Header and Footer (for Windows Only)

You can print information such as a user name and printing date as headers or footers.

Click Watermark Features in the More Options tab, and then select Header/Footer. Click Settings and select necessary items from the drop-down list.

Setting a Password for a Print Job (for Windows Only)

You can set a password for a print job to prevent printing until the password is entered on the printer's control panel.

Select Condential Job on the More Options tab, and then enter a password.

To print the job, press the and enter the password.

button on the printer's control panel, and then select Condential Job. Select the job

Printing Using a PostScript Printer Driver

Printing Using a PostScript Printer Driver - Windows

1. Load paper in the printer.

2. Open the le you want to print.

3. Access the PostScript printer driver window.

User's Guide

Printing

4. Select the orientation you set in the application as the Orientation on the Layout tab.

5. Make the following settings on the Paper/Quality tab.

❏ Paper Source: Select the paper source in which you loaded the paper.

❏ Media: Select the type of paper you loaded.

User's Guide

Printing

6. Click Advanced, make the following settings, and then click OK.

❏ Paper Size: Select the paper size you set in the application.

❏ Color Mode: Select to print in full color or monochrome.

7. Click OK.

8. Click Print.

Printing Using a PostScript Printer Driver - Mac OS X

1. Load paper in the printer.

2. Open the le you want to print.

User's Guide

3. Access the print dialog.

Printing

4. Make the following settings.

❏ Printer: Select your printer.

❏ Paper Size: Select the paper size you set in the application.

❏ Orientation: Select the orientation you set in the application.

5. Select Paper Feed from the pop-up menu, and then select the paper source in which you loaded the paper.

User's Guide

Printing

6. Select Printer Features from the pop-up menu, select Quality as the Feature Sets setting, and then select the type of paper you loaded as the MediaType setting.

Select Color as the Feature Sets setting, and then select the setting for Color Mode.

8. Click Print.

User's Guide

Printing

Setting Items for the PostScript Printer Driver

Note:

e availability of these settings varies by model.

Color Mode Select whether to print in color or in monochrome.

Press Simulation You can select a CMYK ink color to simulate when you print by reproducing the CMYK ink

color of the

Simulation Method Select the method of color conversion for the CMYK simulation.

Pure Black Mode Select whether or not to print black text data or line drawing data using only black ink.

However, other color inks may be consumed depending on the paper, even when this feature is set.

Ink Save Mode Conserves ink by reducing the print density.

Rotate by 180º Rotates the data 180 degrees before printing.

oset

press.

Printing from Smart Devices

Using Epson iPrint

Epson iPrint is an application that allows you to print photos, documents, and Web pages from a smart device such as a smartphone or tablet. You can use either local print, printing from a smart device that is connected to the same wireless network as your printer, or remote print, printing externally over the internet. To use remote print, register your printer in the Epson Connect service.

You can install Epson iPrint on your smart device from the following URL or QR code.

http://ipr.to/c

Using Epson iPrint

Start Epson iPrint from your smart device and select the item you want to use from the home screen.

User's Guide

Printing

e following screens are subject to change without notice.

Home screen displayed when the application is started.

Displays information on how to setup the printer and a FAQ.

Displays the screen where you can select the printer and make printer settings. Once you have selected the printer, you do not need to select it again from the next time.

Select what you want to print such as photos, documents, and web pages.

Displays the screen to make print settings such as paper size and paper type.

Displays photos and documents you selected.

Starts printing.

Note:

To print from the document menu using iPhone, iPad, and iPod touch running iOS, start Epson iPrint aer transferring the document you want to print using the

sharing function in iTunes.

le

Related Information

& “Epson Connect Service” on page 134

User's Guide

Printing

Using AirPrint

AirPrint allows you to wirelessly print to your AirPrint-enabled printer from your iOS device using the latest version of iOS and from your Mac OS X v10.7.x or later.

Note:

See the AirPrint page of the Apple website for more details.

1. Load paper in the printer.

2. Connect your device to the same wireless network that your printer is using.

Print from your device to your printer.

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45

Canceling Printing

Note:

❏ In Windows, you cannot cancel a print job from the computer once it has been completely sent to the printer. In this case,

cancel the print job by using the printer's control panel.

❏ When printing several pages from Mac OS X, you cannot cancel all of the jobs by using the control panel. In this case,

cancel the print job from the computer.

❏ If you have sent a print job from Mac OS X v10.6.x or v10.5.8 through the network, you may not be able to cancel

printing from the computer. In this case, cancel the print job by using the printer's control panel. You need to change settings in Web Cong to cancel printing from the computer. See the Network Guide for more details.

Canceling Printing - Printer Button

Press the y button to cancel the print job in progress.

Canceling Printing - Status Menu

1. Press the button to display Status Menu.

User's Guide

Printing

2. Select Job Monitor > Print Job.

Ongoing jobs and jobs that are standing by are shown in the list.

3. Select the job that you want to cancel.

4. Press Cancel.

Canceling Printing - Windows

Access the printer driver window.

2. Select the Maintenance tab.

3. Click Print Queue.

4. Right-click on the job you want to cancel and then select Cancel.

Related Information

& “Windows Printer Driver” on page 136

Canceling Printing - Mac OS X

1. Click the printer icon in the Dock.

2. Select the job you want to cancel.

Cancel the job.

❏ Mac OS X v10.8.x to Mac OS X v10.9.x

Click

❏ Mac OS X v10.5.8 to v10.7.x

Click Delete.

next to the progress meter.

User's Guide

Copying

1. Load paper in the printer.

2. Place the originals.

3. Enter Copy from the home screen.

4. Enter the number of copies by using the numeric keypad.

5. Press Layout, and then select the appropriate layout.

6. Make other settings as necessary. You can make detailed settings by pressing Settings.

Note:

❏ Press Preset to save your settings as a preset.

❏ Press Preview to preview the copy results. However, you cannot preview when you have placed the originals on the

ADF.

Press the

Related Information

& “Loading Paper in the Paper Cassette” on page 43 & “Loading Paper in the Rear Paper Feed” on page 45 & “Placing Originals” on page 48 & “Copy Mode” on page 23 & “Presets Mode” on page 38

button.

User's Guide

Scanning

Scanning Using the Control Panel

Scanning to an Email

You can send scanned image les by email directly from the printer through a pre-congured email server. Before using this feature, you need to congure the email server.

You can specify the email address by entering directly, but it may be easier if you register the email address in the contacts list rst.

Note:

❏ Before you use this feature, make sure you have set the date/time and time

dierences

in Date/Time Settings correctly.

❏ By using the Document Capture Pro function on the control panel instead of this function, you can send emails directly.

Before using this function, make sure you have registered a job to send emails in Document Capture Pro and that the computer is turned on.

1. Place the originals.

2. Enter Scan from the home screen.

3. Select Email.

4. Enter the email addresses.

❏ To select from the contacts list: Press Contacts, press the check box to add a check mark to a contact, and

then press Proceed.

❏ To enter the email address manually: Select Enter Email Address > Enter Email Address, enter the email

address, and then press the enter key at the bottom-right of the screen.

Note:

You can send emails to up to 10 individual email addresses and groups.

5. Press Format, and then select the le format.

6. Press Menu, and then make settings for Email Settings and Basic Settings.

Note:

❏ You can specify the maximum size for les that can be attached to an email in Attached File Max Size.

❏ When you select PDF as the

make settings.

❏ Press Preset to save your settings as a preset.

7. Press the x button.

scanned image is sent by email.

e

Related Information

& “System Administration” on page 30 & “Managing Contacts” on page 52

format, you can set a password to protect the

le

Select PDF Settings, and then

le.

User's Guide

Scanning

& “Placing Originals” on page 48 & “Scan Mode” on page 24 & “Presets Mode” on page 38

Scanning to a Network Folder or FTP Server

You can save the scanned image to a specied folder on a network. You can specify the folder by entering a folder path directly, but it may be easier if you register the folder information in the contacts list rst.

1. Place the originals.

2. Enter Scan from the home screen.

Select Network Folder/FTP.

4. Specify the folder.

❏ To select from the contacts list: Press Contacts, select a contact, and then press Proceed.

❏ To enter the folder path directly: Press Enter Location. Select Communication Mode, enter the folder path

as Location, and then make other folder settings.

5. Press Format, and then select the le format.

6. Press Menu, and then make settings for File Settings and Basic Settings.

Note:

❏ When you select PDF as the le format, you can set a password to protect the le. Select PDF Settings, and then

make settings.

❏ Press Preset to save your settings as a preset.

7. Press the x button.

e scanned image is saved.

Related Information

& “Managing Contacts” on page 52 & “Placing Originals” on page 48 & “Scan Mode” on page 24 & “Presets Mode” on page 38

Scanning to a Memory Device

You can save the scanned image to a memory device.

1. Insert a memory device into the printer's external interface USB port.

2. Place the originals.

Enter Scan from the home screen.

4. Select Memory Device.

User's Guide

Scanning

5. Press Format, and then select the le save format.

6. Press Settings, and then make scan settings.

Note:

❏ When you select PDF as the le format, you can set a password to protect the le. Select PDF Settings, and then

make settings.

❏ Press Preset to save your settings as a preset.

7. Press the x button.

e scanned image is saved.

Related Information

& “Part Names and Functions” on page 17 &

“Placing Originals” on page 48

“Scan Mode” on page 24

“Presets Mode” on page 38

Scanning to the Cloud

You can send scanned images to cloud services using Epson Connect.

See the Epson Connect portal website for details.

https://www.epsonconnect.com/

http://www.epsonconnect.eu (Europe only)

Scanning Using Document Capture Pro (for Windows Only)

You can scan the original using the settings specied in Document Capture Pro.

Note:

❏ Before scanning, install Document Capture Pro and make settings for the job.

❏ Before scanning, connect the printer and the computer to the network.

1. Place the originals.

2. Enter Scan from the home screen.

3. Select Document Capture Pro.

4. Press Select Computer, and then select the computer registered to the job in Document Capture Pro.

Note:

❏ If you select Option > Network Scanning Settings, and enable Protect with password in Document Capture Pro,

enter a password.

❏ If you set only one job, proceed to step 6.

Select the job.

6. Press the area in which the job content is displayed, and check the job details.

User's Guide

Scanning

7. Press the x button.

e scanned image is saved.

Related Information

& “Placing Originals” on page 48 & “Document Capture Pro (for Windows Only)” on page 139

Scanning to a Computer (WSD)

Note:

❏ Before using this feature, you need to setup your computer. See the Network Guide for more details.

❏  is func t i o n is only a v a i l ab l e for comp u t e r s running Wi n d o w s 8.1/ Wi n d ow s 8/Win d o w s 7 /Windo w s Vi sta.

Place the originals.

2. Enter Scan from the home screen.

3. Select Computer (WSD).

4. Select a computer.

5. Press the

e scanned image is saved.

Note:

See your computer's documentation for information on where the scanned image is stored on the computer.

Related Information

& “Placing Originals” on page 48

button.

Scanning from a Computer

Scan using the scanner driver "EPSON Scan". See the EPSON Scan help for an explanation of each setting item.

Authenticating Users when Using Access Control in EPSON Scan (for Windows Only)

When the access control function is enabled for a printer, you need to enter a user ID and password when scanning. Register a user name and password in EPSON Scan. If you do not know the password, contact your printer administrator.

1. Access the EPSON Scan Settings.

❏ Windows 8.1/Windows 8/Windows Server 2012 R2/Windows Server 2012

Enter "EPSON Scan Settings" in the search charm, and then select the displayed icon.

❏ Except for Windows 8.1/Windows 8/Windows Server 2012 R2/Windows Server 2012

User's Guide

Click the start button, and select All Programs or Programs > EPSON > EPSON Scan > EPSON Scan Settings.

2. Click Access Control.

3. Enter the user name and the password.

Scanning

Scanning in

You can scan many text documents quickly.

1. Place the originals.

2. Start EPSON Scan.

3. Select Oce Mode from the Mode list.

Oce

Mode

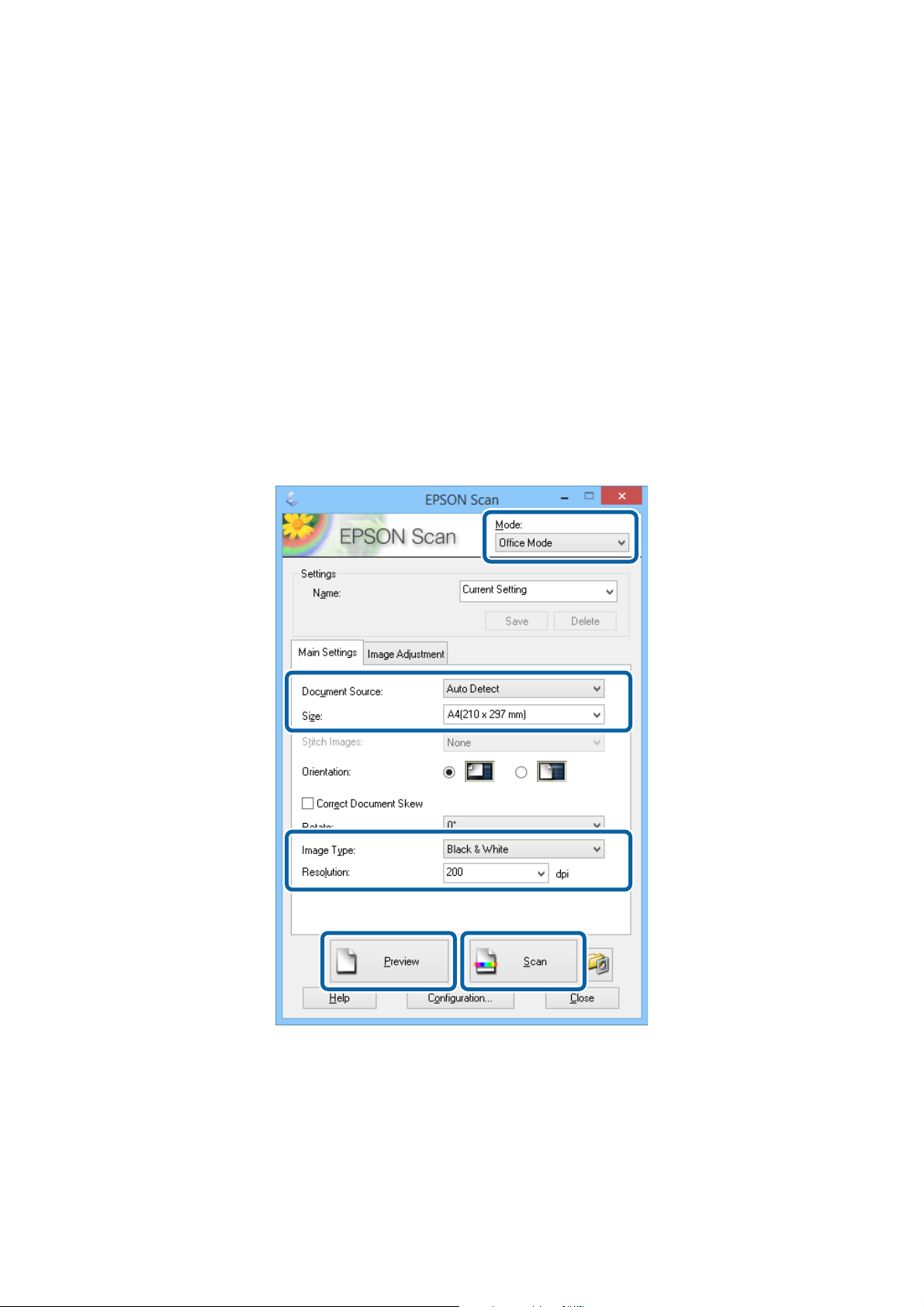

4. Make the following settings on the Main Settings tab.

❏ Document Source: Select the document source in which you placed your original.

❏ Size: Select the size of your original.

❏ Image Type: Select the type of image you want to scan.

❏ Resolution: Select the resolution of the image you want to scan.

User's Guide

Scanning

5. Click Preview.

e preview window opens.

Note:

If you have place originals in the ADF, the rst page of the originals is ejected when the preview is nished. Place your rst document page on top of the rest of the pages, and then load the entire original into the ADF.

6. Conrm the preview, and make settings on the Image Adjustment tab as necessary.

Note:

You can adjust the image such as making text enhancements.

7. Click Scan.

8. In the File Save Settings window, make appropriate settings and then click OK.

e scanned image is saved in the specied folder.

Note: When you select PDF as the Image Format setting, you can set a password to protect the Security tab, and then make settings.

Click Options, select the

le.

Related Information

“Placing Originals” on page 48

“EPSON Scan (Scanner Driver)” on page 138

Scanning in Professional Mode

You can scan images while adjusting the quality and color. is mode is recommended for advanced users.

1. Place the originals.

2. Start EPSON Scan.

User's Guide

3. Select Professional Mode from the Mode list.

Scanning

Make the following settings.

❏ Document Source: Select the document source in which you placed your original.

❏ Auto Exposure Type: Select the exposure type that suits your original.

❏ Image Type: Select the type of image you want to scan.

❏ Resolution: Select the resolution of the image you want to scan.

❏ Target Size: Select the output image size you want to scan to.

User's Guide

Scanning

5. Click Preview.

e preview window opens.

Note:

6. Check the preview, and adjust the image as necessary.

Note:

You can make various image adjustments such as improving the color, sharpness, and contrast.

7. Click Scan.

8. In the File Save Settings window, make appropriate settings and then click OK.

e scanned image is saved in the specied folder.

Note: When you select PDF as the Image Format setting, you can set a password to protect the Security tab, and then make settings.

Click Options, select the

le.

Related Information

& “Placing Originals” on page 48 & “EPSON Scan (Scanner Driver)” on page 138

Scanning from Smart Devices

Epson iPrint is an application that allows you to scan photos and documents from a smart device, such as a smartphone or tablet, that is connected to the same wireless network as your printer. You can save the scanned data on a smart device or to Cloud services, send it by email, or print it.

You can install Epson iPrint on your smart device from the following URL or QR code.

http://ipr.to/c

Using Epson iPrint

Start Epson iPrint from your smart device and select the item you want to use from the home screen.

User's Guide

Scanning

e following screens are subject to change without notice.

Home screen displayed when the application is started.

Displays information on how to setup the printer and a FAQ.

Displays the screen where you can select the printer and make printer settings. Once you have selected the printer, you do not need to select it again from the next time.

Displays the scanning screen.

Displays the screen where you can make scan settings such as resolution.

Displays scanned images.

Starts scanning.

Displays the screen where you can save scanned data to a smart device or Cloud services.

Displays the screen where you can send scanned data by email.

Displays the screen where you can print scanned data.

Related Information

& “Using Epson iPrint” on page 77

User's Guide

Faxing

Setting Up a Fax

Connecting to a Phone Line

Compatible Telephone Lines

You can use the printer over standard analogue telephone lines (PSTN = Public Switched Telephone Network) and PBX (Private Branch Exchange) telephone systems.

You may not be able to use the printer with the following phone lines or systems.

❏ VoIP phone line such as DSL or

❏ Digital phone line (ISDN)

❏ Some PBX telephone systems

❏ When adapters such as terminal adapters, VoIP adapters, splitters, or DSL router are connected between the

telephone wall jack and the printer

ber-optic

digital service

Connecting the Printer to a Phone Line

Connect the telephone line and the printer using the following phone cables.

❏ Phone line: RJ-11 (6P2C)

❏ Telephone set connection: RJ-11 (6P2C)

Depending on the area, a phone cable may be included with the printer. If it is included, use that cable.

You may need to connect the phone cable to an adapter provided for your country or region.

Important:

Remove the cap from the EXT. port of the printer only when connecting your telephone to the printer. Do not remove the cap if you are not connecting your telephone.

In areas where lightning strikes occur frequently, we recommend that you use a surge protector.

User's Guide

Faxing

Connecting to a Standard Phone Line (PSTN) or PBX

Connect a phone cable from the telephone wall jack or PBX port to the LINE port on the back of the printer.

Related Information

& “Making Settings for a PBX Phone System” on page 96

Connecting to DSL or ISDN

Connect a phone cable from the DSL modem or the ISDN terminal adapter to the LINE port on the back of the printer. See the documentation provided with the modem or the adapter for more details.

User's Guide

Faxing

Note:

If your DSL modem is not equipped with a built-in DSL lter, connect a separate DSL lter.

Connecting Your Phone Device to the Printer

When using the printer and your telephone on a single phone line, connect the telephone to the printer.

Note:

❏ If your phone device has a fax function, disable the fax function before connecting. See the manuals that came with the

phone device for details.

❏ When connecting an answering machine, make sure you set the Rings to Answer setting correctly.

1. Remove the cap from the EXT. port on the back of the printer.

User's Guide

Faxing

2. Connect the phone device and the EXT. port with a phone cable.

Important:

When sharing a single phone line, make sure you connect the phone device to the EXT. port of the printer. If you split the line to connect the phone device and the printer separately, the phone and the printer do not work correctly.

Pick up the handset of the connected phone device and

3. displayed on the LCD screen.

If the message is not displayed, check that the phone cable is securely connected to the EXT. port.

Related Information

& “Settings for the Answering Machine” on page 103

conrm

Making Basic Fax Settings

First make basic fax settings such as Receive Mode using the Fax Setting Wizard, and then congure the other settings as necessary.

e Fax Setting Wizard is automatically displayed when the printer is turned on for the rst time. Once you have made the settings, you do not need to make them again unless the connection environment is changed.

If an administrator has locked the settings, only the administrator can make the settings.

that the [e phone line is in use.] message is

Making Basic Fax Settings Using the Fax Setting Wizard

Make basic settings by following the on-screen instructions.

User's Guide

Faxing

1. Connect the printer to the phone line.

Important:

Because an automatic fax connection check runs at the end of the wizard, make sure you connect the printer to the phone line before starting the wizard.

2. Enter Setup from the home screen.

3. Select System Administration > Fax Settings > Fax Setting Wizard, and then press Start.

e wizard begins.

4. On the fax header entry screen, enter your sender name such as your company name.

Note:

Your sender name and your fax number appear as the header for outgoing faxes.

On the phone number entry screen, enter your fax number.

6. On the DRD Setting screen, make the following settings.

❏ If you have subscribed to a distinctive ring service from your telephone company: Press Proceed, select the

ring pattern to be used for incoming faxes, and then go to step 9. Receive Mode is automatically set to Auto.

❏ If you do not need to set this option: Press Skip, and then go to the next step.

Note:

❏ Distinctive ring services, oered by many telephone companies (the service name diers by company), allows you to

have several phone numbers on one phone line. Each number is assigned a dierent ring pattern. You can use one number for voice calls and another for fax calls. Select the ring pattern assigned to fax calls in DRD.

❏ Depending on the region, On and O are displayed as the DRD options. Select On to use the distinctive ring feature.

7. On the Receive Mode Setting screen, select whether you are using your phone device connected to the printer.

❏ When connected: Press Ye s, and go to the next step.

❏ When not connected: Press No and go to step 9. Receive Mode is set to Auto.

8. On the Receive Mode Setting screen, select whether you want to receive faxes automatically.

❏ To receive automatically: Press Ye s . Receive Mode is set to Auto.

❏ To receive manually: Press No. Receive Mode is set to Manual.

9. On the Conrm Settings screen, check the settings you made, and then press Proceed.

To correct or change settings, press the

10. Press Start to run the fax connection check, and when the screen prompts you to print the check result, press

button.

the

A report of the check result that shows the connection status is printed.

button.

User's Guide

Faxing

Note:

❏ If there are any errors reported, follow the instructions on the report to solve them.

❏ If the Select Line Type screen is displayed, select the line type. When you are connecting the printer to a PBX phone

system or terminal adapter, select PBX.

❏ If the Select Dial Tone Detection screen is displayed, select Disable.

However, setting this to Disable may cause the printer to skip the rst digit of a fax number when dialing and send the fax to the wrong number.

Related Information

& “Connecting the Printer to a Phone Line” on page 91 & “Setting Receiving Mode” on page 102 & “Making Settings for a PBX Phone System” on page 96 & “Fax Settings” on page 33

Making Basic Fax Settings Individually

You can make fax settings without using the fax setting wizard by selecting each setting menu individually. e settings congured using the wizard can also be changed. For more details, see the list of menus in fax settings.

Related Information

& “Fax Settings” on page 33

Making Settings for a PBX Phone System

Make the following settings when using the printer in such as 0 and 9, to get an outside line.

1. Enter Setup from the home screen.

2. Select System Administration > Fax Settings > Basic Settings > Line Type.

3. Select PBX.

4. On the Access Code screen, select Use.

5. Press the Access Code enter key at the bottom-right of the screen.

enter the external access code used for your phone system, and then press the

eld,

that use extensions and require external access codes,

oces

e access code is stored in the printer. When sending a fax to an outside fax number, enter # (hash) instead of the actual access code.

Note:

When # (hash) is entered at the beginning of the fax number, the printer replaces the # with the stored access code when dialing. Using # helps avoid connection problems when connecting to an outside line.

Making Paper Source Settings to Receive Faxes

Set the paper sources that you do not want to use for printing received documents or fax reports. Make this setting if you have loaded special paper such as photo paper in one paper source and you do not want to use the paper for printing faxes.

1. Enter Setup from the home screen.

User's Guide

Faxing

2. Select System Administration > Printer Settings > Paper Source Settings > Auto Select Settings > Fax.

3. Select the paper source that you do not want to use for printing faxes, and then disable it.

Sending Faxes

Basic Fax Sending Operations

Send faxes in color or monochrome (B&W). When sending a fax in monochrome, you can preview the scanned image on the LCD screen before sending.

Note:

❏ If the fax number is busy or there is some problem, the printer automatically redials aer one minute.

❏ You can reserve up to 50 monochrome fax jobs even while the phone line is in use for a voice call, sending another fax, or

receiving a fax. You can check or cancel reserved fax jobs from Job Monitor in Status Menu.

❏ If you have enabled the Save Failure Data feature, failed faxes are saved, and you can resend them from Job Monitor in

Status Menu.

Sending Faxes Using the Control Panel

Place the originals.

Note:

You can send up to 100 pages in one transmission; however depending on the remaining amount of memory, you may not be able to send faxes even with less than 100 pages.

2. Enter Fax from the home screen.

3. Specify the recipient.

❏ To enter manually: Enter numbers using the numerical keypad on the control panel or the LCD screen, and

then press the enter key at the bottom-right of the screen.

❏ To select from the contacts list: Press Contacts, press the check box to add a check mark to a contact, and

then press Proceed.

❏ To select from the sent fax history: Press History, select a recipient, and then press Menu > Send to this

number.

Note:

❏ You can send the same monochrome fax to up to 200 recipients. A color fax can only be sent to one recipient at a

time.

❏ To add a pause (pause for three seconds) during dialing, enter a hyphen by pressing

❏ When Direct Dialing Restrictions in Security Settings is enabled, you can only select fax recipients from the

contacts list or the sent fax history. You cannot manually enter a fax number.

❏ If you set an external access code in Line Type, enter "#" (hash) instead of the actual external access code at the

beginning of the fax number.

❏ To delete recipients you entered, display the list of recipients by pressing the

number or the number of recipients, select the recipient from the list, and then select Delete from the List.

on the screen that shows a fax

eld

User's Guide

Faxing

4. Press Menu, select Fax Send Settings, and then make settings such as the resolution and the sending method as necessary.

Note:

❏ To send 2-sided originals, enable ADF 2-Sided. However, you cannot send in color with this setting.

❏ Press Preset on the fax top screen to save the current settings and the recipients in Preset. Recipients may not be

saved depending on how you specied the recipients, such as entering a fax number manually.

5. When sending a monochrome fax, press Preview on the fax top screen to check the scanned document.

❏

❏ Retry: Cancels the preview.

❏ View: Displays or hides the operation icons.

Note:

❏ You cannot send the fax in color aer previewing.

❏ When Direct Send is enabled, you cannot preview.

❏ When the preview screen is le untouched for 20 seconds, the fax is sent automatically.

❏ e image quality of a sent fax may be dierent from what you previewed depending on the capability of the

recipient machine.

Press the

Note:

❏ To cancel sending, press the

❏ It takes longer to send a fax in color because the printer performs scanning and sending simultaneously. While the

printer is sending a color fax, you cannot use the other features.

: Reduces or enlarges.

button.

: Moves the screen in the direction of the arrows.

: Moves to the previous or the next page.

button.

Related Information

& “Placing Originals” on page 48 & “Fax Mode” on page 26 & “Checking Fax Jobs” on page 111 & “Managing Contacts” on page 52 & “Presets Mode” on page 38

Sending Faxes Dialing from the External Phone Device

You can send a fax by dialing using the connected telephone when you want to talk over the phone before sending a fax, or when the recipient's fax machine does not switch to the fax automatically.

1. Place the originals.

Note:

You can send up to 100 pages in one transmission.

2. Pick up the handset of the connected telephone, and then dial the recipient's fax number using the phone.

User's Guide

Faxing

3. Press Start Fax on the printer's control panel, and then press Send.

4. Press Menu, select Fax Send Settings, and then make settings such as the resolution and the sending method as necessary.

5. When you hear a fax tone, press the

Note:

When a number is dialed using the connected telephone, it takes longer to send a fax because the printer performs scanning and sending simultaneously. While sending the fax, you cannot use the other features.

Related Information

& “Placing Originals” on page 48 & “Fax Mode” on page 26

button, and then hang up the handset.

Various Ways of Sending Faxes

Sending Faxes After Conrming the Recipient's Status

You can send a fax while listening to sounds or voices through the printer's speaker while dialing, communicating, and transmitting. You can also use this feature when you want to receive a fax from a fax polling service by following audio guidance.

1. Place the originals.

2. Enter Fax from the home screen.

3. Press On Hook.

Note:

You can adjust the sound volume of the speaker.

4. Specify the recipient.

When you hear a fax tone, press Send/Receive, and then press Send.

Note:

When receiving a fax from a fax polling service, and you hear the audio guidance, follow the guidance to make the printer operations.

6. Press the x button.

Related Information

& “Sending Faxes Using the Control Panel” on page 97 & “Receiving Faxes by Polling (Polling Receive)” on page 104 & “Placing Originals” on page 48 & “Fax Mode” on page 26

User's Guide

Faxing

Sending Faxes at a Specied Time (Send Fax Later)

You can set to send a fax at a specied time. Only monochrome faxes can be sent when the time to send is specied.

1. Place the originals.

2. Enter Fax from the home screen.

3. Specify the recipient.

4. Press Menu, and then select Send Fax Later.

5. Press On, enter the time to send the fax, and then press OK.

6. Press Menu, select Fax Send Settings, and then make settings such as the resolution and the sending method as necessary.

7. Press the

Note: To cancel the fax, cancel it from Job Monitor in Status Menu.

Related Information

& “Sending Faxes Using the Control Panel” on page 97 & “Placing Originals” on page 48 & “Fax Mode” on page 26 & “Checking Fax Jobs” on page 111

button.

Storing a Fax Without Specifying a Recipient (Store Fax Data)

You can store up to 100 pages of a single document in monochrome. is allows you to save the time spent scanning the document when you need to send the same document frequently.

Place the originals.

2. Enter Fax from the home screen.

3. Press Menu, select Store Fax Data, and then enable the function.

4. Press Menu, select Fax Send Settings, and then make settings such as the resolution and the sending method as necessary.

Press the

You can send the stored document from Job Monitor in Status Menu.

Related Information

& “Sending Faxes Using the Control Panel” on page 97 & “Placing Originals” on page 48 & “Fax Mode” on page 26

(B&W) button.

100

Epson C11CE27401FX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright

Trademarks

Contents

About This Manual

Introduction to the Manuals

Marks and Symbols

Descriptions Used in this Manual

Operating System References

Important Instructions

Safety Instructions

Printer Advisories and Warnings

Advisories and Warnings for Setting Up/Using the Printer

Advisories and Warnings for Using the Printer with a Wireless Connection

Advisories and Warnings for Using the Touchscreen

Protecting Your Personal Information

Administrator Settings

Locking the Printer Settings Using an Administrator's Password

Unlocking the Printer Settings

User Feature Restrictions

Printer Basics

Part Names and Functions

Control Panel

Buttons and Lights

Icons Displayed on the LCD Screen

Icons Displayed on the Software Keyboard of the LCD Screen

Menu Options

Copy Mode

Scan Mode

Fax Mode

Memory Device Mode

Setup Mode

Contacts Mode

Presets Mode

Status Menu

Loading Paper

Paper Handling Precautions

Available Paper and Capacities

List of Paper Types

Loading Paper in the Paper Cassette

Loading Paper in the Rear Paper Feed

Placing Originals

Available Originals for the ADF

Placing Originals on the ADF

Placing Originals on the Scanner Glass

Managing Contacts

Registering Contacts

Registering Grouped Contacts

Registration and Backup of Contacts Using a Computer

Printing

Printing from the Control Panel

Printing from a Computer

Authenticating Users in the Printer Driver when User Feature Restriction Is Enabled (for Windows Only)

Printing Basics - Windows

Printing Basics - Mac OS X

Printing on 2-Sides

Printing Several Pages on One Sheet

Printing to Fit the Paper Size

Printing Multiple Files Together (for Windows Only)

Enlarged Printing and Making Posters (for Windows Only)

Printing Using Advanced Features

Printing Using a PostScript Printer Driver

Printing Using a PostScript Printer Driver - Windows

Printing Using a PostScript Printer Driver - Mac OS X

Setting Items for the PostScript Printer Driver

Printing from Smart Devices

Using Epson iPrint

Using AirPrint

Canceling Printing

Canceling Printing - Printer Button

Canceling Printing - Status Menu

Canceling Printing - Windows

Canceling Printing - Mac OS X

Copying

Scanning

Scanning Using the Control Panel

Scanning to an Email
