Epson 98, 955W User Manual

PowerLite

97/98/99W/955W/965

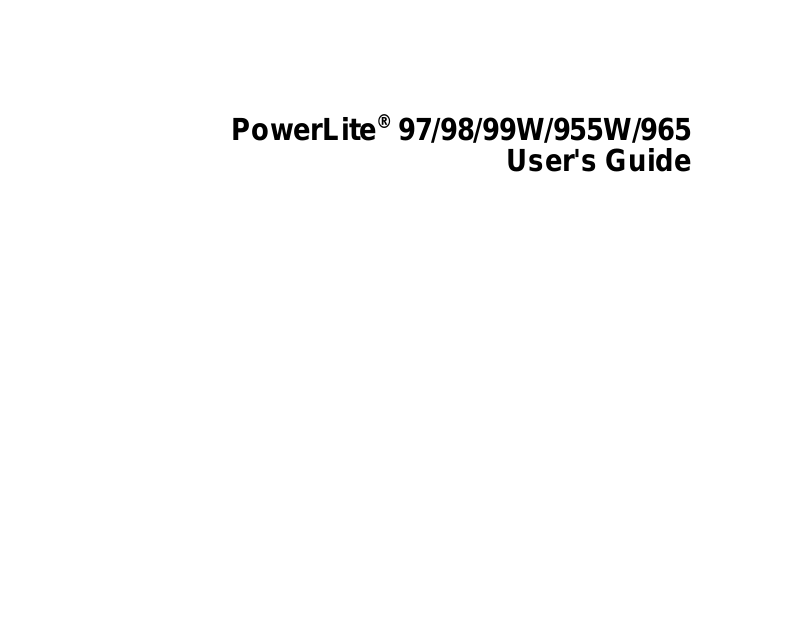

User's Guide

PowerLite 97/98/99W/955W/965 User's Guide........................................................................................... 9

Introduction to Your Projector ................................................................................................................. 10

Setting Up the Projector ........................................................................................................................... 23

Projector Features.............................................................................................................................. 10

Product Box Contents.................................................................................................................... 11

Additional Components ................................................................................................................ 13

Optional Equipment and Replacement Parts................................................................................. 13

Warranty and Registration Information.......................................................................................... 15

Notations Used in the Documentation................................................................................................ 15

Where to Go for Additional Information .............................................................................................. 15

Projector Part Locations..................................................................................................................... 16

Projector Parts - Front/Top............................................................................................................ 16

Projector Parts - Rear.................................................................................................................... 17

Projector Parts - Base.................................................................................................................... 19

Projector Parts - Control Panel...................................................................................................... 20

Projector Parts - Remote Control................................................................................................... 21

Projector Placement........................................................................................................................... 23

Projector Setup and Installation Options ....................................................................................... 23

Projection Distance........................................................................................................................ 25

Projector Connections........................................................................................................................ 27

Connecting to Computer Sources.................................................................................................. 27

Connecting to a Computer for USB Video and Audio................................................................ 28

Connecting to a Computer for VGA Video................................................................................. 29

Connecting to a Computer for HDMI Video and Audio.............................................................. 29

Connecting to a Computer for USB Mouse Control................................................................... 30

Connecting to a Computer for Sound........................................................................................ 31

Connecting to Video Sources........................................................................................................ 31

Connecting to an HDMI Video Source ...................................................................................... 31

Connecting to a Component-to-VGA Video Source.................................................................. 32

Connecting to a Composite Video Source ................................................................................ 33

Connecting to an S-Video Video Source................................................................................... 33

Connecting to a Video Source for Sound.................................................................................. 34

Connecting to an External Computer Monitor................................................................................ 34

Connecting to External Speakers.................................................................................................. 35

Connecting a Microphone.............................................................................................................. 36

Connecting to External USB Devices............................................................................................ 36

USB Device Projection.............................................................................................................. 37

Connecting a USB Device or Camera to the Projector.............................................................. 37

Selecting the Connected USB Source...................................................................................... 38

Disconnecting a USB Device or Camera From the Projector.................................................... 38

Connecting to a Document Camera .............................................................................................. 38

Installing Batteries in the Remote Control .......................................................................................... 39

Opening the Lens Cover .................................................................................................................... 41

Using the Projector on a Network............................................................................................................ 42

Wired Network Projection................................................................................................................... 42

Connecting to a Wired Network..................................................................................................... 43

Selecting Wired Network Settings ................................................................................................. 43

Wireless Network Projection .............................................................................................................. 46

Installing the Wireless LAN Module............................................................................................... 47

Using Quick Wireless Connection (Windows Only)....................................................................... 48

Selecting Wireless Network Settings Manually.............................................................................. 50

Wireless LAN Menu Settings .................................................................................................... 52

Selecting Wireless Network Settings in Windows.......................................................................... 54

Selecting Wireless Network Settings in Mac OS X........................................................................ 54

Setting Up Wireless Network Security........................................................................................... 54

Wireless Security Menu Settings .............................................................................................. 55

Setting Up Projector Network E-Mail Alerts........................................................................................ 56

Network Projector E-mail Alert Messages ..................................................................................... 58

Setting Up Monitoring Using SNMP ................................................................................................... 58

Controlling a Networked Projector Using a Web Browser .................................................................. 60

Using Basic Projector Features ............................................................................................................... 62

Turning On the Projector.................................................................................................................... 62

Turning Off the Projector.................................................................................................................... 64

Selecting the Language for the Projector Menus................................................................................ 66

Adjusting the Image Height ................................................................................................................ 66

Image Shape...................................................................................................................................... 67

Correcting Image Shape with the Horizontal Keystone Slider ....................................................... 68

Correcting Image Shape with the Keystone Buttons...................................................................... 68

Correcting Image Shape with Quick Corner .................................................................................. 70

Resizing the Image With the Zoom Ring ............................................................................................ 72

Focusing the Image Using the Focus Ring......................................................................................... 72

Remote Control Operation ................................................................................................................. 73

Using the Remote Control as a Wireless Mouse ........................................................................... 74

Using the Remote Control as a Pointer.......................................................................................... 75

Selecting an Image Source ................................................................................................................ 76

Projection Modes ............................................................................................................................... 77

Changing the Projection Mode Using the Remote Control ............................................................ 78

Changing the Projection Mode Using the Menus........................................................................... 78

Image Aspect Ratio............................................................................................................................ 79

Changing the Image Aspect Ratio................................................................................................. 80

Available Image Aspect Ratios...................................................................................................... 80

Color Mode......................................................................................................................................... 81

Changing the Color Mode.............................................................................................................. 81

Available Color Modes................................................................................................................... 82

Turning On Auto Iris....................................................................................................................... 83

Controlling the Volume with the Volume Buttons................................................................................ 84

Projecting a PC Free Presentation..................................................................................................... 84

Supported PC Free File Types ...................................................................................................... 85

Starting a PC Free Slide Show...................................................................................................... 86

Starting a PC Free Movie Presentation ......................................................................................... 87

PC Free Display Options............................................................................................................... 89

Adjusting Projector Features................................................................................................................... 91

Shutting Off the Picture and Sound Temporarily ................................................................................ 91

Stopping Video Action Temporarily.................................................................................................... 92

Zooming Into and Out of Images........................................................................................................ 92

Projector Security Features................................................................................................................ 93

Password Security Types.............................................................................................................. 93

Setting a Password................................................................................................................... 94

Selecting Password Security Types.......................................................................................... 95

Entering a Password to Use the Projector................................................................................. 96

Saving a User's Logo Image to Display..................................................................................... 97

Locking the Projector's Buttons ..................................................................................................... 99

Unlocking the Projector's Buttons........................................................................................... 100

Installing a Security Cable........................................................................................................... 100

Creating a User Pattern to Display................................................................................................... 100

Adjusting the Menu Settings.................................................................................................................. 102

Using the Projector's Menus............................................................................................................. 102

Image Quality Settings - Image Menu .............................................................................................. 104

Input Signal Settings - Signal Menu.................................................................................................. 105

Projector Feature Settings - Settings Menu...................................................................................... 108

Projector Setup Settings - Extended Menu....................................................................................... 111

Projector Network Settings - Network Menu..................................................................................... 114

Projector Setup Settings - ECO Menu.............................................................................................. 115

Projector Information Display - Info Menu ........................................................................................ 116

Event ID Code List....................................................................................................................... 118

Projector Reset Options - Reset Menu............................................................................................. 119

Maintaining and Transporting the Projector......................................................................................... 121

Projector Maintenance..................................................................................................................... 121

Cleaning the Lens........................................................................................................................ 121

Cleaning the Projector Case........................................................................................................ 122

Air Filter and Vent Maintenance .................................................................................................. 122

Cleaning the Air Filter and Vents............................................................................................. 123

Replacing the Air Filter............................................................................................................ 123

Projector Lamp Maintenance....................................................................................................... 125

Replacing the Lamp................................................................................................................ 126

Resetting the Lamp Timer....................................................................................................... 130

Replacing the Remote Control Batteries ..................................................................................... 131

Transporting the Projector................................................................................................................ 132

Solving Problems.................................................................................................................................... 133

Projection Problem Tips................................................................................................................... 133

Projector Light Status....................................................................................................................... 133

Using the Projector Help Displays.................................................................................................... 136

Solving Image or Sound Problems................................................................................................... 137

Solutions When No Image Appears............................................................................................. 137

Solutions When Image is Incorrect Using the USB Display Function .......................................... 138

Solutions When "No Signal" Message Appears........................................................................... 139

Displaying From a PC Laptop................................................................................................. 139

Displaying From a Mac Laptop ............................................................................................... 139

Solutions When "Not Supported" Message Appears................................................................... 140

Solutions When Only a Partial Image Appears............................................................................ 140

Solutions When the Image is Not Rectangular ............................................................................ 141

Solutions When the Image Contains Noise or Static ................................................................... 141

Solutions When the Image is Fuzzy or Blurry.............................................................................. 142

Solutions When the Image Brightness or Colors are Incorrect .................................................... 143

Solutions to Sound Problems ...................................................................................................... 144

Solving Projector or Remote Control Operation Problems ............................................................... 144

Solutions to Projector Power or Shut-Off Problems..................................................................... 145

Solutions to Problems with the Remote Control........................................................................... 145

Solutions to Password Problems................................................................................................. 146

Solving Network Problems............................................................................................................... 146

Solutions When You Cannot Access the Projector Through the Web ......................................... 147

Solutions When Network Alert E-Mails are Not Received............................................................ 147

Where to Get Help............................................................................................................................ 147

Technical Specifications ........................................................................................................................ 149

General Projector Specifications...................................................................................................... 149

Projector Lamp Specifications.......................................................................................................... 152

Remote Control Specifications......................................................................................................... 152

Projector Dimension Specifications.................................................................................................. 152

Projector Electrical Specifications.................................................................................................... 153

Projector Environmental Specifications............................................................................................ 154

Projector Safety and Approvals Specifications................................................................................. 154

Supported Video Display Formats.................................................................................................... 154

USB Display System Requirements................................................................................................. 157

Notices ..................................................................................................................................................... 158

Recycling.......................................................................................................................................... 158

Important Safety Information............................................................................................................ 158

Important Safety Instructions............................................................................................................ 159

Restriction of Use........................................................................................................................ 162

FCC Compliance Statement............................................................................................................. 162

Trademarks...................................................................................................................................... 163

Open Source Software License........................................................................................................ 163

Copyright Notice............................................................................................................................... 208

A Note Concerning Responsible Use of Copyrighted Materials................................................... 209

Copyright Attribution.................................................................................................................... 209

PowerLite 97/98/99W/955W/965 User's Guide

Welcome to the PowerLite 97/98/99W/955W/965 User's Guide.

Introduction to Your Projector

Refer to these sections to learn more about your projector and this manual.

Projector Features Notations Used in the Documentation Where to Go for Additional Information Projector Part Locations

Projector Features

The PowerLite 97, 98, 99W, 955W, and 965 projectors include these special features:

Bright, high-resolution projection system

• PowerLite 97: Up to 2700 lumens of brightness (white light output and color light output) PowerLite 98/99W/955W: Up to 3000 lumens of brightness (white light output and color light output) PowerLite 965: Up to 3500 lumens of brightness (white light output and color light output)

Note: Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

• PowerLite 97/98/965: Native resolution of 1024 × 768 pixels (XGA) PowerLite 99W/955W: Native resolution of 1280 × 800 pixels (WXGA)

Flexible connectivity

• Plug-and-play 3-in-1 USB projection, audio, and mouse control for instant setup

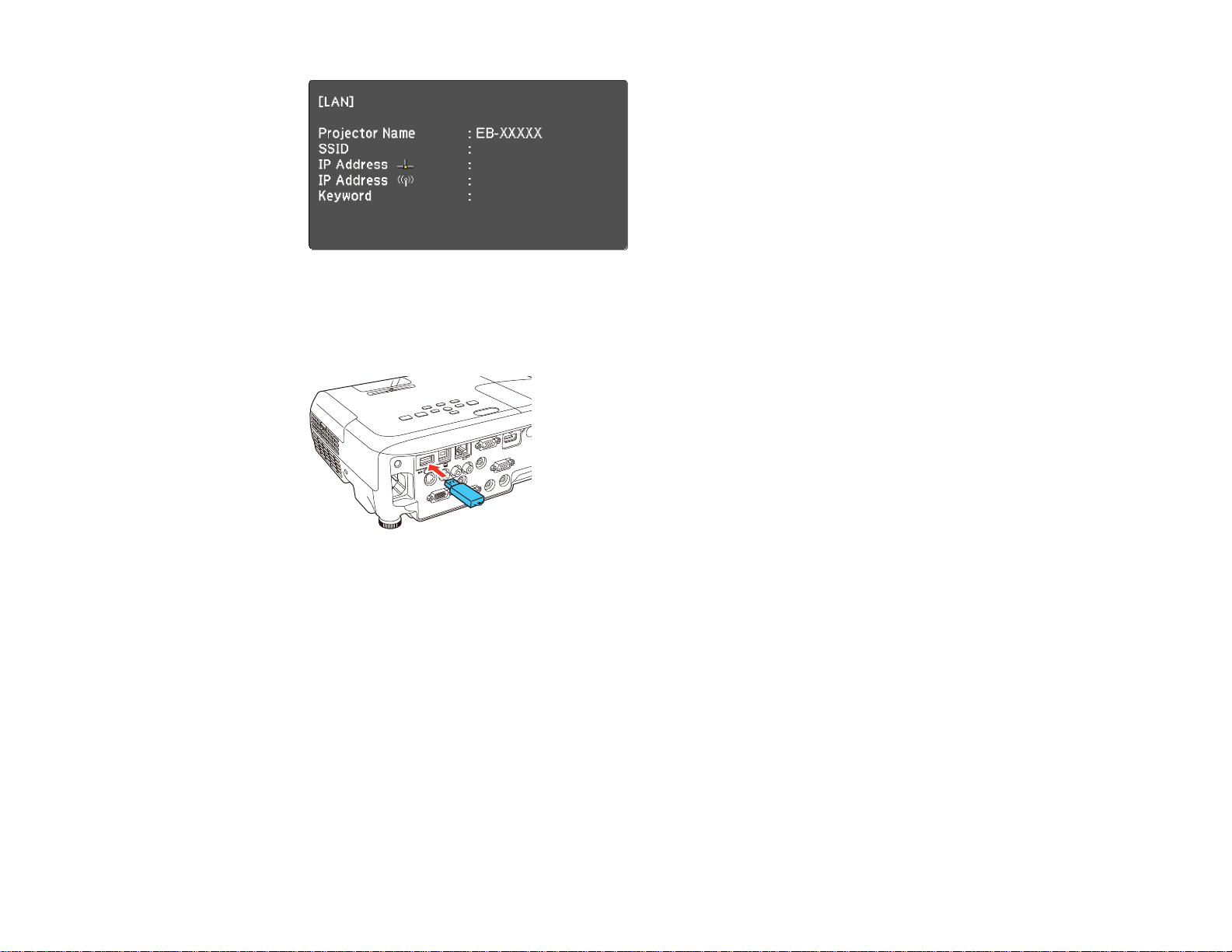

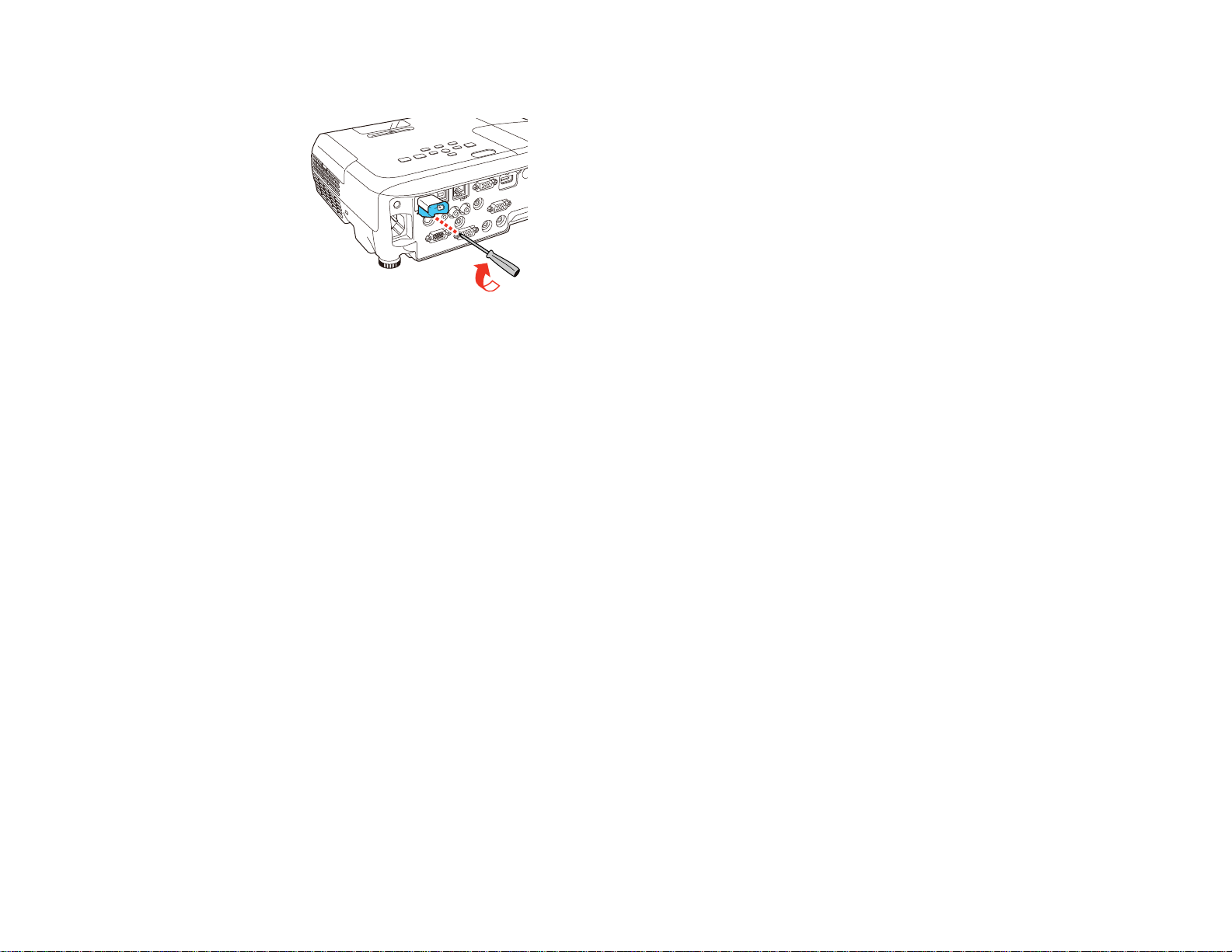

• Projection from iOS or Android devices with the optional wireless LAN module and free Epson iProjection app; visit epson.com/projectorapp (U.S.) or epson.ca/projectorapp (Canada) for more information

• Wired and wireless network support for projection, monitoring, and control via remote network computer

• Connect up to 50 devices to the projector via a network and project from up to 4 devices simultaneously

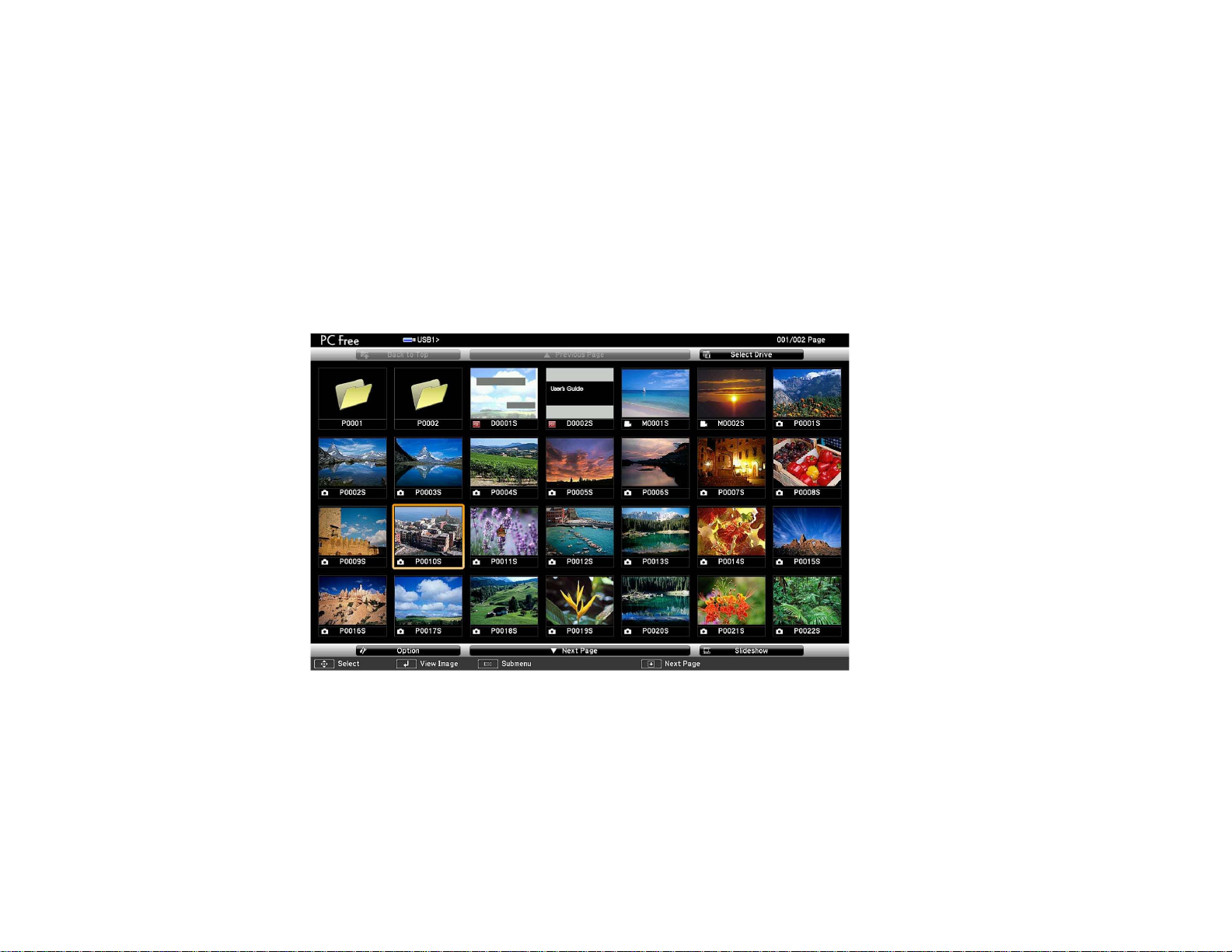

• PC Free photo slide shows and videos via connected USB memory devices

• HDMI port for computer or video device connection

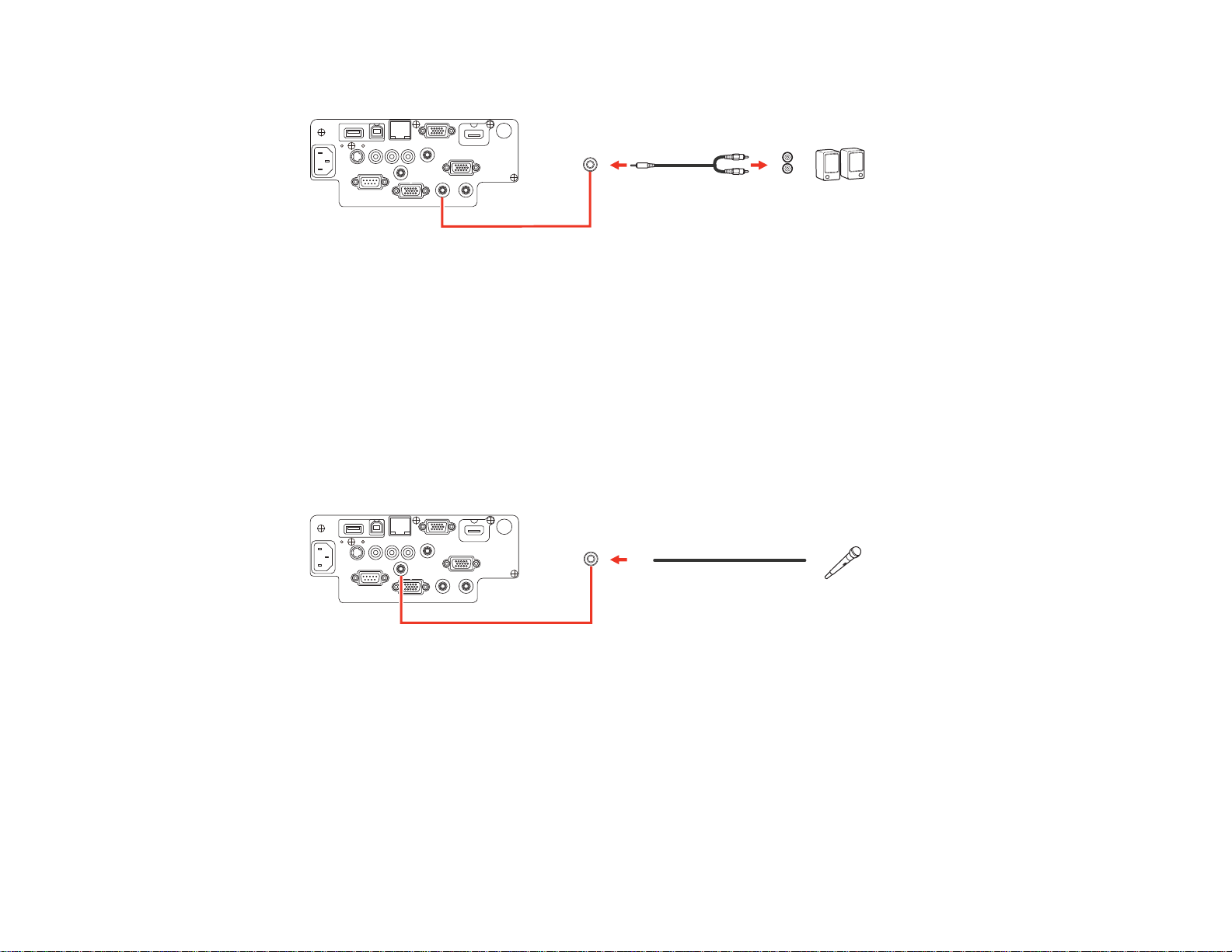

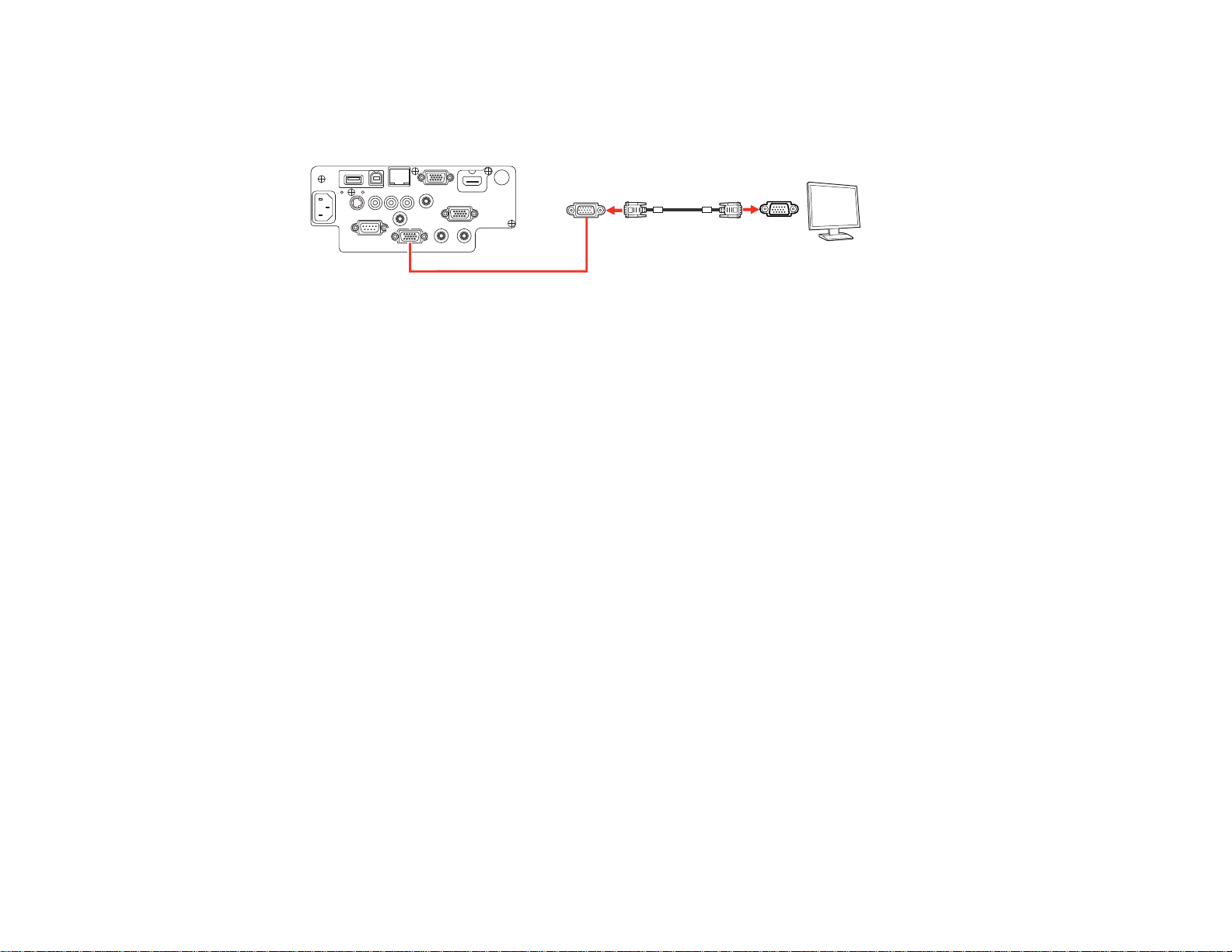

• Ports for connecting an external monitor, microphone, and external speakers

Easy-to-use setup and operation features

• Low total cost of ownership with longer lamp life

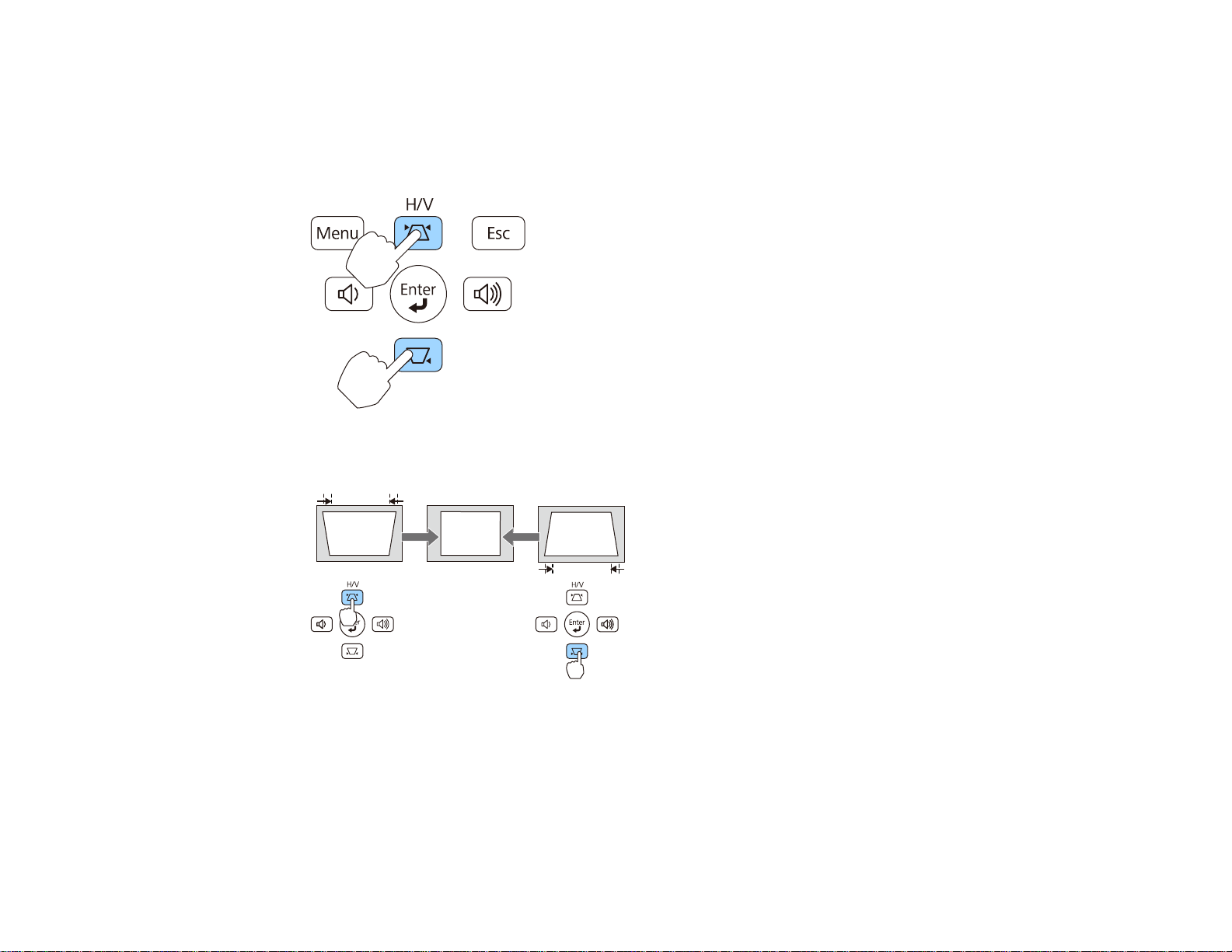

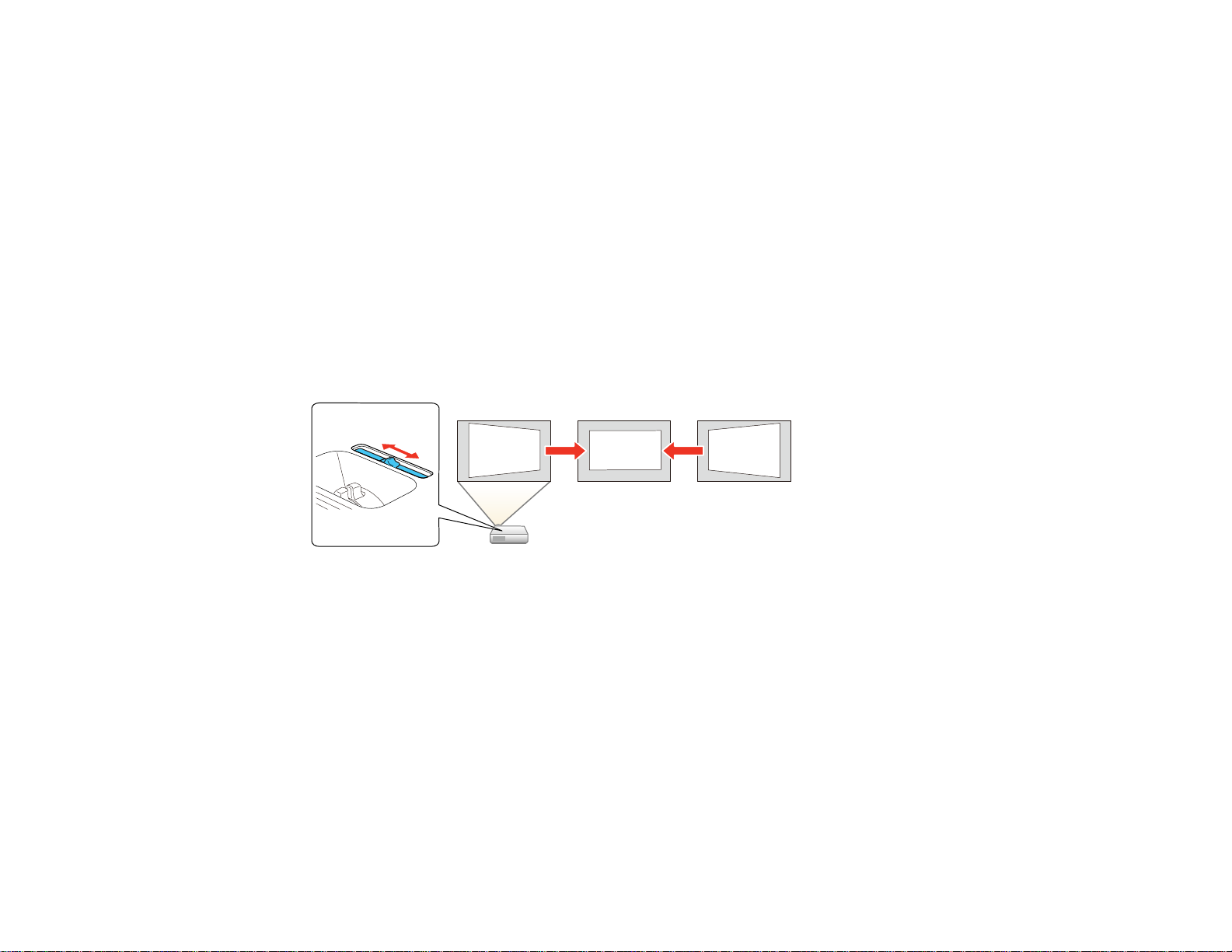

• Innovative horizontal keystone correction slider for flexible projector placement

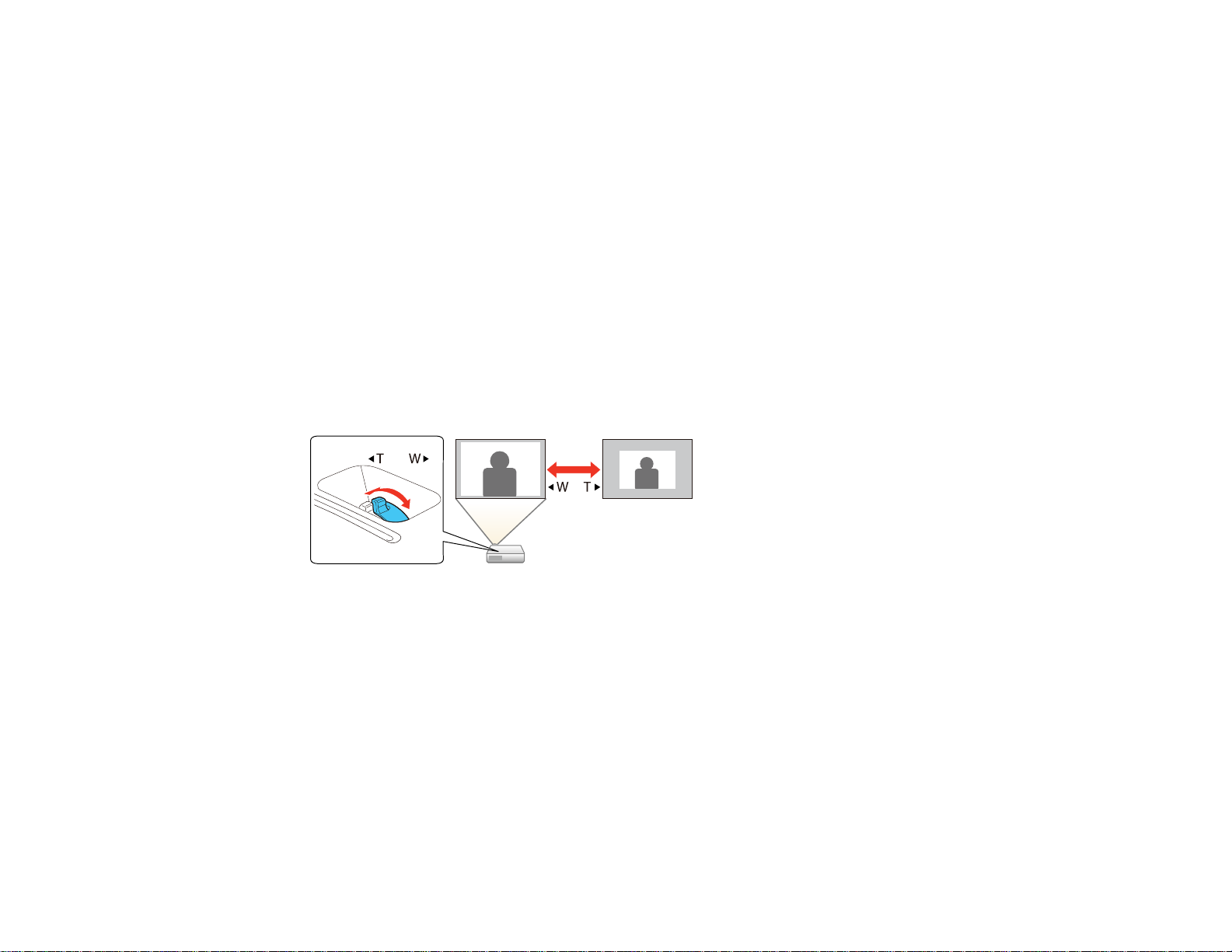

• 1.2× (PowerLite 97/98/99W) and 1.6× (PowerLite 955W/965) optical zoom ratio for improved zooming capability

• Built-in closed captioning decoder

• Epson's Instant Off and Direct Power On features for quick setup and shut down

Product Box Contents Additional Components Optional Equipment and Replacement Parts Warranty and Registration Information

Parent topic: Introduction to Your Projector

Product Box Contents

Save all the packaging in case you need to ship the projector. Always use the original packaging (or equivalent) when shipping.

Make sure your projector box included all of these parts:

1 Projector 2 Remote control and batteries (two AA alkaline) 3 Power cord 4 VGA computer cable 5 Wireless LAN module cover 6 Projector documentation CD 7 Projector software CD 8 Password Protected sticker

Parent topic: Projector Features

Additional Components

Depending on how you plan to use the projector, you may need to obtain the following additional components:

• To receive a composite video signal, you need an RCA-style video or A/V cable. See your local computer or electronics dealer for purchase information.

• To receive an S-Video signal, you need an S-Video cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To receive a component video signal, you need a D-sub, 15-pin, component-to-VGA video cable. You can purchase one from Epson or an authorized Epson reseller.

• To receive an HDMI signal, you need a compatible HDMI cable. You can purchase one from Epson or an authorized Epson reseller.

Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port. Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

• To project with audio from certain ports, you may need a commercially available audio cable compatible with your device. See your local computer or electronics dealer for purchase information.

• To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for video output to the projector's VGA video port, you need to obtain an adapter. Contact Apple for compatible adapter options.

Parent topic: Projector Features Related references

Optional Equipment and Replacement Parts

You can purchase screens, other optional accessories, and replacement parts from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at epsonstore.com (U.S. sales) or epson.ca (Canadian sales).

Epson offers the following optional accessories and replacement parts for your projector:

Option or part Part number

Genuine Epson Replacement lamp (ELPLP78) V13H010L78

Option or part Part number

Air filter replacement set (2 filters; ELPAF32) V13H134A32 Wireless LAN module (ELPAP07) V12H418P12 Quick Wireless Connection USB Key (ELPAP09) V12H005M09 Epson DC-06 document camera (ELPDC06) V12H321005 Epson DC-11 document camera (ELPDC11) V12H377020 Epson DC-12 document camera (ELPDC12) V12H594020 Epson DC-20 document camera (ELPDC20) V12H500020 BrightLink Solo interactive module (IU-01) V12H415020 AP-60 Projector Sound Solution V12H329020 PixiePlus Control System ELPSP10 Accolade Duet portable projector screen ESPSC80 ES1000 Ultra Portable Tabletop Projection screen V12H002S4Y ES3000 Ultra Portable Tabletop Projection screen V12H002S3Y Universal projector ceiling mount ELPMBPJF Adjustable suspended ceiling channel kit ELPMBP01 False ceiling plate kit ELPMBP02 Structural Round ceiling plate ELPMBP03 Adjustable Extension Column (pipe) 8" - 11" (20 to 28 cm) ELPMBC01 Kensington security lock ELPSL01 Soft carrying case V12H001K67 Component-to-VGA video cable (ELPKC19) V12H005C19 VGA video cable 1.8 m length ELPKC02 VGA video cable 3.0 m length ELPKC09 VGA video cable 20 m length ELPKC10 Remote control 1599176 1-Year Extended Service Program - Exchange Service EPPEXPA1

Option or part Part number

2-Year Extended Service Program - Exchange Service EPPEXPA2 1-Year Extended Service Program - Depot Repair Service EPPFTPA1 2-Year Extended Service Program - Depot Repair Service EPPFTPA2

Parent topic: Projector Features

Warranty and Registration Information

Your projector comes with a basic warranty that lets you project with confidence. For details, see the warranty that came with your projector.

In addition, Epson offers free Extra Care Road Service. In the unlikely event of an equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See the Extra Care Road Service brochure for details.

Register your product online using the projector CD or at this site: epson.com/webreg. Registering also lets you receive special updates on new accessories, products, and services.

Parent topic: Projector Features

Notations Used in the Documentation

Follow the guidelines in these notations as you read your documentation:

• Warnings must be followed carefully to avoid bodily injury.

• Cautions must be observed to avoid damage to your equipment.

• Notes contain important information about your projector.

• Tips contain additional projection information.

Parent topic: Introduction to Your Projector

Where to Go for Additional Information

Need quick help on using your projector? Here's where to look for help:

• epson.com/support (U.S) or epson.ca/support (Canada) View FAQs (frequently asked questions) and e-mail your questions to Epson technical support 24

hours a day.

• If you still need help after checking this manual and the sources listed above, you can use the Epson PrivateLine Support service to get help fast. For details, see "Where to Get Help".

Parent topic: Introduction to Your Projector Related references

Where to Get Help

Related tasks

Using the Projector Help Displays

Projector Part Locations

Check the projector part illustrations to learn about the parts on your projector.

Projector Parts - Front/Top Projector Parts - Rear Projector Parts - Base Projector Parts - Control Panel Projector Parts - Remote Control

Parent topic: Introduction to Your Projector

Projector Parts - Front/Top

1 Exhaust vent

2 A/V Mute slide lever 3 Foot release lever 4 Front adjustable foot 5 A/V Mute slide 6 Remote receiver 7 Focus ring 8 Zoom ring 9 Intake vent 10 Air filter cover 11 Security slot 12 Control panel 13 Horizontal keystone slider 14 Lamp cover

Parent topic: Projector Part Locations

Projector Parts - Rear

1 AC input port 2 S-Video port 3 RS-232C port

4 Video port 5 Audio-L/R ports 6 Mic port 7 Monitor Out port 8 Audio1 port 9 Audio Out port 10 Audio2 port 11 Speaker 12 Remote control receiver 13 HDMI port 14 Computer2 (VGA) port 15 Computer1 (VGA) port 16 Network (LAN) port 17 USB-B port 18 USB-A port 19 Wireless LAN module cover screw

Parent topic: Projector Part Locations

Projector Parts - Base

1 Mounting bracket holes 2 Security cable attachment point 3 Rear feet 4 Front adjustable foot

Parent topic: Projector Part Locations Related tasks

Installing a Security Cable

Projector Parts - Control Panel

1 Source Search button (searches for connected sources) 2 Enter button (selects options) 3 Keystone adjustment buttons (adjust screen shape) and arrow buttons 4 Help button (accesses projector help information) 5 Esc button (cancels/exits functions) 6 Volume control buttons, horizontal keystone adjustment buttons (adjusts screen shape), and

arrow buttons 7 Menu button (accesses projector menu system) 8 Power button/light 9 Status, Lamp, and Temp (Temperature) lights

Parent topic: Projector Part Locations Related references

Projector Light Status

Projector Parts - Remote Control

1 Power button

2 Computer button (cycles through connected computer sources) 3 Video button (cycles through connected video sources) 4 Numeric buttons (enter numbers) 5 Auto button (automatically adjusts position, tracking, and sync settings) 6 Aspect button (selects the image aspect ratio) 7 Num button (when held down, switches numeric buttons to number function) 8 Menu button (accesses projector menu system) 9 Arrow buttons (move through on-screen options and control wireless mouse functions) 10 Enter button (selects options and controls wireless mouse functions) 11 User button (customizable for different functions) 12 Page up/down buttons (control presentation slides) 13 E-Zoom +/– buttons (zoom into and out of the image) 14 A/V Mute button (turns off picture and sound) 15 Help button (accesses projector help information) 16 Freeze button (stops video action) 17 Volume up/down buttons (adjust speaker volume) 18 Pointer button (activates on-screen pointer) 19 Esc button (cancels/exits functions and controls wireless mouse functions) 20 Color Mode button (selects display modes) 21 LAN button (switches to available network sources) 22 USB button (cycles through connected USB sources) 23 Source Search button (searches for connected sources)

Parent topic: Projector Part Locations

Setting Up the Projector

Follow the instructions in these sections to set up your projector for use.

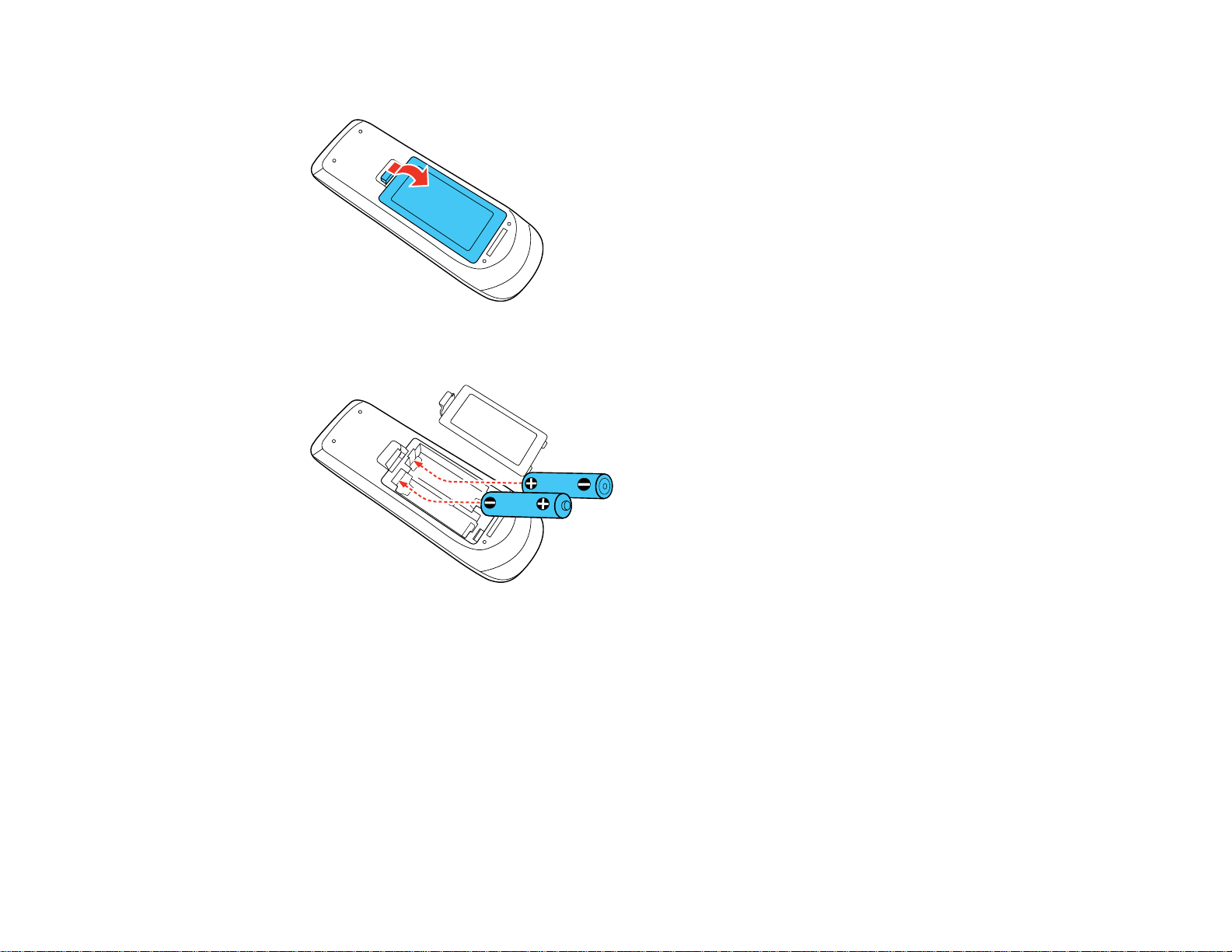

Projector Placement Projector Connections Installing Batteries in the Remote Control Opening the Lens Cover

Projector Placement

You can place the projector on almost any flat surface to project an image. You can also install the projector in a ceiling mount if you want to use it in a fixed location. Keep these considerations in mind as you select a projector location:

• Place the projector on a sturdy, level surface or install it using a compatible mount.

• Leave plenty of space around and under the projector for ventilation, and do not place it on top of or next to anything that could block the vents.

• Position the projector within reach of a grounded electrical outlet or extension cord.

Projector Setup and Installation Options Projection Distance

Parent topic: Setting Up the Projector

Projector Setup and Installation Options

You can set up or install your projector in the following ways: Front

Rear

Front Ceiling

Rear Ceiling

Wherever you set up the projector, make sure to position it squarely in front of the center of the screen, not at an angle, if possible.

If you project from the ceiling or from the rear, be sure to select the correct Projection option in the projector's menu system.

Parent topic: Projector Placement

Related references

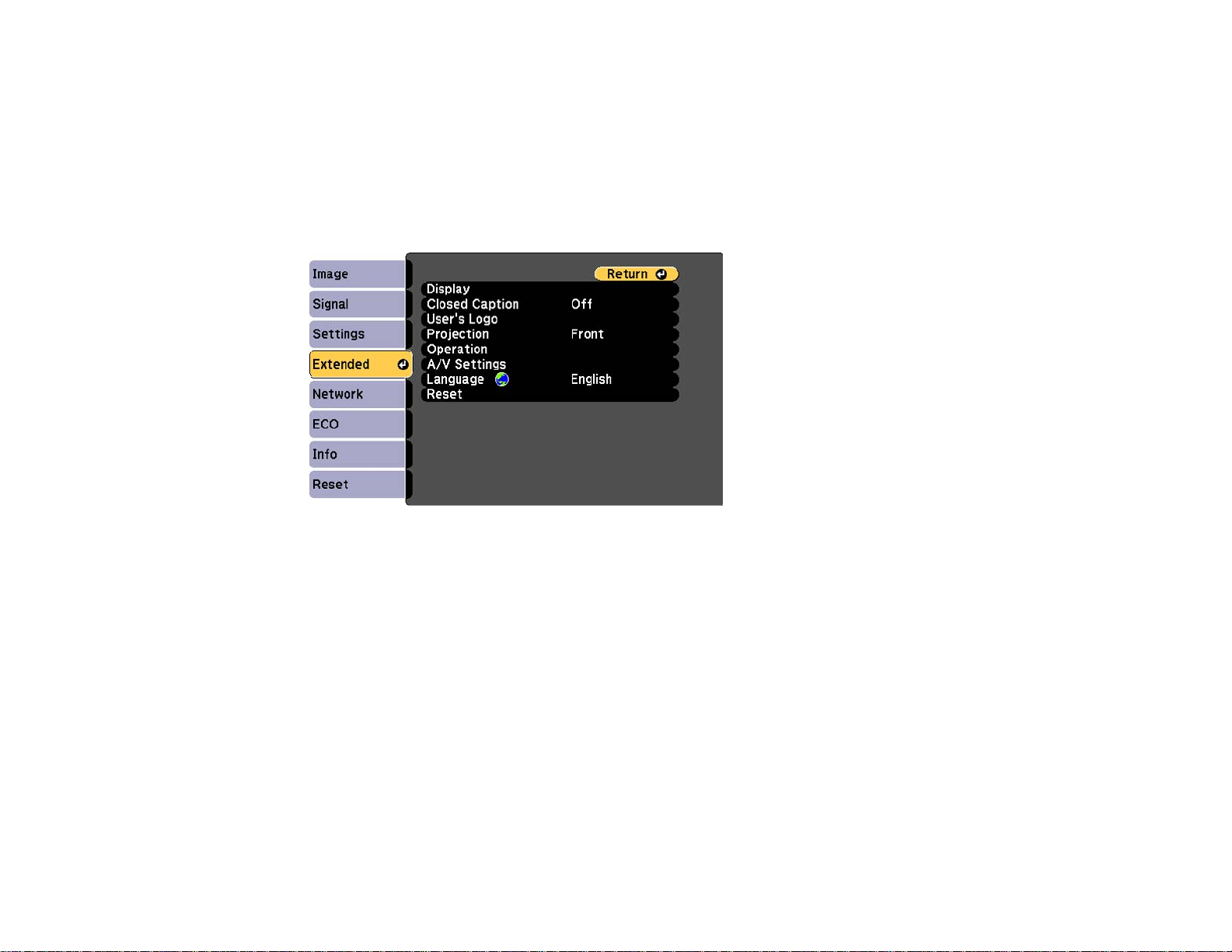

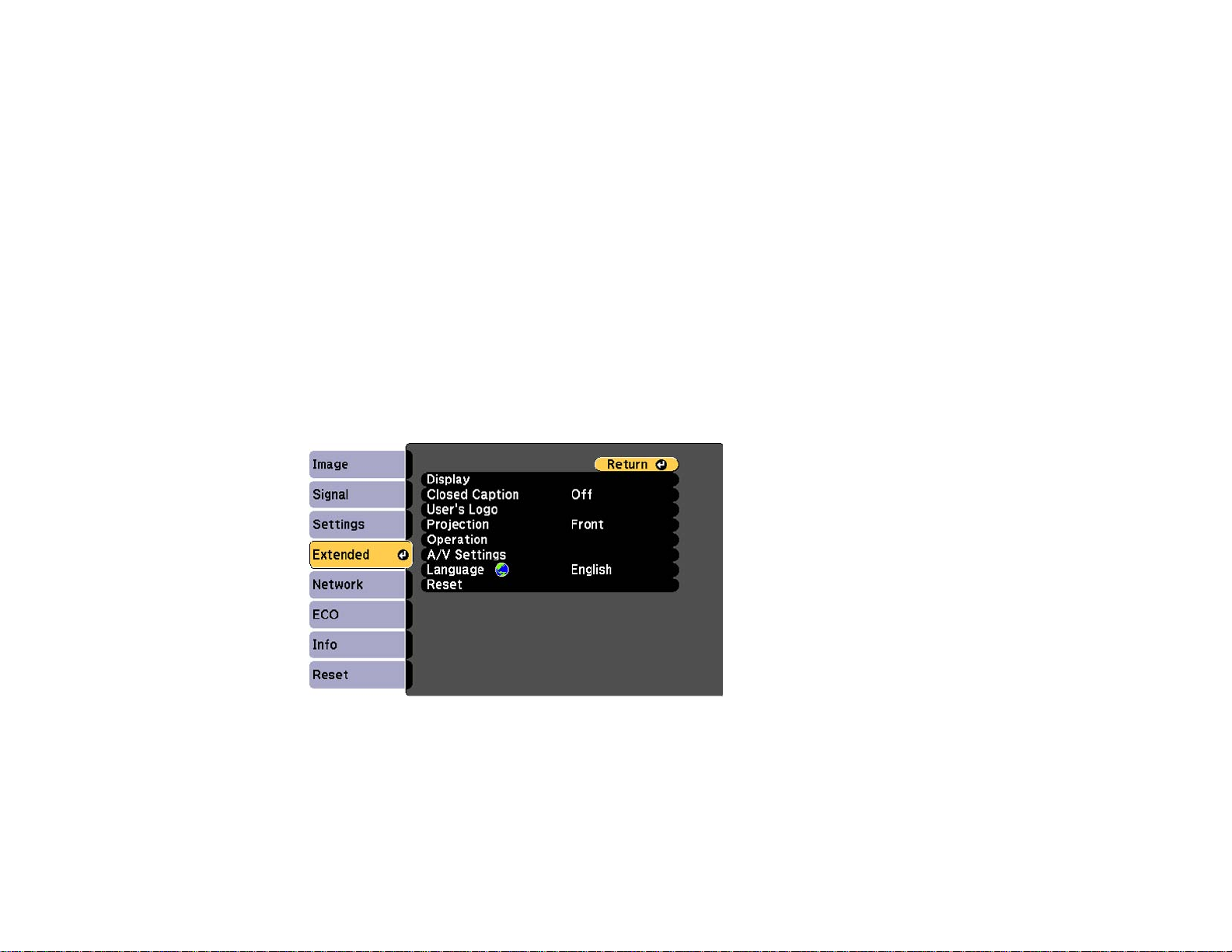

Projector Setup Settings - Extended Menu

Projection Distance

The distance at which you place the projector from the screen determines the approximate size of the image. The image size increases the farther the projector is from the screen, but can vary depending on the zoom factor, aspect ratio, and other settings.

Use the tables here to determine approximately how far to place the projector from the screen based on the size of the projected image. (Conversion figures may have been rounded up or down.) You can also use the projector Throw Distance Calculator at epson.com/support (U.S.) or epson.ca/support (Canada).

PowerLite 97/98 4:3 Aspect Ratio Image or Screen

Screen or Projection distance image size

1 50 inches 59 to 71 inches (150 to 180 cm) 2 80 inches 95 to 114 inches (241 to 290 cm) 3 100 inches 119 to 143 inches (302 to 363 cm) 4 150 inches 179 to 215 inches (454 to 546 cm)

Wide to Tele

PowerLite 99W 16:10 Aspect Ratio Image or Screen

Screen or Projection distance image size

Wide to Tele

1 50 inches 55 to 66 inches (139 to 168 cm) 2 80 inches 88 to 106 inches (225 to 270 cm) 3 100 inches 111 to 133 inches (281 to 338 cm) 4 150 inches 167 to 200 inches (424 to 509 cm)

PowerLite 955W 16:10 Aspect Ratio Image or Screen

Screen or Projection distance image size

Wide to Tele

1 50 inches 58 to 95 inches (149 to 243 cm) 2 80 inches 94 to 153 inches (239 to 390 cm) 3 100 inches 118 to 192 inches (300 to 488 cm) 4 150 inches 178 to 289 inches (451 to 733 cm)

PowerLite 965 4:3 Aspect Ratio Image or Screen

Screen or Projection distance image size

Wide to Tele

1 50 inches 55 to 90 inches (140 to 229 cm) 2 80 inches 89 to 145 inches (226 to 368 cm) 3 100 inches 111 to 181 inches (283 to 460 cm) 4 150 inches 168 to 272 inches (426 to 692 cm)

Parent topic: Projector Placement

Projector Connections

You can connect the projector to a variety of computer, video, and audio sources to display presentations, movies, or other images, with or without sound.

• Connect any type of computer (Windows or Mac) that has a USB port, standard video output (monitor) port, or HDMI port.

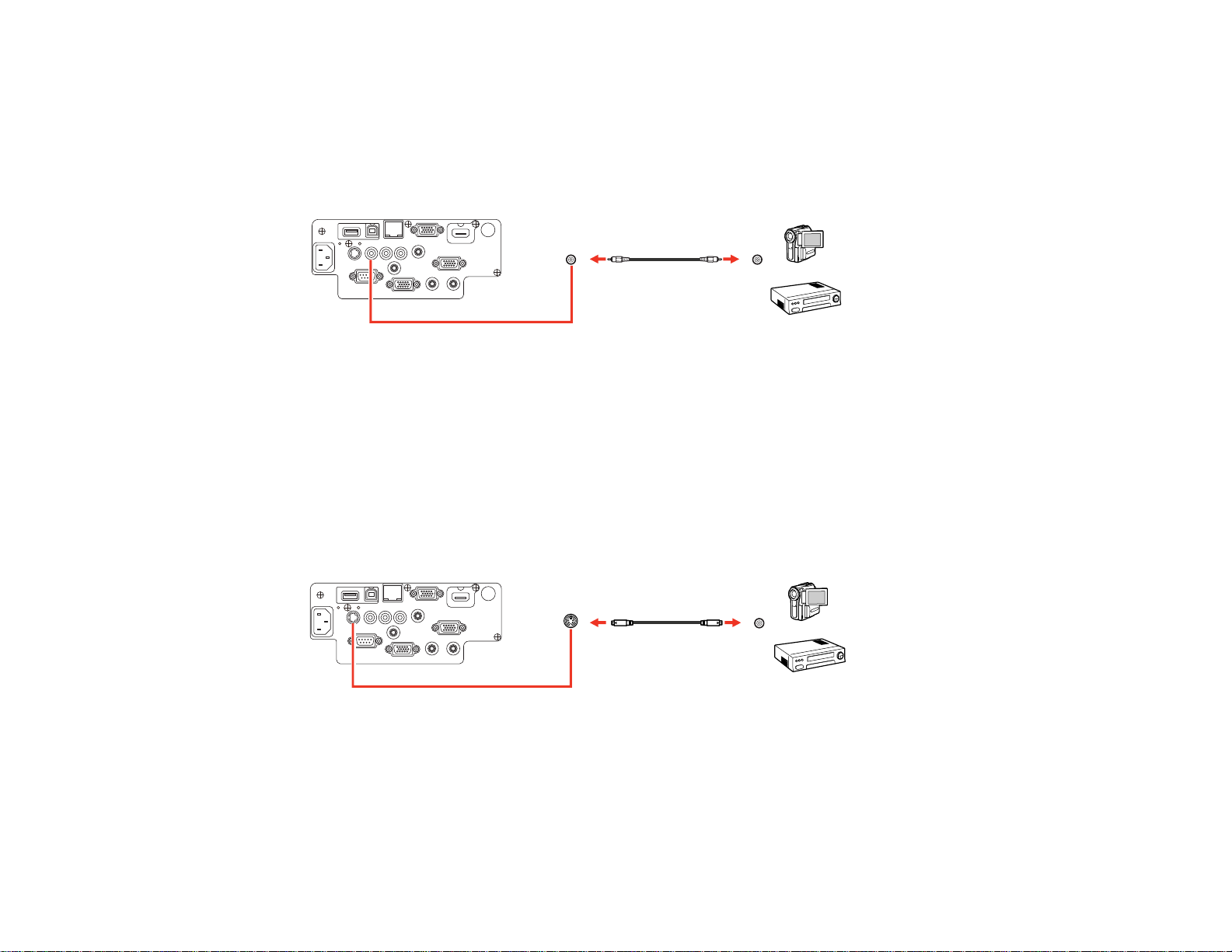

• For video projection, connect devices such as DVD players, gaming consoles, digital cameras, and smartphones with compatible video output ports.

• If your presentation or video includes sound, you can connect audio input cables, if necessary.

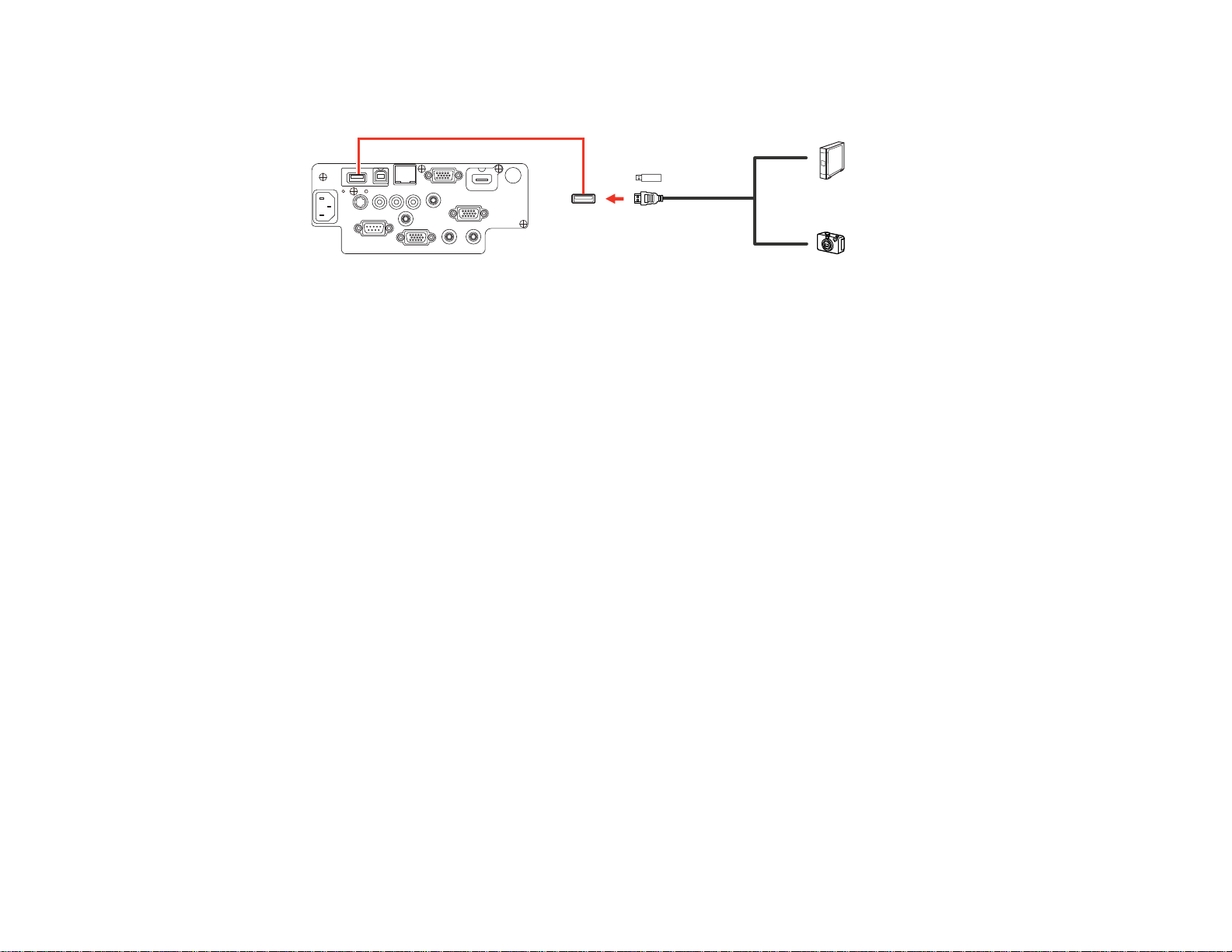

• For slide shows without a computer, you can connect USB devices (such as a flash drive or camera) or an optional Epson document camera.

Caution: If you will use the projector at altitudes above 4921 feet (1500 m), turn on High Altitude Mode to ensure the projector's internal temperature is regulated properly.

Connecting to Computer Sources Connecting to Video Sources Connecting to an External Computer Monitor Connecting to External Speakers Connecting a Microphone Connecting to External USB Devices Connecting to a Document Camera

Parent topic: Setting Up the Projector Related references

Projector Setup Settings - Extended Menu

Connecting to Computer Sources

Follow the instructions in these sections to connect a computer to the projector.

Connecting to a Computer for USB Video and Audio Connecting to a Computer for VGA Video Connecting to a Computer for HDMI Video and Audio Connecting to a Computer for USB Mouse Control Connecting to a Computer for Sound

Parent topic: Projector Connections

Connecting to a Computer for USB Video and Audio

If your computer meets the system requirements, you can send video and audio output to the projector through the computer's USB port (preferably USB 2.0). Connect the projector to your computer using a USB cable.

Note: An HDMI connection is recommended for projecting content requiring high bandwidth.

1. Turn on your computer.

2. Connect the cable to your projector's USB-B port.

3. Connect the other end to any available USB port on your computer.

4. Do one of the following:

• Windows 8: Click EPSON_PJ_UD in the upper right-corner, then select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

• Windows 7/Windows Vista: Select Run EMP_UDSE.EXE in the dialog box that appears to install the Epson USB Display software.

• Windows XP: Wait as messages appear on your computer screen and the projector installs the Epson USB Display software on your computer.

• Windows 2000: Select Computer, EPSON_PJ_UD, and EMP_UDSE.EXE to install the Epson USB Display software.

• Mac OS X: The USB Display setup folder appears on your screen. Select USB Display Installer and follow the on-screen instructions to install the Epson USB Display software.

Follow any on-screen instructions. You need to install this software only the first time you connect the projector to the computer.

Note: If you are using Windows XP or Windows 2000 and you see a message asking if you want to restart your computer, select No.

The projector displays the image from your computer's desktop and outputs sound, if your presentation contains audio.

Parent topic: Connecting to Computer Sources Related references

USB Display System Requirements

Related tasks

Connecting to a Computer for HDMI Video and Audio

Connecting to a Computer for VGA Video

You can connect the projector to your computer using a VGA computer cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's VGA video port. Contact Apple for compatible adapter options.

1. If necessary, disconnect your computer's monitor cable.

2. Connect the VGA computer cable to your computer's monitor port.

3. Connect the other end to a Computer port on the projector.

4. Tighten the screws on the VGA connector.

Parent topic: Connecting to Computer Sources Related tasks

Connecting to a Computer for Sound

Connecting to a Computer for HDMI Video and Audio

If your computer has an HDMI port, you can connect it to the projector using an optional HDMI cable. Note: To connect a Mac that includes only a Mini DisplayPort, Thunderbolt port, or Mini-DVI port for

video output, you need to obtain an adapter that allows you to connect to the projector's HDMI port.

Contact Apple for compatible adapter options. Older Mac computers (2009 and earlier) may not support audio through the HDMI port.

1. Connect the HDMI cable to your computer's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Parent topic: Connecting to Computer Sources

Connecting to a Computer for USB Mouse Control

If you connected your computer to a Computer, USB-B, or HDMI port on the projector, you can set up the remote control to act as a wireless mouse. This lets you control projection at a distance from your computer. To do this, connect the projector to your computer using a USB cable, if it is not connected already.

1. Connect the USB cable to your projector's USB-B port.

2. Connect the other end to any available USB port on your computer.

3. If necessary, configure your computer to work with an external USB mouse. See your computer documentation for details.

Parent topic: Connecting to Computer Sources Related tasks

Using the Remote Control as a Wireless Mouse

Connecting to a Computer for Sound

If your computer presentation includes sound and you did not connect it to the projector's USB-B or HDMI port, you can still play sound through the projector's speaker system. Just connect an optional

3.5 mm stereo mini-jack audio cable as described here.

1. Connect the audio cable to your laptop's headphone or audio-out jack, or your desktop's speaker or audio-out port.

2. Connect the other end to the Audio port that corresponds to the Computer port you are using.

Parent topic: Connecting to Computer Sources

Connecting to Video Sources

Follow the instructions in these sections to connect video devices to the projector.

Connecting to an HDMI Video Source Connecting to a Component-to-VGA Video Source Connecting to a Composite Video Source Connecting to an S-Video Video Source Connecting to a Video Source for Sound

Parent topic: Projector Connections

Connecting to an HDMI Video Source

If your video source has an HDMI port, you can connect it to the projector using an optional HDMI cable. The HDMI connection provides the best image quality.

1. Connect the HDMI cable to your video source's HDMI output port.

2. Connect the other end to the projector's HDMI port.

Parent topic: Connecting to Video Sources

Connecting to a Component-to-VGA Video Source

If your video source has component video ports, you can connect it to the projector using an optional component-to-VGA video cable. Depending on your component ports, you may need to use an adapter cable along with a component video cable.

1. Connect the component connectors to your video source's color-coded component video output ports, usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using an adapter, connect these connectors to your component video cable.

2. Connect the VGA connector to a Computer port on the projector.

3. Tighten the screws on the VGA connector.

If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's Signal menu.

Parent topic: Connecting to Video Sources Related references

Input Signal Settings - Signal Menu

Related tasks

Connecting to a Video Source for Sound

Connecting to a Composite Video Source

If your video source has a composite video port, you can connect it to the projector using an optional RCA-style video or A/V cable.

1. Connect the cable with the yellow connector to your video source's yellow video output port.

2. Connect the other end to the projector's Video port.

Parent topic: Connecting to Video Sources Related tasks

Connecting to a Video Source for Sound

Connecting to an S-Video Video Source

If your video source has an S-Video port, you can connect it to the projector using an optional S-Video cable.

1. Connect the S-Video cable to your video source's S-Video output port.

2. Connect the other end to the projector's S-Video port.

Parent topic: Connecting to Video Sources Related tasks

Connecting to a Video Source for Sound

You can play sound through the projector's speaker system if your video source has audio output ports. If you are projecting video using a Computer port, connect the projector to the video source using an

optional stereo mini-jack audio cable. If you are projecting video using the Video or S-Video port, connect the projector to the video source

using an RCA audio cable. Note: If you connected your video source to the projector using an HDMI cable, the audio signal is

transferred with the video signal; you do not need an additional cable for sound.

1. Connect the audio cable to your video source's audio-out ports.

2. Do one of the following:

• Connect the other end of the cable to the projector's Audio port that corresponds to the

Computer port you are using for video.

• Connect the red and white plugs on the other end of the cable to the projector's L-Audio-R ports.

Parent topic: Connecting to Video Sources

Connecting to an External Computer Monitor

If you connected the projector to a computer using a Computer port, you can also connect an external monitor to the projector. This lets you see your presentation on the external monitor even when the projected image is not visible.

If you want to output images to an external monitor when the projector is turned off, you need to select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's menu system.

Note: Monitors that use a refresh rate less than 60 Hz may not be able to display images correctly.

1. Make sure your computer is connected to the projector's Computer port. If there are two computer ports, make sure you use the Computer1 port.

2. Connect the external monitor's cable to your projector's Monitor Out port.

Parent topic: Projector Connections

Connecting to External Speakers

To enhance the sound from your presentation, you can connect the projector to external self-powered speakers. You can control the volume using the projector's remote control.

Note: You can also connect the projector to an amplifier with speakers. If you want to output audio from the external speakers when the projector is turned off, you need to

select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's menu system.

Note: The projector's built-in speaker system is disabled when you connect external speakers.

1. Make sure your computer or video source is connected to the projector with both audio and video cables as necessary.

2. Locate the appropriate cable to connect your external speakers, such as a stereo mini-jack-to-pinjack cable, or another type of cable or adapter.

3. Connect one end of the cable to your external speakers as necessary.

4. Connect the stereo mini-jack end of the cable to your projector's Audio Out port.

Parent topic: Projector Connections

Connecting a Microphone

You can connect a microphone to the projector's Mic port to provide audio support during presentations. Note: If you connect a condenser microphone with plug-in power support, turn on the Plug-in Power

setting in the Extended menu. If you want to output audio from the external speakers when the projector is turned off, you need to select Communication On for the Standby Mode setting and Always On for the A/V Output setting in the projector's Extended menu.

1. Connect the microphone cable to the projector's Mic port.

2. Turn on the microphone, if necessary.

Parent topic: Projector Connections

Connecting to External USB Devices

Follow the instructions in these sections to connect external USB devices to the projector.

USB Device Projection Connecting a USB Device or Camera to the Projector

Selecting the Connected USB Source Disconnecting a USB Device or Camera From the Projector

Parent topic: Projector Connections

USB Device Projection

You can project images and other content without using a computer or video device by connecting any of these devices to your projector:

• USB flash drive

• Digital camera or smartphone

• USB hard drive

• Multimedia storage viewer

• USB memory card reader

Note: Digital cameras or smartphones must be USB-mounted devices, not TWAIN-compliant devices, and must be USB Mass Storage Class-compliant.

Note: USB hard drives must meet these requirements:

• USB Mass Storage Class-compliant (not all USB Mass Storage Class devices are supported)

• Formatted in FAT or FAT32

• Self-powered by their own AC power supplies (bus-powered hard drives are not recommended)

• Avoid using hard drives with multiple partitions

You can project slide shows from image files on a connected USB device or memory card reader.

Parent topic: Connecting to External USB Devices Related topics

Projecting a PC Free Presentation

Connecting a USB Device or Camera to the Projector

You can connect your USB device or camera to the projector's USB-A port and use it to project images and other content.

1. If your USB device came with a power adapter, plug the device into an electrical outlet.

2. Connect the USB cable (or USB flash drive or USB memory card reader) into the projector's USB-A port shown here.

Note: Do not connect a USB hub or a USB cable longer than 10 feet (3 m), or the device may not operate correctly.

3. Connect the other end of the cable (if applicable) to your device.

Parent topic: Connecting to External USB Devices Related topics

Projecting a PC Free Presentation

Selecting the Connected USB Source

You can switch the projector's display to the source you connected to the USB-A port.

1. Make sure the connected USB source is turned on, if necessary.

2. Press the USB button on the remote control.

3. Press the button again to cycle through other USB sources, if available.

Parent topic: Connecting to External USB Devices

Disconnecting a USB Device or Camera From the Projector

When you finish presenting with a connected USB device or camera, you must prepare to disconnect the device from the projector.

1. If the device has a power button, turn off and unplug the device.

2. Disconnect the USB device or camera from the projector.

Parent topic: Connecting to External USB Devices

Connecting to a Document Camera

You can connect a document camera to your projector to project images viewed by the camera.

Depending on your Epson document camera model, do one of the following to connect the document camera to your projector:

• For the Epson DC-06 document camera, locate the USB cable that came with the camera and

connect it to the to the projector's USB-A port and to the document camera's USB Type B port.

• For the Epson DC-11 document camera, connect it to the projector's Computer or Video port and to

the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-12 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

• For the Epson DC-20 document camera, connect it to the projector's HDMI, Computer, or Video port

and to the corresponding port on the document camera. See the document camera manual for details.

Note: For additional features supported by software, connect your document camera to your computer instead of the projector. See the document camera manual for details.

Parent topic: Projector Connections

Installing Batteries in the Remote Control

The remote control uses the two AA batteries that came with the projector. Caution: Use only the type of batteries specified in this manual. Do not install batteries of different types,

or mix new and old batteries.

1. Open the battery cover.

2. Insert the batteries with the + and – ends facing as shown.

3. Close the battery cover and press it down until it clicks into place.

Warning: Dispose of used batteries according to local regulations. Do not expose batteries to heat or flame. Keep batteries out of the reach of children; they are choking hazards and are very dangerous if swallowed.

Parent topic: Setting Up the Projector Related references

Remote Control Specifications

Opening the Lens Cover

1. To open the projector's lens cover, slide the A/V Mute slide lever until it clicks into the open position.

2. To cover the lens or temporarily turn off the projected picture and sound, slide the A/V Mute slide cover closed.

Parent topic: Setting Up the Projector

Using the Projector on a Network

Follow the instructions in these sections to set up your projector for use on a network.

Wired Network Projection Wireless Network Projection Setting Up Projector Network E-Mail Alerts Setting Up Monitoring Using SNMP Controlling a Networked Projector Using a Web Browser

Wired Network Projection

You can send images to your projector through a wired network. To do this, you connect the projector to your network, and then set up your projector and computer for network projection.

After connecting and setting up the projector as described here, install the network software from the Epson Projector Software CD-ROM or download the software as necessary. Use the following software and documentation to set up, control, and monitor network projection:

• EasyMP Network Projection software sets up your computer for network projection. See the EasyMP

Network Projection Operation Guide for instructions.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the

network. You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

• EasyMP Multi PC Projection software allows you to hold interactive meetings by projecting the

computer screens of users over a network. See the EasyMP Multi PC Projection Operation Guide for instructions.

Note: If your projector is connected via a LAN cable to a network that includes a wireless access point, you can connect to the projector wirelessly through the access point using the EasyMP Network Projection software.

Connecting to a Wired Network Selecting Wired Network Settings

Parent topic: Using the Projector on a Network

Connecting to a Wired Network

To connect the projector to a wired local area network (LAN), use a 100Base-TX or 10Base-T network cable. To ensure proper data transmission, use a Category 5 shielded cable or better.

1. Connect one end of the network cable to your network hub, switch, or router.

2. Connect the other end of the cable to the projector's LAN port.

Parent topic: Wired Network Projection

Selecting Wired Network Settings

Before you can project from computers on your network, you must select the network settings for the projector using its menu system.

Note: Make sure you already connected the projector to your wired network using the LAN port.

1. Turn on the projector.

2. Press the Menu button.

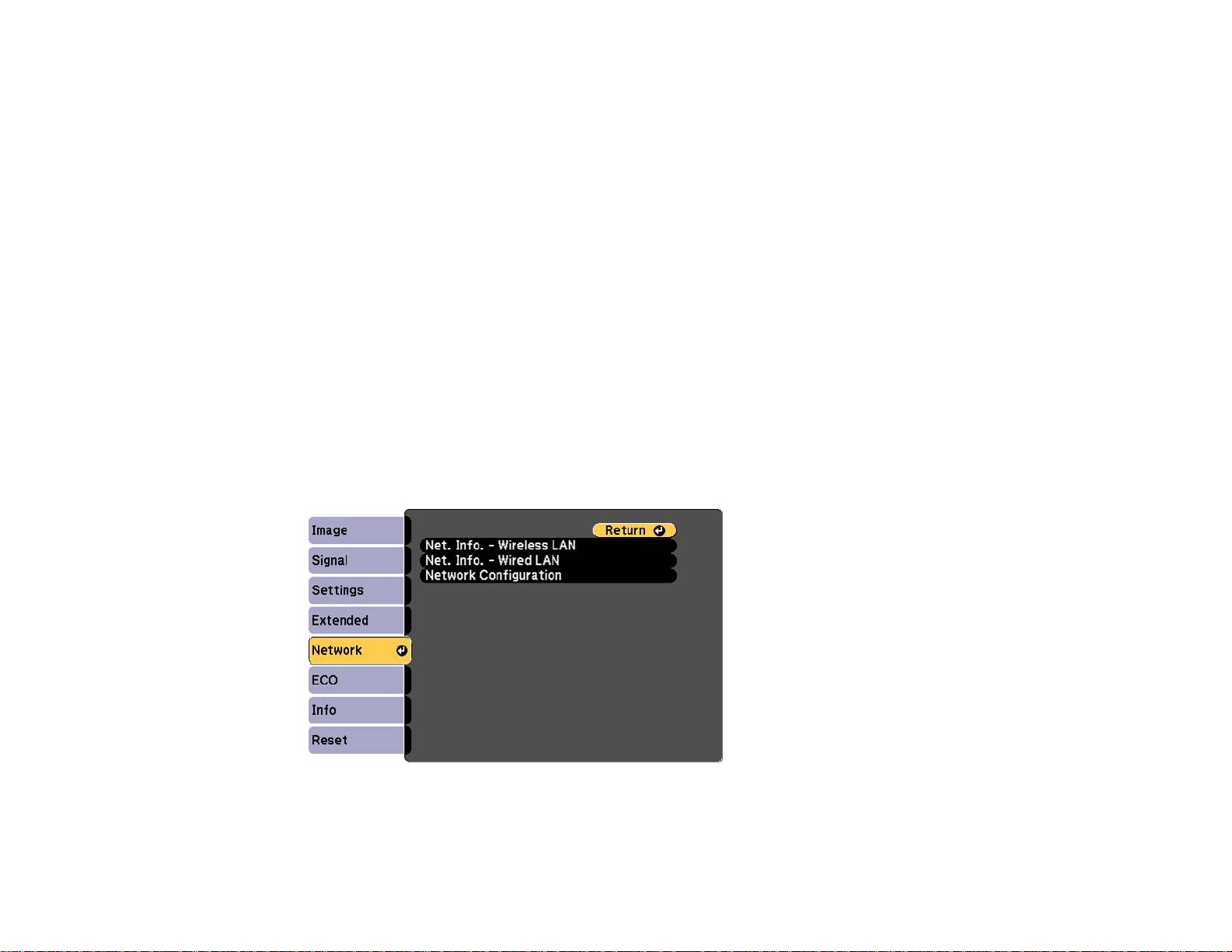

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

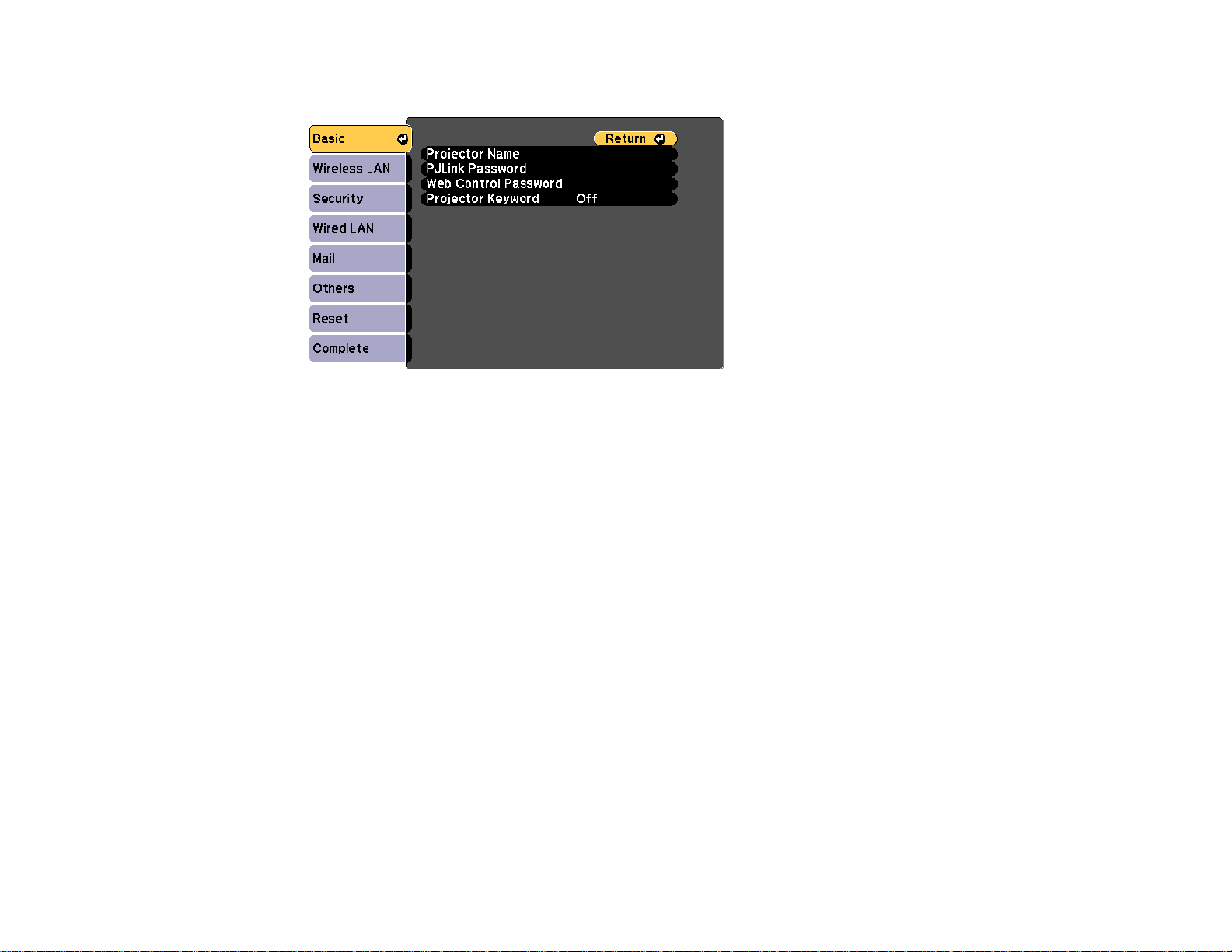

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web.

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Network Projection software to access the projector.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wired LAN menu and press Enter.

8. If necessary, select IP Settings and press Enter.

9. Select your IP Settings as necessary:

• If your network assigns addresses automatically, turn on the DHCP setting.

• If you must set addresses manually, turn off DHCP and enter the projector's IP Address, Subnet

Mask, and Gateway Address as needed.

Note: To highlight the numbers you want from the displayed keyboard, press the arrow buttons on the remote control. To select a highlighted number, press Enter.

10. To prevent display of the IP address on the standby screen, turn off IP Address Display.

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Wired Network Projection

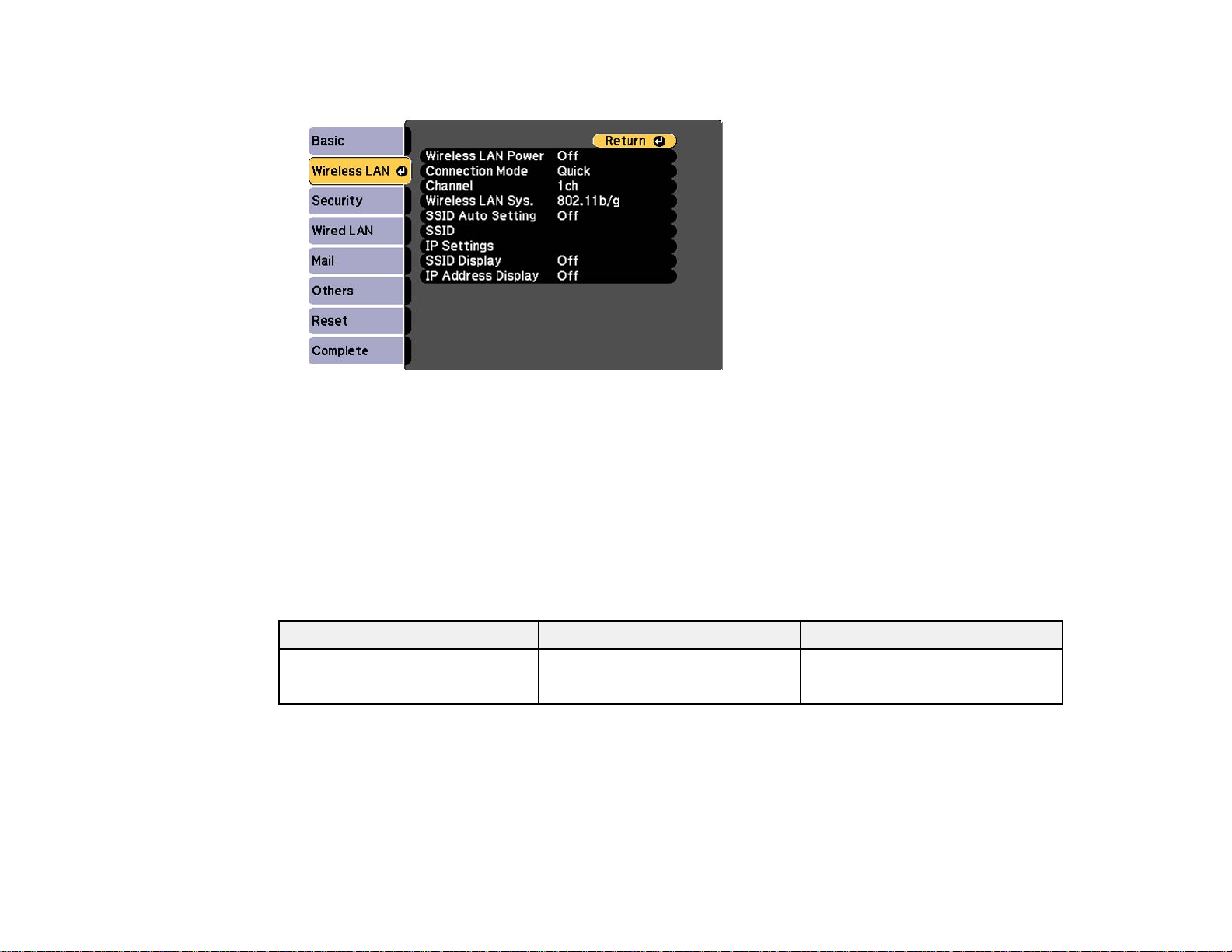

Wireless Network Projection

You can send images to your projector through a wireless network. To do this, you must install the Epson 802.11b/g/n wireless LAN module, and then set up your projector and computer for wireless projection.

Note: The wireless LAN module is not included with all projector models. There are two ways to connect the projector to your wireless network:

• Using the optional Quick Wireless Connection USB Key (Windows only)

• Configuring the connection manually using the projector's Network menus

After installing the module and setting up the projector, install the network software from the Epson Projector Software CD or download the software, as necessary. Use the following software and documentation to set up, control, and monitor wireless projection:

• EasyMP Network Projection software sets up your computer for wireless network projection. See the

EasyMP Network Projection Operation Guide.

• EasyMP Monitor software (Windows only) lets you monitor and control your projector through the

network. You can download the latest software and documentation from the Epson web site. Go to

epson.com/support (U.S.) or epson.ca/support (Canada) and select your projector.

• EasyMP Multi PC Projection software allows you to hold interactive meetings by projecting the

computer screens of users over a network. See the EasyMP Multi PC Projection Operation Guide for instructions.

Installing the Wireless LAN Module Using Quick Wireless Connection (Windows Only) Selecting Wireless Network Settings Manually Selecting Wireless Network Settings in Windows Selecting Wireless Network Settings in Mac OS X Setting Up Wireless Network Security

Parent topic: Using the Projector on a Network

Related references

Optional Equipment and Replacement Parts

Installing the Wireless LAN Module

To use the projector over a wireless network, install the Epson 802.11b/g/n wireless LAN module in the projector. Do not install any other type of wireless module.

1. Remove the wireless LAN module cover screw.

2. Insert the wireless LAN module into the USB-A port.

3. Attach the wireless LAN module cover and secure it using the screw you removed.

The light on the wireless LAN module turns on when the module is installed and operating. The light flashes when the module is communicating over the network.

Parent topic: Wireless Network Projection Related references

Optional Equipment and Replacement Parts

Using Quick Wireless Connection (Windows Only)

You can use the Quick Wireless Connection USB key to quickly connect your computer to the projector wirelessly. Then you can project your presentation and remove the key when you are done.

Note: The Quick Wireless Connection USB key is not included with your projector. Note: Make sure the wireless LAN module is installed. The wireless LAN module is not included with all

projector models.

1. Turn on the projector.

2. Press the LAN button on the remote control. You see a screen like this:

3. Verify that an SSID and IP address are displayed, then remove the wireless LAN module from the projector.

4. Insert the Quick Wireless Connection USB key into the same port used for the wireless LAN module.

You see a projected message that the network information update is complete.

5. Remove the USB key.

6. Reinsert the wireless LAN module into the projector.

7. Now connect the USB key to a USB port on your computer or notebook. Note: In Windows Vista, if you see the AutoPlay window, select Run LaunchQWRD.exe, then

select Allow on the next screen.

8. Follow the on-screen instructions to install the Quick Wireless Connection driver.

Note: If you see a Windows Firewall message, click Yes to disable the firewall for this application.

After a few minutes, your computer image is displayed by the projector. If it does not appear, press the LAN button on your projector remote control or restart your computer.

9. Run your presentation as necessary.

10. When you finish projecting wirelessly, select the Safely Remove Hardware option in the Windows taskbar, then remove the USB key from your computer.

Note: You may need to restart your computer to reactivate your wireless LAN connection.

Parent topic: Wireless Network Projection Related references

Optional Equipment and Replacement Parts

Selecting Wireless Network Settings Manually

Before you can project from your wireless network, you must select the network settings for the projector using its menu system.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Network menu and press Enter.

4. Select Network Configuration and press Enter.

5. Select the Basic menu and press Enter.

6. Select the following basic options as necessary:

• Projector Name lets you enter a name up to 16 alphanumeric characters long to identify the

projector over the network.

• PJLink Password lets you enter a password up to 32 alphanumeric characters long for using the

PJLink protocol for projector control.

• Web Control Password lets you enter a password up to 8 alphanumeric characters long for

accessing the projector over the web. (Default user name is EPSONWEB; default password is admin.)

• Projector Keyword lets you turn on a security password to prevent access to the projector by

anyone not in the room with it. You must enter a displayed, randomized keyword from a computer using the EasyMP Network Projection software to access the projector.

Note: Use the displayed keyboard to enter the name, passwords and keyword. Press the arrow buttons on the remote control to highlight characters and press Enter to select them.

7. Select the Wireless LAN menu and press Enter.

8. Select the settings on the Wireless LAN menu as necessary for your network.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

After you complete the wireless settings for your projector, you need to select the wireless network on your computer.

Wireless LAN Menu Settings

Parent topic: Wireless Network Projection

Wireless LAN Menu Settings

Setting Options Description Wireless LAN Power On Turns on wireless LAN support

Off

Setting Options Description Connection Mode Quick Selects the type of wireless

Advanced

connection: Quick: lets you quickly connect

to one computer or use the optional Quick Wireless Connection USB Key to connect

Advanced: lets you connect to multiple computers via a wireless network access point

Channel 1ch In Quick connection mode,

6ch 11ch

selects the frequency band (channel) used by the wireless LAN

Wireless LAN Sys. 802.11b/g Sets the type of wireless LAN

802.11b/g/n

system the projector is connecting to

SSID Auto Setting On Turns on automatic SSID

Off

searching in Quick connection mode; set to Off when connecting to multiple projectors at the same time

SSID Up 32 alphanumeric characters Sets the SSID (network name) of

the wireless LAN system the projector is connecting to

IP Settings DHCP (On or Off) Selects DHCP if your network

IP Address Subnet Mask Gateway Address

assigns addresses automatically, or turns off DHCP so you can enter the network's IP address, subnet mask, and gateway address as needed

SSID Display On Selects whether to display the

Off

SSID on the network standby screen

Setting Options Description IP Address Display On Selects whether to display the IP

Off

Parent topic: Selecting Wireless Network Settings Manually

Selecting Wireless Network Settings in Windows

Before connecting to the projector, select the correct wireless network on your computer.

1. To access your wireless utility software, double-click the network icon on the Windows taskbar.

2. Do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

3. Click Connect.

Parent topic: Wireless Network Projection

Selecting Wireless Network Settings in Mac OS X

Before connecting to the projector, select the correct wireless network in Mac OS X.

address on the network standby screen

1. Click the AirPort icon on the menu bar at the top of the screen.

2. Make sure AirPort is turned on, then do one of the following:

• If your projector is set up on an existing network (Advanced mode), select the network name

(SSID).

• If your projector is configured for Quick mode, select the projector's SSID.

Parent topic: Wireless Network Projection

Setting Up Wireless Network Security

You can set up security for your projector to use on the wireless network. Set up one of the following security options to match the settings used on your network:

• WEP encryption

• WPA security

Note: Check with your network administrator for guidance on entering the correct information.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Security menu and press Enter.

5. Select the security settings as necessary to match your network settings.

6. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Wireless Security Menu Settings

Parent topic: Wireless Network Projection

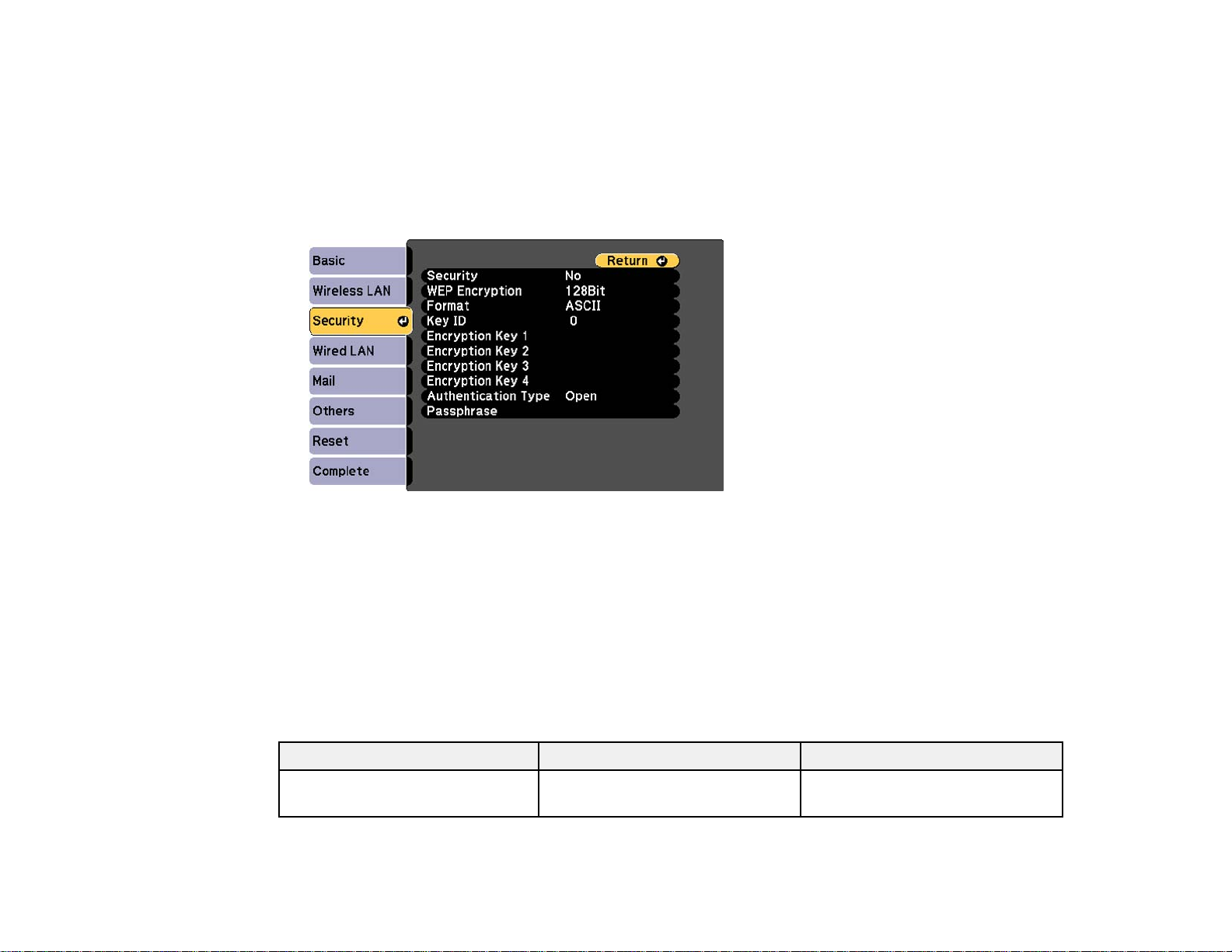

Wireless Security Menu Settings

Settings on the Security menu let you select the type of security and security settings that match the network you are connecting the projector to.

Setting Options Description Security WEP and WPA types available Selects the type of security used

on the wireless network

Setting Options Description WEP Encryption 128Bit For WEP security, selects the

64Bit

Format ASCII For WEP security, selects the

HEX

Key ID 1 to 4 For WEP security, selects the

Encryption Key 1 to Various characters depending on For the selected WEP Key ID Encryption Key 4

selected WEP Encryption and setting,enterthekeyusedfor Format settings WEP encryption:

type of encryption coding

encryption input method:

ASCII: enables text input HEX: enables hexadecimal input

WEP encryption key ID

128 bit ASCII: 13 alphanumeric characters

128 bit HEX: 26 characters (0 to 9 and A to F)

64 bit ASCII: 5 alphanumeric characters

64 bit HEX: 10 characters (0 to 9 and A to F)

Authentication Type Open For WEP security, selects the

Shared

Passphrase Various keys from 8 to 32 For WPA-PSK or WPA2-PSK

characters security,selectsthepre-shared

Parent topic: Setting Up Wireless Network Security

Setting Up Projector Network E-Mail Alerts

You can set up the projector to send you an e-mail alert over the network if there is a problem with the projector.

1. Press the Menu button.

type of WEP authentication used

key used on the network

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Mail menu and press Enter.

5. Turn on Mail Notification.

6. Enter the IP address for the SMTP Server option.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

7. Select a number for the SMTP server Port Number, from 1 to 65535 (default is 25).

8. Choose an Address field, enter the e-mail address, and select the alerts you want to receive there. Repeat for up to three addresses.

Note: Your e-mail address can be up to 32 alphanumeric characters long.

9. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert.

Network Projector E-mail Alert Messages

Parent topic: Using the Projector on a Network

Network Projector E-mail Alert Messages

When a problem occurs with a networked projector, and you selected to receive e-mail alerts, you receive an e-mail containing the following information:

• Epson Projector on the subject line

• The name of the projector experiencing a problem

• The IP address of the affected projector

• Detailed information about the problem

Note: If a critical problem causes a projector to shut down, you may not receive an e-mail alert. Parent topic: Setting Up Projector Network E-Mail Alerts

Setting Up Monitoring Using SNMP

Network administrators can install SNMP (Simple Network Management Protocol) software on network computers so they can monitor projectors. If your network uses this software, you can set up the projector for SNMP monitoring.

1. Press the Menu button.

2. Select the Network menu and press Enter.

3. Select Network Configuration and press Enter.

4. Select the Others menu and press Enter.

5. Enter up to two IP addresses to receive SNMP notifications, using 0 to 255 for each address field.

Note: To enter the IP address using the numeric keys on the remote control, press and hold the Num button. Do not use these addresses: 127.x.x.x or 224.0.0.0 through 255.255.255.255 (where x

is a number from 0 to 255).

6. If available, select the Priority Gateway setting for your network.

7. If your network environment uses an AMX controller, turn on the AMX Device Discovery setting to allow the projector to be detected.

8. If your network environment uses a Crestron RoomView controller, turn on the Crestron RoomView setting to allow the projector to be detected.

Note: Enabling Crestron RoomView disables the Epson Message Broadcast feature in the EasyMP Monitor software.

9. If you are connecting to a network using Bonjour, turn on the Bonjour setting.

10. If you want this projector to receive broadcasted messages over the network, turn on the Message Broadcasting setting. Administrators can broadcast messages over the network using the Message Broadcasting plug-in for EasyMP Monitor (Windows only).

11. When you finish selecting settings, select Complete and follow the on-screen instructions to save your settings and exit the menus.

Parent topic: Using the Projector on a Network

Controlling a Networked Projector Using a Web Browser

Once you have connected your projector to your network, you can select projector settings and control projection using a compatible web browser. This lets you access the projector remotely.

Note: The web setup and control features support Microsoft Internet Explorer 8.0 or later, and Safari on networks that do not use a proxy server for connection. You cannot select all of the projector menu settings or control all projector functions using a web browser.

Note: If you set Standby Mode to Communication On, you can use a web browser to select settings and control projection even if the projector is in standby mode.

1. Make sure the projector is turned on.

2. Start your web browser on a computer connected to the network.

3. Type the projector's IP address into the browser's address box and press the computer's Enter key. You see the Web Control screen.

Note: You may need to log in before you see the Web Control screen. If you see a log in window, enter your user name and password. (The default user name is EPSONWEB and the default password is admin.)

4. To select projector menu settings, select the name of the menu and follow the on-screen instructions to select settings.

5. To control projection remotely, select the Web Remote option. You see a screen like this:

1 Power button control 2 Selects Computer port source 3 Selects Video, S-Video, and HDMI port sources 4 Freeze button control 5 A/V Mute button control 6 Page Up and Page Down button controls 7 Searches for sources 8 Selects the network source 9 Selects the USB Display or USB device source 10 Volume button controls 11 Closed Caption control

6. Select the icon corresponding to the projector function you want to control.

Parent topic: Using the Projector on a Network Related references

Projector Setup Settings - ECO Menu

Using Basic Projector Features

Follow the instructions in these sections to use your projector's basic features.

Turning On the Projector Turning Off the Projector Selecting the Language for the Projector Menus Adjusting the Image Height Image Shape Resizing the Image With the Zoom Ring Focusing the Image Using the Focus Ring Remote Control Operation Selecting an Image Source Projection Modes Image Aspect Ratio Color Mode Controlling the Volume with the Volume Buttons Projecting a PC Free Presentation

Turning On the Projector

Turn on the computer or video equipment you want to use before you turn on the projector so it can display the image source.

1. Open the projector's lens cover.

2. Connect the power cord to the projector's power inlet.

3. Plug the power cord into an electrical outlet. The projector's power light turns blue. This indicates that the projector is receiving power.

Note: With Direct Power On turned on, the projector turns on as soon as you plug it in.

4. Press the power button on the projector or the remote control to turn on the projector. The projector beeps and the Status light flashes blue as the projector warms up. Once the projector

is warmed up, the Status light stops flashing and turns blue. Warning: Never look into the projector lens when the lamp is on. This can damage your eyes and is

especially dangerous for children.

If you do not see a projected image right away, try the following:

• Turn on the connected computer or video device.

• Insert a DVD or other video media and press the play button, if necessary.

• Press the Source Search button on the projector or remote control to detect the video source.

Parent topic: Using Basic Projector Features

Related references

Projector Setup Settings - Extended Menu

Related tasks

Selecting an Image Source

Turning Off the Projector

Before turning off the projector, shut down any computer connected to it so you can see the computer display during shutdown.

Note: Turn off this product when not in use to prolong the life of the projector. Lamp life will vary depending upon mode selected, environmental conditions, and usage. Brightness decreases over time.

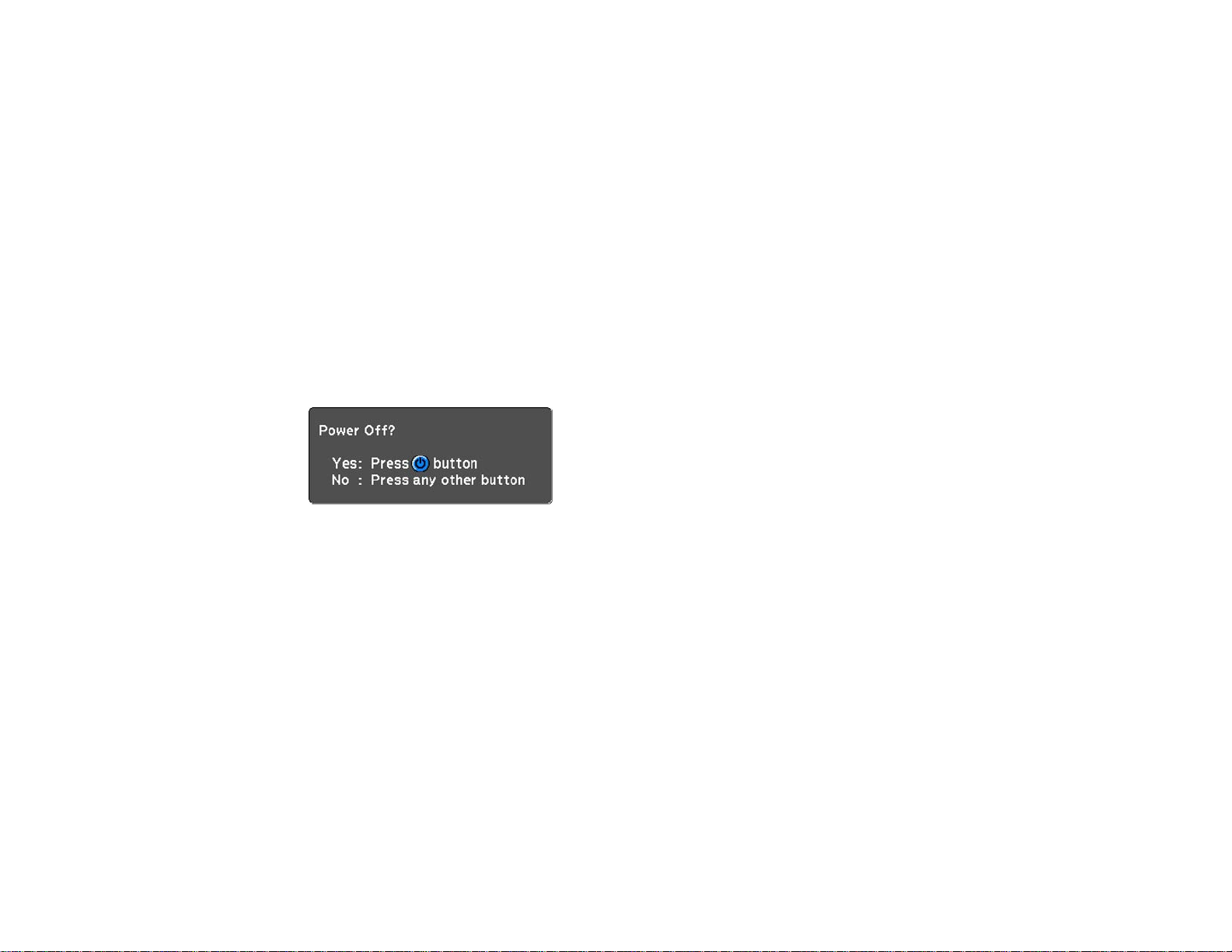

1. Press the power button on the projector or the remote control. The projector displays a shutdown confirmation screen.

2. Press the power button again. (To leave it on, press any other button.) The projector beeps twice, the lamp turns off, and the Status light turns off.

Note: With Epson's Instant Off technology, there is no cool-down period so you can pack up the projector for transport right away (if necessary).

Caution: Do not turn the projector on immediately after turning it off. Turning the projector on and off frequently may shorten the life of the lamp.

3. To transport or store the projector, make sure the Status light is off, then unplug the power cord.

Caution: To avoid damaging the projector or lamp, never unplug the power cord when the Status light is on or flashing.

4. Close the projector's lens cover.

Parent topic: Using Basic Projector Features Related concepts

Image Shape

Selecting the Language for the Projector Menus

If you want to view the projector's menus and messages in another language, you can change the Language setting.

1. Turn on the projector.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Language setting and press Enter.

5. Select the language you want to use and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Using Basic Projector Features

Adjusting the Image Height

If you are projecting from a table or other flat surface, and the image is too high or low, you can adjust the image height using the projector's adjustable feet.

1. Turn on the projector and display an image.

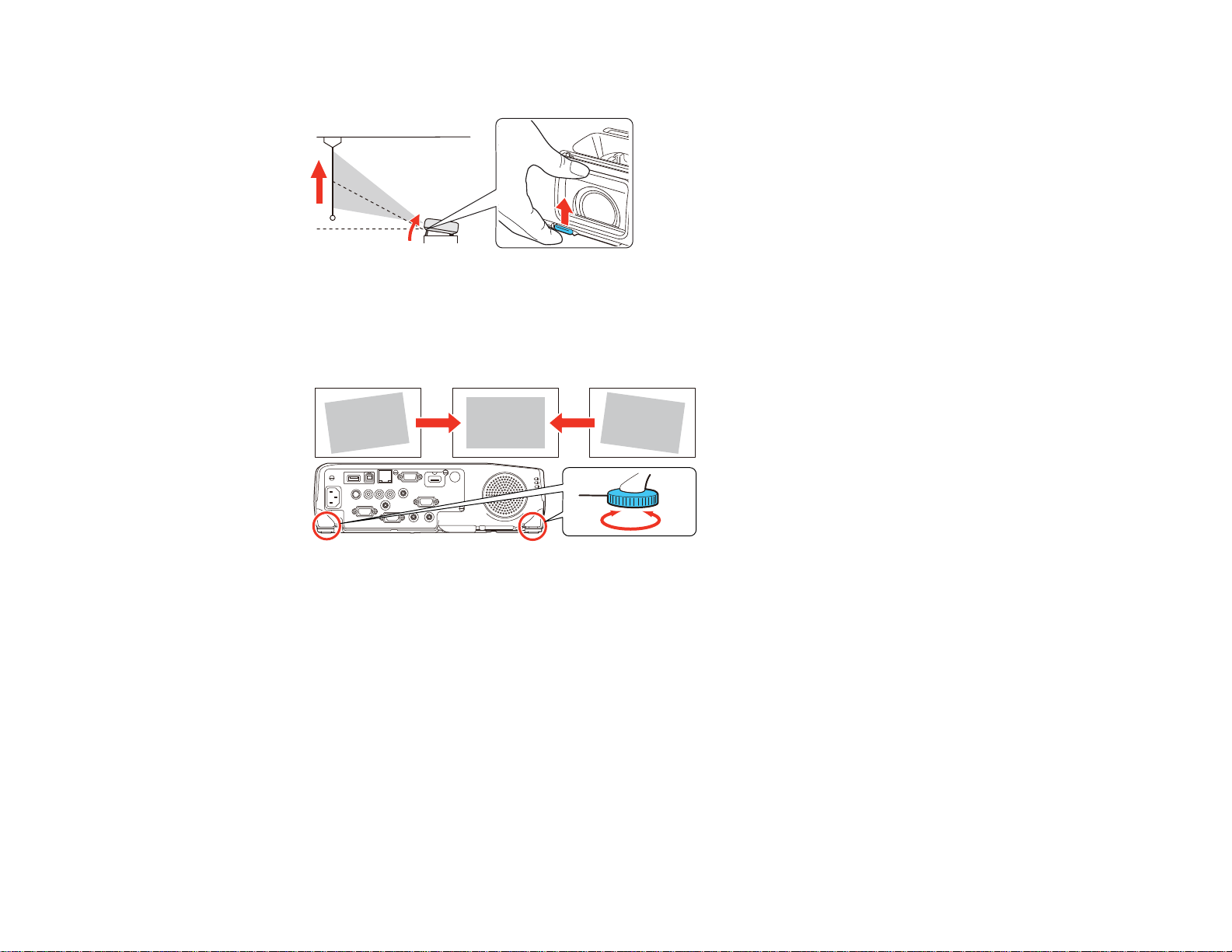

2. To adjust the front foot, pull up on the foot release lever and lift the front of the projector.

The foot extends from the projector.

3. Release the lever to lock the foot.

4. If the image is tilted, rotate the rear feet to adjust their height.

If the projected image is unevenly rectangular, you need to adjust the image shape.

Parent topic: Using Basic Projector Features

Image Shape

You can project an evenly rectangular image by placing the projector directly in front of the center of the screen and keeping it level. If you place the projector at an angle to the screen, or tilted up or down, or off to the side, you may need to correct the image shape for the best display quality.

When you turn on automatic keystone correction in your projector's Settings menu, your projector automatically corrects vertical keystone effects when you reposition the projector.

Correcting Image Shape with the Horizontal Keystone Slider Correcting Image Shape with the Keystone Buttons

Correcting Image Shape with Quick Corner

Parent topic: Using Basic Projector Features

Correcting Image Shape with the Horizontal Keystone Slider

You can use the projector's horizontal keystone slider to correct the shape of an image that is unevenly rectangular horizontally, such as when the projector is placed to the side of the projection area.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

2. Adjust the slider until the image is evenly rectangular.

After correction, your image is slightly smaller.

Parent topic: Image Shape Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with the Keystone Buttons

You can use the projector's keystone correction buttons to correct the shape of an image that is unevenly rectangular on the sides.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu.

Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

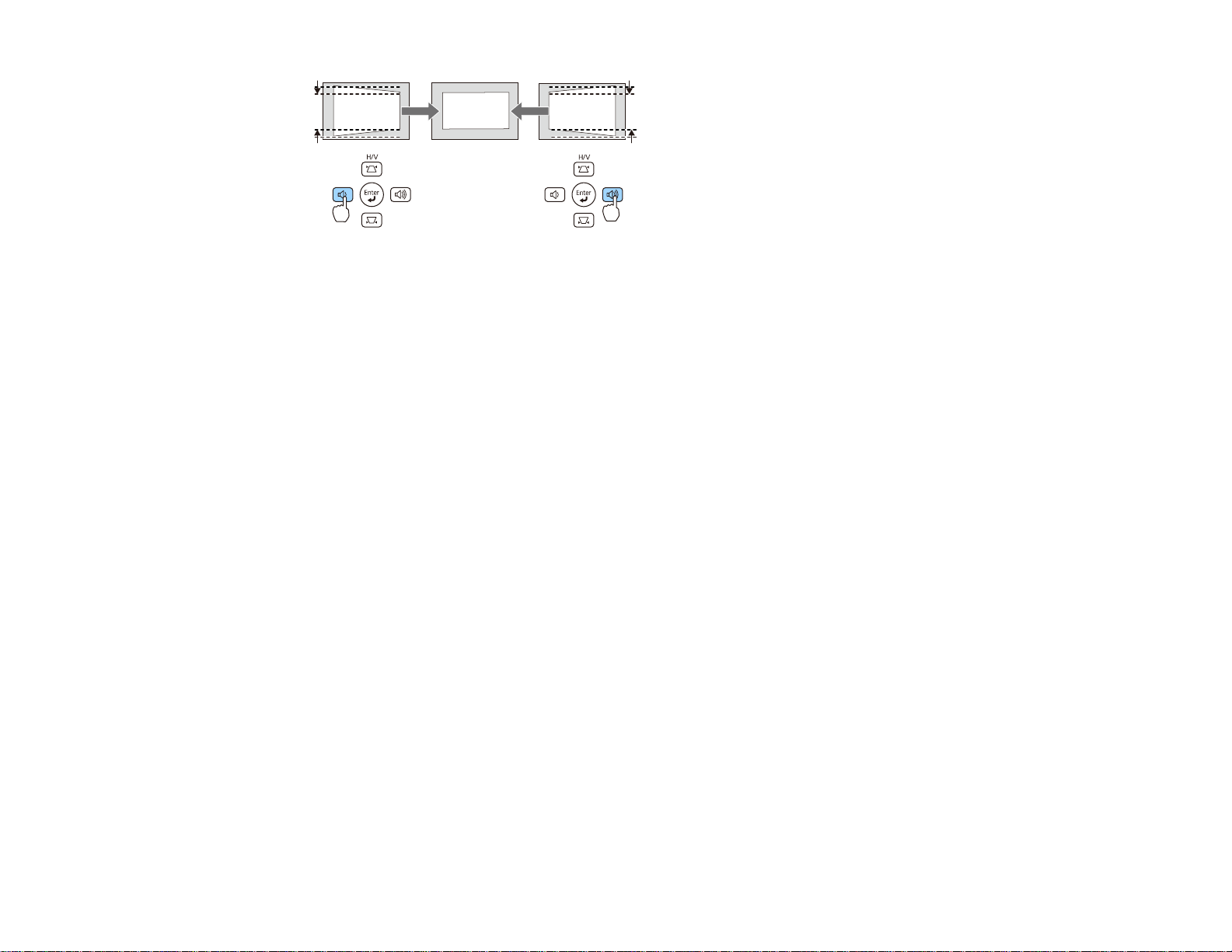

2. Press one of these keystone buttons on the control panel to display the Keystone adjustment screen.

3. Press a keystone button on the projector's control panel to adjust the image shape.

After correction, your image is slightly smaller. Note: If the projector is installed out of reach, you can also correct the image shape with the remote

control using the Keystone settings in the projector menus.

Parent topic: Image Shape Related references

Projector Feature Settings - Settings Menu

Correcting Image Shape with Quick Corner

You can use the projector's Quick Corner setting to correct the shape and size of an image that is unevenly rectangular on all sides.

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

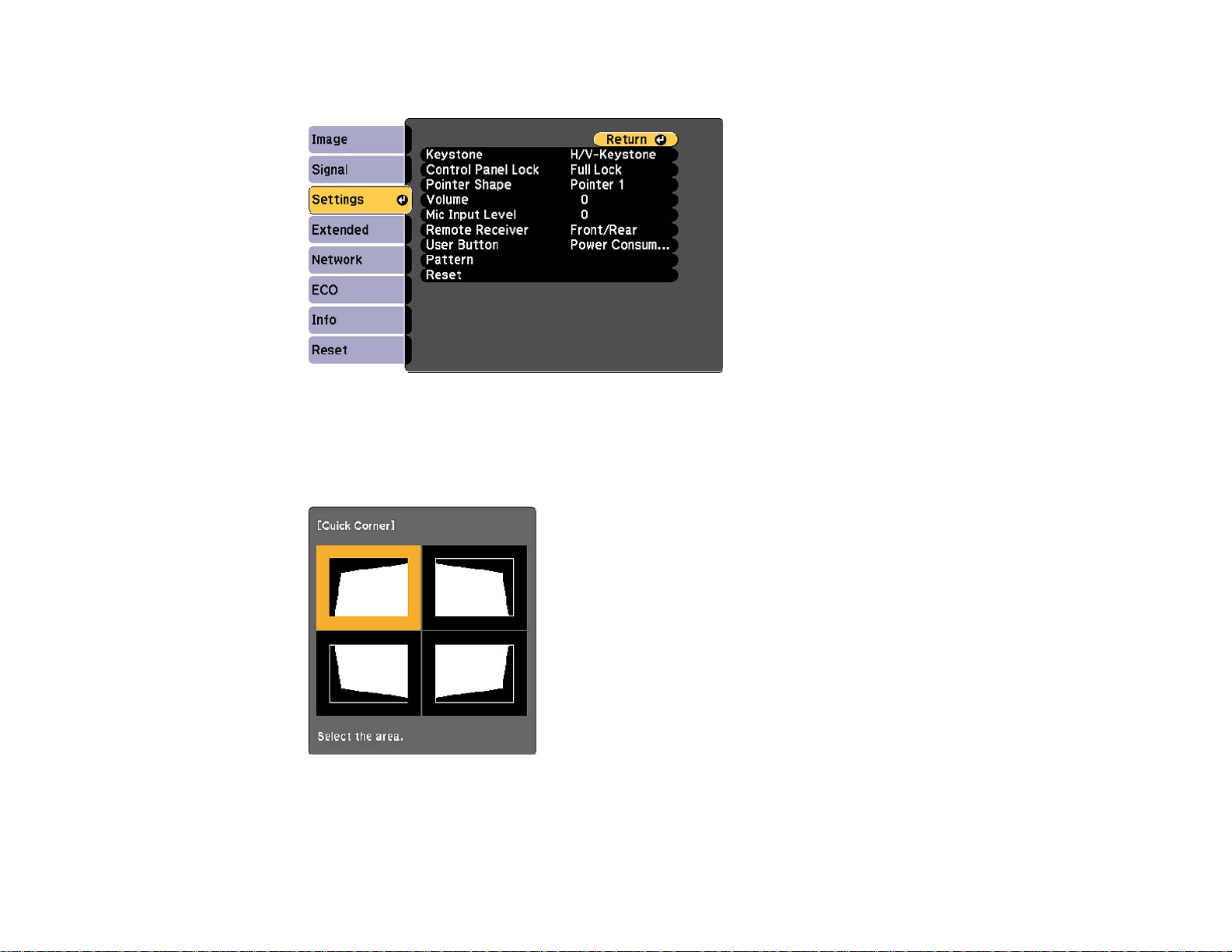

2. Press the Menu button.

3. Select the Settings menu and press Enter.

4. Select the Keystone setting and press Enter.

5. Select the Quick Corner setting and press Enter. Then press Enter again. You see the Quick Corner adjustment screen:

6. Use the arrow buttons on the projector or the remote control to select the corner of the image you want to adjust. Then press Enter.

7. Press the arrow buttons to adjust the image shape as necessary.

8. When you are finished, press Esc.

Parent topic: Image Shape Related references

Projector Feature Settings - Settings Menu

Resizing the Image With the Zoom Ring

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

2. To enlarge or reduce the image size, rotate the projector's zoom ring.

Parent topic: Using Basic Projector Features Related references

Projector Feature Settings - Settings Menu

Focusing the Image Using the Focus Ring

1. Turn on the projector and display an image.

Note: You can display a pattern to aid in adjusting the projected image using the Settings menu. Note: You can also display the pattern by pressing the User button on the remote control (if the test

pattern is assigned to this button).

2. To sharpen the image focus, rotate the projector’s focus ring.

Parent topic: Using Basic Projector Features Related references

Projector Feature Settings - Settings Menu

Remote Control Operation

The remote control lets you control the projector from almost anywhere in the room. You can point it at the screen, or the front or back of the projector.

Make sure that you aim the remote control at the projector's receivers within the distance and angles listed here.

1 19.7 feet (6 m) 2 ± 30° 3 ± 15°

Note: Avoid using the remote control in conditions with bright fluorescent lights or in direct sunlight, or the projector may not respond to commands. If you will not use the remote control for a long time, remove the batteries.

Using the Remote Control as a Wireless Mouse Using the Remote Control as a Pointer

Parent topic: Using Basic Projector Features Related tasks

Replacing the Remote Control Batteries

Using the Remote Control as a Wireless Mouse

You can use the projector's remote control as a wireless mouse so you can control projection at a distance from the computer.

1. Connect the projector to a computer using the projector's USB-B, Computer, or HDMI port to display video.

2. If you connected your computer to the Computer or HDMI port, also connect a USB cable to the projector's USB-B port and to a USB port on your computer (for wireless mouse support).

3. Start your presentation.

4. Use the following buttons on the remote control to control your presentation:

• To move through slides or pages, press the up or down Page buttons.

• To move the cursor on the screen, use the arrow buttons.

• To left-click, press the button once (press it twice to double-click).

• To right-click, press the Esc button.

• To drag-and-drop, hold the button as you move the cursor with the arrow buttons, then release

at the destination.

Parent topic: Remote Control Operation Related tasks

Connecting to a Computer for USB Mouse Control

Using the Remote Control as a Pointer

You can use the projector's remote control as a pointer to help you call out important information on the screen. The default pointer shape is an arrow, but you can select an alternative shape using the Settings menu.

1. Press the Pointer button on the remote control.

2. Use the arrow buttons on the remote control to move the pointer on the screen.

3. Press Esc to clear the pointer from the screen.

Parent topic: Remote Control Operation Related references

Projector Feature Settings - Settings Menu

Selecting an Image Source

If you connected multiple image sources to the projector, such as a computer and DVD player, you may want to switch from one image source to the other.

1. Make sure the connected image source you want to use is turned on.

2. For video image sources, insert a DVD or other video media and press its play button, if necessary.

3. Do one of the following:

• Press the Source Search button on the projector or remote control until you see the image from

the source you want.

• Press the button for the source you want on the remote control. If there is more than one port for

that source, press the button again to cycle through the sources.

1 Computerportsources 2 VideoandHDMIsources 3 USBportsources(computerdisplayandexternaldevices) 4 Networksource

Parent topic: Using Basic Projector Features

Projection Modes

Depending on how you positioned the projector, you may need to change the projection mode so your images project correctly.

• Front (default setting) lets you project from a table in front of the screen.

• Front/Ceiling flips the image over top-to-bottom to project upside-down from a ceiling or wall mount.

• Rear flips the image horizontally to project from behind a translucent screen.

• Rear/Ceiling flips the image over top-to-bottom and horizontally to project from the ceiling and behind

a translucent screen.

Changing the Projection Mode Using the Remote Control Changing the Projection Mode Using the Menus

Parent topic: Using Basic Projector Features

Changing the Projection Mode Using the Remote Control

You can change the projection mode to flip the image over top-to-bottom.

1. Turn on the projector and display an image.

2. Hold down the A/V Mute button on the remote control for five seconds.

The image disappears briefly and reappears flipped top-to-bottom.

3. To change projection back to the original mode, hold down the A/V Mute button for five seconds again.

Parent topic: Projection Modes

Changing the Projection Mode Using the Menus

You can change the projection mode to flip the image over top-to-bottom and/or left-to-right using the projector menus.

1. Turn on the projector and display an image.

2. Press the Menu button.

3. Select the Extended menu and press Enter.

4. Select the Projection setting and press Enter.

5. Select a projection mode and press Enter.

6. Press Menu or Esc to exit the menus.

Parent topic: Projection Modes

Image Aspect Ratio

The projector can display images in different width-to-height ratios called aspect ratios. Normally the input signal from your video source determines the image's aspect ratio. However, for certain images you can change the aspect ratio to fit your screen by pressing a button on the remote control.

If you always want to use a particular aspect ratio for a certain video input source, you can select it using the projector's menus.

Changing the Image Aspect Ratio Available Image Aspect Ratios

Parent topic: Using Basic Projector Features Related references

Input Signal Settings - Signal Menu

Changing the Image Aspect Ratio

You can change the aspect ratio of the displayed image to resize it.

1. Turn on the projector and switch to the image source you want to use.

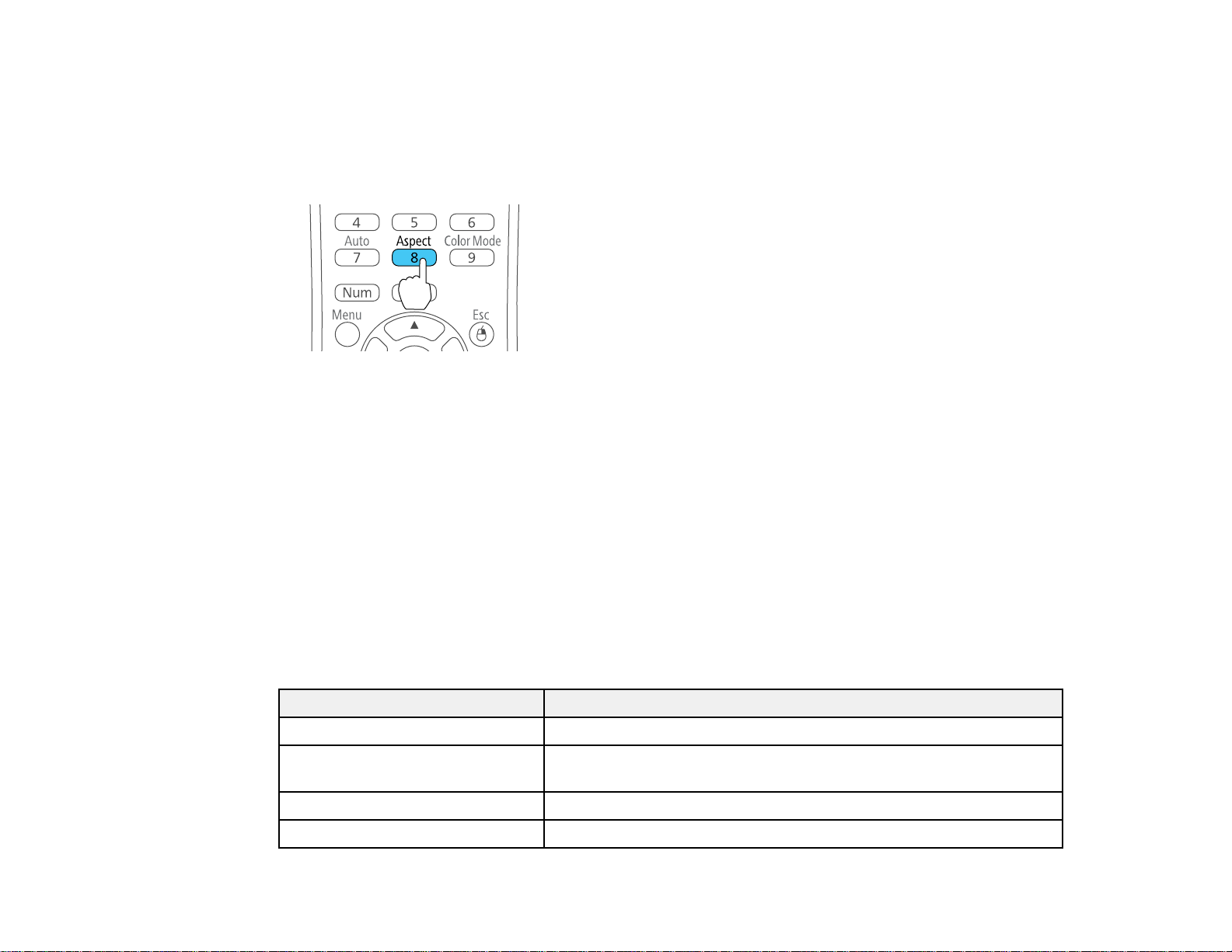

2. Press the Aspect button on the remote control.

The shape and size of the displayed image changes, and the name of the aspect ratio appears briefly on the screen.

3. To cycle through the available aspect ratios for your input signal, press the Aspect button repeatedly.

Parent topic: Image Aspect Ratio

Available Image Aspect Ratios

You can select the following image aspect ratios, depending on the input signal from your image source. Note: Black bands and cropped images may project in certain aspect ratios, depending on the aspect

ratio and resolution of your input signal.

PowerLite 97/98/965

Aspect ratio setting Description Auto Automatically sets the aspect ratio according to the input signal. Normal Displays images using the full projection area and maintains the

aspect ratio of the image.

4:3 Displays images using the full projection area at 4:3 aspect ratio. 16:9 Converts the aspect ratio of the image to 16:9.

PowerLite 99W/955W

Aspect ratio setting Description Auto Automatically sets the aspect ratio according to the input signal. Normal Displays images using the full projection area and maintains the

16:9 Converts the aspect ratio of the image to 16:9. Zoom Displays images using the full width of the projection area and

Full Displays images using the full width of the projection area, but does

Native Displays images as is (aspect ratio and resolution are maintained).

Note: The Auto aspect ratio setting is available only for HDMI image sources. Parent topic: Image Aspect Ratio

Color Mode

The projector offers different Color Modes to provide optimum brightness, contrast, and color for a variety of viewing environments and image types. You can select a mode designed to match your image and environment, or experiment with the available modes.

aspect ratio of the image.

maintains the aspect ratio of the image.

not maintain the aspect ratio.

If you always want to use a particular color mode for a certain video input source, you can select it using the projector menus.

Changing the Color Mode Available Color Modes Turning On Auto Iris

Parent topic: Using Basic Projector Features Related references

Image Quality Settings - Image Menu

Changing the Color Mode

You can change the projector's Color Mode using the remote control to optimize the image for your viewing environment.

1. Turn on the projector and switch to the image source you want to use.

2. If you are projecting from a DVD player or other video source, insert a disc or other video media and press the play button, if necessary.

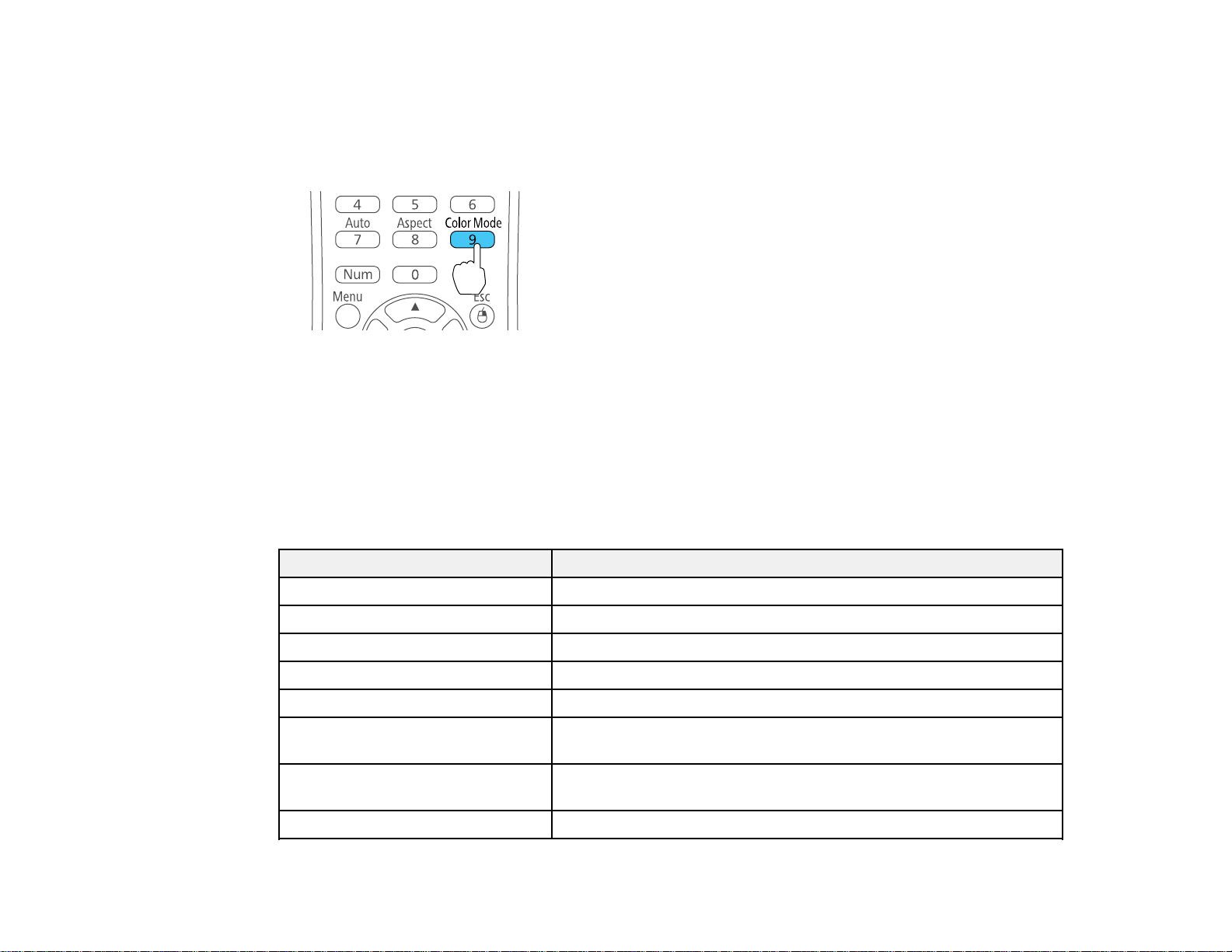

3. Press the Color Mode button on the remote control to change the Color Mode.

The image appearance changes and the name of the Color Mode appears briefly on the screen.

4. To cycle through all the available Color Modes for your input signal, press the Color Mode button repeatedly.

Parent topic: Color Mode

Available Color Modes

You can set the projector to use these Color Modes, depending on the input source you are using:

Color Mode Description Presentation Best for color presentations in a bright room Dynamic Best for projecting in a bright room Theatre Best for movies projected in a dark room Sports Best for television images in a bright room sRGB Bestfor standard sRGB computer displays Blackboard Best for presentations onto a green chalkboard (adjusts the colors

accordingly)

Whiteboard Best for presentations onto a whiteboard (adjusts the colors

accordingly)

Photo Best for still images projected in a bright room

Parent topic: Color Mode

Turning On Auto Iris

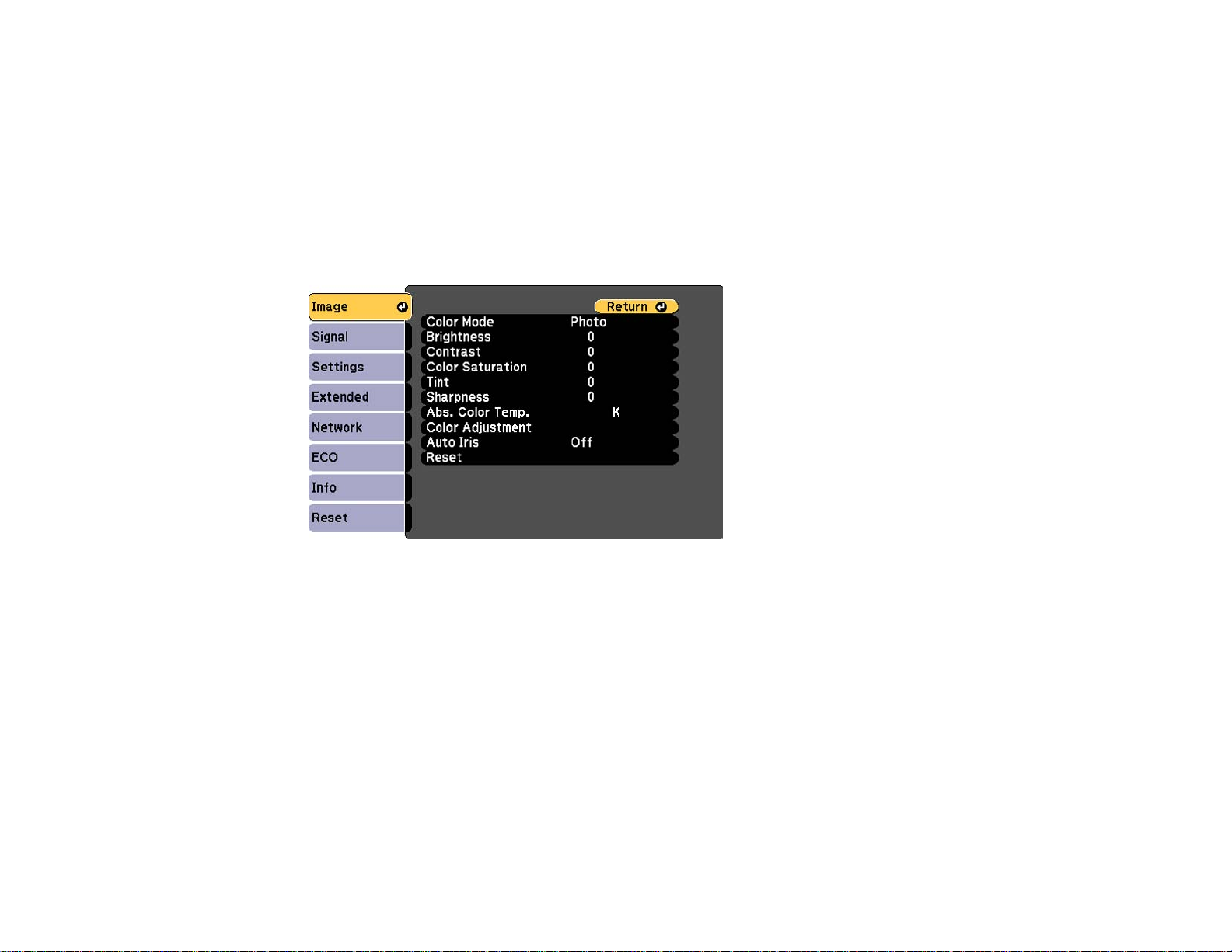

In certain color modes, you can turn on the Auto Iris setting to automatically optimize the image based on the brightness of the content you project.

1. Turn on the projector and switch to the image source you want to use.

2. Press the Menu button.

3. Select the Image menu and press Enter.

4. Select the Auto Iris setting and choose one of the following:

• High Speed to adjust brightness as soon as the scene changes.

• Normal for standard brightness adjustment.

Note: You can set Auto Iris for each Color Mode that supports the feature. You cannot change the Auto Iris setting when you are using a Closed Caption setting.

5. Press Menu or Esc to exit the menus.

Parent topic: Color Mode

Controlling the Volume with the Volume Buttons

You can use the Volume buttons on the projector or the remote control to adjust the volume as you project a presentation with audio. The volume buttons control the projector’s internal speaker system or any external speakers you connected to the projector.

You must adjust the volume separately for each connected input source.

1. Turn on the projector and start a presentation that includes audio.

2. To lower or raise the volume, press the Volume buttons on the remote control or these buttons on the control panel.

A volume gauge appears on the screen.

3. To set the volume to a specific level for an input source, use the projector menus.

Parent topic: Using Basic Projector Features Related references

Projector Parts - Control Panel Projector Feature Settings - Settings Menu

Projecting a PC Free Presentation

You can use your projector's PC Free feature whenever you connect a USB device that contains compatible image or movie files. This lets you quickly and easily display and control them using the projector's remote control. You can also display a slide show of the images.

Supported PC Free File Types Starting a PC Free Slide Show Starting a PC Free Movie Presentation

PC Free Display Options

Parent topic: Using Basic Projector Features Related concepts

USB Device Projection

Related tasks

Connecting a USB Device or Camera to the Projector

Supported PC Free File Types

You can project these types of files using the projector's PC Free feature. Note: For best results, place your files on media that is formatted in FAT16/32. If you have trouble

projecting from media formatted for non-Windows file systems, try formatting the media for Windows instead. You may not be able to use the security features on certain USB storage devices with PC Free features.

File contents File type Details

(extension)

Image .jpg Make sure the file is not:

• CMYK format

• Progressive format

• Highly compressed

• Above 8192 × 8192 resolution .bmp Make sure the file resolution is not above 1280 × 800 .gif Make sure the file is not:

• Above 1280 × 800 resolution

• Animated .png Make sure the file resolution is not above 1280 × 800

Movie .avi Make sure the file is not:

• Saved with an audio codec other than linear PCM or ADPCM

• Above 1280 × 720 resolution

Parent topic: Projecting a PC Free Presentation

Starting a PC Free Slide Show

After connecting a USB device or digital camera to the projector, you can switch to the USB input source and start your slide show.

Note: You can change the PC Free operation options or add special effects by highlighting Option at the bottom of the screen and pressing Enter.

1. Press the USB button on the projector remote control. The PC Free screen appears.

2. Do the following as necessary to locate your files:

• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight

the folder and press the Enter button.

• To move back up a folder level on your device, highlight Back to Top and press Enter.

• To view additional files in a folder, highlight Next page or Previous page and press Enter, or

press the Page up or down buttons on the remote control.

3. Do one of the following:

• To display an individual image, press the arrow buttons to highlight the image and press Enter.

(Press the Esc button to return to the file list screen.)

• To display a slide show of all the images in a folder, press the arrow buttons to highlight the

Slideshow option at the bottom of the screen and press Enter.

Note: If any file names are longer than 8 characters or include unsupported symbols, the file names

may be shortened or changed only in the screen display.

4. While projecting, use the following commands to control the display as necessary:

• To rotate a displayed image, press the up or down arrow button.

• To move to the next or previous image, press the left or right arrow button.

5. To stop the display, follow the on-screen instructions or press the Esc button.

Parent topic: Projecting a PC Free Presentation Related tasks

Connecting a USB Device or Camera to the Projector Disconnecting a USB Device or Camera From the Projector

Starting a PC Free Movie Presentation

After connecting a USB device or digital camera to the projector, you can switch to the USB input source and start your movie.

Note: You can change the PC Free operation options by highlighting Option at the bottom of the screen and pressing Enter.

1. Press the USB button on the projector remote control. The PC Free screen appears.

2. Do the following as necessary to locate your files:

• If you need to display files inside a subfolder on your device, press the arrow buttons to highlight

the folder and press the Enter button.

• To move back up a folder level on your device, highlight Back to Top and press Enter.

• To view additional files in a folder, highlight Next page or Previous page and press Enter, or

press the Page up or down buttons on the remote control.

3. To play back a movie, press the arrow buttons to highlight the file and press Enter. Note: If any file names are longer than 8 characters or include unsupported symbols, the file names

may be shortened or changed only in the screen display. If you want to play back all the movies in a folder in sequence, select the Slideshow option at the bottom of the screen.

4. To stop movie playback, press the Esc button, highlight Exit, and press Enter.

Parent topic: Projecting a PC Free Presentation Related tasks

Connecting a USB Device or Camera to the Projector Disconnecting a USB Device or Camera From the Projector

PC Free Display Options

You can select these display options when using the projector's PC Free feature.

Setting Options Description Display Order Name Order Displays files in name order

Sort Order In Ascending Sorts files in first-to-last order

Date Order Displays files in date order

In Descending Sorts files in last-to-first order

Continuous Play On Displays a slide show continuously

Off Displays a slide show one time through

Screen Switching No Does not display the next file automatically Time

1 Second to 60 Seconds Displays files for the selected time and

switches to the next file automatically; high resolution images may switch at a slightly slower rate

Setting Options Description Effect Wipe Transitions between images with a wipe effect

Dissolve Transitions between images with a dissolve

effect

Random Transitions between images using a random

variety of effects

Parent topic: Projecting a PC Free Presentation

Adjusting Projector Features

Follow the instructions in these sections to use your projector's feature adjustments.

Shutting Off the Picture and Sound Temporarily Stopping Video Action Temporarily Zooming Into and Out of Images Projector Security Features Creating a User Pattern to Display

Shutting Off the Picture and Sound Temporarily

You can temporarily turn off the projected picture and sound if you want to redirect your audience's attention during a presentation. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

If you want to display an image such as a company logo or picture when the presentation is stopped, you can set up this feature using the projector's menus.

Note: If the picture and sound are off for more than 30 minutes, the power automatically turns off. You can adjust this setting using the projector's menu system.

1. Press the A/V Mute button on the remote control to temporarily stop projection and mute any sound.

2. To turn the picture and sound back on, press A/V Mute again.

Note: You can also stop projection using the A/V Mute slide lever on the projector. Parent topic: Adjusting Projector Features

Related references

Projector Setup Settings - ECO Menu

Related tasks

Saving a User's Logo Image to Display

Stopping Video Action Temporarily

You can temporarily stop the action in a video or computer presentation and keep the current image on the screen. Any sound or video action continues to run, however, so you cannot resume projection at the point that you stopped it.

1. Press the Freeze button on the remote control to stop the video action.

2. To restart the video action in progress, press Freeze again.

Parent topic: Adjusting Projector Features

Zooming Into and Out of Images

You can draw attention to parts of a presentation by zooming into a portion of the image and enlarging it on the screen.

1. Press the E-Zoom + button on the remote control.

You see a crosshair on the screen indicating the center of the zoom area.

2. Use the following buttons on the remote control to adjust the zoomed image:

• Use the arrow buttons to position the crosshair in the image area you want to zoom into.

• Press the E-Zoom + button repeatedly to zoom into the image area, enlarging it as necessary.

Press and hold the E-Zoom + button to zoom in more quickly.

• To pan around the zoomed image area, use the arrow buttons.

• To zoom out of the image, press the E-Zoom – button as necessary.

• To return to the original image size, press Esc.

Parent topic: Adjusting Projector Features

Projector Security Features

You can secure your projector to deter theft or prevent unintended use by setting up the following security features:

• Password security to prevent the projector from being turned on, and prevent changes to the startup

screen and other settings.

• Button lock security to block operation of the projector using the buttons on the control panel.

• Security cabling to physically cable the projector in place.

Password Security Types Locking the Projector's Buttons Installing a Security Cable

Parent topic: Adjusting Projector Features

Password Security Types

You can set up these types of password security using one shared password:

• Power On Protection password prevents anyone from using the projector without first entering a

password.

• User's Logo Protection password prevents anyone from changing the custom screen the projector

can display when it turns on or when you use the A/V Mute feature. The presence of the custom screen discourages theft by identifying the projector’s owner.

• Network Protection password prevents anyone from changing the network settings in the projector

menus.

Setting a Password Selecting Password Security Types Entering a Password to Use the Projector Saving a User's Logo Image to Display

Parent topic: Projector Security Features

Setting a Password

To use password security, you must set a password.

1. Hold down the Freeze button on the remote control for about five seconds until you see this menu.

2. Press the down arrow to select Password and press Enter. You see the prompt "Change the password?".

3. Select Yes and press Enter.

4. Hold down the Num button on the remote control and use the numeric buttons to set a four-digit password.

The password displays as **** as you enter it. Then you see the confirmation prompt.

5. Enter the password again. You see the message "Password accepted."

6. Press Esc to return to the menu.

7. Make a note of the password and keep it in a safe place in case you forget it.

Parent topic: Password Security Types

Selecting Password Security Types

After setting a password, you see this menu, allowing you to select the password security types you want to use.

If you do not see this menu, hold down the Freeze button on the remote control for five seconds until the menu appears.

1. To prevent unauthorized use of the projector, select Power On Protection, press Enter, select On, press Enter again, and press Esc.

2. To prevent changes to the User's Logo screen or related display settings, select User's Logo Protection, press Enter, select On, press Enter again, and press Esc.

3. To prevent changes to network settings, select Network Protection, press Enter, select On, press

Enter again, and press Esc.

Note: Be sure to keep the remote control in a safe place; if you lose it, you will not be able to enter the

password required to use the projector.

Parent topic: Password Security Types

Entering a Password to Use the Projector

If a password is set up and a Power On Protection password is enabled, you see a prompt to enter a password whenever you turn on the projector.

You must enter the correct password to use the projector.

1. Hold down the Num button on the remote control while you enter the password using the numeric buttons.

The password screen closes.

2. If the password is incorrect, the following may happen:

• You see a "wrong password" message and a prompt to try again. Enter the correct password to

proceed.

• If you enter an incorrect password several times in succession, the projector displays a request

code and a message to contact Epson Support. When you contact Epson Support, provide the displayed request code and proof of ownership for assistance in unlocking the projector.

Parent topic: Password Security Types Related references

Where to Get Help

Saving a User's Logo Image to Display

You can transfer an image to the projector and then display it whenever the projector turns on. You can also display the image when the projector is not receiving an input signal or when you temporarily stop projection (using the A/V Mute feature). This transferred image is called the User's Logo screen.

The image you select as the User's Logo can be a photo, graphic, or company logo, which is useful in identifying the projector's owner to help deter theft. You can prevent changes to the User's Logo by setting up password protection for it.

1. Display the image you want to project as the User's Logo.

2. Press the Menu button, select the Extended menu, and press Enter.

3. Select the User's Logo setting and press Enter. You see a prompt asking if you want to use the displayed image as a user's logo.

4. Select Yes and press Enter. You see a selection box overlaying your image.

5. Use the arrow buttons on the remote control to surround the image area you want to use as the User's Logo and press Enter.

You see a prompt asking if you want to select this image area.

6. Select Yes and press Enter. (If you want to change the selected area, select No, press Enter, and repeat the last step.)

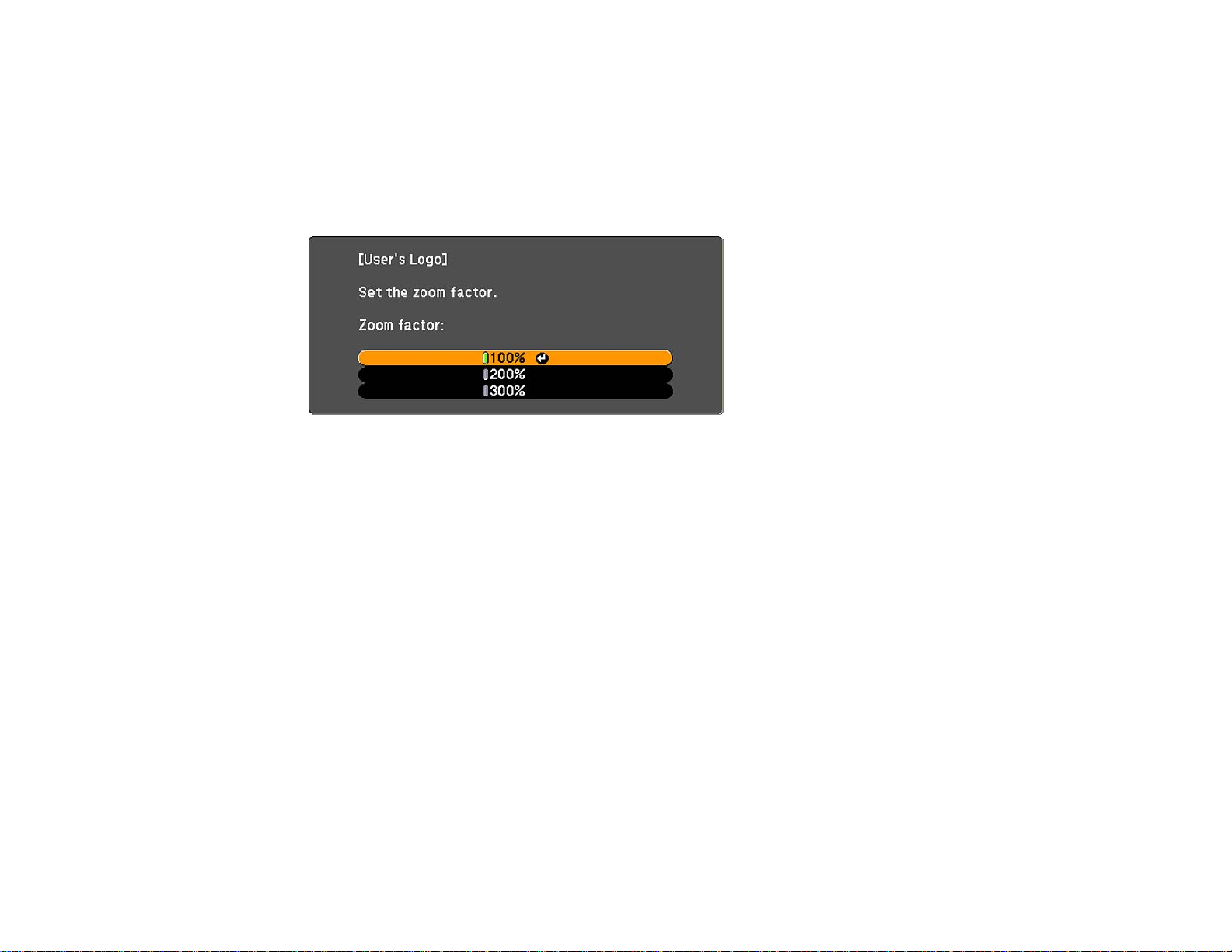

You see the User's Logo zoom factor menu.

7. Select a zoom percentage and press Enter. You see a prompt asking if you want to save the image as the User's Logo.

8. Select Yes and press Enter. Note: It takes a few moments for the projector to save the image; do not use the projector, its remote

control, or any connected equipment until it is finished. You see a completion message.

9. Press Esc to exit the message screen.

10. Select the Extended menu and press Enter.

11. Select Display and press Enter.

12. Select when you want to display the User's Logo screen:

• To display it whenever there is no input signal, select Display Background and set it to Logo.

• To display it whenever you turn the projector on, select Startup Screen and set it to On.

• To display it whenever you press the A/V Mute button, select A/V Mute and set it to Logo.

To prevent anyone from changing the User's Logo settings without first entering a password, set a password and enable User's Logo security.

Parent topic: Password Security Types Related tasks

Shutting Off the Picture and Sound Temporarily Setting a Password Selecting Password Security Types

Locking the Projector's Buttons

You can lock the buttons on the projector's control panel to prevent anyone from using the projector. You can lock all the buttons or all the buttons except the power button.

1. Press the Menu button.

2. Select the Settings menu and press Enter.

3. Select the Control Panel Lock setting and press Enter.

4. Select one of these lock types and press Enter:

• To lock all of the projector's buttons, select Full Lock.

• To lock all buttons except the power button, select Partial Lock. You see a confirmation prompt.

5. Select Yes and press Enter.

Unlocking the Projector's Buttons

Parent topic: Projector Security Features

Unlocking the Projector's Buttons

If the projector's buttons have been locked, hold the Enter button on the projector's control panel for seven seconds to unlock them.

Parent topic: Locking the Projector's Buttons

Installing a Security Cable

You can install two types of security cables on the projector to deter theft.

• Use the security slot on the projector to attach a Kensington Microsaver Security system, available

from Epson.

• Use the security cable attachment point on the projector to attach a wire cable and secure it to a room

fixture or heavy furniture.

Parent topic: Projector Security Features Related references

Optional Equipment and Replacement Parts

Creating a User Pattern to Display

You can transfer an image to the projector and then display it as a pattern to aid in presentations when you use the Pattern Display feature. This transferred image is called the User Pattern.

1. Display the image you want to project as the User Pattern from a connected computer or video source.

100

Epson 98, 955W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction to Your Projector

Projector Features

Product Box Contents

Additional Components

Optional Equipment and Replacement Parts

Warranty and Registration Information

Notations Used in the Documentation

Where to Go for Additional Information

Projector Part Locations

Projector Parts - Front/Top

Projector Parts - Rear

Projector Parts - Base
