Epsolar EPHC10-EC User Manual

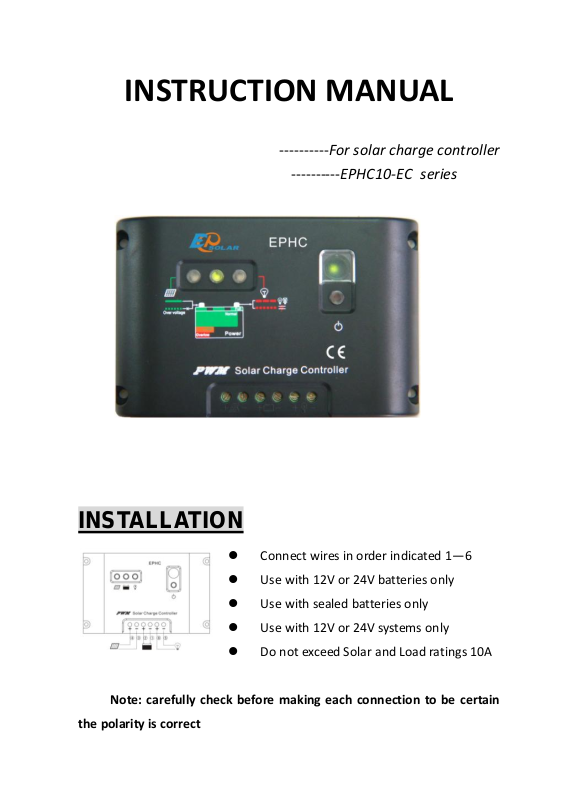

INSTRUCTION MANUAL

INSTALLATION

----------For solar charge controller

----------EPHC10-EC series

 Connect wires in order indicated 1—6
 Use with 12V or 24V batteries only
 Use with sealed batteries only
 Use with 12V or 24V systems only
 Do not exceed Solar and Load ratings 10A

Note: carefully check before making each connection to be certain

the polarity is correct

LED indicator

Green ON when solar is charging battery

Green blink when the system over voltage

Green ON when battery level in the right range

Green slowly flashing when battery level full

Yellow ON when battery level low

Red ON when loads cut off

Red slowly flashing when it’s over load

(The load amps is 1.25 times of rated current for 60 seconds,

or the load amps is 1.5 times of rated current for 5 seconds)

Red fast flashing when the load is short-circuit.

Red ON when the switch is ON.

Red OFF when the switch is OFF.

The default status is ON

Please note:

1. The output will be cut off once there is over load or short circuit.

While short circuit occurs, the controller will have 4 automatic loads

reconnect attempts. There will be 10s between the first three attempts and

20s between the 3rd and 4th attempts. For the fifth short circuit, the load

can be only reconnected after 24hours.Anytime, please check the load and
